HYUNDAI KONA 2023 Owners Manual

Driving your vehicle6-16

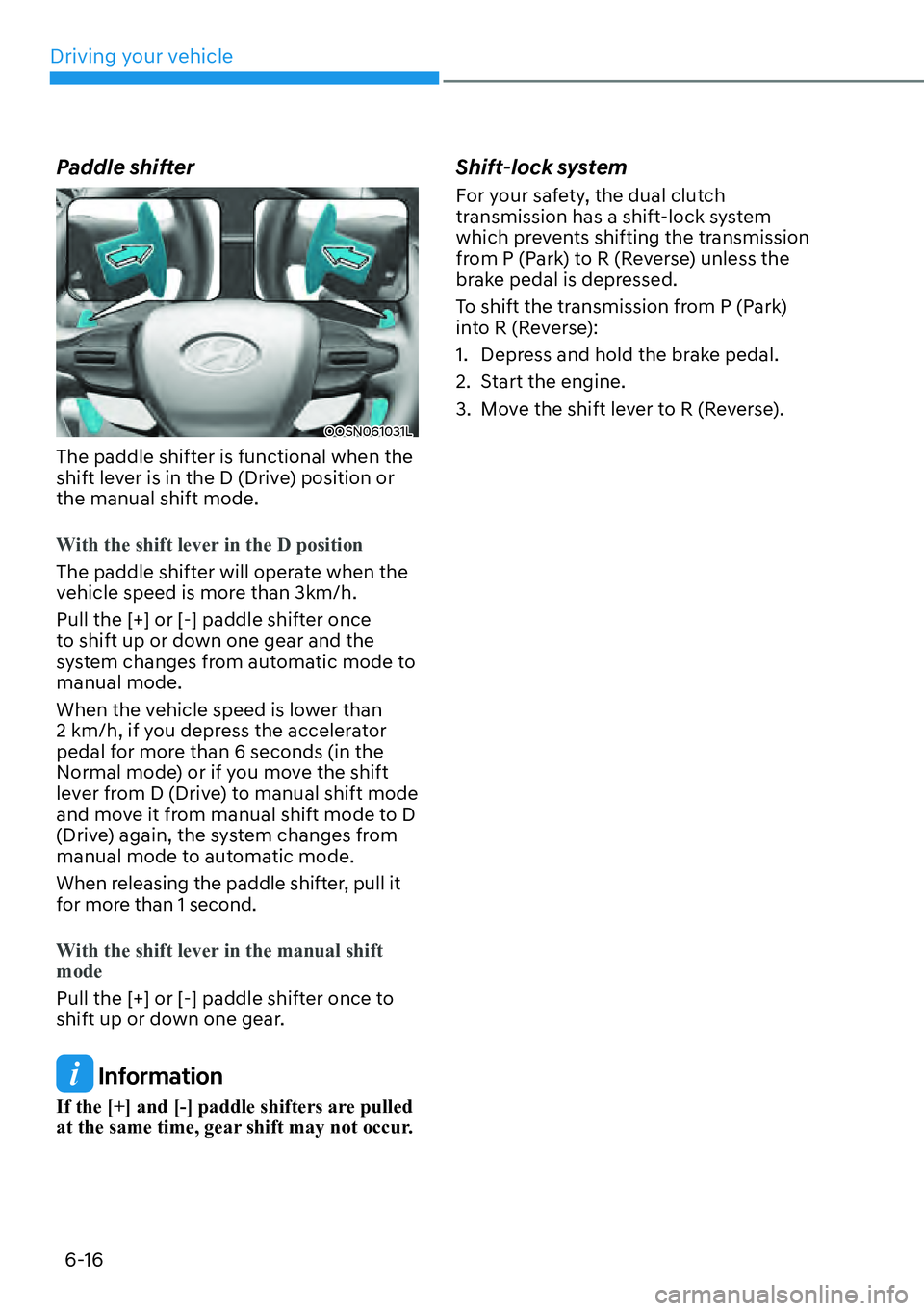

Paddle shifter
OOSN061031L
The paddle shifter is functional when the
shift lever is in the D (Drive) position or
the manual shift mode.
With the shift lever in the D position
The paddle shifter will operate when the
v
ehicle speed is more than 3km/h.
Pull the [+] or [-] paddle shifter once
to shift up or down one gear and the
system changes from automatic mode to
manual mode.
When the vehicle speed is lower than
2 km/h, if you depress the accelerator
pedal for more than 6 seconds (in the
Normal mode) or if you move the shift
lever from D (Drive) to manual shift mode
and move it from manual shift mode to D
(Drive) again, the system changes from
manual mode to automatic mode.
When releasing the paddle shifter, pull it
for more than 1 second.
With the shift lever in the manual shift
mode
Pull the [+] or [-] paddle shifter once to
shift up or do
wn one gear.
Information
If the [+] and [-] paddle shifters are pulled
at the same time, gear shift may not occur.
Shift-lock system
For your safety, the dual clutch
transmission has a shift-lock system
which prevents shifting the transmission
from P (Park) to R (Reverse) unless the
brake pedal is depressed.
To shift the transmission from P (Park)
into R (Reverse):
1. Depress and hold the brake pedal.
2. Start the engine.
3. Move the shift lever to R (Reverse).

06
6-17

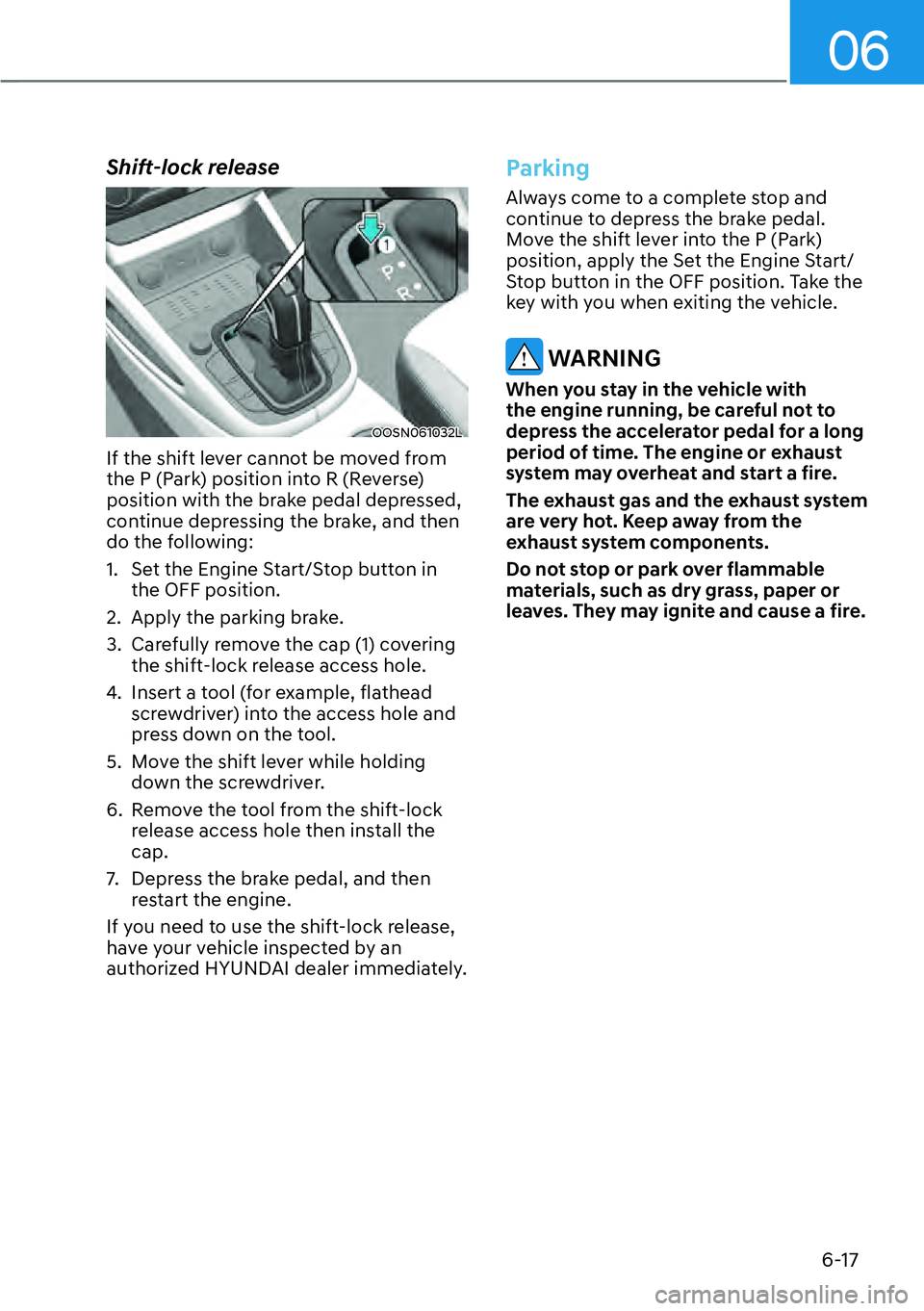

Shift-lock release
OOSN061032L
If the shift lever cannot be moved from
the P (Park) position into R (Reverse)
position with the brake pedal depressed,
continue depressing the brake, and then
do the following:
1. Set the Engine Start/Stop button in the OFF position.
2. Apply the parking brake.
3. Carefully remove the cap (1) covering the shift-lock release access hole.
4. Insert a tool (for example, flathead screwdriver) into the access hole and
press down on the tool.
5. Move the shift lever while holding down the screwdriver.
6. Remove the tool from the shift-lock release access hole then install the
cap.
7. Depress the brake pedal, and then restart the engine.
If you need to use the shift-lock release,
have your vehicle inspected by an
authorized HYUNDAI dealer immediately.
Parking
Always come to a complete stop and
continue to depress the brake pedal.
Move the shift lever into the P (Park)
position, apply the Set the Engine Start/
Stop button in the OFF position. Take the
key with you when exiting the vehicle.
WARNING
When you stay in the vehicle with
the engine running, be careful not to
depress the accelerator pedal for a long
period of time. The engine or exhaust
system may overheat and start a fire.
The exhaust gas and the exhaust system
are very hot. Keep away from the
exhaust system components.
Do not stop or park over flammable
materials, such as dry grass, paper or
leaves. They may ignite and cause a fire.

Driving your vehicle6-18

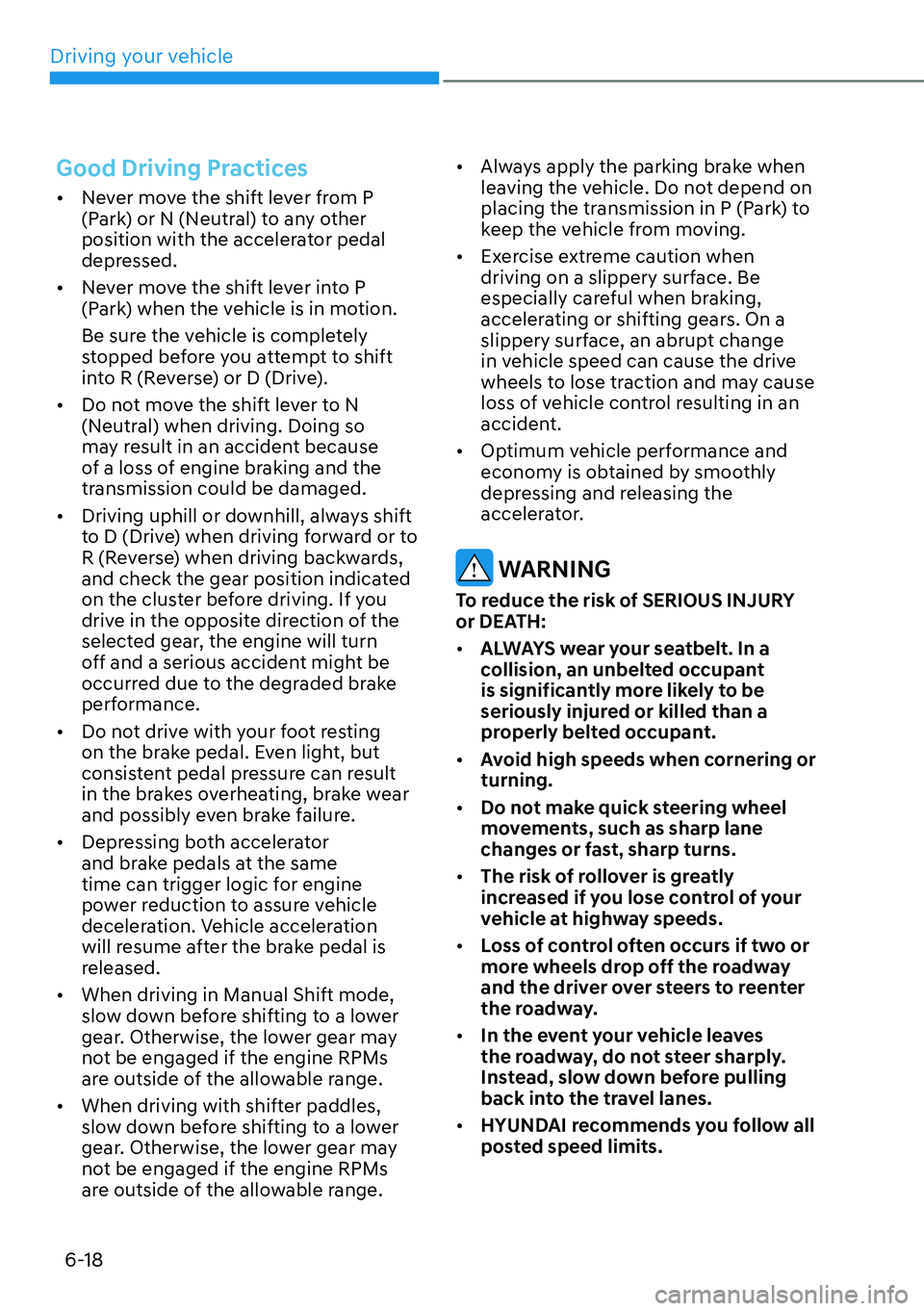

Good Driving Practices

[ Never move the shift lever from P
(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.

[ Never move the shift lever into P
(Park) when the vehicle is in motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).

[ Do not move the shift lever to N
(Neutral) when driving. Doing so
may result in an accident because
of a loss of engine braking and the
transmission could be damaged.

[ Driving uphill or downhill, always shift
to D (Drive) when driving forward or to
R (Reverse) when driving backwards,
and check the gear position indicated
on the cluster before driving. If you
drive in the opposite direction of the
selected gear, the engine will turn
off and a serious accident might be
occurred due to the degraded brake
performance.

[ Do not drive with your foot resting
on the brake pedal. Even light, but
consistent pedal pressure can result
in the brakes overheating, brake wear
and possibly even brake failure.

[ Depressing both accelerator
and brake pedals at the same
time can trigger logic for engine
power reduction to assure vehicle
deceleration. Vehicle acceleration
will resume after the brake pedal is
released.

[ When driving in Manual Shift mode,
slow down before shifting to a lower
gear. Otherwise, the lower gear may
not be engaged if the engine RPMs
are outside of the allowable range.

[ When driving with shifter paddles,
slow down before shifting to a lower
gear. Otherwise, the lower gear may
not be engaged if the engine RPMs
are outside of the allowable range.
[
Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the transmission in P (Park) to
keep the vehicle from moving.

[ Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in an
accident.

[ Optimum vehicle performance and
economy is obtained by smoothly
depressing and releasing the
accelerator.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[ALWAYS wear your seatbelt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.

[ Avoid high speeds when cornering or
turning.

[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[ The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the t ravel lanes.

[ HYUNDAI recommends you follow all
posted speed limits.

06
6-19

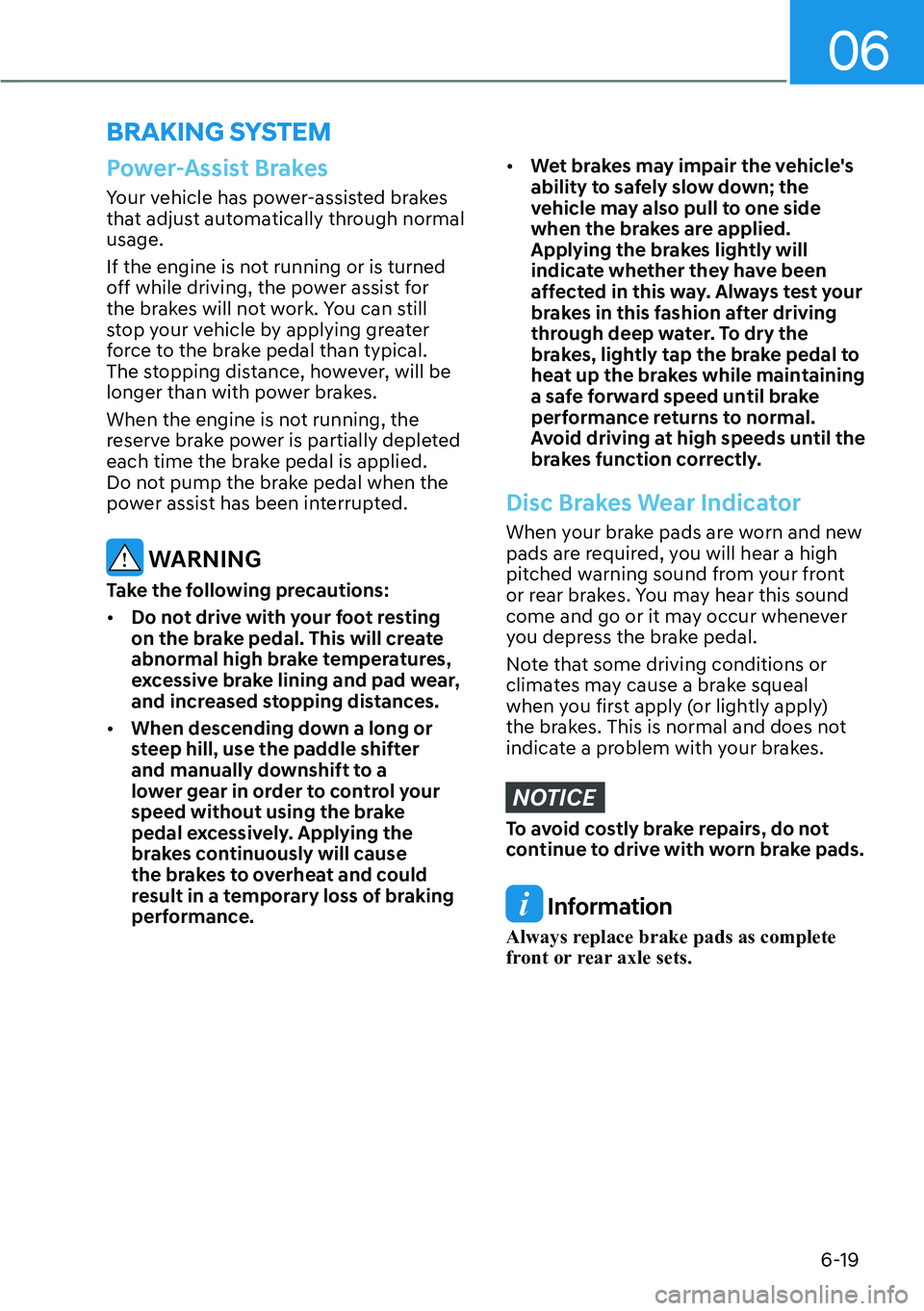

BRAKING SYSTEM
Power-Assist Brakes
Your vehicle has power-assisted brakes
that adjust automatically through normal
usage.
If the engine is not running or is turned
off while driving, the power assist for
the brakes will not work. You can still
stop your vehicle by applying greater
force to the brake pedal than typical.
The stopping distance, however, will be
longer than with power brakes.
When the engine is not running, the
reserve brake power is partially depleted
each time the brake pedal is applied.
Do not pump the brake pedal when the
power assist has been interrupted.
WARNING
Take the following precautions:

[Do not drive with your foot resting
on the brake pedal. This will create
abnormal high brake temperatures,
excessive brake lining and pad wear,
and increased stopping distances.

[ When descending down a long or
steep hill, use the paddle shifter
and manually downshift to a
lower gear in order to control your
speed without using the brake
pedal excessively. Applying the
brakes continuously will cause
the brakes to overheat and could
result in a temporary loss of braking
performance.

[Wet brakes may impair the vehicle's
ability to safely slow down; the
vehicle may also pull to one side
when the brakes are applied.
Applying the brakes lightly will
indicate whether they have been
affected in this way. Always test your
brakes in this fashion after driving
through deep water. To dry the
brakes, lightly tap the brake pedal to
heat up the brakes while maintaining
a safe forward speed until brake
performance returns to normal.
Avoid driving at high speeds until the
brakes function correctly.
Disc Brakes Wear Indicator
When your brake pads are worn and new
pads are required, you will hear a high
pitched warning sound from your front
or rear brakes. You may hear this sound
come and go or it may occur whenever
you depress the brake pedal.
Note that some driving conditions or
climates may cause a brake squeal
when you first apply (or lightly apply)
the brakes. This is normal and does not
indicate a problem with your brakes.
NOTICE
To avoid costly brake repairs, do not
continue to drive with worn brake pads.
Information
Always replace brake pads as complete
front or rear axle sets.

Driving your vehicle6-20

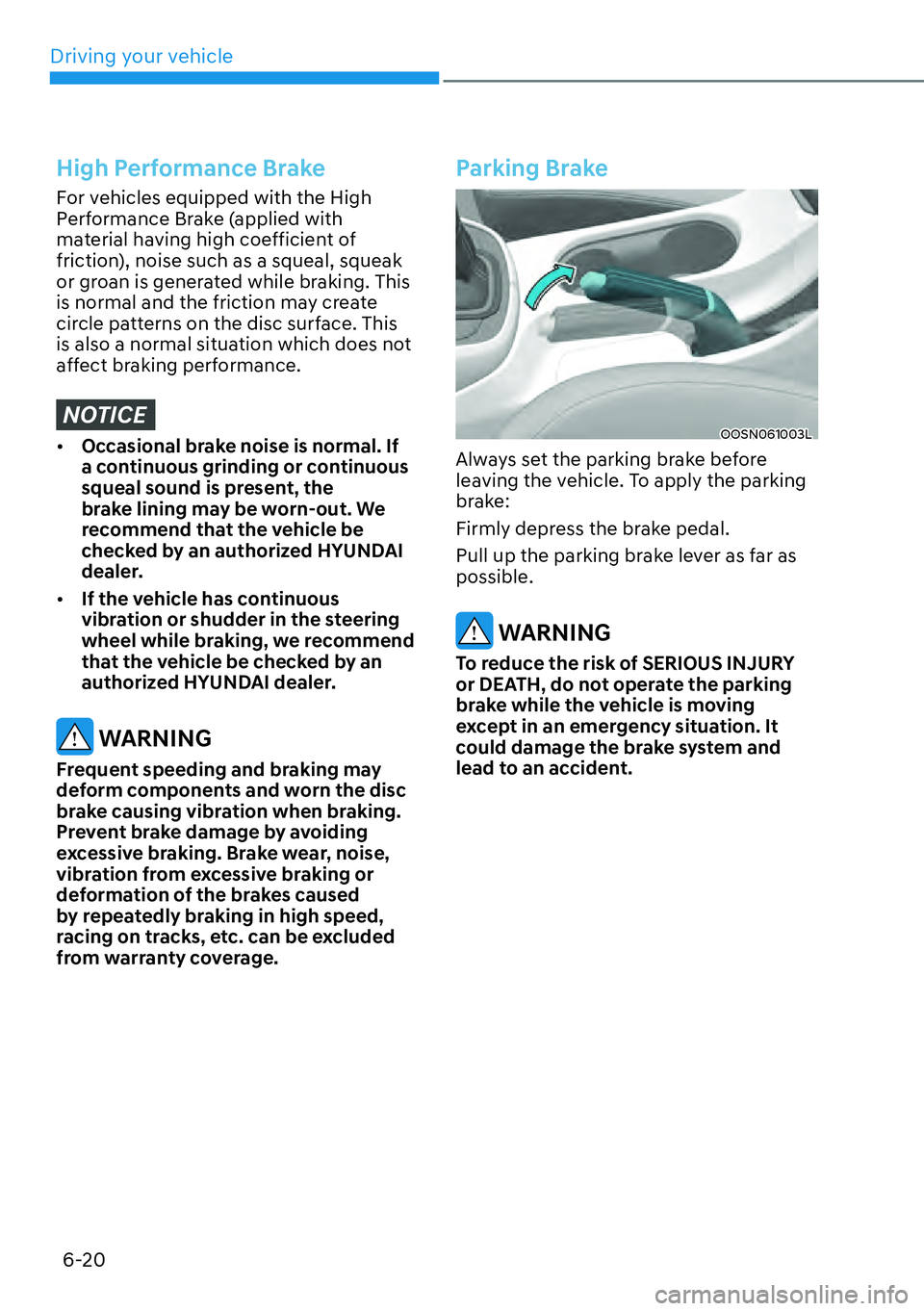

High Performance Brake
For vehicles equipped with the High
Performance Brake (applied with
material having high coefficient of
friction), noise such as a squeal, squeak
or groan is generated while braking. This
is normal and the friction may create
circle patterns on the disc surface. This
is also a normal situation which does not
affect braking performance.
NOTICE

[ Occasional brake noise is normal. If
a continuous grinding or continuous
squeal sound is present, the
brake lining may be worn-out. We
recommend that the vehicle be
checked by an authorized HYUNDAI
dealer.

[ If the vehicle has continuous
vibration or shudder in the steering
wheel while braking, we recommend
that the vehicle be checked by an
authorized HYUNDAI dealer.
WARNING
Frequent speeding and braking may
deform components and worn the disc
brake causing vibration when braking.
Prevent brake damage by avoiding
excessive braking. Brake wear, noise,
vibration from excessive braking or
deformation of the brakes caused
by repeatedly braking in high speed,
racing on tracks, etc. can be excluded
from warranty coverage.
Parking Brake
OOSN061003L
Always set the parking brake before
leaving the vehicle. To apply the parking
brake:
Firmly depress the brake pedal.
Pull up the parking brake lever as far as
possible.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH, do not operate the parking
brake while the vehicle is moving
except in an emergency situation. It
could damage the brake system and
lead to an accident.

06
6-21

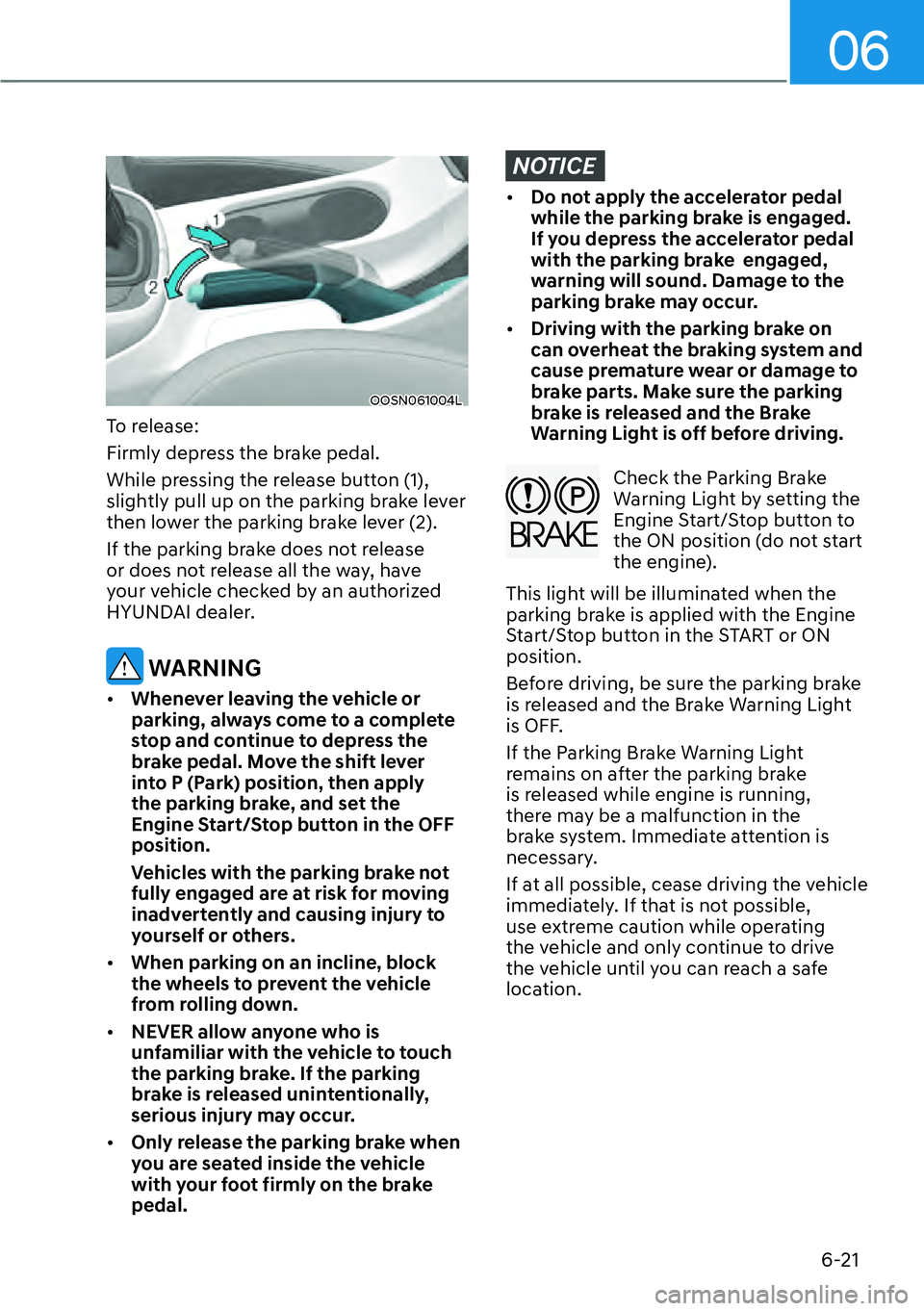

OOSN061004L
To release:
Firmly depress the brake pedal.
While pressing the release button (1),
slightly pull up on the parking brake lever
then lower the parking brake lever (2).
If the parking brake does not release
or does not release all the way, have
your vehicle checked by an authorized
HYUNDAI dealer.
WARNING

[Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the
brake pedal. Move the shift lever
into P (Park) position, then apply
the parking brake, and set the
Engine Start/Stop button in the OFF
position.
Vehicles with the parking brake not
fully engaged are at risk for moving
inadvertently and causing injury to
yourself or others.

[ When parking on an incline, block
the wheels to prevent the vehicle
from rolling down.

[ NEVER allow anyone who is
unfamiliar with the vehicle to touch
the parking brake. If the parking
brake is released unintentionally,
serious injury may occur.

[ Only release the parking brake when
you are seated inside the vehicle
with your foot firmly on the brake
pedal.
NOTICE

[Do not apply the accelerator pedal
while the parking brake is engaged.
If you depress the accelerator pedal
with the parking brake engaged,
warning will sound. Damage to the
parking brake may occur.

[ Driving with the parking brake on
can overheat the braking system and
cause premature wear or damage to
brake parts. Make sure the parking
brake is released and the Brake
Warning Light is off before driving.
Check the Parking Brake
Warning Light by setting the
Engine Start/Stop button to
the ON position (do not start
the engine).
This light will be illuminated when the
parking brake is applied with the Engine
Start/Stop button in the START or ON
position.
Before driving, be sure the parking brake
is released and the Brake Warning Light
is OFF.
If the Parking Brake Warning Light
remains on after the parking brake
is released while engine is running,
there may be a malfunction in the
brake system. Immediate attention is
necessary.
If at all possible, cease driving the vehicle
immediately. If that is not possible,
use extreme caution while operating
the vehicle and only continue to drive
the vehicle until you can reach a safe
location.

Driving your vehicle6-22

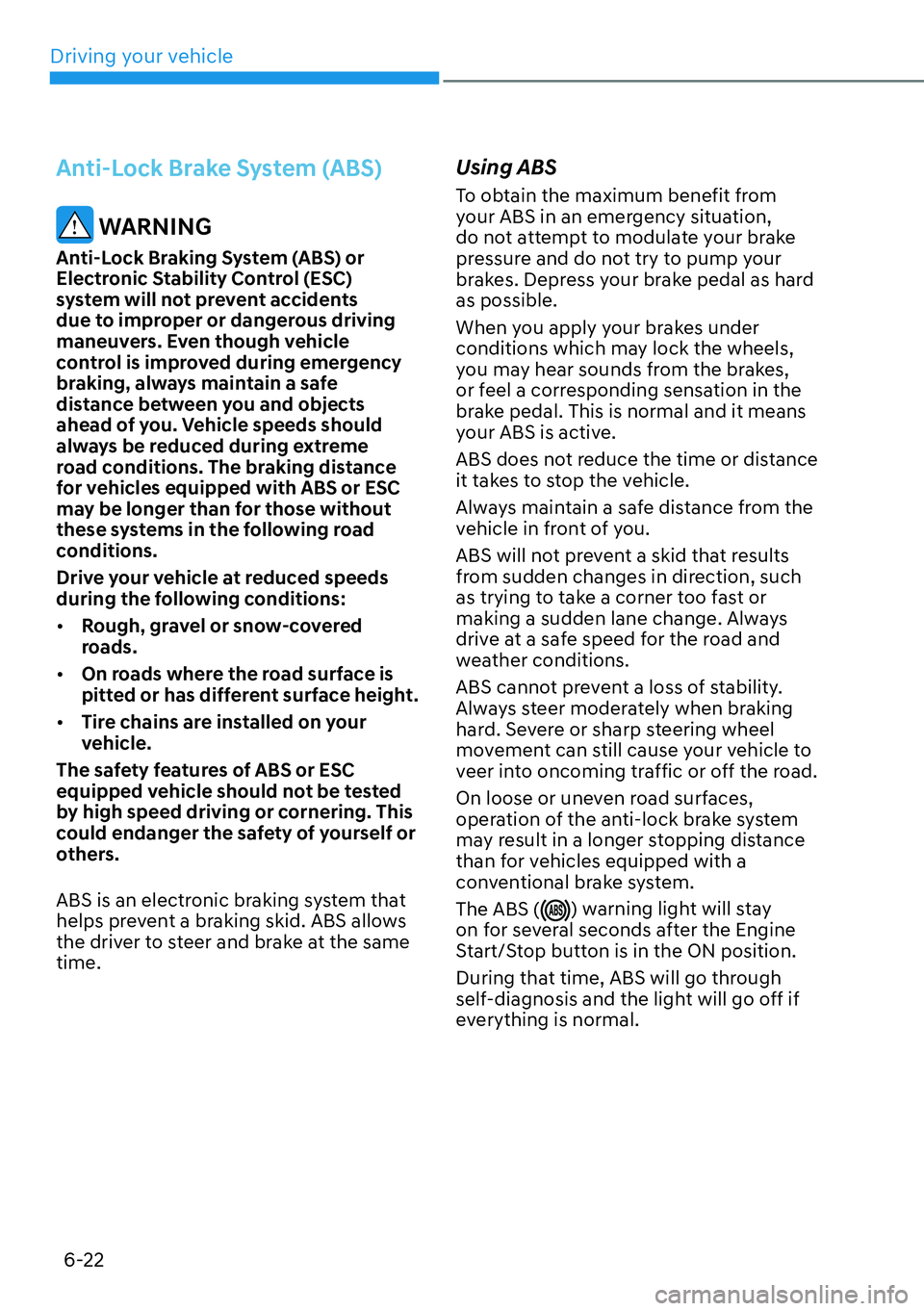

Anti-Lock Brake System (ABS)
WARNING
Anti-Lock Braking System (ABS) or
Electronic Stability Control (ESC)
system will not prevent accidents
due to improper or dangerous driving
maneuvers. Even though vehicle
control is improved during emergency
braking, always maintain a safe
distance between you and objects
ahead of you. Vehicle speeds should
always be reduced during extreme
road conditions. The braking distance
for vehicles equipped with ABS or ESC
may be longer than for those without
these systems in the following road
conditions.
Drive your vehicle at reduced speeds
during the following conditions:

[ Rough, gravel or snow-covered
roads.

[ On roads where the road surface is
pitted or has different surface height.

[ Tire chains are installed on your
vehicle.
The safety features of ABS or ESC
equipped vehicle should not be tested
by high speed driving or cornering. This
could endanger the safety of yourself or
others.
ABS is an electronic braking system that
helps prevent a braking skid. ABS allows
the driver to steer and brake at the same
time.
Using ABS
To obtain the maximum benefit from
your ABS in an emergency situation,
do not attempt to modulate your brake
pressure and do not try to pump your
brakes. Depress your brake pedal as hard
as possible.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in the
brake pedal. This is normal and it means
your ABS is active.
ABS does not reduce the time or distance
it takes to stop the vehicle.
Always maintain a safe distance from the
vehicle in front of you.
ABS will not prevent a skid that results
from sudden changes in direction, such
as trying to take a corner too fast or
making a sudden lane change. Always
drive at a safe speed for the road and
weather conditions.
ABS cannot prevent a loss of stability.
Always steer moderately when braking
hard. Severe or sharp steering wheel
movement can still cause your vehicle to
veer into oncoming traffic or off the road.
On loose or uneven road surfaces,
operation of the anti-lock brake system
may result in a longer stopping distance
than for vehicles equipped with a
conventional brake system.
The ABS (
) warning light will stay
on for several seconds after the Engine
Start/Stop button is in the ON position.
During that time, ABS will go through
self-diagnosis and the light will go off if
everything is normal.

06
6-23

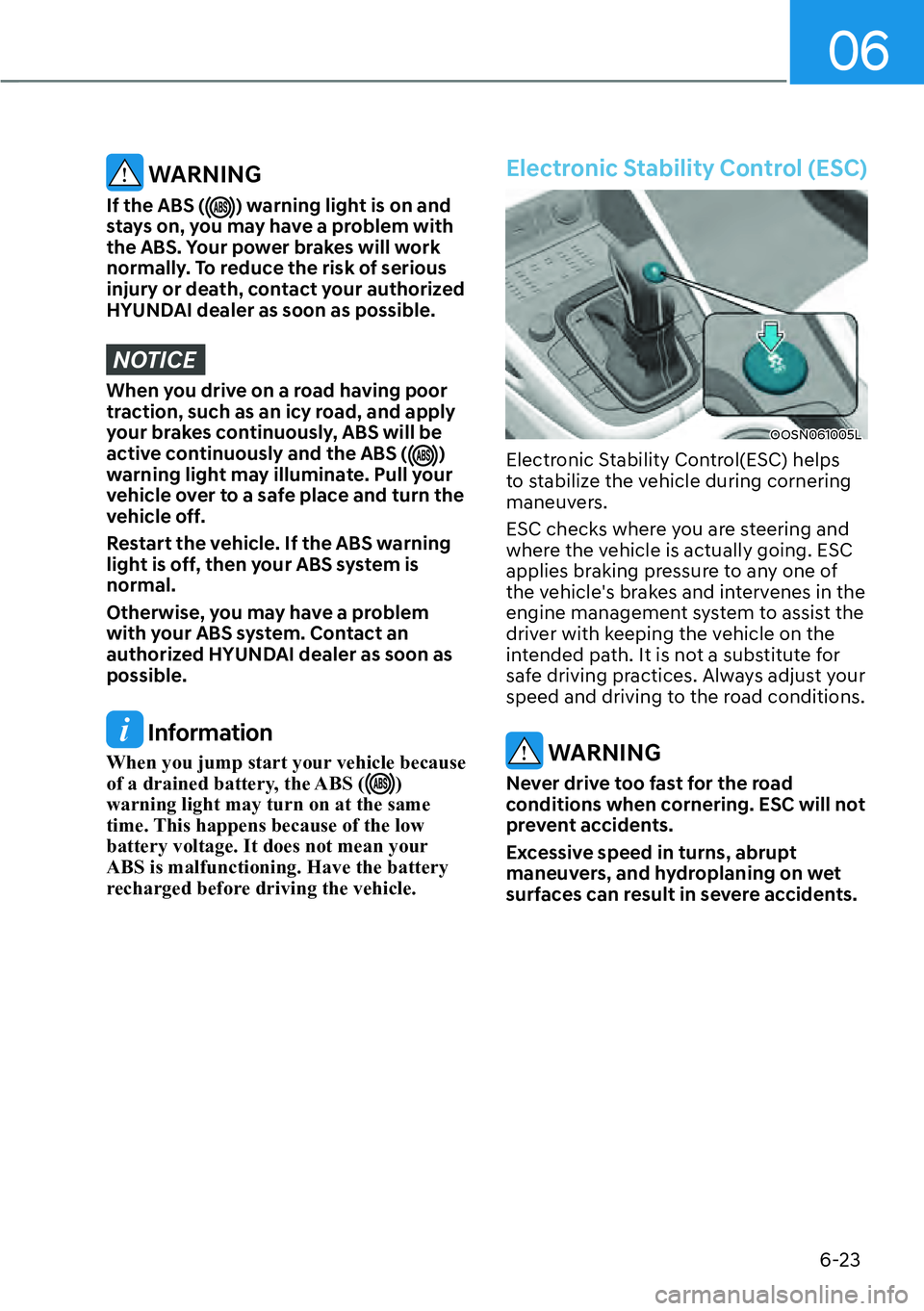

WARNING
If the ABS () warning light is on and
stays on, you may have a problem with
the ABS. Your power brakes will work
normally. To reduce the risk of serious
injury or death, contact your authorized
HYUNDAI dealer as soon as possible.
NOTICE
When you drive on a road having poor
traction, such as an icy road, and apply
your brakes continuously, ABS will be
active continuously and the ABS (
)
warning light may illuminate. Pull your
vehicle over to a safe place and turn the
vehicle off.
Restart the vehicle. If the ABS warning
light is off, then your ABS system is
normal.
Otherwise, you may have a problem
with your ABS system. Contact an
authorized HYUNDAI dealer as soon as
possible.
Information
When you jump start your vehicle because
of a drained battery, the ABS ()
warning light may turn on at the same
time. This happens because of the low
battery voltage. It does not mean your
ABS is malfunctioning. Have the battery
recharged before driving the vehicle.
Electronic Stability Control (ESC)
OOSN061005L
Electronic Stability Control(ESC) helps
to stabilize the vehicle during cornering
maneuvers.
ESC checks where you are steering and
where the vehicle is actually going. ESC
applies braking pressure to any one of
the vehicle's brakes and intervenes in the
engine management system to assist the
driver with keeping the vehicle on the
intended path. It is not a substitute for
safe driving practices. Always adjust your
speed and driving to the road conditions.
WARNING
Never drive too fast for the road
conditions when cornering. ESC will not
prevent accidents.
Excessive speed in turns, abrupt
maneuvers, and hydroplaning on wet
surfaces can result in severe accidents.

Driving your vehicle6-24

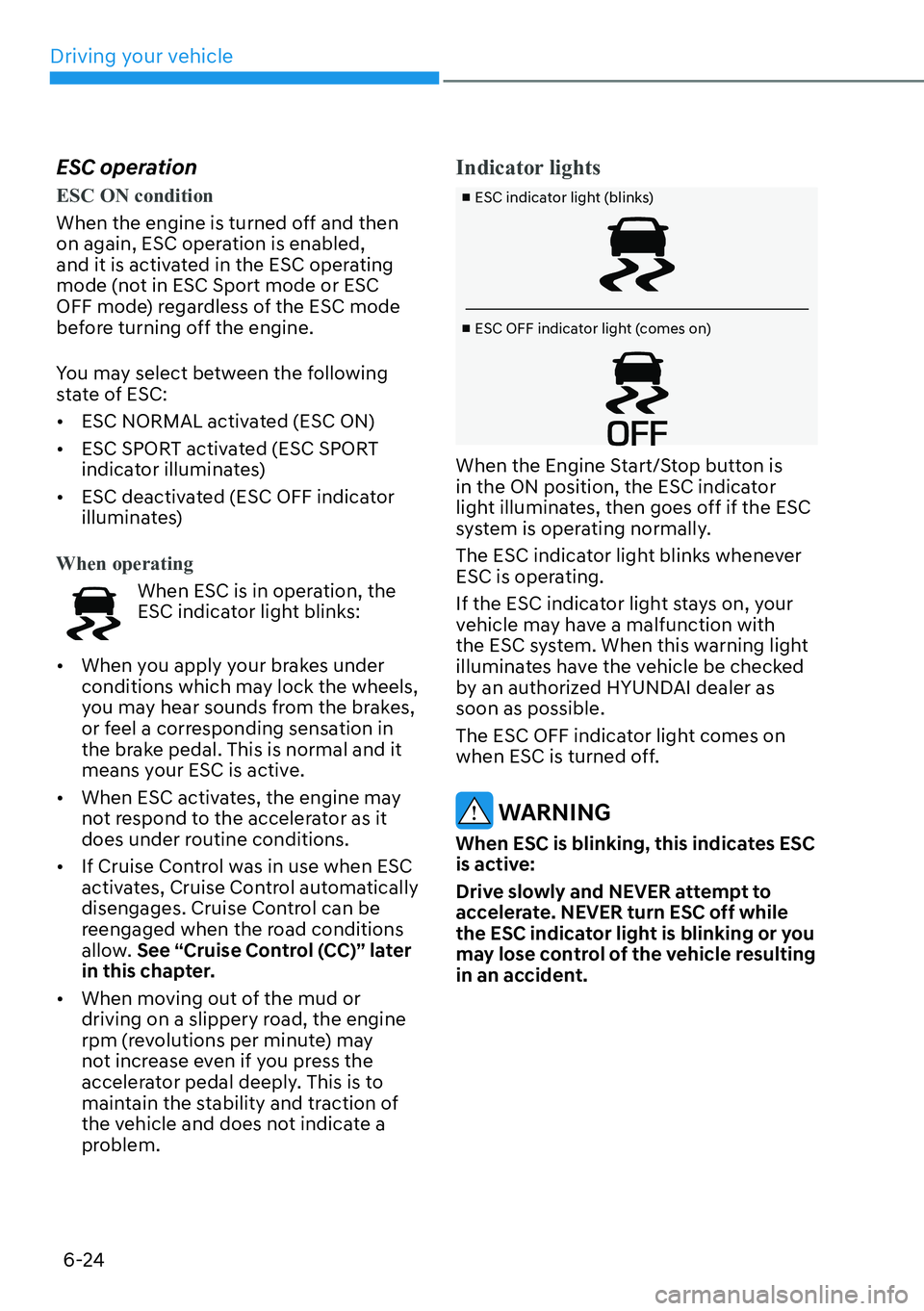

ESC operation
ESC ON condition
When the engine is turned off and then
on again, ESC oper
ation is enabled,
and it is activated in the ESC operating
mode (not in ESC Sport mode or ESC
OFF mode) regardless of the ESC mode
before turning off the engine.
You may select between the following
state of ESC:

[ ESC NORMAL activated (ESC ON)

[ ESC SPORT activated (ESC SPORT
indicator illuminates)

[ ESC deactivated (ESC OFF indicator
illuminates)
When operating
When ESC is in operation, the
ESC indicator light blinks:

[ When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in
the brake pedal. This is normal and it
means your ESC is active.

[ When ESC activates, the engine may
not respond to the accelerator as it
does under routine conditions.

[ If Cruise Control was in use when ESC
activates, Cruise Control automatically
disengages. Cruise Control can be
reengaged when the road conditions
allow. See “Cruise Control (CC)” later
in this chapter.

[ When moving out of the mud or
driving on a slippery road, the engine
rpm (revolutions per minute) may
not increase even if you press the
accelerator pedal deeply. This is to
maintain the stability and traction of
the vehicle and does not indicate a
problem.
Indicator lights

v
ESC indicator light (blinks)

v ESC OFF indicator light (comes on)
When the Engine Start/Stop button is
in the ON position, the ESC indicator
light illuminates, then goes off if the ESC
system is operating normally.
The ESC indicator light blinks whenever
ESC is operating.
If the ESC indicator light stays on, your
vehicle may have a malfunction with
the ESC system. When this warning light
illuminates have the vehicle be checked
by an authorized HYUNDAI dealer as
soon as possible.
The ESC OFF indicator light comes on
when ESC is turned off.
WARNING
When ESC is blinking, this indicates ESC
is active:
Drive slowly and NEVER attempt to
accelerate. NEVER turn ESC off while
the ESC indicator light is blinking or you
may lose control of the vehicle resulting
in an accident.

06
6-25

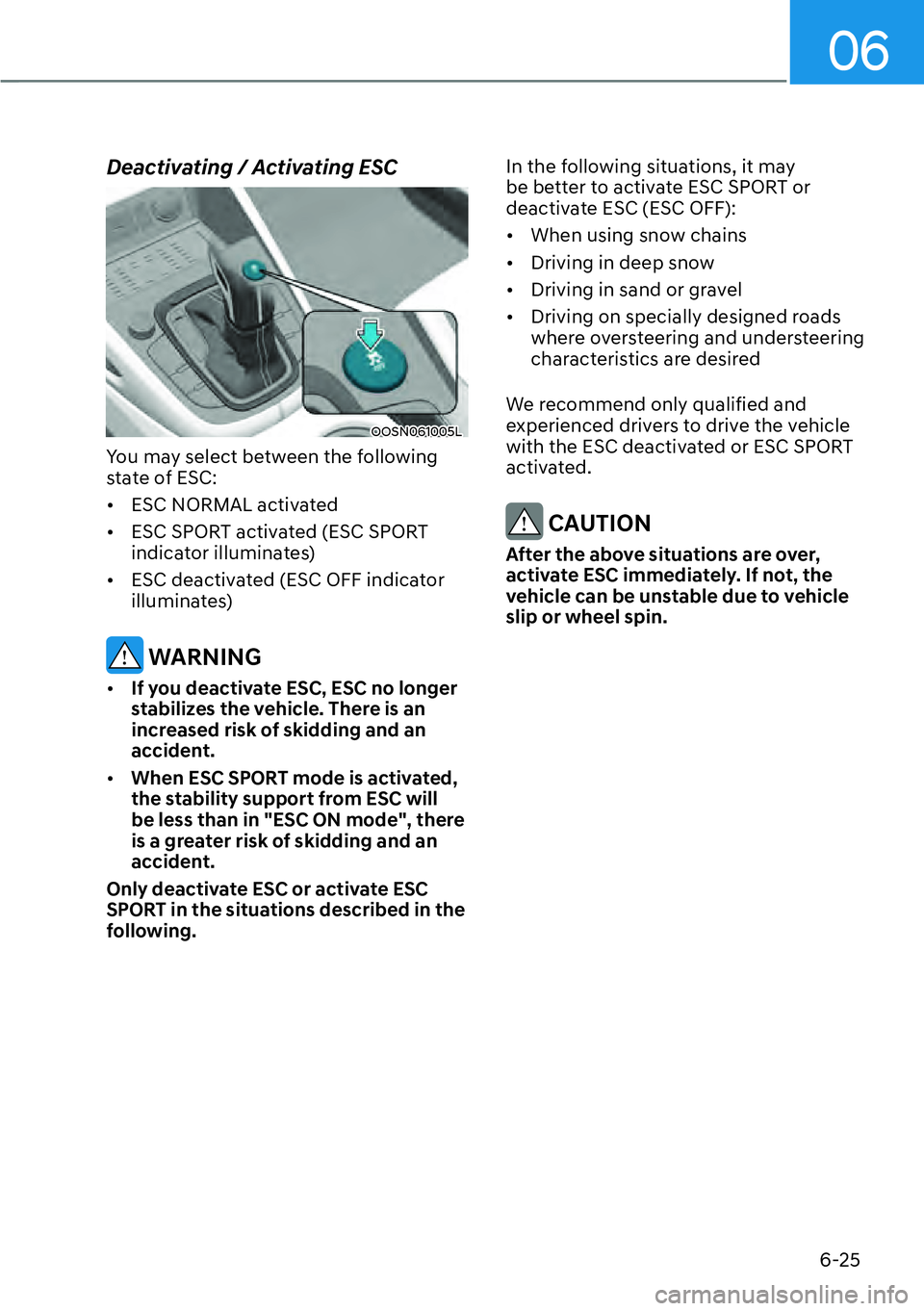

Deactivating / Activating ESC
OOSN061005L
You may select between the following
state of ESC:

[ESC NORMAL activated

[ ESC SPORT activated (ESC SPORT
indicator illuminates)

[ ESC deactivated (ESC OFF indicator
illuminates)
WARNING

[If you deactivate ESC, ESC no longer
stabilizes the vehicle. There is an
increased risk of skidding and an
accident.

[ When ESC SPORT mode is activated,
the stability support from ESC will
be less than in "ESC ON mode", there
is a greater risk of skidding and an
accident.
Only deactivate ESC or activate ESC
SPORT in the situations described in the
following. In the following situations, it may
be better to activate ESC SPORT or
deactivate ESC (ESC OFF):

[
When using snow chains

[ Driving in deep snow

[ Driving in sand or gravel

[ Driving on specially designed roads
where oversteering and understeering
characteristics are desired
We recommend only qualified and
experienced drivers to drive the vehicle
with the ESC deactivated or ESC SPORT
activated.
CAUTION
After the above situations are over,
activate ESC immediately. If not, the
vehicle can be unstable due to vehicle
slip or wheel spin.
