HYUNDAI KONA 2023 Owners Manual

Driving your vehicle6-26
OCN7N061247N

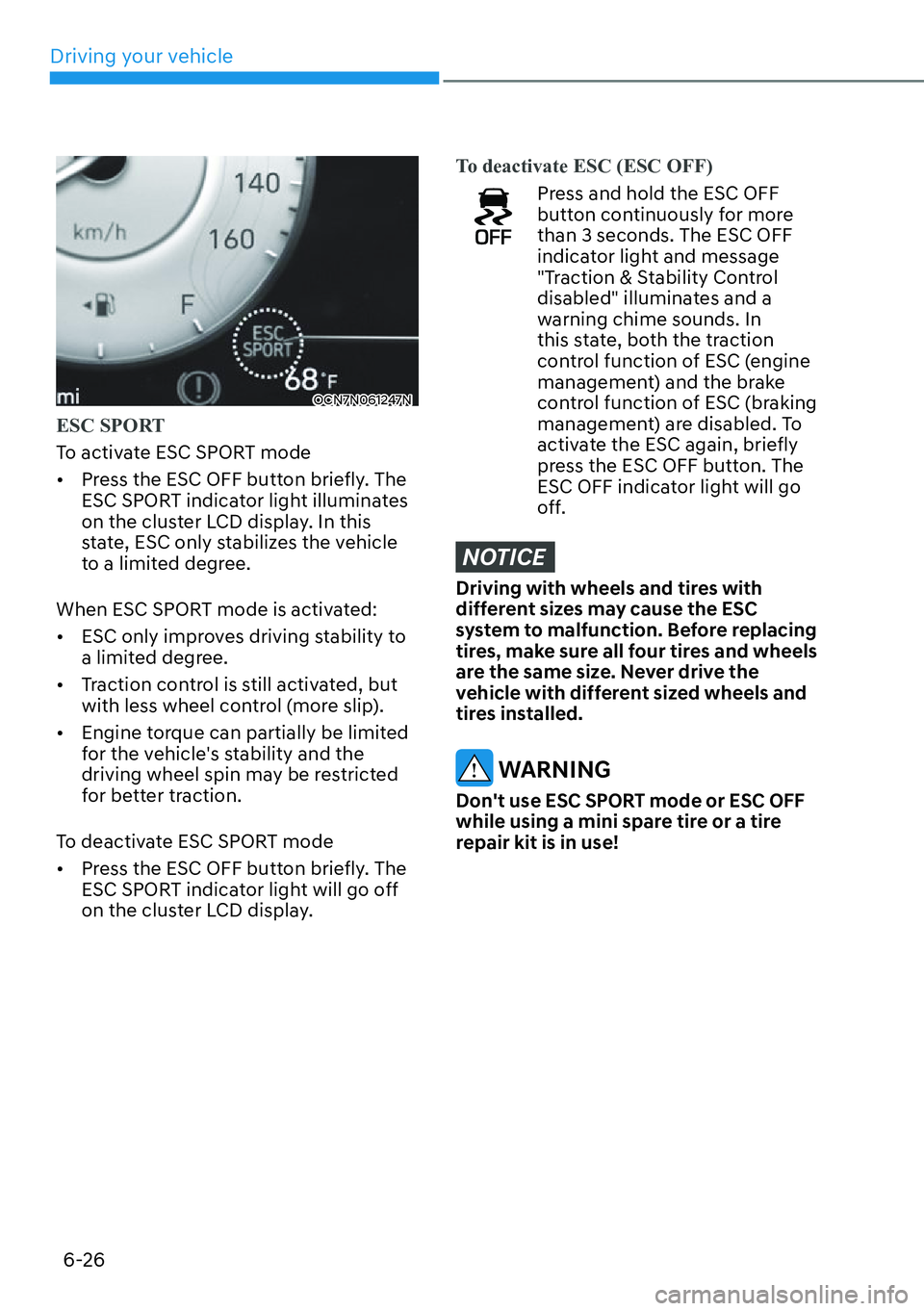

ESC SPORT
To activate ESC SPORT mode

[ Pr

ess the ESC OFF button briefly. The
ESC SPORT indicator light illuminates
on the cluster LCD display. In this
state, ESC only stabilizes the vehicle
to a limited degree.
When ESC SPORT mode is activated:

[ ESC only improves driving stability to
a limited degree.

[ Traction control is still activated, but
with less wheel control (more slip).

[ Engine torque can partially be limited
for the vehicle's stability and the
driving wheel spin may be restricted
for better traction.
To deactivate ESC SPORT mode

[ Press the ESC OFF button briefly. The
ESC SPORT indicator light will go off
on the cluster LCD display.
To deactivate ESC (ESC OFF)
Press and hold the ESC OFF
button continuously for more
than 3 seconds. The ESC OFF
indicator light and message
"Traction & Stability Control
disabled" illuminates and a
warning chime sounds. In
this state, both the traction
control function of ESC (engine
management) and the brake
control function of ESC (braking
management) are disabled. To
activate the ESC again, briefly
press the ESC OFF button. The
ESC OFF indicator light will go
off.
NOTICE
Driving with wheels and tires with
different sizes may cause the ESC
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized wheels and
tires installed.
WARNING
Don't use ESC SPORT mode or ESC OFF
while using a mini spare tire or a tire
repair kit is in use!

06
6-27

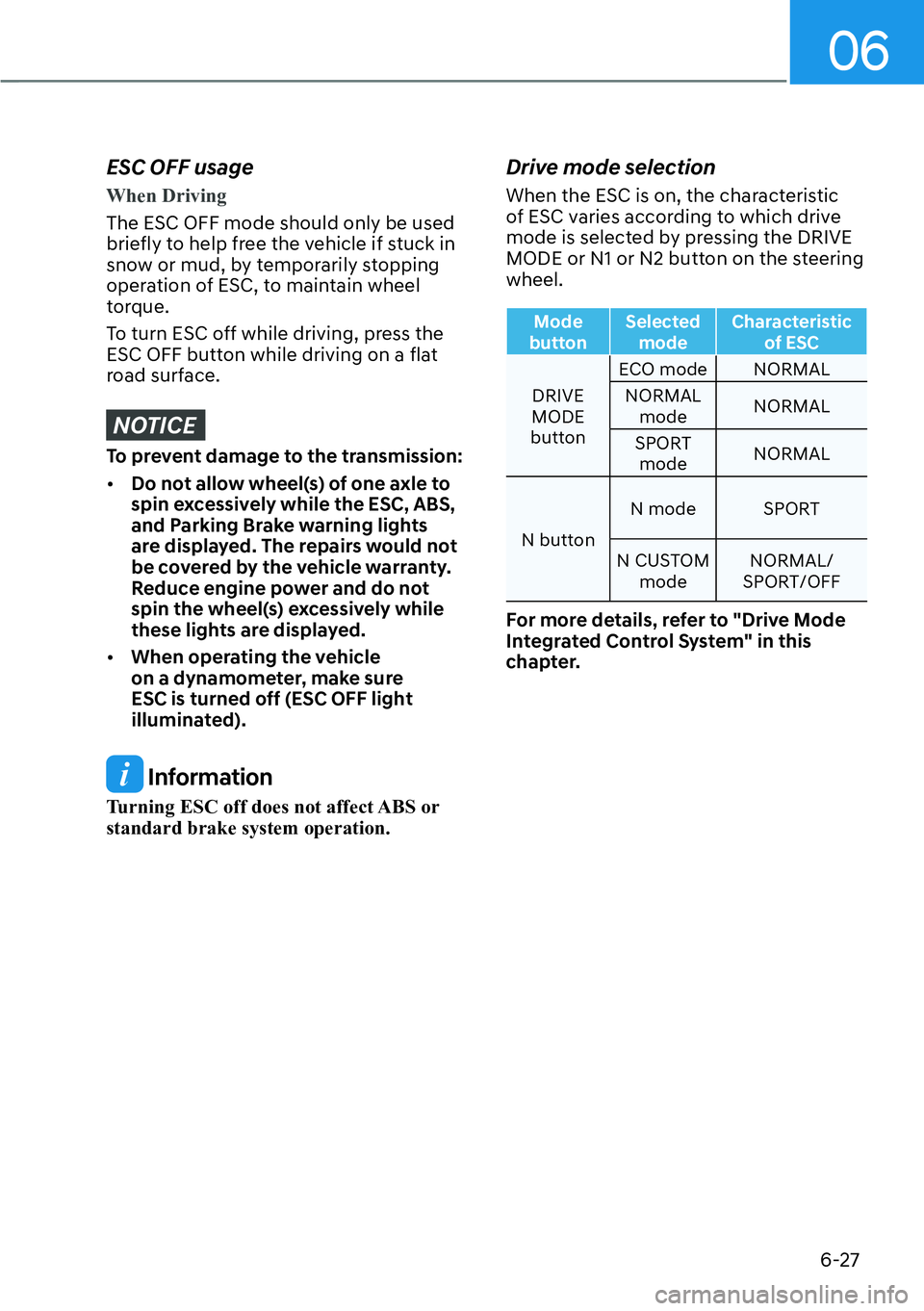

ESC OFF usage
When Driving
The ESC OFF mode should only be used
brie
fly to help free the vehicle if stuck in
snow or mud, by temporarily stopping
operation of ESC, to maintain wheel
torque.
To turn ESC off while driving, press the
ESC OFF button while driving on a flat
road surface.
NOTICE
To prevent damage to the transmission:

[ Do not allow wheel(s) of one axle to
spin excessively while the ESC, ABS,
and Parking Brake warning lights
are displayed. The repairs would not
be covered by the vehicle warranty.
Reduce engine power and do not
spin the wheel(s) excessively while
these lights are displayed.

[ When operating the vehicle
on a dynamometer, make sure
ESC is turned off (ESC OFF light
illuminated).
Information
Turning ESC off does not affect ABS or
standard brake system operation.
Drive mode selection
When the ESC is on, the characteristic
of ESC varies according to which drive
mode is selected by pressing the DRIVE
MODE or N1 or N2 button on the steering
wheel.
Mode
button Selected
mode Characteristic
of ESC
DRIVE
MODE
butt

on ECO mode NORMAL
NORMAL mode NORMAL
SPORT mode NORMAL
N button N mode SPORT
N CUSTOM mode NORMAL/
SPORT/OFF
For more details, refer to "Drive Mode
Integrated Control System" in this
chapter.

Driving your vehicle6-28

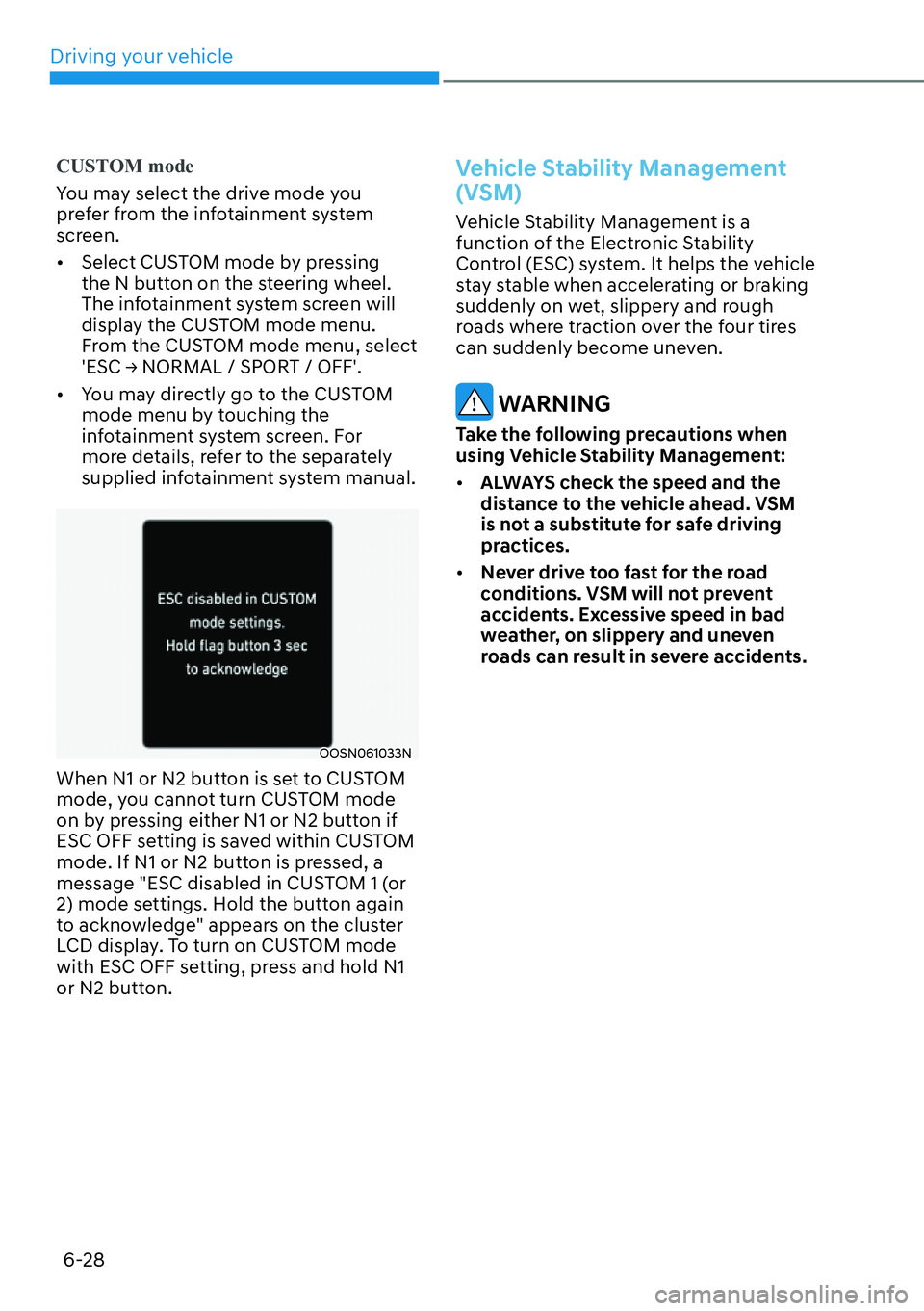

CUSTOM mode
You may select the drive mode you
pr
efer from the infotainment system
screen.

[ Select CUSTOM mode by pressing
the N button on the steering wheel.
The infotainment system screen will
display the CUSTOM mode menu.
From the CUSTOM mode menu, select

(6&

06
6-29

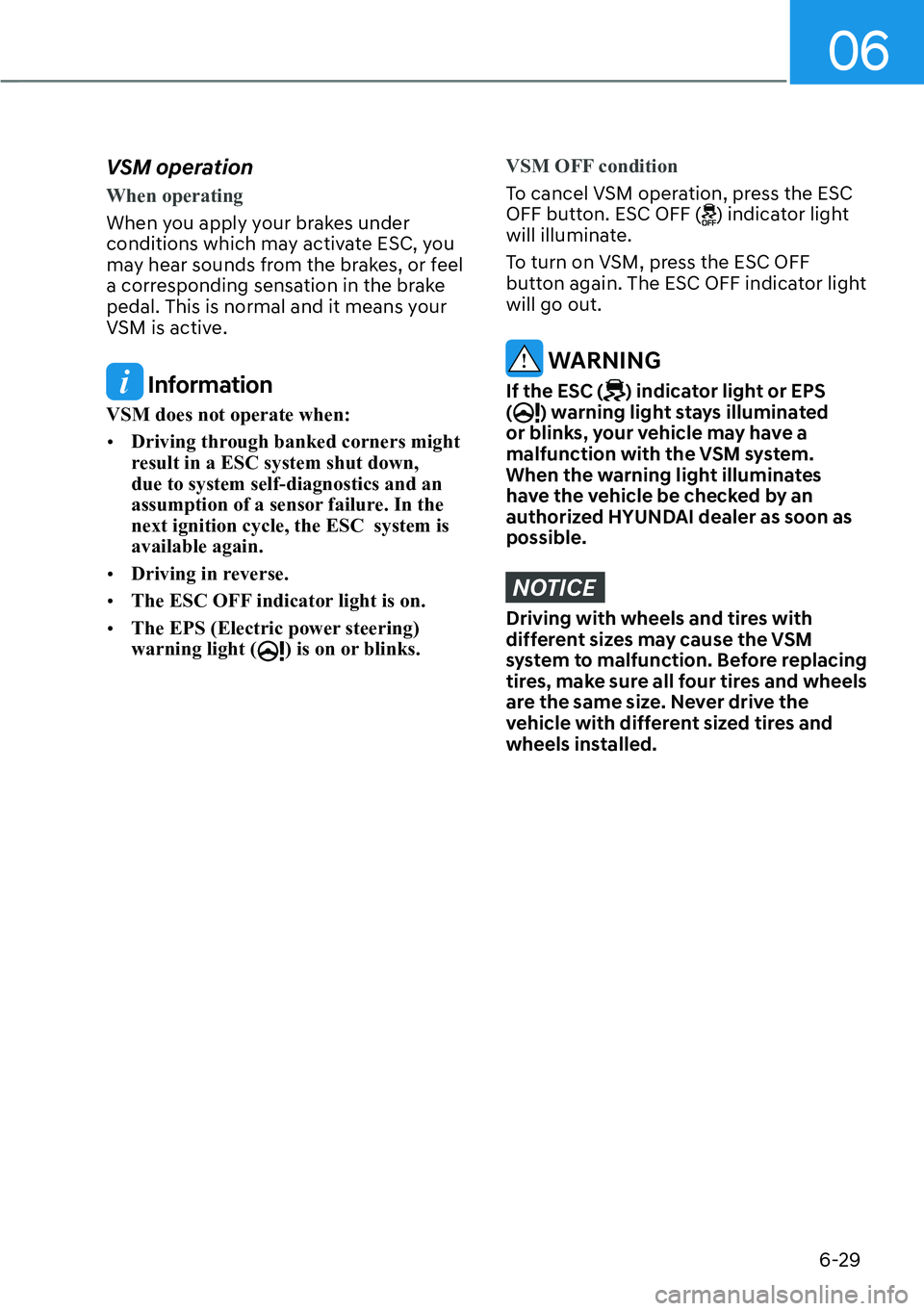

VSM operation
When operating
When you apply your brakes under
conditions which ma
y activate ESC, you
may hear sounds from the brakes, or feel
a corresponding sensation in the brake
pedal. This is normal and it means your
VSM is active.
Information
VSM does not operate when:

[ Driving through banked corners might
result in a ESC system shut down,
due to system self-diagnostics and an
assumption of a sensor failure. In the
next ignition cycle, the ESC system is
available again.

[ Driving in reverse.

[ The ESC OFF indicator light is on.

[ The EPS (Electric power steering)
warning light (
) is on or blinks.
VSM OFF condition
To cancel VSM operation, press the ESC
OFF butt

on. ESC OFF () indicator light
will illuminate.
To turn on VSM, press the ESC OFF
button again. The ESC OFF indicator light
will go out.
WARNING
If the ESC () indicator light or EPS
() warning light stays illuminated
or blinks, your vehicle may have a
malfunction with the VSM system.
When the warning light illuminates
have the vehicle be checked by an
authorized HYUNDAI dealer as soon as
possible.
NOTICE
Driving with wheels and tires with
different sizes may cause the VSM
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized tires and
wheels installed.

Driving your vehicle6-30

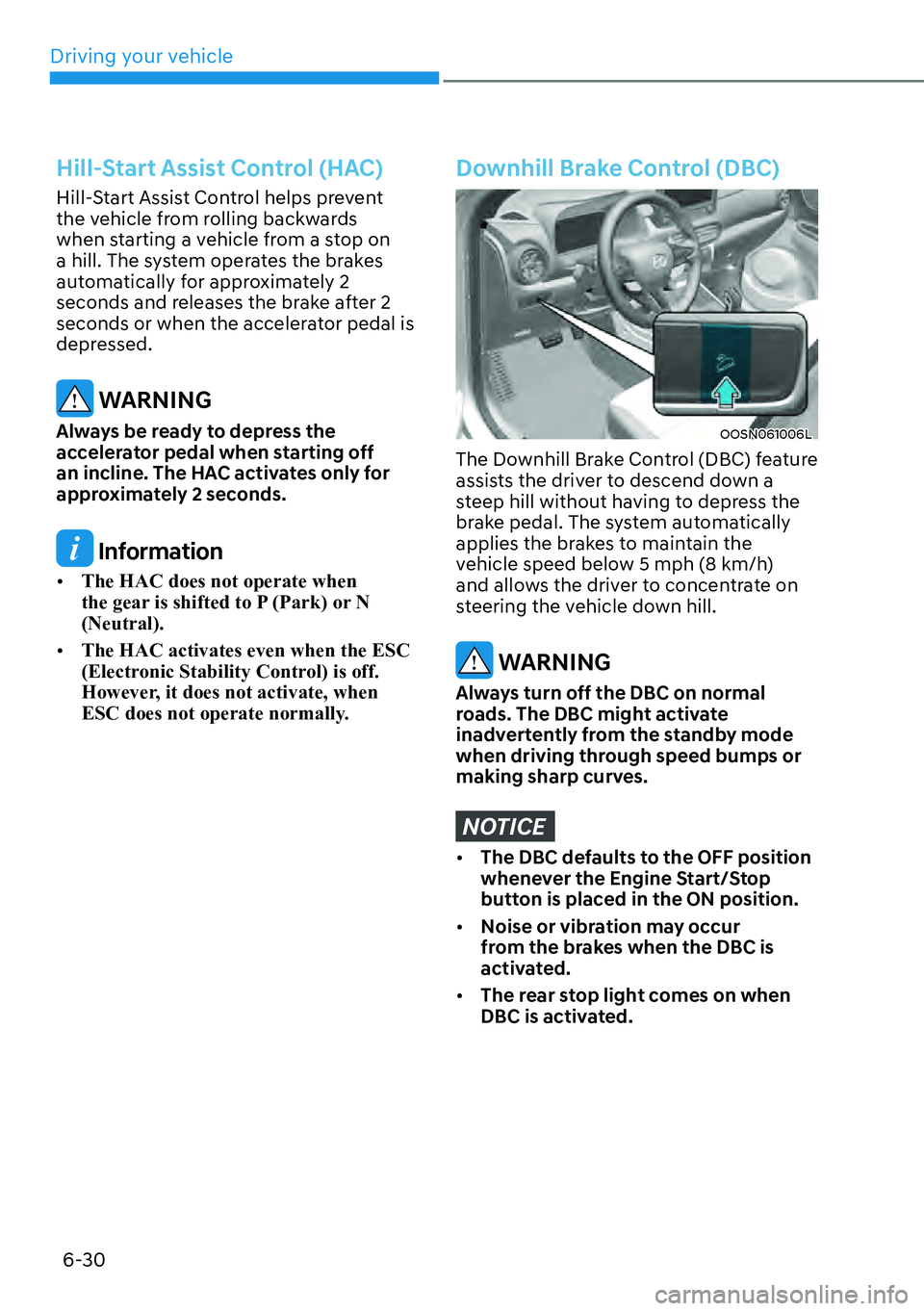

Hill-Start Assist Control (HAC)
Hill-Start Assist Control helps prevent
the vehicle from rolling backwards
when starting a vehicle from a stop on
a hill. The system operates the brakes
automatically for approximately 2
seconds and releases the brake after 2
seconds or when the accelerator pedal is
depressed.
WARNING
Always be ready to depress the
accelerator pedal when starting off
an incline. The HAC activates only for
approximately 2 seconds.
Information

[ The HAC does not operate when
the gear is shifted to P (Park) or N
(Neutral).

[ The HAC activates even when the ESC
(Electronic Stability Control) is off.
However, it does not activate, when
ESC does not operate normally.
Downhill Brake Control (DBC)
OOSN061006L
The Downhill Brake Control (DBC) feature
assists the driver to descend down a
steep hill without having to depress the
brake pedal. The system automatically
applies the brakes to maintain the
vehicle speed below 5 mph (8 km/h)
and allows the driver to concentrate on
steering the vehicle down hill.
WARNING
Always turn off the DBC on normal
roads. The DBC might activate
inadvertently from the standby mode
when driving through speed bumps or
making sharp curves.
NOTICE

[The DBC defaults to the OFF position
whenever the Engine Start/Stop
button is placed in the ON position.

[ Noise or vibration may occur
from the brakes when the DBC is
activated.

[ The rear stop light comes on when
DBC is activated.

06
6-31

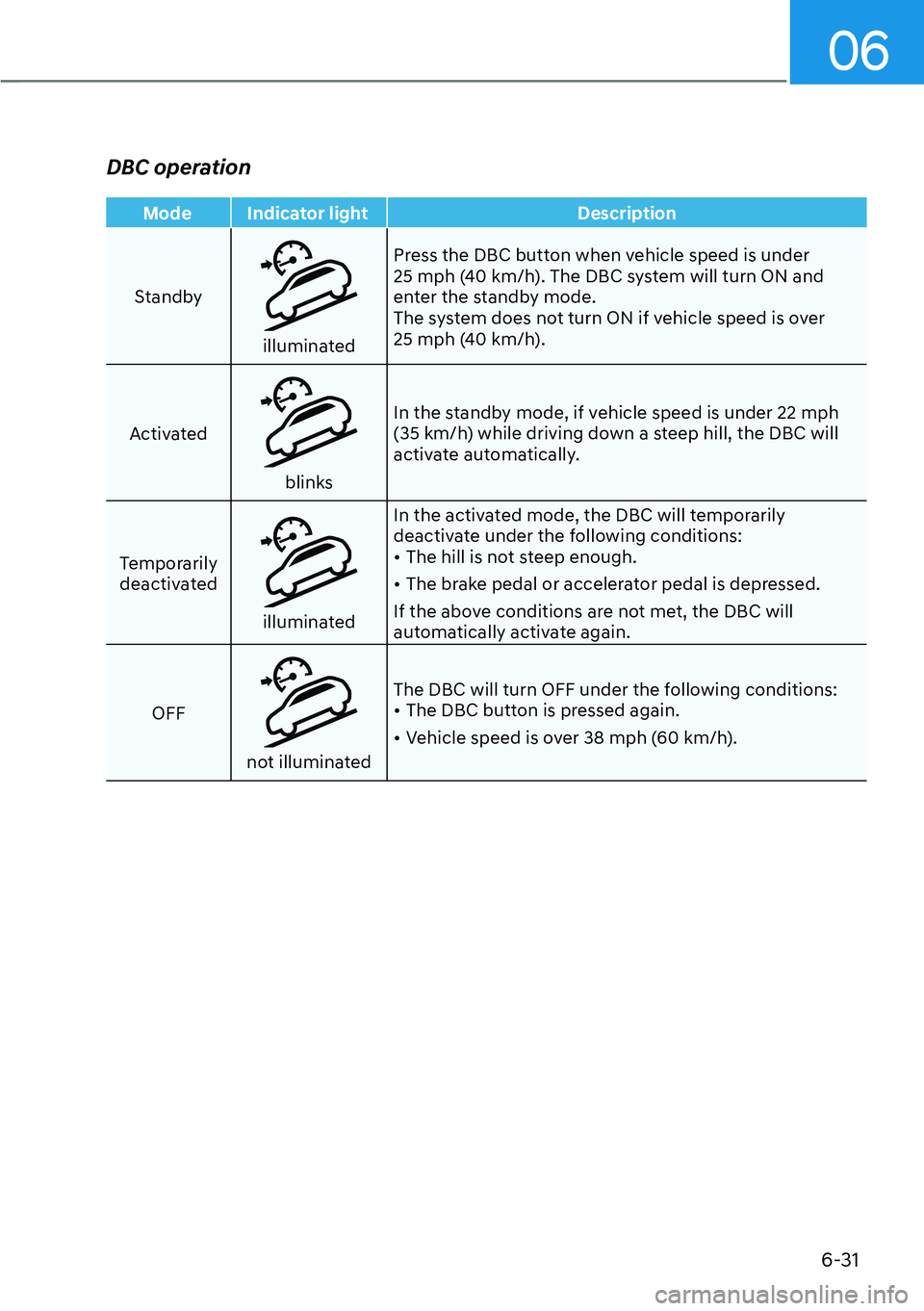

DBC operation
Mode Indicator lightDescription
Standby
illuminated Press the DBC button when vehicle speed is under
25 mph (40 km/h). The DBC system will turn ON and
enter the standby mode.
The system does not turn ON if vehicle speed is over
25 mph (40 km/h).
Activated
blinks In the standby mode, if vehicle speed is under 22 mph
(35 km/h) while driving down a steep hill, the DBC will
activate automatically.
Temporarily deactivated
illuminated In the activated mode, the DBC will temporarily
deactivate under the following conditions:

[
The hill is not steep enough.

[ The brake pedal or accelerator pedal is depressed.
If the above conditions are not met, the DBC will
automatically activate again.
OFF
not illuminated The DBC will turn OFF under the following conditions:

[
The DBC button is pressed again.

[ Vehicle speed is over 38 mph (60 km/h).

Driving your vehicle6-32

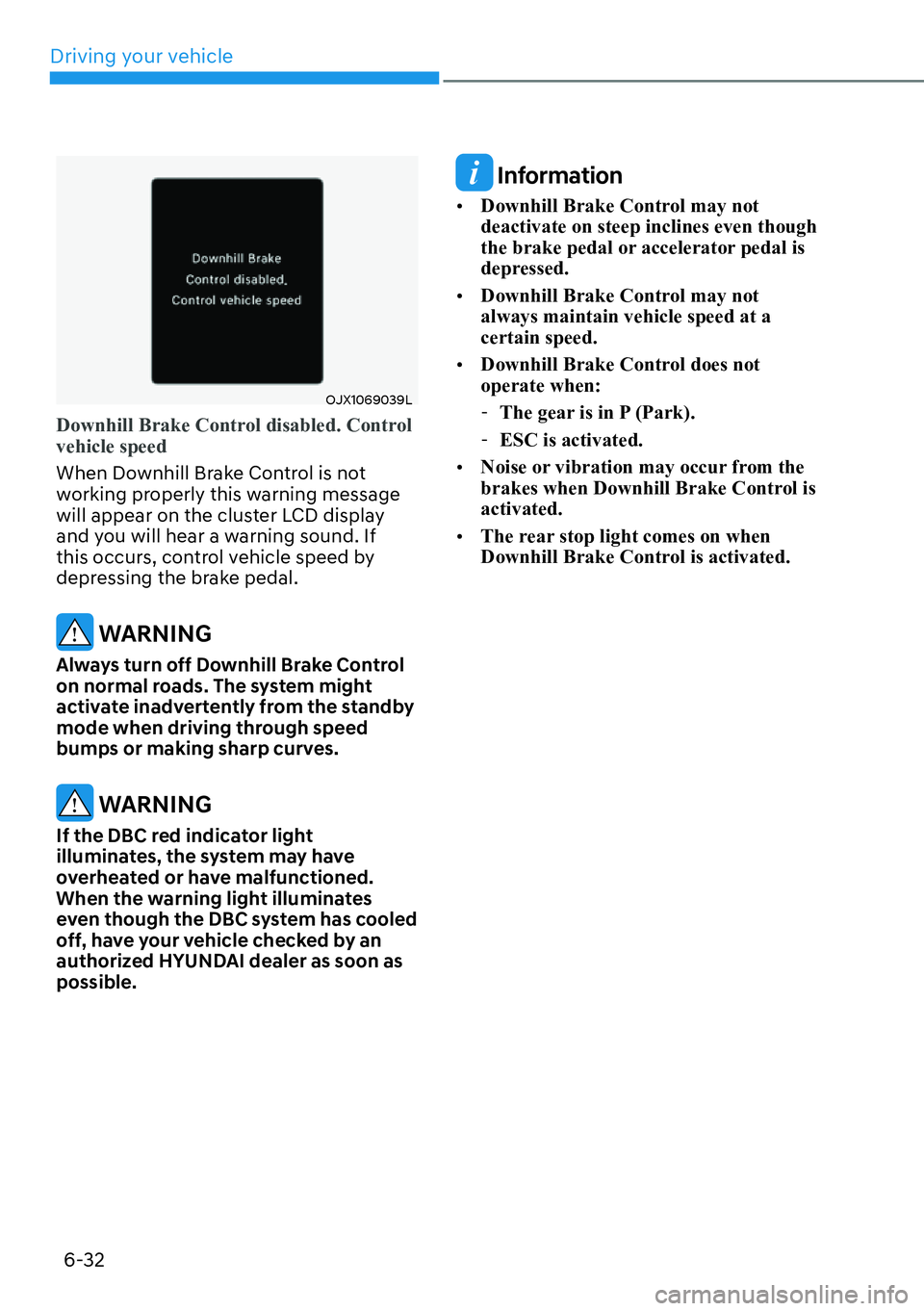

OJX1069039L
Downhill Brake Control disabled. Control
vehicle speed
When Downhill Brake Control is not
w
orking properly this warning message
will appear on the cluster LCD display
and you will hear a warning sound. If
this occurs, control vehicle speed by
depressing the brake pedal.
WARNING
Always turn off Downhill Brake Control
on normal roads. The system might
activate inadvertently from the standby
mode when driving through speed
bumps or making sharp curves.
WARNING
If the DBC red indicator light
illuminates, the system may have
overheated or have malfunctioned.
When the warning light illuminates
even though the DBC system has cooled
off, have your vehicle checked by an
authorized HYUNDAI dealer as soon as
possible.
Information

[ Downhill Brake Control may not
deactivate on steep inclines even though
the brake pedal or accelerator pedal is
depressed.

[ Downhill Brake Control may not
always maintain vehicle speed at a
certain speed.

[ Downhill Brake Control does not
operate when:
- The gear is in P (Park).
- ESC is activated.

[ Noise or vibration may occur from the
brakes when Downhill Brake Control is
activated.

[ The rear stop light comes on when
Downhill Brake Control is activated.

06
6-33

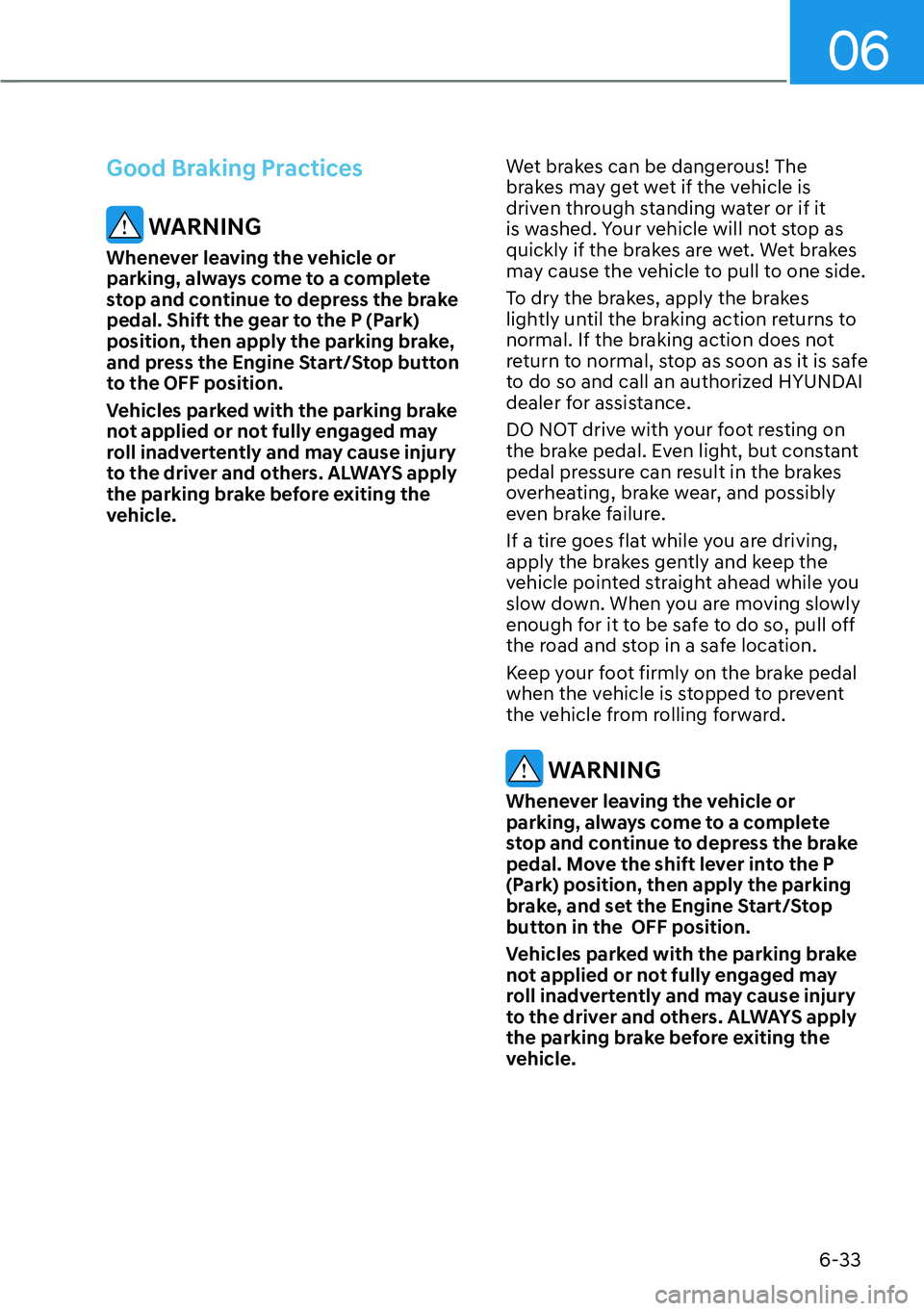

Good Braking Practices
WARNING
Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the brake
pedal. Shift the gear to the P (Park)
position, then apply the parking brake,
and press the Engine Start/Stop button
to the OFF position.
Vehicles parked with the parking brake
not applied or not fully engaged may
roll inadvertently and may cause injury
to the driver and others. ALWAYS apply
the parking brake before exiting the
vehicle.Wet brakes can be dangerous! The
brakes may get wet if the vehicle is
driven through standing water or if it
is washed. Your vehicle will not stop as
quickly if the brakes are wet. Wet brakes
may cause the vehicle to pull to one side.
To dry the brakes, apply the brakes
lightly until the braking action returns to
normal. If the braking action does not
return to normal, stop as soon as it is safe
to do so and call an authorized HYUNDAI
dealer for assistance.
DO NOT drive with your foot resting on
the brake pedal. Even light, but constant
pedal pressure can result in the brakes
overheating, brake wear, and possibly
even brake failure.
If a tire goes flat while you are driving,
apply the brakes gently and keep the
vehicle pointed straight ahead while you
slow down. When you are moving slowly
enough for it to be safe to do so, pull off
the road and stop in a safe location.
Keep your foot firmly on the brake pedal
when the vehicle is stopped to prevent
the vehicle from rolling forward.
WARNING
Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the brake
pedal. Move the shift lever into the P
(Park) position, then apply the parking
brake, and set the Engine Start/Stop
button in the OFF position.
Vehicles parked with the parking brake
not applied or not fully engaged may
roll inadvertently and may cause injury
to the driver and others. ALWAYS apply
the parking brake before exiting the
vehicle.

Driving your vehicle6-34
(/(&7521,&&21752/6863(16,21

06
6-35

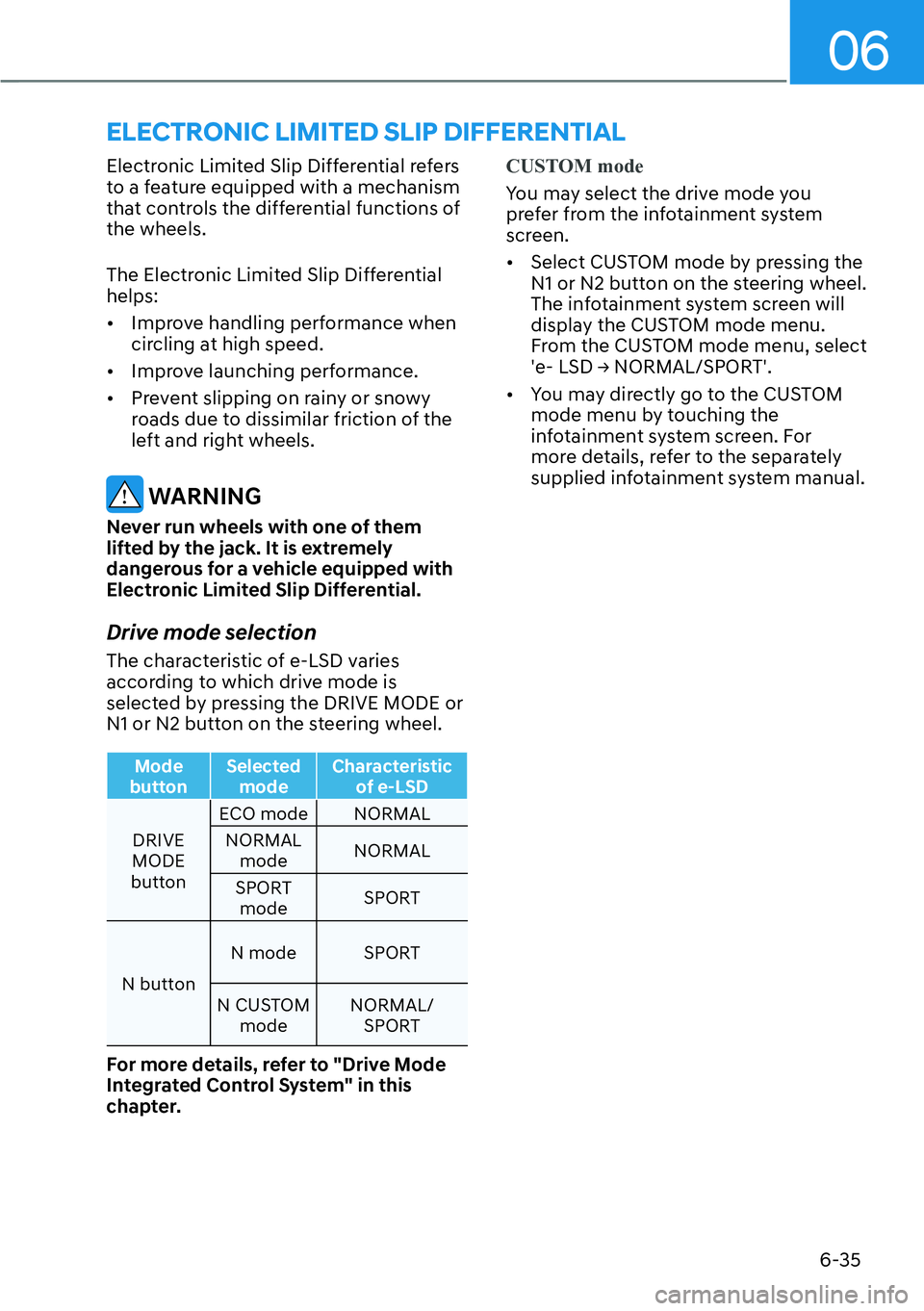

ELECTRONIC LIMITED SLIP DIFFERENTIAL
Electronic Limited Slip Differential refers
to a feature equipped with a mechanism
that controls the differential functions of
the wheels.
The Electronic Limited Slip Differential
helps:

[Improve handling performance when
circling at high speed.

[ Improve launching performance.

[ Prevent slipping on rainy or snowy
roads due to dissimilar friction of the
left and right wheels.
WARNING
Never run wheels with one of them
lifted by the jack. It is extremely
dangerous for a vehicle equipped with
Electronic Limited Slip Differential.
Drive mode selection
The characteristic of e-LSD varies
according to which drive mode is
selected by pressing the DRIVE MODE or
N1 or N2 button on the steering wheel.
Mode
button Selected
mode Characteristic
of e-LSD
DRIVE
MODE
butt

on ECO mode NORMAL
NORMAL mode NORMAL
SPORT mode SPORT
N button N mode SPORT
N CUSTOM mode NORMAL/
SPORT
For more details, refer to "Drive Mode
Integrated Control System" in this
chapter. CUSTOM mode
You may select the drive mode you
pr

efer from the infotainment system
screen.

[ Select CUSTOM mode by pressing the
N1 or N2 button on the steering wheel.
The infotainment system screen will
display the CUSTOM mode menu.
From the CUSTOM mode menu, select

H/6'
