HYUNDAI KONA 2023 Owners Manual

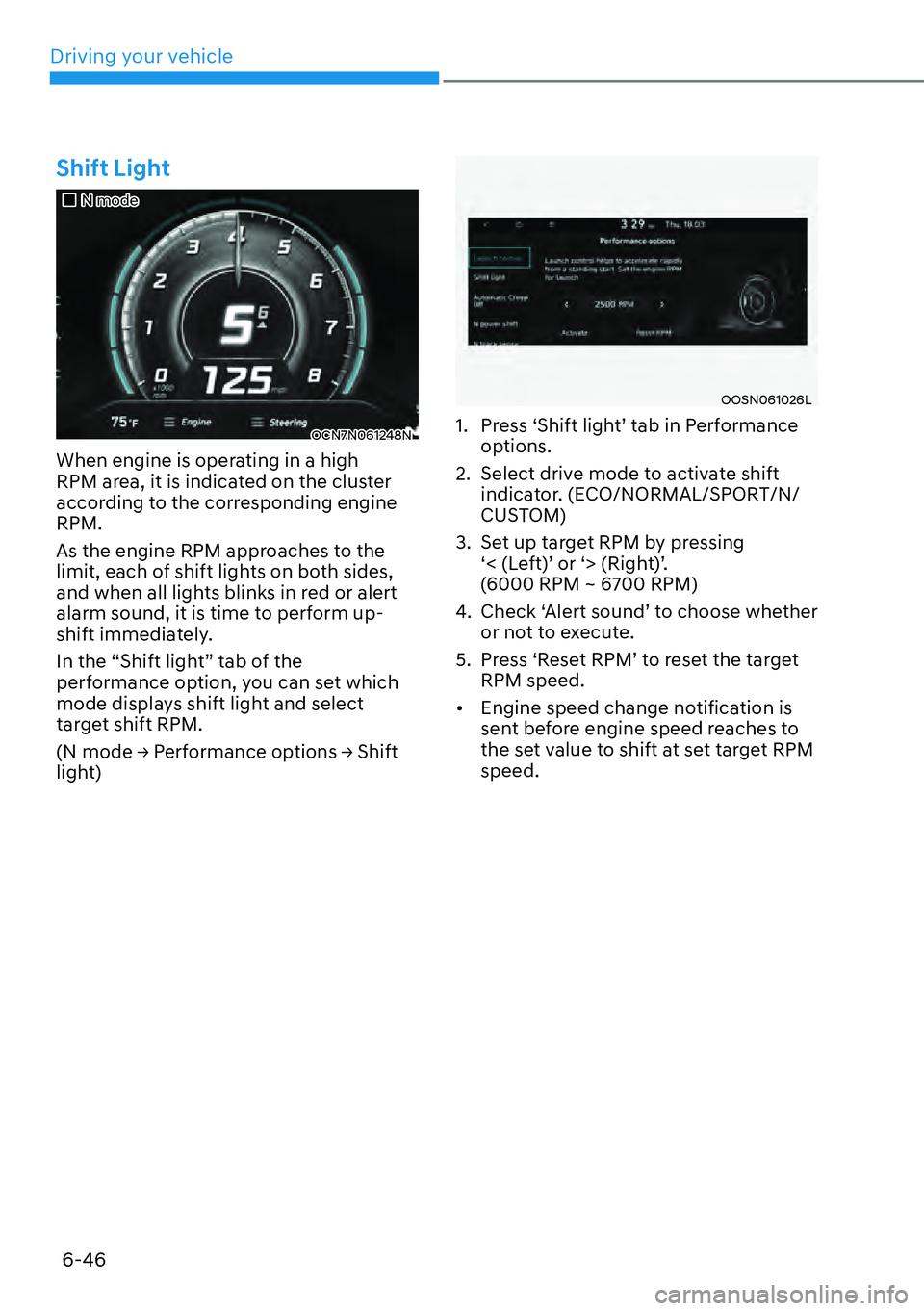

Driving your vehicle6-46
Shift Light
„N mode
OCN7N061248N
When engine is operating in a high
RPM area, it is indicated on the cluster
according to the corresponding engine
RPM.
As the engine RPM approaches to the
limit, each of shift lights on both sides,
and when all lights blinks in red or alert
alarm sound, it is time to perform up-
shift immediately.
In the “Shift light” tab of the
performance option, you can set which
mode displays shift light and select
target shift RPM.
1PRGH

06

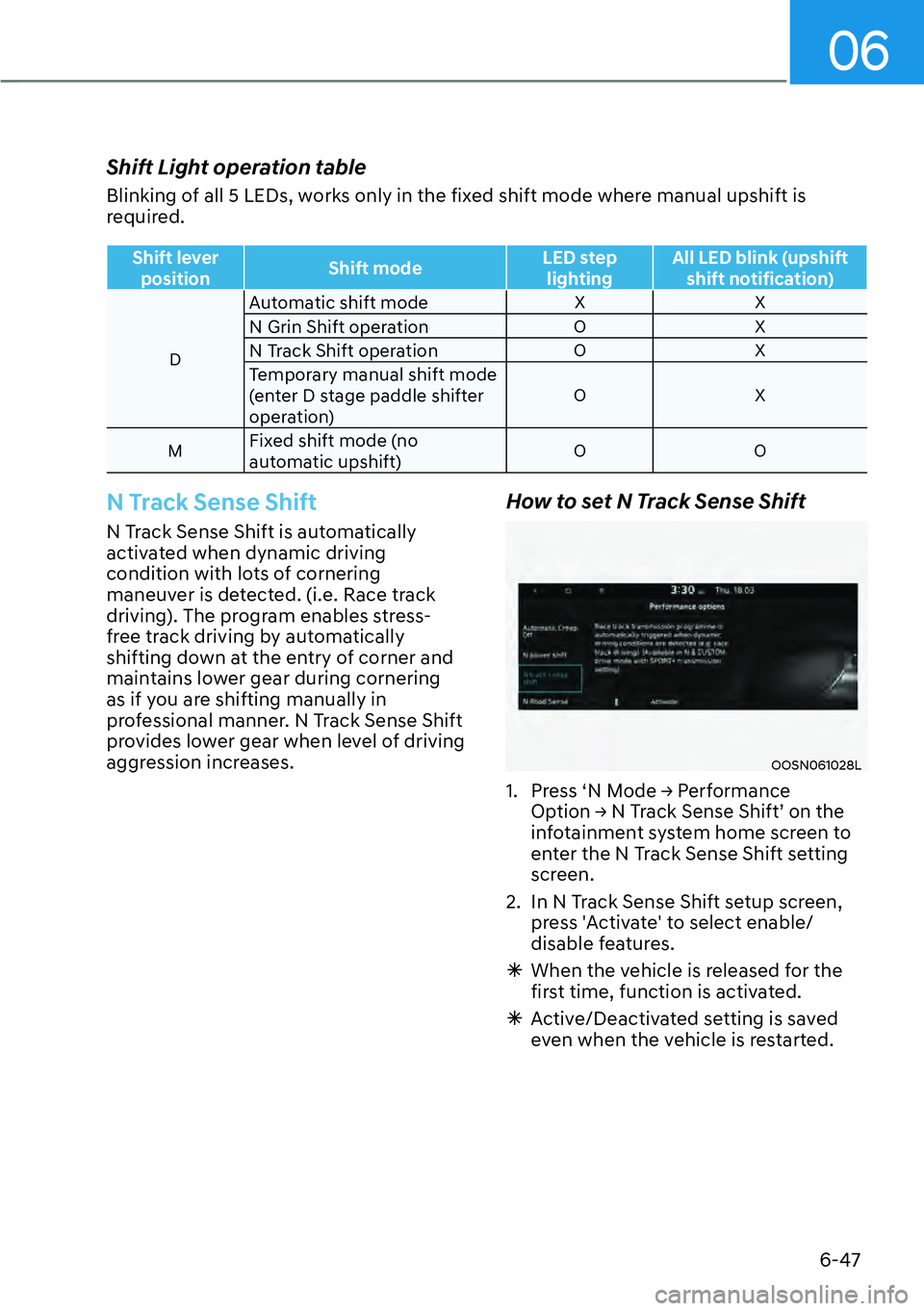

6-47
N Track Sense Shift
N Track Sense Shift is automatically
activated when dynamic driving
condition with lots of cornering
maneuver is detected. (i.e. Race track
driving). The program enables stress-
free track driving by automatically
shifting down at the entry of corner and
maintains lower gear during cornering
as if you are shifting manually in
professional manner. N Track Sense Shift
provides lower gear when level of driving
aggression increases.
How to set N Track Sense Shift
OOSN061028L
1. 3UHVV
S10RGH

Driving your vehicle6-48
Operating condition

[ N Track Sense Shift is enabled in the
Performance Options settings

[ Shift lever in D (Drive) position

[ Transmission mode is SPORT or
SPORT+ (Including SPORT or N Riding
Mode)

[ Vehicle speed is above 21 mph
(35km/h)

[ Cornering-oriented dynamic driving
detection
OJSN050190

à When N Track Sense Shift is operating,
a message is displayed in the
instrument cluster LCD screen as
shown below.
Non-operating conditions

[N Track Sense Shift is disabled in
Performance Options settings

[ Shift lever position is in P/R/N

[ Changing Transmission mode during
operation (Transmission mode does
not work in ECO, NORMAL or manual
shift mode.)

[ Cruise Control and Smart Cruise
Control is operating

[ Vehicle speed is below 21 mph (35
km/h)

à When N Track Sense Shift is
deactivated, the displayed message
will disappear from the instrument
LCD screen.
CAUTION
Vehicle safety and control must be at
your own discretion and do not attempt
to drive dangerously to operate N Track
Sense Shift.
WARNING
N Track Sense is activated only
automatically when vehicle recognizes
dynamic driving (longitudinal & lateral
forces). To activate, you must push the
vehicle to the limits.

06

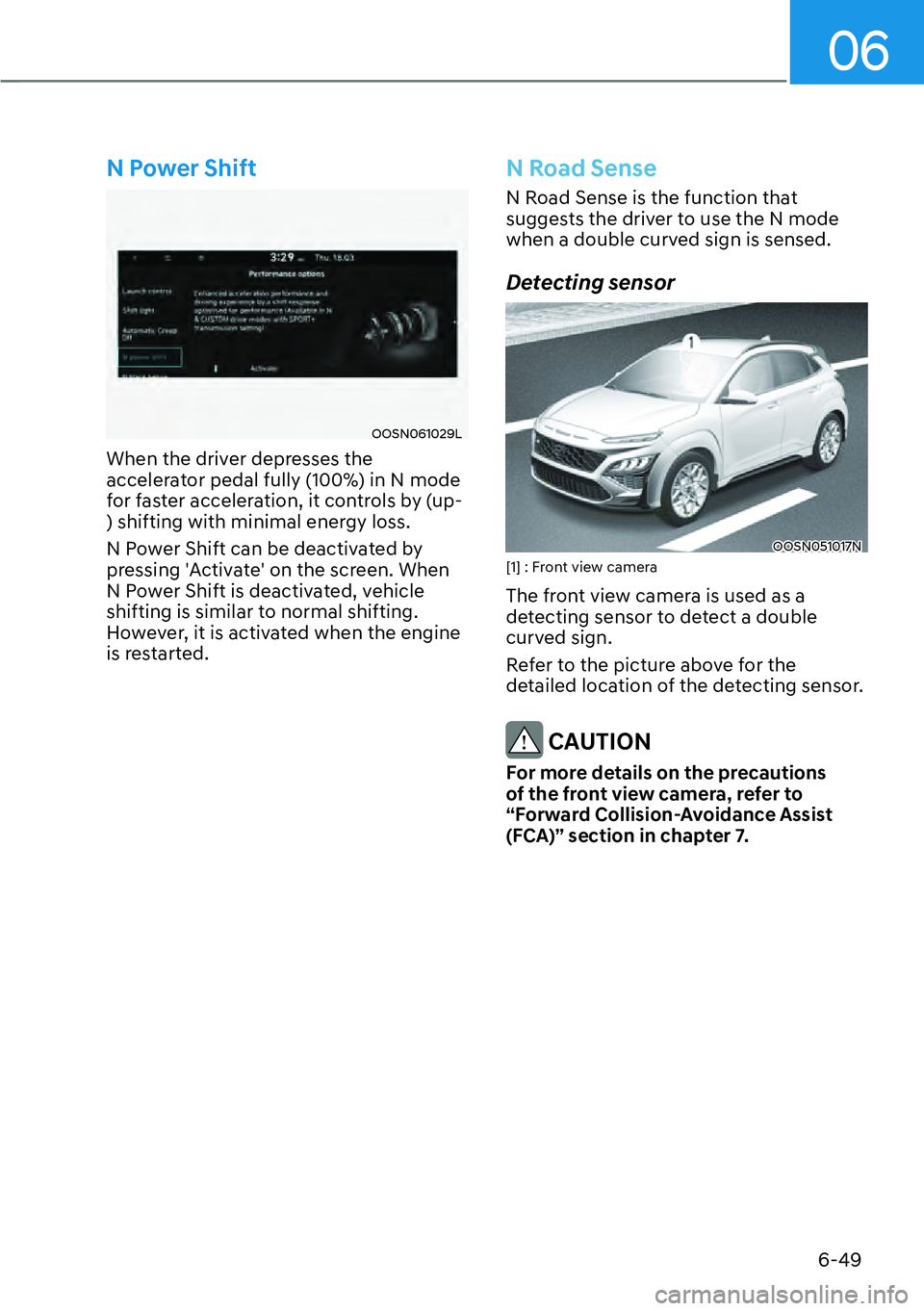

6-49
N Power Shift
OOSN061029L
When the driver depresses the
accelerator pedal fully (100%) in N mode
for faster acceleration, it controls by (up-
) shifting with minimal energy loss.
N Power Shift can be deactivated by
pressing 'Activate' on the screen. When
N Power Shift is deactivated, vehicle
shifting is similar to normal shifting.
However, it is activated when the engine
is restarted.
N Road Sense
N Road Sense is the function that
suggests the driver to use the N mode
when a double curved sign is sensed.
Detecting sensor
OOSN051017N[1] : Front view camera
The front view camera is used as a
detecting sensor to detect a double
curved sign.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.

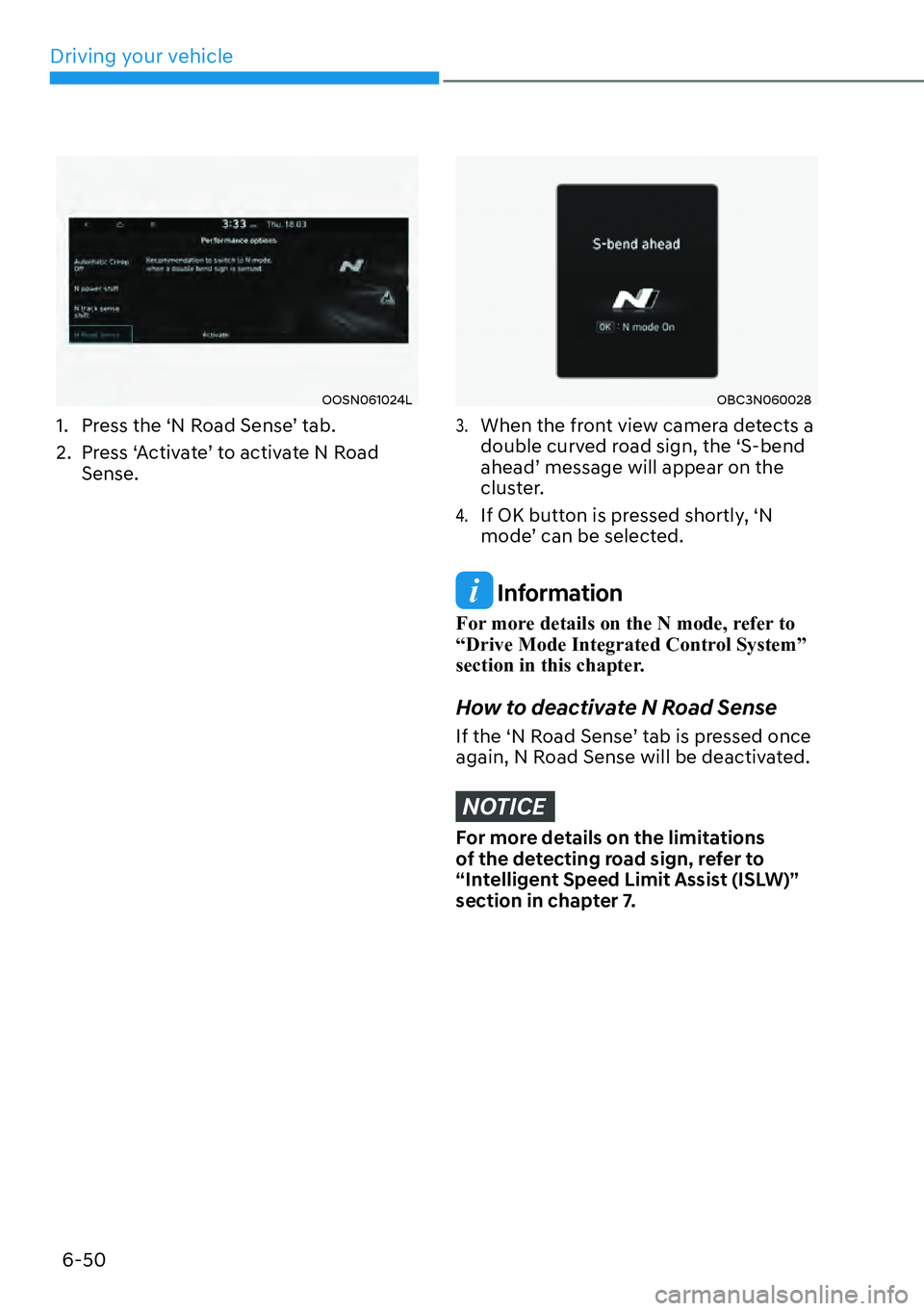

Driving your vehicle6-50
OOSN061024L
1. Press the ‘N Road Sense’ tab.
2. Press ‘Activate’ to activate N Road Sense.
OBC3N060028
3. When the front view camera detects a
double curved road sign, the ‘S-bend
ahead’ message will appear on the
cluster.
4. If OK button is pressed shortly, ‘N
mode’ can be selected.
Information
For more details on the N mode, refer to
“Drive Mode Integrated Control System”
section in this chapter.
How to deactivate N Road Sense
If the ‘N Road Sense’ tab is pressed once
again, N Road Sense will be deactivated.
NOTICE
For more details on the limitations
of the detecting road sign, refer to
“Intelligent Speed Limit Assist (ISLW)”
section in chapter 7.

06

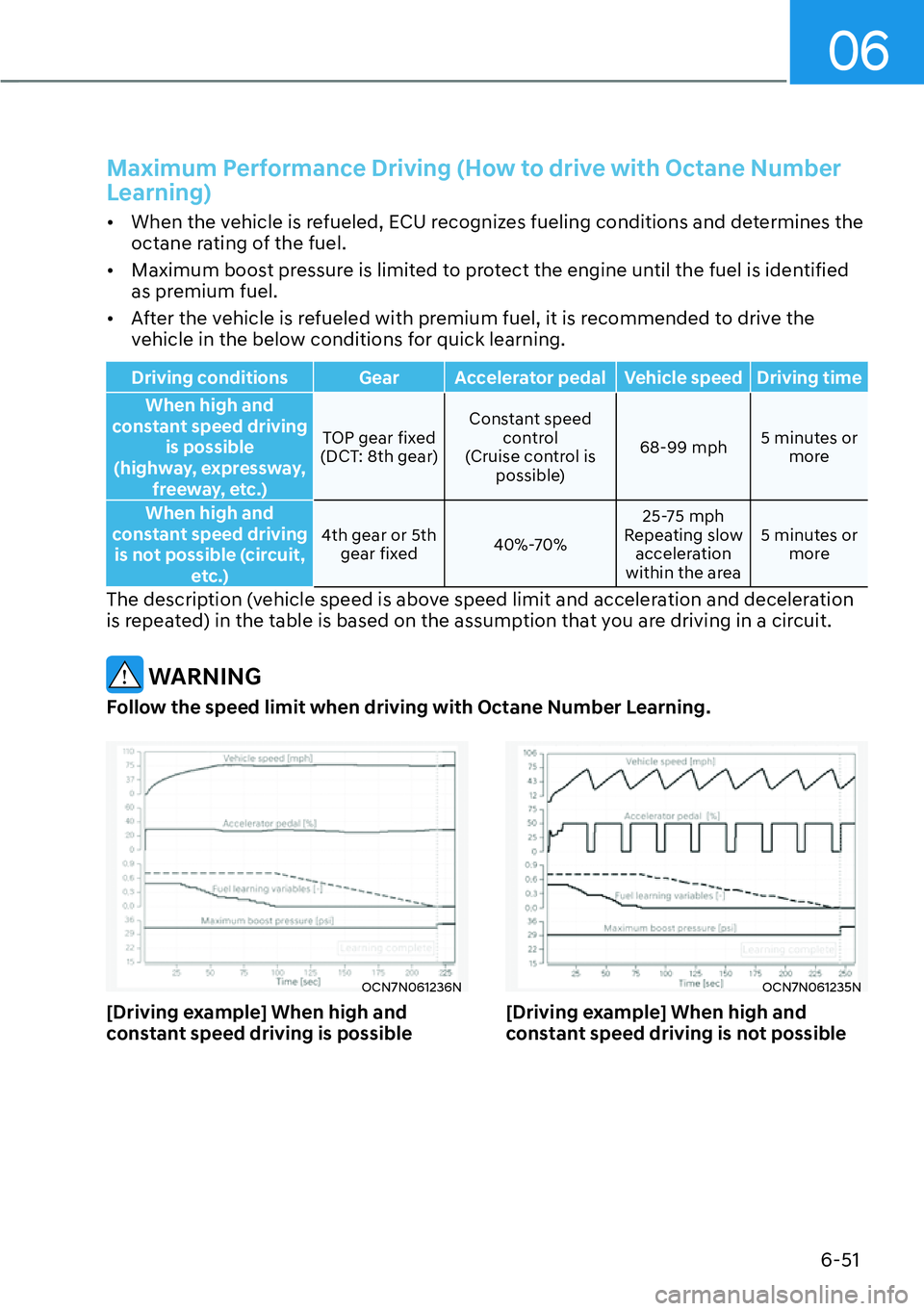

6-51
Maximum Performance Driving (How to drive with Octane Number
Learning)

[When the vehicle is refueled, ECU recognizes fueling conditions and determines the
octane rating of the fuel.

[ Maximum boost pressure is limited to protect the engine until the fuel is identified
as premium fuel.

[ After the vehicle is refueled with premium fuel, it is recommended to drive the
vehicle in the below conditions for quick learning.
Driving conditions Gear Accelerator pedal Vehicle speed Driving time
When high and
constant speed driving is possible
(highway, expressway, freeway, etc.)
TOP gear fixed
(DCT: 8th gear) Constant speed
control
(Cruise control is possible) 68-99 mph
5 minutes or
more
When high and
constant speed driving is not possible (circuit, etc.)4th gear or 5th gear fixed 40%-70%25-75 mph
Repeating slow acceleration
within the area 5 minutes or
more
The description (vehicle speed is above speed limit and acceleration and deceleration
is repeated) in the table is based on the assumption that you are driving in a circuit.
WARNING
Follow the speed limit when driving with Octane Number Learning.
OCN7N061236N
[Driving example] When high and
constant speed driving is possible
OCN7N061235N
[Driving example] When high and
constant speed driving is not possible

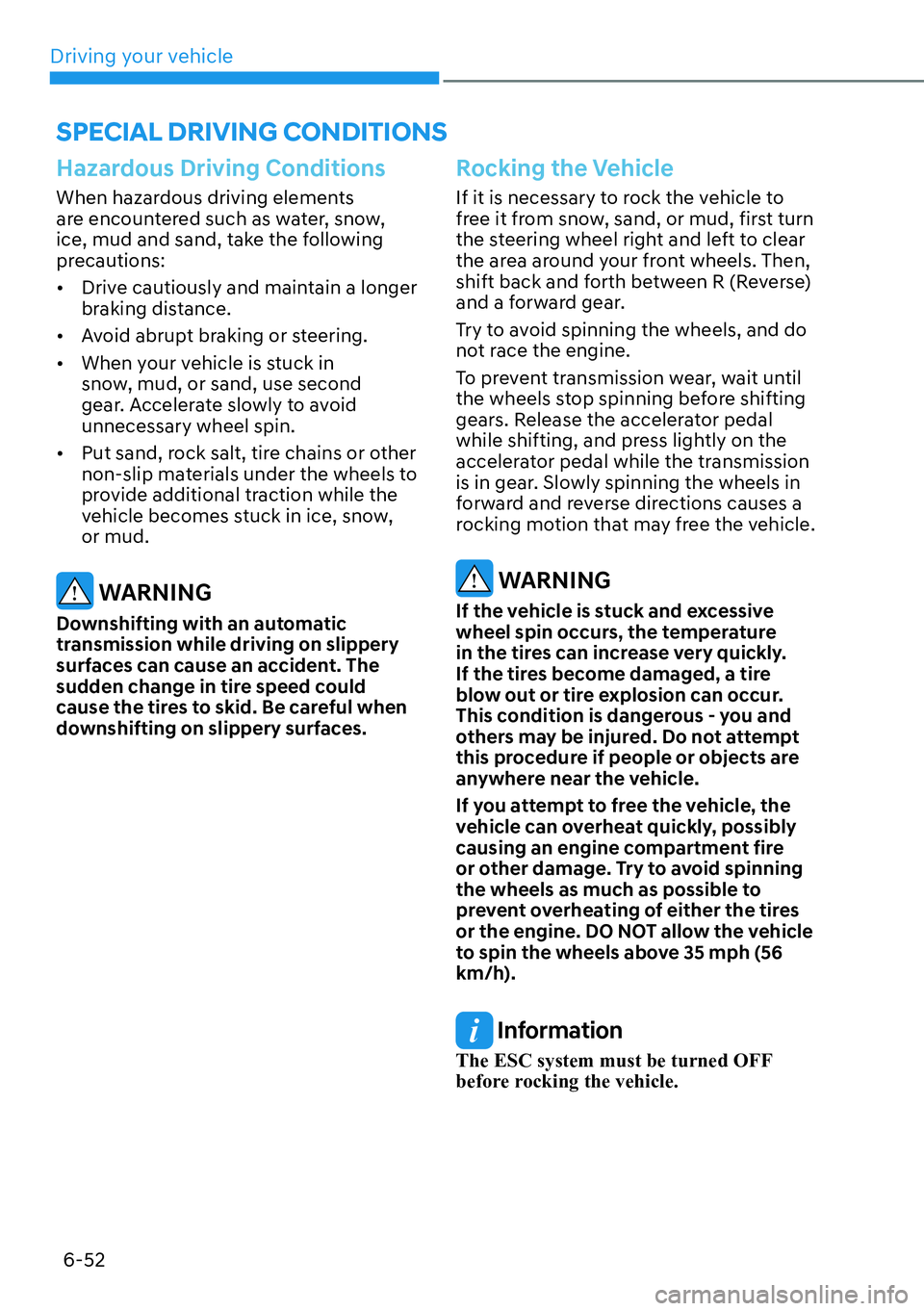

Driving your vehicle6-52
SPECIAL DRIVING CONDITIONS
Hazardous Driving Conditions
When hazardous driving elements
are encountered such as water, snow,
ice, mud and sand, take the following
precautions:

[ Drive cautiously and maintain a longer
braking distance.

[ Avoid abrupt braking or steering.

[ When your vehicle is stuck in
snow, mud, or sand, use second
gear. Accelerate slowly to avoid
unnecessary wheel spin.

[ Put sand, rock salt, tire chains or other
non-slip materials under the wheels to
provide additional traction while the
vehicle becomes stuck in ice, snow,
or mud.
WARNING
Downshifting with an automatic
transmission while driving on slippery
surfaces can cause an accident. The
sudden change in tire speed could
cause the tires to skid. Be careful when
downshifting on slippery surfaces.
Rocking the Vehicle
If it is necessary to rock the vehicle to
free it from snow, sand, or mud, first turn
the steering wheel right and left to clear
the area around your front wheels. Then,
shift back and forth between R (Reverse)
and a forward gear.
Try to avoid spinning the wheels, and do
not race the engine.
To prevent transmission wear, wait until
the wheels stop spinning before shifting
gears. Release the accelerator pedal
while shifting, and press lightly on the
accelerator pedal while the transmission
is in gear. Slowly spinning the wheels in
forward and reverse directions causes a
rocking motion that may free the vehicle.
WARNING
If the vehicle is stuck and excessive
wheel spin occurs, the temperature
in the tires can increase very quickly.
If the tires become damaged, a tire
blow out or tire explosion can occur.
This condition is dangerous - you and
others may be injured. Do not attempt
this procedure if people or objects are
anywhere near the vehicle.
If you attempt to free the vehicle, the
vehicle can overheat quickly, possibly
causing an engine compartment fire
or other damage. Try to avoid spinning
the wheels as much as possible to
prevent overheating of either the tires
or the engine. DO NOT allow the vehicle
to spin the wheels above 35 mph (56
km/h).
Information
The ESC system must be turned OFF
before rocking the vehicle.

06

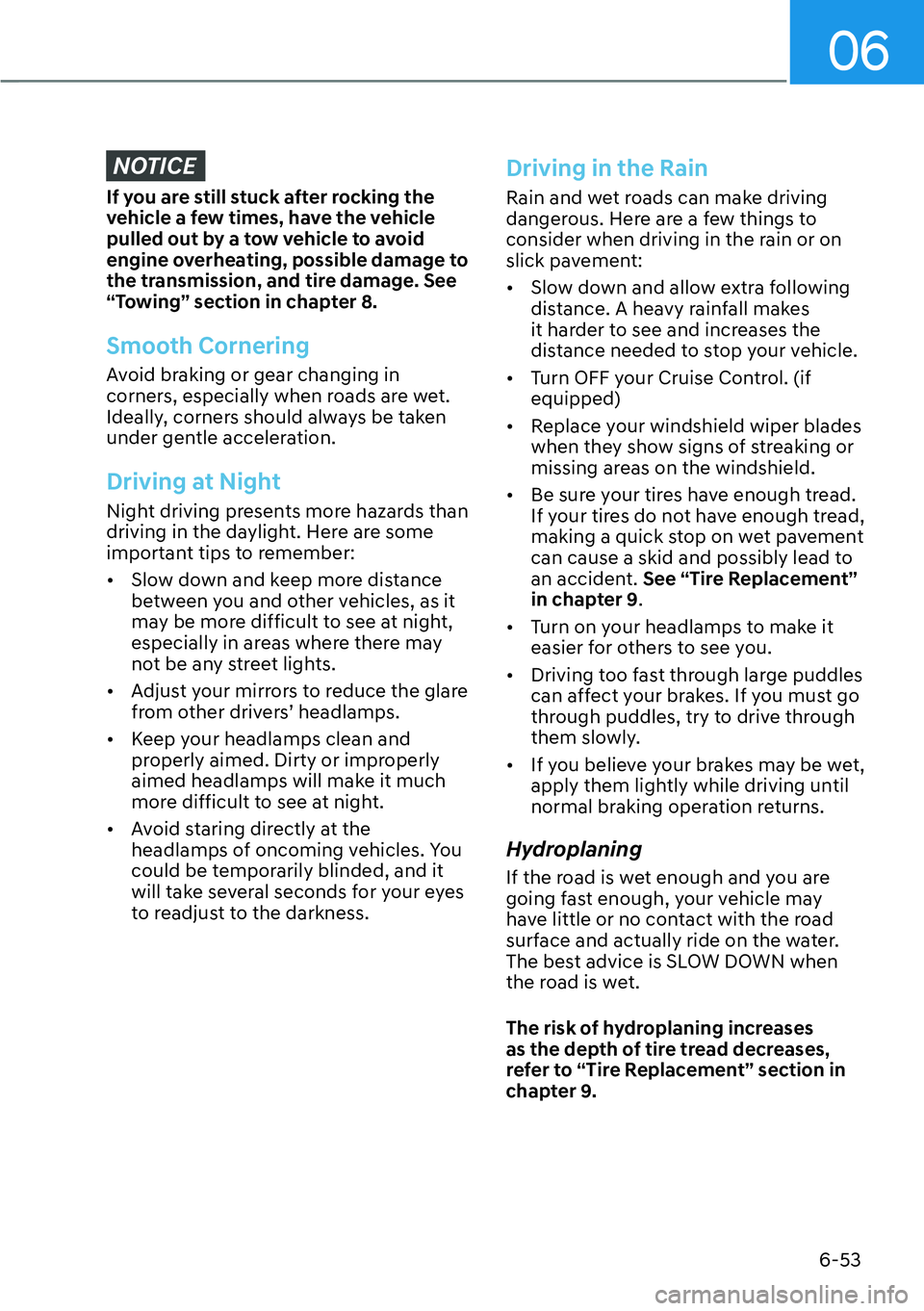

6-53
NOTICE
If you are still stuck after rocking the
vehicle a few times, have the vehicle
pulled out by a tow vehicle to avoid
engine overheating, possible damage to
the transmission, and tire damage. See
“Towing” section in chapter 8.
Smooth Cornering
Avoid braking or gear changing in
corners, especially when roads are wet.
Ideally, corners should always be taken
under gentle acceleration.
Driving at Night
Night driving presents more hazards than
driving in the daylight. Here are some
important tips to remember:

[Slow down and keep more distance
between you and other vehicles, as it
may be more difficult to see at night,
especially in areas where there may
not be any street lights.

[ Adjust your mirrors to reduce the glare
from other drivers’ headlamps.

[ Keep your headlamps clean and
properly aimed. Dirty or improperly
aimed headlamps will make it much
more difficult to see at night.

[ Avoid staring directly at the
headlamps of oncoming vehicles. You
could be temporarily blinded, and it
will take several seconds for your eyes
to readjust to the darkness.
Driving in the Rain
Rain and wet roads can make driving
dangerous. Here are a few things to
consider when driving in the rain or on
slick pavement:

[Slow down and allow extra following
distance. A heavy rainfall makes
it harder to see and increases the
distance needed to stop your vehicle.

[ Turn OFF your Cruise Control. (if
equipped)

[ Replace your windshield wiper blades
when they show signs of streaking or
missing areas on the windshield.

[ Be sure your tires have enough tread.
If your tires do not have enough tread,
making a quick stop on wet pavement
can cause a skid and possibly lead to
an accident. See “Tire Replacement”
in chapter 9.

[ Turn on your headlamps to make it
easier for others to see you.

[ Driving too fast through large puddles
can affect your brakes. If you must go
through puddles, try to drive through
them slowly.

[ If you believe your brakes may be wet,
apply them lightly while driving until
normal braking operation returns.
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may
have little or no contact with the road
surface and actually ride on the water.
The best advice is SLOW DOWN when
the road is wet.
The risk of hydroplaning increases
as the depth of tire tread decreases,
refer to “Tire Replacement” section in
chapter 9.

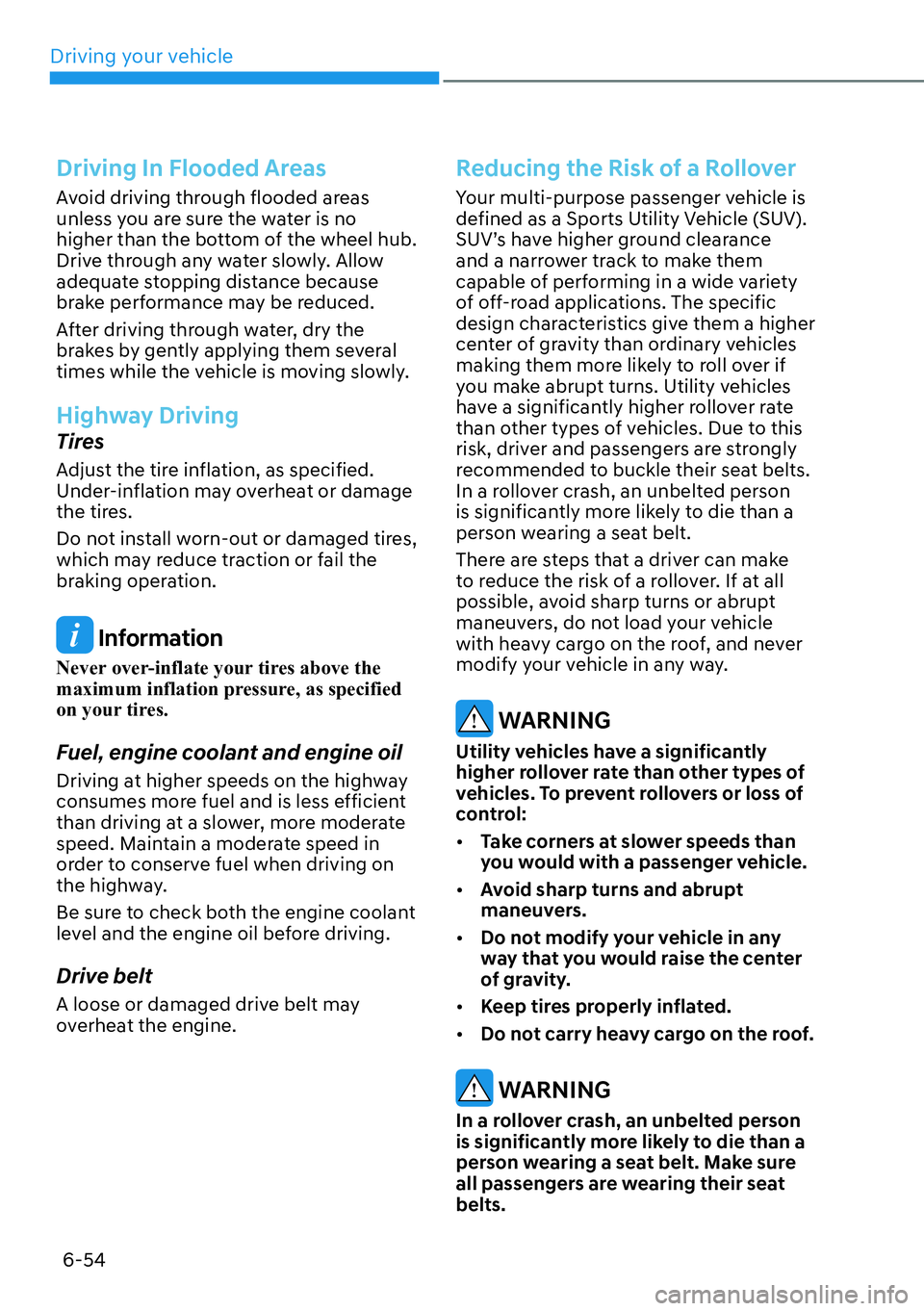

Driving your vehicle6-54
Driving In Flooded Areas
Avoid driving through flooded areas
unless you are sure the water is no
higher than the bottom of the wheel hub.
Drive through any water slowly. Allow
adequate stopping distance because
brake performance may be reduced.
After driving through water, dry the
brakes by gently applying them several
times while the vehicle is moving slowly.
Highway Driving
Tires
Adjust the tire inflation, as specified.
Under-inflation may overheat or damage
the tires.
Do not install worn-out or damaged tires,
which may reduce traction or fail the
braking operation.
Information
Never over-inflate your tires above the
maximum inflation pressure, as specified
on your tires.
Fuel, engine coolant and engine oil
Driving at higher speeds on the highway
consumes more fuel and is less efficient
than driving at a slower, more moderate
speed. Maintain a moderate speed in
order to conserve fuel when driving on
the highway.
Be sure to check both the engine coolant
level and the engine oil before driving.
Drive belt
A loose or damaged drive belt may
overheat the engine.
Reducing the Risk of a Rollover
Your multi-purpose passenger vehicle is
defined as a Sports Utility Vehicle (SUV).
SUV’s have higher ground clearance
and a narrower track to make them
capable of performing in a wide variety
of off-road applications. The specific
design characteristics give them a higher
center of gravity than ordinary vehicles
making them more likely to roll over if
you make abrupt turns. Utility vehicles
have a significantly higher rollover rate
than other types of vehicles. Due to this
risk, driver and passengers are strongly
recommended to buckle their seat belts.
In a rollover crash, an unbelted person
is significantly more likely to die than a
person wearing a seat belt.
There are steps that a driver can make
to reduce the risk of a rollover. If at all
possible, avoid sharp turns or abrupt
maneuvers, do not load your vehicle
with heavy cargo on the roof, and never
modify your vehicle in any way.
WARNING
Utility vehicles have a significantly
higher rollover rate than other types of
vehicles. To prevent rollovers or loss of
control:

[ Take corners at slower speeds than
you would with a passenger vehicle.

[ Avoid sharp turns and abrupt
maneuvers.

[ Do not modify your vehicle in any
way that you would raise the center
of gravity.

[ Keep tires properly inflated.

[ Do not carry heavy cargo on the roof.
WARNING
In a rollover crash, an unbelted person
is significantly more likely to die than a
person wearing a seat belt. Make sure
all passengers are wearing their seat
belts.

06
6-55

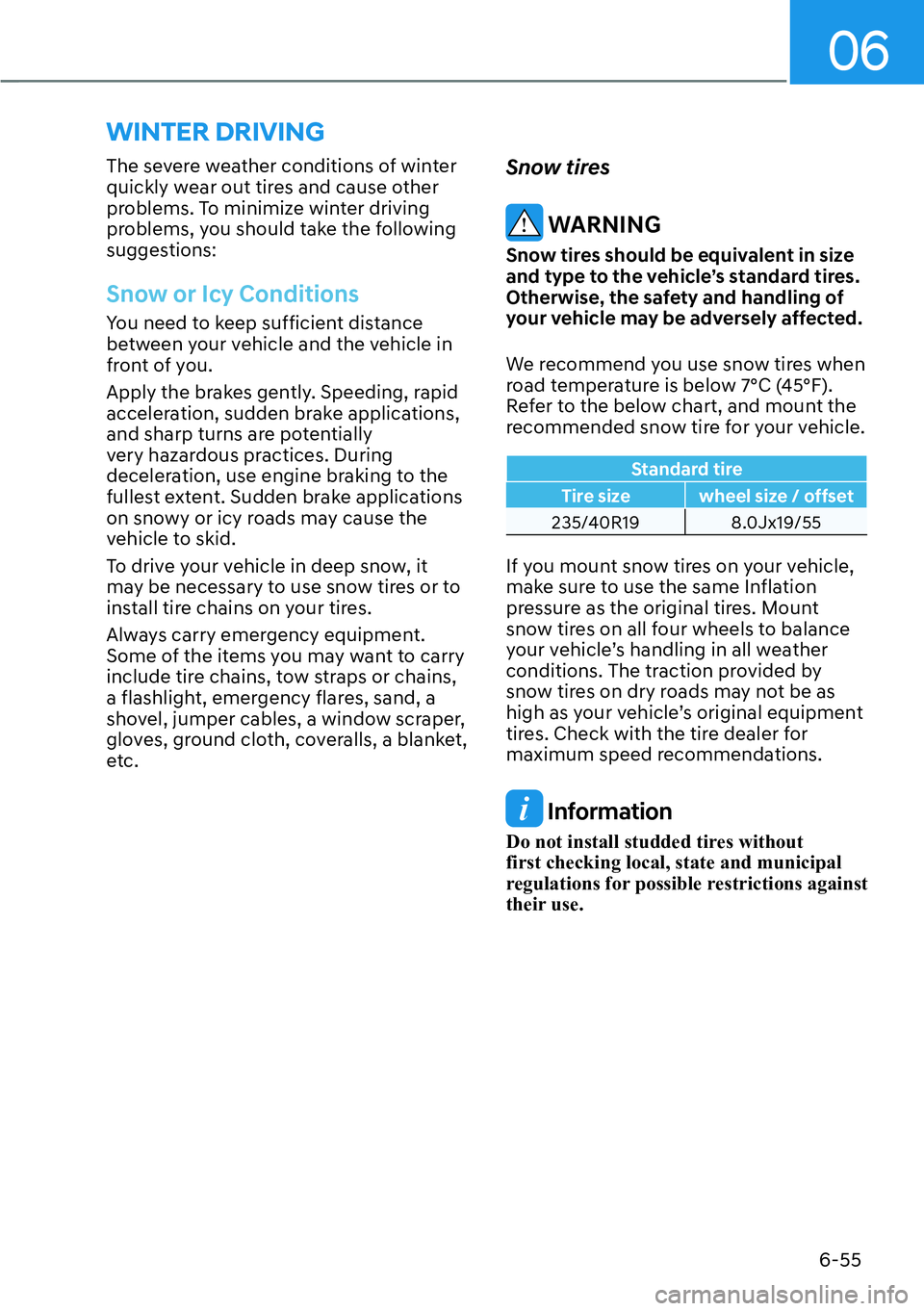

WINTER DRIVING
The severe weather conditions of winter
quickly wear out tires and cause other
problems. To minimize winter driving
problems, you should take the following
suggestions:
Snow or Icy Conditions
You need to keep sufficient distance
between your vehicle and the vehicle in
front of you.
Apply the brakes gently. Speeding, rapid
acceleration, sudden brake applications,
and sharp turns are potentially
very hazardous practices. During
deceleration, use engine braking to the
fullest extent. Sudden brake applications
on snowy or icy roads may cause the
vehicle to skid.
To drive your vehicle in deep snow, it
may be necessary to use snow tires or to
install tire chains on your tires.
Always carry emergency equipment.
Some of the items you may want to carry
include tire chains, tow straps or chains,
a flashlight, emergency flares, sand, a
shovel, jumper cables, a window scraper,
gloves, ground cloth, coveralls, a blanket,
etc.
Snow tires
WARNING
Snow tires should be equivalent in size
and type to the vehicle’s standard tires.
Otherwise, the safety and handling of
your vehicle may be adversely affected.
We recommend you use snow tires when
road temperature is below 7°C (45°F).
Refer to the below chart, and mount the
recommended snow tire for your vehicle.
Standard tire
Tire size wheel size / offset
235/40R19 8.0Jx19/55
If you mount snow tires on your vehicle,
make sure to use the same Inflation
pressure as the original tires. Mount
snow tires on all four wheels to balance
your vehicle’s handling in all weather
conditions. The traction provided by
snow tires on dry roads may not be as
high as your vehicle’s original equipment
tires. Check with the tire dealer for
maximum speed recommendations.
Information
Do not install studded tires without
first checking local, state and municipal
regulations for possible restrictions against
their use.
