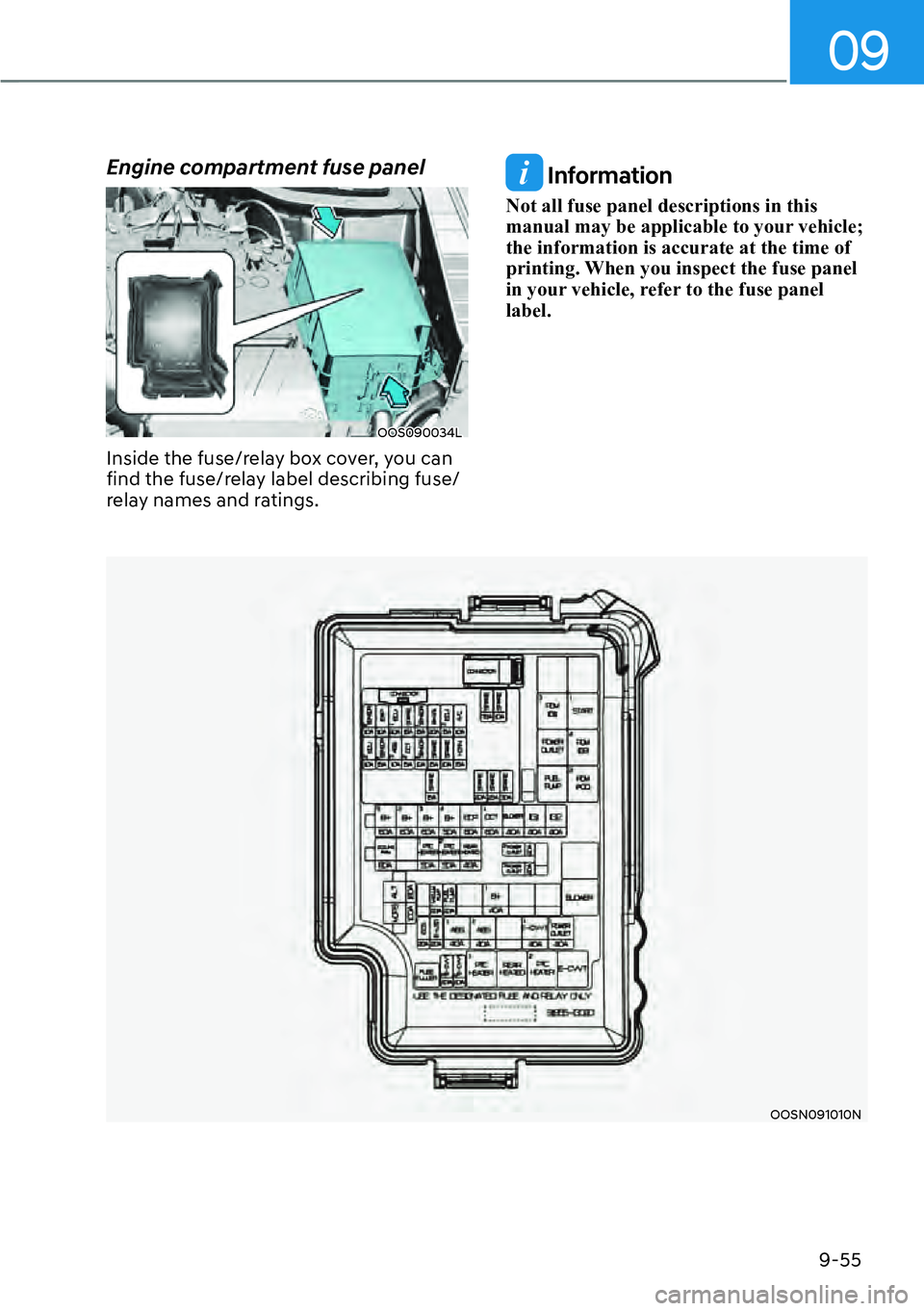

HYUNDAI KONA 2023 Owners Manual

09
9-55
Engine compartment fuse panel
OOS090034L
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OOSN091010N

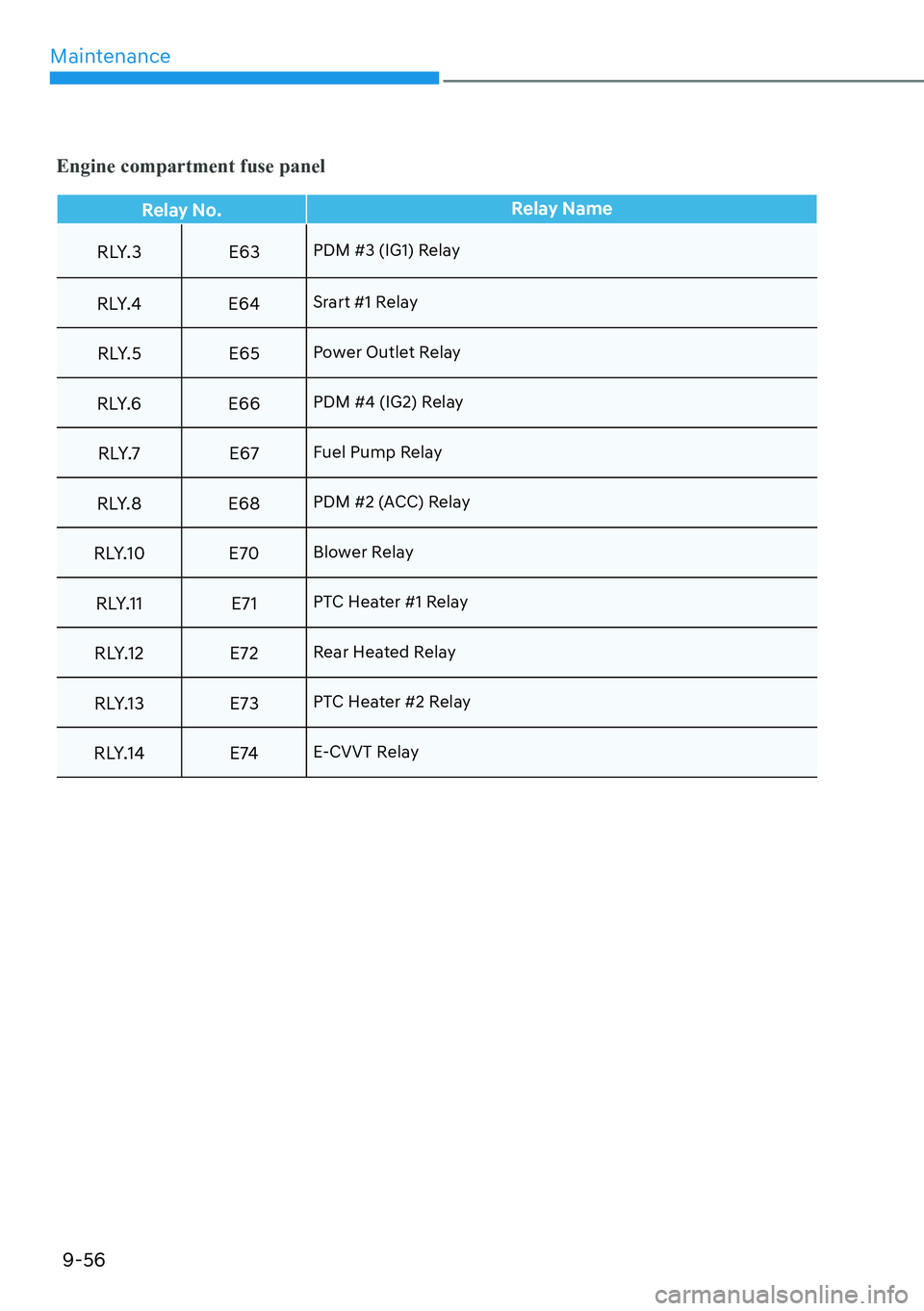

Maintenance9-56
Engine compartment fuse panel
Relay No. Relay Name
RLY.3 E63
PDM #3 (IG1) Relay
RLY.4 E64Srart #1 Relay
RLY.5 E65Power Outlet Relay
RLY.6 E66PDM #4 (IG2) Relay
RLY.7 E67Fuel Pump Relay
RLY.8 E68PDM #2 (ACC) Relay
RLY.10 E70Blower Relay
RLY.11 E71PTC Heater #1 Relay
RLY.12 E72Rear Heated Relay
RLY.13 E73PTC Heater #2 Relay
RLY.14 E74E-CVVT Relay

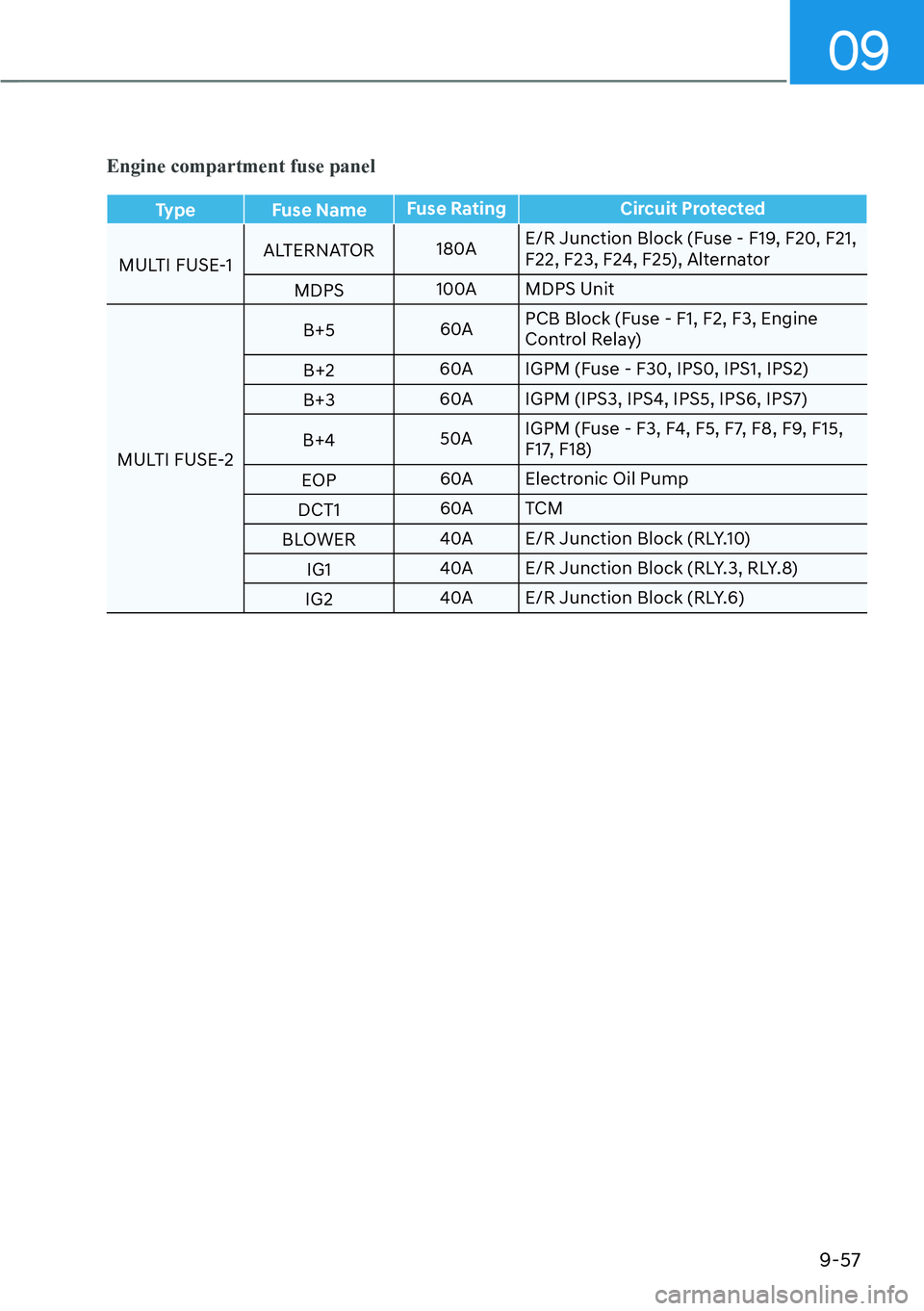

09
9-57
Engine compartment fuse panel
Type Fuse NameFuse Rating Circuit Protected
MULTI FUSE-1 AL
TERNATOR
180AE/R Junction Block (Fuse - F19, F20, F21,
F22, F23, F24, F25), Alternator
MDPS 100A MDPS Unit
MULTI FUSE-2 B+5
60APCB Block (Fuse - F1, F2, F3, Engine
Control Relay)
B+2 60A IGPM (Fuse - F30, IPS0, IPS1, IPS2)
B+3 60A IGPM (IPS3, IPS4, IPS5, IPS6, IPS7)
B+4 50AIGPM (Fuse - F3, F4, F5, F7, F8, F9, F15,
F17, F18)
EOP 60A Electronic Oil Pump
DCT1 60A TCM
BLOWER 40A E/R Junction Block (RLY.10)
IG1 40A E/R Junction Block (RLY.3, RLY.8)
IG2 40A E/R Junction Block (RLY.6)

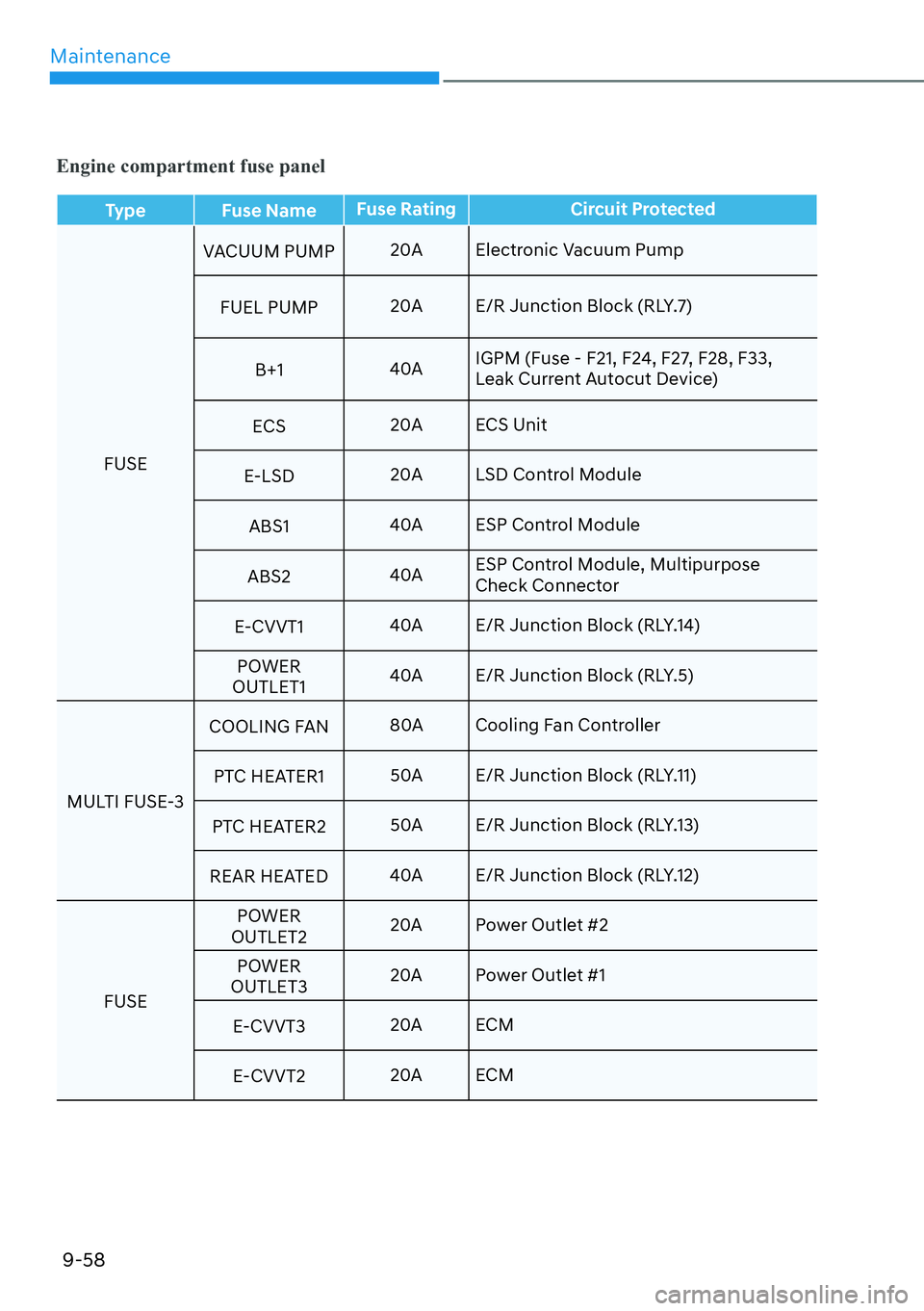

Maintenance9-58
Engine compartment fuse panel
Type Fuse Name Fuse Rating Circuit Protected
FUSE V
ACUUM PUMP
20A Electronic Vacuum Pump
FUEL PUMP 20A E/R Junction Block (RLY.7)
B+1 40AIGPM (Fuse - F21, F24, F27, F28, F33,
Leak Current Autocut Device)
ECS 20A ECS Unit
E-LSD 20A LSD Control Module
ABS1 40A ESP Control Module
ABS2 40AESP Control Module, Multipurpose
Check Connector
E-CVVT1 40A E/R Junction Block (RLY.14)
POWER
OUTLET1 40A E/R Junction Block (RLY.5)
MULTI FUSE-3 COOLING FAN
80A Cooling Fan Controller
PTC HEATER1 50A E/R Junction Block (RLY.11)
PTC HEATER2 50A E/R Junction Block (RLY.13)
REAR HEATED 40A E/R Junction Block (RLY.12)
FUSE POWER
OUTLET2 20A Power Outlet #2
POWER
OUTLET3 20A Power Outlet #1
E-CVVT3 20A ECM
E-CVVT2 20A ECM

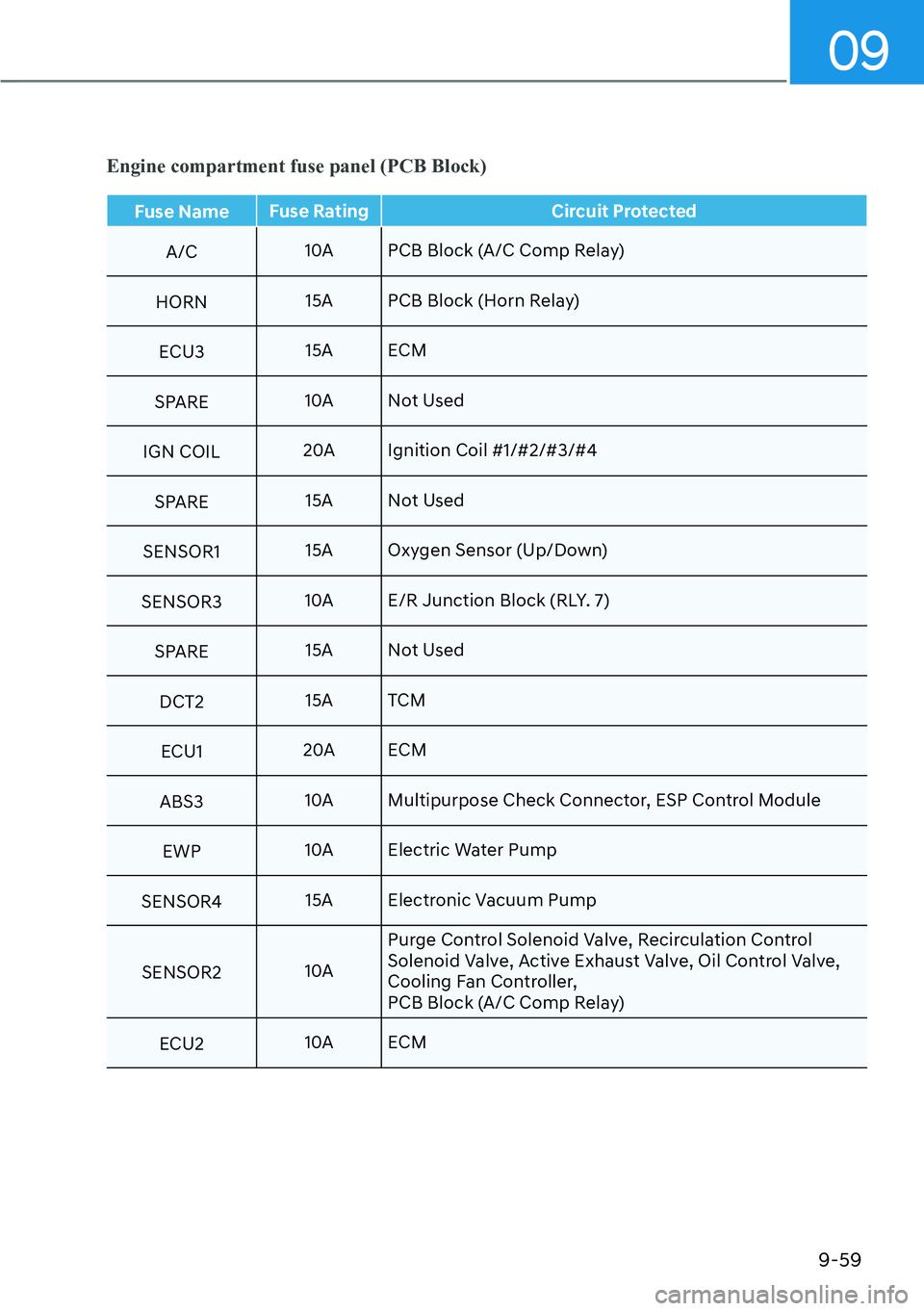

09
9-59
Engine compartment fuse panel (PCB Block)
Fuse NameFuse Rating Circuit Protected
A/C 10
A PCB Block (A/C Comp Relay)
HORN 15A PCB Block (Horn Relay)
ECU3 15A ECM
SPARE 10A Not Used
IGN COIL 20A Ignition Coil #1/#2/#3/#4
SPARE 15A Not Used
SENSOR1 15A Oxygen Sensor (Up/Down)
SENSOR3 10A E/R Junction Block (RLY. 7)
SPARE 15A Not Used
DCT2 15A TCM
ECU1 20A ECM
ABS3 10A Multipurpose Check Connector, ESP Control Module
EWP 10A Electric Water Pump
SENSOR4 15A Electronic Vacuum Pump
SENSOR2 10APurge Control Solenoid Valve, Recirculation Control
Solenoid Valve, Active Exhaust Valve, Oil Control Valve,
Cooling Fan Controller,
PCB Block (A/C Comp Relay)
ECU2 10A ECM

Maintenance9-60
NOTICE
After checking the fuse panel in the engine compartment, securely install the cover.
If it is not securely latched, electrical failure may occur from water contact.
Engine compartment fuse panel
(Battery terminal cover)
OOS090035L
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
OOS090052L
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.

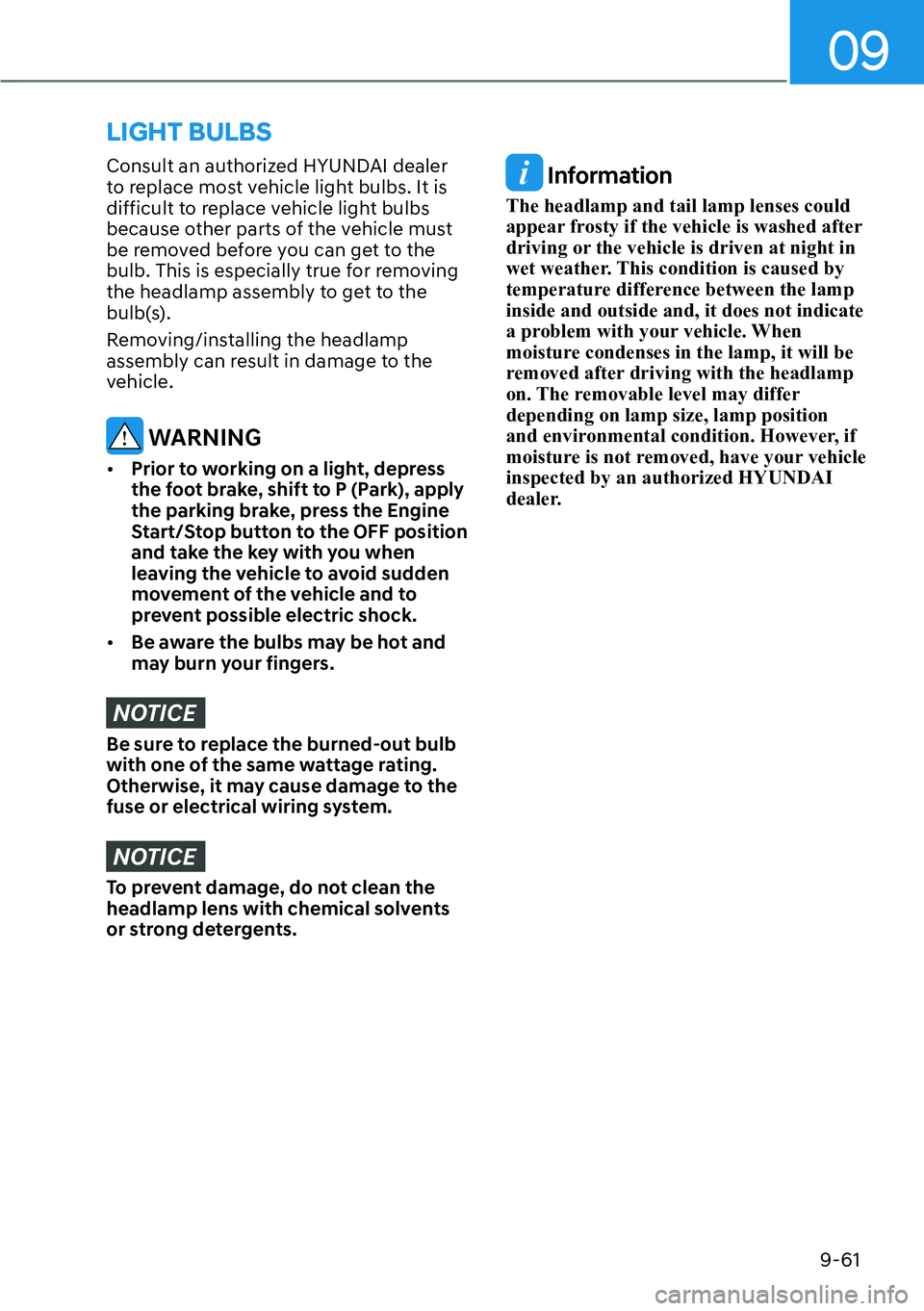

09
9-61
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
WARNING

[Prior to working on a light, depress
the foot brake, shift to P (Park), apply
the parking brake, press the Engine
Start/Stop button to the OFF position
and take the key with you when
leaving the vehicle to avoid sudden
movement of the vehicle and to
prevent possible electric shock.

[ Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have your vehicle
inspected by an authorized HYUNDAI
dealer.
LIGHT BULBS

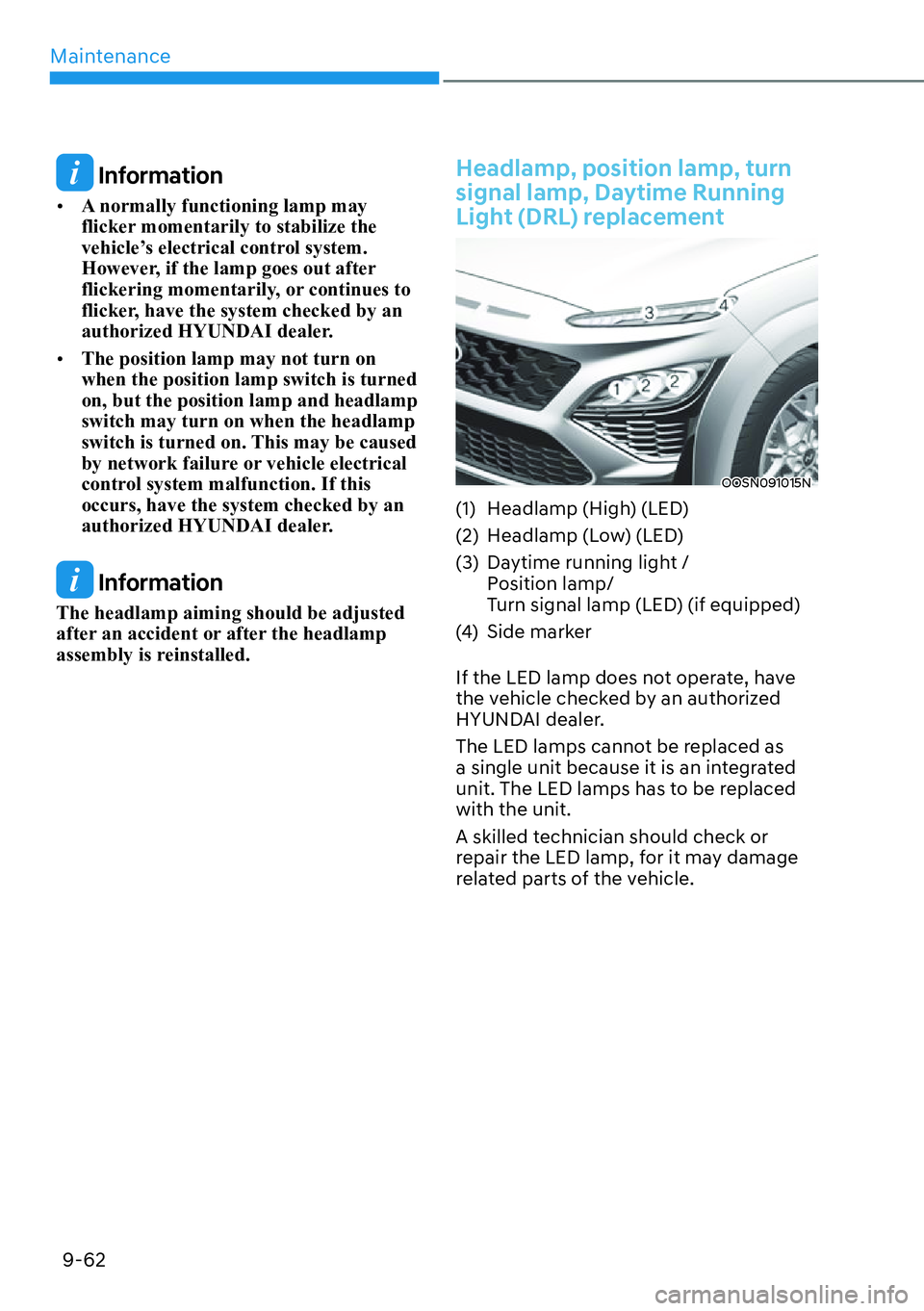

Maintenance9-62
Information

[ A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues to
flicker, have the system checked by an
authorized HYUNDAI dealer.

[ The position lamp may not turn on
when the position lamp switch is turned
on, but the position lamp and headlamp
switch may turn on when the headlamp
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
occurs, have the system checked by an
authorized HYUNDAI dealer.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled.
Headlamp, position lamp, turn
signal lamp, Daytime Running
Light (DRL) replacement
OOSN091015N
(1) Headlamp (High) (LED)
(2) Headlamp (Low) (LED)
(3) Daytime running light /
Position lamp/
Turn signal lamp (LED) (if equipped)
(4) Side marker
If the LED lamp does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

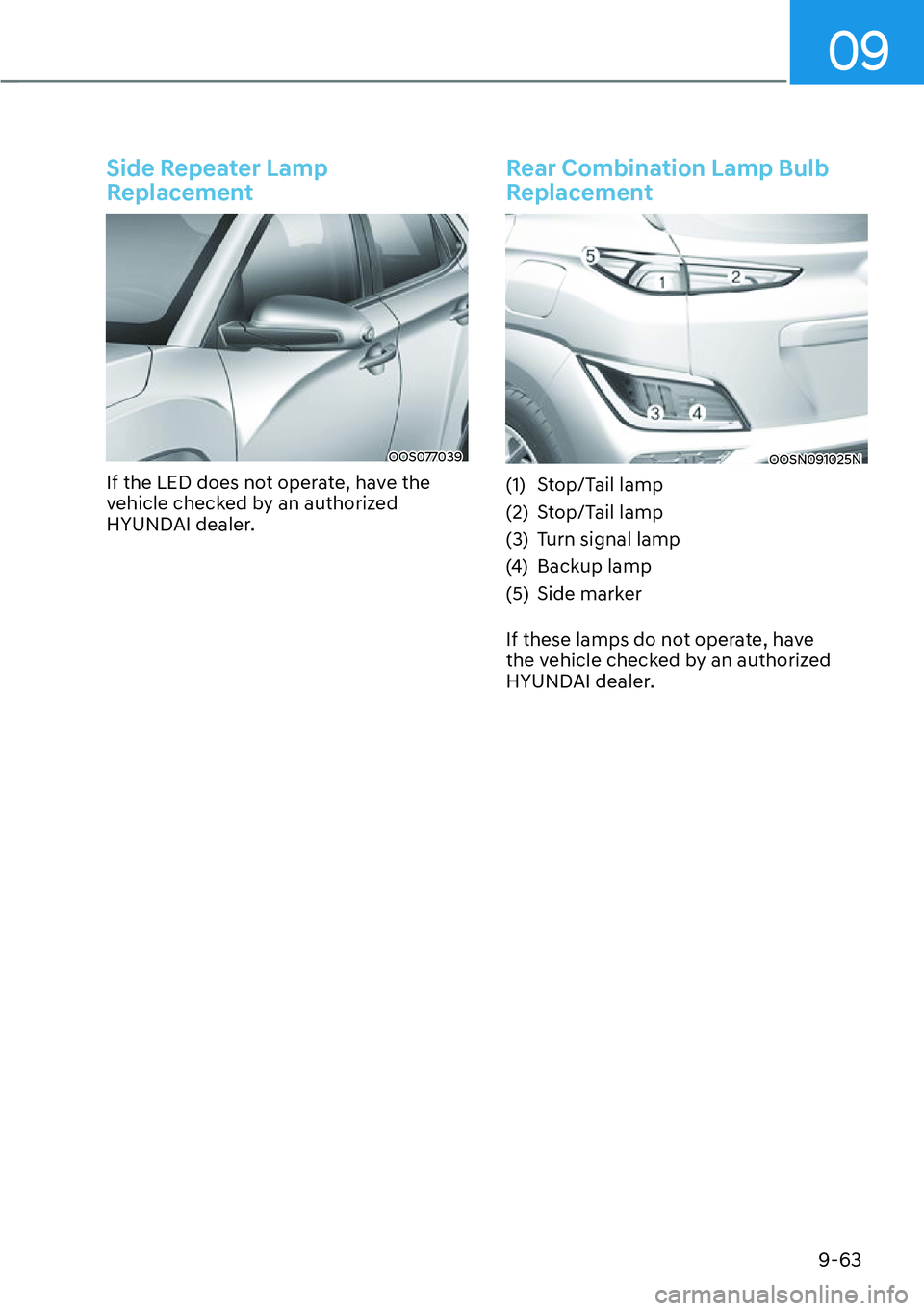

09
9-63
Side Repeater Lamp
Replacement
OOS077039
If the LED does not operate, have the
vehicle checked by an authorized
HYUNDAI dealer.
Rear Combination Lamp Bulb
Replacement
OOSN091025N
(1) Stop/Tail lamp
(2) Stop/Tail lamp
(3) Turn signal lamp
(4) Backup lamp
(5) Side marker
If these lamps do not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.

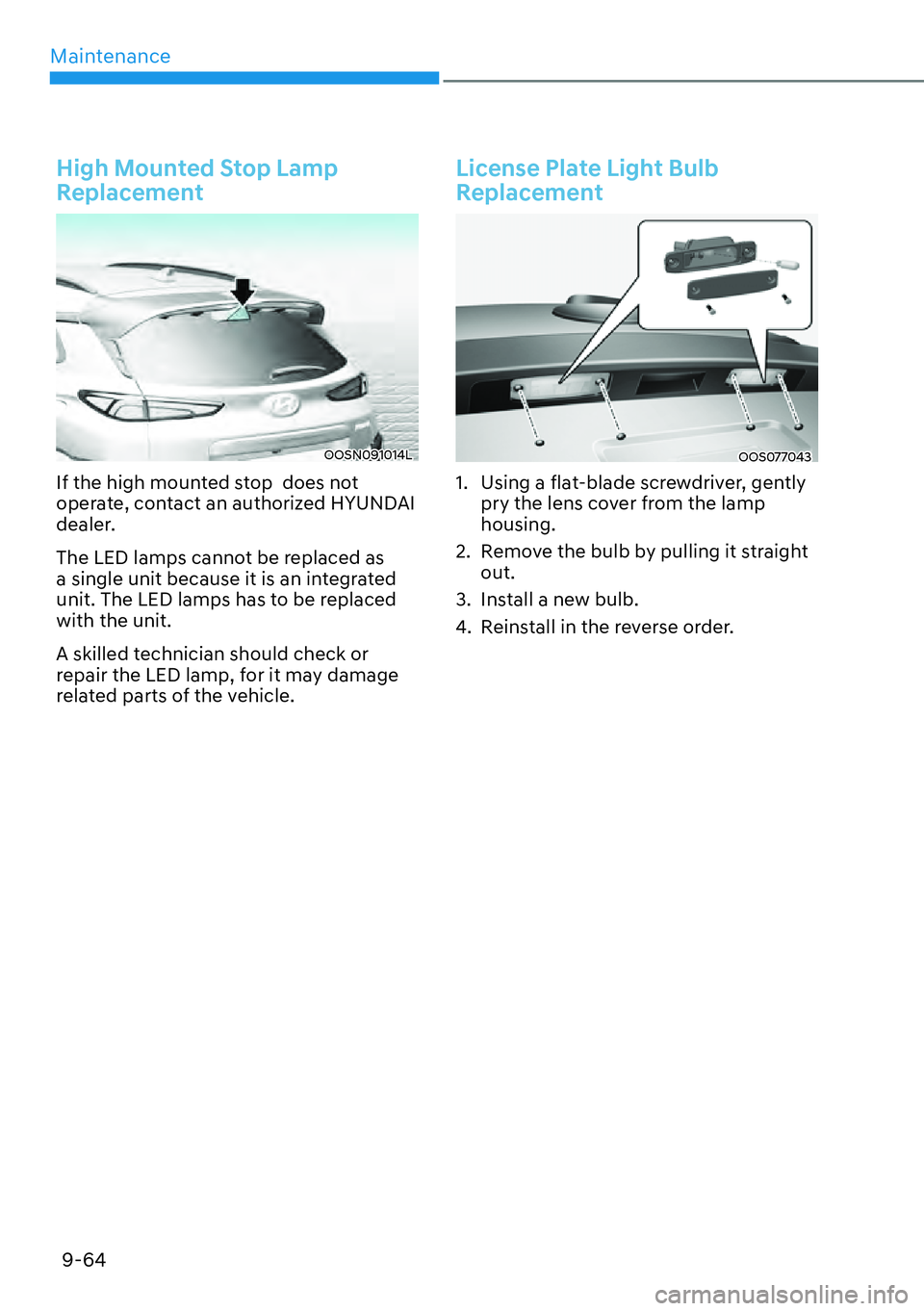

Maintenance9-64
High Mounted Stop Lamp
Replacement
OOSN091014L
If the high mounted stop does not
operate, contact an authorized HYUNDAI
dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
License Plate Light Bulb
Replacement
OOS077043
1. Using a flat-blade screwdriver, gently pry the lens cover from the lamp
housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
