Page 55 of 317
FEATURES OF YOUR HYUNDAI 1- 47
B500A01A-AAT GLOVE BOX
HFC2095
WARNING: To avoid the possibility of injury in case ofan accident or a sudden stop, the glove boxdoor should be kept closed when the car isin motion.
o To open the glove box, pull on the glove box release lever.
B491A02F-GAT SPECTACLE CASE (If Installed)HXDOM241
The spectacle case is located on the front overhead console.Push the end of the cover to open the spectaclecase. WARNING: Do not open the spectacle case while thevehicle is moving. The rear view mirror ofthe vehicle can be blocked by an openspectacle case.
The interior courtesy light has a button of three positions. The three positions are:
oDR In the "DR" position, the interior courtesy light comes on when any door is opened regardlessof the ignition key position. The light goes outwhen the door is closed.
oON In the "ON" position, the light stays on at all times.
o OFF In the "OFF" position, the light stays off at all times even though a door is open.
B490A01E-AAT INTERIOR LIGHT
B490A01E
With Sunroof
Without Sunroof
B490B01E
Page 56 of 317
FEATURES OF YOUR HYUNDAI
1- 48
B510D01E
B510B01FC-GAT OUTSIDE REARVIEW MIRROR Electric Type
HFC2011
The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behindthe vehicle, and to the rear of the left and rightsides.The remote control outside rearview mirrorswitch controls the adjustments for both rightand left outside mirrors.
HFC2058
The multi box may be opened by pulling it out by its grip.It is used for storing small articles.If the multi box is removed, the fuse box for thelights and other electrical accessories will beexposed.
B500B02E-GAT MULTI BOX
To adjust the position of either mirror:
1. Move the selecting switch to the right or left
to activate the adjustable mechanism for the corresponding door mirror.
2. Now, adjust mirror angle by depressing the appropriate perimeter switch as illustrated.
CAUTION:
o Do not operate the switch continuously for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage. To removeany ice, use a sponge, soft cloth or ap-proved de-icer.
WARNING:Be careful when judging the size or distanceof any object seen in the passenger siderear view mirror. It is a convex mirror with acurved surface. Any objects seen in thismirror are closer than they appear.

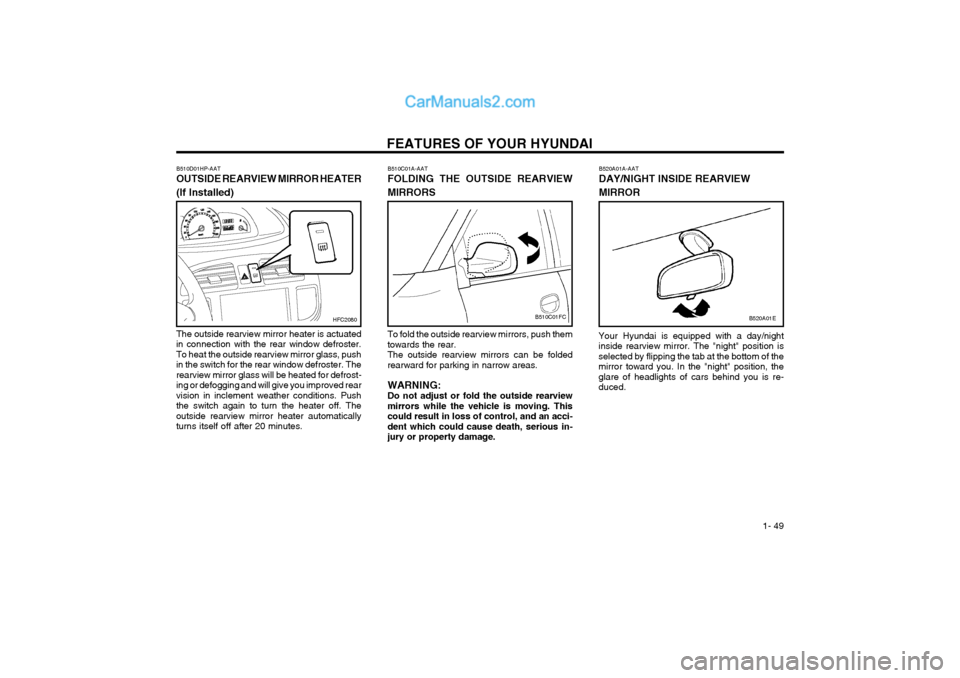

Page 57 of 317
FEATURES OF YOUR HYUNDAI 1- 49
B510C01A-AAT FOLDING THE OUTSIDE REARVIEW MIRRORS
B510C01FC
To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be foldedrearward for parking in narrow areas. WARNING: Do not adjust or fold the outside rearviewmirrors while the vehicle is moving. Thiscould result in loss of control, and an acci-dent which could cause death, serious in-jury or property damage.
B510D01HP-AAT OUTSIDE REARVIEW MIRROR HEATER (If Installed)
The outside rearview mirror heater is actuated in connection with the rear window defroster.To heat the outside rearview mirror glass, pushin the switch for the rear window defroster. Therearview mirror glass will be heated for defrost-ing or defogging and will give you improved rearvision in inclement weather conditions. Pushthe switch again to turn the heater off. Theoutside rearview mirror heater automaticallyturns itself off after 20 minutes.
HFC2080
B520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRROR
B520A01E
Your Hyundai is equipped with a day/night inside rearview mirror. The "night" position isselected by flipping the tab at the bottom of themirror toward you. In the "night" position, theglare of headlights of cars behind you is re-duced.
Page 173 of 317
INDEX10-3
R
Rear Fog Audible Warning Sound
....................................................1-36
Rear Seat Adjustable headrests ..................................................................... 1-11
Adjusting seatback angle .............................................................. 1-11
Adjusting seat forward and rearward ............................................ 1-11
Arm Rest ....................................................................................... 1-44
Fold down ........................................................................... 1-12 ~ 1-13
Rear Window Defroster Switch ......................................................... 1-42
Recommended Shift Poi nts ................................................................ 2-5
Removal of water from the fuel fiter ...................................... 6-22 ~ 6-23
Replacing Light Bulbs ....................................................................... 6-23
Replacing The Spark Plugs .............................................................. 6-10
Roof R ack ......................................................................................... 1-54
SSeat Belts 2-Point Static Type ............................................................ 1-16 ~ 1-173-Point system ................................................................... 1-15 ~ 1-16
Adjustable height ........................................................................... 1-15
Adjusting your seat belt ................................................................ 1-16
Care of seat belts ......................................................................... 1-14
Precautions ................................................................................... 1-13
Seat Warmer ..................................................................................... 1-13
Spark Plugs ........................................................................... 6-10 ~ 6-11
Spectacle Case ................................................................................. 1-46
Speedometer ..................................................................................... 1-36
Starting Procedures ............................................................................ 2-3Steering Wheel Free play ....................................................................................... 6-17
Tilt lever ........................................................................................ 1-55
Stereo Radio Operation (H210, H220, H260, H280) ............................ 1-65 ~ 1-66, 1-67 ~ 1-68, 1-71 ~ 1-73, 1-78 ~ 1-80
Stereo Sound System ............................................................ 1-63 ~ 1-64
K
Keys .................................................................................................... 1-2
If you lose your keys .................................................................... 3-10
Positions .......................................................................................... 2-2
L
Lubrication Chart ................................................................................. 9-3
Luggaga Net ..................................................................................... 1-53
MMaintenance Intervals Explanation of scheduled maintenance items ........................ 5-7 ~ 5-8
Maintenance under severe usage conditions ................................. 5-6
Scheduled maintenance ......................................................... 5-3 ~ 5-5
Service requirements ...................................................................... 5-1
Mirros Day-night inside rearview .............................................................. 1-49
Outside rear view .......................................................................... 1-48
Multi Box ........................................................................................... 1-48
OOdometer .......................................................................................... 1-37
Outside Rearview Mirror Heater ....................................................... 1-49
PParking Brake ................................................................................... 1-50
Power Outlet ..................................................................................... 1-51
Power Steering Fluid Level .............................................................. 6-22
Pre-tensioner Seat Belt ..................................................................... 1-23
Page 226 of 317
CONTROLS AND EQUIPMENT
1- 44 The interior courtesy light has a button of three positions. The three positions are:
oDR In the "DR" position, the interior courtesy light comes on when any door is opened regard- less of the ignition key position. The light goes out when the door is closed.
oON In the "ON" position, the light stays on at all times. CAUTION: Do not leave the switch in this position for an extended period time when the vehicle is not running.
SB340B2-E Interior Light
B490A01E
With Sunroof
Without Sunroof
B490B01E
B491A02F-EAT SPECTACLE CASE (Not all models)
HXDOM241
The spectacle case is located on the front overhead console. Push the end of the cover to open the spec-tacle case. WARNING: Do not open the spectacle case whilst the vehicle is moving. The rear view mirror of the vehicle can be blocked by an open spectacle case.
B480A01E-EAT INTERIOR LIGHT Map Light The two map lights are located at each side of the interior light. The lights may be operated by depressing theswitch to turn on the light and pressing again to turn off the light. This light produces a spot beam for convenient use as a map light at night or as a personal light for the driver or the passenger.
B480A01EB480B01E
With Sunroof Without Sunroof
o OFF In the "OFF" position, the light stays off at all times even though a door is open.
fcuk-1.p65 3/6/2007, 9:58 AM
44
Page 227 of 317
1- 45
CONTROLS AND EQUIPMENT
B500A01A-EAT GLOVE BOX WARNING: To avoid the possibility of injury, the glove box lid must be kept closed whilst the vehicle is in motion.
o To open the glove box, pull the glove box release lever. The multi box may be opened by pulling it out by its grip. It is used for storing small commodities. If the multi box is removed, the fuse box forthe lights and other electrical accessories will be exposed.
B500B02E-GAT MULTI BOX
HFC2095-DHFC2058-D
HFC2011-D
B510B01FC-EAT EXTERIOR REAR VIEW MIRROR Electric Type The outside rear view mirror can be adjusted in any direction to give the maximum rear view vision. The remote control outside rear view mirrorswitch controls the adjustments for passenger side door mirror. To adjust the position of either mirror:
1. Move the selecting switch to the "L" (or
"R") position to activate the adjustable mechanism for the adjusting door mirror.
2. Now, adjust mirror angle by depressing the appropriate perimeter switch as illustrated.
fcuk-1.p65 3/6/2007, 9:58 AM
45
Page 228 of 317
CONTROLS AND EQUIPMENT
1- 46
SB360C1-F
FOLDING THE OUTSIDE REAR VIEW MIRRORS To fold the outside rear view mirrors, push them towards the rear. The outside rear view mirrors can be foldedrearward for parking in restricted areas. WARNING: Do not adjust or fold the outside rear viewmirrors while the vehicle is moving. This could result in loss of control, and an accident causing death, serious injury or property damage.
B510D01E
CAUTION:
o Do not leave the switch on for an unneces-sary length of time.
o Scraping ice from the mirror face could cause permanent damage. To removeany ice, use a sponge, soft cloth or approved deicer.
o Be careful when judging the size or dis- tance of any object seen in the passen-ger side rear view mirror. It is a convex mirror with a curved surface, any ob- jects seen in this mirror are closer than they appear.
B510C01FC-D
B510D01HP-EAT OUTSIDE REARVIEW MIRROR HEATER (Not all models)
The outside rearview mirror heater is actuated in connection with the rear window defroster.To heat the outside rearview mirror glass, push in the switch for the rear window de- froster. The rearview mirror glass will be heated for defrosting or defogging and will give you improved rear vision in inclement weather conditions. Push the switch again to turn the heater off. The outside rearview mirror heater automatically turns itself off after 20 minutes. HFC2080-D
fcuk-1.p65
3/6/2007, 9:58 AM
46
Page 229 of 317
1- 47
CONTROLS AND EQUIPMENT
SB380A1-E PARKING BRAKE The parking brake must always be set when the vehicle is to be left unattended. When the parking brake is applied, and the ignition key is at the "ON" position, the parking brake warning light will be illuminated. Before driving the vehicle, the parking brake must be fully released and the warning light extinguished.
o To set the parking brake, apply the foot brake and pull the parking brake lever up with the button depressed. Release the button when the brake is fully applied.
o To release the parking brake, apply the foot brake and pull up the parking brakelever slightly. Depress the button and lower the lever.
SB370A1-E INTERIOR REAR VIEW MIRROR The interior mirror is of the day/night type to enable the glare of headlights from following vehicles to be eliminated during night time driving. The tab located at the bottom of the mirrorshould be set to the position nearest the windscreen for normal day time driving, and flipped towards the rear of the vehicle to eliminate glare during night time driving. To adjust the field of vision, the mirror may be moved by hand upon the mounting. NOTE: The mirror should always be adjusted prior to setting the vehicle in motion.
B530A01FC-DB550A01FC
B520A01E
B550A01S-DAT HIGH-MOUNTED REAR STOP LIGHT In addition to the lower-mounted rear stop-
lights on either side of the car, the high mounted rear stoplight in the centre of the rear window or inserted in the rear spoiler also
lights when the brakes are applied.
fcuk-1.p65 3/6/2007, 9:58 AM
47
Page 315 of 317
INDEX
10-2 E EFFECTIVE BRAKING
...................................................................... 2-9
ELECTRIC COOLING FANS ........................................................... 6-20
EMISSION CONTROL SYSTEM ...................................................... 7-1
ENGINE COMPARTMENT ...................................................... 6-1 ~ 6-3
ENGINE COOLANT CHECKING AND REPLACING ....................... 6-7
ENGINE OIL AND FILTER REPLACEMENT ................................... 6-6
ENGINE OIL CONSUMPTION .......................................................... 6-6
ENGINE OIL REPLENISHMENT ...................................................... 6-5
ENGINE OIL ....................................................................................... 6-4
EXTERIOR REAR VIEW MIRROR ................................................. 1-45
FFOLDING REAR SEATBACK AND SEAT CUSHION ....... 1-11 ~ 1-12
FOLD-UP TRAY ............................................................................... 1-48
FRONT AS HTRAY........................................................................... 1-40
FRONT FOG LIGHT SWITCH ........................................................ 1-39
FUEL ECONOMY .............................................................................. 2-4
FUEL GAUGE .................................................................................. 1-33
FUEL RECOMMENDATIONS ........................................................... 1-1
FUSE PANEL DESCRIPTION ......................................................... 6-25
FUSIBLE LINKS ............................................................................... 6-18
G
GLOVE BOX .................................................................................... 1-45 HHAZARD WARNING SYSTEM
........................................................ 1-38
HEADLIGHT AIMING ADJUSTEMENT .......................................... 6-21
HEADLIGHT BULB .............................................................. 6-20 ~ 6-21
HEADLIGHT LEVELING DEVICE SYSTEM .................................. 1-42
HEAD RESTRAINT ADJUSTMENT ........................................ 1-9, 1-11
HEATED REAR WINDOW .............................................................. 1-39
HEATING CON TROL ....................................................................... 1-56
HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT .......... 1-14
HORN ............................................................................................... 1-52 I IF THE ENGINE CANNOT BE CRANKED ...................................... 3-1
IF THE ENGINE WILL NOT START ................................................ 3-1
IF THE EVENT OF A PUNCTURE ................................................... 3-4
IMMOBILISER SYSTEM ......................................................... 1-2 ~ 1-3
INDIVIDUAL CIRCUIT FUSES ........................................................ 6-18
INSTRUMENT CLUSTER AND INDICATORS ................... 1-28 ~ 1-29
INSTRUMENTS AND CONTROLS ................................................. 1-27
INTERIOR LIGHT ............................................................................ 1-44
INTERIOR REAR VIEW MIRROR .................................................. 1-47
JJUMP STARTING .............................................................................. 3-1
fcuk-10.p65 3/6/2007, 10:03 AM
2
