Hyundai Matrix 2005 Owner's Manual

1
FEATURES OF YOUR HYUNDAI
7
NOTE: If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds with-out limp home procedure again.
5. If the immobilizer indicator blinks for
five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure,you have to consult with your autho-rized Hyundai dealer as soon as pos- sible.
! CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, you have to wait for about one hour to do the limphome procedure again.
o If you cannot start your engine in
spite of limp home procedure,have your vehicle towed by an authorized Hyundai dealer.
!
DOOR
B040A02Y-AAT DOOR LOCKS
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children in the car), be sure that all the doorsare securely closed and locked so that the doors cannot be inad- vertently opened from the inside.This helps ensure that the doors will not be opened accidentally. Also, when combined with theproper use of seat belts, locking the doors helps keep occupants from being ejected from the carin case of an accident.
o Before opening the door, always
look for and avoid oncoming traf-fic.
o In case of accident the door is
unlocked automatically (If in-stalled) UNLOCK
LOCK
HFC2004
B040B01A-AAT Locking and Unlocking Front Doors With a Key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key towardthe rear.

1FEATURES OF YOUR HYUNDAI
8
B040D01FC-GAT Locking From the Inside To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position.When this is done, neither the outside nor the inside door handles can be used. NOTE: When the door is locked, the red mark on the switch is not visibleand the character "LOCK" on the switch is visible. HFC2005
LOCK
HFC2009
B040C01FC-GAT Locking From the Outside The doors can be locked without a key. To lock the doors first push the inside lock switch to the "LOCK" position, sothat the red mark on the switch is not visible, then close the door. The door will not lock if the key is left inthe ignition switch when the front doors close. This is normal. (If installed) NOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in thevehicle.
o To protect against theft, always
remove the ignition key, close allwindows, and lock all doors and the tail gate when leaving your vehicle unattended.
UNLOCK

1
FEATURES OF YOUR HYUNDAI
9

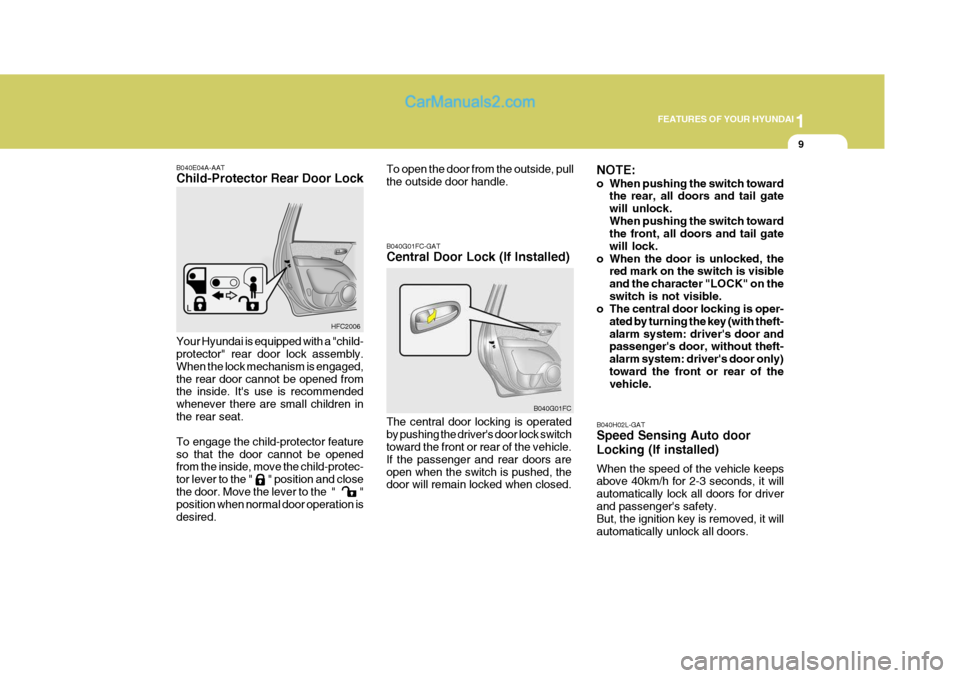

Your Hyundai is equipped with a "child- protector" rear door lock assembly. When the lock mechanism is engaged,the rear door cannot be opened from the inside. It's use is recommended whenever there are small children inthe rear seat. To engage the child-protector feature so that the door cannot be opened from the inside, move the child-protec- tor lever to the " " position and closethe door. Move the lever to the " " position when normal door operation is desired. HFC2006
B040E04A-AAT Child-Protector Rear Door Lock
To open the door from the outside, pull the outside door handle. B040G01FC-GAT Central Door Lock (If Installed) The central door locking is operated by pushing the driver's door lock switch toward the front or rear of the vehicle. If the passenger and rear doors areopen when the switch is pushed, the door will remain locked when closed.B040G01FCNOTE:
o When pushing the switch toward
the rear, all doors and tail gate will unlock.When pushing the switch toward the front, all doors and tail gate will lock.
o When the door is unlocked, the red mark on the switch is visibleand the character "LOCK" on theswitch is not visible.
o The central door locking is oper-
ated by turning the key (with theft-alarm system: driver's door and passenger's door, without theft- alarm system: driver's door only)toward the front or rear of the vehicle.
B040H02L-GAT Speed Sensing Auto door Locking (If installed) When the speed of the vehicle keeps above 40km/h for 2-3 seconds, it will automatically lock all doors for driverand passenger's safety. But, the ignition key is removed, it will automatically unlock all doors.

1FEATURES OF YOUR HYUNDAI
10THEFT-ALARM SYSTEM
B070B01O-GAT Armed Stage
!
NOTE:
1) If any door, tail gate or engine
hood remains open, the system will not be armed.
2) If this happens, rearm the system as described previous.
Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the ignition switch.
2) Make sure that the engine hood and tail gate are locked.
3) Lock the doors using the transmitter
of the keyless entry system.
After completion of the steps above, the turn signal lights will blink once toindicate that the system is armed. CAUTION:
Do not arm the system until allpassengers have left the car. If thesystem is armed while a passenger(s) remains in the car, the alarm may be activated whenthe remaining passenger(s) leaves the car.
HFC2003
UNLOCK
LOCK
B070A01A-AAT (If Installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm with blinking of the turnsignal lights.

1
FEATURES OF YOUR HYUNDAI
11
3A9BA21
B070D02O-AAT Disarmed Stage
B070C01FC-GATAlarm Stage The alarm will be activated if any of the following occurs while the car is parkedand the system is armed.
1) A front or rear door is opened with-
out using the transmitter.
2) The tail gate is opened without us-
ing the transmitter.
3) The engine hood is opened.The alarming horn will sound and the turn signal light will blink continuously for 27 seconds (E.C only/ Except E.C 3 times). To turn off the system, unlockthe door or tail gate with the transmit- ter. The system will be disarmed when thedriver's or passenger's door is un- locked by depressing the "UNLOCK"button on the transmitter. After completion of the step above, the turn signal lights will blink twice to indicate that the system is disarmed. NOTE: Once the system has been dis- armed, it can not be rearmed except by repeating the arming procedures. CAUTION:
Only the transmitter can disarm thearmed stage. If the transmitter does not disarm the system, it is neces- sary to take the following steps;
1. Unlock the door with the key, which will cause, the alarm to be activated.
2. Insert the key in the ignition key
cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.
!

1FEATURES OF YOUR HYUNDAI
12
MSO-0048-2
Battery
MSO-0048-1
Screwdriver Case
B070F01A-GAT Keyless Entry System (If installed) Locking doors
1. Close all doors.
2. Push the "LOCK" button on the trans-
mitter.
3. At the same time all doors lock, the
turn signal lights will blink once toindicate that the system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmitter.
2. At the same time all doors unlock,
the turn signal light will blink twice to indicate that the system is disarmed. B070E02HP-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock the doors, and the LED will not light. Re- place the battery as soon as possible. Battery type : CR2032 Replacement instructions:
1. Carefully separate the case with a
blade screwdriver as shown in the illustration. 2. Remove the old battery from the
case and note the polarity. Makesure the polarity of the new batteryis the same(+side facing down), then insert it in the transmitter.

1
FEATURES OF YOUR HYUNDAI
13WINDOW
!
B050A01A-AAT WINDOW GLASS To raise or lower the window, turn the window regulator handle clockwise or counterclockwise.
WARNING:
When opening or closing the win-dows, make sure your passenger'sarms, hands and body are safely out of the way. B050A01FCB060A02E-AAT POWER WINDOWS (If Installed)
Close
The power windows operate when the ignition key is in the "ON" position. The main switches are located on thedriver's armrest and control the front and rear windows on both sides of the vehicle. The windows may be openedby depressing the appropriate window switch and closed by pulling up the switch. To open the window on thedriver's side, press the switch(1) down. The window moves as long as the switch is operated. B060A01FC
(1)
Open
In order to prevent operation of the passenger front and rear windows, awindow lock switch is provided on the armrest of the driver's door. To disable the power windows, press the windowlock switch. To return to normal operation, press the window lock switch a second time. HFC2013

1FEATURES OF YOUR HYUNDAI
14
!
!
SEAT
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main switch on the driver's door andthe individual door window switch in opposing directions atthe same time. If this is done, the window will stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety. HFC2024
B080B02FC-GAT FRONT SEATS Adjusting Seat Forward andRearward
B080A01FC-GAT ADJUSTABLE FRONT SEATS
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, or an accident which may cause death,serious injury, or property damage.
To move the seat toward the front orrear, pull the lock release lever up- ward. This will release the seat on its track so you can move it forward orrearward to the desired position. When you find the position you want, release the lever and slide the seat forward orrearward on its track until it locks into the desired position and cannot be moved further.
Auto-Down Window (Driver's Side) The Auto-Down window is moved to its fully open position by pushing theswitch. To stop at the desired loction, the switch must be pulled up.

1
FEATURES OF YOUR HYUNDAI
15
!
!WARNING:
To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver and passen-ger seatbacks should always be in an upright position while the ve- hicle is in motion. The protectionprovided by the seat belts and airbags in a frontal collision may be reduced significantly when the seatbacks are reclined. There is greater risk that the driver and pas-senger will slide under the seat belt which may result in serious injury if a crash occurs when the seatbacksare reclined. The seat belt cannot provide full protection to an occu- pant if the seat back is reclined.
To recline the seatback, lean forwardto take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now leanback until the desired seatback angle HFC2025
B080C01A-AAT Adjusting Seatback Angle
WARNING:
To ensure the seat is locked se- curely, attempt to move the seat forward or rearward without using the lock release lever. is achieved. To lock the seatback intoposition, release the recliner controllever.
Lock KnobHFC2028
B080D03A-AAT Adjustable Headrests Headrests are designed to help re- duce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressingthe lock knob.

1FEATURES OF YOUR HYUNDAI
16
!
B080E01O-AAT Lumbar Support Control (Driver's seat only) (If Installed) To adjust the lumbar support, turn the handle on the outboard or left side of the seat. To increase the amount oflumbar support, pull the lever forward. To decrease it, push the lever toward the rear.
1. Maximum support
2. Minimum support HFC2027
WARNING:
B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed)
To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward. To raise or lower the rear part of the seat cushion, turn therear knob forward or rearward. HFC2026
1
2
B080D01JM
o For maximum effectiveness in case of an accident the headrest should be adjusted so the middle of the headrest is at the sameheight as the top of the occupant's eyes. For this rea- son, the use of a cushion thatholds the body away from the seatback should not be recom- mended.
o Do not operate vehicle with the
headrests removed as injury tothe occupants may occur in theevent of an accident. Headrests may provide protection against neck injuries when properly ad- justed. o Do not adjust the headrest hejght
while the vehicle is in motion.
