window Hyundai Matrix 2005 Owner's Guide

Fuel Recommendations ............................................... 1-2
Breaking In Your New Hyundai .................................... 1-3
Keys .............................................................................. 1-4
Immobilizer System ...................................................... 1-5
Door .............................................................................. 1-7
Theft-Alarm System ....................................................1-10
Window ....................................................................... 1-13
Seat ............................................................................ 1-14
Seat Belts ................................................................... 1-21
Child Restraint System............................................... 1-28
Supplemental Restraint (AIRBAG) System ............... 1-37
Instrument Cluster and Indicator ................................ 1-44
Warning and Indicator Lights ..................................... 1-48
Trip Computer ............................................................ 1-56
Multi-function Light Switch ......................................... 1-57
Windshield Wiper/Washer Switch .............................. 1-59
Sunroof ....................................................................... 1-67
Mirror .......................................................................... 1-72
Hood Release ............................................................. 1-75
Heating and Cooling Control ...................................... 1-82
Stereo Sound System ................................................ 1-91
Audio System ............................................................. 1-93
Antenna .................................................................... 1-124FEATURES OF YOUR HYUNDAI
1
1

1FEATURES OF YOUR HYUNDAI
8

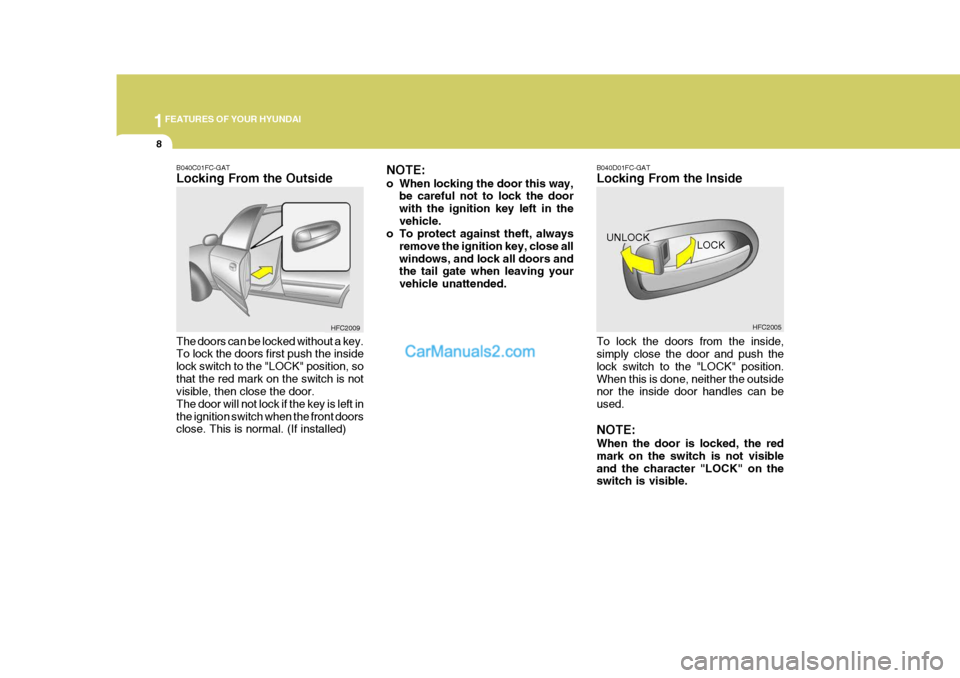

B040D01FC-GAT Locking From the Inside To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position.When this is done, neither the outside nor the inside door handles can be used. NOTE: When the door is locked, the red mark on the switch is not visibleand the character "LOCK" on the switch is visible. HFC2005
LOCK
HFC2009
B040C01FC-GAT Locking From the Outside The doors can be locked without a key. To lock the doors first push the inside lock switch to the "LOCK" position, sothat the red mark on the switch is not visible, then close the door. The door will not lock if the key is left inthe ignition switch when the front doors close. This is normal. (If installed) NOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in thevehicle.
o To protect against theft, always
remove the ignition key, close allwindows, and lock all doors and the tail gate when leaving your vehicle unattended.
UNLOCK

1
FEATURES OF YOUR HYUNDAI
13WINDOW
!
B050A01A-AAT WINDOW GLASS To raise or lower the window, turn the window regulator handle clockwise or counterclockwise.
WARNING:
When opening or closing the win-dows, make sure your passenger'sarms, hands and body are safely out of the way. B050A01FCB060A02E-AAT POWER WINDOWS (If Installed)
Close
The power windows operate when the ignition key is in the "ON" position. The main switches are located on thedriver's armrest and control the front and rear windows on both sides of the vehicle. The windows may be openedby depressing the appropriate window switch and closed by pulling up the switch. To open the window on thedriver's side, press the switch(1) down. The window moves as long as the switch is operated. B060A01FC
(1)
Open
In order to prevent operation of the passenger front and rear windows, awindow lock switch is provided on the armrest of the driver's door. To disable the power windows, press the windowlock switch. To return to normal operation, press the window lock switch a second time. HFC2013

1FEATURES OF YOUR HYUNDAI
14
!
!
SEAT
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main switch on the driver's door andthe individual door window switch in opposing directions atthe same time. If this is done, the window will stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety. HFC2024
B080B02FC-GAT FRONT SEATS Adjusting Seat Forward andRearward
B080A01FC-GAT ADJUSTABLE FRONT SEATS
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, or an accident which may cause death,serious injury, or property damage.
To move the seat toward the front orrear, pull the lock release lever up- ward. This will release the seat on its track so you can move it forward orrearward to the desired position. When you find the position you want, release the lever and slide the seat forward orrearward on its track until it locks into the desired position and cannot be moved further.
Auto-Down Window (Driver's Side) The Auto-Down window is moved to its fully open position by pushing theswitch. To stop at the desired loction, the switch must be pulled up.

1
FEATURES OF YOUR HYUNDAI
61

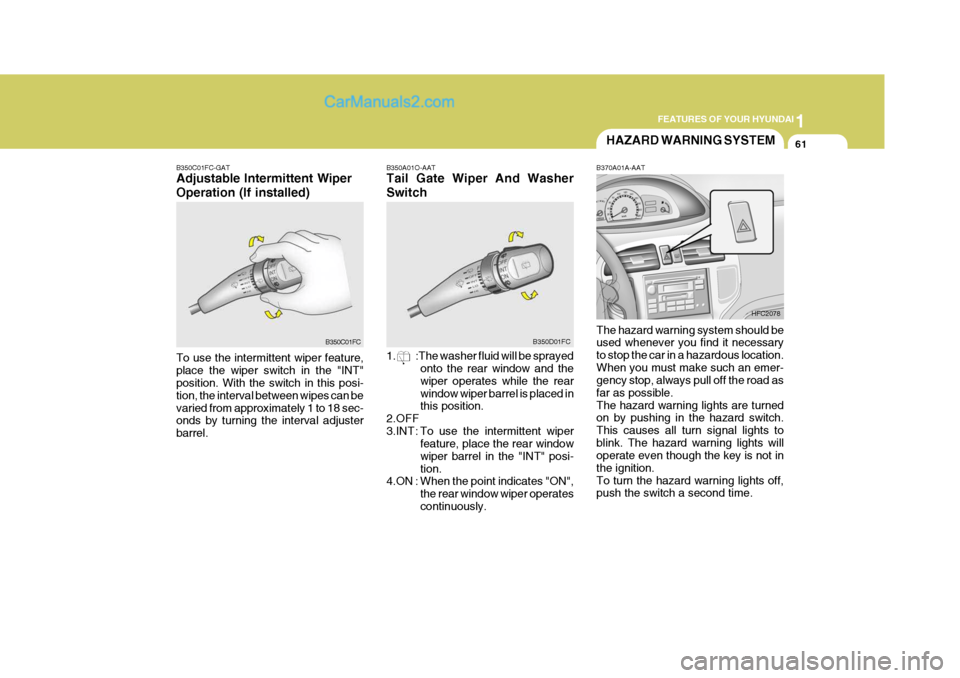

B350A01O-AAT Tail Gate Wiper And Washer Switch
1. :The washer fluid will be sprayed
onto the rear window and the wiper operates while the rearwindow wiper barrel is placed in this position.
2.OFF
3.INT : To use the intermittent wiper
feature, place the rear windowwiper barrel in the "INT" posi-tion.
4.ON : When the point indicates "ON",
the rear window wiper operatescontinuously.
B350D01FC
B370A01A-AAT The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location.When you must make such an emer- gency stop, always pull off the road as far as possible.The hazard warning lights are turned on by pushing in the hazard switch. This causes all turn signal lights toblink. The hazard warning lights will operate even though the key is not in the ignition.To turn the hazard warning lights off, push the switch a second time. HFC2078
HAZARD WARNING SYSTEM
B350C01FC-GAT Adjustable Intermittent Wiper Operation (If installed) To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this posi- tion, the interval between wipes can bevaried from approximately 1 to 18 sec- onds by turning the interval adjuster barrel. B350C01FC

1FEATURES OF YOUR HYUNDAI
62FOG LIGHT SWITCH
CAUTION:
Do not clean the inner side of the rear window glass with an abrasive type of glass cleaner or use a scraper to remove foreign deposits fromthe inner surface of the glass as this may cause damage to the de- froster elements. NOTE: The ignition must be in the "ON" position for the rear window de- froster to operate.
! B360B01FC-GAT Front fog light switch (If Installed) To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch is in the first or second position.B360B01FC
B380A02HP-AAT
HFC2080
REAR WINDOW DEFROSTER SWITCH
The rear window defroster and outside rearview mirror heater are turned on by pushing in the switch. To turn thedefroster off, push the switch a second time. The rear window defroster auto- matically turns itself off after about 20minutes. To restart the defroster cycle, push in the switch again after it has turned itself off.

1
FEATURES OF YOUR HYUNDAI
73
B520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRRORManual Type Your Hyundai is equipped with a day/ night inside rearview mirror. The "night"position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare ofheadlights of cars behind you is re- duced. HXDFL2112
!
B510C01A-AAT FOLDING THE OUTSIDE REARVIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear. The outside rearview mirrors can befolded rearward for parking in narrow areas.
WARNING:
Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss of control, and an accident whichcould cause death, serious injury or property damage. B510C01FCB510D01HP-AAT OUTSIDE REARVIEW MIRROR HEATER (If installed) The outside rearview mirror heater is actuated in connection with the rear window defroster. To heat the outside rearview mirror glass, pushin the switch for the rear window de- froster. The rearview mirror glass will be heated for defrosting or defoggingand will give you improved rear vision in inclement weather conditions. Push the switch again to turn the heater off.The outside rearview mirror heater automatically turns itself off after 20 minutes.
HFC2080

1
FEATURES OF YOUR HYUNDAI

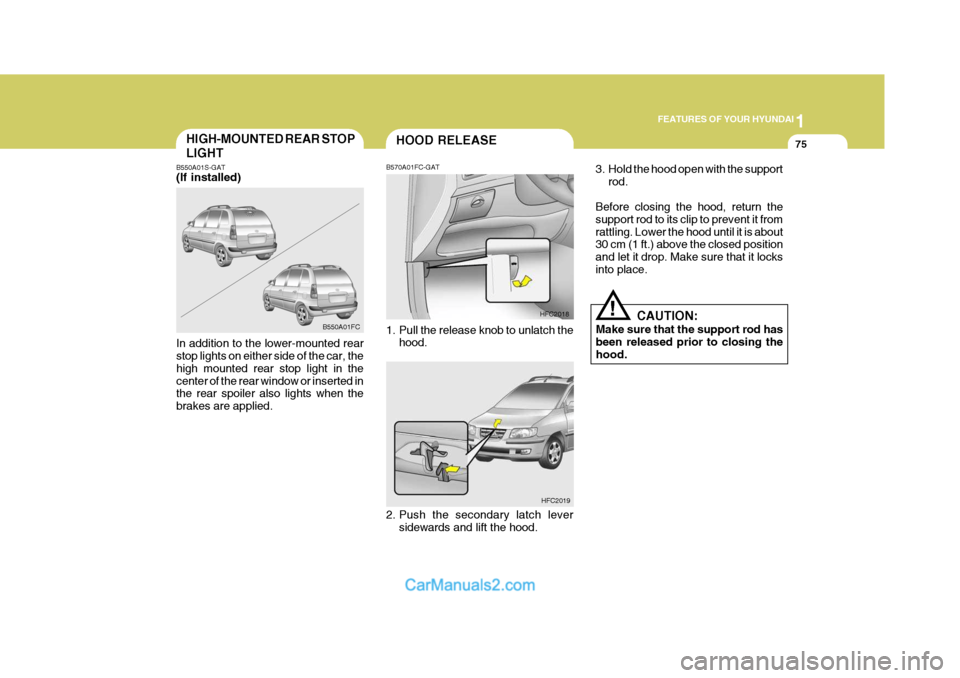

75HOOD RELEASE
B570A01FC-GAT
1. Pull the release knob to unlatch the hood. CAUTION:
Make sure that the support rod has been released prior to closing the hood.
!
3. Hold the hood open with the support
rod.
Before closing the hood, return the support rod to its clip to prevent it fromrattling. Lower the hood until it is about 30 cm (1 ft.) above the closed position and let it drop. Make sure that it locksinto place.
HFC2018
HFC2019
HIGH-MOUNTED REAR STOP LIGHT
B550A01S-GAT (If installed) In addition to the lower-mounted rear stop lights on either side of the car, the high mounted rear stop light in thecenter of the rear window or inserted in the rear spoiler also lights when the brakes are applied. B550A01FC
2. Push the secondary latch leversidewards and lift the hood.

1FEATURES OF YOUR HYUNDAI

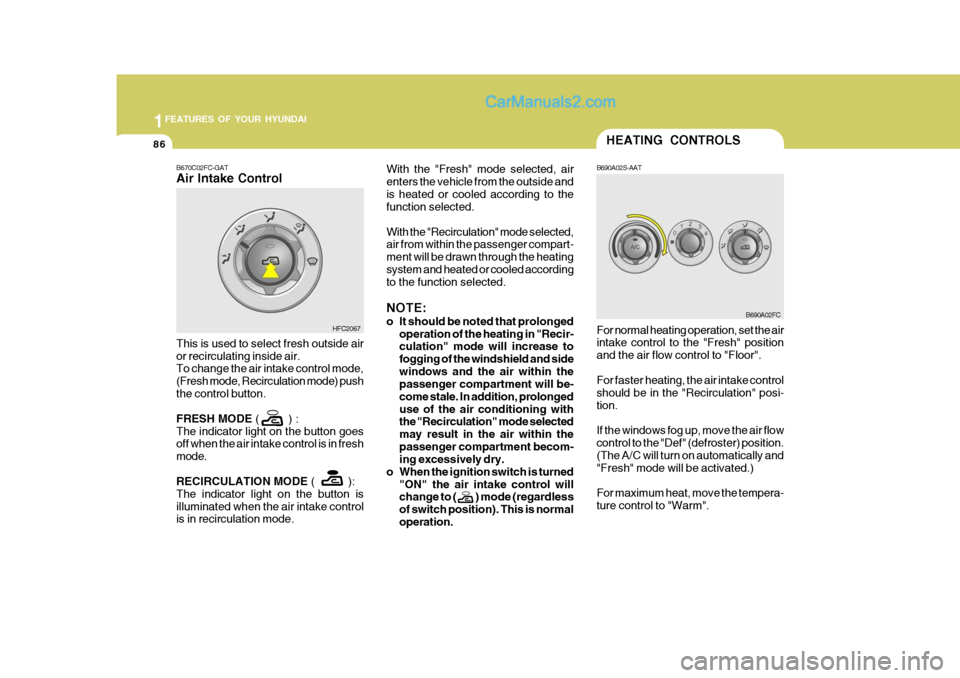

86HEATING CONTROLS
B690A02S-AAT
B670C02FC-GAT Air Intake Control With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, air from within the passenger compart- ment will be drawn through the heatingsystem and heated or cooled according to the function selected. NOTE:
o It should be noted that prolonged
operation of the heating in "Recir- culation" mode will increase to fogging of the windshield and sidewindows and the air within the passenger compartment will be- come stale. In addition, prolongeduse of the air conditioning with the "Recirculation" mode selected may result in the air within thepassenger compartment becom- ing excessively dry.
o When the ignition switch is turned "ON" the air intake control willchange to ( ) mode (regardless of switch position). This is normaloperation.
This is used to select fresh outside airor recirculating inside air. To change the air intake control mode, (Fresh mode, Recirculation mode) pushthe control button. FRESH MODE
( ) :
The indicator light on the button goes off when the air intake control is in fresh mode. RECIRCULATION MODE ( ):
The indicator light on the button is illuminated when the air intake control is in recirculation mode. HFC2067
For normal heating operation, set the air intake control to the "Fresh" position and the air flow control to "Floor". For faster heating, the air intake control should be in the "Recirculation" posi-tion. If the windows fog up, move the air flow control to the "Def" (defroster) position. (The A/C will turn on automatically and "Fresh" mode will be activated.) For maximum heat, move the tempera- ture control to "Warm".
B690A02FC

1FEATURES OF YOUR HYUNDAI
90AIR CONDITIONER FILTER (IN FRONT OF BLOWER UNIT)
B740D01A-AAT Operation Tips
o If the interior of the car is hot when
you first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air condition-
ing system, keep all windows closedto keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. Thisincreases engine speed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility ofthe engine over-heating.
o During winter months or in periods when the air conditioning is not usedregularly, run the air conditioning onceevery month for a few minutes. This will help circulate the lubricants and keep your system in peak operatingcondition. B760A03FC-GAT (If Installed) The air conditioner filter is located in front of the blower unit behind the glove box. It operates to decrease pollutants from entering the car.To replace the air conditioner filter, refer to the page 6-26.
CAUTION:
o Replace the filter every 20,000 km (12,000 miles) or once a year. If the car is being driven in severe con-ditions such as dusty, rough roads, more frequent air condi- tioner filter inspections andchanges are required.
o When the air flow rate is decreased,
it must be checked at an autho-rized dealer.
!
B760A01E
Evaporator core Filter
Heater core
Outside air
Inside air Inside air
Blower fan
