Fuel Recommendations ............................................... 1-2
Running In .................................................................... 1-3
Immobiliser System ...................................................... 1-4
Door .............................................................................. 1-5
Anti-Theft Alarm System ............................................... 1-8
Window ........................................................................1-11
Seat .......................... ................................................... 1-12
Seat Belts .................................................................... 1-19
Child Restraint System ................................................ 1-24
Supplemental Restraint (AIRBAG) System .................1-33
Instrument Cluster and Indicator ................................. 1-40
Warning Light and Indicator Lights ...............................1-44
Trip Computer .............................................................. 1-52
Multi-Function Switch .................................................. 1-54
Windscreen Wiper/Washer Switch ..............................1-55
Sunroof ........................................................................ 1-63
Mirror ........................................................................... 1-67
Bonnet Release ........................................................... 1-70
Heating and Cooling Control .......... ..............................1-76
Stereo Sound System ................................................. 1-92
Antenna ....................................................................... 1-95
CONTROLS AND EQUIPMENT
1
1

1CONTROLS AND EQUIPMENT
2
B010A03O-EAT PETROL ENGINES THIS VEHICLE MUST ONLY BE OP- ERATED WITH UNLEADED FUEL.SERIOUS DAMAGE WILL RESULT FROM THE USE OF LEADED FUEL. Unleaded fuel with a Research Octane Number (RON) of 91 or higher must be used in this vehicle.To prevent accidental charging of the fuel tank with leaded fuel, a small diameter filler neck along with arestrictor flap are fitted to ensure that only unleaded fuel pump nozzles may enter the filler neck. However, care must be exercised whenrefuelling the vehicle tank from jerrycans or by means of a funnel that the fuel being used is unleaded. The use of leaded fuel in this vehicle willresult in irreversible pollution of the catalyst element. Such pollution will prevent correct operation of the cata-lyst and give rise to increased operat- ing temperatures leading to the cata- lyst element melting and restricting theexhaust flow along with an increase in exhaust emission levels.
B010A02FC-D
FUEL RECOMMENDATIONS
!
CAUTION:
The vehicle warranty will not extend to damage arising from the use ofincorrect fuels. DIESEL ENGINES Diesel fuel of 52 to 54 cetane is used in Hyundai vehicle. If two types of dieselfuel are available, use summer or win- ter fuel properly according to the fol- lowing temperature conditions.
o Above 23°F (-5°C ) ... Summer type
diesel fuel.
o Below 23°F (-5°C) ... Winter type
diesel fuel.
Watch the fuel level in the tank very carefully: If the engine stops throughfuel failure, the circuits must be com- pletely purged to permit restarting.
CAUTION:
Do not let any petrol or water enter the tank. This would make it neces-sary to drain it out and to bleed the lines to avoid siezing the injection pump and damaging the engine.
!
UNLEADED FUEL ONLY

1
CONTROLS AND EQUIPMENT
3RUNNING IN

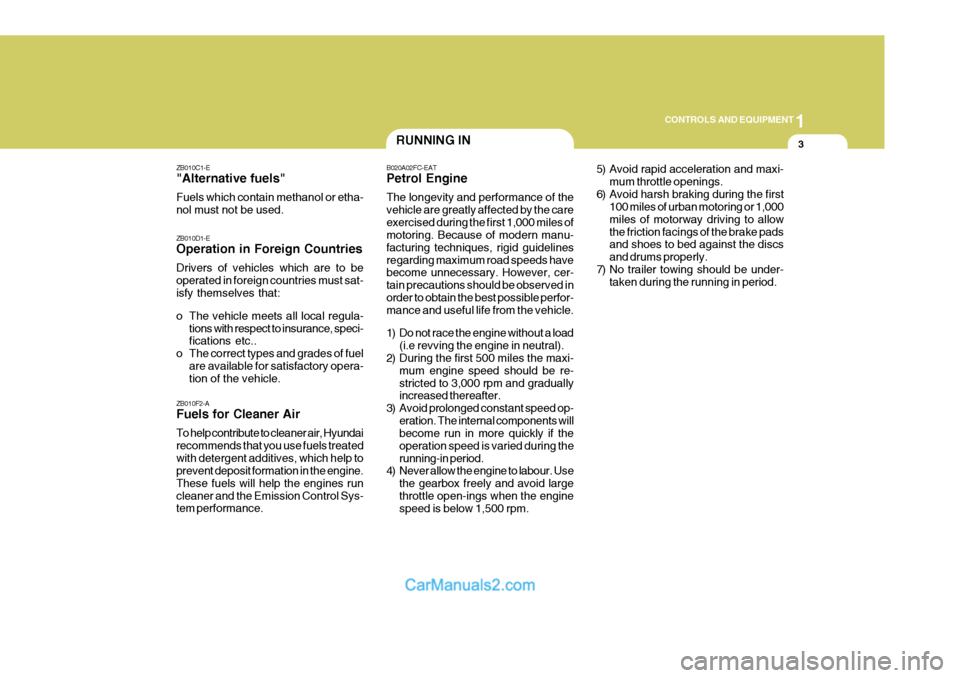

B020A02FC-EAT Petrol Engine The longevity and performance of the vehicle are greatly affected by the careexercised during the first 1,000 miles of motoring. Because of modern manu- facturing techniques, rigid guidelinesregarding maximum road speeds have become unnecessary. However, cer- tain precautions should be observed inorder to obtain the best possible perfor- mance and useful life from the vehicle.
1) Do not race the engine without a load (i.e revving the engine in neutral).
2) During the first 500 miles the maxi-
mum engine speed should be re- stricted to 3,000 rpm and gradually increased thereafter.
3) Avoid prolonged constant speed op- eration. The internal components willbecome run in more quickly if the operation speed is varied during therunning-in period.
4) Never allow the engine to labour. Use
the gearbox freely and avoid largethrottle open-ings when the engine speed is below 1,500 rpm. 5) Avoid rapid acceleration and maxi-
mum throttle openings.
6) Avoid harsh braking during the first 100 miles of urban motoring or 1,000 miles of motorway driving to allowthe friction facings of the brake pads and shoes to bed against the discs and drums properly.
7) No trailer towing should be under- taken during the running in period.
ZB010C1-E "Alternative fuels" Fuels which contain methanol or etha- nol must not be used. ZB010D1-E Operation in Foreign Countries Drivers of vehicles which are to be operated in foreign countries must sat- isfy themselves that:
o The vehicle meets all local regula-
tions with respect to insurance, speci- fications etc..
o The correct types and grades of fuel are available for satisfactory opera-tion of the vehicle.
ZB010F2-A Fuels for Cleaner Air To help contribute to cleaner air, Hyundai recommends that you use fuels treatedwith detergent additives, which help to prevent deposit formation in the engine. These fuels will help the engines runcleaner and the Emission Control Sys- tem performance.

1CONTROLS AND EQUIPMENT
4IMMOBILISER SYSTEM
B020B02FC-EAT Diesel Engine The longevity and performance of the vehicle are greatly affected by the care exercised during the first 1,000 miles ofmotoring. Because of modern manu- facturing techniques, rigid guidelines regarding maximum road speeds havebecome unnecessary. However, cer- tain precautions should be observed in order to obtain the best possible perfor-mance and useful life from the vehicle.
1) Do not race the engine without a load (i.e revving the engine in neutral).
2) During the first 600 miles the maxi- mum engine speed should be re- stricted to 3,000 rpm and graduallyincreased thereafter. And whilst driv- ing, keep under three quarters of maximum vehicle speed.
3) Avoid prolonged constant speed op- eration. The internal components ofthe engine will become run in morequickly if the operation speed is var- ied during the running in period.
4) Never allow the engine to labour. Use the gearbox freely and avoid largethrottle open-ings when the engine speed is below 1,500 rpm. 5) Avoid rapid acceleration and maxi-
mum throttle openings.
6) Avoid harsh braking during the first 100 miles of urban motoring or 1,000miles of motorway driving to allowthe friction facings of the brake pads and shoes to bed against the discs and drums properly.
7) No trailer towing should be under- taken during the running in period. B880B03A-GAT Keys
6SB035A1-FE The immobiliser system is an anti-theft device, designed to prevent and deterautomobile theft. All of the locks fitted to the vehicle are operated by the same key. However,since it is possible to lock the doors without the use of the key, care should be exercised to ensure that the keydoes not become locked inside the vehicle by mistake. NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine. AX10020A

1
CONTROLS AND EQUIPMENT
5
B880C02A-GAT Key Numbers The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered to you.The key number should be recorded and kept in a safe place in case the need to order further keys arises. Newkeys are available from any Hyundai authorised repairer by quoting the rel- evant key number. In the interest of security, the metal tagattached to the keys which bears thekey number should be removed from the key ring after you receive your new vehicle. In addition, key numbers can-not be provided by Hyundai for security reasons. If you need additional keys or if youshould lose your keys, your Hyundai authorised repairer can make new keys.
AX10030A
!
DOOR
B040A02Y-EAT DOOR LOCKS
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (espe- cially if there are children in the car), be sure that all the doors aresecurely closed and locked so that the doors cannot be inadvertently opened from the inside. This helpsensure that doors will not be opened accidentally. Also, when combined with the proper use ofseat belts, locking the doors helps keep occupants from being ejected from the car in case of an accident.
o Before opening the door, always look for and avoid oncoming traf-fic.
o In case of accident the door is unlocked automatically (Not allmodels)

1CONTROLS AND EQUIPMENT
6
SB040B1-F Locking, Unlocking Front Doors With Key
o The door can be locked or unlockedwith a key.
o Lock the door by turning the key
toward the froant of the vehicle and unlock it by turning the key toward the rear. B040C01FC-EAT Locking From The Outside The doors can be locked without a key. To lock the doors from the outside, first push the inside lock switch to the "LOCK" position, so that the red markon the switch is not visible, then close the door. The door will not lock if the key is left inthe ignition switch when the front doors are closed. This is normal. (Not all models) NOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in the vehicle.
o To reduce the possibility of theft, always remove the ignition key,close all windows, and lock alldoors and tail gate when leaving your vehicle unattended.
UNLOCK
LOCK
HFC2004-D
HFC2009-D

1
CONTROLS AND EQUIPMENT
7
SB040D1-F Locking From The Inside To lock the doors from inside, simply close the door and push the lock switch to the "LOCK" position. When this is done, the door cannot beusing either the inside or the outside door handle. NOTE: When the door is locked, the red mark on the switch is not visible and the character "LOCK" on the switch is visible. SB040F2-E Child-proof Rear Door Lock The rear doors are fitted with child proof locks to prevent accidental opening of the doors using the inside door handle, whilst allowing access by means of theoutside handle (such as is required in the event of an acccident for example) provided that the door lock button is atthe unlocked position. Use of the child proof lock mechanism is recommended when children are carried in the vehicle.The child proof lock mechanism may be activated by opening the door and moving the lever located by the doorlatch to the " " position. Move the lever to the " " position when normal door operation is desired.SB040G1-F Central Door Lock (Not all models) The central door locking is operated by pushing the driver's door lock switch toward the front or rear of the vehicle. If the passenger and rear doors are openwhen the switch is pushed, the door will remain locked when closed. NOTE:
o When pushing the switch toward
the rear, all doors and tail gate will unlock. When pushing the switch towardthe front, all doors and tail gate will lock.
HFC2005-D
LOCK
UNLOCK
HFC2006-D
B040G01FC-D

1CONTROLS AND EQUIPMENT
8ANTI-THEFT ALARM SYSTEM
B070B01O-DAT Armed Stage Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from theignition switch.
2) Make sure that the engine bonnet
and tail gate are closed.
3) Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the turn signal lights will blink once to indicate that the system is armed.
o When the door is unlocked, the
red mark on the switch is visible and the character "LOCK" on the switch is visible.
o The central door locking is oper-
ated by turning the key (with theft-alarm system: driver's door and passenger's door, without theft-alarm system: driver's door only) toward the front or rear of the vehicle.
B040H02L-EAT Speed Sensing Auto Door Locking (Not all models) When the speed of the vehicle keeps above 40KM/H for 2-3 seconds, it will automatically lock all doors for driverand passenger's safety. But, the ignition key is removed, it will automatically unlock all doors. B070A01A-EAT (Not all models) This system is designed to provide protection from unauthorised entry intothe car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If triggered, the system provides an au- dible alarm with blinking of the turnsignal lights.
B070B01FC-D
UNLOCK
LOCK

1
CONTROLS AND EQUIPMENT
9
NOTE:
1) If any door, the tail gate or bonnet remains open, the system will not be armed.
2) If this happens, rearm the system as described above.
CAUTION:
Do not arm the system until all pas- sengers have left the car. If the sys- tem is armed whilst a passenger(s)remains in the car, the alarm may be activated when the remaining passenger(s) leaves the car.
! B070C01FC-EAT Alarm Stage The alarm will be activated if any of the following occurs whilst the car is parkedand the system is armed.
1) A front or rear door is opened without
using the transmitter.
2) The tail gate is opened without using
the transmitter.
3) The bonnet is opened.The alarming horn will sound and the turn signal lights will blink continuouslyfor 27 seconds. To turn off the system, unlock the door or tail gate with the transmitter. B070D02O-AAT Disarmed Stage The system will be disarmed when the driver's or passenger's door is unlocked by depressing the "UNLOCK" button onthe transmitter. After completion of the step above, the turn signal light will blink twice to indi- cate that the system is disarmed. NOTE: Once the system has been disarmed, it can not be rearmed except by re-peating the arming procedures.
3A9BA21

1CONTROLS AND EQUIPMENT
10
B070F01A-EAT Keyless Entry System (Not all models) Locking doors
1. Close all doors.
2. Push the "LOCK" button on the trans-mitter.
3. At the same time all doors lock, the
turn signal light will blink once toindicate that the system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmitter.
2. At the same time all doors unlock,
the turn signal light will blink twice to indicate that the system is disarmed. B070E02HP-GAT Replacing the battery When the transmitter's battery becomes weak, it may take several pushes on the button to lock or unlock the doors,and the LED will not light. Replace the battery as soon as possible. Battery type : CR2032 Replacement instructions:
1. Separate the case with a blade screw-
driver as shown in the illustration.
MSO-0048-1
Screwdriver
CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter does not disarm the system, it is neces- sary to take the following steps;
1. Unlock the door with the key, which will cause, the alarm to be acti- vated.
2. Insert the key in the ignition key
cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completion of the steps above, the system will be disarmed.
!
