warning light Hyundai Matrix 2006 Owner's Guide

6
DO-IT-YOURSELF MAINTENANCE
31
!
G210B01Y-GET
Checking the Battery
Keep the battery clean. Any evidence of corrosion around the battery posts or terminals should be removed using a solution of household baking sodaand warm water. After the battery ter- minals are dry, cover them with a light coating of grease.
WARNING:Always read the followinginstructions carefully whenhandling a battery.Keep lighted cigarettes andall other flames or sparksaway from the battery.Hydrogen, which is a highlycombustible gas, is always present in battery cells and may explode if ignited.Keep batteries out of the reach of children becausebatteries contain highly cor- rosive SULFURIC ACID. Do not allow battery acid tocontact your skin, eyes, clothing or paint finish. If any electrolyte gets into your eyes, flush your eyes with clean water for at least15 minutes and get imme- diate medical attention. If possible, continue to applywater with a sponge or cloth until medical atten- tion is received. If electrolyte gets on your skin, thoroughly wash the contacted area.If you feel a pain or a burn-ing sensation, get medicalattention immediately.Wear eye protection whencharging or working near abattery.Always provide ventilationwhen working in an en- closed space.o When lifting a plastic-cased bat- tery, excessive pressure on the case may cause battery acid toleak, resulting in personal injury. Lift with a battery carrier or with your hands on opposite corners.
o Never attempt to charge the bat- tery when the battery cables areconnected.
o The electrical ignition system works with high voltage. Never touch these components with the engine running or the ignition switched on.

6 DO-IT-YOURSELF MAINTENANCE
34
G300A02FC
If the fuel filter warning light illumi- nates during driving, it indicates thatwater has accumulated in the fuel filter. If this occurs, remove the water as described.1. Loosen the drain plug at the bottom of the fuel filter.
2. Tighten the drain plug when water no longer comes out.
3. Check to be sure that the warning lamp illuminates when the ignition key is turned to "ON", and that it goes off when the engine is started. If in doubt, consult your nearest authorized HYUNDAI dealer.
NOTE: It is recommended that water ac-
cumulated in the fuel filter should be removed by an authorized Hyundai dealer. G300B02FC
!WARNING:
o Do not smoke or have any other open flame near the vehicle while bleeding the fuel system.
o Be sure to carefully wipe away
any water drained out in thismanner, because the fuel mixed in the water might be ignited and result in a fire.
REMOVAL OF WATER FROM THE FUEL FILTER
G300A01B-GAT
(Diesel Engine)

6
DO-IT-YOURSELF MAINTENANCE
35
!WARNING:
o Do not smoke or have any other open flame near the vehicle while bleeding the fuel system.
o Be sure to carefully wipe away any water drained out in thismanner, because the fuel mixed in the water might be ignited and result in a fire.
HEADLIGHT AIMING ADJUSTMENT
G290A01FC-GAT Before performing aiming adjustment, make sure of the following.
1. Keep all tires inflated to the correct
pressure.
2. Place the vehicle on level ground and press the front bumper and rear bumper down several times.Place the vehicle at a distance of 3,000 mm (118 in.) from the test wall.
3. See that the vehicle is unloaded
(except for full levels of coolant,engine oil and fuel, and spare tire, jack, and tools).
4. Clean the head lights lens and turn on the headlight (low beam). G290A01FC
5. Open the hood.
6. Draw the vertical line (through the center of each headlight beam pat- tern) and the horizontal line (throughthe center of each headlight beam pattern) on the aiming screen. And then, draw a horizontal paral- lel line at 30 mm (1.18 in.) under the horizontal line.
7. Adjust each cut-off line of the low beam to the parallel line with aphillips screwdriver - VERTICALAIMING.
8. Adjust each cut-off line of the low beam to each vertical line with a phillips screwdriver - HORIZON- TAL AIMING.
Horizontal Aiming
Vertical Aiming

6
DO-IT-YOURSELF MAINTENANCE
37
G270A02A-GAT
HEADLIGHT BULB Replacement instructions:
1. Allow the bulb to cool. Wear eye protection.
2. Always grasp the bulb by its plastic base, avoid touching the glass.
3. Disconnect the power cord from
the bulb base in the back of the headlight.
4. Remove the dust cover. G270A01FC
!
5. Push the bulb spring for removing
the headlight bulb.
6. Remove the protective cap from the replacement bulb and install the new bulb by matching the plas- tic base with the headlight hole.Install the dust cover after retight- ening the bulb spring and recon- nect the power cord.
7. Use the protective cap and carton
to dispose of the old bulb.
8. Check for proper headlight aim. G270A02FC
WARNING:
The halogen bulb contains gasunder pressure and if impacted could shatter, resulting in flying fragments. Always wear eye pro-tection when servicing the bulb. Protect the bulb against abrasions or scratches and against liquidswhen lighted. Turn on the bulb only when installed in a headlight. Replace the headlight if damagedor cracked. Keep the bulb out of the reach of children and dispose of the used bulb with care.

6 DO-IT-YOURSELF MAINTENANCE
38
Socket type
W2.1×9.5D P43t-38
PK22s
BA 15s
W2.1×9.5D W2.1×9.5D S8.5/8.5
W2.1×4.6D Part Name
High Mounted Rear Stop Light License Plate Light Rear Fog Light (If installed) Luggage Compartment Light Rear Combination Light
No.
1 2 3 4 5 6 7
BULB WATTAGE
G280A02FC-GAT
G280A02FC
Part Name
Front Position Light Head Light (High/Low) Front Fog Light (If installed) Front Turn Signal Light Side Repeater (If installed) InteriorFront Door Warning Light (If installed) No.
8 9
1011 12
Wattage
5
60/55 55 215
10 10 5
Socket type BA 15s
W2.1×9.5D
BA 15s
S8.5/8.5
BA 15s
BAY 15d
BA 15s
Map Light Room Light
Turn Signal Light Stop/Tail Light Back -up Light
Wattage
21
5
21
5
21
21/5 21

10INDEX
2
A Accessory Tray ......................................................... 1-72
Air Bag ...................................................................... 1-37
Air Cleaner Filter ........................................................ 6-17
Air Conditioning
Care ........................................................................ 6-26
Operation ................................................................ 6-26
Switch ..................................................................... 1-89
Air Conditioner Filter .................................................. 1-99
Antenna ................................................................... 1-133
Ashtray ...................................................................... 1-66
Audio System .......................................................... 1-102
Auto Fuel Cut Switch ................................................ 1-82
BBattery .............................................................. 2-21, 6-32
Bleeding The Fuel System ........................................ 6-35
Brake Anti-lock system ..................................................... 2-13
Brake traction control system ................................ 2-14
Checking the brakes ............................................... 6-23
Fluid ........................................................................ 6-24
Pedal clearance ...................................................... 6-29
Pedal free play ....................................................... 6-29
Practices ................................................................ 2-17
Brake Pad Wear Warning Sound ............................... 1-53
Brake Traction Control System ................................. 2-14
Breaking-In your new Hyundai ..................................... 1-3
Bulbs W attage ........................................................... 6-40C
Care of Cassette Tapes ..........................................
1-132
Care of Disc ............................................................ 1-131
Cargo Area Cover ...................................................... 1-81
Cassette Tape Player Operation (H220, H280) ................ .
.................................................................. 1-108, 1-122
Catalytic Converter ...................................................... 7-3
CD Auto changer ....................................................... 1-79
CD Auto Changer (H260, H280) ....................1-116, 1-127
Child-Protector Rear Door Lock ................................... 1-9
Child Restraint System ................................... 1-28 ~ 1-34
Cigarette Lighter ........................................................ 1-65
Clutch
Checking fluid ........................................................ 6-25
Pedal free play ...................................................... 6-28
Combination Light Headlight flasher ..................................................... 1-60
Headlight swi tch ..................................................... 1-59
High-beam switch ................................................... 1-60
Lane change si gnal ................................................. 1-59
Turn signal operation .............................................. 1-59
Compact Disc Player Operation (H260, H280) ................ .
.................................................................. 1-113, 1-124
Cooling Fans ............................................................. 6-34
Corrosion Protection
Cleaning the interior .................................................. 4-5
Protecting your Hyundai from corrosion ................... 4-2
Washing and waxing ................................................. 4-4

10
INDEX
3
D Defrosting/Defogging .................................................. 1-88
Digital Clock .............................................................. 1-65
Door Central door lock ...................................................... 1-9
Child-protector rear door lock .................................... 1-9
Door locks ................................................................ 1-7
Locking and unlocking front doors with a key .......... 1-7
Drink Holder ............................................................... 1-67
Drive Belts ................................................................. 6-29
Driving
Economical driving ................................................. 2-18
Smooth corneri ng .................................................... 2-19
Winter driving .......................................................... 2-20
E
EGR System ............................................................... 7-4 Electronic Stability Program (ESP) ...........................2-16
Emissions Control Systems ........................................ 7-2Engine Before starting the engine ........................................ 2-3Compartment .................................................. 6-2 ~ 6-4
Coolant ................................................................... 6-12
Coolant temperature gauge .....................................1-54
If the engine overheats ............................................. 3-4
Number ..................................................................... 8-2
Oil ............................................................................. 6-6Starting ..................................................................... 2-5
Engine Exhaust Can Be Dangerous ............................ 2-2 FFog Light
Front fog light switch .............................................. 1-63
Rear fog light switch ............................................... 1-64
Fold-up Tray .............................................................. 1-76
Front Seats Adjustable front seats ............................................. 1-14
Lumbar support control ........................................... 1-16
Seat cushion height adjustment ............................. 1-16
Fuel Capacity ................................................................... 9-2
Gauge ..................................................................... 1-54
Recommendations .................................................... 1-2
Fuel Filler Lid Remote release ...................................................... 1-77
Fuse Panel Description ............................................. 6-41
Fuses ........................................................................ 6-31
GGeneral Checks ........................................................... 6-5
Glove box .................................................................. 1-73
HHazard Warning System ............................................ 1-62
Headlight Aiming Adjustm ent .................................... 6-37
Headlight Bulb ........................................................... 6-38
Headlight Leveling Device S ystem ............................1-64
Heating and Cooling Control ......................................1-83

10
INDEX
5
R Rear Fog Audible Warning Sound ..............................1-53
Rear Seat
Adjustable headrests . ............................................. 1-18
Adjusting seatback angle ....................................... 1-17
Adjusting seat forward and rearward .......................1-17
Arm Rest ................................................................ 1-68
Fold down ............................................................... 1-18
Rear Window Defroster Switch .................................. 1-63
Recommended Shift Points ......................................... 2-8 Removal of water from the fuel fiter .......................... 6-36
Replacing Light Bulbs ................................................ 6-38
Replacing The Spark Plugs ....................................... 6-15
Roof Rack ................................................................. 1-81
SSeat Belts 2-Point Static Type .............................................. 1-263-Point system ....................................................... 1-24
Adjustabl e height .................................................... 1-23
Adjusting your seat belt ................................. 1-25, 1-26
Care of seat belts ................................................... 1-23
Precautions ............................................................. 1-21
Seat Warmer ............................................................. 1-20
Spark Plugs ............................................................... 6-15
Spectacle Ca se ......................................................... 1-72
Speedometer ............................................................. 1-55
Starting Pr ocedures..................................................... 2-5 Steering Wheel
Free play ................................................................ 6-28
Tilt lever ................................................................. 1-82
Stereo Radio Operation (H210, H220, H260, H280) ............................................ 1-102, 1-105, 1-110, 1-119
Stereo Sound System ............................................... 1-99
Sunroof ...................................................................... 1-68
Sunshade ................................................................... 1-68
Sun Visor ................................................................... 1-75
T Tail Gate .................................................................... 1-79
Tail Gate Wiper And Washer Switch ......................... 1-62
Tachometer ................................................................ 1-55
Theft Alarm System .................................................. 1-10
Tires Balancing .................................................................. 8-5
Chains ...................................................................... 8-4
Changing a flat tire .................................................. 3-7
If you have a flat tire ............................................... 3-7
Information ............................................................... 8-3
Pressure ................................................................... 8-3
Replacement ............................................................ 8-6
Rotation .................................................................... 8-5
Snow tires ................................................................ 8-4
Spare tire ................................................................. 3-6
Traction ..................................................................... 8-5

10INDEX
6
TowingA trailer (or vehicle) ................................................ 2-23
Emergency ............................................................. 3-14
If your car must be towed ...................................... 3-12
Transaxle
Automa tic ................................................................. 2-9
Automatic transaxle fluid checking ......................... 6-21
Manual ...................................................................... 2-7
Manual transaxle oil checking ................................ 6-20
Trip Computer ............................................................ 1-57
Trip Odometer ............................................................ 1-56
U Under T ray ................................................................ 1-17
V Vehicle Identification Number (VIN) ........................... 8-2
Vehicle Specifi cation................................................... 9-2
Ventilation
Center ventilator ..................................................... 1-83
Side ventilator ......................................................... 1-83
W Warning and Indicator Light ...................................... 1-48
Windows
Manual ................................................................... 1-13
Power ..................................................................... 1-13
Windshield Wiper and Washer Sw itch .......................1-61
Windshield Wiper Blades .... .......................................6-18

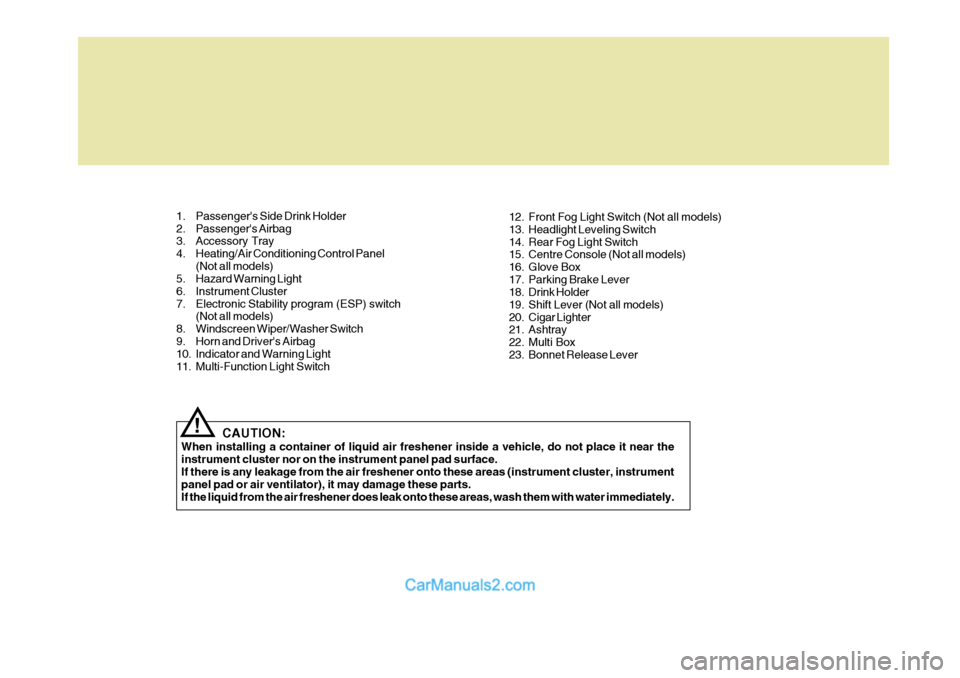

CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts.If the liquid from the air freshener does leak onto these areas, wash them with water immediately.! 12. Front Fog Light Switch (Not all models)
13. Headlight Leveling Switch
14. Rear Fog Light Switch
15. Centre Console (Not all models)
16. Glove Box
17. Parking Brake Lever
18. Drink Holder
19. Shift Lever (Not all models)
20. Cigar Lighter
21. Ashtray
22. Multi Box
23. Bonnet Release Lever
1. Passenger's Side Drink Holder
2. Passenger's Airbag
3. Accessory Tray
4. Heating/Air Conditioning Control Panel
(Not all models)
5. Hazard Warning Light
6. Instrument Cluster
7. Electronic Stability program (ESP) switch (Not all models)
8. Windscreen Wiper/Washer Switch
9. Horn and Driver's Airbag
10. Indicator and Warning Light
11. Multi-Function Light Switch
