3 IN CASE OF EMERGENCY
2IF THE ENGINE WILL NOT START
SD020B1-E If the Engine Cannot be Cranked
1. If the vehicle is fitted with manualtransaxle, ensure that the clutch pedal is depressed whilst cranking the engine. If the vehicle is fitted with automatic transaxle, ensure that the transaxle
selector is at the "P" or "N" position.
2. Check the battery terminals and con-
nections to ensure that these areclean and also tight.
3. If the ignition warning lights dim when
the engine is cranked and the batteryterminals have been checked, a dis- charged battery is indicated.
4. Do not attempt to push or tow start
the vehicle, refer to "Jump Starting"for information regarding engine start- ing when the battery is discharged. D010C02A-EAT If Engine Turns Over Normally but Does Not Start
D010B01FC 1. Check fuel level.
2. With the key in the "OFF" position,check all connectors at ignition coilsand spark plugs(For Petrol Engine)or check all connectors at glow plug and glow plug relay(For Diesel En- gine). Reconnect any that may bedisconnected or loose.
3. Check fuel line in the engine com-
partment.
4. If engine still refuses to start, call a Hyundai authorised repairer or seekother qualified assistance. SSA3020C
!
SD020A1-E Seek assistance from the nearest Hyundai authorised repairer with regardto the method of ignition and fuel sys- tem diagnosis.
CAUTION:
If the engine refuses to start, noattempt should be made to push or tow start the vehicle. Vehicles withautomatic transaxle or fuel injection will not be able to be started in this manner since no drive is transmittedthrough the automatic transaxle whilst the engine is not running, and in the case of fuel injected deriva-tives, the fuel pump will not operate under tow start conditions. In addi- tion, if the vehicle is equipped withan exhaust catalyst, damage to the catalyst may result if the vehicle is tow started.

3
IN CASE OF EMERGENCY
3
!
JUMP STARTING
AD020D1-E If Engine Stalls Whilst Driving
1. Reduce your speed gradually, keep- ing a straight line. Move cautiously off the road to a safe place.
2. Turn on your emergency flashers.
3. Try starting the engine again. If your
vehicle will not start, see "IF THE ENGINE WILL NOT START" SD030A2-E
HFC4002
Discharged battery
Booster battery
CAUTION:
Personal injury and damage to the vehicle may occur if jump starting isnot performed correctly. If any doubt exists as to how this operation should be performed, seek assistance fromqualified personnel.! WARNING:
Motor vehicle batteries contain sulphuric acid and emit hydrogen gas. Protective clothing should be worn and care exercised to preventthe acid from coming into contact with skin or clothing and the vehicle. Naked lights should not be permit-ted in the vicinity of the battery. Care should be exercised to prevent sparks occurring during connection.If acid accidentally comes into con- tact with skin or eyes, the affected area should immediately be flushed with copious amounts of water and medical assistance sought.
1. Ensure that the booster battery is 12 volt type. If the booster battery is installed in another vehicle, ensurethat the two vehicles are not touch- ing.
2. Turn off all unnecessary electrical
equipment in both vehicles.
3. Ensure that the engine of the vehicle
providing the jump start is running prior to connection of the jump cables.

6
OWNER MAINTENANCE
5DAILY OPERATING CHECKS
SG020B1-E The following items should be checked on a daily basis or whenever the ve- hicle is refuelled, whichever occurssooner.
o Engine oil level.
o Engine coolant level.
o Power steering fluid level.
o Brake fluid level.
o Windscreen washer fluid level.
o Battery condition.
o Tyre condition and pressures.
o Operation and cleanliness of all light- ing equipment.
o Windscreen wiper and washer op- eration.
o Horn operation.
o Warning light operation.
o Adjustment and cleanliness of mir- rors.
o Seat and seat belt adjustment and
operation.
o Fluid leakage.
The vehicle must not be driven if the daily operating checks indicate that any item of equipment related to thesafety or roadworthiness of the vehicle is not functioning correctly. G030A01FC-EAT The correct engine oil level is of para-
mount importance. An excessively high or low oil level may result inirreparable damage being sustained by the engine. The engine oil level must be checked on a daily basis, wheneverthe vehicle is refuelled or before start- ing a long trip, whichever occurs sooner.
In addition, it is imperative that only an
approved grade and specification of oilis used to avoid the possibility of serious engine damage and prematurewear. The use of "budget price" oil is a false economy that must be avoided if the maximum reliability and usefullife is to be obtained from the vehicle. G030B02O-EAT Recommended Oil Petrol engine
ENGINE OIL
The engine oil quality should meet the following classification. API SJ, SL or ABOVE ILSAC GF-3 or ABOVE The oil viscosity should be selected according to the operating environ- ment of the engine by means of thetable shown above. The engine oil recommendations are complete in themselves and the use of additives isneither required nor recommended. The use of engine oil additives may result in invalidation of the vehicle warranty.
G030B01JM

6
OWNER MAINTENANCE
23
!
SG120D1-E
Brake Fluid Level
HFC5005
Petrol engine
G120D02FC
Diesel engine WARNING:
Brake fluid is hygroscopic and should never be stored in an un- sealed container. The presence ofwater in the braking system will cause vapour locks and increase the possibility of brake fade alongwith promoting corrosion within the braking system. The brake fluid must be changed at the specifiedtime or mileage interval to ensure continued safe operation of the sys- tem. Brake fluid will cause rapidand serious damage to paintwork. If accidental spillage occurs, the af- fected area must be rinsed withwater immediately. Do not allow brake fluid to come into contact with the eyes or to be ingested andensure that fluid is safely stored away form the reach of children.
The fluid level in the brake fluid reser-voir should be checked periodically. The level should be between the "MIN" and "MAX" marks on the side of thereservoir. If the level is at or below the "MIN" mark, fluid should be added having carefully cleaned the area sur-rounding the reservoir cap to ensure that dirt is not allowed to enter the system. It should be noted that thebrake fluid level will decrease slightly as the friction linings of the pads and shoes become worn and that this is anormal condition.

6
OWNER MAINTENANCE
29
!
CHECKING AND REPLACING FUSES
SG200A1-E
Fusible Links
The fusible link prevents damage to the wiring harness in the event of anelectrical system malfunction. Failure of a fusiblelink is indicative of a seri- ous overload condition having occurredand therefore the electrical system should be checked by a Hyundai authorised repairer before a replace-ment link is fitted. G200B01E-EAT Individual Circuit Fuses The fuse box containing the individual circuit fuses will be found in the back- side of multi box located in the rightside of driver. The multi box is re- moved by pulling lightly and then re- leasing the lid. A fuse rating grid will befound on the reverse side of the cover. In the event of fuse failure, the fuse should be replaced with one of equiva-lent rating. A fuse removal tool is provided within the fuse box to facili- tate replacement.
WARNING:
Under no circumstances should a
fusible link be replaced with any-thing other than a new link of thesame rating. The use of higher rated links or other means of connecting the circuit will create a potential firehazard.
Good
Bad
G200A01FC
HFC4010

6
OWNER MAINTENANCE
31
!!
SG220A1-E
o If battery electrolyte is spilled onto
skin or into eyes, the effected area must be flushed with copious amounts of water and medical as- sistance sought.
o If battery electrolyte is ingested, copious amounts of water or milkfollowed by an ant-acid (raw egg ormilk of magnesia) must be drunk. Vomiting should not be induced and medical assistance must be sought.
o Batteries must only be charged in
well ventilated areas from whichnaked lights or sources of sparks are excluded.
o Ensure that children, pets or other unauthorised persons are kept awayfrom batteries.
o Do not allow anything to bridge the positive (+) and negative (-) termi- nals of the battery.
o Never invert the battery.
The battery fitted during production isof the "Maintenance Free" type. ELECTRIC COOLING FANS
WARNING:
The cooling fan is controlled byengine coolant temperature and maysometimes operate even when the engine is not running. Use extreme caution when working near theblades of the cooling fan so that you are not injured by a rotating fan blade. As the engine coolant tem-perature decreases, the fan will au- tomatically shut off. This is a nor- mal condition. The engine cooling fan should operate before the temperature gauge reaches the upper portion of the scale and thecondenser fan should operate when- ever the air conditioning is in use.
WARNING:
The cooling fan is controlled by
engine coolant temperature and may sometimes operate even when theengine is not running. Do not touch the radiator fan until it is completely stopped.
As the coolant temperature de-
creases the fan will automaticallyshut off. This is a normal condition.

6 OWNER MAINTENANCE
34HEADLIGHT AIMING ADJUSTMENT
G290A01FC-EAT Before performing aiming adjustment, make sure of the following.
1. Keep all tyres inflated to the correct pressure.
2. Place the vehicle on level ground and press the front bumper & rear bumper down several times. Place the vehicle at a distance of 118 in. (3,000 mm) from the test wall.
3. See that the vehicle is unloaded (except for full levels of coolant,engine oil and fuel, and spare tyre,jack, and tools).
4. Clean the head lights lens and turn on the headlight (Low beam).
!WARNING:
o Do not smoke or have any other open flame near the vehicle whilst bleeding the fuel system.
o Be sure to carefully wipe away any water drained out in thismanner, because the fuel mixed in the water might be ignited and result in a fire.
1. Loosen the drain plug at the bottomof the fuel filter.
2. Tighten the drain plug when water no longer comes out.
3. Check to be sure that the warning lamp illuminates when the ignition key is turned to "ON", and that it goes off when the engine is started. If in doubt, consult your nearest Hyundai authorised repairer.
NOTE: It is recommended that water accu-
mulated in the fuel filter should be removed by an authorized Hyundaiauthorised repairer. G300B02FC

6
OWNER MAINTENANCE
37
!WARNING
The halogen bulb contains gas un-
der pressure and if impacted could shatter, resulting in flying fragments. Always wear eye protection whenservicing the bulb. Protect the bulb against abrasions or scratches and against liquids when lighted. Turnon the bulb only when installed in a headlight. Replace the headlight if damaged or cracked. Keep the bulbout of the reach of children and dispose of the used bulb with care.

6 OWNER MAINTENANCE
38
Socket type
W2.1×9.5D P43t-38
PK22s
BA 15s
W2.1×9.5D S8.5/8.5
W2.1×9.5D W2.1×4.6D Part Name
High Mounted Rear Stop Light Rear Fog Light License Plate Light Luggage Compartment Light Rear Combination Light
No.
1 2 3 4 5 6 7

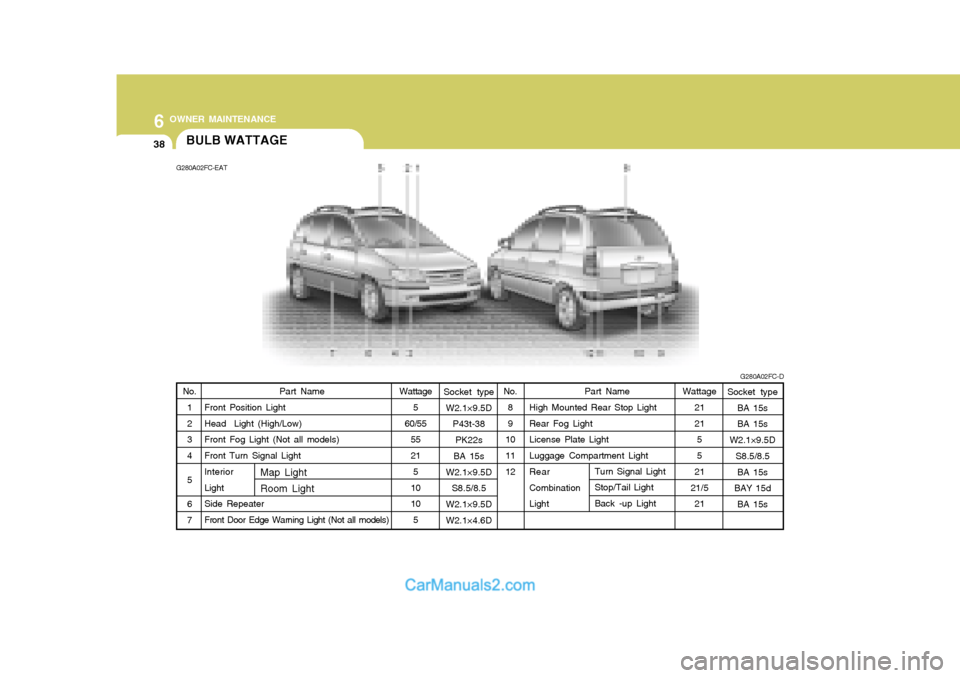

BULB WATTAGE
G280A02FC-EAT
G280A02FC-D
Part Name
Front Position Light Head Light (High/Low) Front Fog Light (Not all models) Front Turn Signal Light Interior Light Side Repeater Front Door Edge Warning Light (Not all models) No.
89
1011 12
Wattage
5
60/55 55 215
10 10 5
Socket type BA 15s BA 15s
W2.1×9.5D S8.5/8.5
BA 15s
BAY 15d
BA 15s
Map LightRoom Light
Turn Signal Light Stop/Tail Light Back -up Light
Wattage
21 2155
21
21/5 21

10
INDEX
3
F FOLDING REAR SEATBACK AND SEAT CUSHION ....1-16
FOLD-UP TRAY ........................................................ 1-70
FRONT FOG LI GHT SWITCH ................................... 1-58
FUEL ECONOMY ........................................................ 2-7
FUEL GAUGE ........................................................... 1-49
FUEL RECOMMENDATIONS ...................................... 1-2
FUSE PANEL D ESCRIPTION................................... 6-39
FUSIBLE LINKS ........................................................ 6-29
GGLOVE BOX ............................................................. 1-67
H HATCHBACK DOOR ................................................. 1-72
HAZARD WARNING SYST EM ..................................1-57
HEADLIGHT AIMING ADJUSTEMENT ..................... 6-34
HEADLIGHT BULB ................................................... 6-36
HEADLIGHT LEVELING DEVICE SYSTEM ............. 1-59
HEAD RESTRAINT ADJUSTMENT .................1-13, 1-16
HEATED REAR WINDOW ......................................... 1-57
HEATING CONTROL ................................................. 1-80
HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT
........................................................................... 1-20
HORN ........................................................................ 1-75I
IF THE ENGINE CANNOT BE CRANKED
.................. 3-2
IF THE ENGINE WILL NOT START ........................... 3-2
IF THE EVENT OF A PUNCTURE ............................. 3-7
IF YOUR VEHICLE MUST BE TOWED ....................3-12
IMMOBILISER SYSTEM ............................................. 1-4
INDIVIDUAL CIRCUIT FUSES .................................. 6-29
INSTRUMENT CLUSTER AND INDICATORS.......... 1-40
INTERIOR LIGHT ...................................................... 1-65
INTERIOR REAR VIEW MIRROR ............................. 1-69
J JUMP STAR TING ....................................................... 3-3
K KEY POSITIONS ........................................................ 2-4
L LIGHTING SWITCH ................................................... 1-54
LUGGAGE NET ......................................................... 1-73
LUMBAR SUPPORT ADJUSTMENT .........................1-14
