Hyundai Matrix 2007 Owner's Manual

Vehicle Identification Number (VIN) ............................ 8-2
Engine Number ............................................................ 8-2
Recommended Inflation Pressures ............................. 8-3
Snow Tires ................................................................... 8-4
Tire Chains ................................................................... 8-4
Tire Rotation ................................................................ 8-5
Tire Balancing .............................................................. 8-5
Tire Traction ................................................................. 8-5
When to Replace Tires ................................................ 8-6
Spare Tire and Tools ................................................... 8-7
8
CONSUMER INFORMATION
8

8CONSUMER INFORMATION

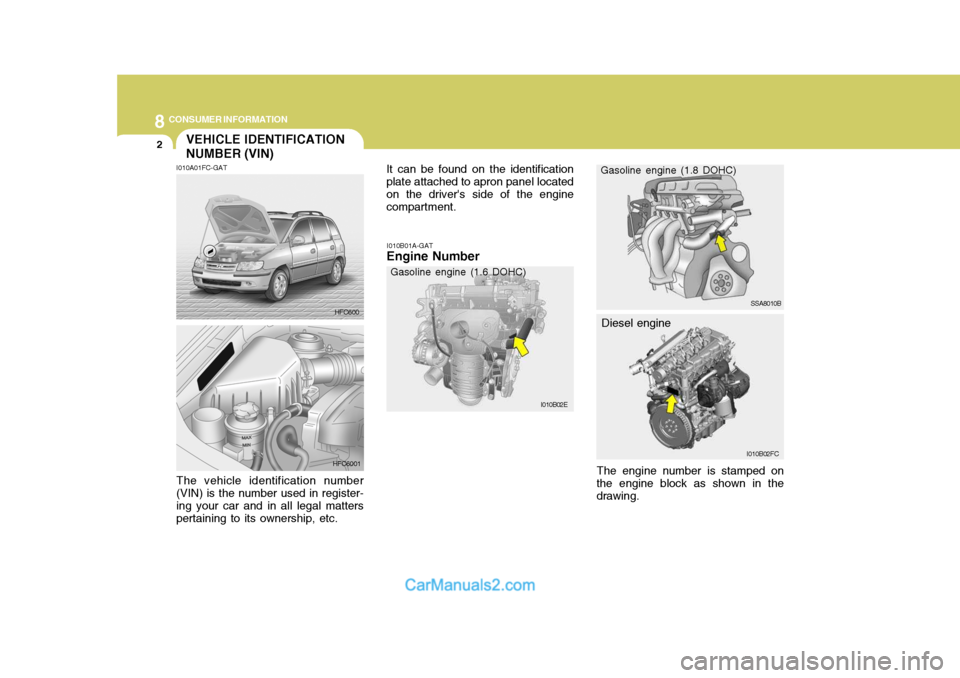

2VEHICLE IDENTIFICATION NUMBER (VIN)
I010B01A-GAT
Engine Number
I010A01FC-GAT The vehicle identification number (VIN) is the number used in register- ing your car and in all legal matters pertaining to its ownership, etc.
The engine number is stamped on
the engine block as shown in thedrawing.
HFC6001 SSA8010B
I010B02E
Gasoline engine (1.6 DOHC)
Diesel engine
Gasoline engine (1.8 DOHC)
I010B02FC
HFC600
It can be found on the identificationplate attached to apron panel locatedon the driver's side of the engine compartment.

8
CONSUMER INFORMATION

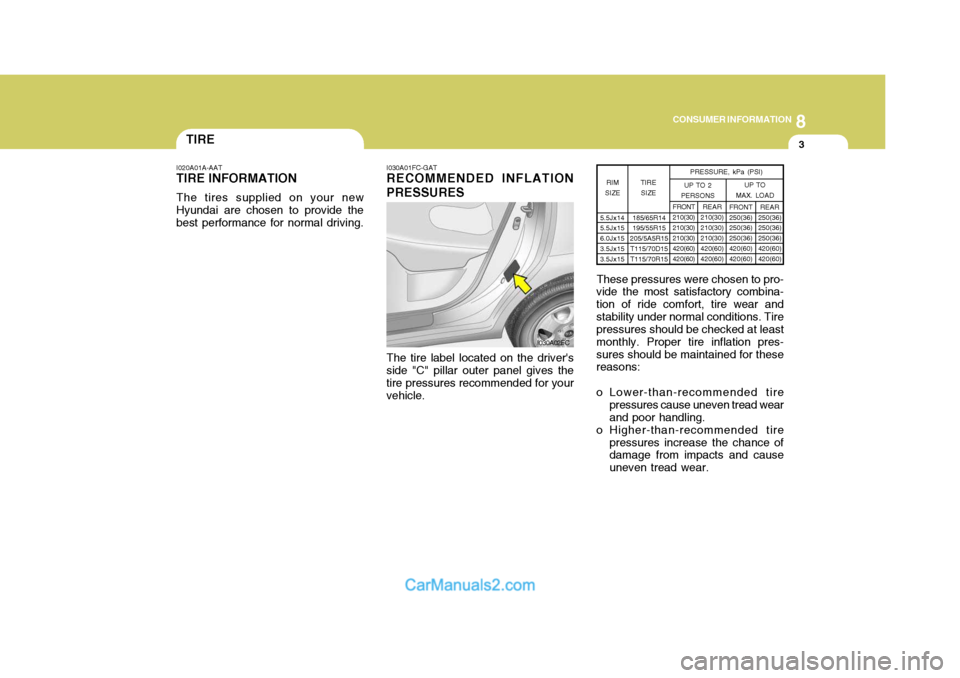

3TIRE
I020A01A-AAT TIRE INFORMATION The tires supplied on your new Hyundai are chosen to provide the best performance for normal driving. I030A01FC-GAT RECOMMENDED INFLATION PRESSURES
The tire label located on the driver's
side "C" pillar outer panel gives the tire pressures recommended for your vehicle. These pressures were chosen to pro-
vide the most satisfactory combina-tion of ride comfort, tire wear andstability under normal conditions. Tire pressures should be checked at least monthly. Proper tire inflation pres-sures should be maintained for these reasons:
o Lower-than-recommended tire
pressures cause uneven tread wear and poor handling.
o Higher-than-recommended tire pressures increase the chance of damage from impacts and cause uneven tread wear.
I030A02FC
5.5Jx14 5.5Jx15 6.0Jx153.5Jx153.5Jx15
TIRE
SIZE
RIM
SIZE PRESSURE, kPa (PSI)
185/65R14 195/55R15
205/5A5R15 T115/70D15 T115/70R15 REAR
210(30)210(30)210(30)420(60) 420(60) FRONT
250(36)250(36) 250(36)420(60)420(60)
UP TO 2
PERSONS UP TO
MAX. LOAD
REAR
250(36) 250(36) 250(36)420(60)420(60)
FRONT210(30)210(30) 210(30) 420(60)420(60)

8CONSUMER INFORMATION
4
!
I050A01E-GAT TIRE CHAINS Tire chains, if necessary should be installed on the front wheels. Be sure that the chains are installed in accor- dance with the manufacturer's instruc-tions.To minimize tire and chain wear, donot continue to use tire chains when they are no longer needed.
WARNING:
o When driving on roads covered with snow or ice, drive at less than 30 km/h (20 mph).
o Use the SAE "S" class or wire &
plastic chains.
o If you have noise caused by chains contacting the body, re-tighten the chain to avoid con- tact with the vehicle body.
o To prevent body damage, re- tighten the chains after driving0.5 ~ 1 km.
I040A01S-GAT SNOW TIRES If you equip your car with snow tires, they should be the same size and have the same load capacity as the original tires. Snow tires should beinstalled on all four wheels; other- wise, poor handling may result. Snow tires should carry 28 kPa (4 psi) more air pressure than the pres- sure recommended for the standardtires on the tire label on, or up to the maximum pressure shown on the tire sidewall whichever is less. Do not drive faster than 120 km/h (75 mph) when your car is equipped with snow tires.
CAUTION:
Always observe the following:
o Check pressures when the tires are cold. That is, after the car has been parked for at least three hours and hasn't been drivenmore than 1.6 km or one mile since starting up.
o Check the pressure of your spare tire each time you check the pressure of other tires.
o Never overload your car. Be es- pecially careful about overload-ing if you equip your car with a luggage rack or car top carrier.
!

8
CONSUMER INFORMATION
5
!
I060A01FC-GAT
TIRE ROTATION
Tires should be rotated every 10,000 km (6,000 miles). If you notice that tires are wearing unevenly between rotations, have the car checked by aHyundai dealer so the cause may be corrected. After rotating, adjust the tire pres- sures and be sure to check wheel nut torque. HA1409
Spare tireWARNING:
o Do not use the temporary spare tire for tire rotation.
o Do not mix bias-ply and radial- ply tires under any circum- stances. This may cause dan- gerous handling characteristics. I070A01A-AAT TIRE BALANCING A tire that is out of balance may affect handling and tire wear. The tires on your Hyundai were balanced before the car was delivered but may needbalancing again during the years you own the car. Whenever a tire is dismounted for repair, it should be rebalanced before being reinstalled on the car. I080A01A-AAT
TIRE TRACTION
Tire traction can be reduced if you
drive on worn tires, tires that are improperly inflated or on slippery road surfaces. Tires should be replaced when tread wear indicators appear.To reduce the possibility of losing control, slow down whenever there is rain, snow or ice on the road.

8CONSUMER INFORMATION
6
!WARNING:
o Driving on worn-out tires is dan- gerous! Worn-out tires can cause loss of braking effectiveness,steering control and traction. When replacing tires, never mix radial and bias-ply tires on thesame car. If you replace radial tires with bias-ply tires, they must be installed in sets of four.
o Your vehicle is equipped with tires designed to provide for saferide and handling capability.Do not use a size and type of tireand wheel that is different from the one that is originally installed on your vehicle. It can affect thesafety and performance of your vehicle, which could lead to han- dling failure or rollover and seri-ous injury.When replacing the tires, be sureto equip all four tires with the tireand wheel of the same size, type, tread, brand and load-carrying ca- pacity.
I090A01HP-GAT WHEN TO REPLACE TIRES
1.6 mm (0.06 in.)
The original tires on your car have tread wear indicators. The tread wear indicators appear when the tread depth is 1.6 mm (0.06 in.). The tireshould be replaced when these ap- pear as a solid bar across two or more grooves of the tread. Alwaysreplace your tires with those of the recommended size. If you change wheels, the new wheel's rim widthand offset must meet Hyundai speci- fication. Wear indicator
I090A02FC
If you nevertheless decide to equip your vehicle with any tire/wheel combination not recom- mended by Hyundai for off-road driving, you should not use thesetires for highway driving.

8
CONSUMER INFORMATION

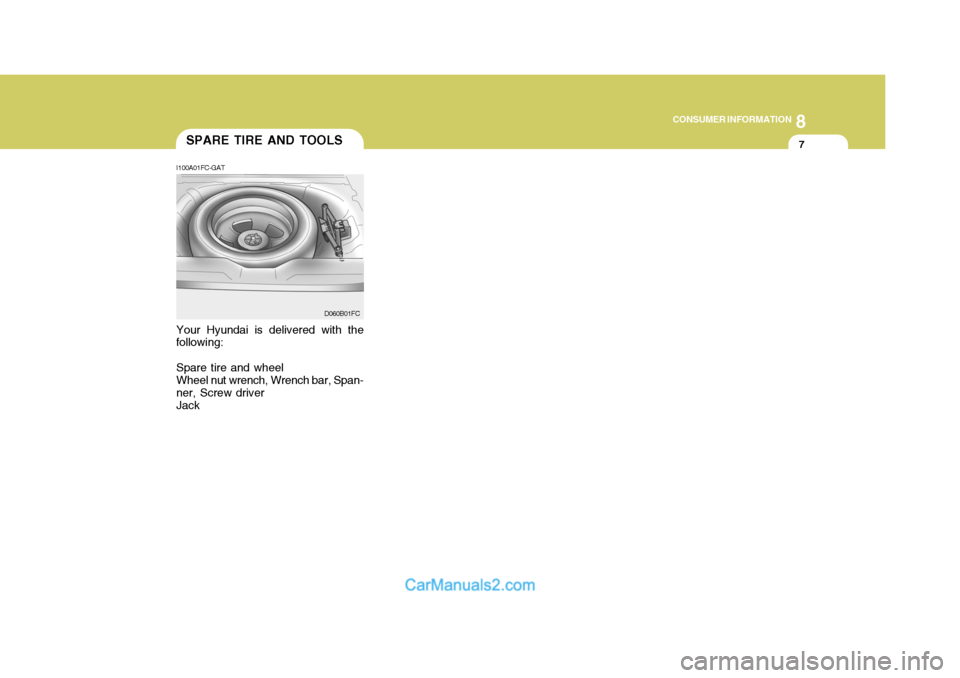

7SPARE TIRE AND TOOLS
I100A01FC-GAT Your Hyundai is delivered with the
following:
Spare tire and wheel Wheel nut wrench, Wrench bar, Span-
ner, Screw driver
Jack D060B01FC

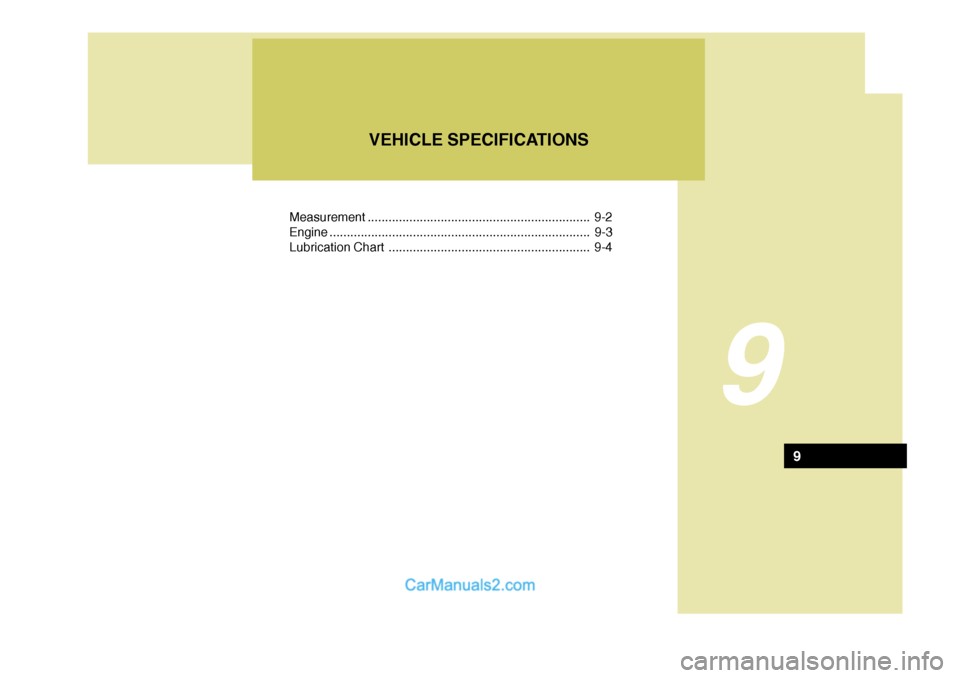

Measurement................................................................ 9-2
Engine ........................................................................... 9-3
Lubrication Chart .......................................................... 9-4
9
VEHICLE SPECIFICATIONS
9

9 VEHICLE SPECIFICATIONS
2
J010A01FC-GAT MEASUREMENT
4,025(158.4)1,740(68.5) 1,635(64.3)
*1,685(66.3)
2,600(102.3) 1,485 (58.5)1,485 (58.5)
Overall lengthOverall width Overall height (unladen) Wheel base Wheel tread
Front
Rear
Type Wheel free playRack stroke Oil pump type Rack and pinion0 ~ 30 mm (0 ~ 1.18 in.) 146±1mm (5.7±0.04 in.)Vane type
J060A01S-GAT FUEL SYSTEM
J020A01FC-GATPOWER STEERING J030A01FC-GATTIRE
185/65 R14 195/55 R15205/55 R15 (1.8 DOHC only)
StandardOption
J050A01FC-GAT BRAKE Dual hydraulic with brake booster Ventilated discDrum Cable
Type Front brake typeRear brake type Parking brake
Item Battery Generator
J040A03FC-GAT ELECTRICAL
GASOLINE
MF45AH, MF60AH(12V) 90A (13.5V)
mm (in.)
Fuel tank capacityLiter
55 US.gal
14.5 Imp.gal
12
DIESEL
CMF 68 AH 120A (12V)
*Installed roof rack J030B01FC-GAT SPARE TIRE
Temporary Full size
StandardOption

9
VEHICLE SPECIFICATIONS
3
DIESEL
1.5 4Cylinder in-line DOHC
740 ± 100
- -- - --
Auto Lash Auto Lash -
1 - 3 - 4 - 2ENGINE
J070A04FC-GAT
NGK CHAMPION NGKCHAMPION
Unleaded Leaded Unleaded Leaded For adjusting For checking
Engine Type Idle Speed (RPM) Spark Plug Spark Plug Gap Valve Clearance (Cold engine:20 ± 5°C) Ignition Timing Firing Order
ITEMS
A/CON OFF A/CON ON
GASOLINE
1.6/1.8 4Cylinder in-line DOHC
800 ± 100 (1.6L), 750 ± 100 (1.8 L) 800 ± 100 (1.6L), 800 ± 100 (1.8 L) BKR5ES-11
RC10YC4BKR5ES
RC10YC
1.0 ~ 1.1 mm (0.039 ~ 0.043 in.)0.7 ~ 0.8 mm (0.028 ~ 0.032 in.) Auto Lash (1.6 DOHC)
0.17 ~ 0.23 mm (0.0067 ~ 0.0091 in.) (1.8DOHC)
Auto Lash (1.6 DOHC)
0.25 ~ 0.31 mm (0.0098 ~ 0.0122 in.) (1.8 DOHC)
Auto Lash (1.6 DOHC)
0.12 ~ 0.28 mm (0.0047 ~ 0.011 in.) (1.8 DOHC) Auto Lash (1.6 DOHC)
0.20 ~ 0.38 mm (0.0079 ~ 0.015 in.) (1.8 DOHC)
BTDC 5° ± 5° (1.6L), BTDC 7° ± 5° (1.8L) 1 - 3 - 4 - 2
Intake Exhaust Intake Exhaust
