1CONTROLS AND EQUIPMENT
32
!!
AIR
BAG
CAUTION:
o Because the sensor that activates the SRS airbag is connected with the pre-tensioner seat belt, the SRS airbag warning light on theinstrument panel will blink for approximately 6 seconds after the ignition key has been turned to the"ON" position and then it should turn off.
o If the pre-tensioner seat belt is not
working properly, this warninglight will illuminate even if the SRS system is not functioning. If the SRS airbag warning light does not illuminate when the igni-tion key is turned to "ON", or if it remains illuminated after blinking for approximately 6 seconds, or ifit illuminates whilst the vehicle is being driven, please have an Hyundai authorised repairer in-spect the pre-tensioner seat belt or SRS airbag system as soon as possible. WARNING:
o Pre-tensioners are designed to operate only one time. After acti- vation, pre-tensioner seat belts must be replaced. All seat belts, ofany type, should always be re- placed after they have been worn during a collision.
o The pre-tensioner seat belt assem- bly mechanisms become hot dur-ing activation. Do not touch thepre-tensioner seat belt assemblies for several minutes after they have been activated.
o Do not attempt to inspect or re-
place the pre-tensioner seat beltsyourself. This must be done by an Hyundai authorised repairer.
o Do not strike the pre-tensioner seat belt assemblies.
o Do not attempt to service or repair
the pre-tensioner seat belt system in any manner. o Improper handling of the pre-
tensioner seat belt assemblies, and failure to heed the warnings to not strike, modify, inspect, replace,service or repair the pre-tensioner seat belt assemblies may lead to improper operation or inadvertentactivation and serious injury.
o Always wear the seat belts when
driving or travelling in a motorvehicle.
fcuk-1.p65 12/27/2006, 10:11 AM
32

1
CONTROLS AND EQUIPMENT
33
!

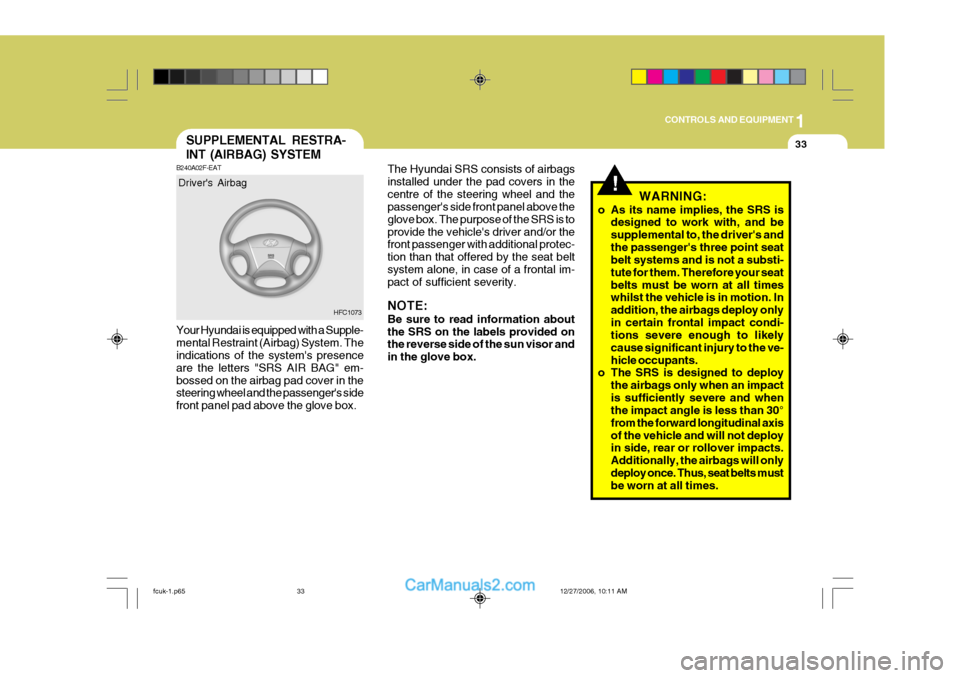

SUPPLEMENTAL RESTRA- INT (AIRBAG) SYSTEM
HFC1073
Driver's Airbag
B240A02F-EAT Your Hyundai is equipped with a Supple- mental Restraint (Airbag) System. The indications of the system's presence are the letters "SRS AIR BAG" em-bossed on the airbag pad cover in the steering wheel and the passenger's side front panel pad above the glove box. The Hyundai SRS consists of airbagsinstalled under the pad covers in thecentre of the steering wheel and the passenger's side front panel above the glove box. The purpose of the SRS is toprovide the vehicle's driver and/or the front passenger with additional protec- tion than that offered by the seat beltsystem alone, in case of a frontal im- pact of sufficient severity. NOTE: Be sure to read information about the SRS on the labels provided on the reverse side of the sun visor and in the glove box.
WARNING:
o As its name implies, the SRS is designed to work with, and besupplemental to, the driver's andthe passenger's three point seat belt systems and is not a substi- tute for them. Therefore your seatbelts must be worn at all times whilst the vehicle is in motion. In addition, the airbags deploy onlyin certain frontal impact condi- tions severe enough to likely cause significant injury to the ve-hicle occupants.
o The SRS is designed to deploy
the airbags only when an impactis sufficiently severe and when the impact angle is less than 30° from the forward longitudinal axisof the vehicle and will not deploy in side, rear or rollover impacts. Additionally, the airbags will onlydeploy once. Thus, seat belts must be worn at all times.
fcuk-1.p65 12/27/2006, 10:11 AM
33

1CONTROLS AND EQUIPMENT
34
o Front airbags are not intended to
deploy in side-impact, rear-impact or rollover crashes. In addition,airbags will not normally deploy in frontal crashes below the de- ployment threshold speed.
o For maximum safety protection in all types of crashes, all occupantsincluding the driver should alwayswear their seat belts whether or not an airbag is also provided at their seating position to minimizethe risk of severe injury or death in the event of a crash. Do not sit or lean unnecessarily close to theairbag whilst the vehicle is in motion.
B240C01FC
Rear impact
Side Impact Rollover o The SRS airbag system must de-
ploy very rapidly to provide pro- tection in a crash. If an occupant is out of position because of notwearing a seat belt, the airbag may forcefully contact the occupant causing serious or fatal injuries. B240B03A-DAT SRS Components and Functions The SRS consists of the following com- ponents:
- Driver's Airbag Module
- Passenger's Airbag Module
- SRS Service Reminder Indicator (SRI)
- SRS Control Module (SRSCM) The SRSCM continually monitors all elements whilst the ignition is "ON" to determine if a frontal or near-frontalimpact is severe enough to require airbag deployment.
B240B01L-D
fcuk-1.p65
12/27/2006, 10:11 AM
34

1
CONTROLS AND EQUIPMENT
35
The SRS service reminder indicator (SRI) on the instrument panel will blinkfor approximately 6 seconds after the ignition key is turned to the "ON" posi- tion or after the engine is started, afterwhich the SRI should go out. The airbag modules are located both in the centre of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects a considerable impact to the front of the vehicle, it will automatically deploy the airbags. Upon deployment, tear seams molded directly into the pad covers will sepa- rate under pressure from the expansion of the airbags. Further opening of thecovers then allows full inflation of the airbags. A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forward mo- tion, thus reducing the risk of head or chest injury. After complete inflation, the airbag im- mediately starts deflating, enabling thedriver to maintain forward visibility.
!
CAUTION:
Do not install or place any accesso- ries (drink holder, cassette holder, sticker, etc) on the front passenger's panel above the glove box in a ve-hicle with passenger's side air bag. Such objects may become danger- ous projectiles and cause injury ifthe passenger's side air bag inflates.
Passenger's Airbag
B240B04FC
B240B02L-D B240B03L-D
fcuk-1.p65
12/27/2006, 10:11 AM
35

1CONTROLS AND EQUIPMENT
36
!WARNING:
o When the SRS is activated, there may be a loud noise and fine dust will be released throughout the vehicle. These conditions are nor-mal and are not hazardous. How- ever, the fine dust generated dur- ing airbag deployment may causeskin irritation. Be sure to wash your hands and face thoroughly with lukewarm water and a mildsoap after an accident in which the airbags were deployed.
o The SRS can function only when the ignition key is in the "ON" position. If the SRS SRI does notcome on, or continuously remains on, after flashing for about 6 sec- onds when the ignition key isturned to the "ON" position, or after the engine is started, or comes on whilst driving, the SRS is notworking properly. If this occurs, have your vehicle immediately in- spected by your Hyundaiauthorised repairer.!
Passenger's Airbag
B240B05L
CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster not on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these ar- eas, wash them with water immedi- ately. o Before you replace a fuse or dis-
connect a battery terminal, turn the ignition key to the "LOCK" position or remove the ignition key. Never remove or replace theair bag related fuse(s) when the ignition key is in the "ON" posi- tion. Failure to heed this warningwill cause the SRS SRI to illumi- nate.
fcuk-1.p65 12/27/2006, 10:11 AM
36

1
CONTROLS AND EQUIPMENT
37
!
B990B04Y-EAT Side Impact Airbag Your Hyundai is equipped with a side impact airbag in each front seat. The purpose of the airbag is to provide the vehicle's driver and/or the front passen-ger with additional protection than that offered by the seat belt alone. The side impact airbags are designed to deployonly during certain side impact colli- sions, depending on the crash severity, angle, speed and point of impact. Theair bags are not designed to deploy in all side impact situations. B990B02Y-R
WARNING:
o The side impact airbag is supple- mental to the driver's and the passenger's three point seat belt systems and is not a substitute for them. Therefore your seat beltsmust be worn at all times whilst the vehicle is in motion. The airbags deploy only in certain sideimpact conditions severe enough to cause significant injury to the vehicle occupants. o For best protection from the side
airbag system and to avoid beinginjured is by the deploying sideimpact airbag, both front seat oc- cupants should sit in an upright position with the seat belt proper-ly fastened. The driver's hands should be placed on the steering wheel at the 9:00 and 3:00 o'clockpositions. The passenger's arms and hands should be placed in their laps.
o Do not use any accessory seat covers.
o Use of seat covers could reduce or prevent the effectiveness of thesystem.
o Do not install any accessories on the side or near the side impactairbag.
o Do not use excessive force on the side of the seat.
o Do not place any objects over the airbag or between the airbag and yourself.
HFC2092-D
Side airbag sensor
fcuk-1.p65 12/27/2006, 10:11 AM
37

1CONTROLS AND EQUIPMENT
38
!
B240C03Y-EAT SRS Care The SRS is virtually maintenance-free and there are no parts you can safely service by yourself. The entire SRSsystem must be inspected by an Hyundai authorised repairer in 10 years after the date that the vehicle wasmanufactured. Any work on the SRS system, such as removing, installing, repairing, or any work on the steering wheel must be performed by a qualified Hyundai tech-nician. Improper handling of the SRS system may result in serious personal injury.
B240C01HP WARNING:
o Extreme Hazard! Do not use a rear- ward facing child restraint on a seat protected by an airbag in front of it!If you must use a rear facing child seat on the front seat, first deacti- vate the air bag system and ensurethat the passenger's front air bag 'off' indicator light in the instru- ment cluster is displayed.
o Do not install a child restraint sys- tem in the front passenger seatposition.A child restraint system must
never be placed in the front seat. The infant or child could be se-verely injured by an airbag de- ployment in case of an accident.
o Modification to SRS components or wiring, including the additionof any kind of badges to the pad covers or modifications to the bodystructure, can adversely affect SRS performance and lead to possible injury.
o Do not place any objects (an um-
brella, bag, etc.) between the frontdoor and the front seat. Such ob-jects may become dangerous pro- jectiles and cause injury if the supplemental side impact air baginflates.
o To prevent unexpected deploy-
ment of the side impact air bagthat may result in personal injury, avoid impact to the side airbag sensor when the ignition key ison.
fcuk-1.p65 12/27/2006, 10:11 AM
38

1
CONTROLS AND EQUIPMENT
39
o If components of the airbag sys-
tem must be discarded, or if the vehicle must be scrapped, certain safety precautions must be ob- served. Your Hyundai authorisedrepairer knows these precautions and can give you the necessary information. Failure to follow theseprecautions and procedures could increase the risk of personal in- jury.
o If you sell your vehicle, be sure to inform the new owner of theseimportant points and make cer-tain that this manual is transferred to the new owner.
o If your car was flooded and has soaked carpeting or water on floor-ing, you shouldn't try to start en- gine; have the car towed to Hyundaiauthorised repairer.
o Do not replace the bumper or the
bumper guard with the one otherthan the Hyundai genuine parts. Otherwise, it can adversely affect SRS performance and lead to un-expected injury.
o For cleaning the airbag pad cov-
ers, use only a soft, dry cloth orone which has been moistenedwith plain water. Solvents or clean- ers could adversely affect the airbag covers and proper deploy-ment of the system.
o No objects should be placed over
or near the airbag modules on thesteering wheel, instrument panel, and the front passenger's panel above the glove box, because anysuch object could cause harm if the vehicle is in a crash severe enough to cause the airbags toinflate.
o If the airbags inflate, they must be
replaced by an Hyundai authorisedrepairer.
o Do not tamper with or disconnect
SRS wiring, or other componentsof the SRS system. Doing so could result in injury, due to accidental firing of the airbags or by render-ing the SRS inoperative.
fcuk-1.p65 12/27/2006, 10:11 AM
39

1CONTROLS AND EQUIPMENT
40INSTRUMENT CLUSTER AND INDICATOR
B260A02FC-EAT PETROL ENGINE
B260A02FC-D
fcuk-1.p6512/27/2006, 10:12 AM
40

1
CONTROLS AND EQUIPMENT
41
1. Temperature Gauge
2. Tachometer
3. Speedometer
4. Digital Clock
5. Odometer/Trip Odometer/Trip Computer (Not all models)
6. Fuel Gauge
7. Turn Signal Indicator Light
8. Automatic Transaxle Position Indicator Light (Auto T/A only)
9. Immobiliser Warning Indicator Light
10. SRS (Airbag) Warning Light
11. Electronic Stability Program (ESP) Indicator Light (Not all models)/Traction Control Indicator Light (Not all models) 12. Overdrive off Indicator Light (Not all models)
13. Parking Brake/Low Brake Fluid Level Warning Light
14. Charging System Warning Light
15. Low Fuel Warning Light
16. High Beam Indicator Light
17. Tail Gate Open Warning Light
18. Door Open (Ajar) Warning Light
19. Oil Pressure Warning Light
20. Malfunction Indicator Light (MIL)
21. ABS Warning Light (Not all models)
