1CONTROLS AND EQUIPMENT
72HATCHBACK DOOR
o Automotive fuels are flammable/
explosive materials. When refuel- ing, please note the following guidelines carefully.
o Before touching the fuel nozzle or fuel filler cap, have one's hands incontact with metal parts away from the filler neck to discharge staticelectricity.
o Do not get back in the vehicle
whilst refueling. Do not operateanything that can produce static electricity. Static electricity dis- charge can ignite fuel vapors re-sulting in explosion.
o When using a portable fuel con-
tainer be sure to place the con-tainer on the ground whilst refuel- ing. Static electricity discharge from the container can ignite fuelvapors causing a fire. Whilst start- ing refueling contact should be maintained until the filling is com-plete. o Do not use cellular phones around
a gas station. The electric currentor electronic interference from cellular phones can ignite fuel vapors causing a fire.
o When refueling always shut the engine off. Sparks by electricalequipment of the engine can ig-nite fuel vapors causing a fire. After refueling, check to make sure the fuel filler cap is securely closed,and then start the engine.
o Do not smoke or try to light ciga-
rettes around a gas station. Auto-motive fuels are flammable.
!
B540A01FC-EAT
WARNING:
The hatchback door should always be kept completely closed whilst the vehicle is in motion. If it is left open or ajar, poisonous exhaust gasesmay enter the car resulting in seri- ous illness or death to the occu- pants. See additional warnings con-cerning exhaust gases on page 2-2. B540A02FC
LOCK
UNLOCK
fcuk-1.p65
12/27/2006, 10:12 AM
72

1
CONTROLS AND EQUIPMENT
73
!
B540D03FC-DAT Some objects can be kept in the net in the luggage compartment. Use the luggage net on the floor or at the back of the luggage compartment toprevent the objects from sliding.
B540D01HP
LUGGAGE NET
CAUTION:
To prevent damage to the goods or the vehicle, care should be takenwhen carrying fragile or bulky ob- jects in the trunk. WARNING:
Avoid eye injury. DO NOT over- stretch. ALWAYS keep face and body out of recoil path. DO NOT use when strap has visible signs of wear ordamage.
o The hatchback door can be locked or
unlocked with a key.
o The hatchback door is opened by pulling the outside handle up, raisingthe hatchback door manually.
o To close, lower the hatchback door, then press down on it until it isclosed. To be sure the hatchbackdoor is fully closed, always try to pull it up again without using the outside handle.
!
fcuk-1.p65 12/27/2006, 10:12 AM
73

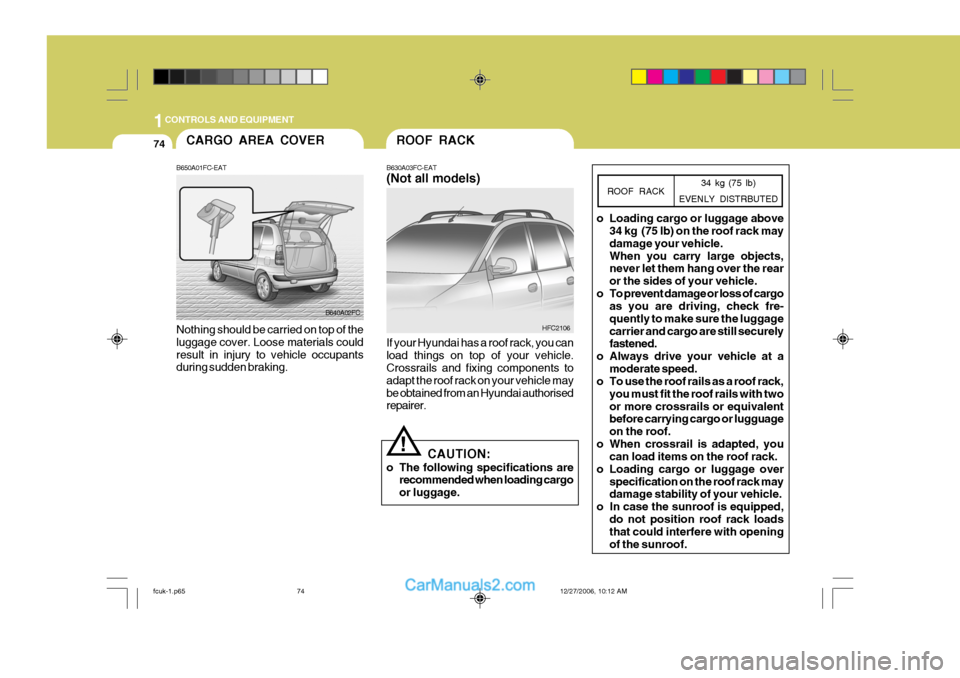

1CONTROLS AND EQUIPMENT
74ROOF RACK
34 kg (75 lb)
EVENLY DISTRBUTED
ROOF RACK
o Loading cargo or luggage above
34 kg (75 lb) on the roof rack may damage your vehicle.When you carry large objects, never let them hang over the rear or the sides of your vehicle.
o To prevent damage or loss of cargo as you are driving, check fre-quently to make sure the luggagecarrier and cargo are still securely fastened.
o Always drive your vehicle at a moderate speed.
o To use the roof rails as a roof rack,
you must fit the roof rails with two or more crossrails or equivalent before carrying cargo or lugguage on the roof.
o When crossrail is adapted, you can load items on the roof rack.
o Loading cargo or luggage over specification on the roof rack may damage stability of your vehicle.
o In case the sunroof is equipped, do not position roof rack loadsthat could interfere with opening of the sunroof.
B650A01FC-EAT Nothing should be carried on top of the luggage cover. Loose materials couldresult in injury to vehicle occupants during sudden braking. B640A02FC
CARGO AREA COVERB630A03FC-EAT (Not all models) If your Hyundai has a roof rack, you can load things on top of your vehicle. Crossrails and fixing components to adapt the roof rack on your vehicle maybe obtained from an Hyundai authorised repairer.
CAUTION:
o The following specifications are recommended when loading cargo or luggage.
! HFC2106
fcuk-1.p65
12/27/2006, 10:12 AM
74

1
CONTROLS AND EQUIPMENT
75AUTO FUEL CUT SWITCH
!
To adjust the steering wheel:
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to
the desired position.
3. After adjustment, securely tighten the lever by pulling it upward
SB520A1-F
STEERING WHEEL TILT LEVER
HORN
HFC2041
WARNING:
Do not attempt to adjust the steering wheel whilst driving as this mayresult in loss of control of the vehicle and result in death or serious injury. B610A01S-EATHFC2099
Press the pad of the steering wheel to sound the horn.
!
B560B01O-GAT (Petrol Engine)
The auto fuel cut switch is located on the driver's side of the engine compartment. In the event of a collision or suddenimpact, the auto fuel cut device cuts off the fuel supply. If this device is acti- vated, it must be reset by pressing in onthe top of the switch before the engine can be restarted.
HFC4001
WARNING:
Before resetting the auto fuel cut switch, the fuel line should be checked for fuel leaks. With Airbag
fcuk-1.p65
12/27/2006, 10:12 AM
75

1CONTROLS AND EQUIPMENT
76
B710A01Y-EAT (Not all models)HEATING AND COOLING CONTROLB710B01A-DAT CENTRE VENTILATOR The centre ventilators are located in the middle of the dashboard.To change the direction of the air flow, turn the control knob on the middle of the ventilator as desired.
1. Side Defrost Nozzle
2. Side Ventilator
3. Windshield Defrost Nozzle
4. Centre Ventilator B710C01FC-EAT SIDE VENTILATOR The side ventilators are located on each side of the dashboard. To changethe direction of the air flow, move the knob in the centre of the vent. The vents are opened when the vent knob is
moved to " " position. The vents are closed when the vent knob is moved to
" ". Keep these vents clear of anyobstructions.
1. Side Ventilator
2. Side Defrost Nozzle
3. Centre Ventilator
4. Windscreen Defrost Nozzle
HFC002-D
fcuk-1.p65
12/27/2006, 10:12 AM
76

1
CONTROLS AND EQUIPMENT
77HEATING AND VENTILATION
B670B01FC-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed. This blower fan speed, and therefore the volume of air delivered from thesystem, may be controlled manually by setting the blower control between the "1" and "4" positions."1" is lowest and "4" is the highest fan speed. HFC2065
B670A01FC-EAT Rotary Type (Not all models) This model has four controls for the heating and cooling system. They are:
1. Temperature control
2. Fan speed control
3. Air flow control
4. Air intake control
B670A01FC
1
23
4 B670E01A-AAT Temperature Control
HFC2066
This is used to turn the heating system on and off and to select the degree of heating desired.
fcuk-1.p65 12/27/2006, 10:12 AM
77

1CONTROLS AND EQUIPMENT
78
HFC2047-D
Bi-Level
Air is discharged through the face vents and the floor vents. This makes it pos-sible to have cooler air from the dash- board vents and warmer air from the floor outlets at the same time.
B670D05A-EAT Air Flow Control
HFC2068
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windscreen. Five symbols are used to represent Face, Bi-Level,Floor, Floor-Defrost and Defrost air po- sition.
HFC2046-D
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents.
fcuk-1.p65 12/27/2006, 10:12 AM
78

1
CONTROLS AND EQUIPMENT
79
HFC2048-D
Floor-Level
Air is discharged through the floor vents.HFC2049-D
Floor-Defrost Level
Air is discharged through the windscreen defrost vents and the floor vents. If the "Floor-Defrost" mode is selected,the A/C will turn on automatically and "Fresh" mode will be activated.HFC2050-D
Defrost-Level
Air is discharged through the windscreen defrost vents. If the "Defrost" mode is selected, the A/C will turn on automatically and "Fresh" mode will be activated.
fcuk-1.p65 12/27/2006, 10:13 AM
79

1CONTROLS AND EQUIPMENT
80HEATING CONTROLS
B690A02S-AAT
With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, air from within the passenger compart- ment will be drawn through the heatingsystem and heated or cooled according to the function selected. NOTE:
o It should be noted that prolonged
operation of the heating in "Recir- culation" mode will increase fog- ging of the windscreen and sidewindows and the air within the passenger compartment will be- come stale. In addition, prolongeduse of the air conditioning with the "Recirculation" mode selected may result in the air within thepassenger compartment becom- ing excessively dry.
o When the ignition switch is turned
"ON" the air intake control willchange to (
) mode (regardless
of switch position). This is normal operation.
B690A02FC
For normal heating operation, set the air intake control to the "Fresh" position and the air flow control to "Floor". For faster heating, the air intake control should be in the "Recirculation" posi- tion. If the windows fog up, move the air flow control to the "Def" (defroster) position.(The A/C will turn on automatically and "Fresh" mode will be activated.) For maximum heat, rotate the tempera- ture control to "Warm".
B670C02FC-EAT Air Intake Control This is used to select fresh outside air or recirculation inside air. To change the air intake control mode, (Fresh mode, Recirculation mode) pushthe control button. FRESH MODE (
)
: The indicator
light on the button goes off when the air intake control is in fresh mode. RECIRCULATION MODE (
) : The
indicator light on the button is illuminat- ed when the air intake control is inrecirculation mode.
HFC2067
fcuk-1.p65 12/27/2006, 10:13 AM
80

1
CONTROLS AND EQUIPMENT
81
HFC2111
B700A01S-AAT Your Hyundai is equipped with bi-level heating controls. This makes it pos- sible to have cooler air from the dash- board vents and warmer air from thefloor outlets at the same time. To use this feature:
o Set the air intake control to "Fresh"
mode (
).
o Set the air flow control at the "Bi- Level" position.
o Adjust the fan speed control to the
desired speed.
o Set the temperature control between "Cool" and "Warm". B720A02FC-EAT
HFC2107
BI-LEVEL HEATING
DEFROSTING/DEFOGGING
Use the heating/ventilation system to defrost or defog the windscreen: To remove interior fog on the windscreen;
o Set the air flow control to the defrost (
) position. (The A/C will turn on
automatically and "Fresh" mode will be activated.)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.
VENTILATION
B710A01S-AAT To operate the ventilation system:
o Set the air intake control to "Fresh" mode ( ).
o To direct all intake air to the dash- board vents, set the airflow control to "Face" ( ).
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm". B710A01FC
fcuk-1.p65
12/27/2006, 10:13 AM
81
