Hyundai Matrix 2007 Owner's Manual

1CONTROLS AND EQUIPMENT
62
!WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or your passengers. Spilled liquids candamage interior trim and electri- cal components.
o Do not place objects other than
cups or drinks in the drink holder.Such objects can be thrown out in the event of a sudden stop or anaccident, possibly injuring the pas- sengers in the vehicle.
SB380A2-E The parking brake must always be set when the vehicle is to be left unattended.When the parking brake is applied, and the ignition key is at the "ON" position, the parking brake warning lamp will beilluminated. Before driving the vehicle, the parking brake must be fully released and the warning lamp extinguished.
o To engage the parking brake, first apply the foot brake and then without pressing the release button in, pull the parking brake lever up as far as pos- sible. B530A01FC-D
PARKING BRAKE
In addition it is recommended thatwhen parking the vehicle on a gradi-ent, the shift lever should be posi- tioned in the appropriate low gear on manual transmission vehicles or inthe Park position on automatic trans- mission vehicles.
o To release the parking brake, first apply the foot brake and pull up theparking brake lever slightly. Sec- ondly, depress the release buttonand lower the parking brake lever whilst holding the button.
fcuk-1.p65 12/27/2006, 10:12 AM
62

1
CONTROLS AND EQUIPMENT
63
!
B611A02FC-EAT (Not all models) This arm rest is located in the centre of the rear seat back with box. The drink holder in the box can be used by opening the lid of the arm rest. REAR SEAT ARM REST
B610A01FC
!WARNING:
o Do not place objects other than cups or cans in the drink holder. Such objects can be thrown out inthe event of a sudden stop or an accident, possibly injuring the pas- sengers in the vehicle.
o Be careful not to injure your fin- gers when you open the lid of thearm rest.
SUNROOF
SB330A3-E (Not all models) The electrically operated sunroof may be used only whilst the ignition switch is at the "ON" position. The sunroof is equipped with a sunshade which maybe used whilst the sunroof is at the closed position to obscure incoming light.The sunshade is automatically opened whenever the sunroof is opened but must be manually closed by slidingforward after the sunroof is closed. When the sunroof is opened, the wind deflector will automatically rise to theupper position and will automatically retract when the sunroof is closed.
B470A01FC WARNING:
Never install or remove the sunshade whilst driving. To open the sunroof, depress and hold the button indicated. The button should be released when the sunroof is at the fully open position. The sunroof may beclosed by depressing and holding the button indicated. The button should be released when the sunroof is at the fullyclosed position.
HFC2021
fcuk-1.p65 12/27/2006, 10:12 AM
63

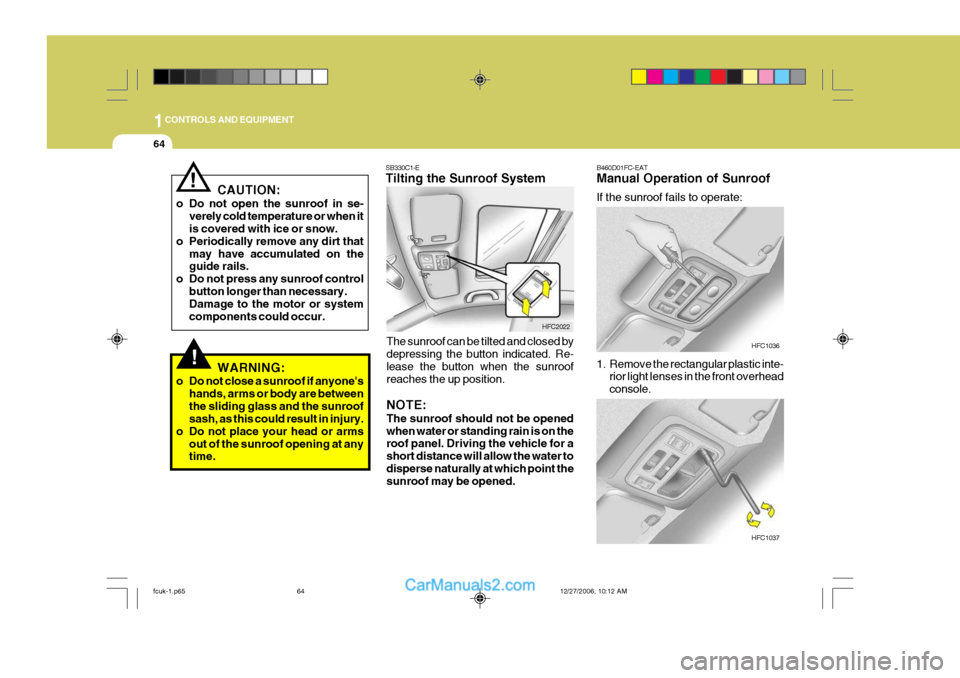

1CONTROLS AND EQUIPMENT
64
CAUTION:
o Do not open the sunroof in se- verely cold temperature or when it is covered with ice or snow.
o Periodically remove any dirt that
may have accumulated on theguide rails.
o Do not press any sunroof control button longer than necessary.Damage to the motor or system components could occur. SB330C1-E Tilting the Sunroof System
HFC2022
The sunroof can be tilted and closed by depressing the button indicated. Re-lease the button when the sunroof reaches the up position. NOTE: The sunroof should not be opened when water or standing rain is on the roof panel. Driving the vehicle for a short distance will allow the water todisperse naturally at which point the sunroof may be opened. B460D01FC-EAT Manual Operation of Sunroof If the sunroof fails to operate:
HFC1036
1. Remove the rectangular plastic inte- rior light lenses in the front overhead console.
HFC1037
!
!WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the sliding glass and the sunroof sash, as this could result in injury.
o Do not place your head or arms
out of the sunroof opening at anytime.
fcuk-1.p65 12/27/2006, 10:12 AM
64

1
CONTROLS AND EQUIPMENT
65
SB340B3-E Interior Light The interior courtesy light has a button of three positions. The three positions are:
oDR In the "DR" position, the interior cour- tesy light comes on when any door is opened regardless of the ignition key position. The light goes out when thedoor is closed.
oON In the "ON" position, the light stays on at all times.
2. Turn the hexagonal bolts with a socket
wrench counterclockwise to removethe front overhead console.
3. Insert the hexagonal head wrench
provided with the vehicle into thesocket. This wrench can be found in the vehicle's luggage room or glove box.
HFC1038
4. Turn the wrench clockwise to open or counterclockwise to close. B480A01E-EAT Map Light
INTERIOR LIGHT
The two map lights are located at each side of the interior light. The lights may be operated by depress- ing the switch to turn on the light andpressing again to turn off the light. This light produces a spot beam for conve- nient use as a map light at night or asa personal light for the driver or the passenger.
HFC490
With Sunroof Without SunroofWith Sunroof HFC480
Without Sunroof
fcuk-1.p65
12/27/2006, 10:12 AM
65

1CONTROLS AND EQUIPMENT
66
CAUTION:
Do not leave the switch in this posi- tion for an extended period time when the vehicle is not running.
o OFF In the "OFF" position, the light stays off at all times even though a door is open.
!
!
SPECTACLE CASE
B491A02FC-EAT (Not all models)
The spectacle case is located on the front overhead console. Push the end of the cover to open the spectacle case.
HXDOM241
WARNING:
Do not open the spectacle case whilst the vehicle is moving. The rear viewmirror of the vehicle can be blocked by an open spectacle case.
MULTI BOX
B500B02E-GAT
The multi box may be opened by pulling it out by its grip. It is used for storing small commodi-ties. If the multi box is removed, the fuse box for the lights and other electrical acces-sories will be exposed.
HFC2058-D
NOTE: Ensure the light is turned to the
"OFF" position after use. Leaving in the on position for prolonged peri-ods will discharge the battery.
fcuk-1.p65 12/27/2006, 10:12 AM
66

1
CONTROLS AND EQUIPMENT
67
HFC2071-D
B820A01FC-GAT The accessory tray may be opened by pushing the knob sidewards and releas- ing slowly it.It is used for storing small commodi- ties. ACCESSORY TRAY
GLOVE BOX
B500A01A-EAT
WARNING:
To avoid the possibility of injury, the glove box lid must be kept closedwhilst the vehicle is in motion.
!
o To open the glove box, pull the glove box release lever.
MIRROR
B510B01FC-EAT EXTERIOR REAR VIEW MIRROR Electric Type
The outside rear view mirror can be adjusted in any direction to give the maximum rear view vision. The remote control outside rear view mirror switch controls the adjustments for passenger side door mirror. To adjust the position of either mirror:
1. Move the selecting switch to the "L" (or "R") position to activate the ad- justable mechanism for the adjust-ing door mirror.
2. Adjust mirror angle by depressing
the appropriate directional switch asillustrated.
HFC2011-D
HFC2095-D
fcuk-1.p65 12/27/2006, 10:12 AM
67

1CONTROLS AND EQUIPMENT
68
CAUTION:
o Do not leave the switch on for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage. To remove any ice, use a sponge,soft cloth or approved deicer.
!
B510D01E
!WARNING:
Be careful when judging the size or distance of any object seen in the passenger side rear view mirror. It isa convex mirror with a curved sur- face, any objects seen in this mirrorare closer than they appear. B510D01HP-EATOUTSIDE REARVIEW MIRROR HEATER (Not all models) The outside rearview mirror heater is actuated in connection with the rear window defroster. To heat the outside rearview mirror glass, push in the switchfor the rear window defroster. The rear- view mirror glass will be heated for defrosting or defogging and will giveyou improved rear vision in inclement weather conditions. Push the switch again to turn the heater off. The outsiderearview mirror heater automatically turns itself off after 20 minutes.
!
SB360C1-F FOLDING THE OUTSIDE REAR VIEW MIRRORS
B510C01FC-D
To fold the outside rear view mirrors, push them towards the rear. The outside rear view mirrors can be folded rearward for parking in restrictedareas.
WARNING:
Do not adjust or fold the outside rearview mirrors whilst the vehicle ismoving. This could result in loss of control, and an accident causing death, serious injury or propertydamage.HFC2080-D
fcuk-1.p65 12/27/2006, 10:12 AM
68

1
CONTROLS AND EQUIPMENT
69SUN VISOR
SB370A1-E INTERIOR REAR VIEW MIRROR The interior mirror is of the day/night type to enable the glare of headlights from following vehicles to be eliminated during night time driving.The tab located at the bottom of the mirror should be set to the position nearest the windscreen for normal daytime driving, and flipped towards the rear of the vehicle to eliminate glare during night time driving. To adjust thefield of vision, the mirror may be moved by hand upon the mounting. NOTE: The mirror should always be ad- justed prior to setting the vehicle in motion. HXDFL2112
!
NOTE: The Supplemental Restraint System (SRS) label containing useful infor- mation can be found on the back ofeach sun visor.
WARNING:
Do not place the sun visor in such amanner that it obscures visibility of the roadway, traffic or other objects.
B580A01E-EAT
Sun visors are fitted to both the driverand passenger side of the vehicle. Cer- tain derivatives are equipped with avanity mirror which is located on the back of the driver and passenger visor. The visor may be lowered to reduce theamount of glare from directly ahead, or may be moved towards the side window to reduce glare from the side of thevehicle, once the inner pivot has been unclipped from the bracket.
HFC2094-D
Vanity mirror
fcuk-1.p65
12/27/2006, 10:12 AM
69

1CONTROLS AND EQUIPMENT
70FOLD-UP TRAY
B570A01FC-EAT Pull the release lever inside the vehicle to unlatch the bonnet. At the front of the vehicle, push the safety catch lever sidewards as shown and raise the bon-net by hand. Support the bonnet by means of the bonnet prop. Before closing the bonnet, ensure thatthe prop is correctly stowed. Lower the bonnet by hand to a position of approxi- mately 30cm from the closed positionand allow the bonnet to drop. Do not attempt to close the bonnet by lowering the panel to the closed position andpressing upon the panel work since this may result in damage to the panel.BONNET RELEASE
HIGH-MOUNTED REAR STOP LIGHT
B550A01S-EAT In addition to the lower-mounted rear stoplights on either side of the car, the high mounted rear stoplight in the cen- tre of the rear window or inserted in therear spoiler also lights when the brakes are applied. B550A02FC
B810A01FC-GAT
For your convenience, it may be used as a table holding a book, cup or can.
!WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop,the fold-up tray should be place its original position whilst the vehicle is moving. HFC2070
HFC2018-D
fcuk-1.p65
12/27/2006, 10:12 AM
70

1
CONTROLS AND EQUIPMENT
71
!
SB440A2-E (Not all models) The fuel filler flap may be opened from inside the vehicle by pulling up on the fuel filler flap release. NOTE: If the fuel filler flap will not open because ice has formed around it, tap lightly or push on it to break theice and release it. Do not lever the flap. If necessary, spray around the flap with an approved deicer fluid(do not use radiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt.
CAUTION:
Ensure that the bonnet prop has been removed prior to closing the bonnet. Always check to ensure thatthe bonnet has latched prior to set- ting the vehicle in motion.
HFC2015-D
HFC203
!
WARNING:
The bonnet prop must be correctly inserted into the panel to prevent thepossibility of injury arising from the bonnet falling. REMOTE FUEL FILLER FLAP RELEASE!WARNING:
o Petrol vapors are dangerous. Be- fore refueling, always stop the en- gine and never allow sparks oropen flames near the filler area. If you need to replace the filler cap, use a genuine Hyundai replace-ment part. If you open the fuel filler cap dur- ing high ambient temperatures, aslight "pressure sound" may be heard. This is normal and not a cause for concern.Whenever you open the fuel filler cap, turn it slowly.
HFC2016
fcuk-1.p65 12/27/2006, 10:12 AM
71
