Hyundai Matrix 2007 Owner's Manual

3 IN CASE OF EMERGENCY
2IF THE ENGINE WILL NOT START
SD020B1-E If the Engine Cannot be Cranked
1. If the vehicle is fitted with manualtransaxle, ensure that the clutch pedal is depressed whilst cranking the engine. If the vehicle is fitted with automatic transaxle, ensure that the transaxle
selector is at the "P" or "N" position.
2. Check the battery terminals and con-
nections to ensure that these areclean and also tight.
3. If the ignition warning lights dim when
the engine is cranked and the batteryterminals have been checked, a dis- charged battery is indicated.
4. Do not attempt to push or tow start
the vehicle, refer to "Jump Starting"for information regarding engine start- ing when the battery is discharged. D010C02A-EAT If Engine Turns Over Normally but Does Not Start
D010B01FC 1. Check fuel level.
2. With the key in the "OFF" position,check all connectors at ignition coilsand spark plugs(For Petrol Engine)or check all connectors at glow plug and glow plug relay(For Diesel En- gine). Reconnect any that may bedisconnected or loose.
3. Check fuel line in the engine com-
partment.
4. If engine still refuses to start, call a Hyundai authorised repairer or seekother qualified assistance. SSA3020C
!
SD020A1-E Seek assistance from the nearest Hyundai authorised repairer with regardto the method of ignition and fuel sys- tem diagnosis.
CAUTION:
If the engine refuses to start, noattempt should be made to push or tow start the vehicle. Vehicles withautomatic transaxle or fuel injection will not be able to be started in this manner since no drive is transmittedthrough the automatic transaxle whilst the engine is not running, and in the case of fuel injected deriva-tives, the fuel pump will not operate under tow start conditions. In addi- tion, if the vehicle is equipped withan exhaust catalyst, damage to the catalyst may result if the vehicle is tow started.
fcuk-3.p65 12/27/2006, 10:15 AM
2

3
IN CASE OF EMERGENCY
3
!
JUMP STARTING
AD020D1-E If Engine Stalls Whilst Driving
1. Reduce your speed gradually, keep- ing a straight line. Move cautiously off the road to a safe place.
2. Turn on your hazard lights.
3. Try starting the engine again. If your
vehicle will not start, see "IF THE ENGINE WILL NOT START" SD030A2-E
HFC4002
Discharged battery
Booster battery
CAUTION:
Personal injury and damage to the vehicle may occur if jump starting isnot performed correctly. If any doubt exists as to how this operation should be performed, seek assistance fromqualified personnel.! WARNING:
Motor vehicle batteries contain sulphuric acid and emit hydrogen gas. Protective clothing should be worn and care exercised to preventthe acid from coming into contact with skin or clothing and the vehicle. Naked lights should not be permit-ted in the vicinity of the battery. Care should be exercised to prevent sparks occurring during connection.If acid accidentally comes into con- tact with skin or eyes, the affected area should immediately be flushed with copious amounts of water and medical assistance sought.
1. Ensure that the booster battery is 12 volt type. If the booster battery is installed in another vehicle, ensurethat the two vehicles are not touch- ing.
2. Turn off all unnecessary electrical
equipment in both vehicles.
3. Ensure that the engine of the vehicle
providing the jump start is running prior to connection of the jump cables.
fcuk-3.p65 12/27/2006, 10:15 AM
3

3 IN CASE OF EMERGENCY
4IF THE ENGINE OVERHEATS
D030A02TB-EAT If the temperature gauge indicates over- heating:
1. Pull off the road and stop as soon as it is safe to do so.
2. Place the gear selector lever in "P" (automatic) or neutral (manual transaxle) and set the parking brake.If the air conditioning is on, turn it off.
3. If coolant is running out under the car
or steam is coming out from underthe bonnet stop the engine. Do not open the bonnet until the coolant has stopped running or the steaming hasstopped. If there is no visible loss of coolant and no steam, leave the engine running and check to be surethe engine cooling fan is operating. If the fan is not running, turn the engine off.
4. Check to see if the water pump drive belt is broken. If it is not broken,check to see that it is tight.If the drive belt seems to be satisfac- tory, check for coolant leaking from the radiator, hoses or under the car.(If the air conditioning had been in use, it is normal for cold water to be draining from it).
4. Connect the red jump cable to the
positive (+) terminal of the boosterbattery and the other end to the positive (+) terminal of the discharged battery.
5. Attach the black jump cable to the negative (-) terminal of the boosterbattery, and the other end to a groundpoint within the engine compartment of the vehicle with the flat battery. Do not connect to the negative batteryterminal of the flat battery since sparks may be generated with the subsequent risk of explosion.
6. Raise the booster vehicle engine speed to 2,000 r.p.m. and start theengine of the vehicle with the flatbattery.
7. Switch "ON" the main beam
headlamps before carefully remov-ing the jumper cables in the reverse order of attachment. Once the jumper cables have been removed, switch"OFF" the main beam headlamps. CAUTION:
If the jump cables are incorrectlyinstalled, damage to the vehicle elec- trical system may occur, in particu- lar the electronic components suchas the Fuel Injection system com- puter and the Automatic Transaxle computer. The battery must never bedisconnected whilst the engine is running.
!
fcuk-3.p65 12/27/2006, 10:15 AM
4

3
IN CASE OF EMERGENCY
5
!
!
!WARNING:
Whilst the engine is running, keep hands and clothing away from mov- ing parts such as the fan and drive belts to prevent injury. 5. If the water pump drive belt is broken
or coolant is leaking out, stop theengine immediately and call the near- est Hyundai authorised repairer for assistance.
WARNING (Diesel only):
Never work on injection system with engine running or within 30 seconds after shutting off engine. High pres-sure pump, rail, injectors and high pressure pipes are subject to high pressure even after the enginestopped. The fuel jet produced by fuel leaks may cause serious injury, if it touches the body. People usingpacemakers should not move closer than 30cm etc. to the ECU or wiring harness within the engine roomwhilst engine is running, since the high currents in the Common Rail system produce considerable mag-netic fields.
!
WARNING:
Do not remove the radiator cap when the engine is hot since steam and boiling water may be ejected fromthe radiator resulting in burns or scalding.
6. If the cause of the overheating can- not be found, wait until the engine temperature has returned to normal. Then, if coolant has been lost, care-fully remove the radiator cap and add water to bring the fluid level in the reservoir up to the base of the radia-tor fill opening. Fill the coolant ex- pansion tank to the halfway mark. To ensure the correct water to cool-ant mix is obtained after top up, testing by an authorised repairer is required. 7. Proceed with caution until it is estab-
lished that the engine is operatingnormally. If the engine overheats repeatedly, the advice of a Hyundai authorised repairer should be sought.
CAUTION:
Serious loss of coolant indicatesthere is a leak in the cooling systemand this should be checked as soon as possible by a Hyundai authorised repairer.
fcuk-3.p65 12/27/2006, 10:15 AM
5

3 IN CASE OF EMERGENCY
6SPARE WHEELSPARE TYRE
D040A01FC-EAT TEMPORARY SPARE TYRE The following instructions for the tem- porary spare tyre should be observed:
1. Check inflation pressure as soon as possible after installing the spare tyre, and adjust to the specified pres- sure. The tyre pressure should be periodically checked and maintainedat the specified pressure whilst the tyre is stored.
Spare Tyre Pressure
Tyre Size
Inflation PressureT115/70R(D)15
420 kPa (60 psi)
2. The spare tyre should only be used temporarily and should be returned to the luggage compartment as soon as the original tyre can be repaired or replaced.
3. Continuous use at speeds of over 80 km/h (50 mph) is not recommended.
4. As the temporary spare tyre is spe- cifically designed for your car, it should not be used on any other vehicle. 5. The temporary spare tyre should not
be used on any other wheels, norshould standard tyre, snow tyre, wheel covers or trim rings be used with the temporary spare wheel. Ifsuch use is attempted, damage to these items or other car components may occur.
6. The temporary spare tyre pressure should be checked once a monthwhilst the tyre is stored.
! SD050A2-E (Not all models) The spare wheel is stored under the luggage compartment floor and is ac-cessed from within the luggage com- partment by lifting the carpet and the floor panel.To remove the spare wheel, unscrew the retainer, rotating this in an counter- clockwise direction and lift out the wheel.To replace the wheel, screw the retainer by hand until tight having located the wheel in the luggage compartment floorwell. The inflation pressure of the spare wheel should be checked at least monthly and whenever the wheel isfitted to the vehicle. Spare Tyre Pressure
Tyre Size
Inflation PressureFull Size
210 kPa (30 psi)
CAUTION:
o Do not use snow chains with your temporary spare tyre.
o Do not use more than one tempo- rary spare tyre at a time.
fcuk-3.p65 12/27/2006, 10:15 AM
6

3
IN CASE OF EMERGENCY
7CHANGING A FLAT TYRE
SD070A1-E
It is of the utmost importance that care is exercised when changing road wheels. Ensure that the parking brakeis set and that the gear shift lever is in reverse (P, if the vehicle has automatic transaxle). D060A02FCIN THE EVENT OF A PUNCTURE
SD060A1-E If a puncture occurs whilst driving the vehicle:
1. Bring the car to rest as soon as it is
safe to do so and with the minimum amount of braking required which will assist in maintaining the maximum amount of control. The vehicle shouldbe parked wherever possible upon firm level ground to facilitate wheel changing.
2. If the vehicle is creating a hazard and the road conditions do not permit thewheel to be changed safely, assis-tance should be sought.
3. Passengers must not be allowed to
remain inside the vehicle during wheelchanging. If a puncture occurs whilst the vehicle is on a motorway, the passengers should take refuge onthe motorway embankment to avoid the possibility of injury occurring should the vehicle be struck by othermotorway traffic.
4. Wheel changing should be performed
according to the following instruc-tions.
1. Wrap a piece of cloth around the tipof the screwdriver to avoid scratch- ing.
2. Insert a screwdriver into the groove
of the wheel cap and pry gently toremove the wheel cap.
3. Change the flat tyre.
D060K01FC-EAT Wheel Cap (Not all models)
HFC4023
Groove
fcuk-3.p65
12/27/2006, 10:15 AM
7

3 IN CASE OF EMERGENCY
8
SD070D1-E 2. Block the Wheel Block the wheel that is diagonally oppo- site from the flat tyre to prevent thevehicle from rolling when the vehicle is raised on the jack. D060C02FC
Flat tyre
D060B01FC-EAT 1. Obtain Spare Tyre and Tool Remove the spare wheel and take out the jack and tool bag from the luggageroom. NOTE: The jack is equipped on the under- side of the luggage mat in the ve- hicle. D060B01FC
Boss
Groove
4. Reinstall the wheel cap by fitting the
boss of the wheel cap in the groove of the wheel, hitting the centre of the wheel cap with hand.
HFC4024
fcuk-3.p65 12/27/2006, 10:15 AM
8

3
IN CASE OF EMERGENCY
9

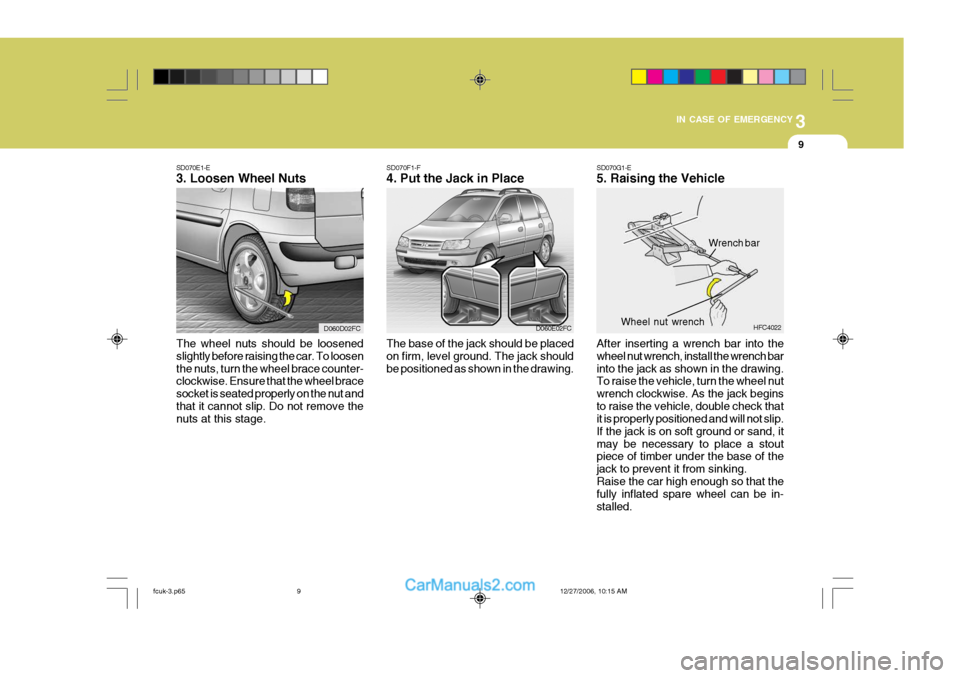

SD070F1-F 4. Put the Jack in Place
The base of the jack should be placed on firm, level ground. The jack shouldbe positioned as shown in the drawing. D060E02FC
SD070E1-E 3. Loosen Wheel Nuts
The wheel nuts should be loosened slightly before raising the car. To loosenthe nuts, turn the wheel brace counter- clockwise. Ensure that the wheel brace socket is seated properly on the nut andthat it cannot slip. Do not remove the nuts at this stage.SD070G1-E 5. Raising the Vehicle After inserting a wrench bar into the wheel nut wrench, install the wrench barinto the jack as shown in the drawing. To raise the vehicle, turn the wheel nut wrench clockwise. As the jack beginsto raise the vehicle, double check that it is properly positioned and will not slip. If the jack is on soft ground or sand, itmay be necessary to place a stout piece of timber under the base of the jack to prevent it from sinking.Raise the car high enough so that the fully inflated spare wheel can be in- stalled. HFC4022
Wrench bar
Wheel nut wrench
D060D02FC
fcuk-3.p65 12/27/2006, 10:15 AM
9

3 IN CASE OF EMERGENCY
10
!
!

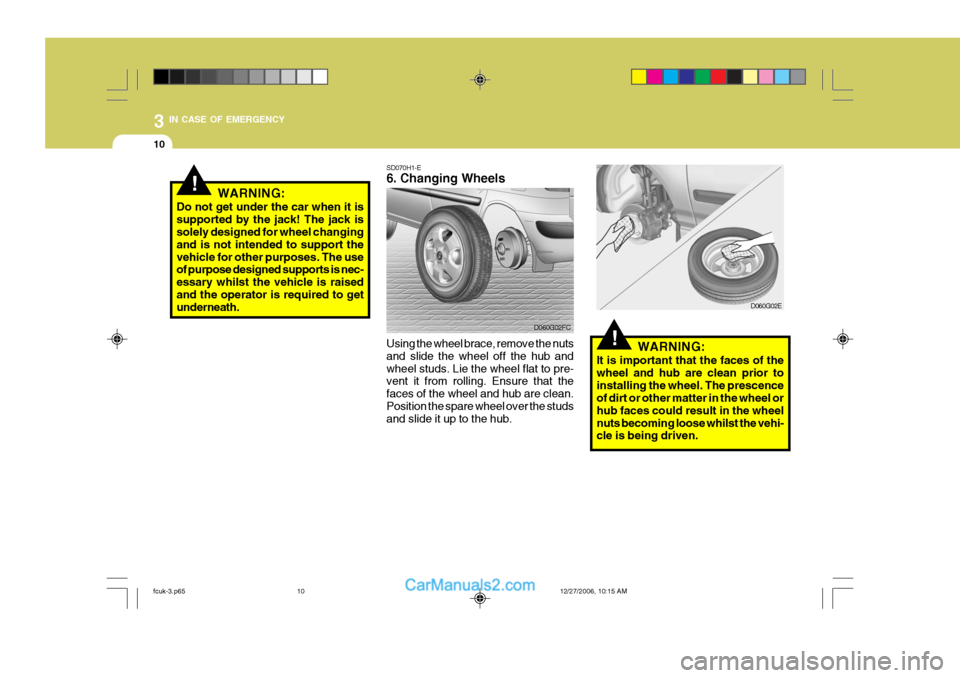

SD070H1-E 6. Changing Wheels
Using the wheel brace, remove the nuts and slide the wheel off the hub andwheel studs. Lie the wheel flat to pre- vent it from rolling. Ensure that the faces of the wheel and hub are clean.Position the spare wheel over the studs and slide it up to the hub. D060G02FC
WARNING:
Do not get under the car when it is supported by the jack! The jack is solely designed for wheel changing and is not intended to support thevehicle for other purposes. The use of purpose designed supports is nec- essary whilst the vehicle is raisedand the operator is required to get underneath.
WARNING:
It is important that the faces of the wheel and hub are clean prior toinstalling the wheel. The prescence of dirt or other matter in the wheel or hub faces could result in the wheelnuts becoming loose whilst the vehi- cle is being driven.
D060G02E
fcuk-3.p65 12/27/2006, 10:15 AM
10

3
IN CASE OF EMERGENCY
11
SD070I1-E 7. Re-install Wheel Nuts
Fit the wheel nuts onto the studs and tighten with the wheel brace. Lower the car to the ground turning the wheel nut wrench counterclockwise. When the vehicle is firmly on the ground,remove the jack and tighten the wheel nuts securely. At the first available opportunity, the wheel nut torque shouldbe checked with a suitable torque wrench. Wheel nut tightening torque Steel wheel & aluminium alloy wheel: 90-110 Nm (65-80 lb.ft)
SD070J1-E
8. Lower Vehicle and Tighten
NutsSD070K1-E After changing wheels The pressure of the spare tyre should be checked at the first available oppor- tunity. If any doubt exists as to the tyre pressure, the vehicle should be drivenslowly to the nearest service station and the tyre pressure checked and adjusted as required. D060B01FC
D060H02FCD060I02FC
