Page 314 of 490

1
CONTROLS AND EQUIPMENT
35
The SRS service reminder indicator (SRI) on the instrument panel will blinkfor approximately 6 seconds after the ignition key is turned to the "ON" posi- tion or after the engine is started, afterwhich the SRI should go out. The airbag modules are located both in the centre of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects a considerable impact to the front of the vehicle, it will automatically deploy the airbags. Upon deployment, tear seams molded directly into the pad covers will sepa- rate under pressure from the expansion of the airbags. Further opening of thecovers then allows full inflation of the airbags. A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forward mo- tion, thus reducing the risk of head or chest injury. After complete inflation, the airbag im- mediately starts deflating, enabling thedriver to maintain forward visibility.
!
CAUTION:
Do not install or place any accesso- ries (drink holder, cassette holder, sticker, etc) on the front passenger's panel above the glove box in a ve-hicle with passenger's side air bag. Such objects may become danger- ous projectiles and cause injury ifthe passenger's side air bag inflates.
Passenger's Airbag
B240B04FC
B240B02L-D B240B03L-D
fcuk-1.p65
12/27/2006, 10:11 AM
35
Page 315 of 490

1CONTROLS AND EQUIPMENT
36
!WARNING:
o When the SRS is activated, there may be a loud noise and fine dust will be released throughout the vehicle. These conditions are nor-mal and are not hazardous. How- ever, the fine dust generated dur- ing airbag deployment may causeskin irritation. Be sure to wash your hands and face thoroughly with lukewarm water and a mildsoap after an accident in which the airbags were deployed.
o The SRS can function only when the ignition key is in the "ON" position. If the SRS SRI does notcome on, or continuously remains on, after flashing for about 6 sec- onds when the ignition key isturned to the "ON" position, or after the engine is started, or comes on whilst driving, the SRS is notworking properly. If this occurs, have your vehicle immediately in- spected by your Hyundaiauthorised repairer.!
Passenger's Airbag
B240B05L
CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster not on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these ar- eas, wash them with water immedi- ately. o Before you replace a fuse or dis-
connect a battery terminal, turn the ignition key to the "LOCK" position or remove the ignition key. Never remove or replace theair bag related fuse(s) when the ignition key is in the "ON" posi- tion. Failure to heed this warningwill cause the SRS SRI to illumi- nate.
fcuk-1.p65 12/27/2006, 10:11 AM
36
Page 317 of 490

1CONTROLS AND EQUIPMENT
38
!
B240C03Y-EAT SRS Care The SRS is virtually maintenance-free and there are no parts you can safely service by yourself. The entire SRSsystem must be inspected by an Hyundai authorised repairer in 10 years after the date that the vehicle wasmanufactured. Any work on the SRS system, such as removing, installing, repairing, or any work on the steering wheel must be performed by a qualified Hyundai tech-nician. Improper handling of the SRS system may result in serious personal injury.
B240C01HP WARNING:
o Extreme Hazard! Do not use a rear- ward facing child restraint on a seat protected by an airbag in front of it!If you must use a rear facing child seat on the front seat, first deacti- vate the air bag system and ensurethat the passenger's front air bag 'off' indicator light in the instru- ment cluster is displayed.
o Do not install a child restraint sys- tem in the front passenger seatposition.A child restraint system must
never be placed in the front seat. The infant or child could be se-verely injured by an airbag de- ployment in case of an accident.
o Modification to SRS components or wiring, including the additionof any kind of badges to the pad covers or modifications to the bodystructure, can adversely affect SRS performance and lead to possible injury.
o Do not place any objects (an um-
brella, bag, etc.) between the frontdoor and the front seat. Such ob-jects may become dangerous pro- jectiles and cause injury if the supplemental side impact air baginflates.
o To prevent unexpected deploy-
ment of the side impact air bagthat may result in personal injury, avoid impact to the side airbag sensor when the ignition key ison.
fcuk-1.p65 12/27/2006, 10:11 AM
38
Page 323 of 490

1CONTROLS AND EQUIPMENT
44WARNING AND INDICATOR LIGHTS
SB210C1-ESRS (Airbag) Service Reminder Indicator Light
The SRS service reminder indicator (SRI) comes on and flashes for approxi-mately 6 seconds after the ignition key is turned to the "ON" position or after the engine is started, after which it willgo out. This light also comes on when the SRS is not working properly. If the SRI does not come on, or continu- ously remains on after flashing for about6 seconds when you turned the ignition key to the "ON" position or started the engine, or if it comes on whilst driving,have the SRS inspected by an Hyundai authorised repairer.
B260U01TB-EAT Immobiliser Indicator Light
This indicator light comes on for some seconds after the ignition key is turnedto the "ON" position. At this time, you can start the engine. The light goes out after the engine is running. In case thislight goes out before you start the en- gine, you must turn to the "LOCK" position and restart the engine. In casethis light blinks for five seconds when the ignition key is turned to "ON" posi- tion, this indicates that the immobilisersystem is out of order.
SB210G1-E Turn Signal Indicator Light
Operation of a turn signal is indicated by the warning light located in the in-strument cluster. If the light fails to illuminate or does not flash, a malfunc- tion within the turn signal system isindicated.
B260C02E-EATTraction Control Indicator Light(Not all models)
The traction control indicator changes operation according to the ignition switch position and whether or not the system is in operation.
B265C01LZ-EAT Electronic Stability Program Indicator Lights(Not all models)
The electronic stability program indica- tors change operation according to theignition switch position and whether the system is in operation or not. They will illuminate when the ignitionkey is turned to the "ON" position, but should go out after three seconds. If the ESP or ESP-OFF indicator stays on,take your car to your Hyundai authorised repairer and have the system checked. See section 2 for more informationabout the ESP.
It will also illuminate when the ignition key is turned to the "ON" position, andthen go off in a few seconds. If the TCS indicator stays on, take your car to your Hyundai authorised repairer and havethe system checked. See section 2 for more information about the TCS sys- tem.
fcuk-1.p65 12/27/2006, 10:12 AM
44
Page 326 of 490

1
CONTROLS AND EQUIPMENT
47
Under normal circumstances, the light will illuminate when the ignition is turned"on" and will be extinguished when the engine is started. If the oil pressure warning light illumi-nates whilst the engine is running, stop the engine immediately and check the engine oil level. If the level is insuffi-cient, add the required amount of oil as indicated by the engine oil dipstick. If the light fails to extinguish when theengine is restarted, do not continue to operate the vehicle. If the oil pressure light illuminates dur-ing normal operation and the cause is not an insufficient oil level, or the light fails to illuminate when the ignition isturned "on", contact the nearest Hyundai authorised repairer before further oper- ating the vehicle. B260N02FC-EAT
Malfunction Indicator
Light
This light illuminates when there is amalfunction of an exhaust gas relatedcomponent, and the system is not func- tioning properly so that the exhaust gas regulation values are not satisfied. Thislight will illuminate when the ignition key is tuned to the "ON" position, and then it will go out after the engine start. If itilluminates whilst driving, or does not illuminate when the ignition key is turned to the "ON" position, take your car toyour nearest Hyundai authorised re- pairer and have the system checked.
!
B260P02Y-EAT ABS Service Reminder Indicator (SRI)(Not all models)
When the key is turned to the "ON" position, the Anti-Lock Brake System SRI will come on and then go off in a approximately seconds. If the ABS SRI remains on, comes on whilst driving, or does not come on when the key is turned to the "ON" position, this indi- cates that there may be a problem with the ABS. If this occurs, have your vehicle checked by your Hyundai authorised repairer as soon as possible. The nor- mal braking system will still be opera- tional, but without the assistance of the anti-lock brake system.
CAUTION:
If the both ABS SRI and Parking Brake/Brake fluid level warning lights re- main "ON" or come on whilst driving,there may be a problem with E.B.D.
(Electronic Brake Force Distribution). If this occurs, avoid sudden stopsand have your vehicle checked by your Hyundai authorised repairer as soon as possible.
fcuk-1.p65 12/27/2006, 10:12 AM
47

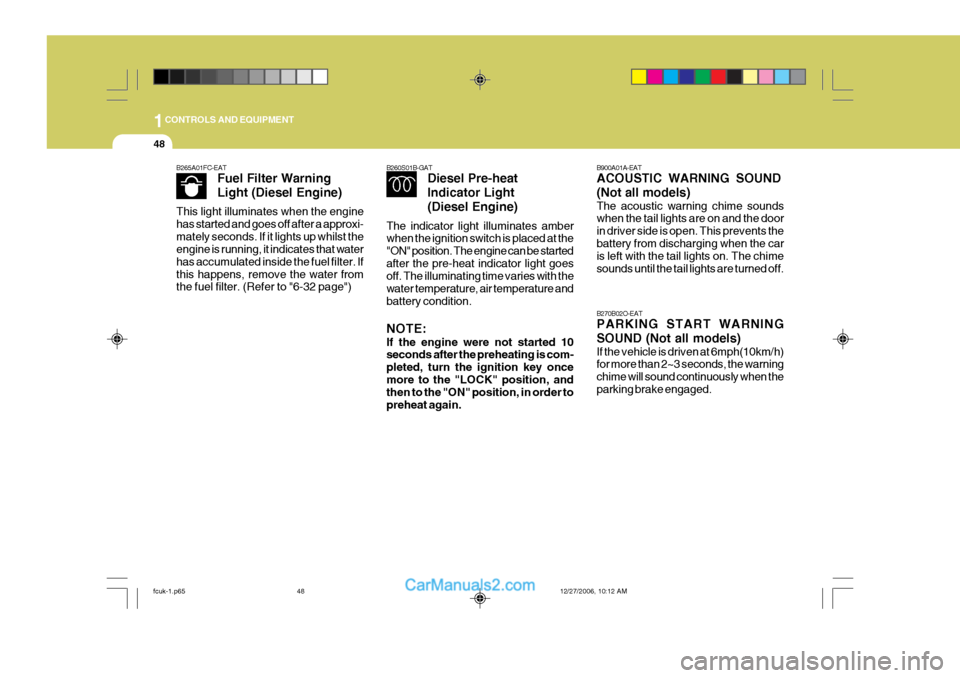

Page 327 of 490

1CONTROLS AND EQUIPMENT
48
B270B02O-EAT PARKING START WARNING SOUND (Not all models) If the vehicle is driven at 6mph(10km/h) for more than 2~3 seconds, the warning chime will sound continuously when theparking brake engaged.
B900A01A-EAT ACOUSTIC WARNING SOUND (Not all models) The acoustic warning chime sounds when the tail lights are on and the door in driver side is open. This prevents thebattery from discharging when the car is left with the tail lights on. The chime sounds until the tail lights are turned off.
B260S01B-GAT
Diesel Pre-heat Indicator Light(Diesel Engine)
The indicator light illuminates amber when the ignition switch is placed at the "ON" position. The engine can be startedafter the pre-heat indicator light goes off. The illuminating time varies with the water temperature, air temperature andbattery condition. NOTE: If the engine were not started 10 seconds after the preheating is com- pleted, turn the ignition key oncemore to the "LOCK" position, and then to the "ON" position, in order to preheat again.
B265A01FC-EAT Fuel Filter Warning Light (Diesel Engine)
This light illuminates when the engine has started and goes off after a approxi-mately seconds. If it lights up whilst the engine is running, it indicates that water has accumulated inside the fuel filter. Ifthis happens, remove the water from the fuel filter. (Refer to "6-32 page")
fcuk-1.p65 12/27/2006, 10:12 AM
48
Page 334 of 490

1
CONTROLS AND EQUIPMENT
55
Sidelight auto cut (Not all models)
o The purpose of this feature is to prevent the battery from being dis- charged. The system automatically turns off the small light when the driver removes the ignition key andopens the driver- side door.
o With this feature, the sidelight will be
turned off automatically if the driverparks on the side of road at night.
If necessary, to keep the lights on whenthe ignition key is removed, perform thefollowing :
1) Open the driver-side door.
2) Turn the sidelights OFF and ON
again using the light switch on the steering column. SB220E1-E Headlight Flash
The headlights may be flashed by pull- ing the turn signal switch lever towards the steering wheel. The headlights will be extinguished when the switch isreleased.
SB220D1-E High And Low Beam To turn on the headlight high beams, push the lever forward (away from you). For low beams, pull the lever back(toward you). The appropriate headlight beam indicator light will come on at the same time.
B340E01FC-D
WINDSCREEN WIPER/ WASHER SWITCH
SB230A1-E The windscreen wiper switch, depen- dent upon model, has three operating positions.
1.Intermittent wiper operation
(Not all models)
2.Low speed operation
3.High speed operation NOTE: To prevent damage to the wiper sys- tem, do not attempt to wipe away heavy accumulations of snow or ice. Accumulated snow and ice should be removed manually. If there is onlya light layer of snow or ice, operate the heater in the defrost mode to melt the snow or ice before using the wiper.
B350A01FC-D
(1)
(2)
(3)
fcuk-1.p65 12/27/2006, 10:12 AM
55
Page 337 of 490

1CONTROLS AND EQUIPMENT
58
B360A01Y-GAT Rear Fog Light Switch To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second posi- tion and the key is in the "ON" position.
B360A01FC-D
NOTE: The engine must be running for the rear window defroster to operate.
!
B360B01FC-EAT Front Fog Light Switch (Not all models)
B360B01FC-D
To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch is in the first or second position.
CAUTION:
The inside of the rear windscreenshould never be cleaned with a hardor sharp implement since damage to the heating element may occur. The glass should only be cleaned with asoft cloth or chamois leather with the use only of a mild detergent or pro- prietary glass cleaner where neces-sary. Only horizontal movement of the cloth should be made when clean- ing the glass and care should beexercised to ensure that the heating elements are not damaged by rings or jewellery whilst the glass is beingcleaned. FOG LIGHT SWITCH
fcuk-1.p65
12/27/2006, 10:12 AM
58
Page 339 of 490

1CONTROLS AND EQUIPMENT
60POWER OUTLETCIGAR LIGHTER
SB290A02-F For the cigar lighter to work, the key must be in the "ACC" or the "ON"position. To use the cigar lighter, push the lighter all the way into its socket. When the element is heated, the lighterwill pop out into the "ready" position. Do not hold the cigar lighter at the depressed position which may result indamage to the vehicle wiring or an electrical fire. If it is necessary to re- place the cigarette lighter, use only agenuine Hyundai replacement part.
B420A01FC-D
! CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket. B500D01FC-EAT (Not all models)
These supply 12V electric power to operate electric accessories or equip- ment only when the key is in the "ON"position.
! CAUTION:
o Use the power outlet only when the engine is running and remove the plug from the power outletafter using the electric device. Using when the engine stops or keeping the electric device withplugged in for many hours may cause the battery to discharge.
o Do not use the power outlet to connect electric accessories orequipment that are not designed to operate on 12 volts.
o Some electronic devices can cause electronic interference whenplugged into the power outlet.These devices may cause exces- sive audio noise and malfunctions in other electronic systems or de-vices in your vehicle.
HFC2042-D
fcuk-1.p65 12/27/2006, 10:12 AM
60
Page 341 of 490

1CONTROLS AND EQUIPMENT
62
!WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or your passengers. Spilled liquids candamage interior trim and electri- cal components.
o Do not place objects other than
cups or drinks in the drink holder.Such objects can be thrown out in the event of a sudden stop or anaccident, possibly injuring the pas- sengers in the vehicle.
SB380A2-E The parking brake must always be set when the vehicle is to be left unattended.When the parking brake is applied, and the ignition key is at the "ON" position, the parking brake warning lamp will beilluminated. Before driving the vehicle, the parking brake must be fully released and the warning lamp extinguished.
o To engage the parking brake, first apply the foot brake and then without pressing the release button in, pull the parking brake lever up as far as pos- sible. B530A01FC-D
PARKING BRAKE
In addition it is recommended thatwhen parking the vehicle on a gradi-ent, the shift lever should be posi- tioned in the appropriate low gear on manual transmission vehicles or inthe Park position on automatic trans- mission vehicles.
o To release the parking brake, first apply the foot brake and pull up theparking brake lever slightly. Sec- ondly, depress the release buttonand lower the parking brake lever whilst holding the button.
fcuk-1.p65 12/27/2006, 10:12 AM
62
