888

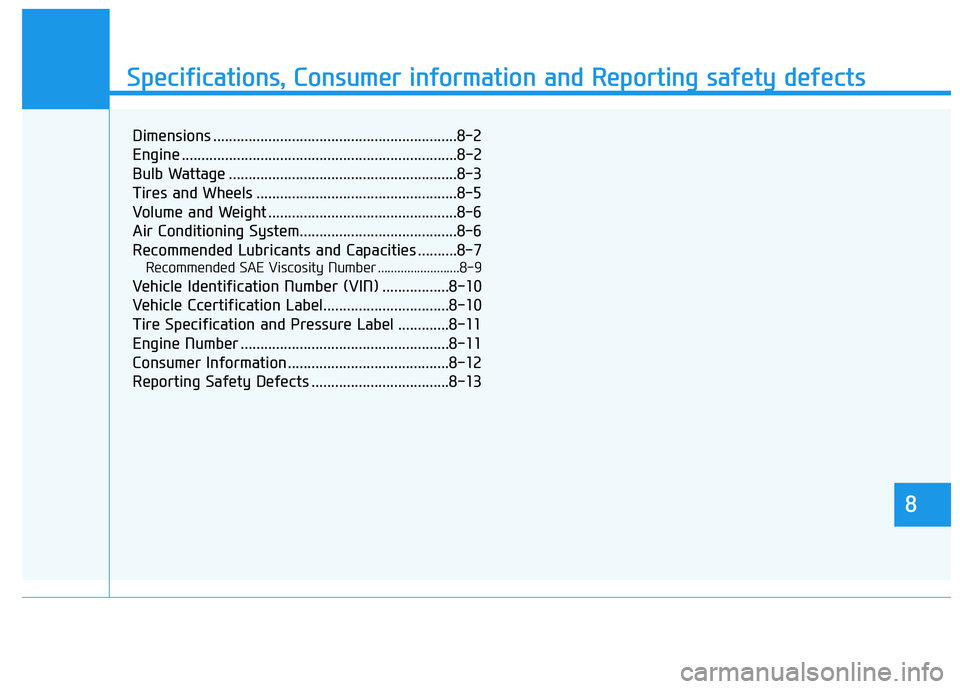

Specifications & Consumer information
8
Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-5
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE Viscosity Number .........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Ccertification Label................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11
Consumer Information .........................................8-12
Reporting Safety Defects ...................................8-13
Page 642 of 663
8-2
Specifications, Consumer information and Reporting safety defects

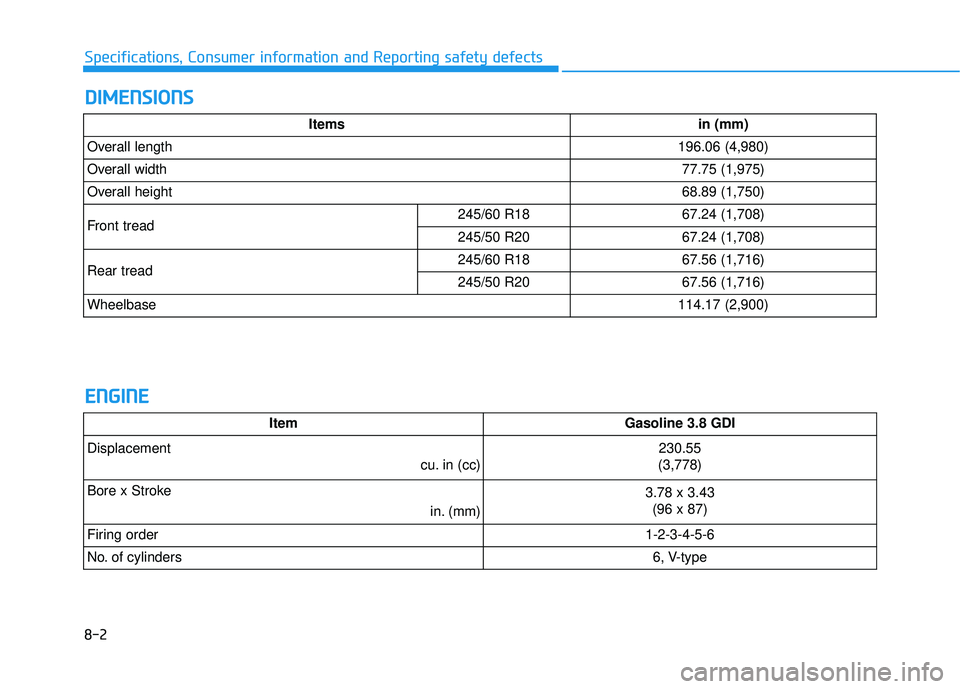

D DI IM M E EN N S SI IO O N NS S
E E N N G GI IN N E E
Itemsin (mm)
Overall length196.06 (4,980)
Overall width77.75 (1,975)
Overall height68.89 (1,750)
Front tread245/60 R1867.24 (1,708)
245/50 R2067.24 (1,708)
Rear tread245/60 R1867.56 (1,716)
245/50 R2067.56 (1,716)
Wheelbase114.17 (2,900)
ItemGasoline 3.8 GDI
Displacement cu. in (cc)
230.55
(3,778)
Bore x Stroke in. (mm)
3.78 x 3.43 (96 x 87)
Firing order
1-2-3-4-5-6
No. of cylinders
6, V-type
Page 643 of 663

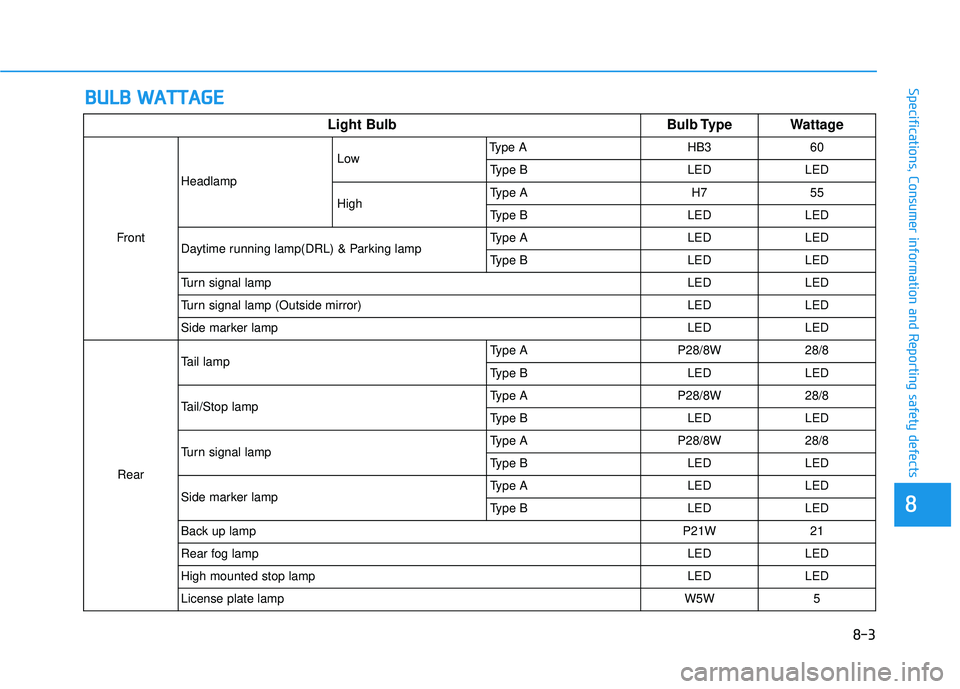

B BU U L LB B W W A AT TT TA A G G E E
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb Type Wattage
FrontHeadlamp
Low
Type A HB3 60
Type B LED LED
High Type A H7 55
Type B LED LED
Daytime running lamp(DRL) & Parking lamp Type A LED LED
Type B LED LED
Turn signal lamp LEDLED
Turn signal lamp (Outside mirror)LEDLED
Side marker lamp LED LED
Rear Tail lamp
Type A P28/8W 28/8
Type B LED LED
Tail/Stop lamp Type A P28/8W 28/8
Type B LED LED
Turn signal lamp Type A P28/8W 28/8
Type B LED LED
Side marker lamp Type A LED LED
Type B LED LED
Back up lamp P21W 21
Rear fog lampLEDLED
High mounted stop lamp LED LED
License plate lamp W5W 5
8-3
Page 644 of 663

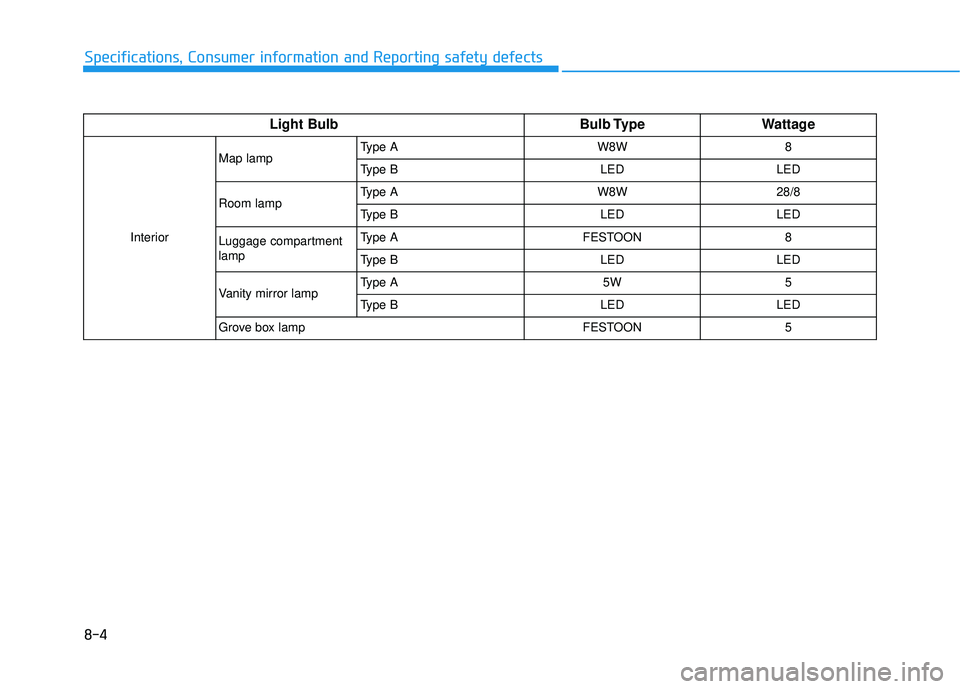

8-4
Specifications, Consumer information and Reporting safety defects
Light BulbBulb TypeWattage
InteriorMap lamp
Type A W8W 8
Type B LED LED
Room lamp Type A W8W 28/8
Type B
LEDLEDLuggage compartment
lampType AFESTOON8
Type BLEDLED
Vanity mirror lampType A5W5
Type BLEDLED
Grove box lampFESTOON5
Page 645 of 663

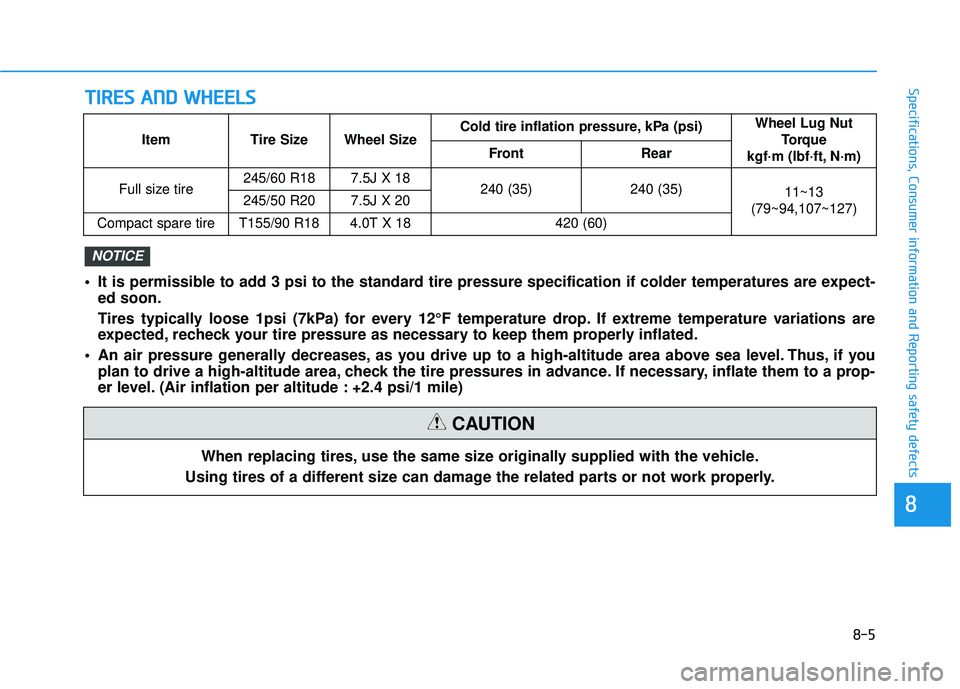

T TI IR R E ES S A A N N D D W W H HE EE EL LS S
8-5
88
Specifications, Consumer information and Reporting safety defects
• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
NOTICE
Item Tire Size Wheel Size Cold tire inflation pressure, kPa (psi)
Wheel Lug Nut
Torque
kgf·m (lbf·ft, N·m)
Front
Rear
Full size tire 245/60 R18 7.5J X 18
240 (35)240 (35)
11~13
(79~94,107~127)
245/50 R20 7.5J X 20
Compact spare tire T155/90 R18 4.0T X 18 420 (60)
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
Page 646 of 663
8-6
Specifications, Consumer information and Reporting safety defects

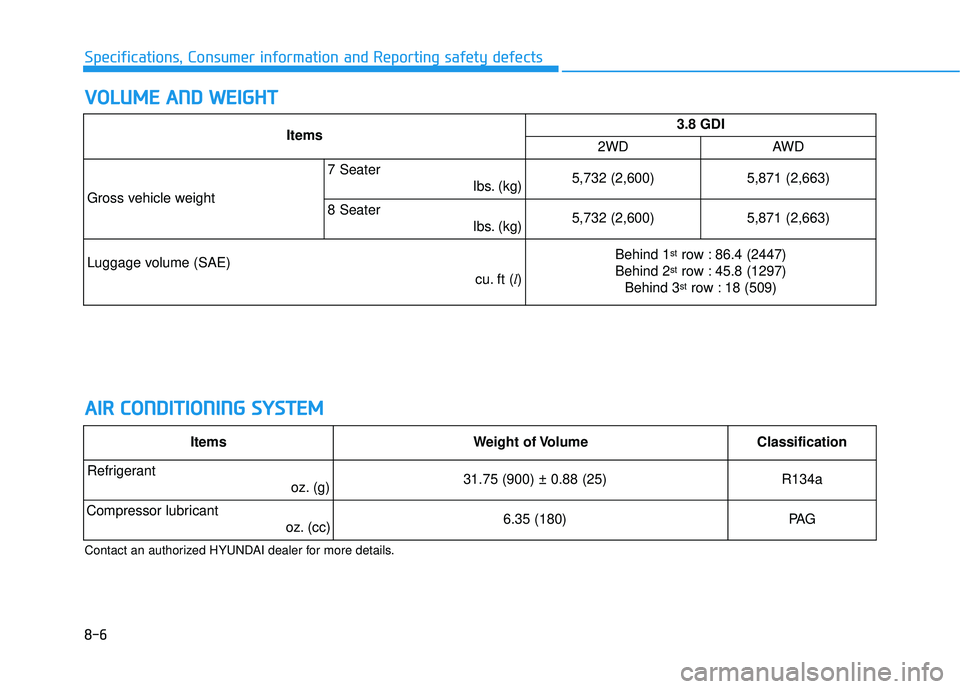

V VO O L LU U M M E E A A N N D D W W E EI IG G H H T T
A A I IR R C C O O N ND DI IT T I IO O N NI IN N G G S S Y Y S ST T E EM M
Contact an authorized HYUNDAI dealer for more details.
Items3.8 GDI
2WDAWD
Gross vehicle weight
7 Seater
lbs. (kg)5,732 (2,600)5,871 (2,663)
8 Seaterlbs. (kg)5,732 (2,600)5,871 (2,663)
Luggage volume (SAE) cu. ft (l)Behind 1strow : 86.4 (2447)
Behind 2strow : 45.8 (1297)
Behind 3strow : 18 (509)
ItemsWeight of VolumeClassification
Refrigerant oz. (g) 31.75 (900) ± 0.88 (25)R134a
Compressor lubricantoz. (cc) 6.35 (180)PA G
Page 647 of 663
8-7
88
Specifications, Consumer information and Reporting safety defects
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.

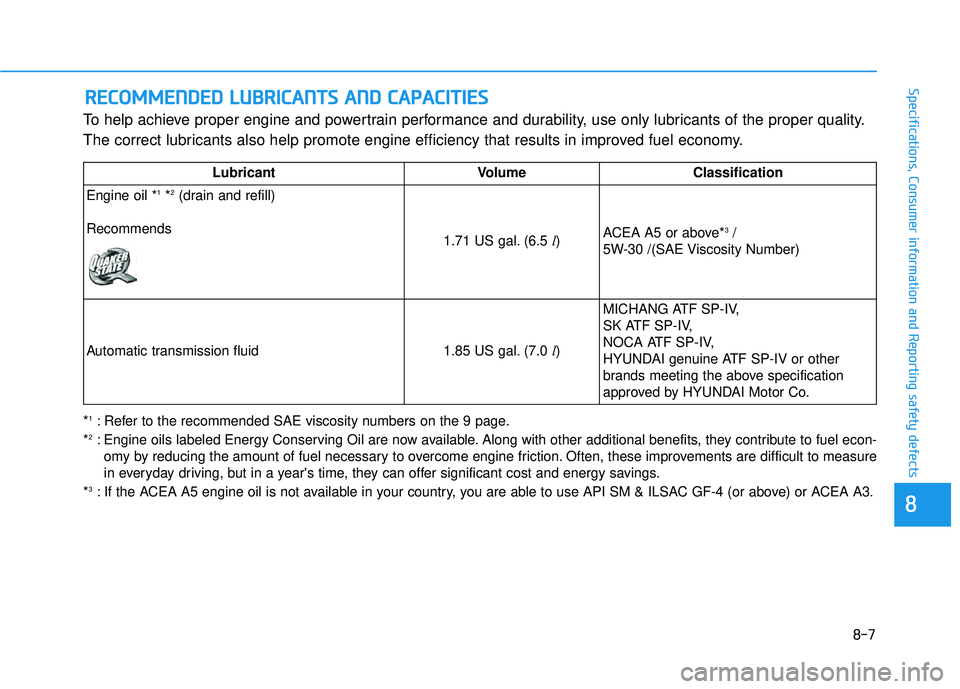

R RE EC CO O M M M ME EN N D DE ED D L L U U B BR RI IC C A A N N T TS S A A N N D D C C A A P PA A C CI IT T I IE E S S
LubricantVolume Classification
Engine oil *
1*2(drain and refill)
Recommends
1.71 US gal. (6.5 l) ACEA A5 or above*3/
5W-30 /(SAE Viscosity Number)
Automatic transmission fluid1.85 US gal. (7.0 l)
MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV or other
brands meeting the above specification
approved by HYUNDAI Motor Co.
*1: Refer to the recommended SAE viscosity numbers on the 9 page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ -
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year's time, they can offer significant cost and energy savings.
*
3: If the ACEA A5 engine oil is not available in your country, you are able to use API SM & ILSAC GF-4 (or above) or ACEA A3.
Page 648 of 663
8-8
Specifications, Consumer information and Reporting safety defects

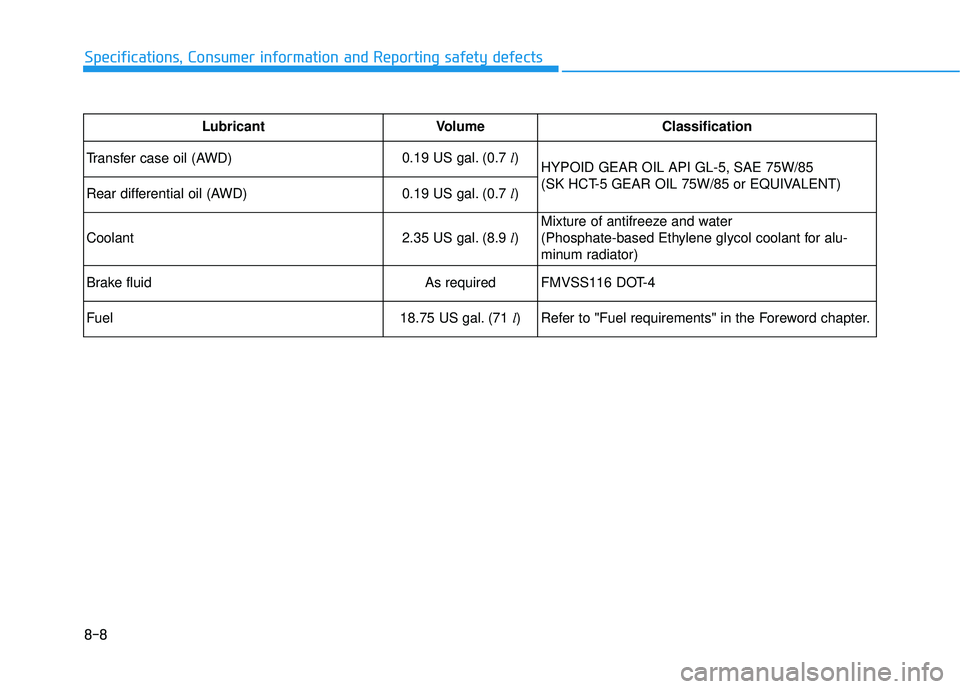

LubricantVolumeClassification
Transfer case oil (AWD)
0.19 US gal. (0.7 l) HYPOID GEAR OIL API GL-5, SAE 75W/85
(SK HCT-5 GEAR OIL 75W/85 or EQUIVALENT)
Rear differential oil (AWD)
0.19 US gal. (0.7 l)
Coolant
2.35 US gal. (8.9 l) Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for alu-
minum radiator)
Brake fluid
As required FMVSS116 DOT-4
Fuel18.75 US gal. (71 l)Refer to "Fuel requirements" in the Foreword chapter.
Page 649 of 663
8-9
88
Specifications, Consumer information and Reporting safety defects

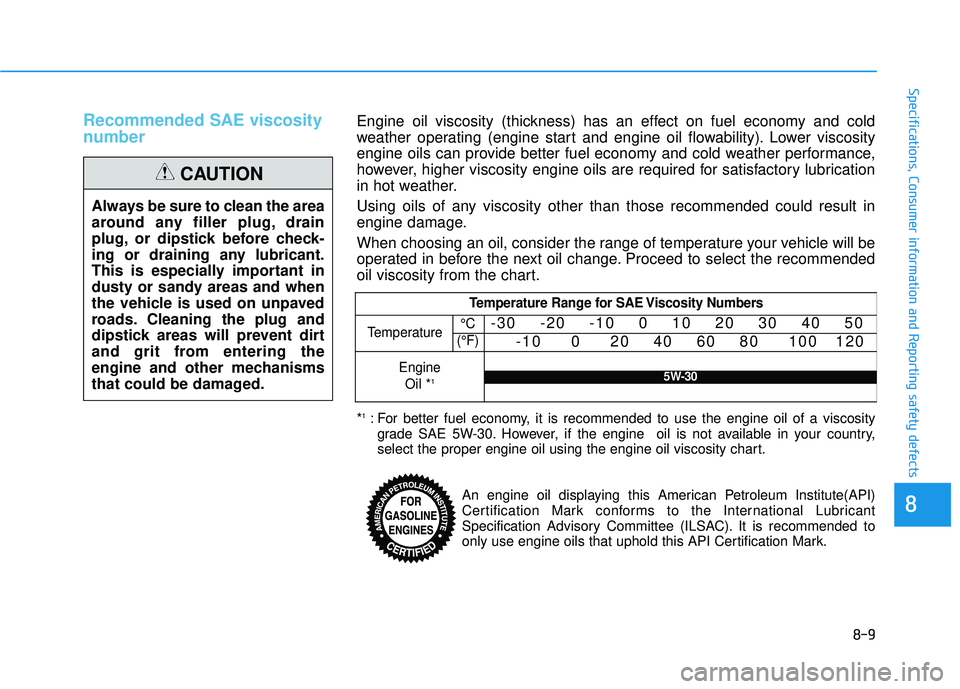

Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
*1: For better fuel economy, it is recommended to use the engine oil of a viscositygrade SAE 5W-30. However, if the engine oil is not available in your country,
select the proper engine oil using the engine oil viscosity chart.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended to
only use engine oils that uphold this API Certification Mark.
Engine oil viscosity (thickness) has an effect on fuel economy and cold
weather operating (engine start and engine oil flowability). Lower viscosity
engine oils can provide better fuel economy and cold weather performance,
however, higher viscosity engine oils are required for satisfactory lubrication
in hot weather.
Using oils of any viscosity other than those recommended could result in
engine damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil *1
°C
(°F)
5W-30
Page 650 of 663
8-10
Specifications, Consumer information and Reporting safety defects

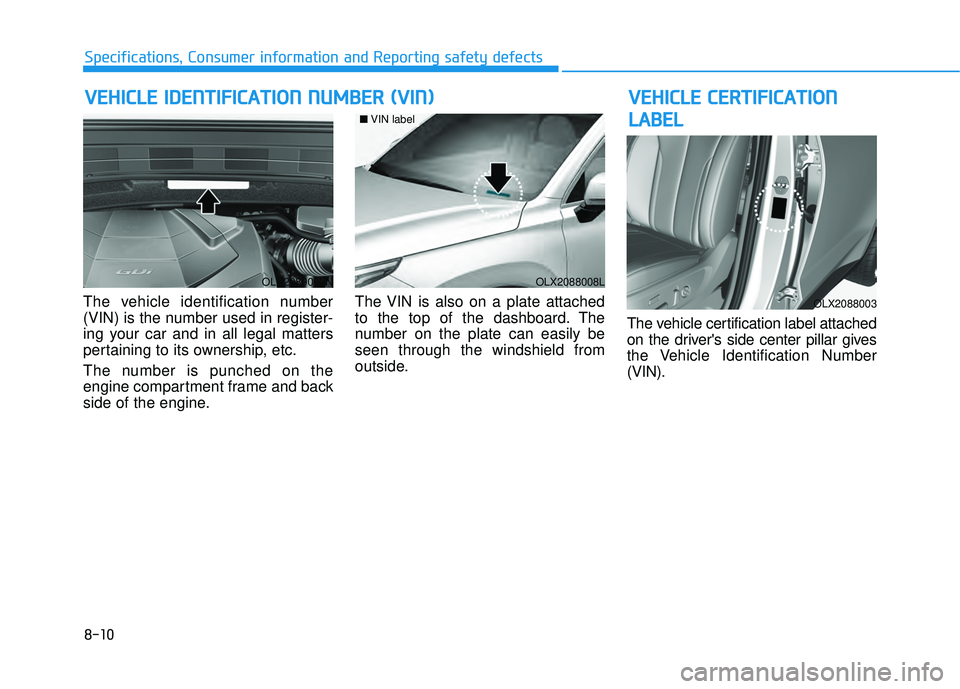

The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the
engine compartment frame and back
side of the engine. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label attached
on the driver's side center pillar gives
the Vehicle Identification Number
(VIN).
V V
E EH H I IC C L LE E I ID D E EN N T TI IF F I IC C A A T TI IO O N N N N U U M M B BE ER R ( ( V V I IN N ) ) V VE EH H I IC C L LE E C C E E R R T TI IF F I IC C A A T TI IO O N N
L L A A B BE EL L
OLX2089002NOLX2088008L
■ VIN label
OLX2088003
