Page 110 of 661

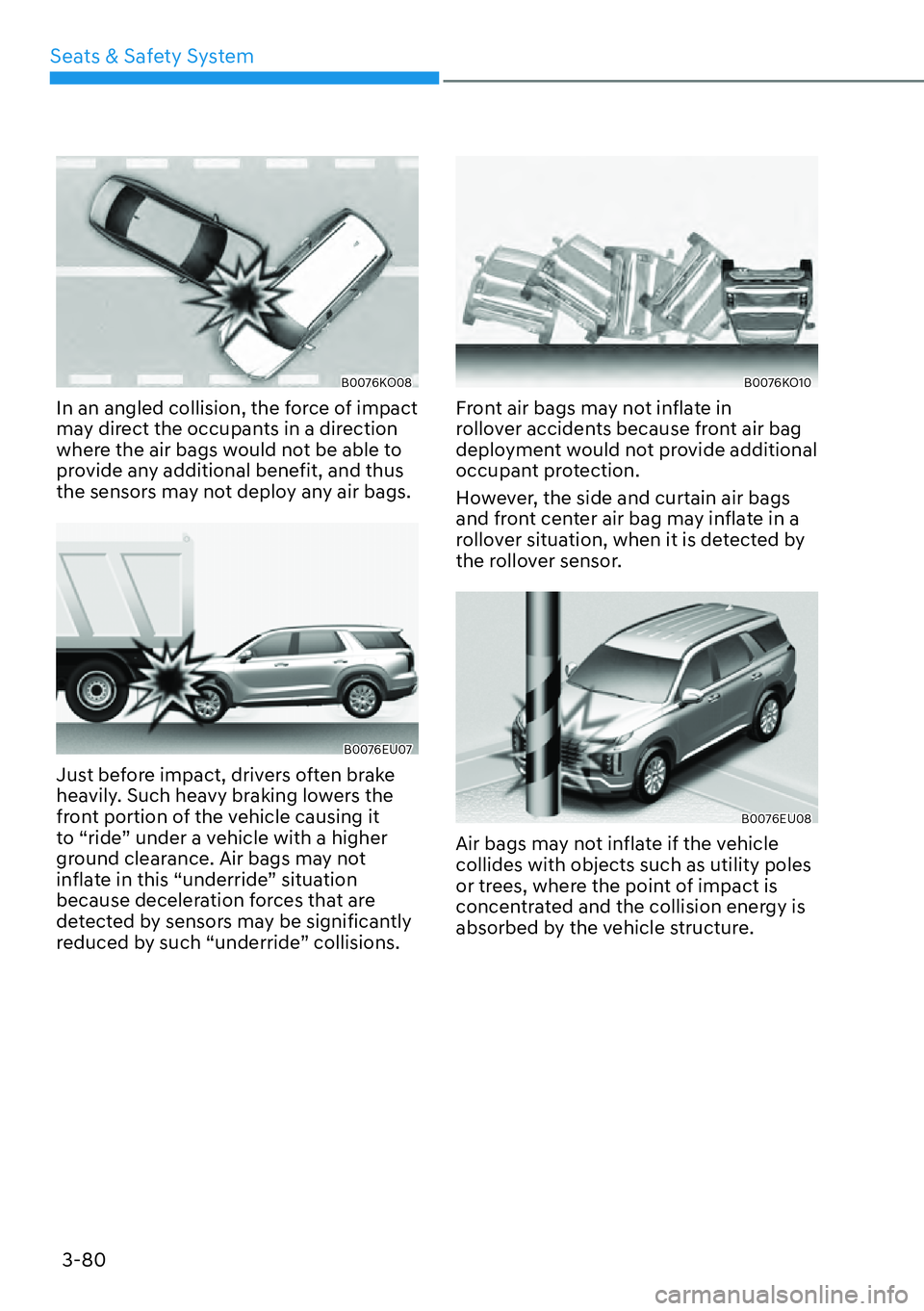

Seats & Safety System3-80
B0076KO08
In an angled collision, the force of impact
may direct the occupants in a direction
where the air bags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any air bags.
B0076EU07
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it
to “ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.
B0076KO10
Front air bags may not inflate in
rollover accidents because front air bag
deployment would not provide additional
occupant protection.
However, the side and curtain air bags
and front center air bag may inflate in a
rollover situation, when it is detected by
the rollover sensor.
B0076EU08
Air bags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.
Page 136 of 661
Instrument Cluster4-24
Battery discharging due to external
electrical devices (if equipped)
This message is displayed if the battery
voltage is weak due to any non-factory
electrical accessories (ex. dashboard
camera) while parking. Be careful that
the battery is not discharged.
If the warning message appears after
removing the non-factory electrical
accessories, have the vehicle inspected
by an authorized HYUNDAI dealer.
Press START button with key
(for smart key system)
This warning message is displayed if you
press the Engine Start/Stop button while
the warning message "Key not detected"
is displayed.
At this time, the immobilizer indicator
light blinks.
Place digital key on the wireless
charger to keep the vehicle running
If the vehicle is remotely started and
‘Start Vehicle’ is deselected from the
Settings menu in the infotainment
system screen for Driver 1 and Driver 2,
this message will be displayed for up to
30 seconds when a door is opened after
unlocking the doors with a digital key.
To drive your vehicle, place the
registered digital key on the wireless
charger, when this message appears.
Vehicle is On (started by digital key)
This message is displayed for up to 10
seconds if the driver's door is opened
without the driver's seat belt fastened
after turning on the engine with a digital
key. After the message is displayed, a
warning sounds when the door is closed.
Information
Since the engine was started with a digital
key, if the engine is turned off, and there is
no smart key or digital key in the vehicle,
it may be difficult to start the engine
again.
Place saved digital key on wireless
charger, then press the START
button
This message is displayed for 6 seconds
and the immobilizer indicator light
(
) will blink for 10 seconds after the
message “Press START button with key”
is displayed for 4 seconds if the smart
key is not in the vehicle or not detected,
or the digital key is not placed on the
wireless charger when you press the
Engine Start/Stop button. To start the
vehicle, place a registered digital key on
the wireless charger, and then press the
Engine Start/Stop button.
Scan an authorized fingerprint, then
press the START button
This message is displayed for 6 seconds
and the immobilizer indicator light
(
) will blink for 10 seconds after the
message “Press START button with key”
is displayed for 4 seconds if the smart
key is not in the vehicle or not detected,
or your fingerprint is not verified when
you press the Engine Start/Stop button.
To start the vehicle, have an authorized
fingerprint verified on the fingerprint
sensor, and then press the Engine Start/
Stop button.
Digital key(s) active
This message is displayed for 4 seconds
when a smartphone key or NFC card
key is registered, and vehicle doors are
locked and unlocked after more than
10 minutes and the ignition switch is
placed to the ON position. The message
is not displayed again until more than 10
minutes have passed after the doors are
relocked.

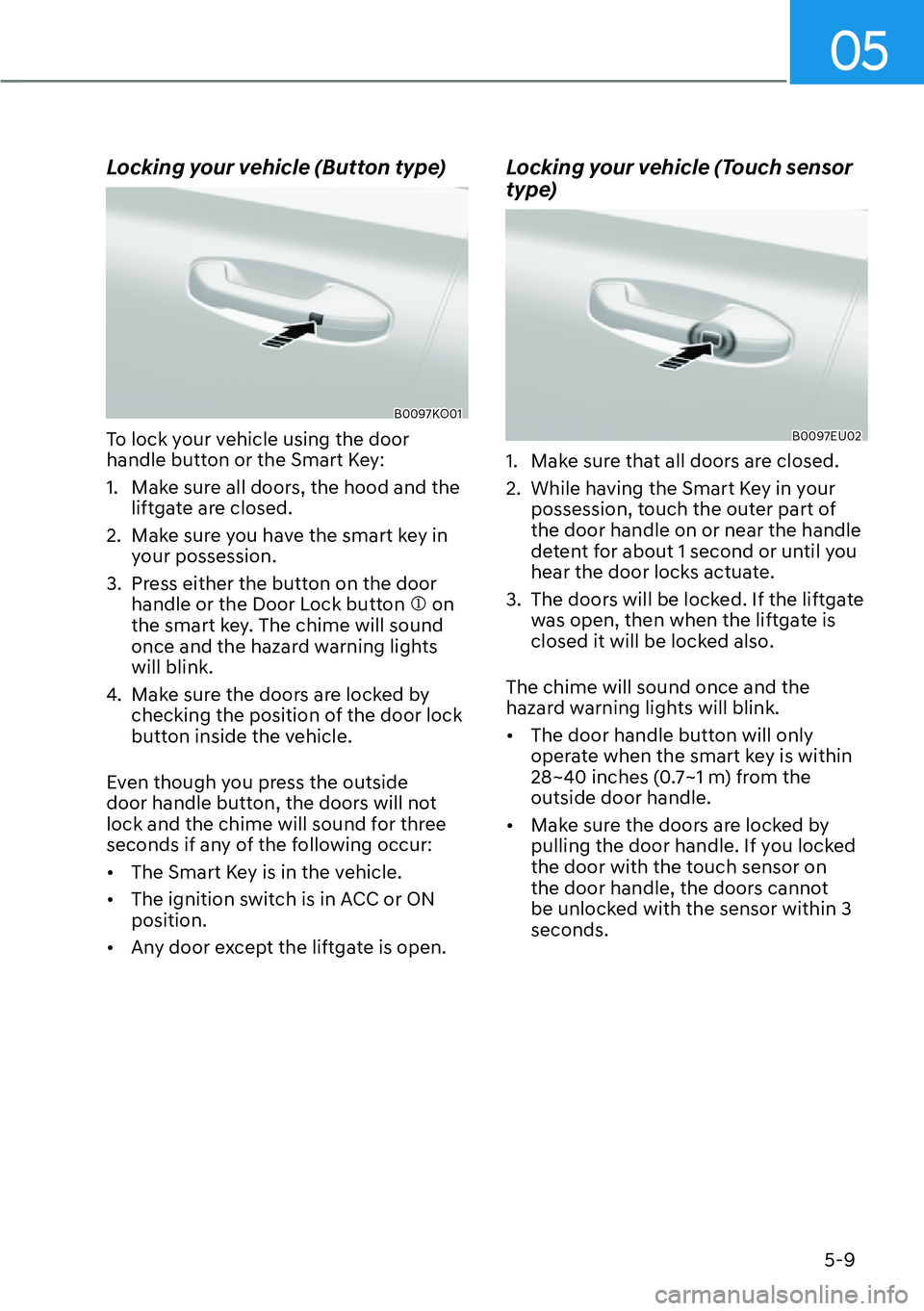

Page 158 of 661
05
5-9
Locking your vehicle (Button type)
B0097KO01
To lock your vehicle using the door
handle button or the Smart Key:
1. Make sure all doors, the hood and the liftgate are closed.
2. Make sure you have the smart key in your possession.
3. Press either the button on the door handle or the Door Lock button M on
the smart key. The chime will sound
once and the hazard warning lights
will blink.
4. Make sure the doors are locked by checking the position of the door lock
button inside the vehicle.
Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for three
seconds if any of the following occur:
[ The Smart Key is in the vehicle.
[ The ignition switch is in ACC or ON
position.
[ Any door except the liftgate is open.
Locking your vehicle (Touch sensor
type)
B0097EU02
1. Make sure that all doors are closed.
2. While having the Smart Key in your
possession, touch the outer part of
the door handle on or near the handle
detent for about 1 second or until you
hear the door locks actuate.
3. The doors will be locked. If the liftgate was open, then when the liftgate is
closed it will be locked also.
The chime will sound once and the
hazard warning lights will blink.
[ The door handle button will only
operate when the smart key is within
28~40 inches (0.7~1 m) from the
outside door handle.
[ Make sure the doors are locked by
pulling the door handle. If you locked
the door with the touch sensor on
the door handle, the doors cannot
be unlocked with the sensor within 3
seconds.

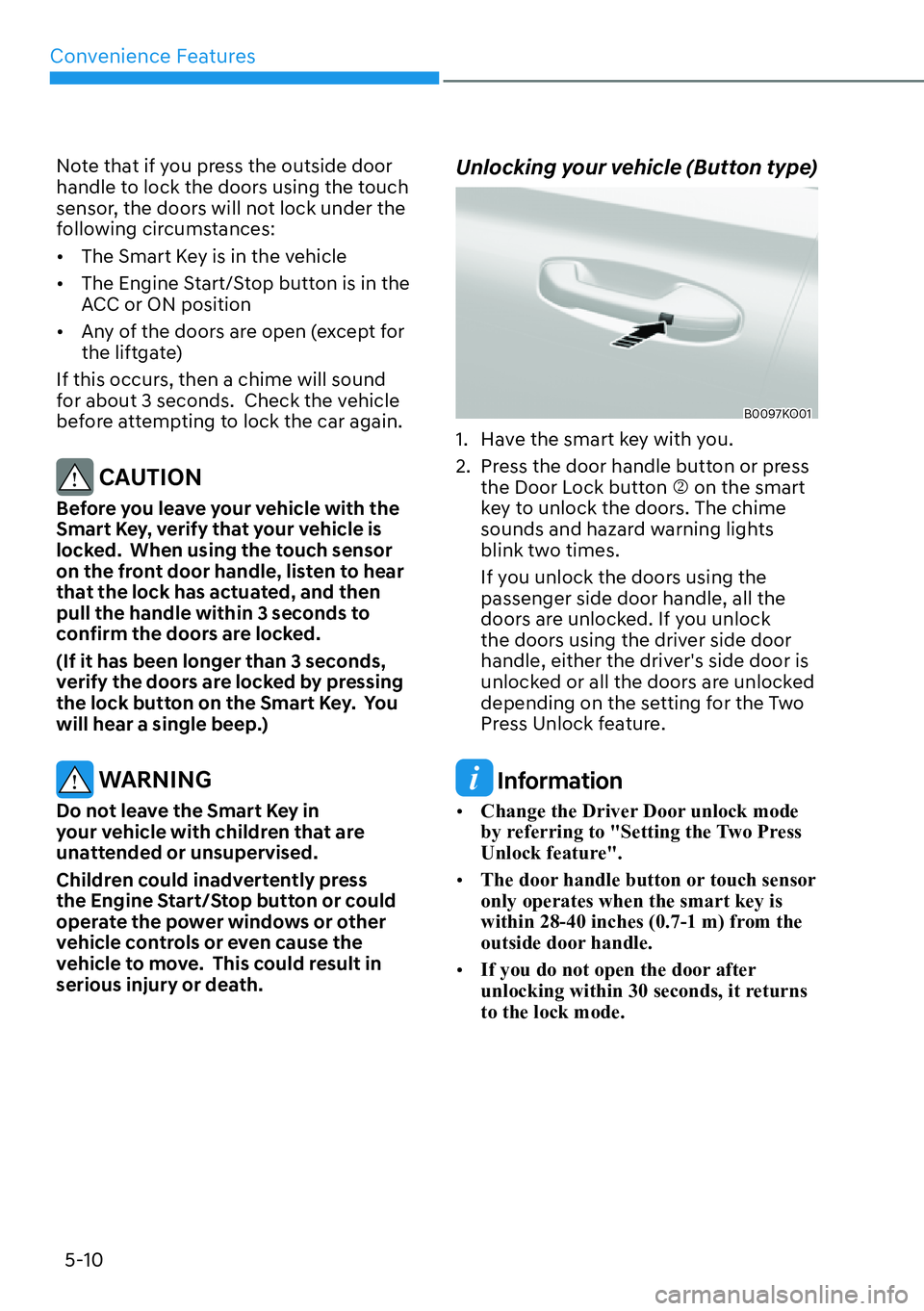

Page 159 of 661
Convenience Features5-10
Note that if you press the outside door
handle to lock the doors using the touch
sensor, the doors will not lock under the
following circumstances:
[ The Smart Key is in the vehicle
[ The Engine Start/Stop button is in the
ACC or ON position
[ Any of the doors are open (except for
the liftgate)
If this occurs, then a chime will sound
for about 3 seconds. Check the vehicle
before attempting to lock the car again.
CAUTION
Before you leave your vehicle with the
Smart Key, verify that your vehicle is
locked. When using the touch sensor
on the front door handle, listen to hear
that the lock has actuated, and then
pull the handle within 3 seconds to
confirm the doors are locked.
(If it has been longer than 3 seconds,
verify the doors are locked by pressing
the lock button on the Smart Key. You
will hear a single beep.)
WARNING
Do not leave the Smart Key in
your vehicle with children that are
unattended or unsupervised.
Children could inadvertently press
the Engine Start/Stop button or could
operate the power windows or other
vehicle controls or even cause the
vehicle to move. This could result in
serious injury or death.
Unlocking your vehicle (Button type)
B0097KO01
1. Have the smart key with you.
2. Press the door handle button or press the Door Lock button N on the smart
key to unlock the doors. The chime
sounds and hazard warning lights
blink two times.
If you unlock the doors using the
passenger side door handle, all the
doors are unlocked. If you unlock
the doors using the driver side door
handle, either the driver's side door is
unlocked or all the doors are unlocked
depending on the setting for the Two
Press Unlock feature.
Information
[ Change the Driver Door unlock mode
by referring to "Setting the Two Press
Unlock feature".
[ The door handle button or touch sensor
only operates when the smart key is
within 28-40 inches (0.7-1 m) from the
outside door handle.
[ If you do not open the door after
unlocking within 30 seconds, it returns
to the lock mode.

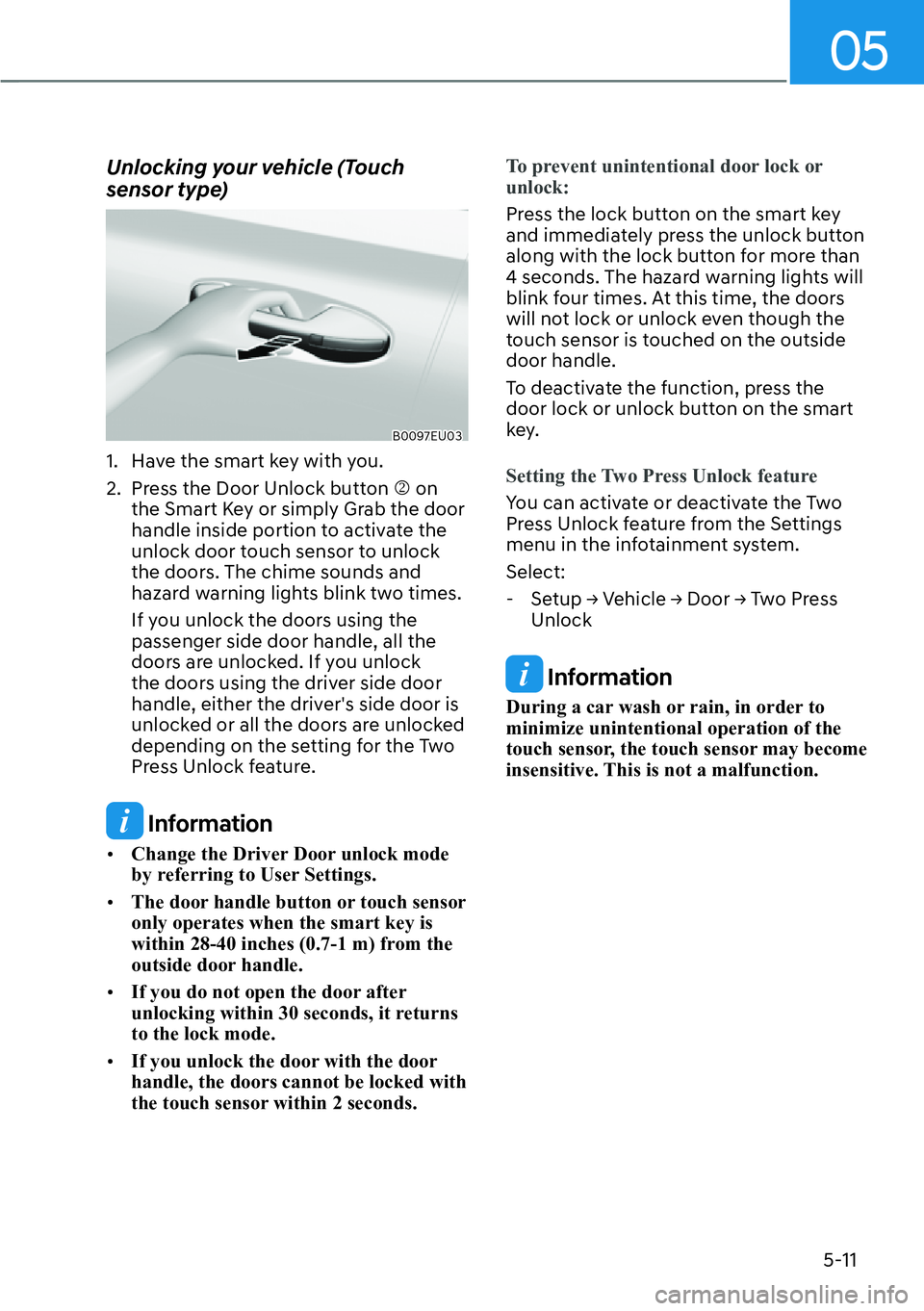

Page 160 of 661
05
5-11
Unlocking your vehicle (Touch
sensor type)
B0097EU03
1. Have the smart key with you.
2. Press the Door Unlock button N on the Smart Key or simply Grab the door
handle inside portion to activate the
unlock door touch sensor to unlock
the doors. The chime sounds and
hazard warning lights blink two times.
If you unlock the doors using the
passenger side door handle, all the
doors are unlocked. If you unlock
the doors using the driver side door
handle, either the driver's side door is
unlocked or all the doors are unlocked
depending on the setting for the Two
Press Unlock feature.
Information
[ Change the Driver Door unlock mode
by referring to User Settings.
[ The door handle button or touch sensor
only operates when the smart key is
within 28-40 inches (0.7-1 m) from the
outside door handle.
[ If you do not open the door after
unlocking within 30 seconds, it returns
to the lock mode.
[ If you unlock the door with the door
handle, the doors cannot be locked with
the touch sensor within 2 seconds. To prevent unintentional door lock or
unlock:
Press the lock button on the smart key
and immedia
tely press the unlock button
along with the lock button for more than
4 seconds. The hazard warning lights will
blink four times. At this time, the doors
will not lock or unlock even though the
touch sensor is touched on the outside
door handle.
To deactivate the function, press the
door lock or unlock button on the smart
key.
Setting the Two Press Unlock feature
You can activate or deactivate the Two
Pr
ess Unlock feature from the Settings
menu in the infotainment system.
Select:
- 6 H W X S

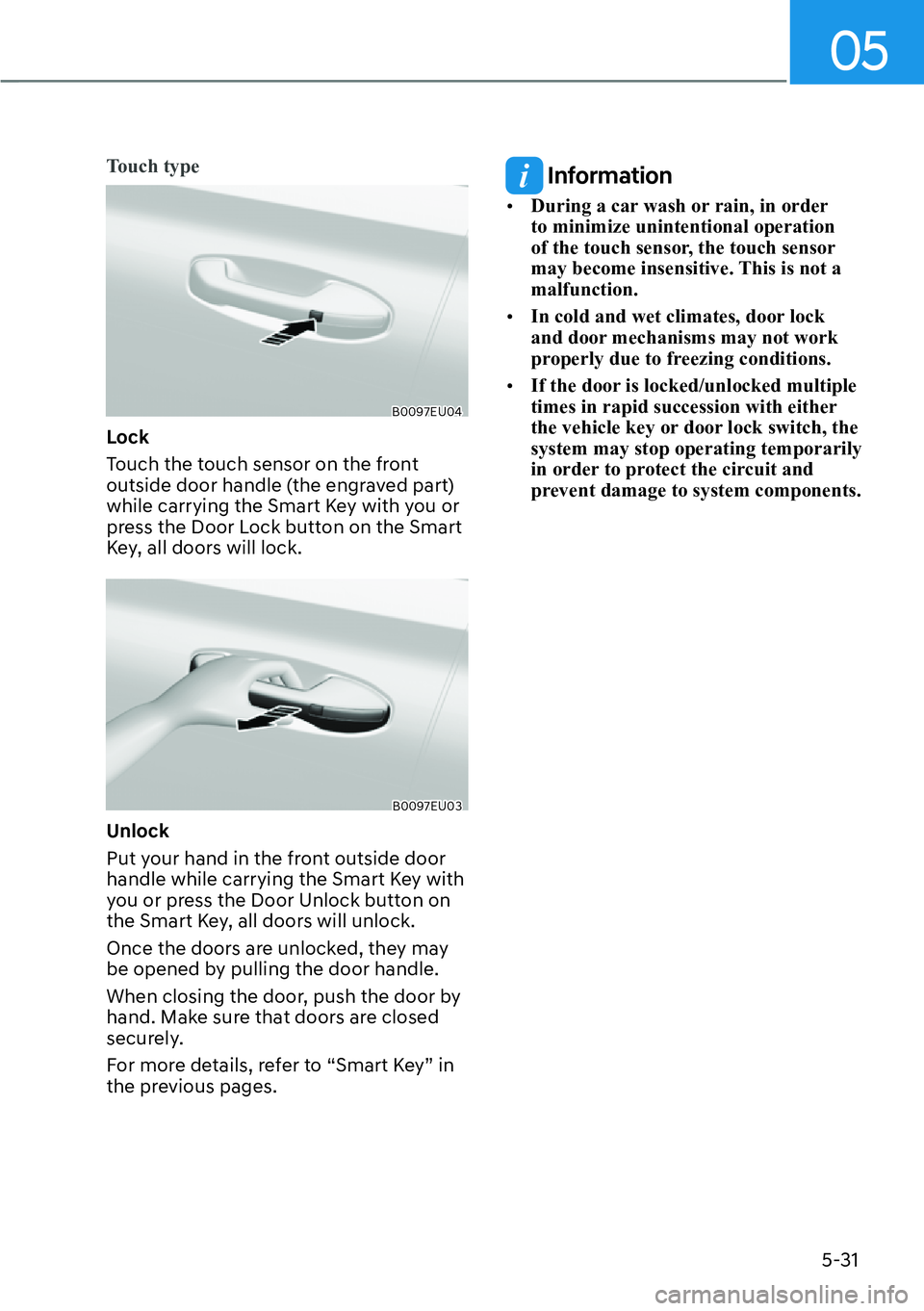

Page 180 of 661
05
5-31
Touch type
B0097EU04
Lock
Touch the touch sensor on the front
outside door handle (the engraved part)
while carrying the Smart Key with you or
press the Door Lock button on the Smart
Key, all doors will lock.
B0097EU03
Unlock
Put your hand in the front outside door
handle while carrying the Smart Key with
you or press the Door Unlock button on
the Smart Key, all doors will unlock.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
For more details, refer to “Smart Key” in
the previous pages.
Information
[ During a car wash or rain, in order
to minimize unintentional operation
of the touch sensor, the touch sensor
may become insensitive. This is not a
malfunction.
[ In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
[ If the door is locked/unlocked multiple
times in rapid succession with either
the vehicle key or door lock switch, the
system may stop operating temporarily
in order to protect the circuit and
prevent damage to system components.
Page 189 of 661
Convenience Features5-40
System Precautions
[ Make sure that all the windows are
closed. If the window is open, the
alert may operate by the sensor
detecting an unintended movement
(for example, wind or bugs).
[
B0116EU01
A: Cluster,

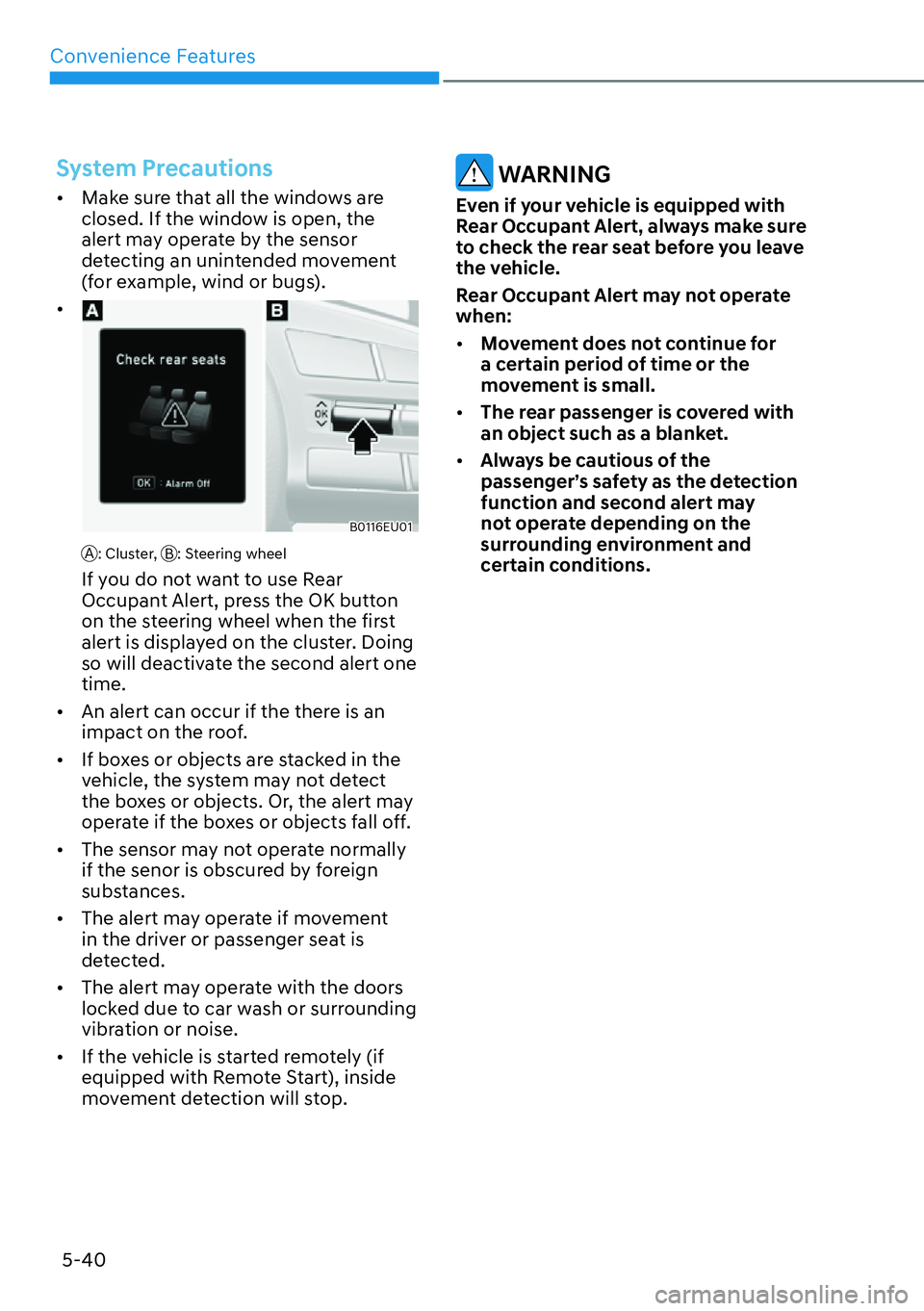

B: Steering wheel
If you do not want to use Rear
Occupant Alert, press the OK button
on the steering wheel when the first
alert is displayed on the cluster. Doing
so will deactivate the second alert one
time.
[ An alert can occur if the there is an
impact on the roof.
[ If boxes or objects are stacked in the
vehicle, the system may not detect
the boxes or objects. Or, the alert may
operate if the boxes or objects fall off.
[ The sensor may not operate normally
if the senor is obscured by foreign
substances.
[ The alert may operate if movement
in the driver or passenger seat is
detected.
[ The alert may operate with the doors
locked due to car wash or surrounding
vibration or noise.
[ If the vehicle is started remotely (if
equipped with Remote Start), inside
movement detection will stop.
WARNING
Even if your vehicle is equipped with
Rear Occupant Alert, always make sure
to check the rear seat before you leave
the vehicle.
Rear Occupant Alert may not operate
when:
[ Movement does not continue for
a certain period of time or the
movement is small.
[ The rear passenger is covered with
an object such as a blanket.
[ Always be cautious of the
passenger’s safety as the detection
function and second alert may
not operate depending on the
surrounding environment and
certain conditions.
Page 197 of 661
Convenience Features5-48

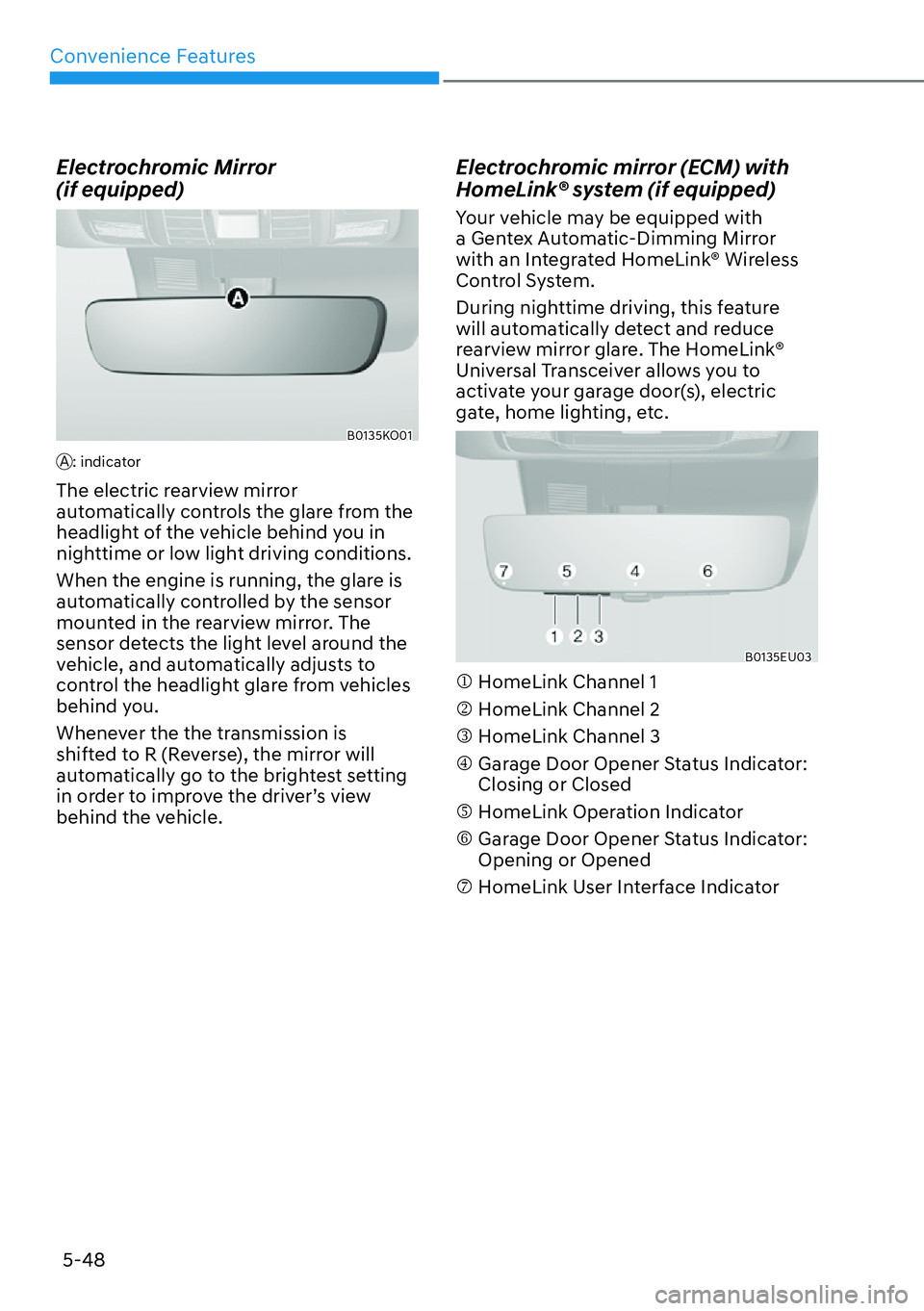

Electrochromic Mirror
(if equipped)
B0135KO01
A: indicator
The electric rearview mirror
automatically controls the glare from the
headlight of the vehicle behind you in
nighttime or low light driving conditions.
When the engine is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror. The
sensor detects the light level around the
vehicle, and automatically adjusts to
control the headlight glare from vehicles
behind you.
Whenever the the transmission is
shifted to R (Reverse), the mirror will
automatically go to the brightest setting
in order to improve the driver’s view
behind the vehicle.
Electrochromic mirror (ECM) with
HomeLink® system (if equipped)
Your vehicle may be equipped with
a Gentex Automatic-Dimming Mirror
with an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature
will automatically detect and reduce
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
B0135EU03
M HomeLink Channel 1
N HomeLink Channel 2
O HomeLink Channel 3
P Garage Door Opener Status Indicator: Closing or Closed
Q HomeLink Operation Indicator
R Garage Door Opener Status Indicator: Opening or Opened
S HomeLink User Interface Indicator
Page 198 of 661
05
5-49

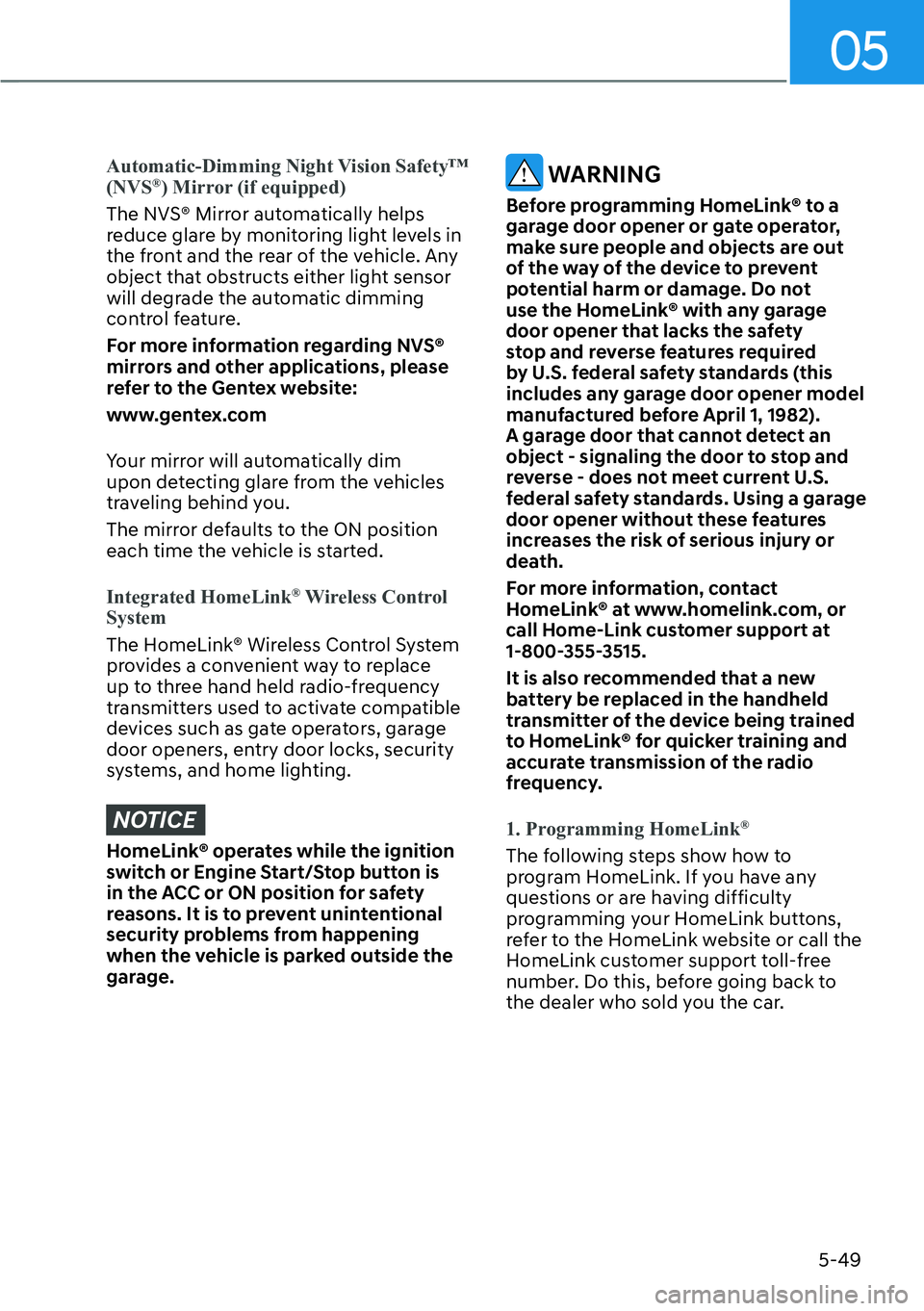

Automatic-Dimming Night Vision Safety™
(NVS®) Mirror (if equipped)
The NVS® Mirror automatically helps
r
educe glare by monitoring light levels in
the front and the rear of the vehicle. Any
object that obstructs either light sensor
will degrade the automatic dimming
control feature.
) R U P R U H L Q I R U P D W L R Q U H J D U G L Q J 1 9 6 p
mirrors and other applications, please
refer to the Gentex website:
www.gentex.com
Your mirror will automatically dim
upon detecting glare from the vehicles
traveling behind you.
The mirror defaults to the ON position
each time the vehicle is started.
Integrated HomeLink
® Wireless Control
System
The HomeLink® Wireless Control System
pr
ovides a convenient way to replace
up to three hand held radio-frequency
transmitters used to activate compatible
devices such as gate operators, garage
door openers, entry door locks, security
systems, and home lighting.
NOTICE
+ R P H / L Q N p R S H U D W H V Z K L O H W K H L J Q L W L R Q
switch or Engine Start/Stop button is
in the ACC or ON position for safety
reasons. It is to prevent unintentional
security problems from happening
when the vehicle is parked outside the
garage.
WARNING
% H I R U H S U R J U D P P L Q J + R P H / L Q N p W R D
garage door opener or gate operator,
make sure people and objects are out
of the way of the device to prevent
potential harm or damage. Do not
X V H W K H + R P H / L Q N p Z L W K D Q \ J D U D J H
door opener that lacks the safety
stop and reverse features required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an
object - signaling the door to stop and
reverse - does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
) R U P R U H L Q I R U P D W L R Q F R Q W D F W
+ R P H / L Q N p D W Z Z Z K R P H O L Q N F R P R U
call Home-Link customer support at
1-800-355-3515.
It is also recommended that a new
battery be replaced in the handheld
transmitter of the device being trained
W R + R P H / L Q N p I R U T X L F N H U W U D L Q L Q J D Q G
accurate transmission of the radio
frequency.
1. Programming HomeLink
®
The following steps show how to
program HomeLink. If you have any
questions or are having difficulty
programming your HomeLink buttons,
refer to the HomeLink website or call the
HomeLink customer support toll-free
number. Do this, before going back to
the dealer who sold you the car.
Page 212 of 661
05
5-63

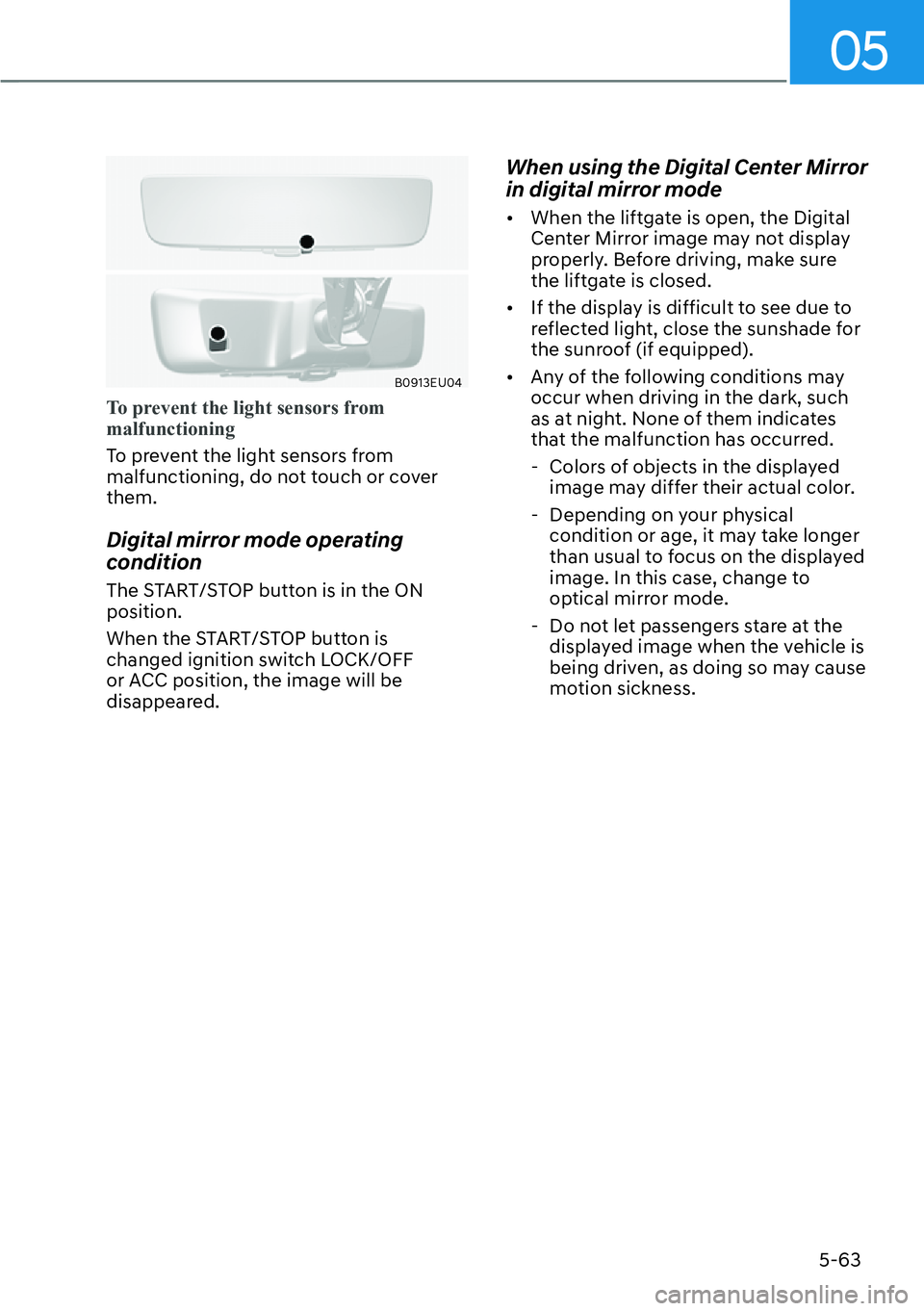

B0913EU04
To prevent the light sensors from
malfunctioning
To prevent the light sensors from
malfunctioning, do no
t touch or cover
them.
Digital mirror mode operating
condition
The START/STOP button is in the ON
position.
When the START/STOP button is
changed ignition switch LOCK/OFF
or ACC position, the image will be
disappeared.
When using the Digital Center Mirror
in digital mirror mode
[ When the liftgate is open, the Digital
Center Mirror image may not display
properly. Before driving, make sure
the liftgate is closed.
[ If the display is difficult to see due to
reflected light, close the sunshade for
the sunroof (if equipped).
[ Any of the following conditions may
occur when driving in the dark, such
as at night. None of them indicates
that the malfunction has occurred.
- Colors of objects in the displayed
image may differ their actual color.
- Depending on your physical
condition or age, it may take longer
than usual to focus on the displayed
image. In this case, change to
optical mirror mode.
- Do not let passengers stare at the
displayed image when the vehicle is
being driven, as doing so may cause
motion sickness.
