Convenience Features5-122

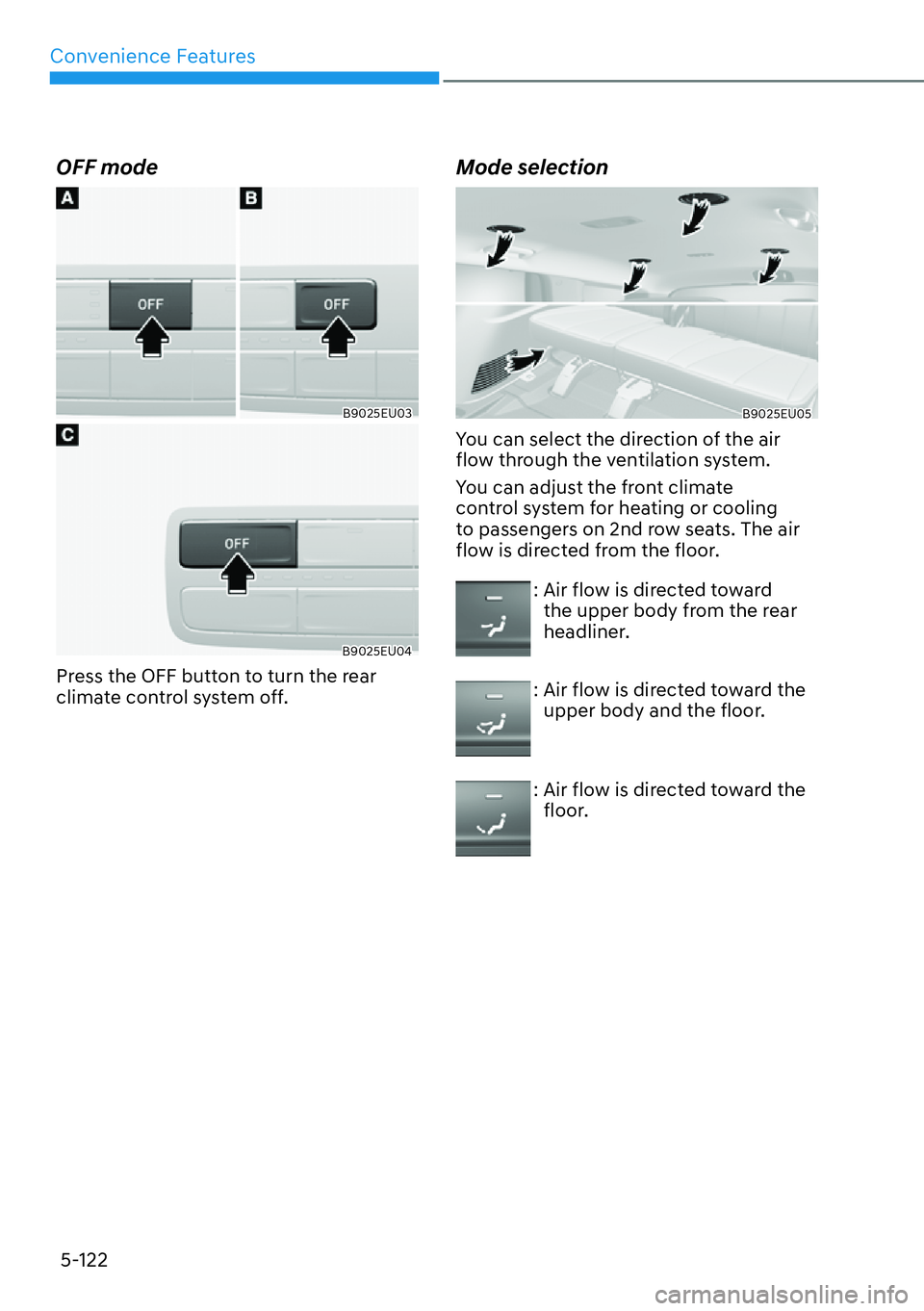

OFF mode
B9025EU03
B9025EU04
Press the OFF button to turn the rear
climate control system off.
Mode selection
B9025EU05
You can select the direction of the air
flow through the ventilation system.
You can adjust the front climate
control system for heating or cooling
to passengers on 2nd row seats. The air
flow is directed from the floor.
: Air flow is directed toward the upper body from the rear
headliner.
: Air flow is directed toward the upper body and the floor.
: Air flow is directed toward the floor.

05
5-123

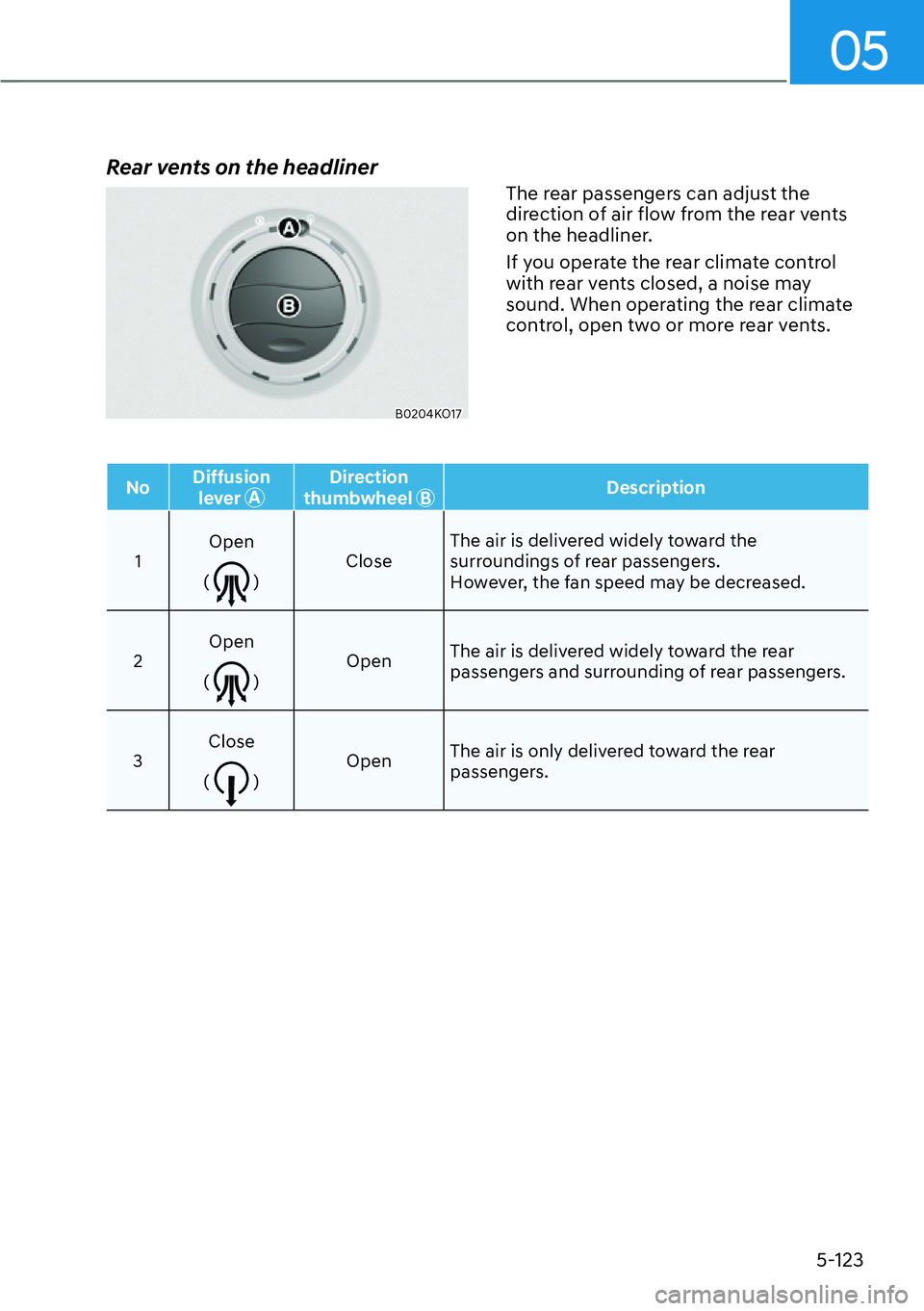

Rear vents on the headliner
B0204KO17
The rear passengers can adjust the
direction of air flow from the rear vents
on the headliner.
If you operate the rear climate control
with rear vents closed, a noise may
sound. When operating the rear climate
control, open two or more rear vents.
NoDiffusion
lever ADirection
thumbwheel BDescription
1 Open
(
) Close The air is delivered widely toward the
surroundings of rear passengers.
However, the fan speed may be decreased.
2 Open
(
) Open
The air is delivered widely toward the rear
passengers and surrounding of rear passengers.
3 Close
(
) Open
The air is only delivered toward the rear
passengers.

Convenience Features5-124

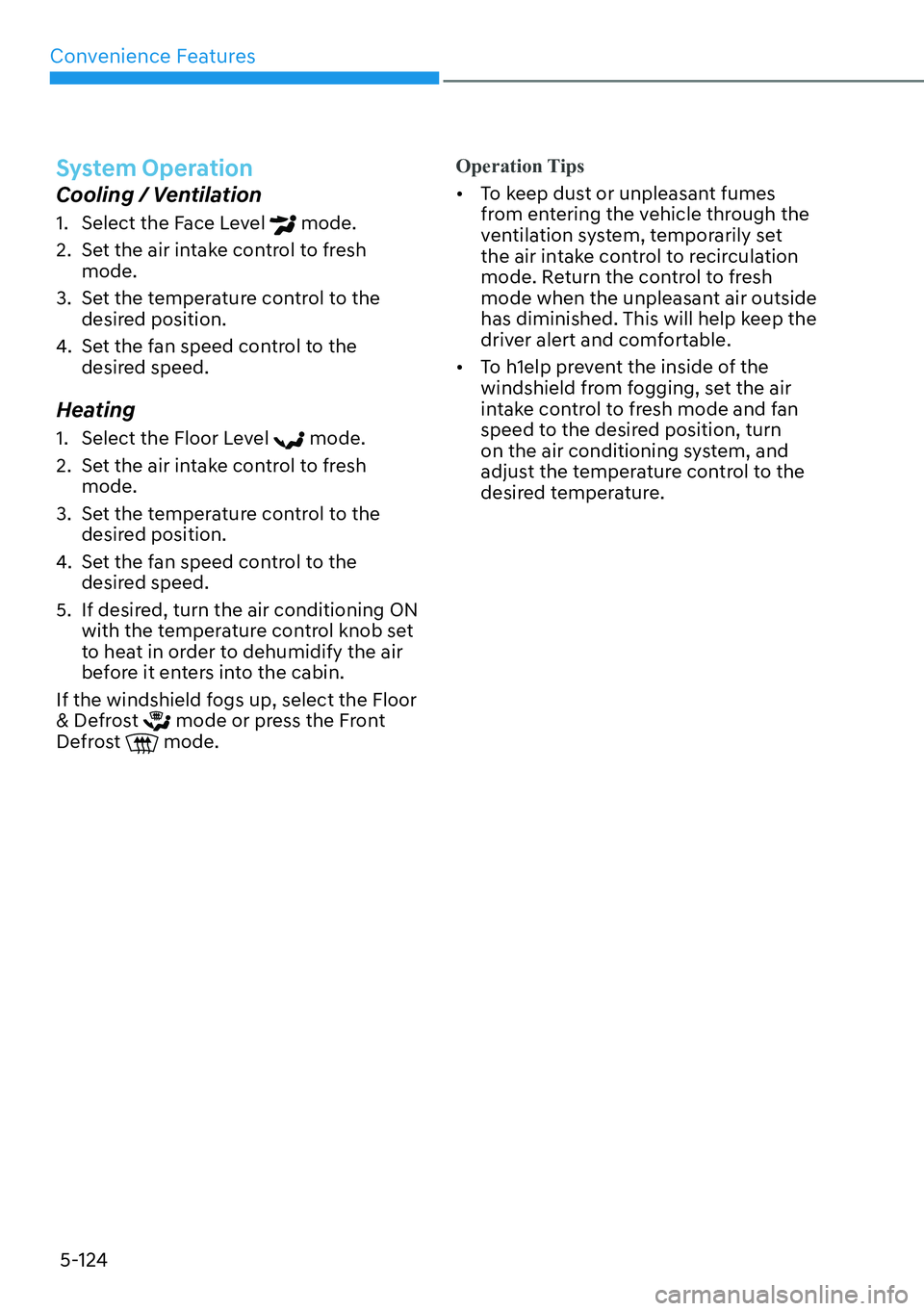

System Operation
Cooling / Ventilation
1. Select the Face Level mode.
2. Set the air intake control to fresh mode.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
Heating
1. Select the Floor Level mode.
2. Set the air intake control to fresh mode.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
5. If desired, turn the air conditioning ON with the temperature control knob set
to heat in order to dehumidify the air
before it enters into the cabin.
If the windshield fogs up, select the Floor
& Defrost
mode or press the Front
Defrost mode. Operation Tips

[
T
o keep dust or unpleasant fumes
from entering the vehicle through the
ventilation system, temporarily set
the air intake control to recirculation
mode. Return the control to fresh
mode when the unpleasant air outside
has diminished. This will help keep the
driver alert and comfortable.

[ To h1elp prevent the inside of the
windshield from fogging, set the air
intake control to fresh mode and fan
speed to the desired position, turn
on the air conditioning system, and
adjust the temperature control to the
desired temperature.

05
5-125

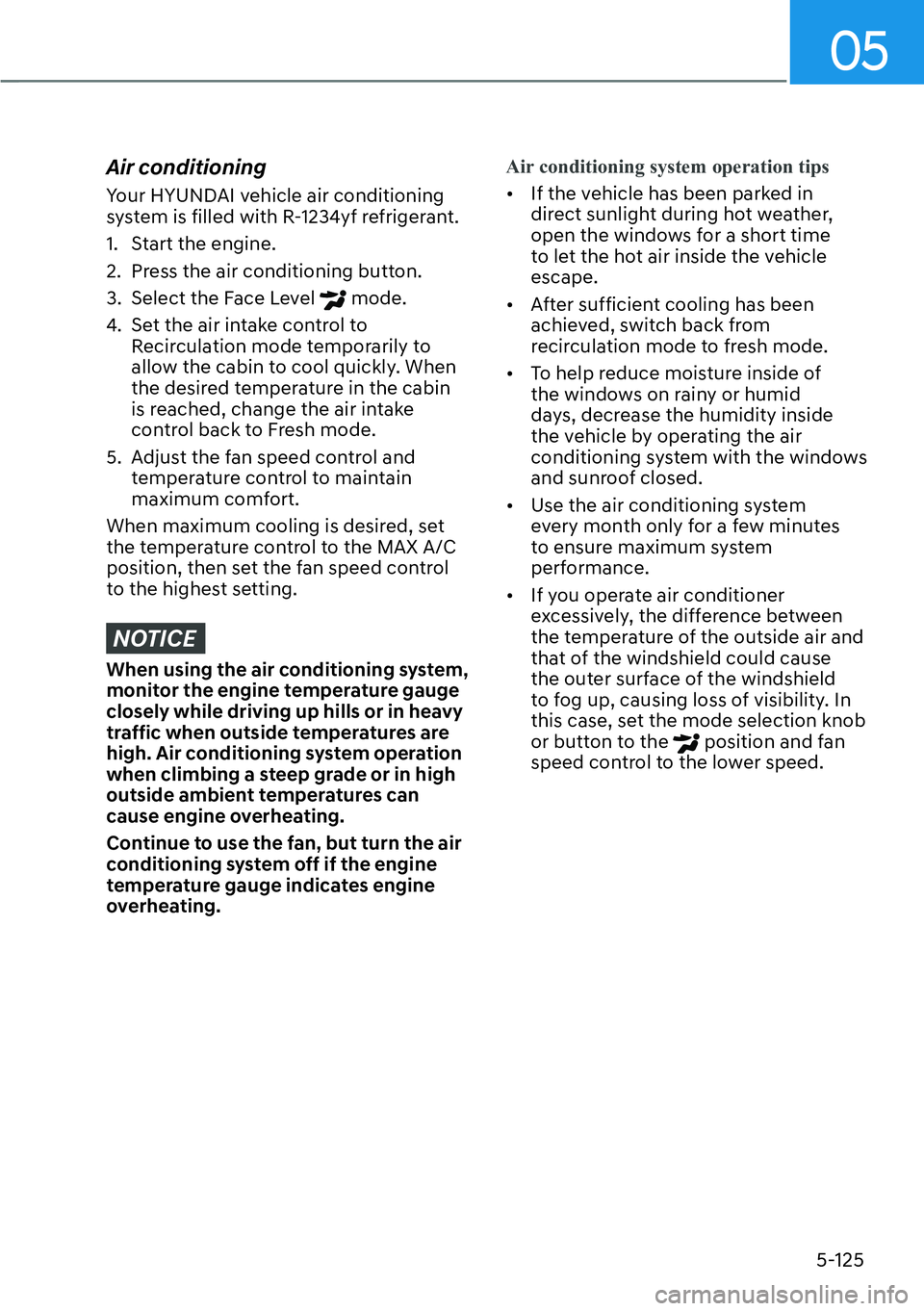

Air conditioning
Your HYUNDAI vehicle air conditioning
system is filled with R-1234yf refrigerant.
1. Start the engine.
2. Press the air conditioning button.
3. Select the Face Level
mode.
4. Set the air intake control to Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and temperature control to maintain
maximum comfort.
When maximum cooling is desired, set
the temperature control to the MAX A/C
position, then set the fan speed control
to the highest setting.
NOTICE
When using the air conditioning system,
monitor the engine temperature gauge
closely while driving up hills or in heavy
traffic when outside temperatures are
high. Air conditioning system operation
when climbing a steep grade or in high
outside ambient temperatures can
cause engine overheating.
Continue to use the fan, but turn the air
conditioning system off if the engine
temperature gauge indicates engine
overheating. Air conditioning system operation tips

[
If the v
ehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

[ After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.

[ To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.

[ Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.

[ If you operate air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield
to fog up, causing loss of visibility. In
this case, set the mode selection knob
or button to the
position and fan
speed control to the lower speed.

Convenience Features5-126

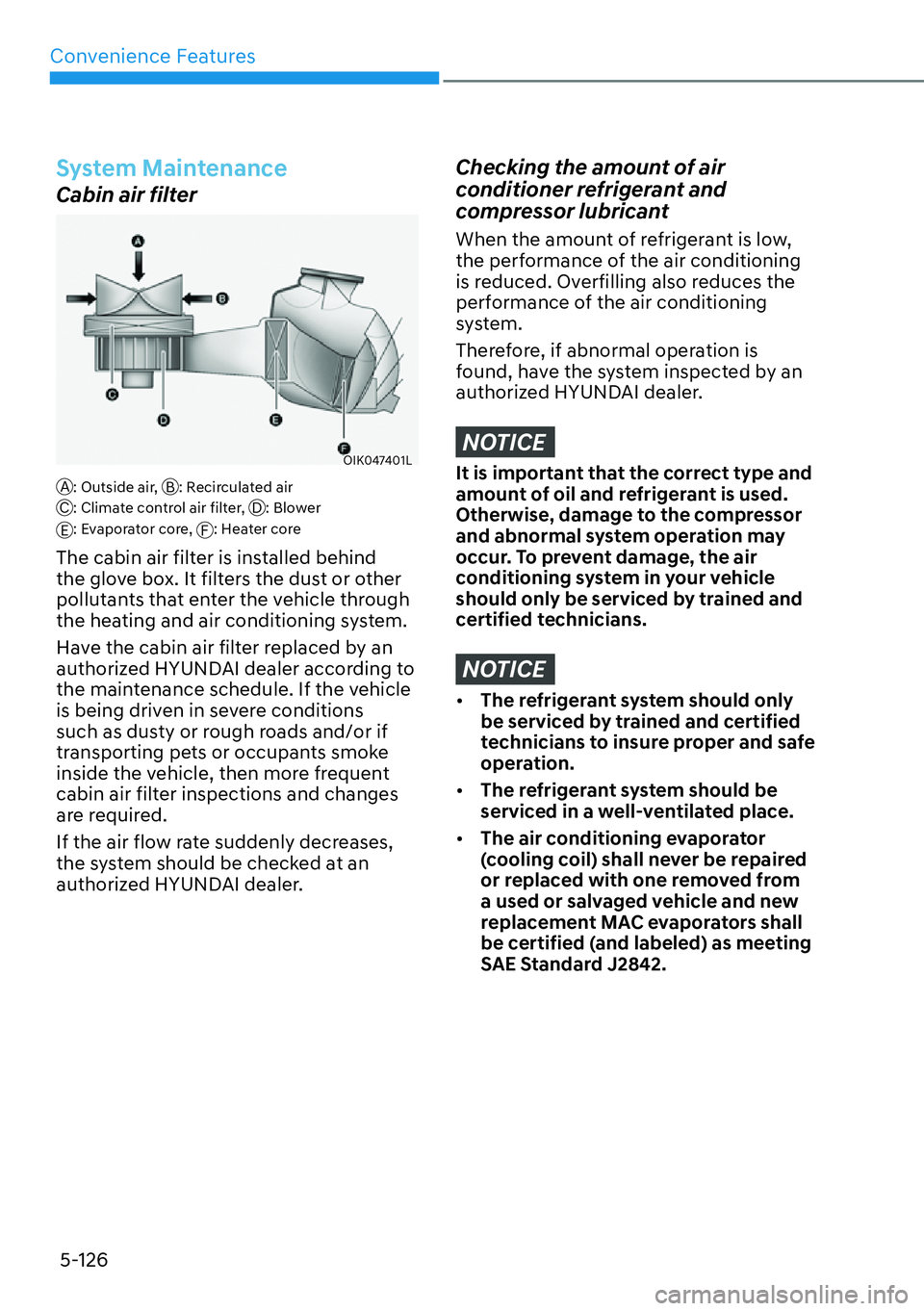

System Maintenance
Cabin air filter
OIK047401L
A: Outside air, B: Recirculated air
C: Climate control air filter, D: Blower
E: Evaporator core, F: Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions
such as dusty or rough roads and/or if
transporting pets or occupants smoke
inside the vehicle, then more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning
system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. To prevent damage, the air
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
NOTICE

[The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.

[ The refrigerant system should be
serviced in a well-ventilated place.

[ The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.

05
5-127

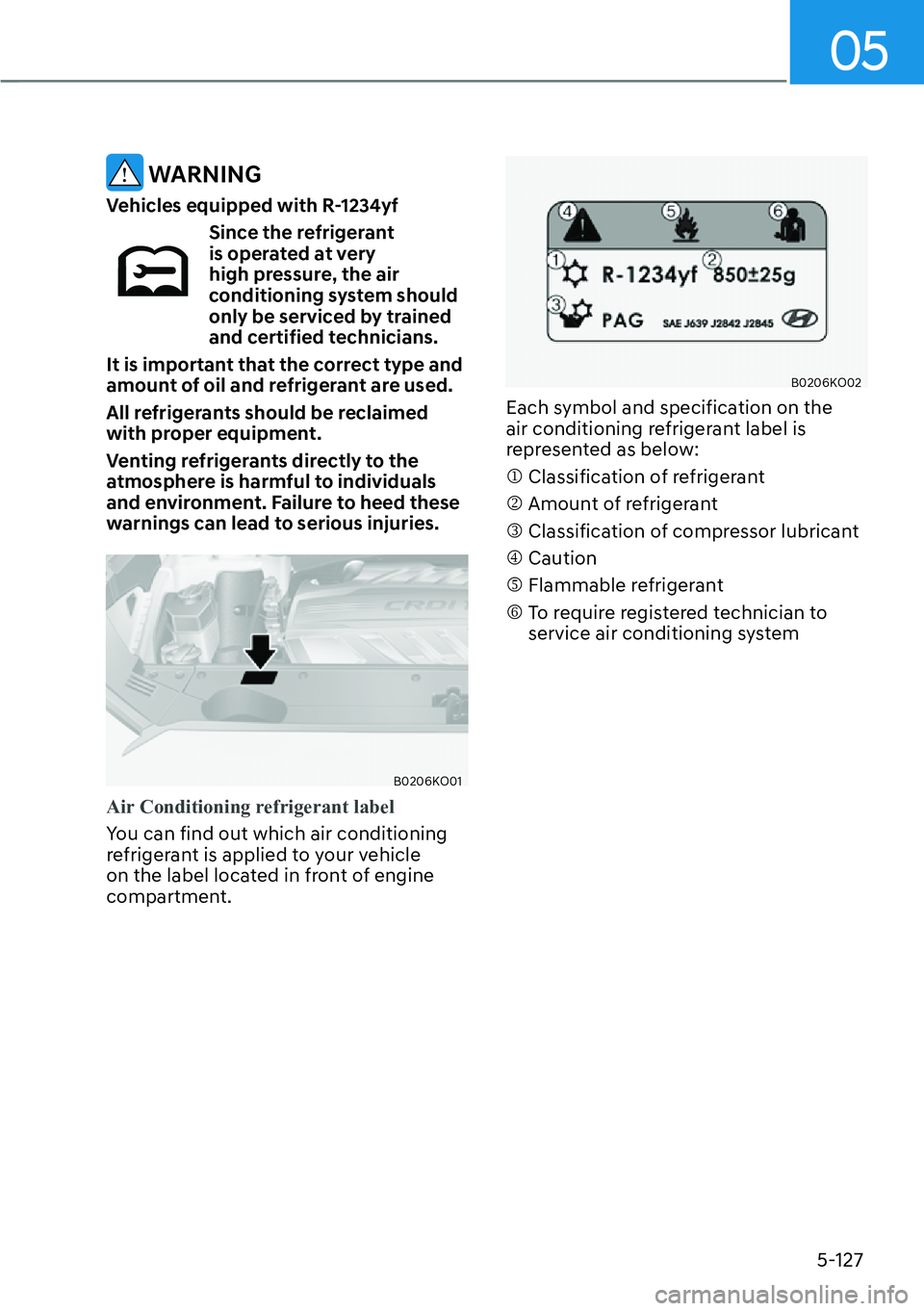

WARNING
Vehicles equipped with R-1234yf
Since the refrigerant
is operated at very
high pressure, the air
conditioning system should
only be serviced by trained
and certified technicians.
It is important that the correct type and
amount of oil and refrigerant are used.
All refrigerants should be reclaimed
with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individuals
DQGHQYLURQPHQW)DLOXUHWRKHHGWKHVH
warnings can lead to serious injuries.
B0206KO01
Air Conditioning refrigerant label
You can find out which air conditioning
r
efrigerant is applied to your vehicle
on the label located in front of engine
compartment.
B0206KO02
Each symbol and specification on the
air conditioning refrigerant label is
represented as below:
M Classification of refrigerant
N Amount of refrigerant
O Classification of compressor lubricant
P Caution
Q Flammable refrigerant
R To require registered technician to service air conditioning system

Convenience Features5-128

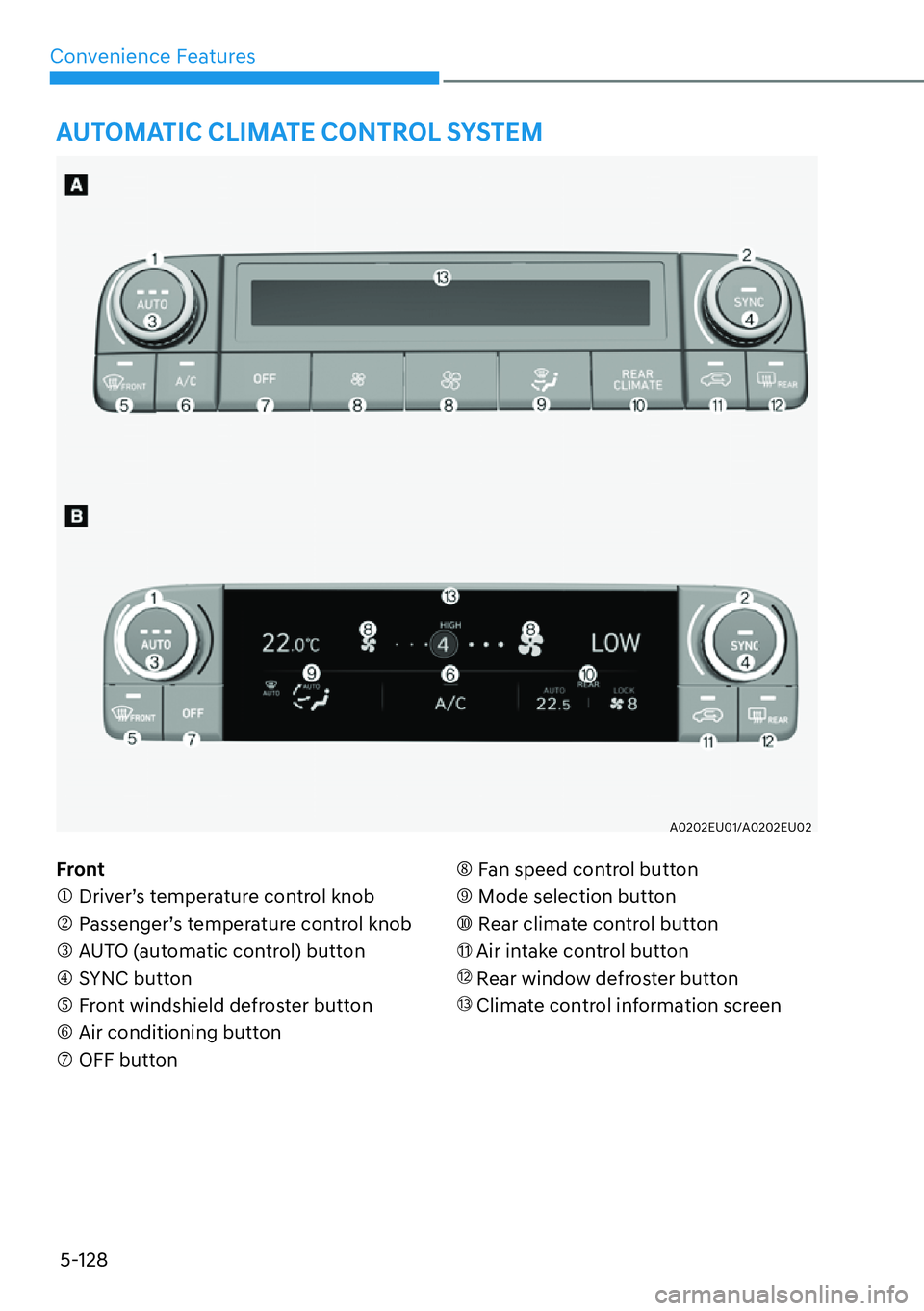

AUTOMATIC CLIMATE CONTROL SYSTEM
A0202EU01/A0202EU02
)URQW
M Driver’s temperature control knob
N Passenger’s temperature control knob
O AUTO (automatic control) button
P SYNC button
Q Front windshield defroster button
R Air conditioning button
S OFF button T Fan speed control button
U Mode selection button
V Rear climate control button
11 Air intake control button
12 Rear window defroster button
13 Climate control information screen

05
5-129
Automatic Temperature Control
Mode
The Automatic Climate Control System
is controlled by setting the desired
temperature.
For your convenience and to improve the
efficiency of the climate control, use the
AUTO button and set the temperature to
72°F (22°C).
B0203EC01
1. Press the AUTO button O.
The modes, fan speeds, air intake and
air-conditioning will be controlled
automatically by the temperature setting
you select.
B0203EC02
A: Driver side, B: Passenger side
2. To select a different set point, turn
the temperature control knob to
the desired temperature. If the
temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.
After the interior has cooled
sufficiently, adjust the knob to
a higher temperature set point
whenever possible.
To turn the automatic operation off,
select any button of the following:

- Mode selection button

- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The ‘AUTO’ sign
will illuminate on the information
display once again.)

- Fan speed control button

- A/C button
The selected function will be controlled
manually while other functions operate
automatically.
B0203KO03
NOTICE
Never place anything near the ambient
light/solar sensor to ensure better
control of the heating and cooling
system.

Convenience Features5-130

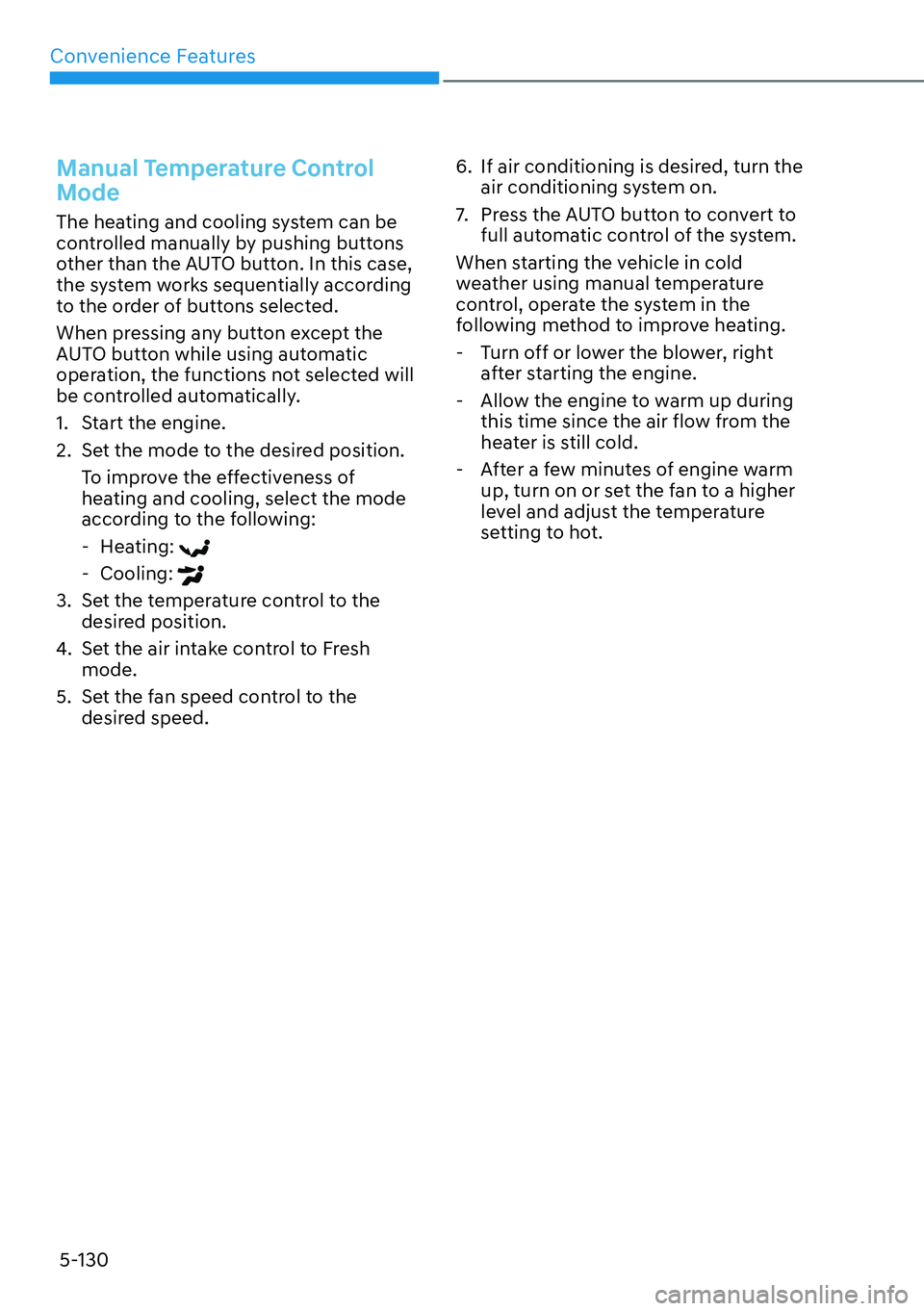

Manual Temperature Control
Mode
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected.
When pressing any button except the
AUTO button while using automatic
operation, the functions not selected will
be controlled automatically.
1. Start the engine.
2. Set the mode to the desired position. To improve the effectiveness of
heating and cooling, select the mode
according to the following:
- Heating:

- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to Fresh mode.
5. Set the fan speed control to the desired speed. 6. If air conditioning is desired, turn the
air conditioning system on.
7. Press the AUTO button to convert to full automatic control of the system.
When starting the vehicle in cold
weather using manual temperature
control, operate the system in the
following method to improve heating.
- Turn off or lower the blower, right
after starting the engine.

- Allow the engine to warm up during
this time since the air flow from the
heater is still cold.

- After a few minutes of engine warm
up, turn on or set the fan to a higher
level and adjust the temperature
setting to hot.

05
5-131

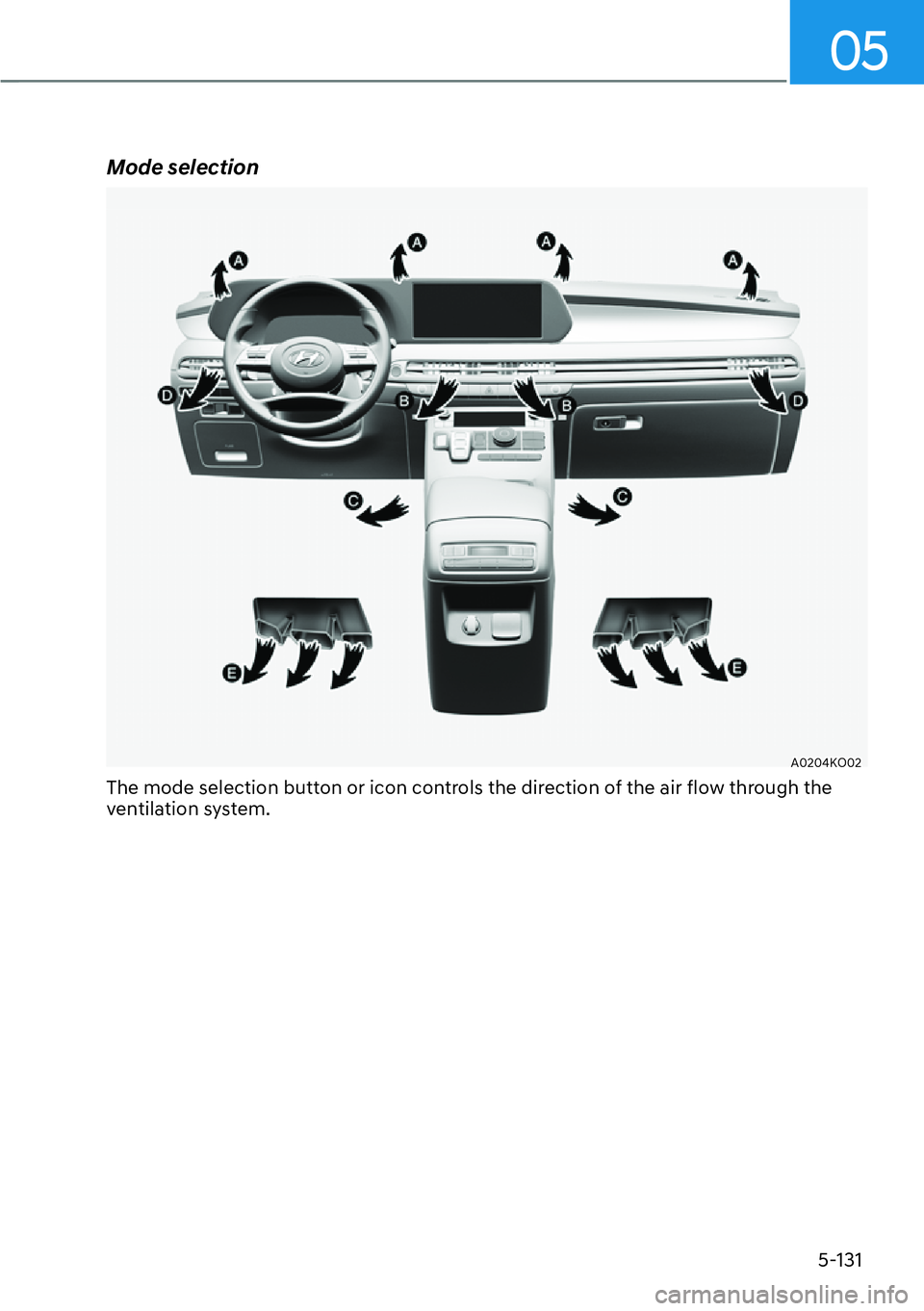

Mode selection
A0204KO02
The mode selection button or icon controls the direction of the air flow through the
ventilation system.
