Page 281 of 661

HYUNDAI PALISADE 2023  Owners Manual Convenience Features5-132
B0204EC01
B0204KO02
Face-Level ( B, D)
Air flow is directed toward the upper
body and f
 ace. Additionally, each outlet
can be controlled to direct the air
discharged from

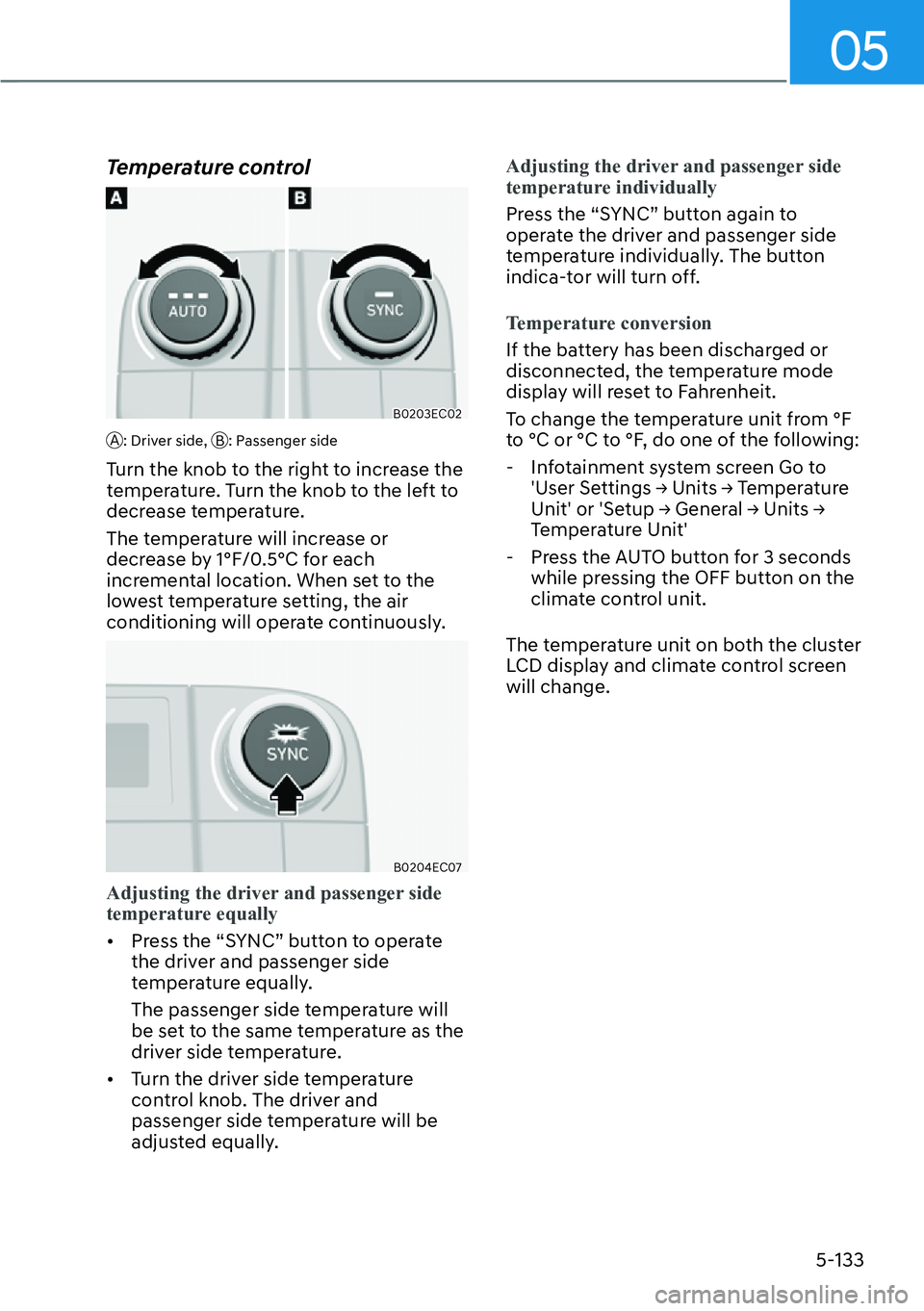

Page 282 of 661

HYUNDAI PALISADE 2023  Owners Manual 05
5-133
Temperature control
B0203EC02
A: Driver side, B: Passenger side
Turn the knob to the right to increase the
temperature. Turn the knob to the left to
decrease temperature.
The temperature wi

Page 283 of 661

HYUNDAI PALISADE 2023  Owners Manual Convenience Features5-134

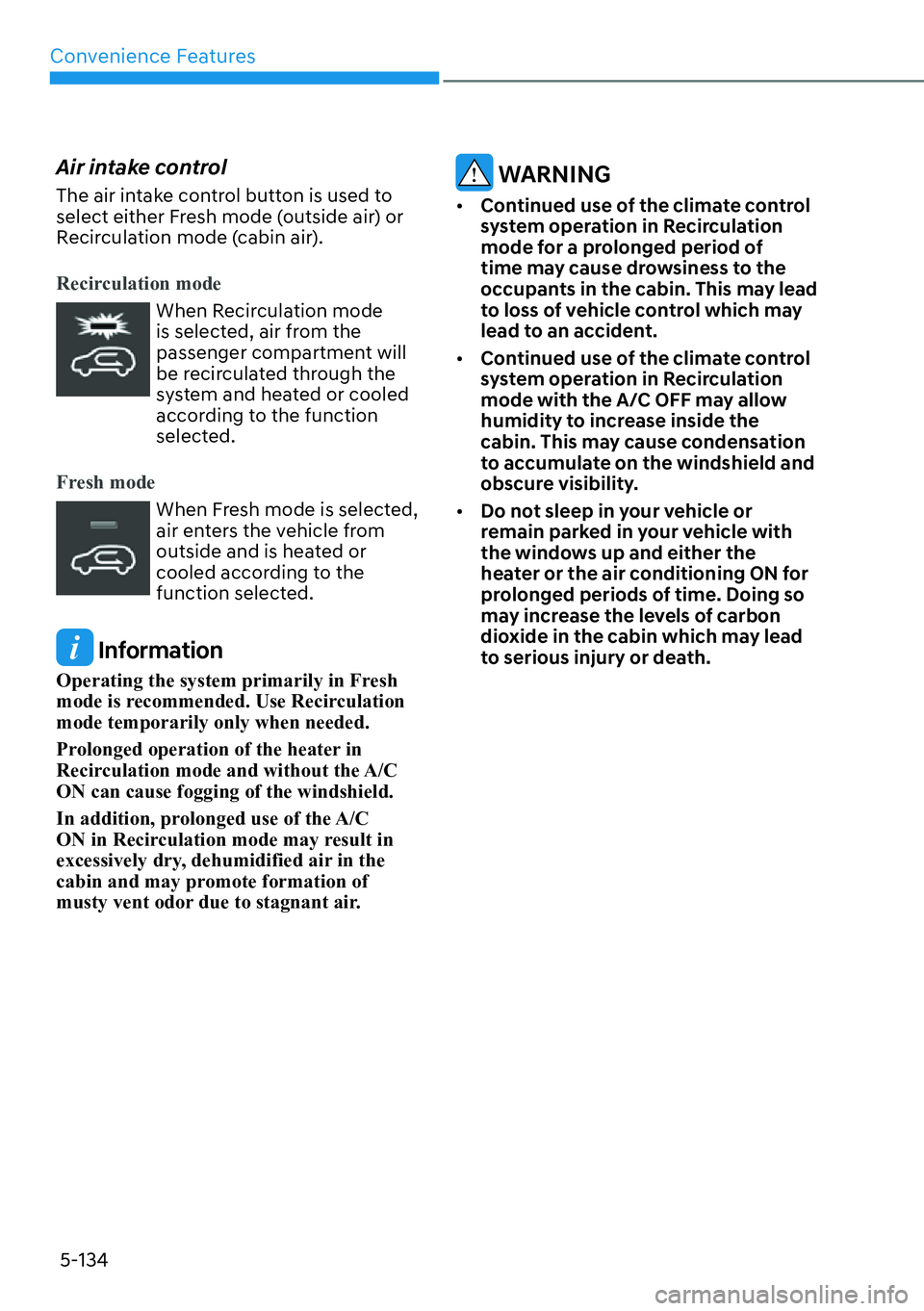

Air intake control
The air intake control button is used to
select either Fresh mode (outside air) or
Recirculation mode (cabin air).
Recirculation mode
When Recirculation

Page 284 of 661

HYUNDAI PALISADE 2023  Owners Manual 05
5-135

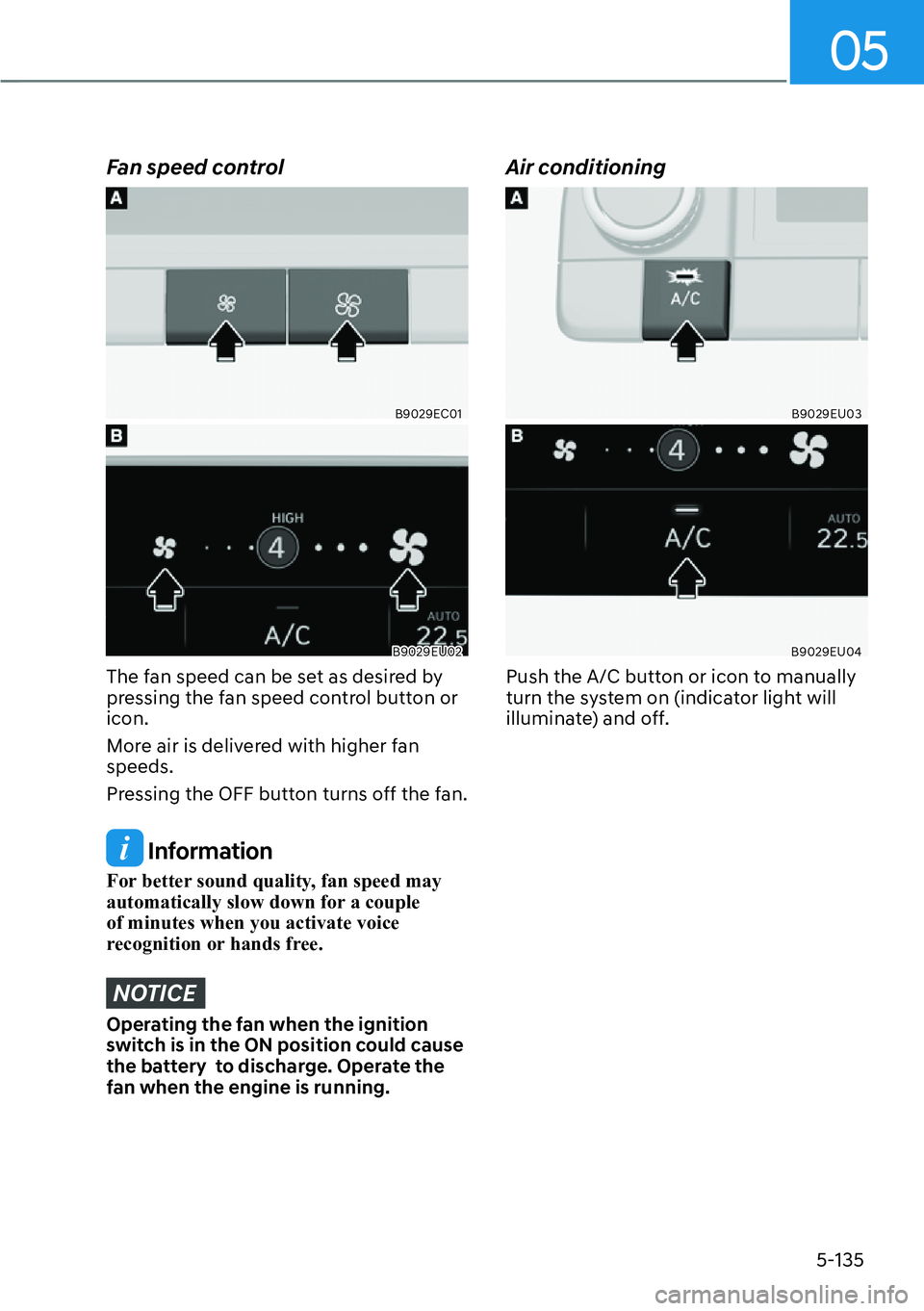

Fan speed control
B9029EC01
B9029EU02
The fan speed can be set as desired by
pressing the fan speed control button or
icon.
More air is delivered with higher fan
speeds.
Pressing the OFF

Page 285 of 661

HYUNDAI PALISADE 2023  Owners Manual Convenience Features5-136

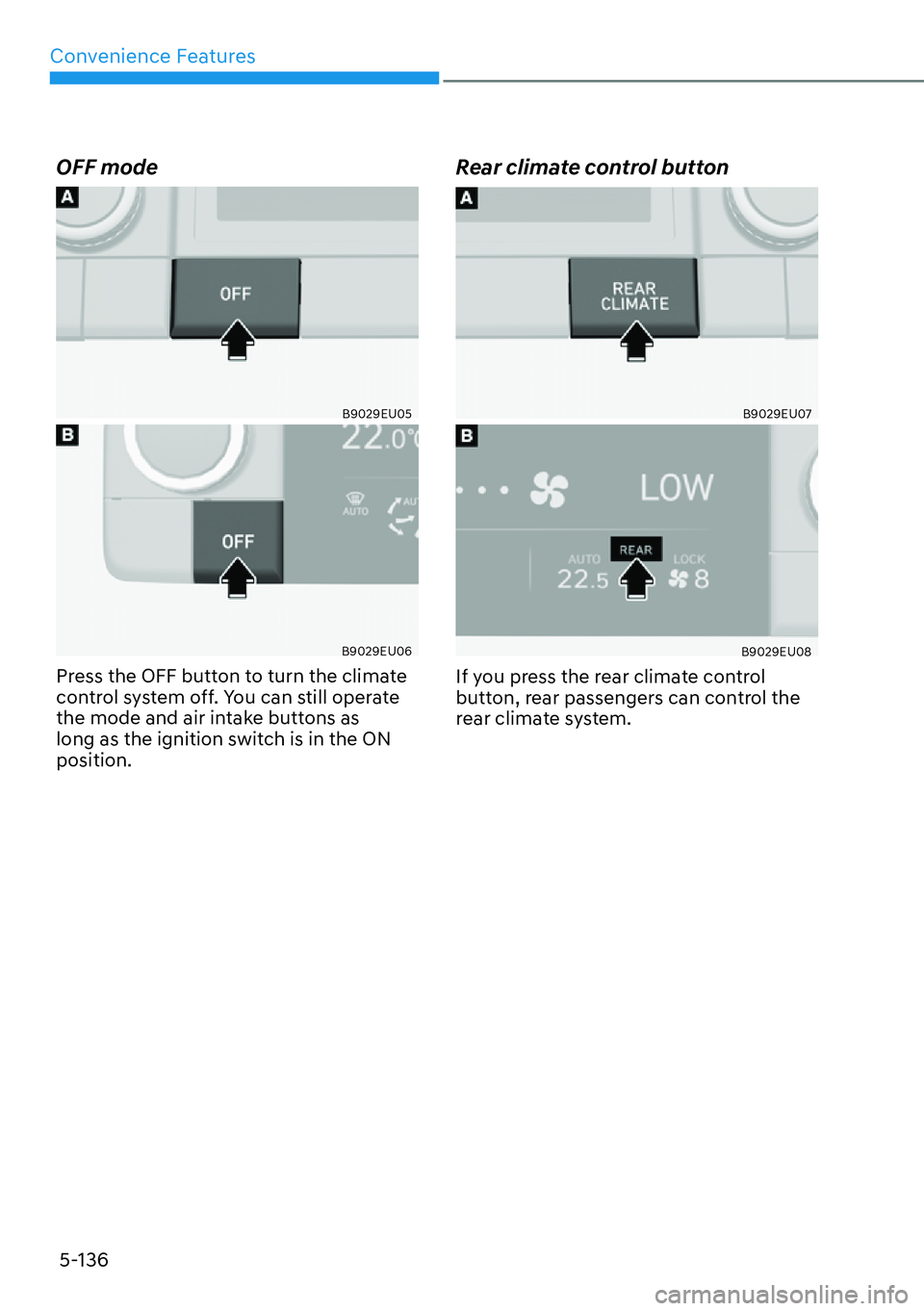

OFF mode
B9029EU05
B9029EU06
Press the OFF button to turn the climate
control system off. You can still operate
the mode and air intake buttons as
long as the ignition swi

Page 286 of 661

HYUNDAI PALISADE 2023  Owners Manual 05
5-137

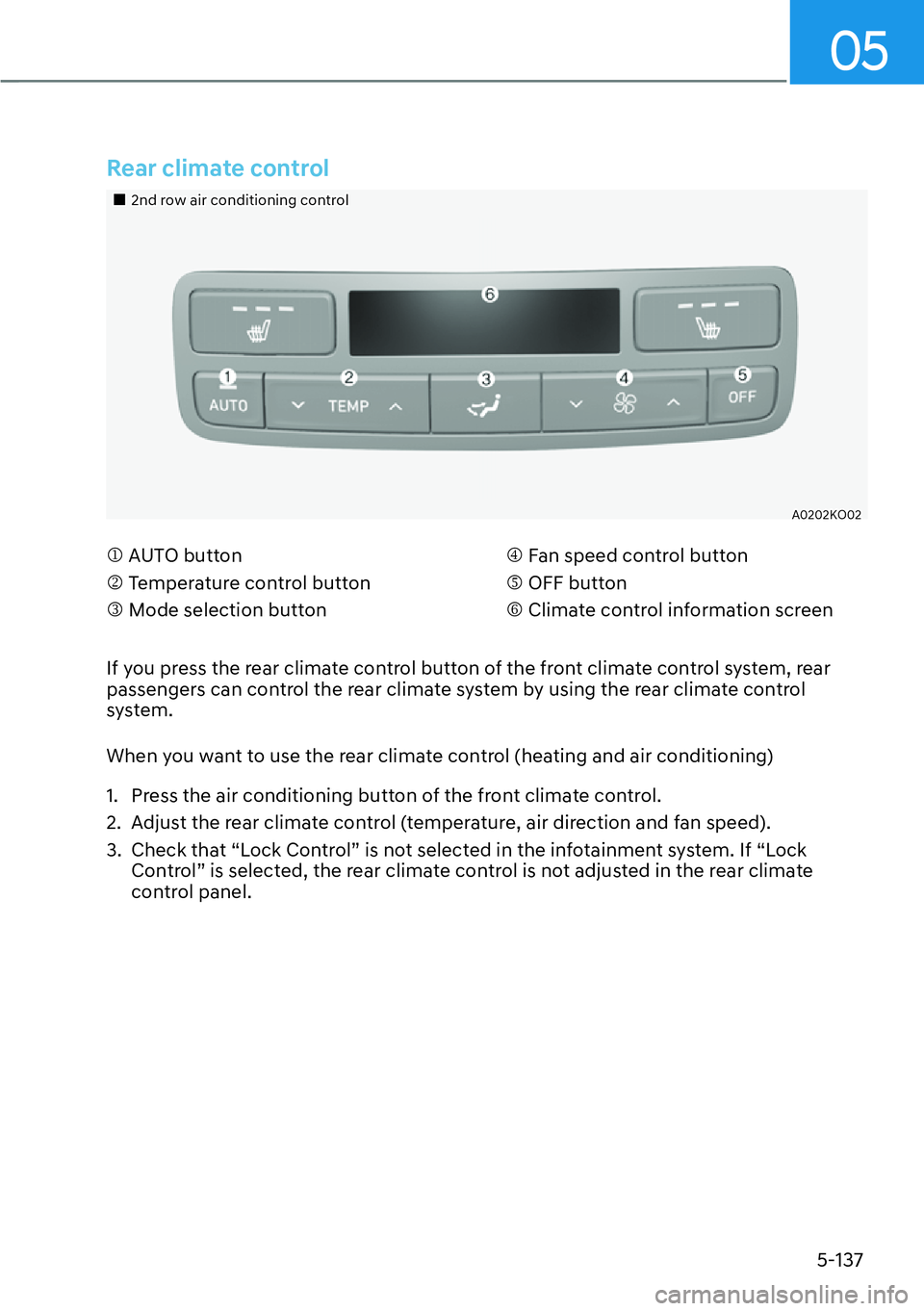

Rear climate control
��„2nd row air conditioning control
A0202KO02
�M AUTO button
�N Temperature control button
�O Mode selection button�P Fan speed control button
�Q OFF button
�R Climate

Page 287 of 661

HYUNDAI PALISADE 2023  Owners Manual Convenience Features5-138

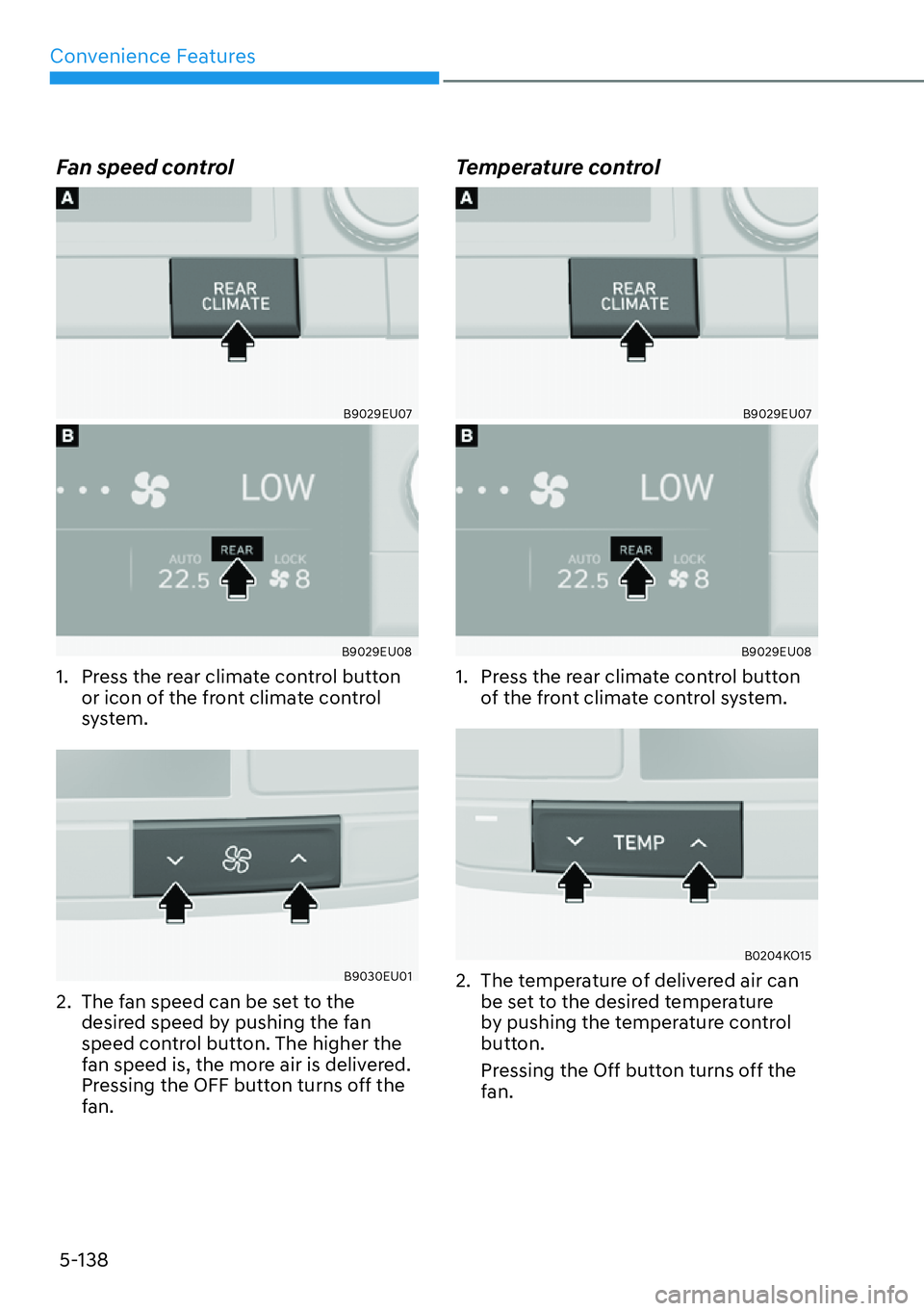

Fan speed control
B9029EU07
B9029EU08
1.  Press the rear climate control button  or icon of the front climate control
system.
B9030EU01
2.  The fan speed can be set to the d

Page 288 of 661

HYUNDAI PALISADE 2023  Owners Manual 05
5-139

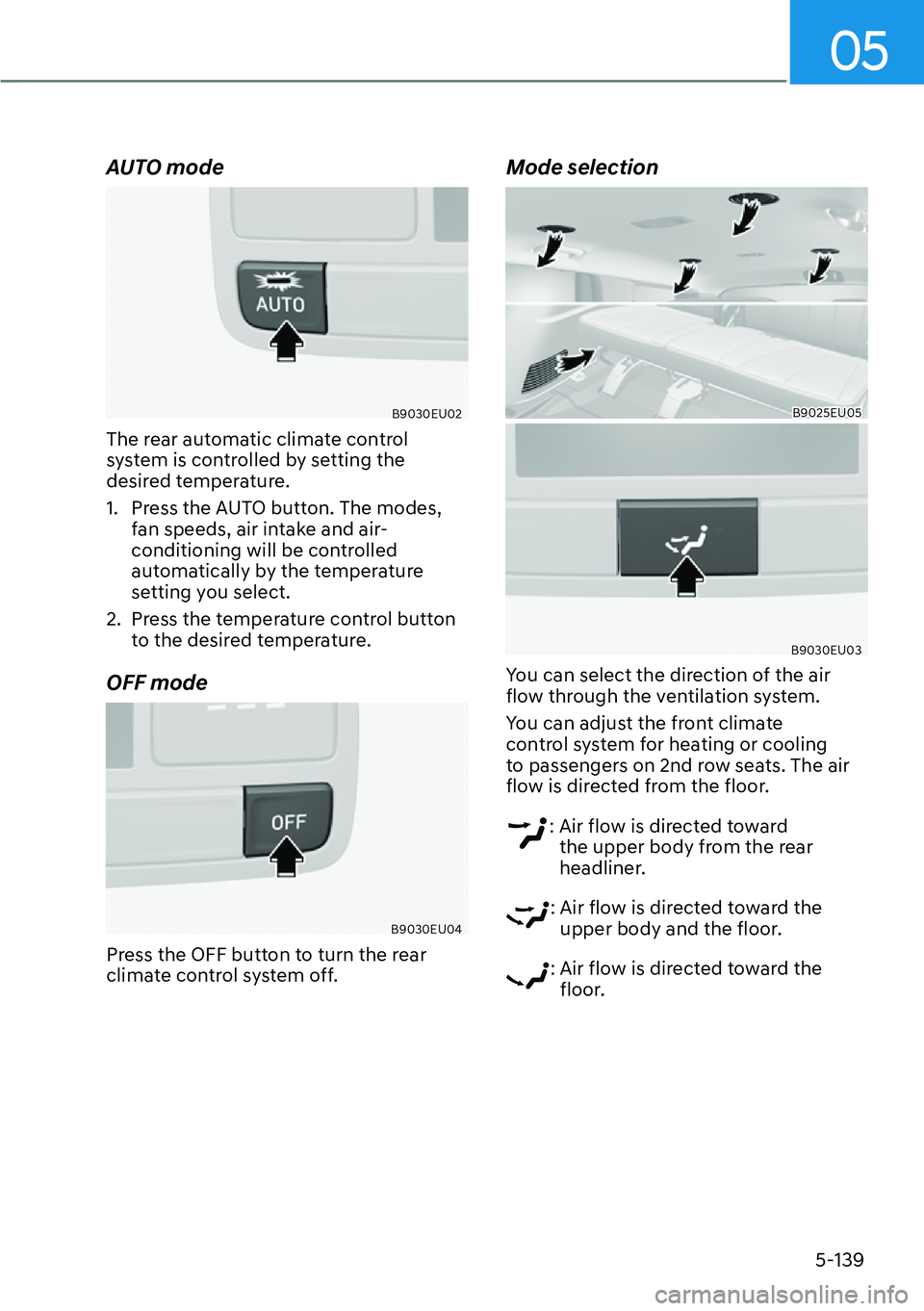

AUTO mode
B9030EU02
The rear automatic climate control
system is controlled by setting the
desired temperature.
1.  Press the AUTO button. The modes, fan speeds, air intake and air-
conditi

Page 289 of 661

HYUNDAI PALISADE 2023  Owners Manual Convenience Features5-140

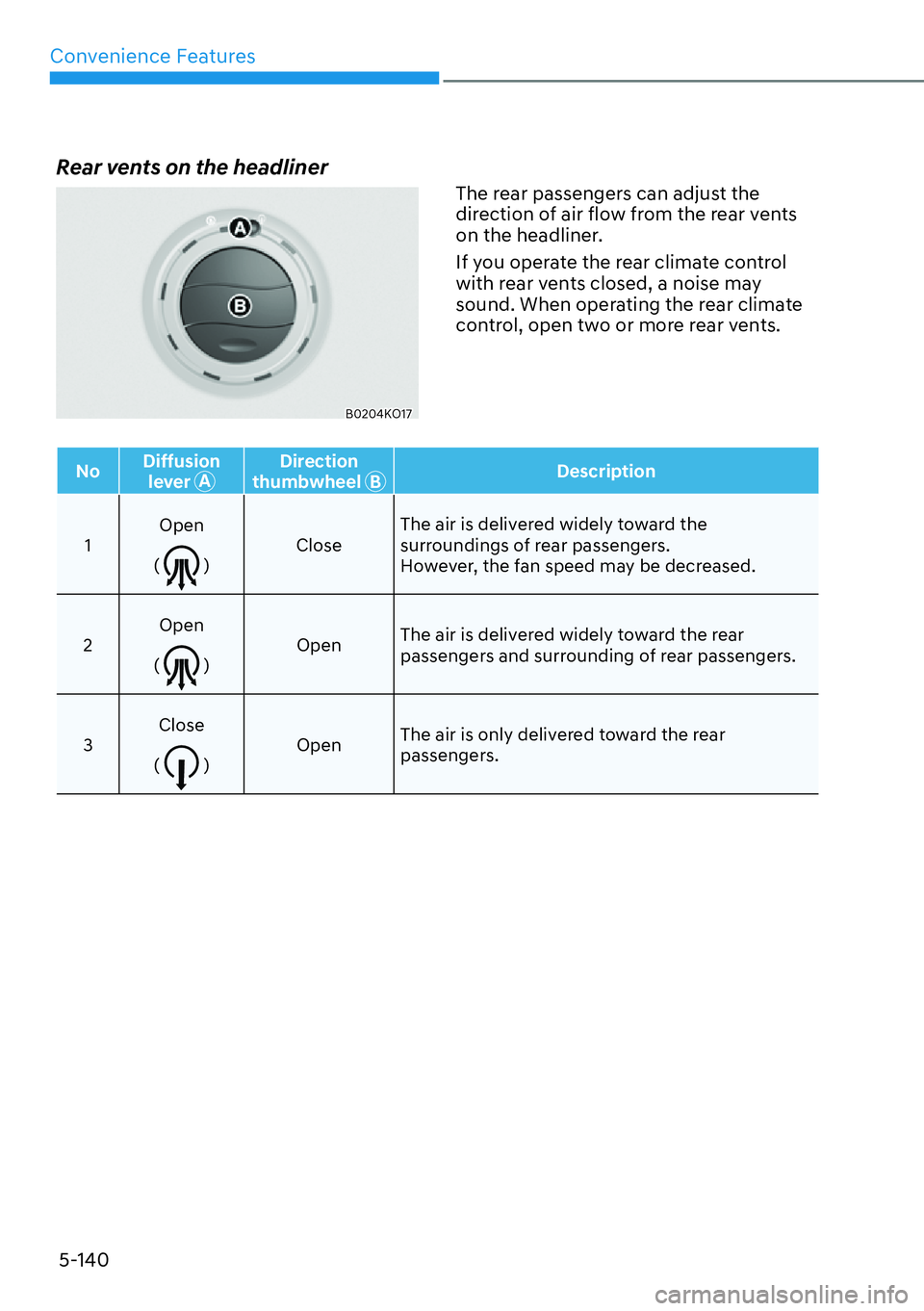

Rear vents on the headliner
B0204KO17
The rear passengers can adjust the
direction of air flow from the rear vents
on the headliner.
If you operate the rear climate control

Page 290 of 661

HYUNDAI PALISADE 2023  Owners Manual 05
5-141

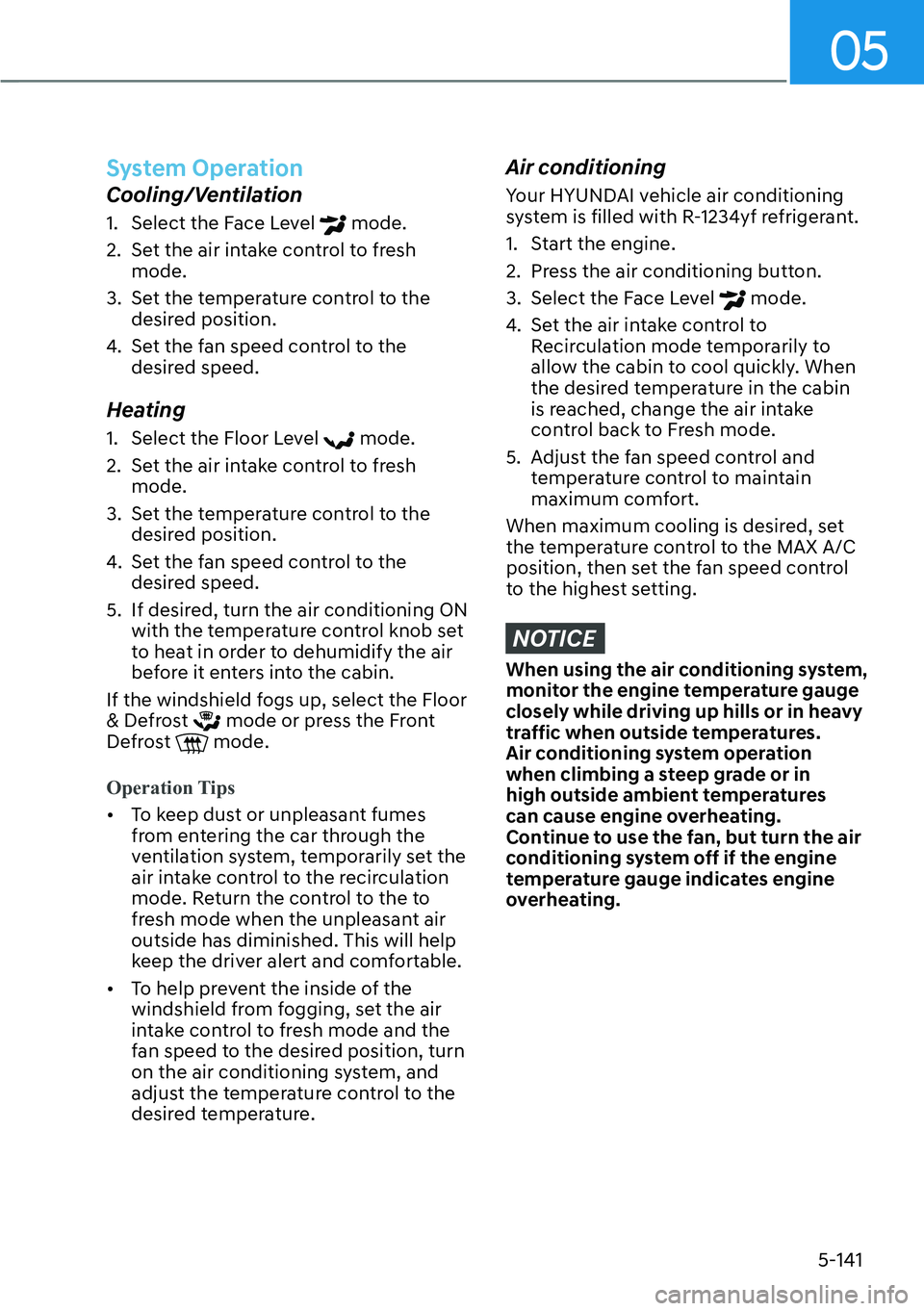

System Operation
Cooling/Ventilation
1.  Select the Face Level  mode.
2.  Set the air intake control to fresh  mode.
3.  Set the temperature control to the  desired position.
4.  Set the fan
