Page 241 of 661

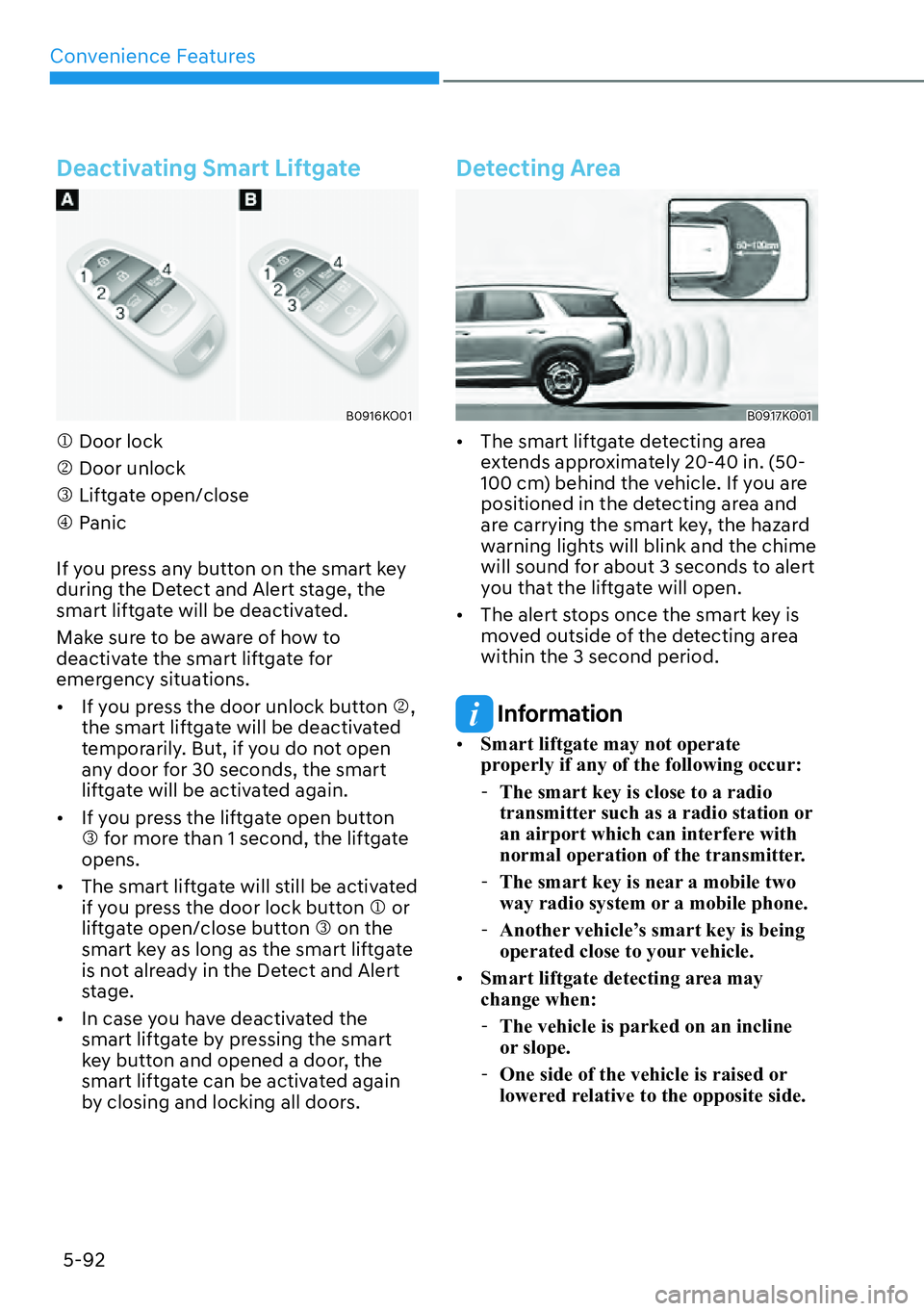

Convenience Features5-92
Deactivating Smart Liftgate
B0916KO01
M Door lock
N Door unlock
O Liftgate open/close
P Panic
If you press any button on the smart key
during the Detect and Alert stage, the
smart liftgate will be deactivated.
Make sure to be aware of how to
deactivate the smart liftgate for
emergency situations.
[ If you press the door unlock button N,
the smart liftgate will be deactivated
temporarily. But, if you do not open
any door for 30 seconds, the smart
liftgate will be activated again.
[ If you press the liftgate open button
O for more than 1 second, the liftgate
opens.
[ The smart liftgate will still be activated
if you press the door lock button M or
liftgate open/close button O on the
smart key as long as the smart liftgate
is not already in the Detect and Alert
stage.
[ In case you have deactivated the
smart liftgate by pressing the smart
key button and opened a door, the
smart liftgate can be activated again
by closing and locking all doors.
Detecting Area
B0917KO01
[ The smart liftgate detecting area
extends approximately 20-40 in. (50-
100 cm) behind the vehicle. If you are
positioned in the detecting area and
are carrying the smart key, the hazard
warning lights will blink and the chime
will sound for about 3 seconds to alert
you that the liftgate will open.
[ The alert stops once the smart key is
moved outside of the detecting area
within the 3 second period.
Information
[ Smart liftgate may not operate
properly if any of the following occur:
- The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
- The smart key is near a mobile two
way radio system or a mobile phone.
- Another vehicle’s smart key is being
operated close to your vehicle.
[ Smart liftgate detecting area may
change when:
- The vehicle is parked on an incline
or slope.
- One side of the vehicle is raised or
lowered relative to the opposite side.
Page 242 of 661
05
5-93

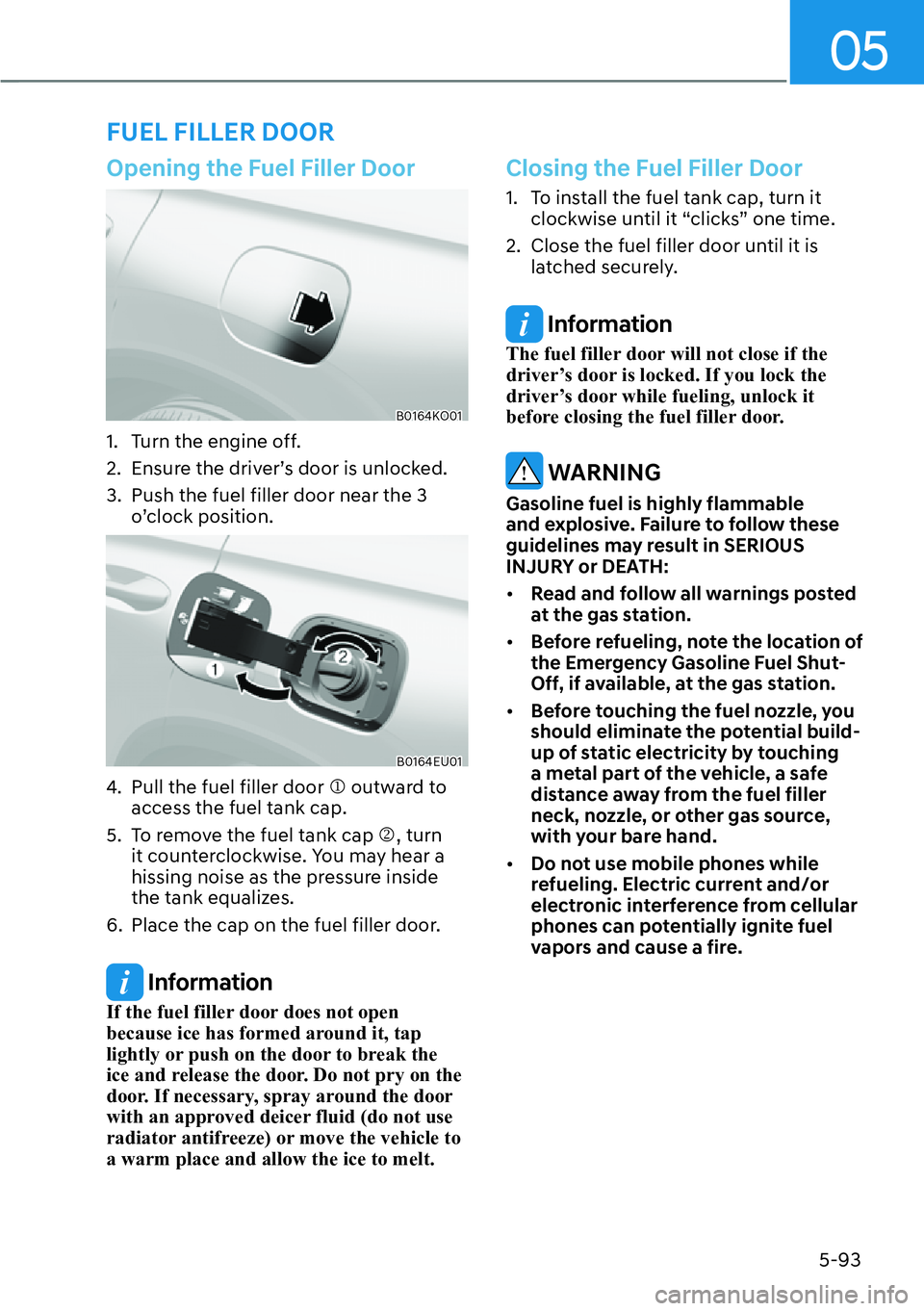

) 8 ( / ) , / / ( 5 ' 2 2 5
2 S H Q L Q J W K H ) X H O ) L O O H U ' R R U
B0164KO01
1. Turn the engine off.
2. Ensure the driver’s door is unlocked.
3. Push the fuel filler door near the 3 o’clock position.
B0164EU01
4. Pull the fuel filler door M outward to access the fuel tank cap.
5. To remove the fuel tank cap N, turn it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
6. Place the cap on the fuel filler door.
Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break the
ice and release the door. Do not pry on the
door. If necessary, spray around the door
with an approved deicer fluid (do not use
radiator antifreeze) or move the vehicle to
a warm place and allow the ice to melt.
& O R V L Q J W K H ) X H O ) L O O H U ' R R U
1. To install the fuel tank cap, turn it clockwise until it “clicks” one time.
2. Close the fuel filler door until it is latched securely.
Information
The fuel filler door will not close if the
driver’s door is locked. If you lock the
driver’s door while fueling, unlock it
before closing the fuel filler door.
WARNING
Gasoline fuel is highly flammable
D Q G H [ S O R V L Y H ) D L O X U H W R I R O O R Z W K H V H
guidelines may result in SERIOUS
INJURY or DEATH:
[ Read and follow all warnings posted
at the gas station.
[ Before refueling, note the location of
W K H ( P H U J H Q F \ * D V R O L Q H ) X H O 6 K X W
Off, if available, at the gas station.
[ Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.
[ Do not use mobile phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.

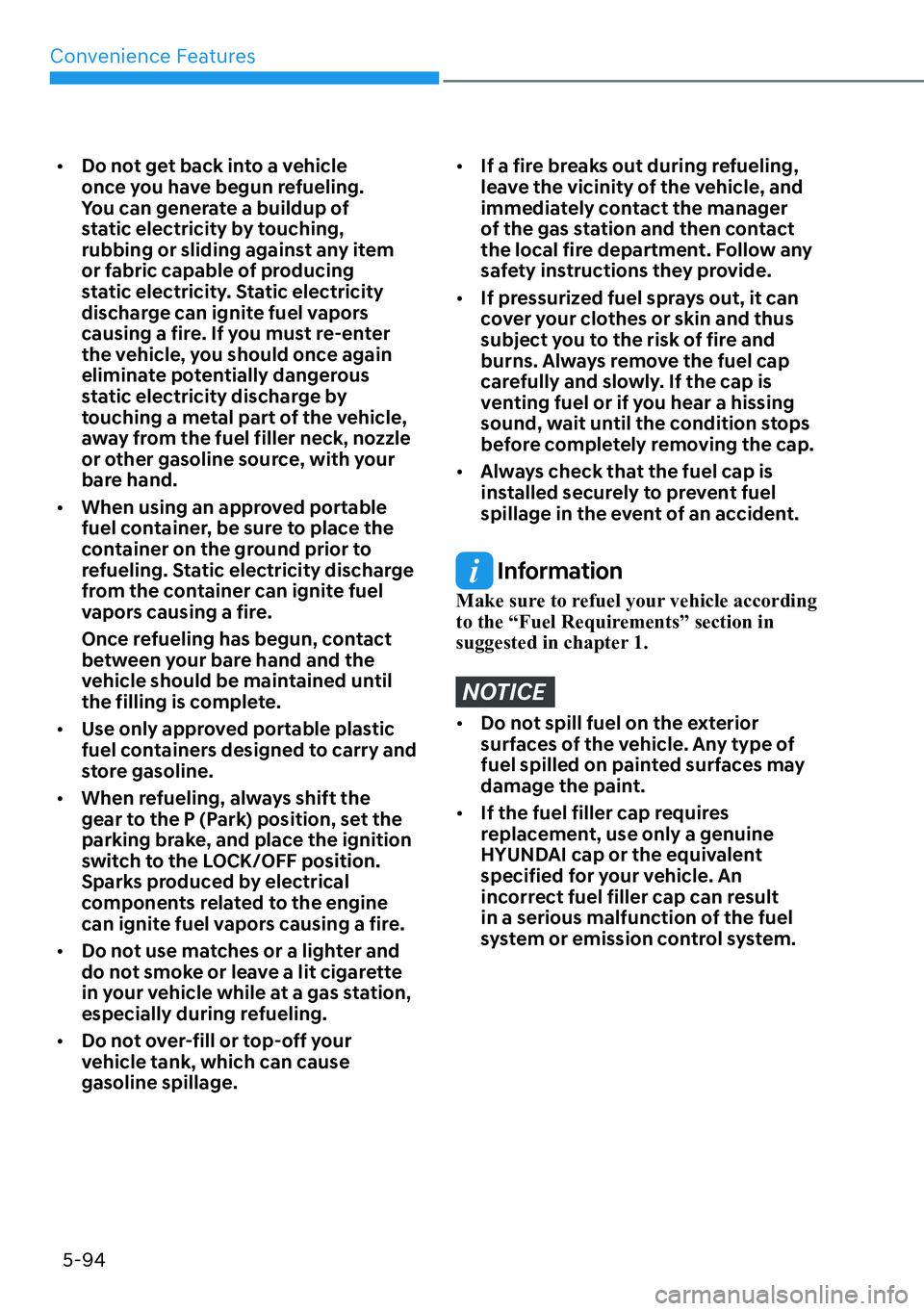

Page 243 of 661
Convenience Features5-94
[ Do not get back into a vehicle
once you have begun refueling.
You can generate a buildup of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other gasoline source, with your
bare hand.
[ When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.
[ Use only approved portable plastic
fuel containers designed to carry and
store gasoline.
[ When refueling, always shift the
gear to the P (Park) position, set the
parking brake, and place the ignition
V Z L W F K W R W K H / 2 & . 2 ) ) S R V L W L R Q
Sparks produced by electrical
components related to the engine
can ignite fuel vapors causing a fire.
[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.
[ Do not over-fill or top-off your
vehicle tank, which can cause
gasoline spillage.[ If a fire breaks out during refueling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
W K H O R F D O I L U H G H S D U W P H Q W ) R O O R Z D Q \
safety instructions they provide.
[ If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.
[ Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
Information
Make sure to refuel your vehicle according
to the “Fuel Requirements” section in
suggested in chapter 1.
NOTICE
[ Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces may
damage the paint.
[ If the fuel filler cap requires
replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can result
in a serious malfunction of the fuel
system or emission control system.
Page 244 of 661
05
5-95

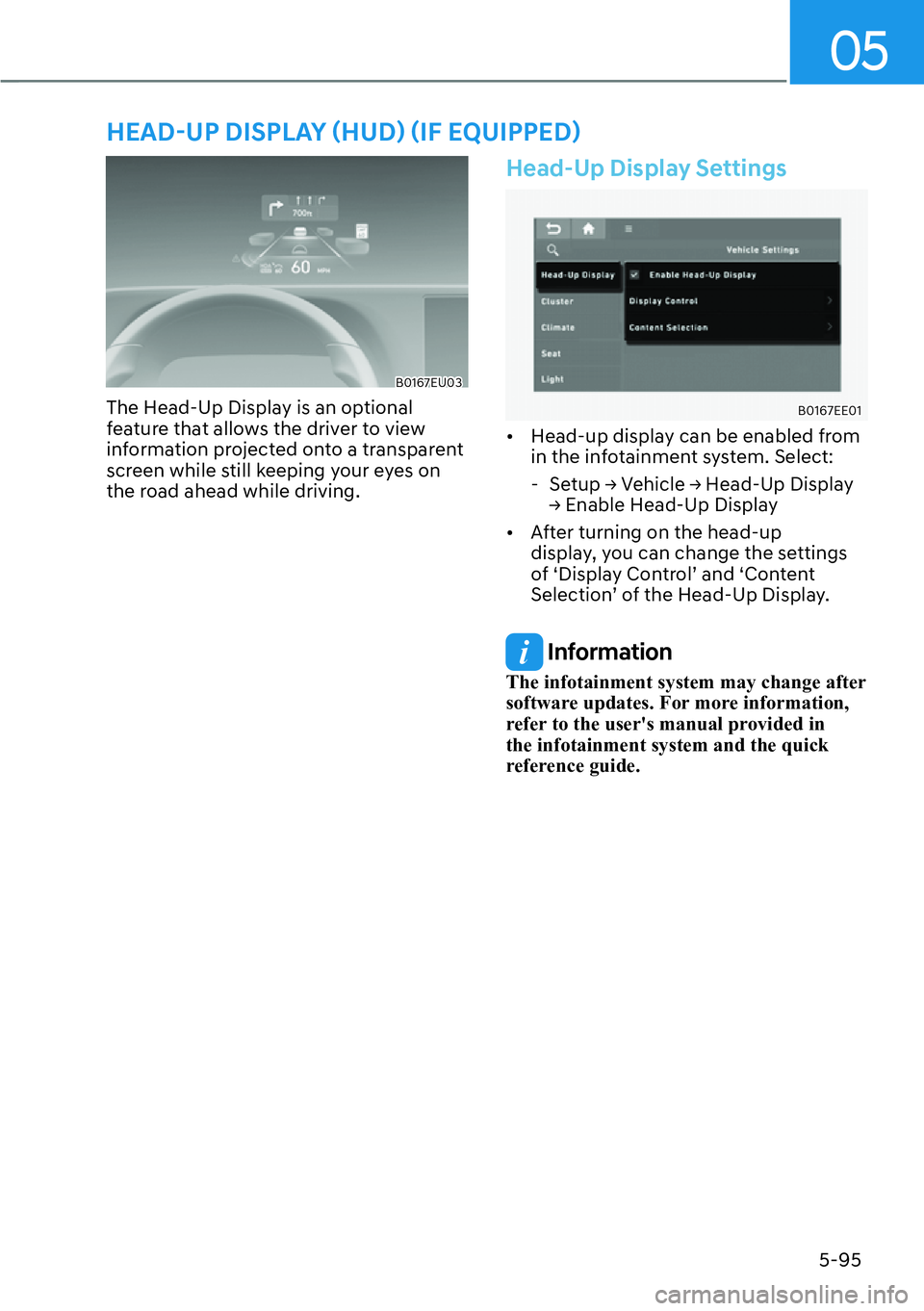

+ ( $ 'â 8 3 ' , 6 3 / $ < í + 8 'î í , ) ( 4 8 , 3 3 ( 'î
B0167EU03
The Head-Up Display is an optional
feature that allows the driver to view
information projected onto a transparent
screen while still keeping your eyes on
the road ahead while driving.
Head-Up Display Settings
%ž•š› ( (ž•
[ Head-up display can be enabled from
in the infotainment system. Select:
- 6 H W X S
Page 245 of 661
Convenience Features5-96

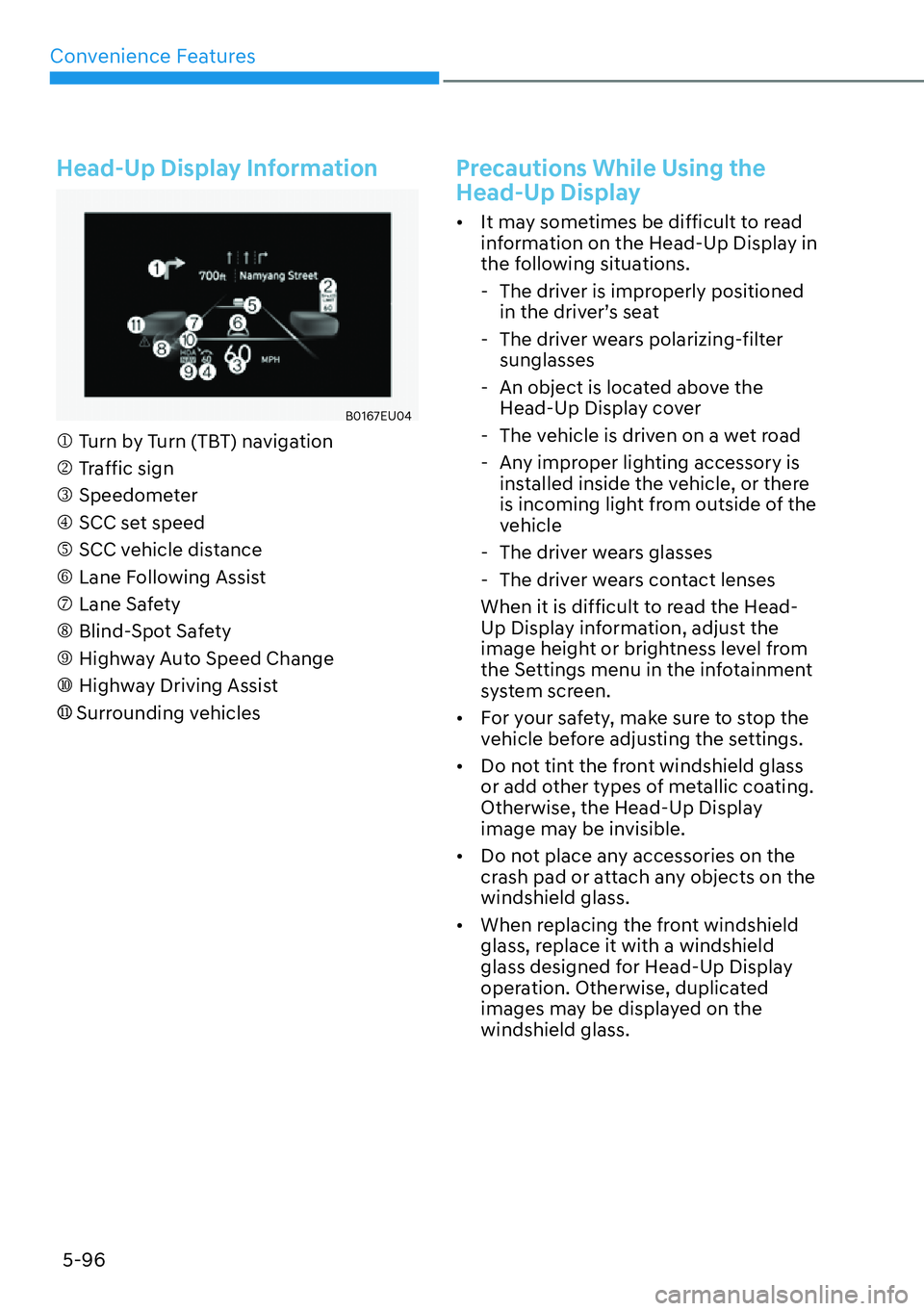

Head-Up Display Information
B0167EU04
M Turn by Turn (TBT) navigation
N Traffic sign
O Speedometer
P SCC set speed
Q SCC vehicle distance
R Lane Following Assist
S Lane Safety
T Blind-Spot Safety
U Highway Auto Speed Change
V Highway Driving Assist
Surrounding vehicles
Precautions While Using the
Head-Up Display
[ It may sometimes be difficult to read
information on the Head-Up Display in
the following situations.
- The driver is improperly positioned
in the driver’s seat
- The driver wears polarizing-filter
sunglasses
- An object is located above the
Head-Up Display cover
- The vehicle is driven on a wet road
- Any improper lighting accessory is
installed inside the vehicle, or there
is incoming light from outside of the
vehicle
- The driver wears glasses
- The driver wears contact lenses
When it is difficult to read the Head-
Up Display information, adjust the
image height or brightness level from
the Settings menu in the infotainment
system screen.
[ For your safety, make sure to stop the
vehicle before adjusting the settings.
[ Do not tint the front windshield glass
or add other types of metallic coating.
Otherwise, the Head-Up Display
image may be invisible.
[ Do not place any accessories on the
crash pad or attach any objects on the
windshield glass.
[ When replacing the front windshield
glass, replace it with a windshield
glass designed for Head-Up Display
operation. Otherwise, duplicated
images may be displayed on the
windshield glass.
Page 246 of 661
05
5-97

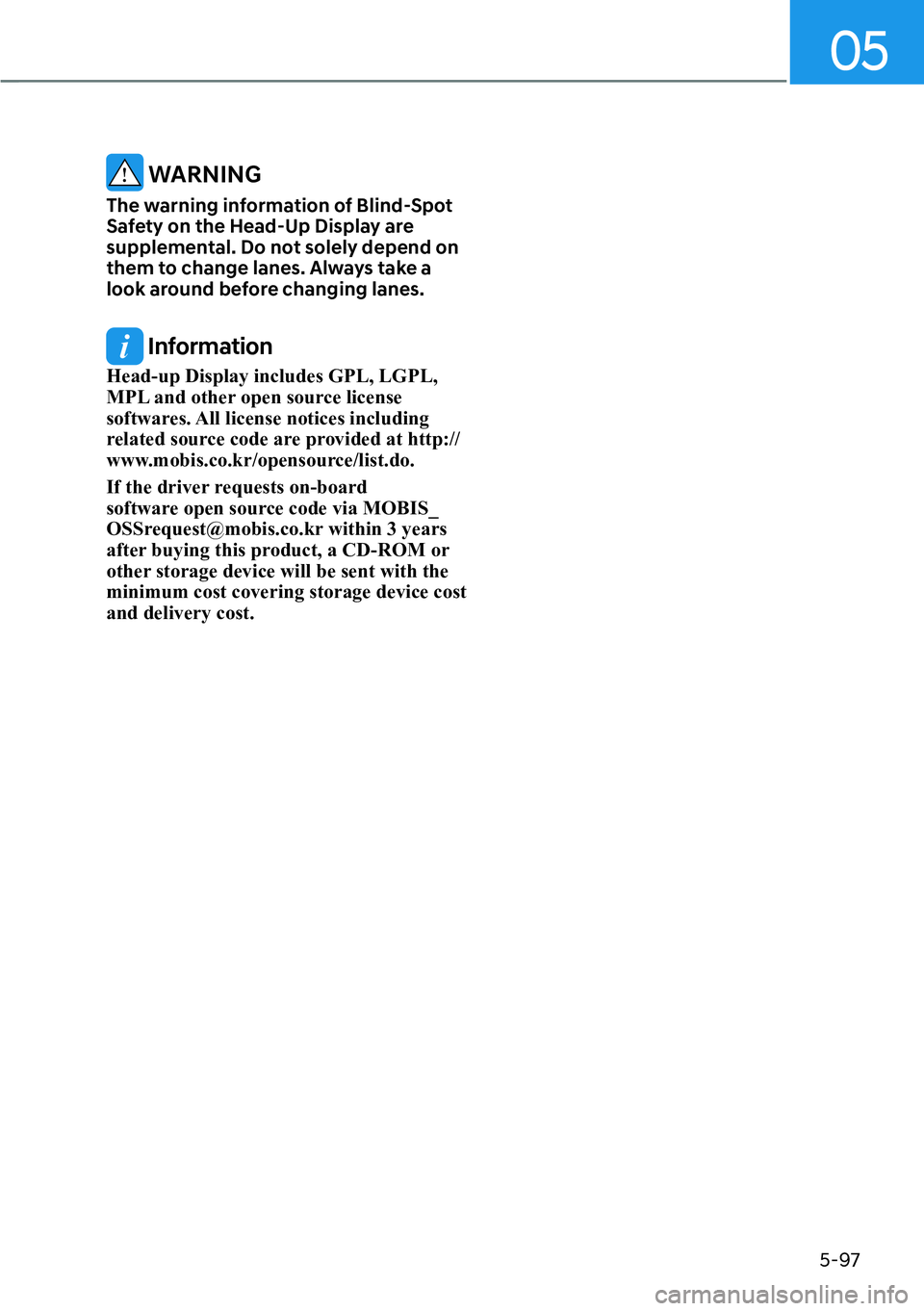

WARNING
The warning information of Blind-Spot
Safety on the Head-Up Display are
supplemental. Do not solely depend on
them to change lanes. Always take a
look around before changing lanes.
Information
Head-up Display includes GPL, LGPL,
MPL and other open source license
softwares. All license notices including
related source code are provided at http://
www.mobis.co.kr/opensource/list.do.
If the driver requests on-board
software open source code via MOBIS_
[email protected] within 3 years
after buying this product, a CD-ROM or
other storage device will be sent with the
minimum cost covering storage device cost
and delivery cost.
Page 247 of 661
Convenience Features5-98
Lighting Control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
B0177KO01
M OFF
N AUTO headlight
O Position lamp
P Headlight
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset. The
Daytime Running Lights (DRL) should
be illuminated whenever you are driving
during daylight hours. The DRL system
will be ON when the headlight switch is
in the OFF or the AUTO position (when
daylight is detected) and the Electronic
Parking Brake (EPB) is released.
The DRL system will turn off when:
[ The headlights are ON.
[ The parking brake is applied.
[ The vehicle is turned off.
[ The parking brake is engaged.
AUTO headlight
B0177KO02
The position lamp and headlight will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor M
at the upper end of the windshield glass.
Even with the AUTO headlight feature
in operation, it is recommended to
manually turn ON the headlights when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.
NOTICE
[ Do not cover or spill anything on the
sensor M located at the upper end of
the windshield glass.
[ Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.
[ If your vehicle window tint or other
types of metallic coating on the front
windshield, the AUTO headlight
system may not work properly.
EXTERIOR LIGHTS

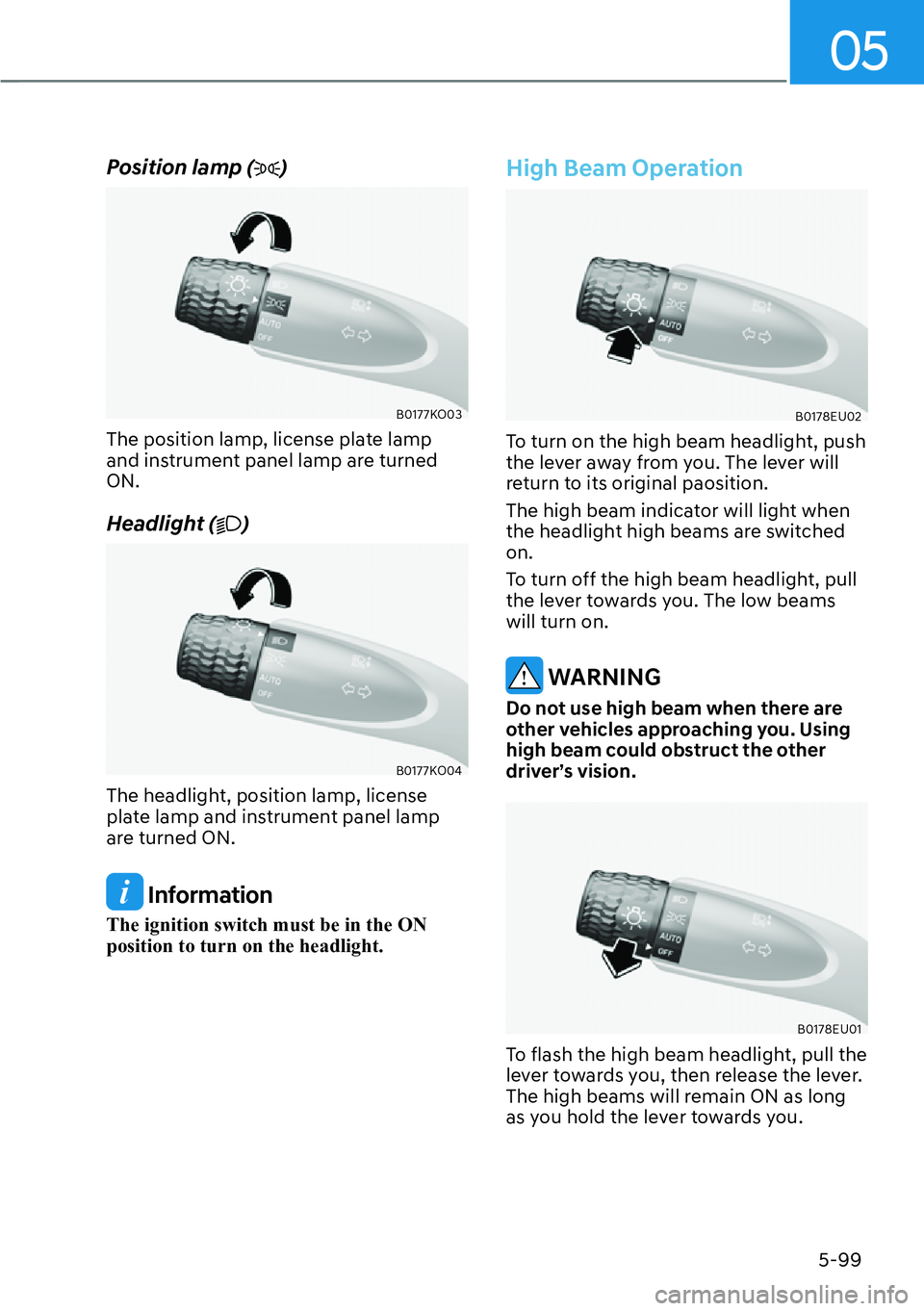

Page 248 of 661
05
5-99
Position lamp (()
B0177KO03
The position lamp, license plate lamp
and instrument panel lamp are turned
ON.
Headlight (()
B0177KO04
The headlight, position lamp, license
plate lamp and instrument panel lamp
are turned ON.
Information
The ignition switch must be in the ON
position to turn on the headlight.
High Beam Operation
B0178EU02
To turn on the high beam headlight, push
the lever away from you. The lever will
return to its original paosition.
The high beam indicator will light when
the headlight high beams are switched
on.
To turn off the high beam headlight, pull
the lever towards you. The low beams
will turn on.
WARNING
Do not use high beam when there are
other vehicles approaching you. Using
high beam could obstruct the other
driver’s vision.
B0178EU01
To flash the high beam headlight, pull the
lever towards you, then release the lever.
The high beams will remain ON as long
as you hold the lever towards you.

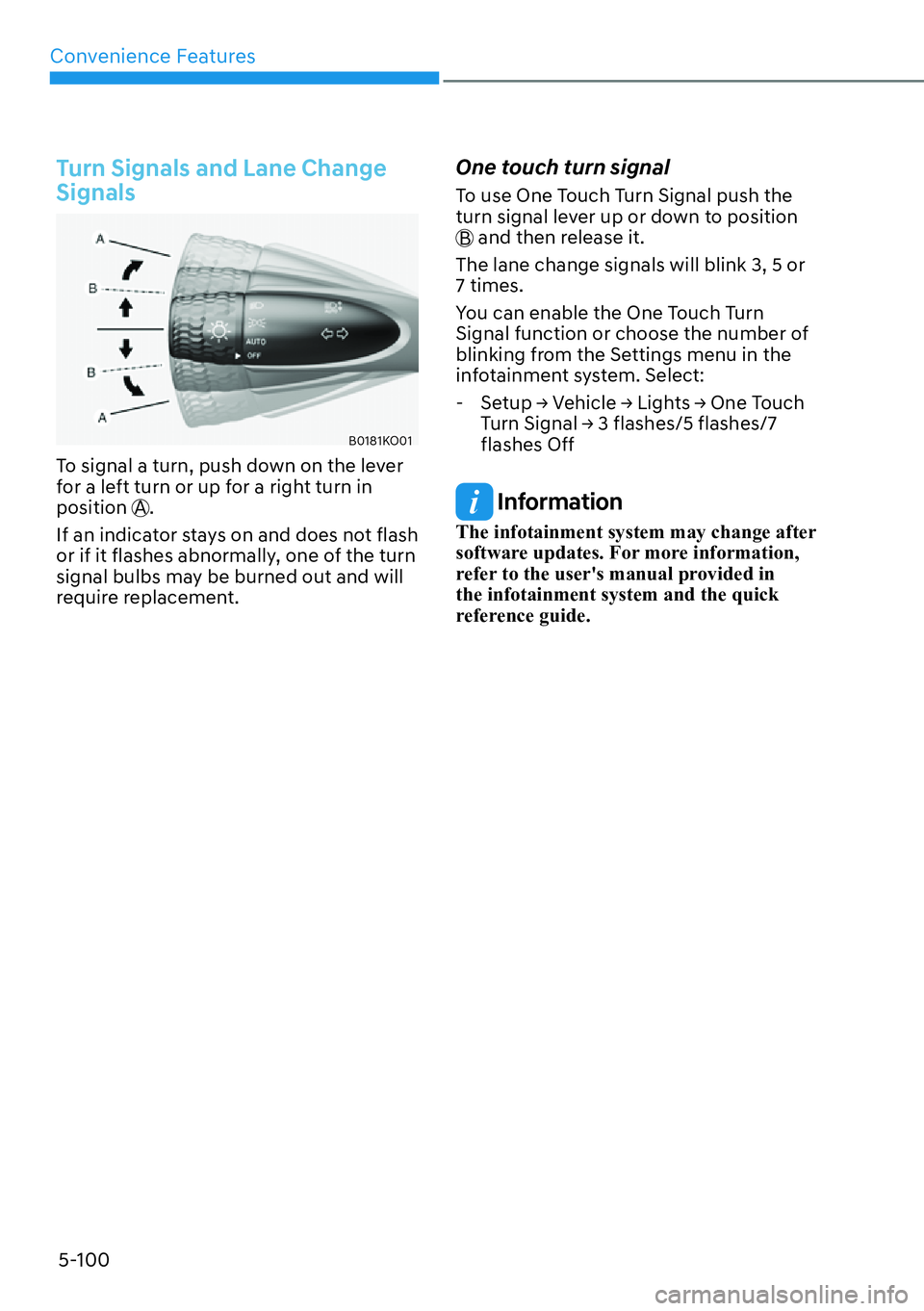

Page 249 of 661
Convenience Features5-100
Turn Signals and Lane Change
Signals
B0181KO01
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position A
.
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
One touch turn signal
To use One Touch Turn Signal push the
turn signal lever up or down to position B
and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can enable the One Touch Turn
Signal function or choose the number of
blinking from the Settings menu in the
infotainment system. Select:
- 6 H W X S

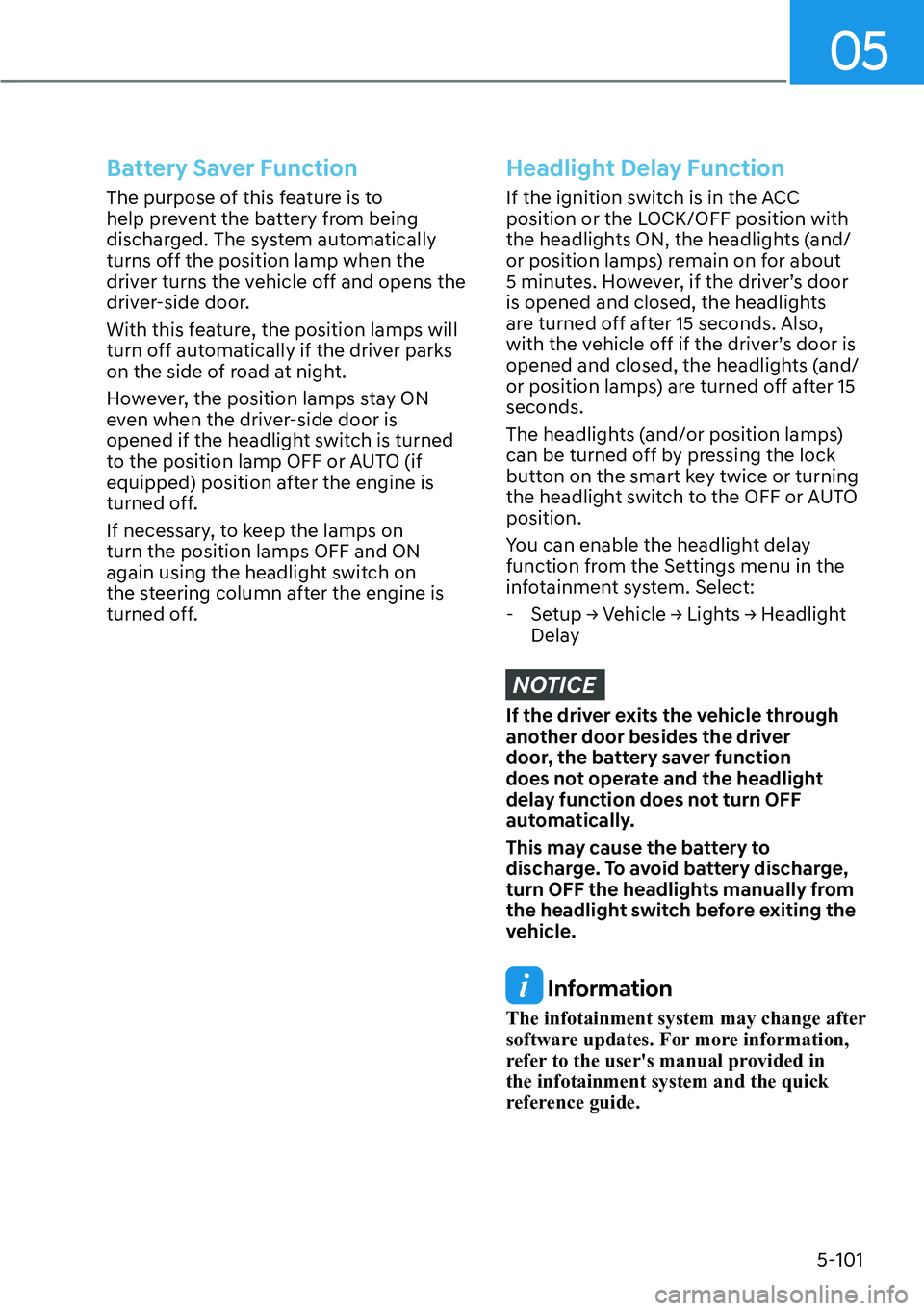

Page 250 of 661
05
5-101
% D W W H U \ 6 D Y H U ) X Q F W L R Q
The purpose of this feature is to
help prevent the battery from being
discharged. The system automatically
turns off the position lamp when the
driver turns the vehicle off and opens the
driver-side door.
With this feature, the position lamps will
turn off automatically if the driver parks
on the side of road at night.
However, the position lamps stay ON
even when the driver-side door is
opened if the headlight switch is turned
to the position lamp OFF or AUTO (if
equipped) position after the engine is
turned off.
If necessary, to keep the lamps on
turn the position lamps OFF and ON
again using the headlight switch on
the steering column after the engine is
turned off.
+ H D G O L J K W ' H O D \ ) X Q F W L R Q
If the ignition switch is in the ACC
position or the LOCK/OFF position with
the headlights ON, the headlights (and/
or position lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlights
are turned off after 15 seconds. Also,
with the vehicle off if the driver’s door is
opened and closed, the headlights (and/
or position lamps) are turned off after 15
seconds.
The headlights (and/or position lamps)
can be turned off by pressing the lock
button on the smart key twice or turning
the headlight switch to the OFF or AUTO
position.
You can enable the headlight delay
function from the Settings menu in the
infotainment system. Select:
- 6 H W X S
