Page 631 of 661

HYUNDAI PALISADE 2023  Owners Manual Maintenance9-44

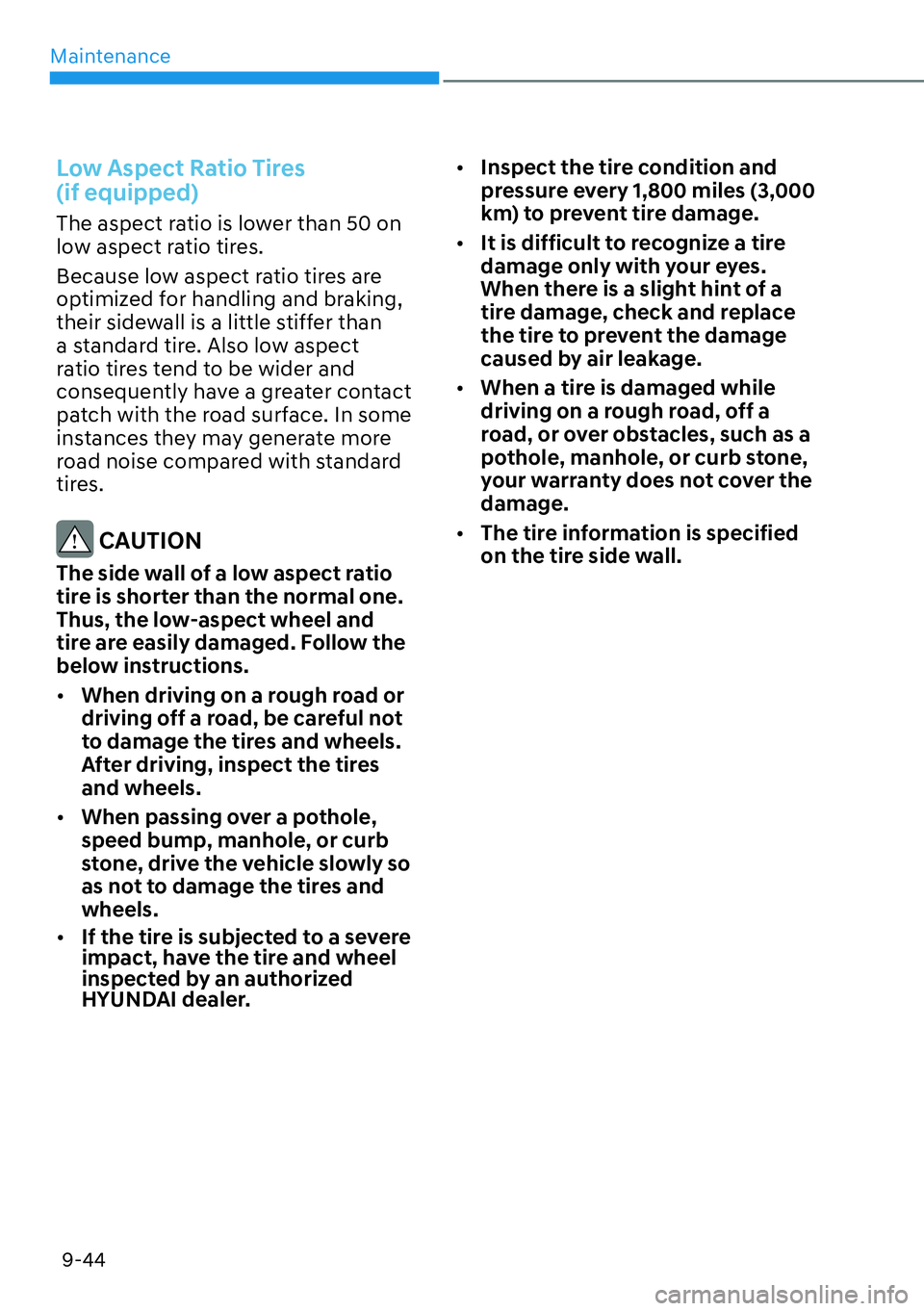

Low Aspect Ratio Tires
(if equipped)
The aspect ratio is lower than 50 on
low aspect ratio tires.
Because low aspect ratio tires are
optimized for handling and braking,
their side

Page 632 of 661

HYUNDAI PALISADE 2023  Owners Manual 09
9-45

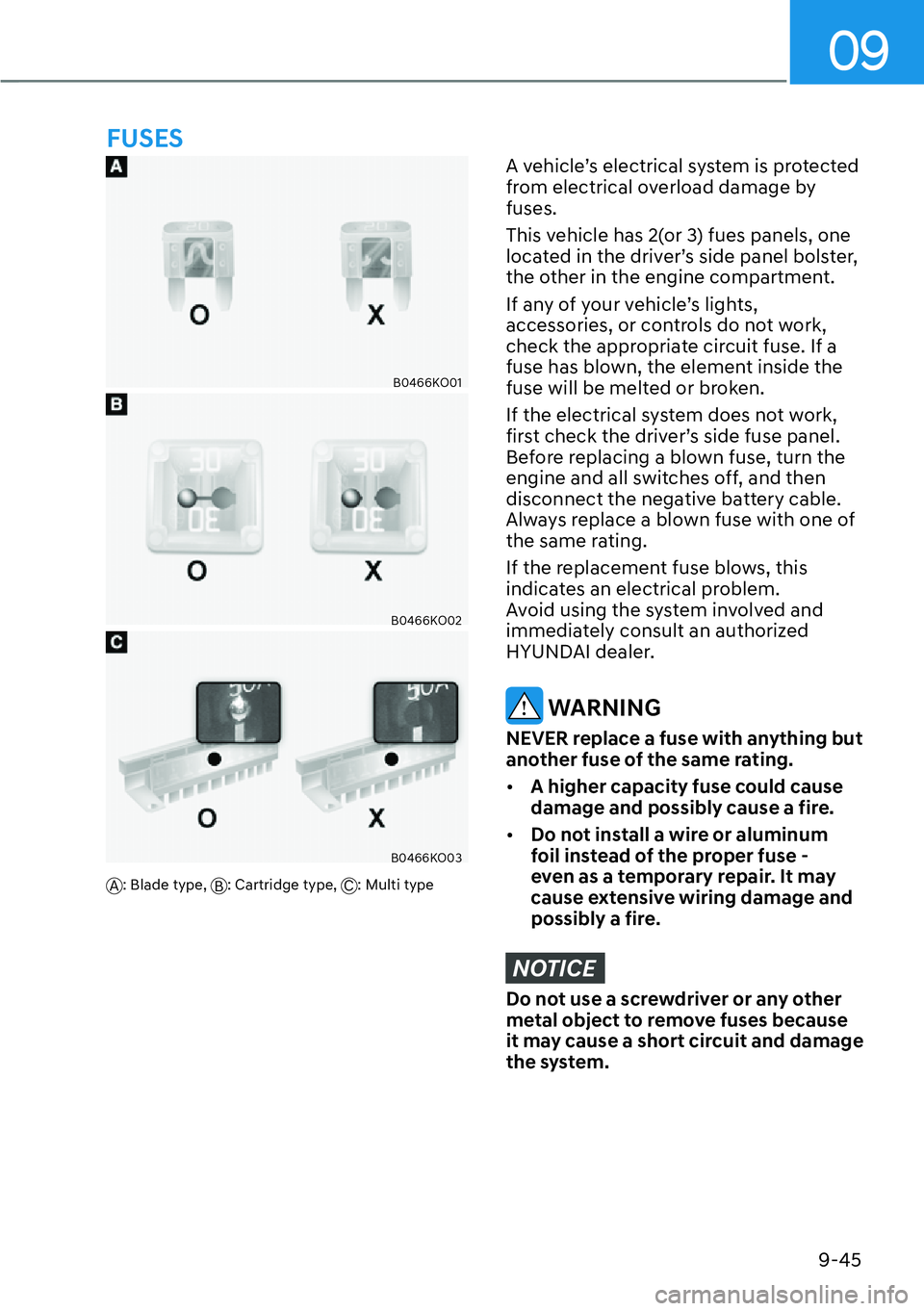

B0466KO01
B0466KO02
B0466KO03
A: Blade type, B: Cartridge type,  C: Multi type
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 2(or 3)

Page 633 of 661

HYUNDAI PALISADE 2023  Owners Manual Maintenance9-46

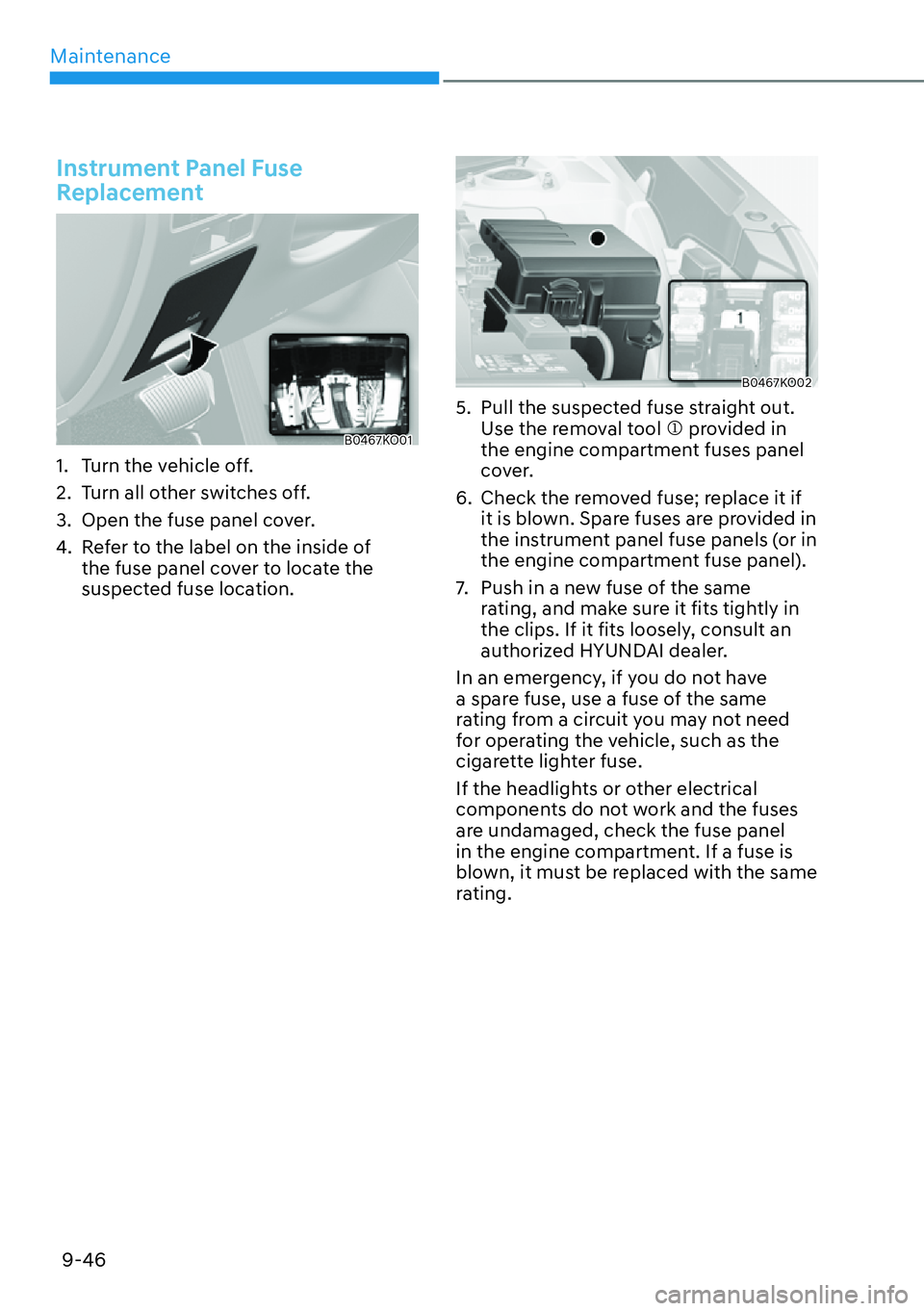

Instrument Panel Fuse
Replacement
B0467KO01
1.  Turn the vehicle off.
2.  Turn all other switches off.
3.  Open the fuse panel cover.
4.  Refer to the label on the inside of  the fuse

Page 634 of 661

HYUNDAI PALISADE 2023  Owners Manual 09
9-47

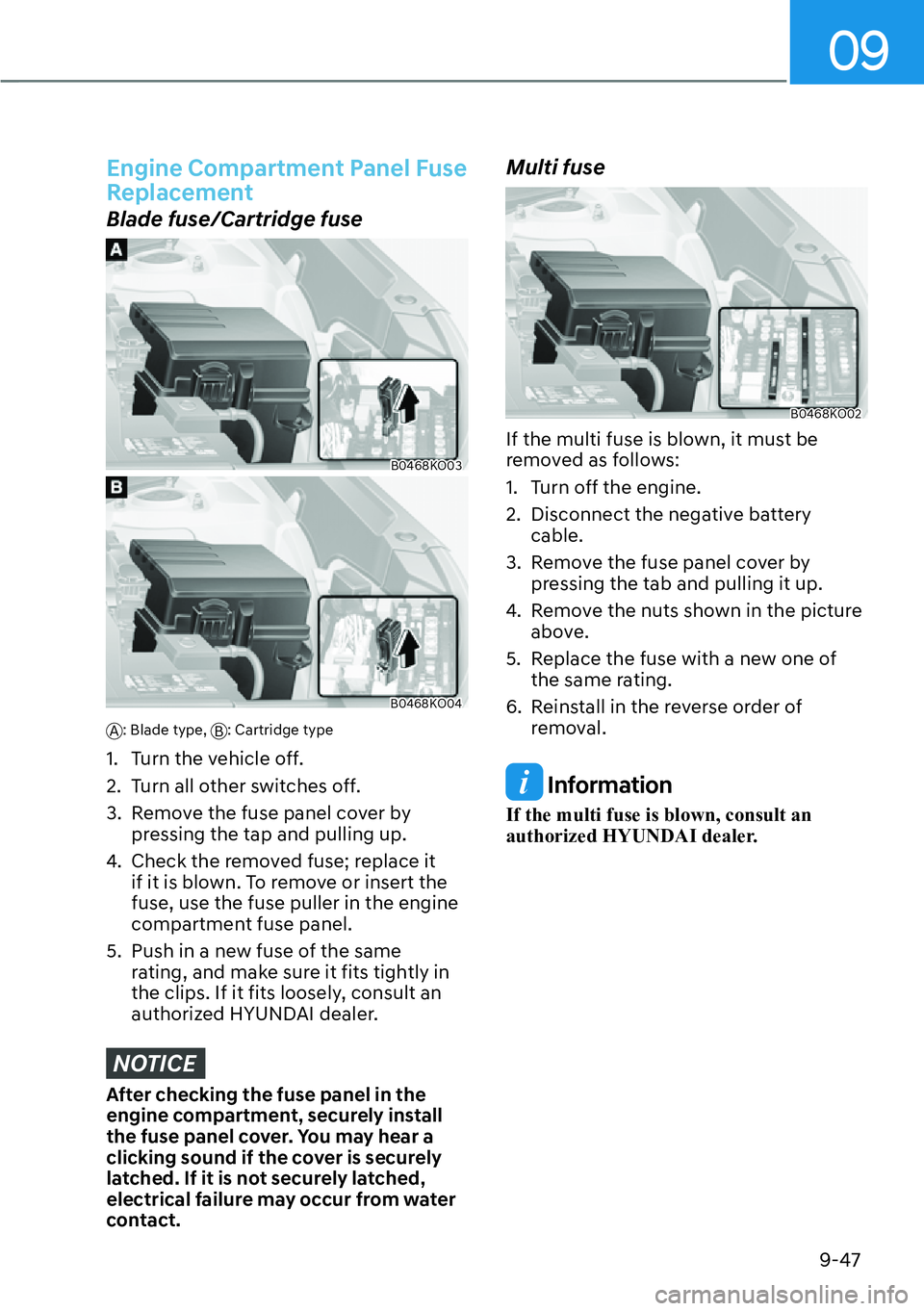

Engine Compartment Panel Fuse
Replacement
Blade fuse/Cartridge fuse
B0468KO03
B0468KO04
A: Blade type, B: Cartridge type
1.  Turn the vehicle off.
2.  Turn all other switches off.
3.  Remove

Page 635 of 661

HYUNDAI PALISADE 2023  Owners Manual Maintenance9-48

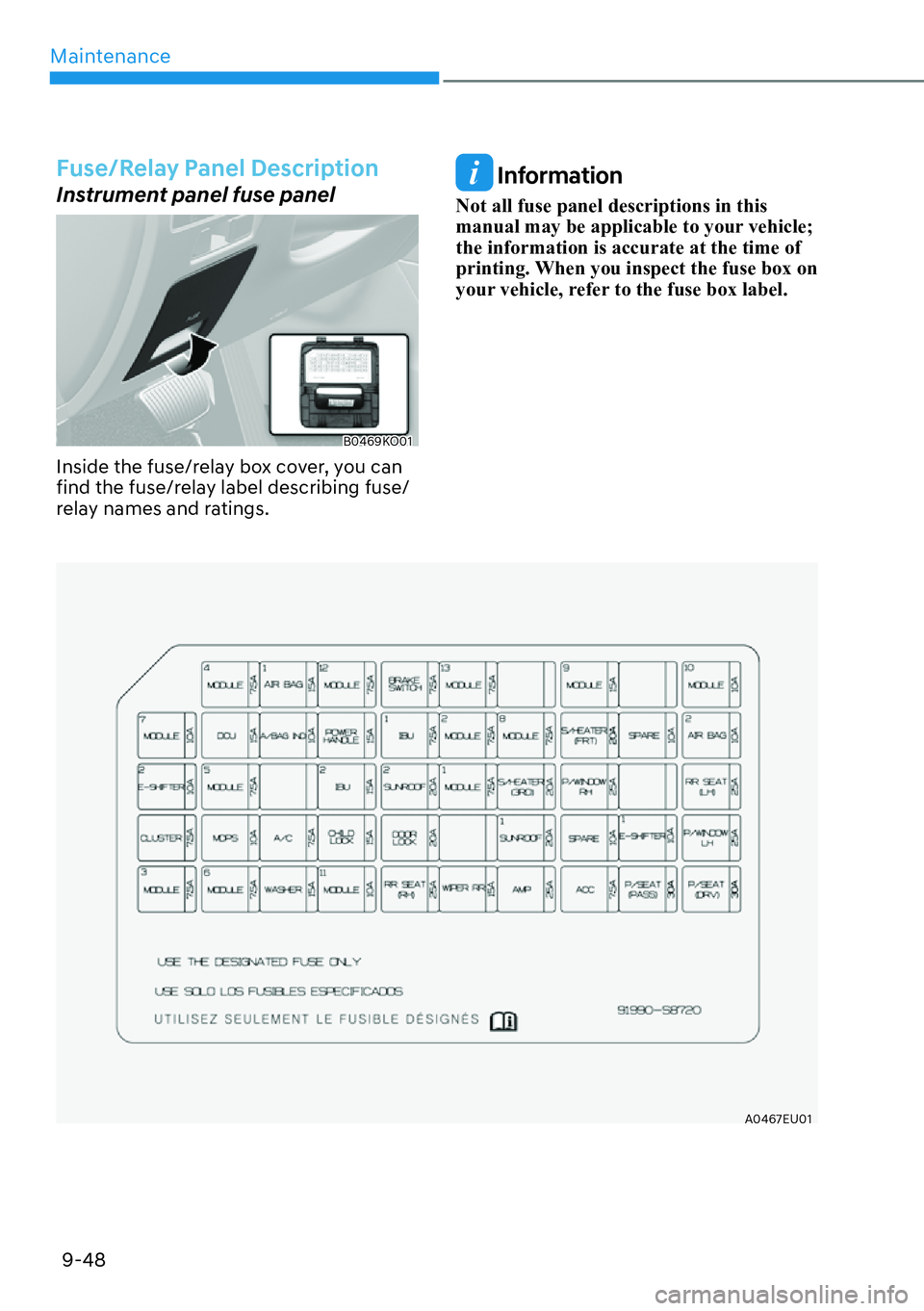

Fuse/Relay Panel Description
Instrument panel fuse panel
B0469KO01
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
 Inform

Page 636 of 661

HYUNDAI PALISADE 2023  Owners Manual 09
9-49
Instrument panel fuse panel
Fuse NameFuse
Rating Protected Component
MODULE 4  7.5A P
 assenger Abag Indicator
Seat Belt Indicator
Data Link Connector
Stop Lamp Switch
Driver Door Module
AIR

Page 637 of 661

HYUNDAI PALISADE 2023  Owners Manual Maintenance9-50

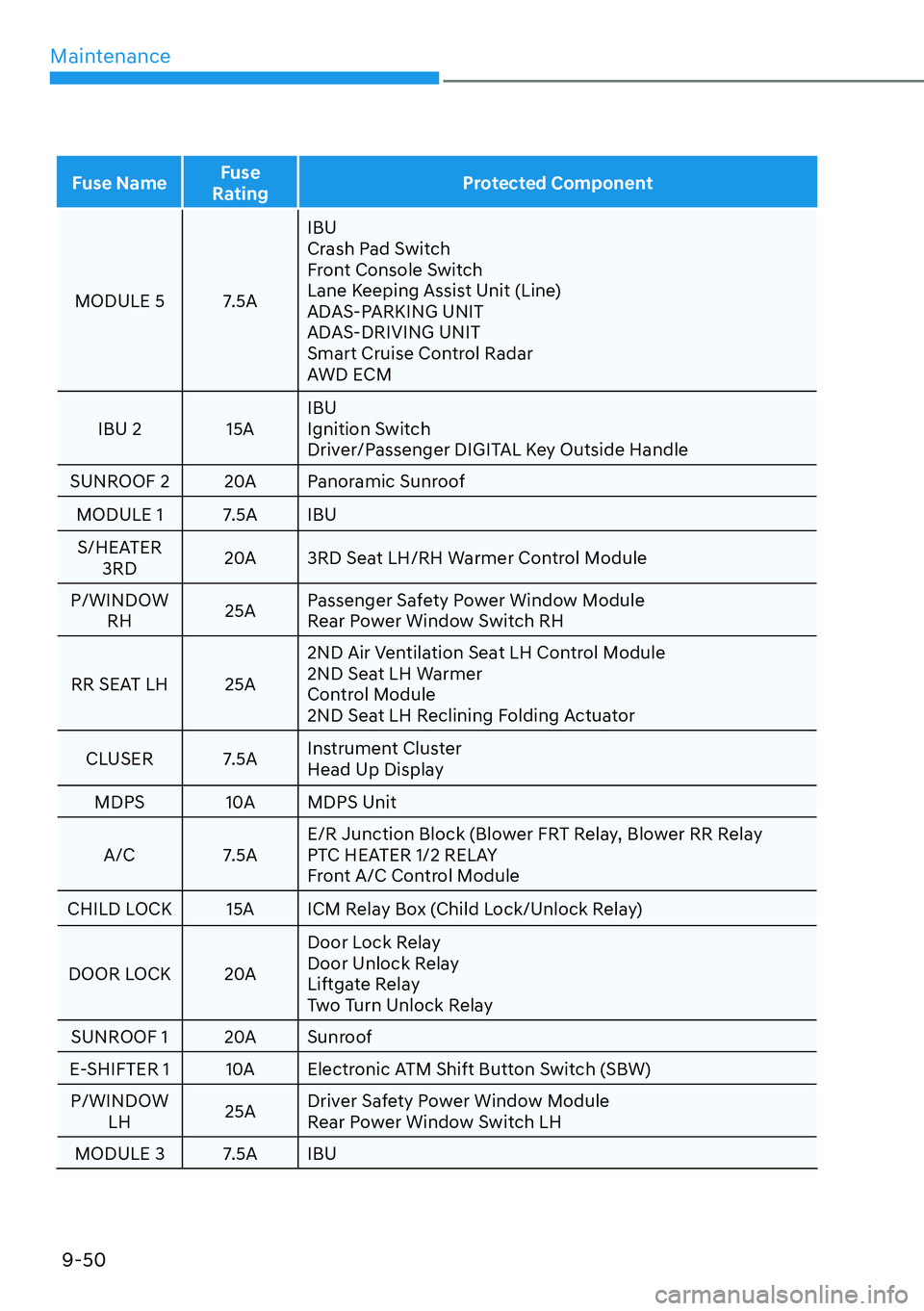

Fuse Name Fuse
Rating Protected Component
MODULE 5  7.5A IBU
Cr

ash Pad Switch
Front Console Switch
Lane Keeping Assist Unit (Line)
ADAS-PARKING UNIT
ADAS-DRIVING UNIT
Smart Cruise C

Page 638 of 661

HYUNDAI PALISADE 2023  Owners Manual 09
9-51

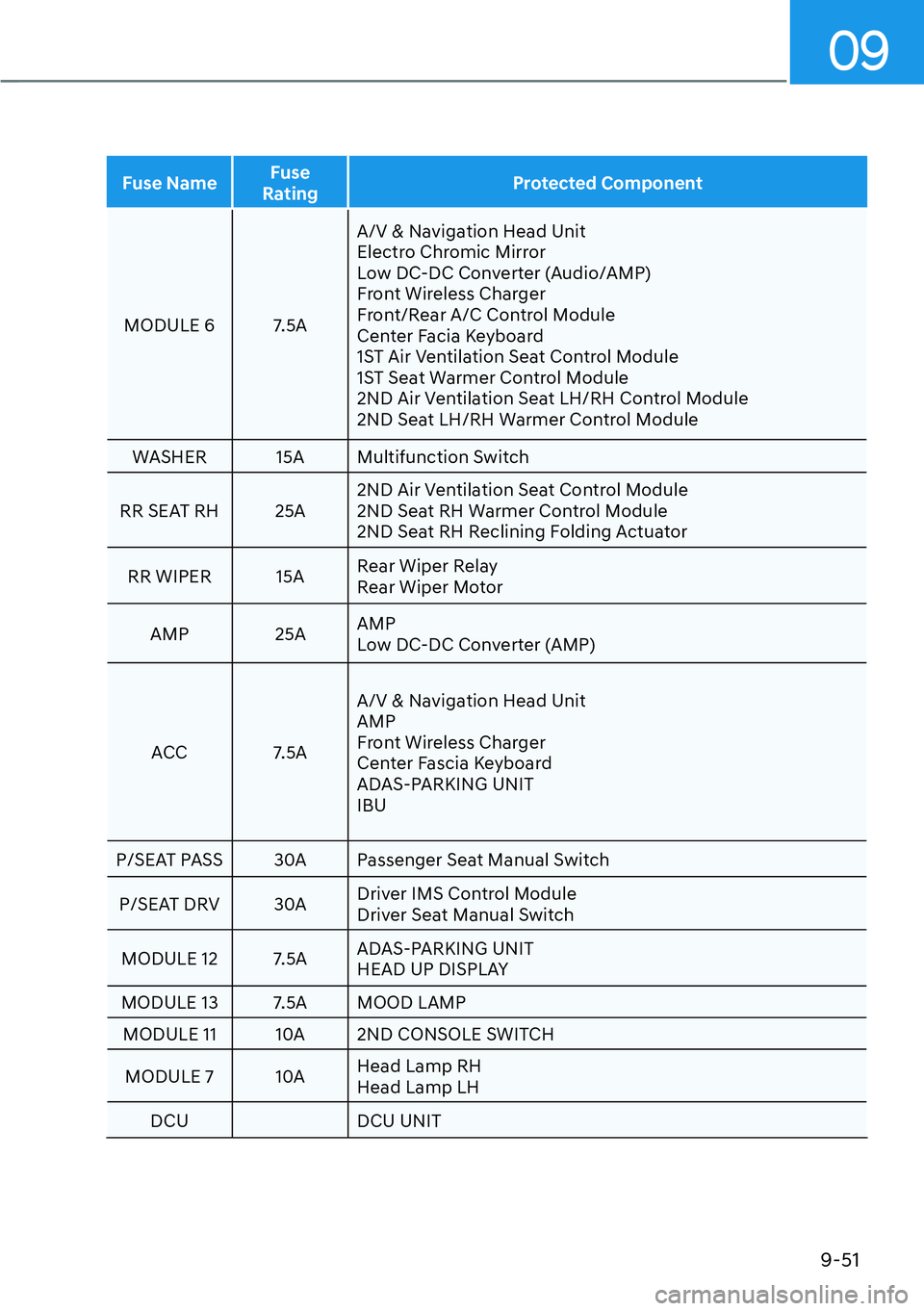

Fuse NameFuse
Rating Protected Component
MODULE 6 7.5A A/V & Na
 vigation Head Unit
Electro Chromic Mirror
Low DC-DC Converter (Audio/AMP)
Front Wireless Charger
Front/Rear A/C Control Module

Page 639 of 661

HYUNDAI PALISADE 2023  Owners Manual Maintenance9-52

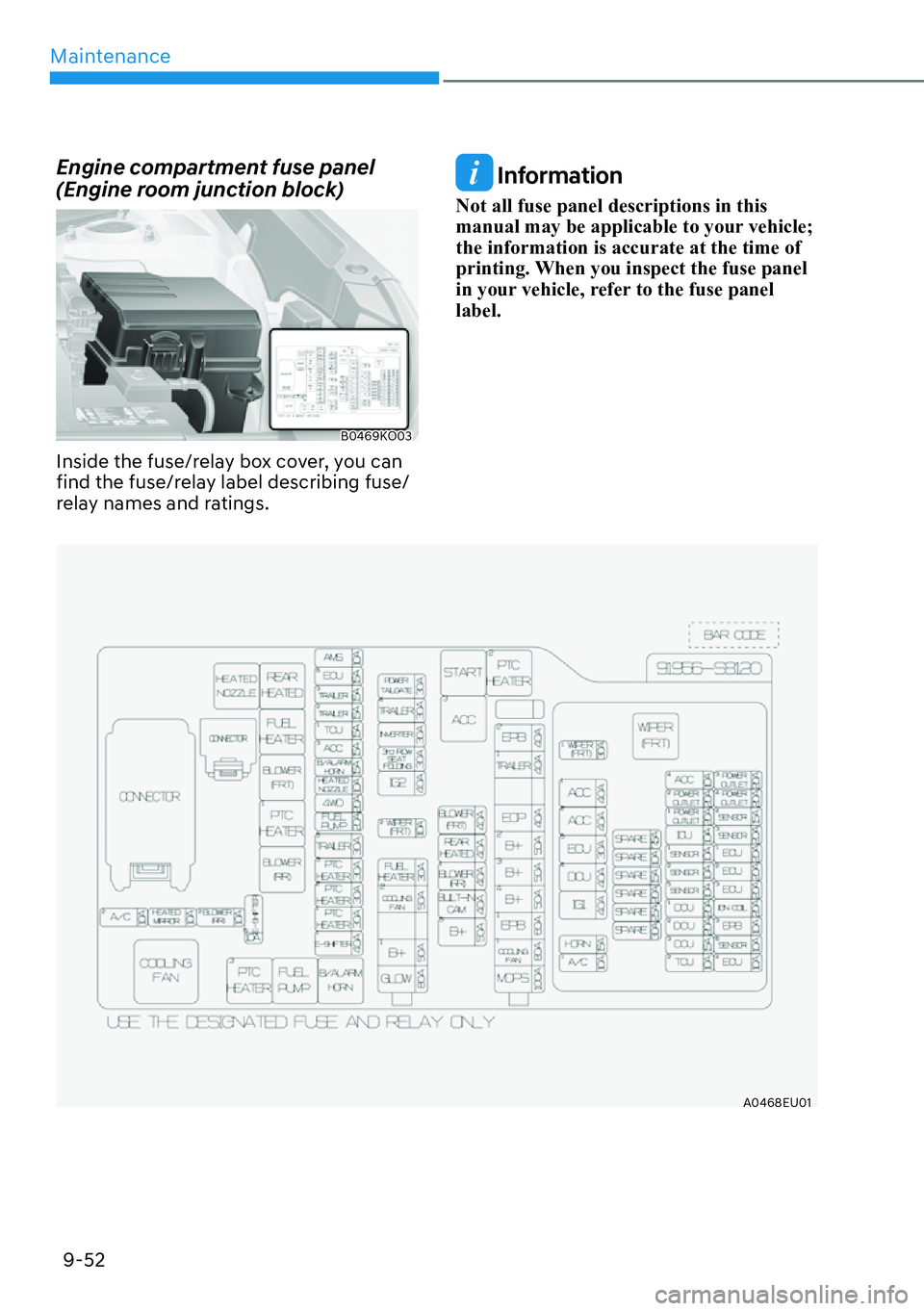

Engine compartment fuse panel
(Engine room junction block)
B0469KO03
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
 Inf

Page 640 of 661

HYUNDAI PALISADE 2023  Owners Manual 09
9-53

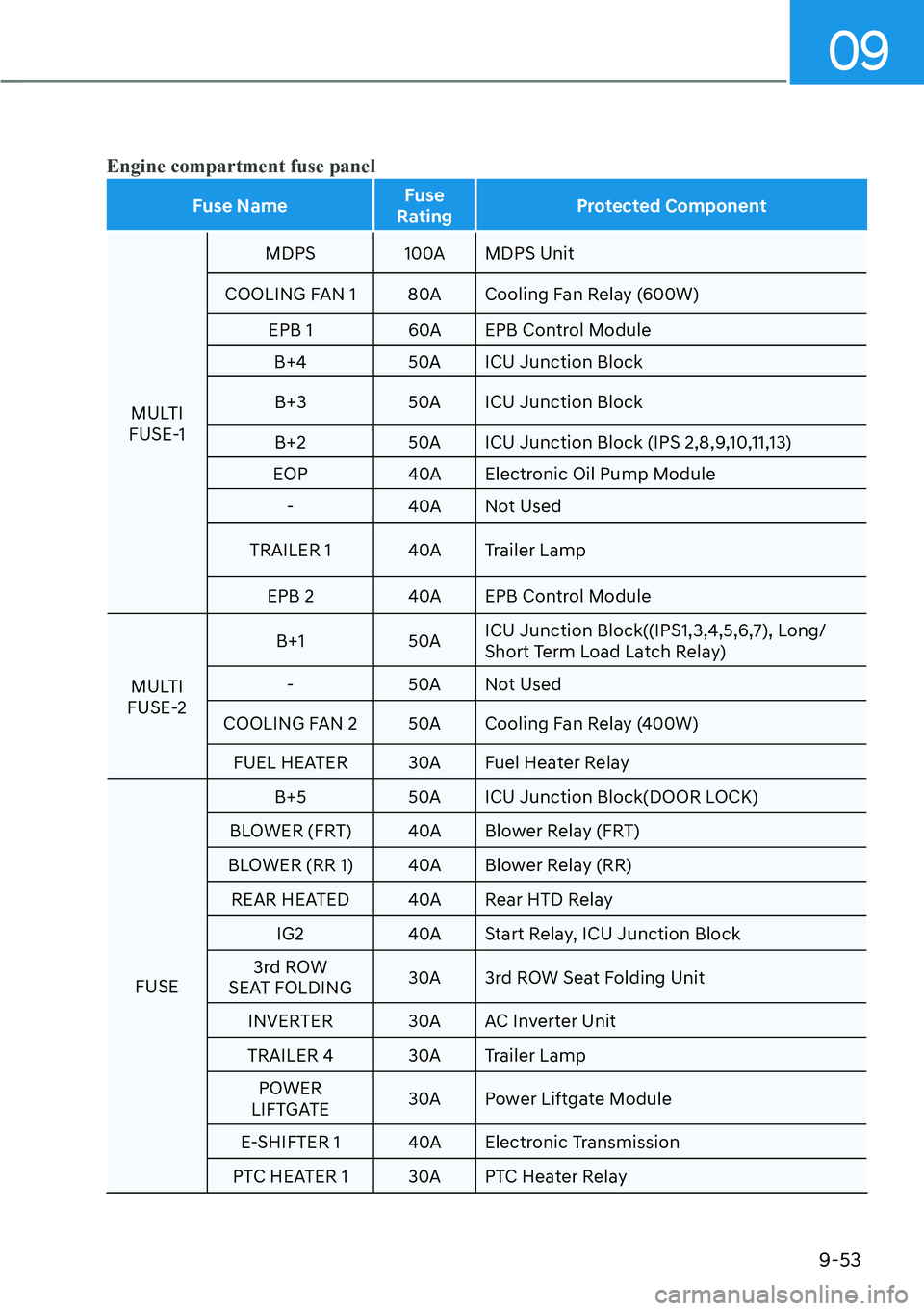

Engine compartment fuse panel
Fuse NameFuse
Rating Protected Component
MULTI
FUSE
 -1 MDPS 100A MDPS Unit
COOLING FAN 1 80A Cooling Fan Relay (600W) EPB 1 60A EPB Control ModuleB+4 50A ICU J
