HYUNDAI PALISADE 2023  Owners Manual Maintenance9-54
Fuse Name Fuse
Rating Protected Component
FUSE PT
 C HEATER 2 30A PTC Heater Relay
PTC HEATER 3 30A PTC Heater Relay TRAILER 5 30A Trailer Lamp
FUEL PUMP 20A Fuel Pump Relay AWD 20A A

Page 642 of 661

HYUNDAI PALISADE 2023  Owners Manual 09
9-55
Fuse NameFuse
Rating Protected Component
PCB POWER
OUTLET 2 20
 A 2ND POWER OUTLET#2
POWER
OUTLET 1 20A 2ND POWER OUTLET#1
ICU 10A PCB Block (ACC FUSE - AMP, ETC)
SENSOR 1 10A Fuel Pump Rel

Page 643 of 661

HYUNDAI PALISADE 2023  Owners Manual Maintenance9-56

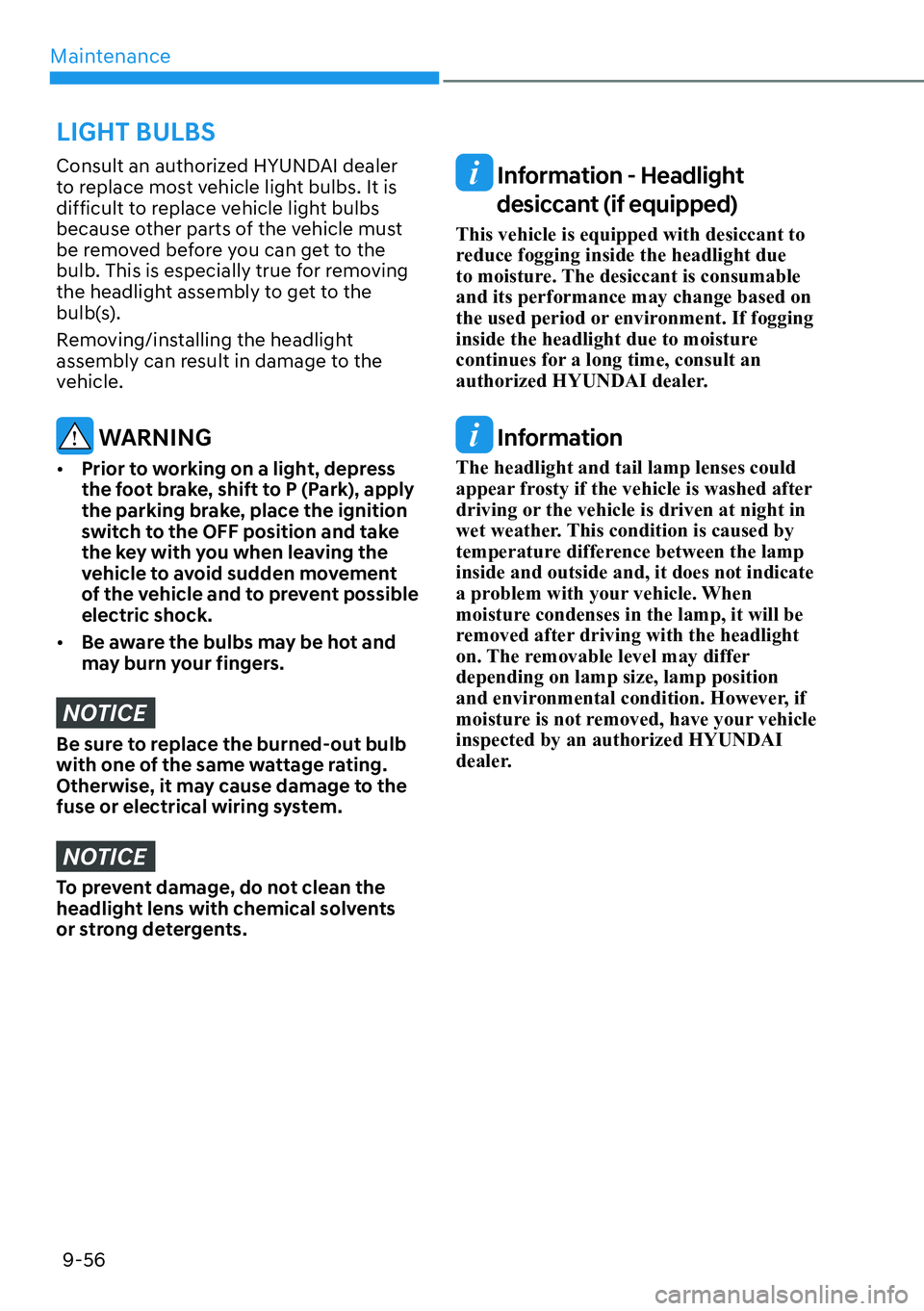

Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before y

Page 644 of 661

HYUNDAI PALISADE 2023  Owners Manual 09
9-57

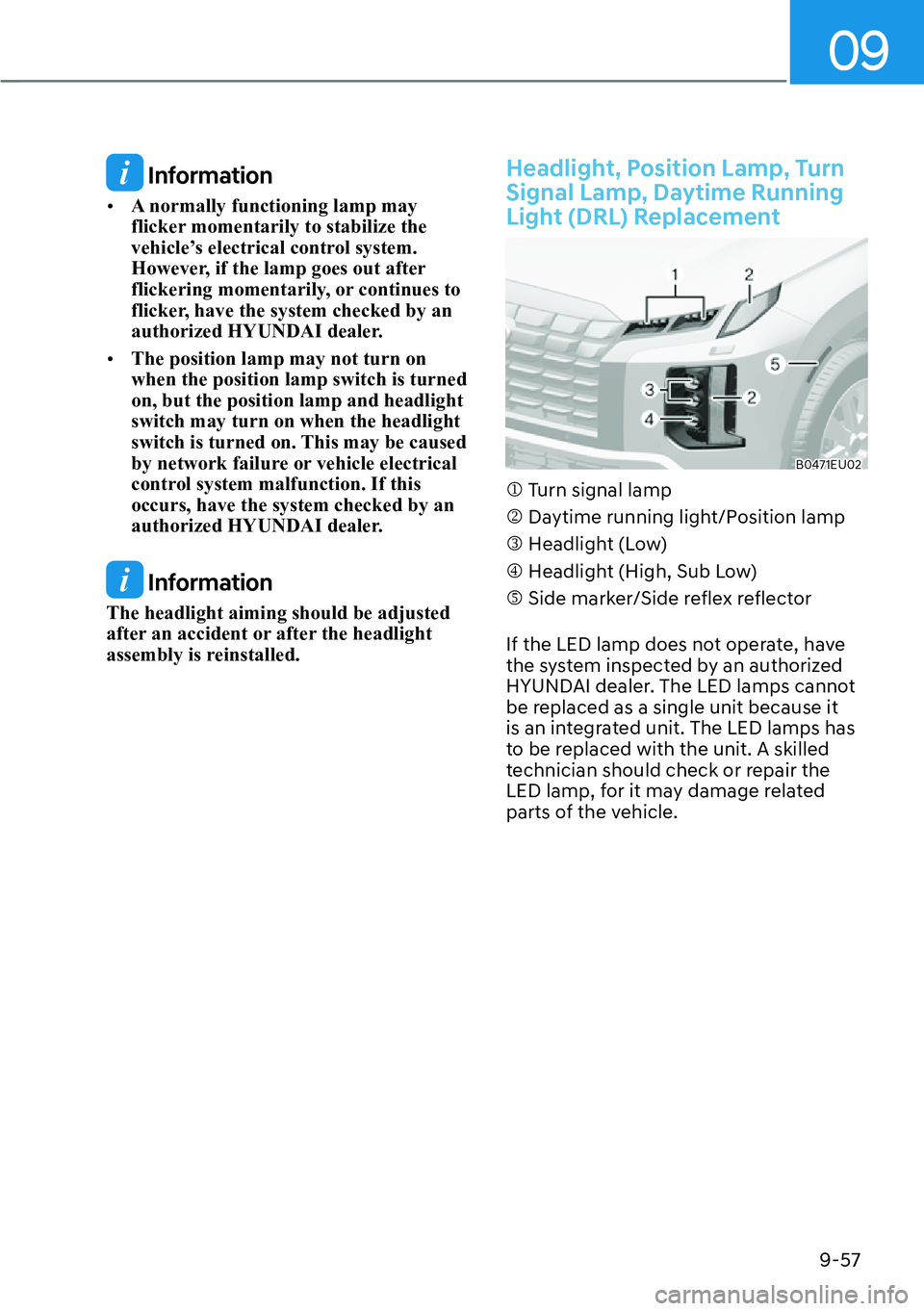

 Information
[�A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or

Page 645 of 661

HYUNDAI PALISADE 2023  Owners Manual Maintenance9-58

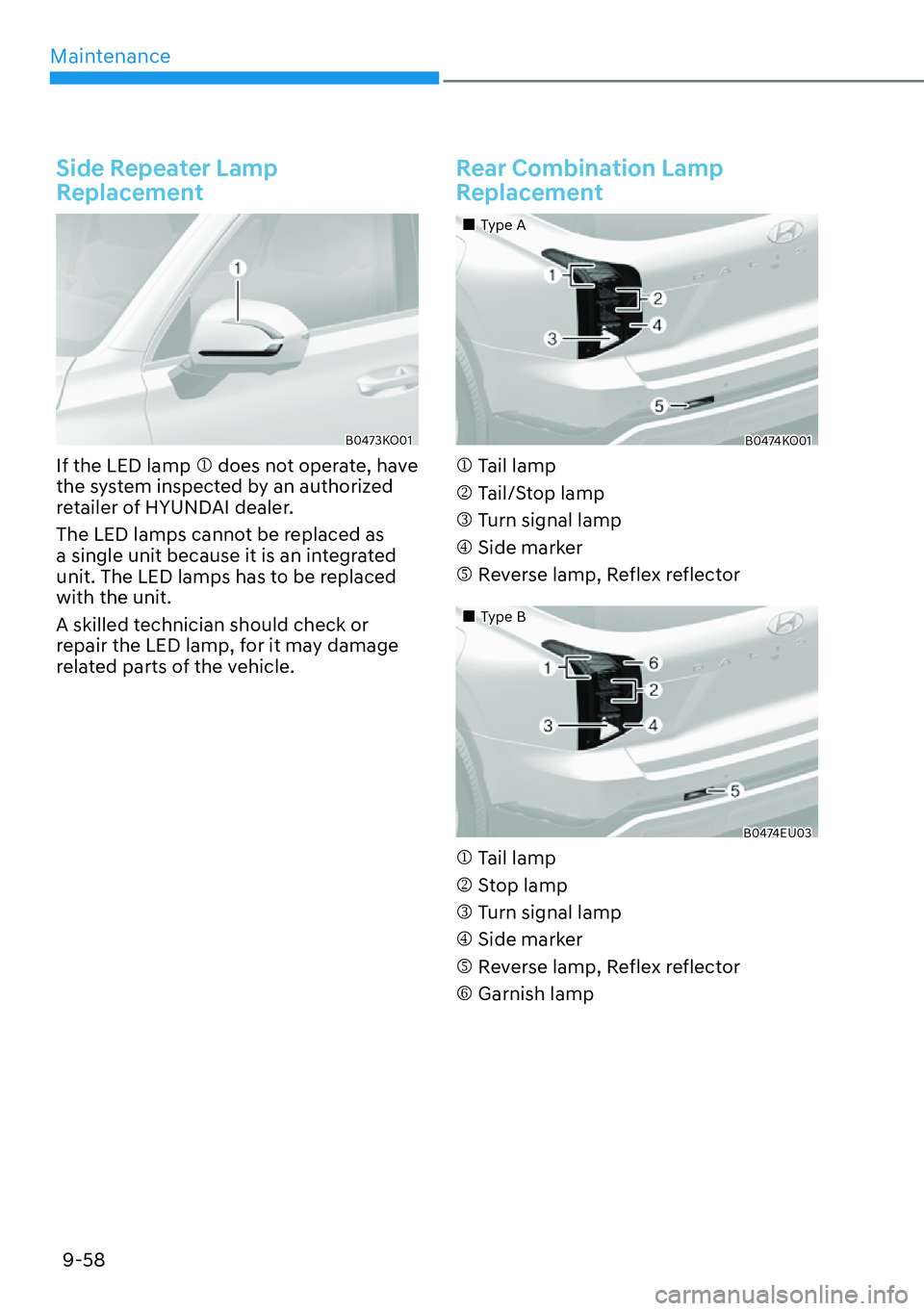

Side Repeater Lamp
Replacement
B0473KO01
If the LED lamp �M does not operate, have
the system inspected by an authorized
retailer of HYUNDAI dealer.
The LED lamps cannot be replaced

Page 646 of 661

HYUNDAI PALISADE 2023  Owners Manual 09
9-59

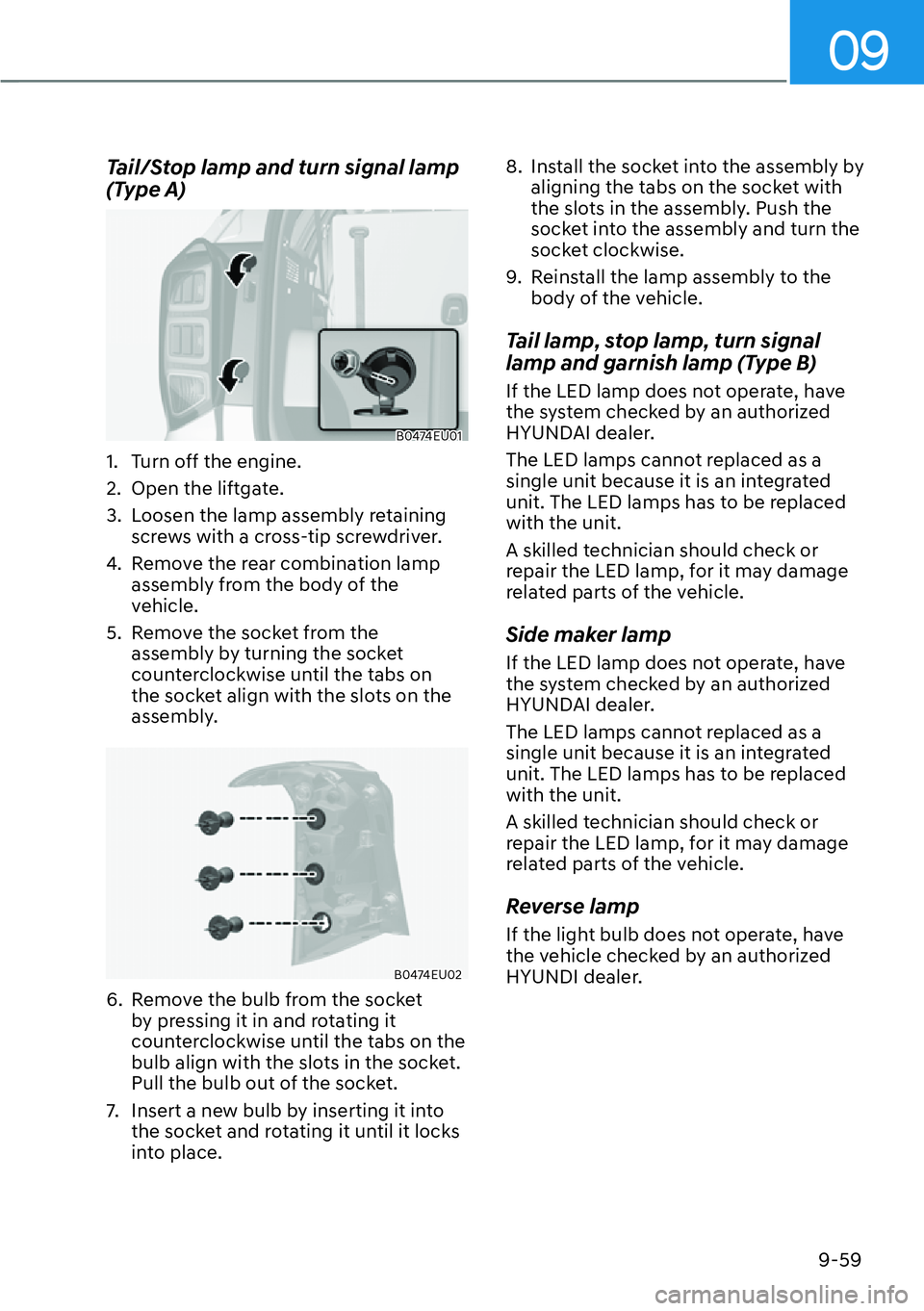

Tail/Stop lamp and turn signal lamp
(Type A)
B0474EU01
1.  Turn off the engine.
2.  Open the liftgate.
3.  Loosen the lamp assembly retaining screws with a cross-tip screwdriver.
4.  Remove t

Page 647 of 661

HYUNDAI PALISADE 2023  Owners Manual Maintenance9-60

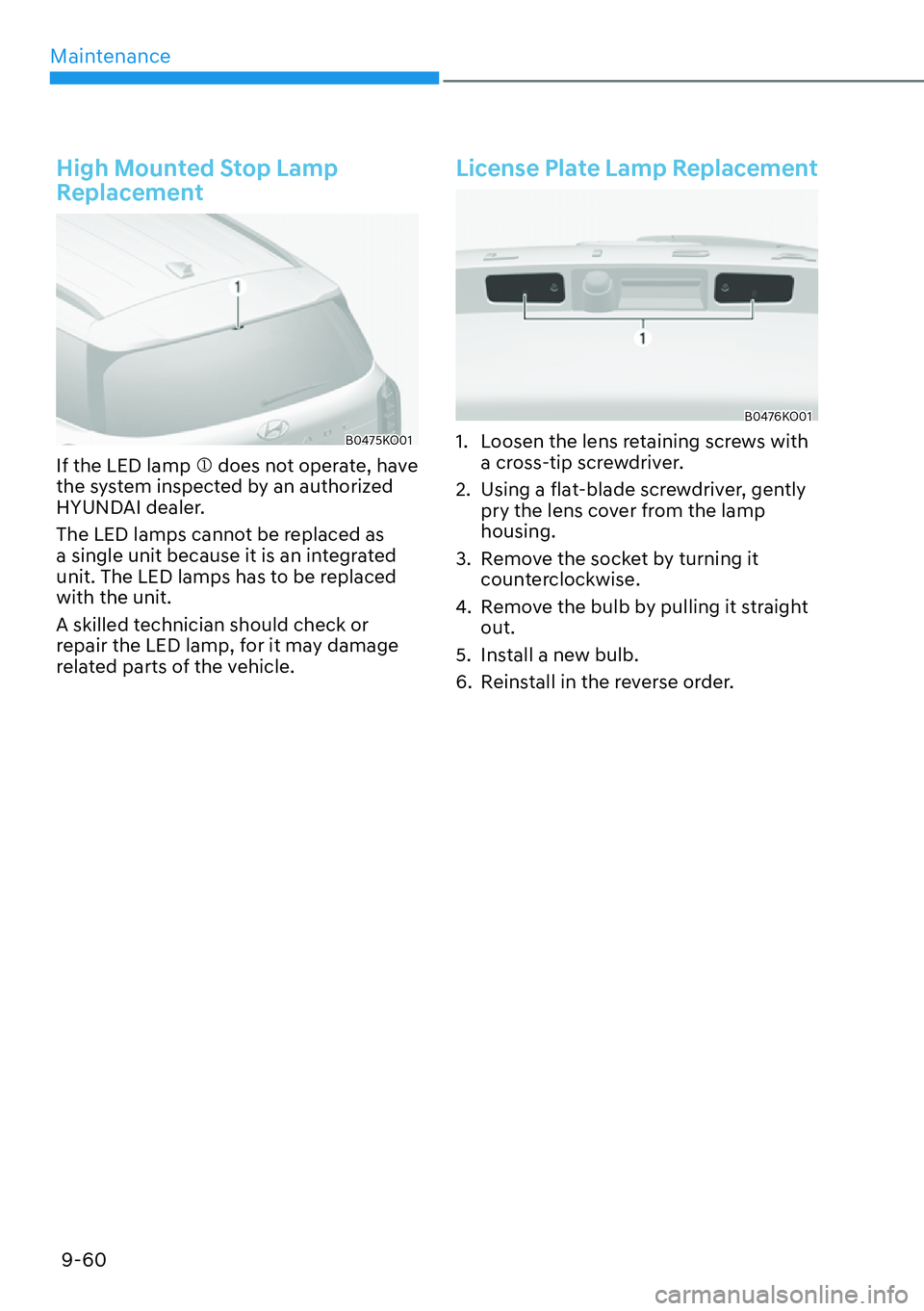

High Mounted Stop Lamp
Replacement
B0475KO01
If the LED lamp �M does not operate, have
the system inspected by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a s

Page 648 of 661

HYUNDAI PALISADE 2023  Owners Manual 09
9-61

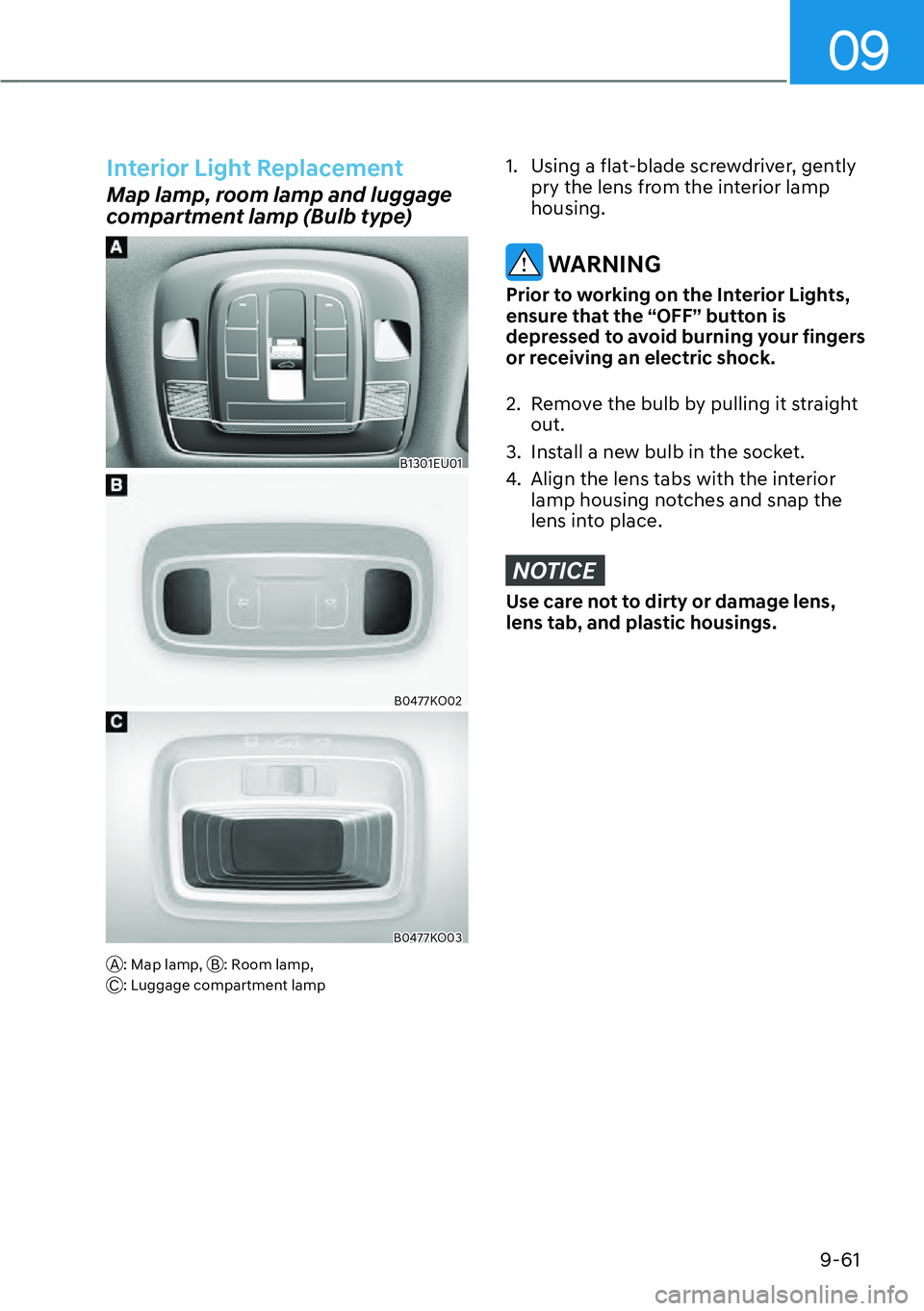

Interior Light Replacement
Map lamp, room lamp and luggage
compartment lamp (Bulb type)
B1301EU01
B0477KO02
B0477KO03
A: Map lamp, B: Room lamp,
C: Luggage compartment lamp
1.  Using a flat-

Page 649 of 661

HYUNDAI PALISADE 2023  Owners Manual Maintenance9-62

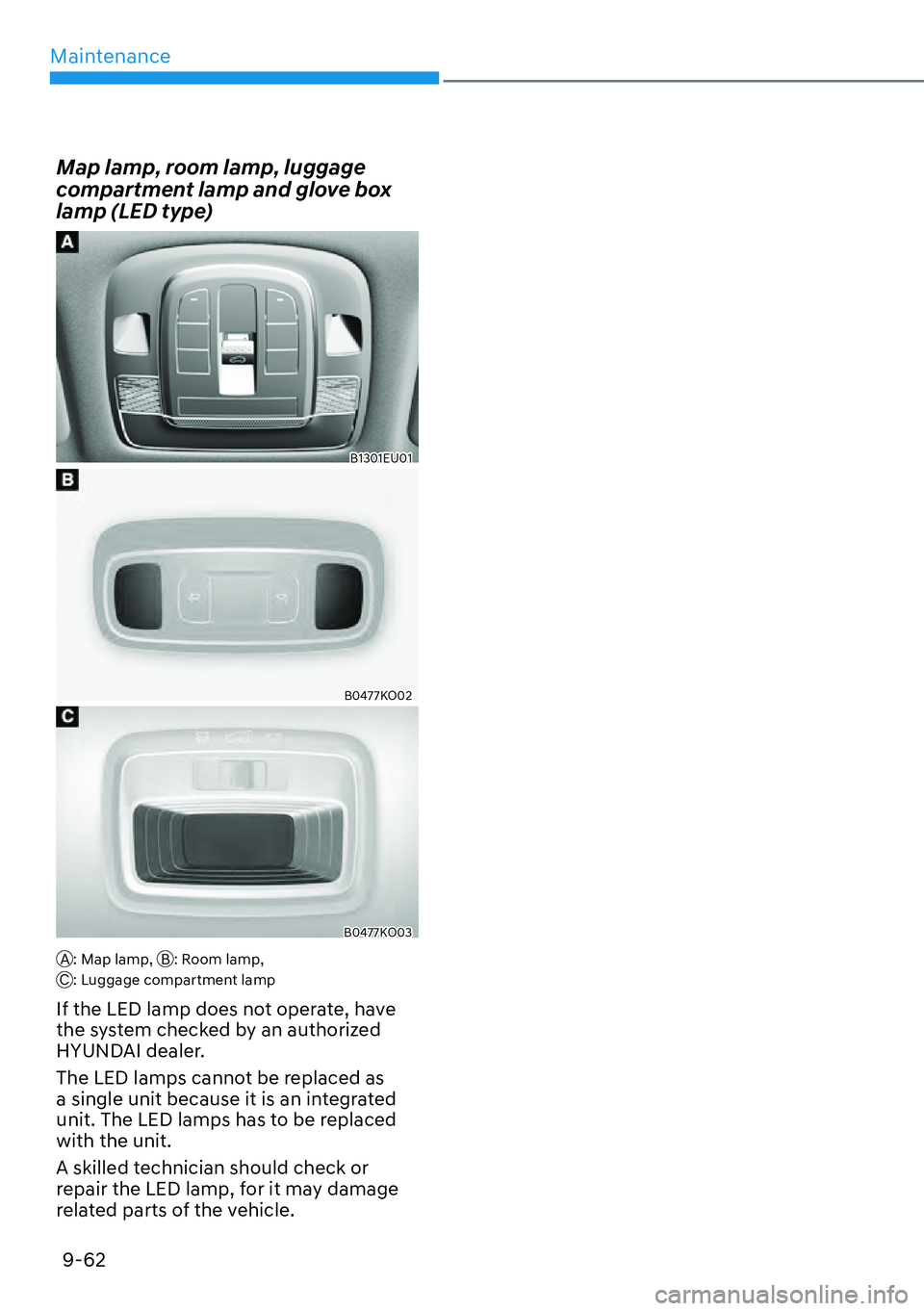

Map lamp, room lamp, luggage
compartment lamp and glove box
lamp (LED type)
B1301EU01
B0477KO02
B0477KO03
A: Map lamp,  B: Room lamp,
C: Luggage compartment lamp
If the LED lamp does

Page 650 of 661

HYUNDAI PALISADE 2023  Owners Manual 09
9-63
Exterior CareNOTICE
If you park your vehicle near a stainless
steel sign or glass facade building, the
vehicle’s exterior plastic parts such
as a bumper, spoiler, garnish, lamp or
side v
