Hyundai Santa Fe 2007 Owner's Manual

1
FEATURES OF YOUR HYUNDAI
129
FEATURES OF YOUR HYUNDAI
129129129129
OCM052111

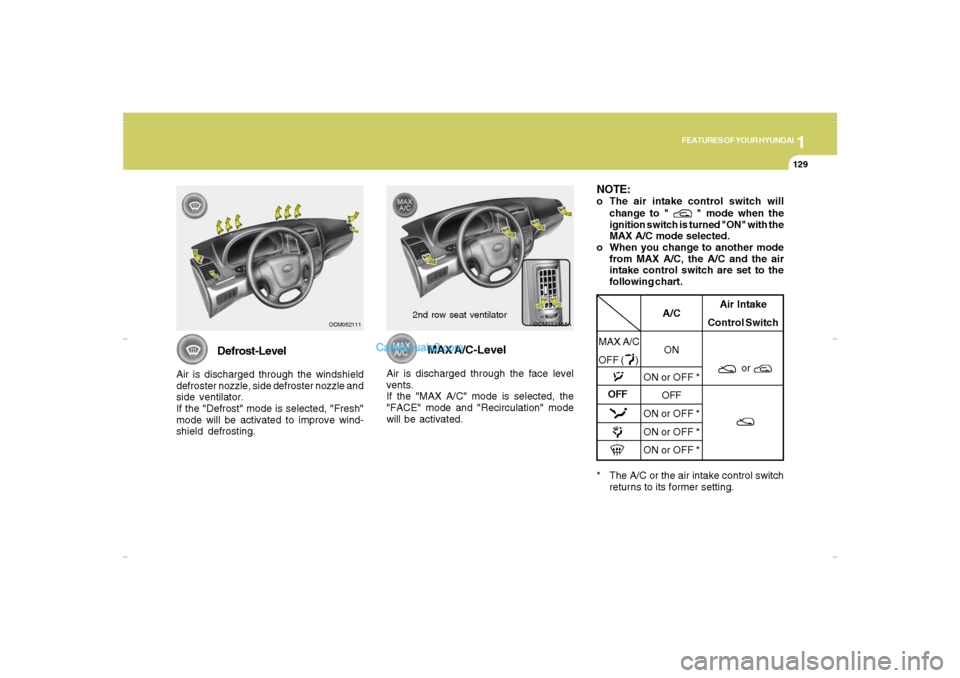

Defrost-Level
Air is discharged through the windshield
defroster nozzle, side defroster nozzle and
side ventilator.
If the "Defrost" mode is selected, "Fresh"
mode will be activated to improve wind-
shield defrosting.
OCM052105A
MAX A/C-Level
Air is discharged through the face level
vents.
If the "MAX A/C" mode is selected, the
"FACE" mode and "Recirculation" mode
will be activated.
* The A/C or the air intake control switch
returns to its former setting.
A/C
ON
ON or OFF *
OFF
ON or OFF *
ON or OFF *
ON or OFF *Air Intake
Control Switch
or
OFFNOTE:o The air intake control switch will
change to "
" mode when the
ignition switch is turned "ON" with the
MAX A/C mode selected.
o When you change to another mode
from MAX A/C, the A/C and the air
intake control switch are set to the
following chart.
MAX A/C
OFF ( )
2nd row seat ventilator
Cmhma-1b.p653/20/2006, 4:59 PM 129

1FEATURES OF YOUR HYUNDAI
130

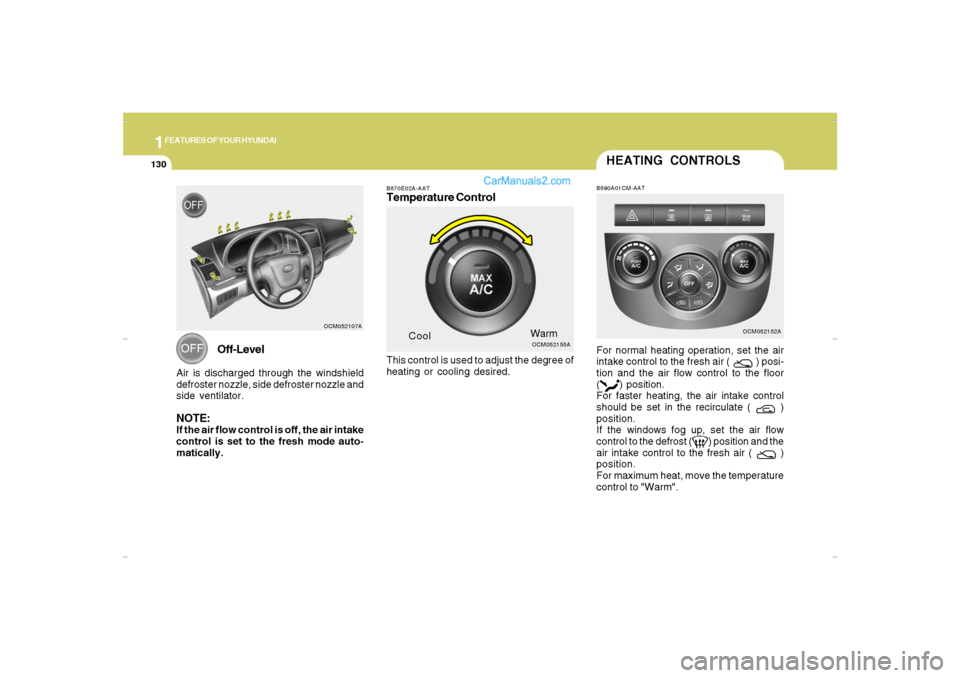

OCM052155A
CoolWarm
B670E02A-AATTemperature ControlThis control is used to adjust the degree of
heating or cooling desired.
OCM052107A
Off-Level
Air is discharged through the windshield
defroster nozzle, side defroster nozzle and
side ventilator.NOTE:If the air flow control is off, the air intake
control is set to the fresh mode auto-
matically.
HEATING CONTROLSB690A01CM-AATFor normal heating operation, set the air
intake control to the fresh air (
) posi-
tion and the air flow control to the floor
(
) position.
For faster heating, the air intake control
should be set in the recirculate (
)
position.
If the windows fog up, set the air flow
control to the defrost ( ) position and the
air intake control to the fresh air ( )
position.
For maximum heat, move the temperature
control to "Warm".
OCM052152A
Cmhma-1b.p653/20/2006, 4:59 PM 130

1
FEATURES OF YOUR HYUNDAI
131
FEATURES OF YOUR HYUNDAI
131131131131

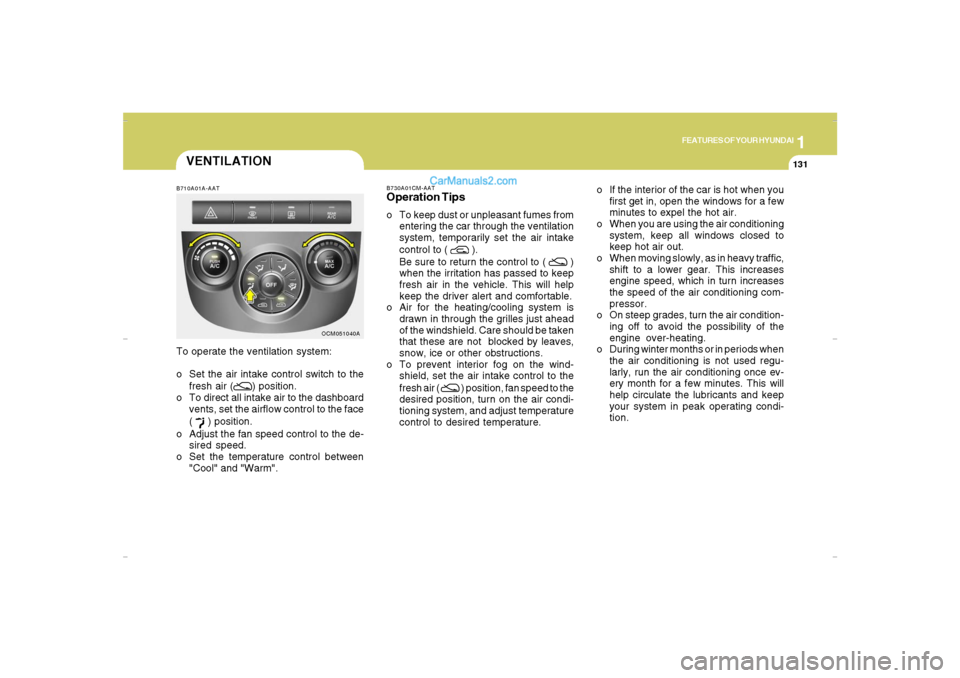

B730A01CM-AATOperation Tipso To keep dust or unpleasant fumes from
entering the car through the ventilation
system, temporarily set the air intake
control to (
).
Be sure to return the control to (
)
when the irritation has passed to keep
fresh air in the vehicle. This will help
keep the driver alert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles just ahead
of the windshield. Care should be taken
that these are not blocked by leaves,
snow, ice or other obstructions.
o To prevent interior fog on the wind-
shield, set the air intake control to the
fresh air (
) position, fan speed to the
desired position, turn on the air condi-
tioning system, and adjust temperature
control to desired temperature.
OCM051040A B710A01A-AAT
To operate the ventilation system:
o Set the air intake control switch to the
fresh air (
) position.
o To direct all intake air to the dashboard
vents, set the airflow control to the face
(
) position.
o Adjust the fan speed control to the de-
sired speed.
o Set the temperature control between
"Cool" and "Warm".
VENTILATION
o If the interior of the car is hot when you
first get in, open the windows for a few
minutes to expel the hot air.
o When you are using the air conditioning
system, keep all windows closed to
keep hot air out.
o When moving slowly, as in heavy traffic,
shift to a lower gear. This increases
engine speed, which in turn increases
the speed of the air conditioning com-
pressor.
o On steep grades, turn the air condition-
ing off to avoid the possibility of the
engine over-heating.
o During winter months or in periods when
the air conditioning is not used regu-
larly, run the air conditioning once ev-
ery month for a few minutes. This will
help circulate the lubricants and keep
your system in peak operating condi-
tion.
Cmhma-1b.p653/20/2006, 4:59 PM 131

1FEATURES OF YOUR HYUNDAI
132
B740C01S-AATDehumidified HeatingFor dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The
air conditioning indicator light should
come on at the same time.
o Set the air intake control to the "Fresh"
mode (
).
o Set the air flow control to the "Face" (
).
o Adjust the fan control to the desired
speed.
o For more rapid action, set the fan at one
of the higher speeds.
o Adjust the temperature control to pro-
vide the desired amount of warmth.

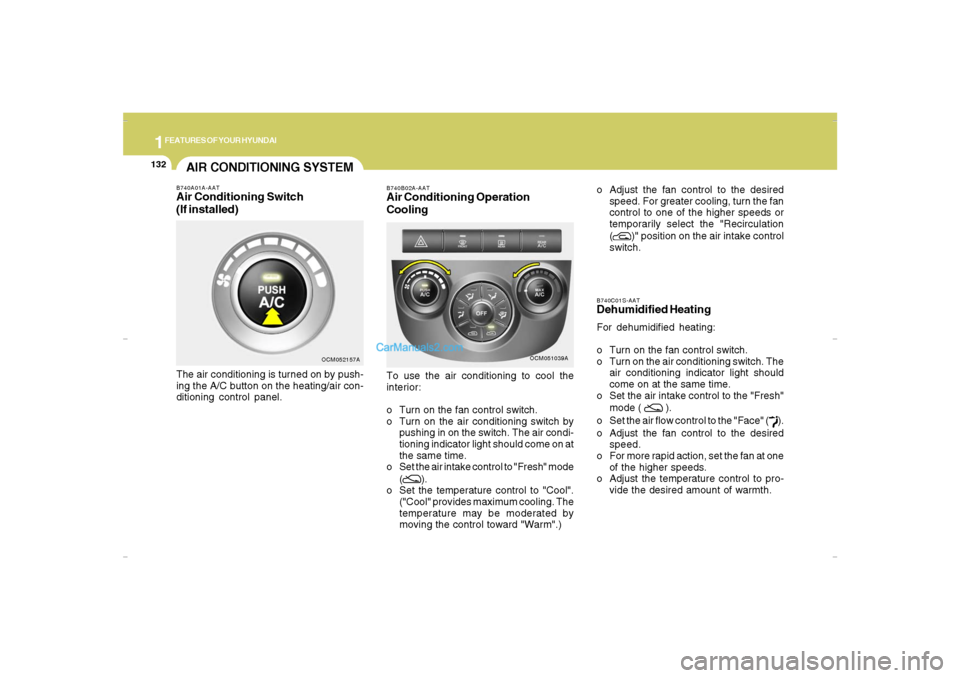

AIR CONDITIONING SYSTEMB740A01A-AATAir Conditioning Switch
(If installed)The air conditioning is turned on by push-
ing the A/C button on the heating/air con-
ditioning control panel.
OCM052157A
OCM051039A B740B02A-AAT
Air Conditioning Operation
CoolingTo use the air conditioning to cool the
interior:
o Turn on the fan control switch.
o Turn on the air conditioning switch by
pushing in on the switch. The air condi-
tioning indicator light should come on at
the same time.
o Set the air intake control to "Fresh" mode
(
).
o Set the temperature control to "Cool".
("Cool" provides maximum cooling. The
temperature may be moderated by
moving the control toward "Warm".)o Adjust the fan control to the desired
speed. For greater cooling, turn the fan
control to one of the higher speeds or
temporarily select the "Recirculation
(
)" position on the air intake control
switch.
Cmhma-1b.p653/20/2006, 4:59 PM 132

1
FEATURES OF YOUR HYUNDAI
133
FEATURES OF YOUR HYUNDAI
133133133133

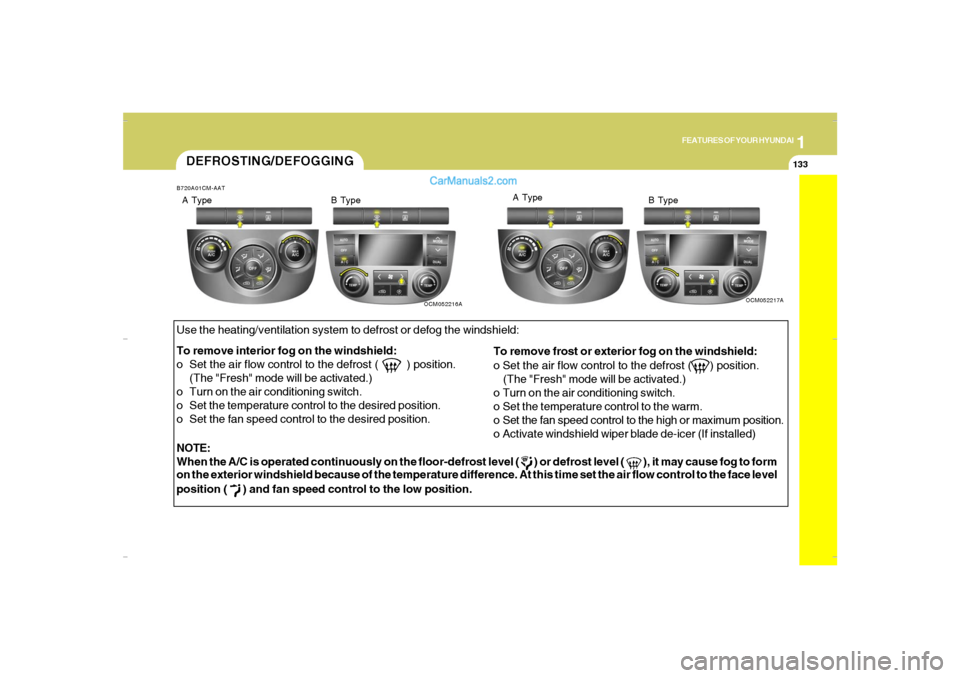

DEFROSTING/DEFOGGINGNOTE:
When the A/C is operated continuously on the floor-defrost level (
) or defrost level (
), it may cause fog to form
on the exterior windshield because of the temperature difference. At this time set the air flow control to the face level
position (
) and fan speed control to the low position. To remove interior fog on the windshield:
o Set the air flow control to the defrost ( ) position.
(The "Fresh" mode will be activated.)
o Turn on the air conditioning switch.
o Set the temperature control to the desired position.
o Set the fan speed control to the desired position.To remove frost or exterior fog on the windshield:
o Set the air flow control to the defrost ( ) position.
(The "Fresh" mode will be activated.)
o Turn on the air conditioning switch.
o Set the temperature control to the warm.
o Set the fan speed control to the high or maximum position.
o Activate windshield wiper blade de-icer (If installed)
B720A01CM-AAT
OCM052216AOCM052217A
Use the heating/ventilation system to defrost or defog the windshield:A Type B TypeA Type
B Type
Cmhma-1b.p653/20/2006, 4:59 PM 133

1FEATURES OF YOUR HYUNDAI
134

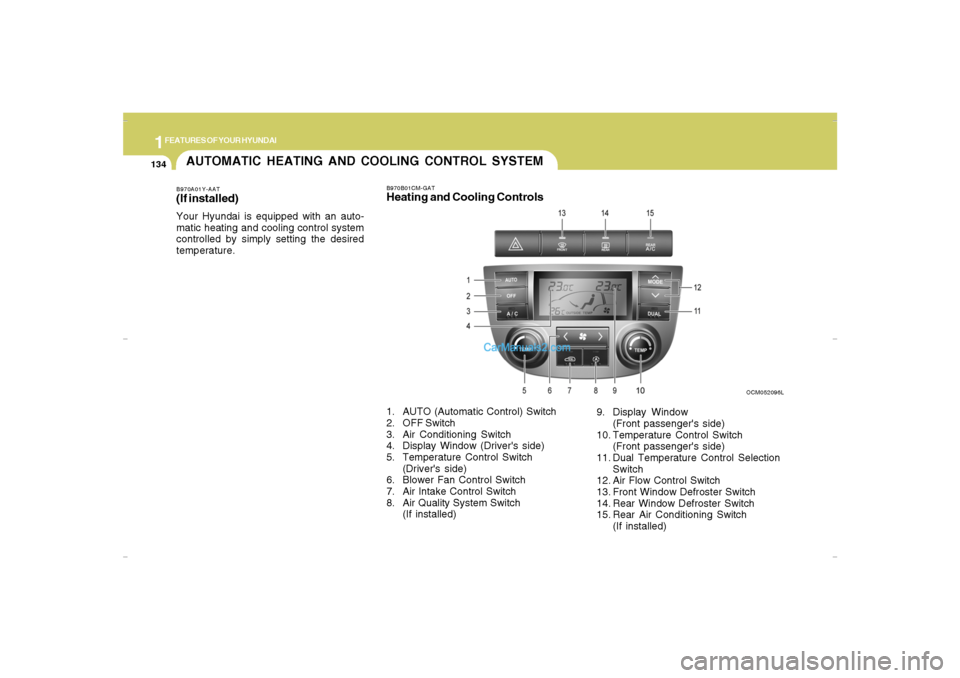

AUTOMATIC HEATING AND COOLING CONTROL SYSTEMB970A01Y-AAT(If installed)Your Hyundai is equipped with an auto-
matic heating and cooling control system
controlled by simply setting the desired
temperature.
B970B01CM-GATHeating and Cooling Controls
OCM052096L
1. AUTO (Automatic Control) Switch
2. OFF Switch
3. Air Conditioning Switch
4. Display Window (Driver's side)
5. Temperature Control Switch
(Driver's side)
6. Blower Fan Control Switch
7. Air Intake Control Switch
8. Air Quality System Switch
(If installed)9. Display Window
(Front passenger's side)
10. Temperature Control Switch
(Front passenger's side)
11. Dual Temperature Control Selection
Switch
12. Air Flow Control Switch
13. Front Window Defroster Switch
14. Rear Window Defroster Switch
15. Rear Air Conditioning Switch
(If installed)
Cmhma-1b.p653/20/2006, 4:59 PM 134

1
FEATURES OF YOUR HYUNDAI
135
FEATURES OF YOUR HYUNDAI
135135135135

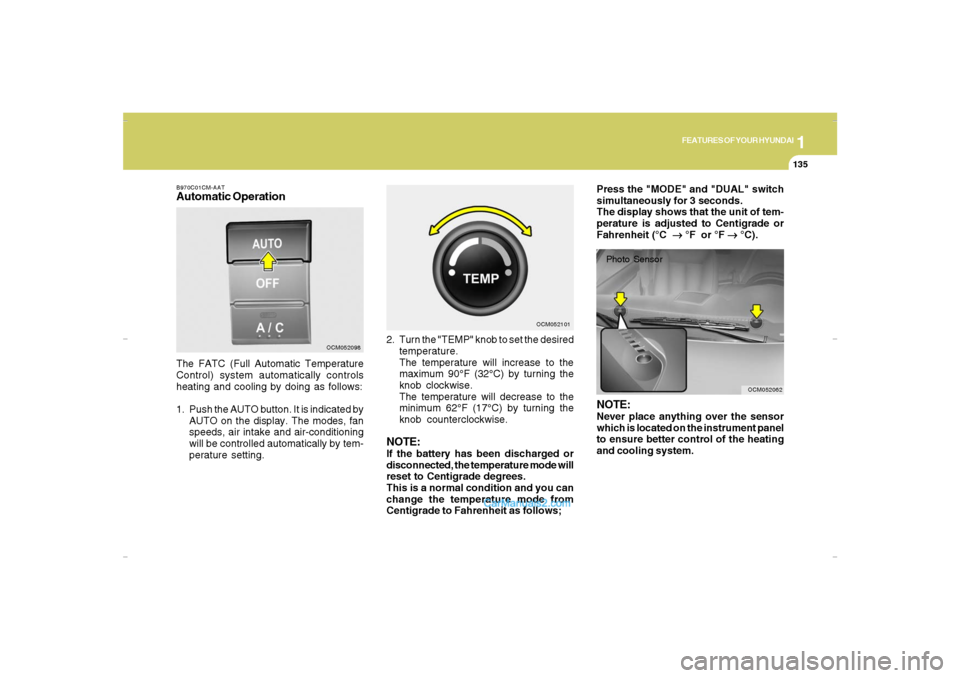

B970C01CM-AATAutomatic OperationThe FATC (Full Automatic Temperature
Control) system automatically controls
heating and cooling by doing as follows:
1. Push the AUTO button. It is indicated by
AUTO on the display. The modes, fan
speeds, air intake and air-conditioning
will be controlled automatically by tem-
perature setting.2. Turn the "TEMP" knob to set the desired
temperature.
The temperature will increase to the
maximum 90°F (32°C) by turning the
knob clockwise.
The temperature will decrease to the
minimum 62°F (17°C) by turning the
knob counterclockwise.
NOTE:If the battery has been discharged or
disconnected, the temperature mode will
reset to Centigrade degrees.
This is a normal condition and you can
change the temperature mode from
Centigrade to Fahrenheit as follows;
OCM052098OCM052101
OCM052062
Photo SensorPress the "MODE" and "DUAL" switch
simultaneously for 3 seconds.
The display shows that the unit of tem-
perature is adjusted to Centigrade or
Fahrenheit (°C
→ →→ →
→ °F or °F
→ →→ →
→ °C).NOTE:Never place anything over the sensor
which is located on the instrument panel
to ensure better control of the heating
and cooling system.
Cmhma-1b.p653/20/2006, 4:59 PM 135

1FEATURES OF YOUR HYUNDAI
136

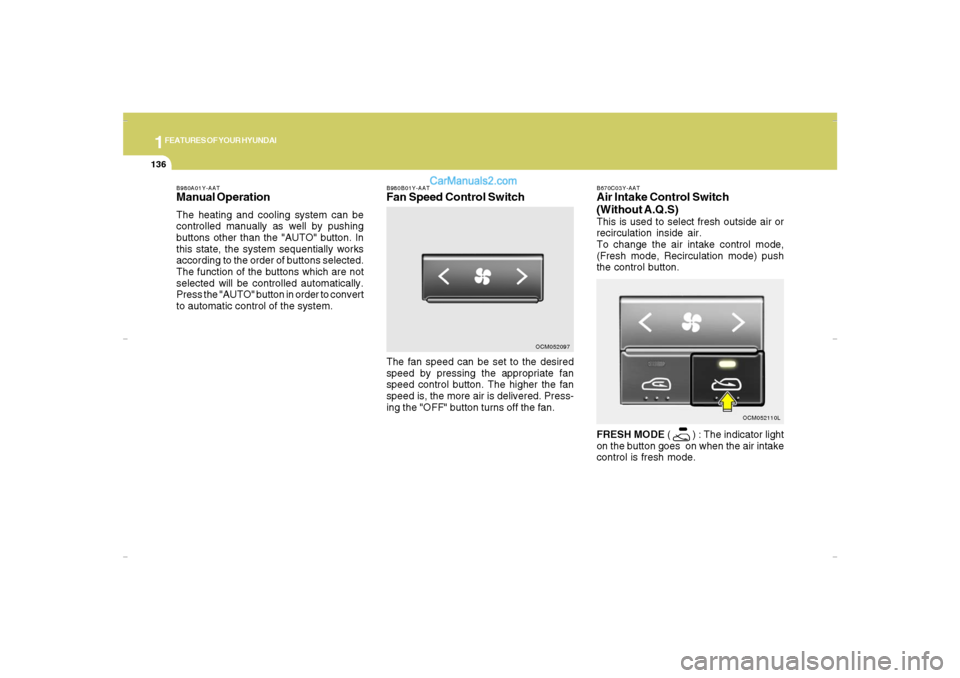

B980B01Y-AATFan Speed Control SwitchThe fan speed can be set to the desired
speed by pressing the appropriate fan
speed control button. The higher the fan
speed is, the more air is delivered. Press-
ing the "OFF" button turns off the fan.
OCM052097 B980A01Y-AAT
Manual OperationThe heating and cooling system can be
controlled manually as well by pushing
buttons other than the "AUTO" button. In
this state, the system sequentially works
according to the order of buttons selected.
The function of the buttons which are not
selected will be controlled automatically.
Press the "AUTO" button in order to convert
to automatic control of the system.
B670C03Y-AATAir Intake Control Switch
(Without A.Q.S)This is used to select fresh outside air or
recirculation inside air.
To change the air intake control mode,
(Fresh mode, Recirculation mode) push
the control button.
FRESH MODE (
) : The indicator light
on the button goes on when the air intake
control is fresh mode.
OCM052110L
Cmhma-1b.p653/20/2006, 4:59 PM 136

1
FEATURES OF YOUR HYUNDAI
137
FEATURES OF YOUR HYUNDAI
137137137137

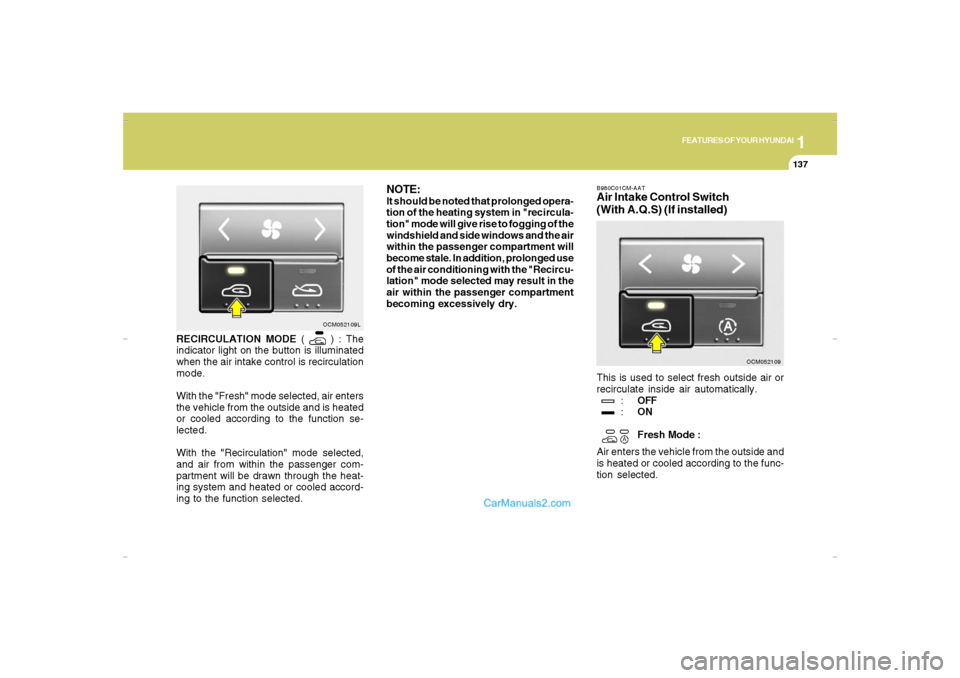

RECIRCULATION MODE (
) : The
indicator light on the button is illuminated
when the air intake control is recirculation
mode.
With the "Fresh" mode selected, air enters
the vehicle from the outside and is heated
or cooled according to the function se-
lected.
With the "Recirculation" mode selected,
and air from within the passenger com-
partment will be drawn through the heat-
ing system and heated or cooled accord-
ing to the function selected.
B980C01CM-AATAir Intake Control Switch
(With A.Q.S) (If installed)This is used to select fresh outside air or
recirculate inside air automatically.
:OFF
:ON
Fresh Mode :
Air enters the vehicle from the outside and
is heated or cooled according to the func-
tion selected.
OCM052109
OCM052109L
NOTE:It should be noted that prolonged opera-
tion of the heating system in "recircula-
tion" mode will give rise to fogging of the
windshield and side windows and the air
within the passenger compartment will
become stale. In addition, prolonged use
of the air conditioning with the "Recircu-
lation" mode selected may result in the
air within the passenger compartment
becoming excessively dry.
Cmhma-1b.p653/20/2006, 4:59 PM 137

1FEATURES OF YOUR HYUNDAI
138

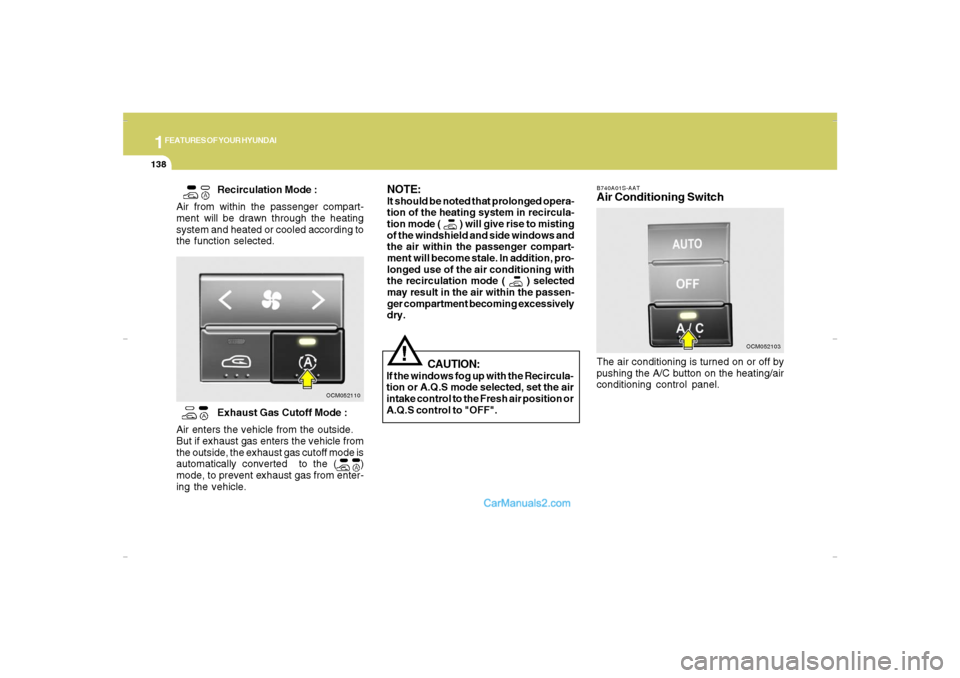

Exhaust Gas Cutoff Mode :
Air enters the vehicle from the outside.
But if exhaust gas enters the vehicle from
the outside, the exhaust gas cutoff mode is
automatically converted to the (
)
mode, to prevent exhaust gas from enter-
ing the vehicle.
OCM052110
Recirculation Mode :
Air from within the passenger compart-
ment will be drawn through the heating
system and heated or cooled according to
the function selected.
!
NOTE:It should be noted that prolonged opera-
tion of the heating system in recircula-
tion mode (
) will give rise to misting
of the windshield and side windows and
the air within the passenger compart-
ment will become stale. In addition, pro-
longed use of the air conditioning with
the recirculation mode (
) selected
may result in the air within the passen-
ger compartment becoming excessively
dry.
CAUTION:
If the windows fog up with the Recircula-
tion or A.Q.S mode selected, set the air
intake control to the Fresh air position or
A.Q.S control to "OFF".
B740A01S-AATAir Conditioning SwitchThe air conditioning is turned on or off by
pushing the A/C button on the heating/air
conditioning control panel.
OCM052103
Cmhma-1b.p653/20/2006, 4:59 PM 138
