FEATURES OF YOUR HYUNDAI
117
B770B01CM-DAT Rear Ventilator (If Installed) The rear ventilators are located in quar- ter trim. To change the direction of theair flow, move the knob in the centre of the vent side to side. The blower fan speed may be controlled by setting thecontrol lever to the desired position.
OCM052114

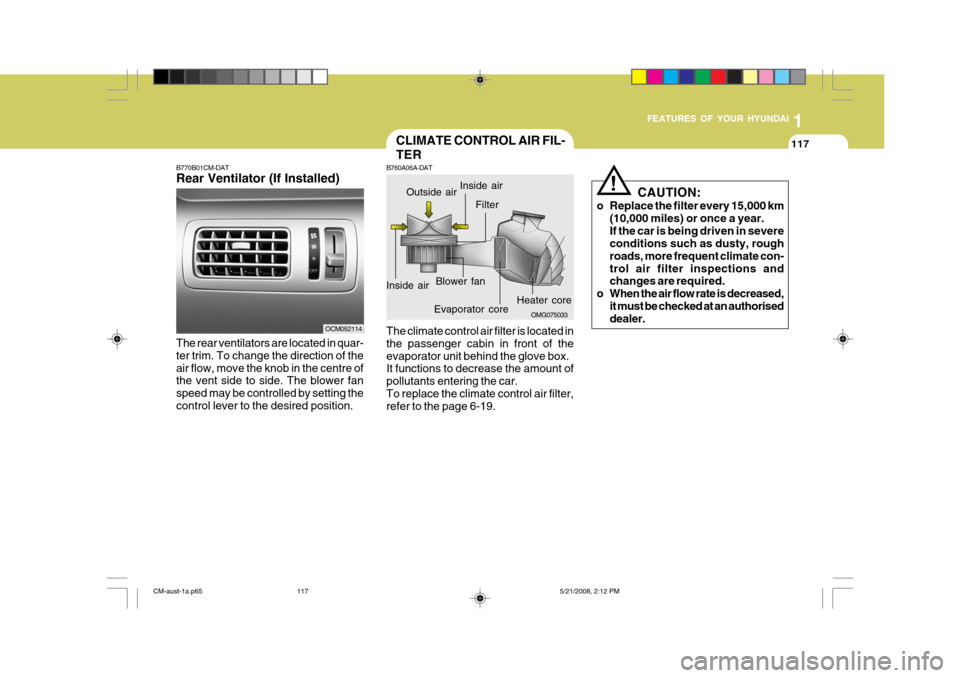

CLIMATE CONTROL AIR FIL- TER
B760A06A-DAT The climate control air filter is located in the passenger cabin in front of theevaporator unit behind the glove box. It functions to decrease the amount of pollutants entering the car.To replace the climate control air filter, refer to the page 6-19.
OMG075033
Inside air
Blower fan
Evaporator core Filter
Outside air
Heater core
Inside airCAUTION:
o Replace the filter every 15,000 km (10,000 miles) or once a year. If the car is being driven in severe conditions such as dusty, rough roads, more frequent climate con-trol air filter inspections and changes are required.
o When the air flow rate is decreased,
it must be checked at an authoriseddealer.!
CM-aust-1a.p65 5/21/2008, 2:12 PM
117

6
DO-IT-YOURSELF MAINTENANCE

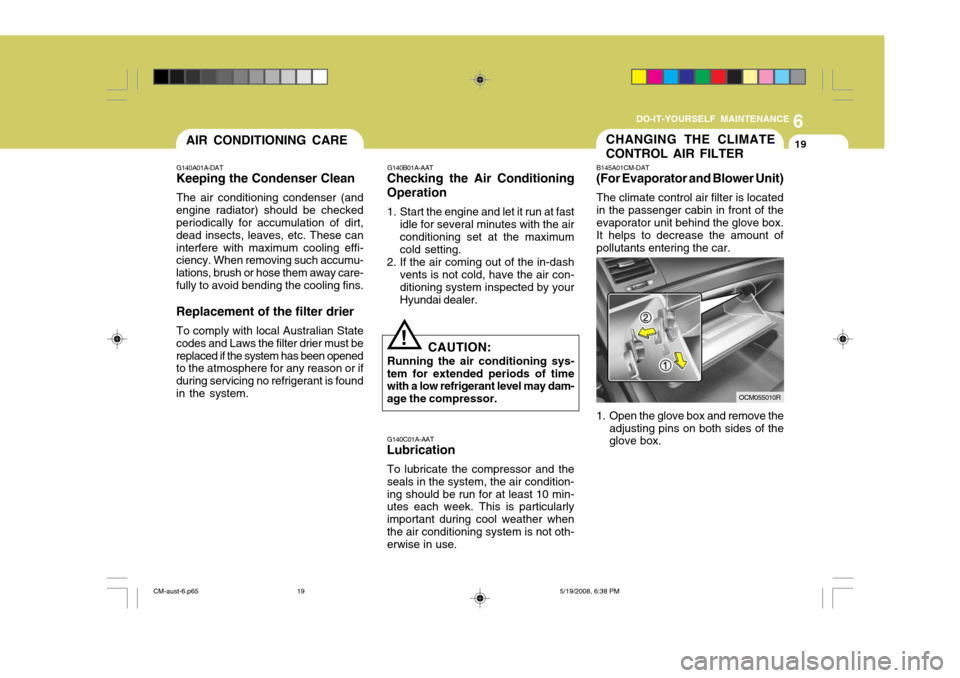

19CHANGING THE CLIMATE CONTROL AIR FILTER
B145A01CM-DAT
(For Evaporator and Blower Unit)
The climate control air filter is located in the passenger cabin in front of the evaporator unit behind the glove box. It helps to decrease the amount of pollutants entering the car.
1. Open the glove box and remove the adjusting pins on both sides of the glove box.
G140C01A-AAT
Lubrication
To lubricate the compressor and the seals in the system, the air condition-ing should be run for at least 10 min- utes each week. This is particularly important during cool weather whenthe air conditioning system is not oth- erwise in use.
!
G140B01A-AAT
Checking the Air Conditioning Operation
1. Start the engine and let it run at fast
idle for several minutes with the air conditioning set at the maximum cold setting.
2. If the air coming out of the in-dash vents is not cold, have the air con-ditioning system inspected by yourHyundai dealer.
CAUTION:
Running the air conditioning sys-
tem for extended periods of time with a low refrigerant level may dam- age the compressor.
OCM055010R
AIR CONDITIONING CARE
G140A01A-DAT
Keeping the Condenser Clean
The air conditioning condenser (and
engine radiator) should be checked periodically for accumulation of dirt, dead insects, leaves, etc. These caninterfere with maximum cooling effi- ciency. When removing such accumu- lations, brush or hose them away care-fully to avoid bending the cooling fins. Replacement of the filter drier
To comply with local Australian State
codes and Laws the filter drier must be replaced if the system has been opened to the atmosphere for any reason or if during servicing no refrigerant is foundin the system.
