Hyundai Santa Fe 2012 Owner's Manual

Maintenance
54
7

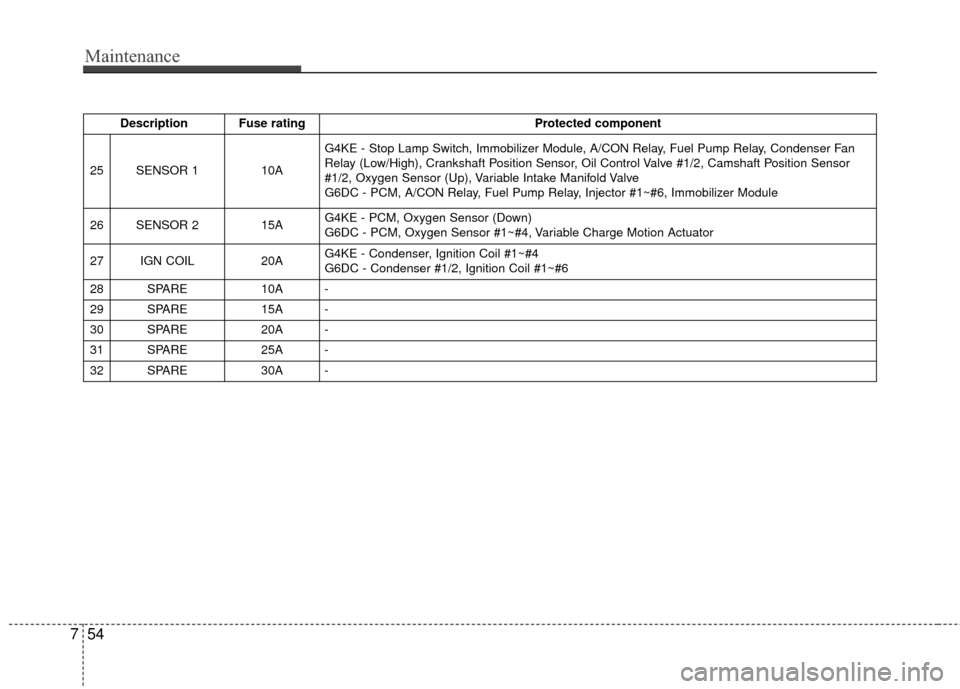

Description Fuse rating Protected component
25 SENSOR 1 10A G4KE - Stop Lamp Switch, Immobilizer Module, A/CON Relay, Fuel Pump Relay, Condenser Fan
Relay (Low/High), Crankshaft Position Sensor, Oil Control Valve #1/2, Camshaft Position Sensor
#1/2, Oxygen Sensor (Up), Variable Intake Manifold Valve
G6DC - PCM, A/CON Relay, Fuel Pump Relay, Injector #1~#6, Immobilizer Module
26 SENSOR 2 15A G4KE - PCM, Oxygen Sensor (Down)
G6DC - PCM, Oxygen Sensor #1~#4, Variable Charge Motion Actuator
27 IGN COIL 20AG4KE - Condenser, Ignition Coil #1~#4
G6DC - Condenser #1/2, Ignition Coil #1~#6
28 SPARE 10A -
29 SPARE 15A -
30 SPARE 20A -
31 SPARE 25A -
32 SPARE 30A -

755
Maintenance

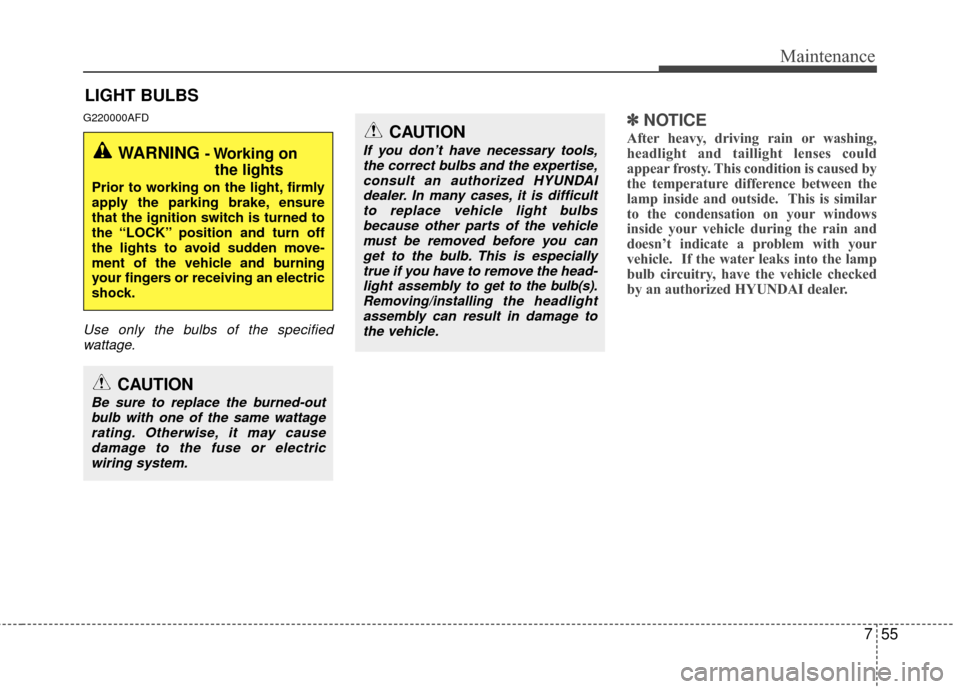

LIGHT BULBS
G220000AFD
Use only the bulbs of the specifiedwattage.
✽
✽ NOTICE
After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an authorized HYUNDAI dealer.
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned to
the “LOCK” position and turn off
the lights to avoid sudden move-
ment of the vehicle and burning
your fingers or receiving an electric
shock.
CAUTION
Be sure to replace the burned-out
bulb with one of the same wattagerating. Otherwise, it may causedamage to the fuse or electric wiring system.
CAUTION
If you don’t have necessary tools,the correct bulbs and the expertise,consult an authorized HYUNDAIdealer. In many cases, it is difficultto replace vehicle light bulbs because other parts of the vehiclemust be removed before you canget to the bulb. This is especiallytrue if you have to remove the head-light assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to the vehicle.

Maintenance
56
7

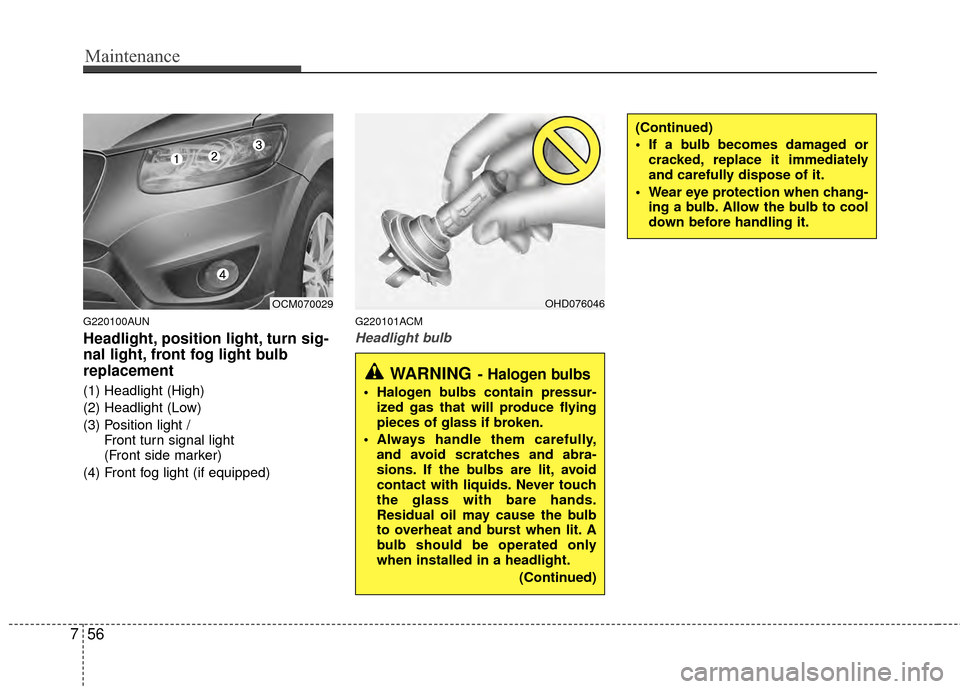

G220100AUN
Headlight, position light, turn sig-
nal light, front fog light bulb
replacement
(1) Headlight (High)
(2) Headlight (Low)
(3) Position light /
Front turn signal light
(Front side marker)
(4) Front fog light (if equipped)
G220101ACM
Headlight bulb
OCM070029OHD076046
WARNING- Halogen bulbs
Halogen bulbs contain pressur- ized gas that will produce flying
pieces of glass if broken.
Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never touch
the glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated only
when installed in a headlight.
(Continued)
(Continued)
If a bulb becomes damaged orcracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.

757
Maintenance
1. Open the hood.
2. Loosen the retaining bolts and removethe headlight assembly from the body
of the vehicle.
3. Disconnect the power connector from the back of the headlight assembly. 4. Remove the headlight bulb cover by
turning it counterclockwise.
5. Disconnect the headlight bulb socket- connector.
6. Unsnap the headlight bulb retaining wire by depressing the end and push-
ing it upward (High beam).
7. Remove the bulb from the headlight assembly. 8. Install a new headlight bulb and snap
the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb (High beam).
9. Connect the headlight bulb socket connector.
10. Install the headlight bulb cover by turning it clockwise.
11. Connect the power connector to the back of the headlight assembly.
12. Reinstall the headlight assembly to the body of the vehicle.✽ ✽NOTICE
If the headlight aiming adjustment is
necessary after the headlight assembly is
reinstalled, consult an authorized
HYUNDAI dealer.
OCM070051LOCM070050L

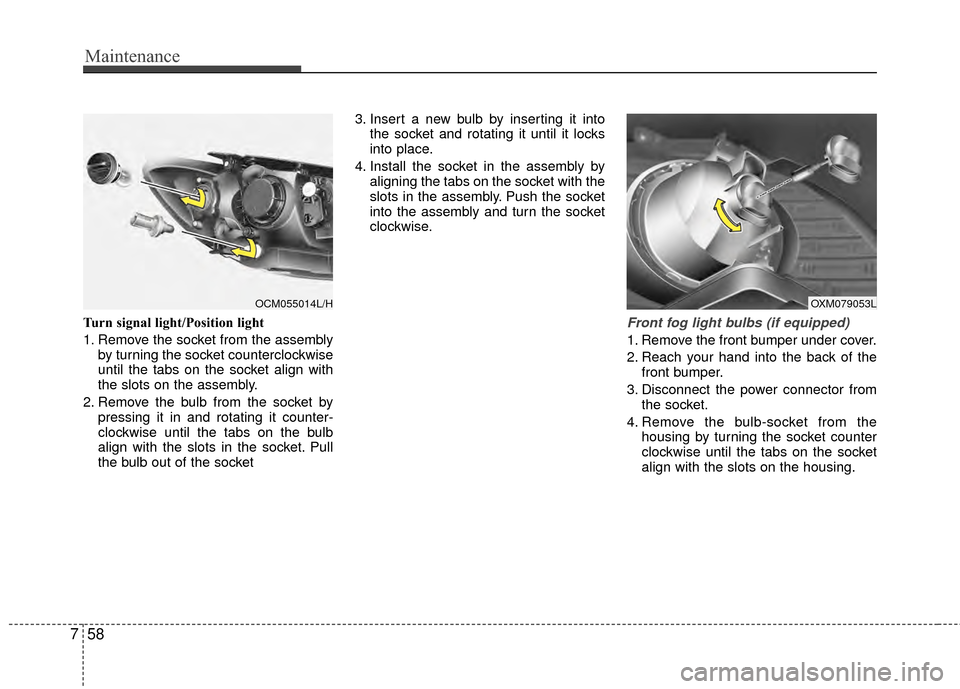

Maintenance
58
7
Turn signal light/Position light
1. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
2. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket 3. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
4. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.Front fog light bulbs (if equipped)
1. Remove the front bumper under cover.
2. Reach your hand into the back of thefront bumper.
3. Disconnect the power connector from the socket.
4. Remove the bulb-socket from the housing by turning the socket counter
clockwise until the tabs on the socket
align with the slots on the housing.
OXM079053LOCM055014L/H

759
Maintenance

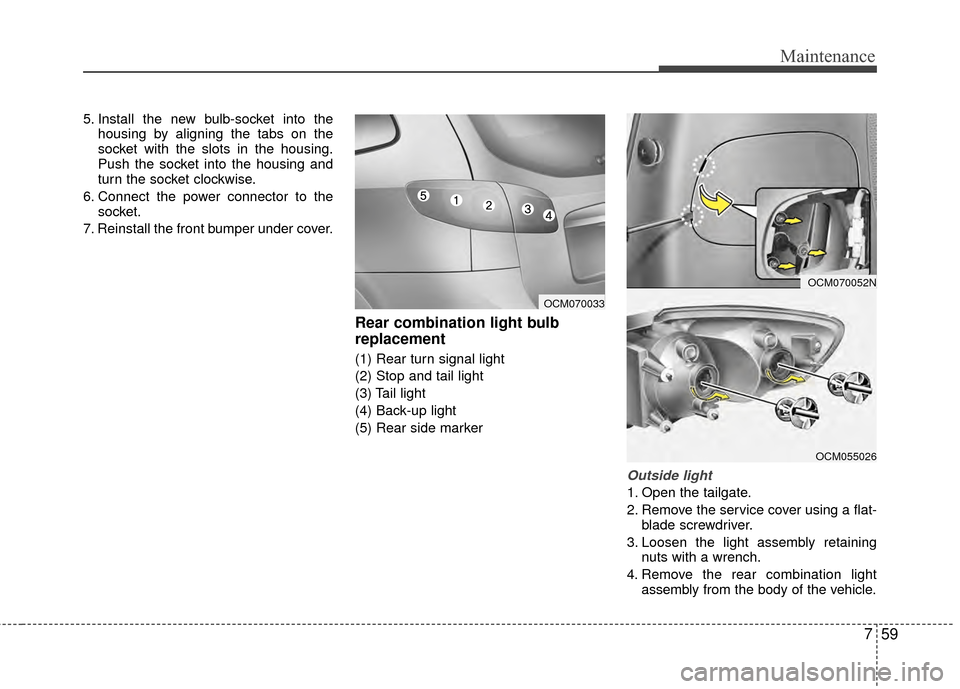

5. Install the new bulb-socket into thehousing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
6. Connect the power connector to the socket.
7. Reinstall the front bumper under cover.
Rear combination light bulb
replacement
(1) Rear turn signal light
(2) Stop and tail light
(3) Tail light
(4) Back-up light
(5) Rear side marker
Outside light
1. Open the tailgate.
2. Remove the service cover using a flat- blade screwdriver.
3. Loosen the light assembly retaining nuts with a wrench.
4. Remove the rear combination light assembly from the body of the vehicle.
OCM055026
OCM070033
OCM070052N

Maintenance
60
7

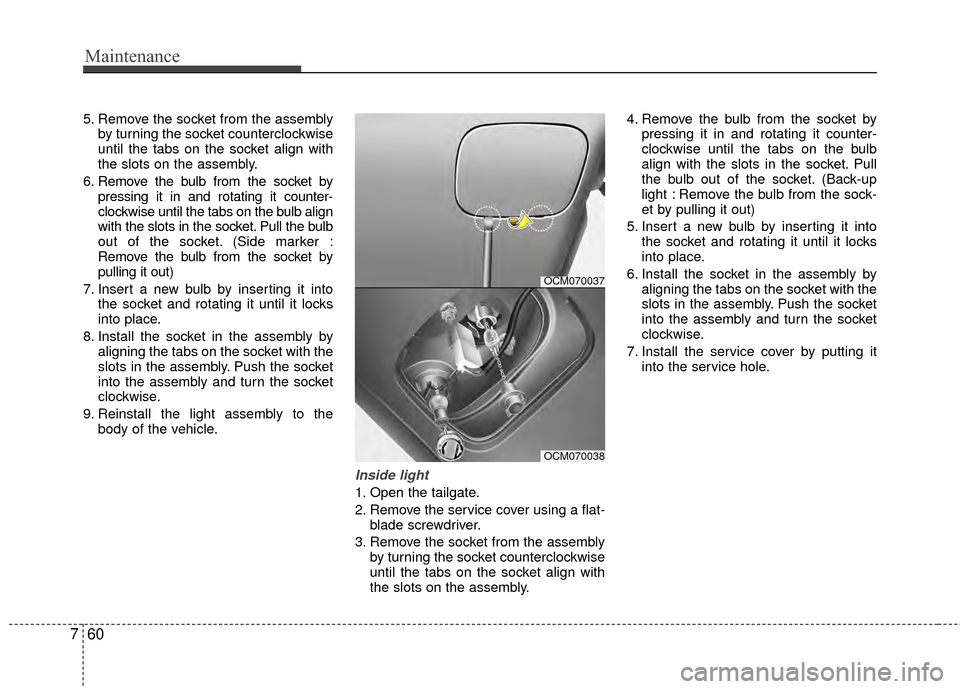

5. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb align
with the slots in the socket. Pull the bulb
out of the socket. (Side marker :
Remove the bulb from the socket by
pulling it out)
7. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
8. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
9. Reinstall the light assembly to the body of the vehicle.
Inside light
1. Open the tailgate.
2. Remove the service cover using a flat-blade screwdriver.
3. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly. 4. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket. (Back-up
light : Remove the bulb from the sock-
et by pulling it out)
5. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
7. Install the service cover by putting it into the service hole.
OCM070037
OCM070038

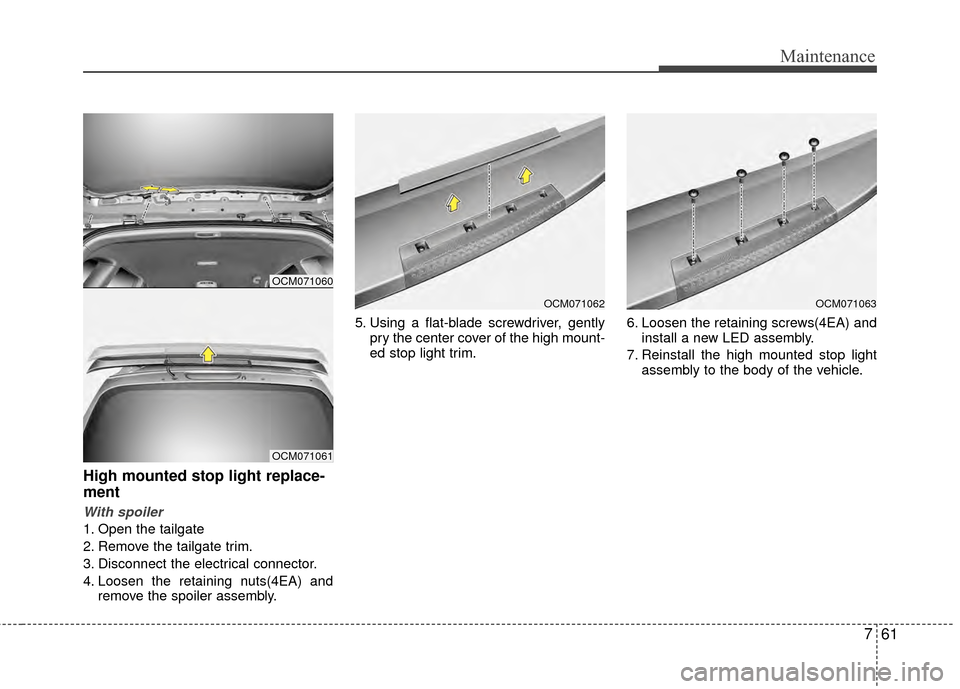

761
Maintenance
High mounted stop light replace-
ment
With spoiler
1. Open the tailgate
2. Remove the tailgate trim.
3. Disconnect the electrical connector.
4. Loosen the retaining nuts(4EA) andremove the spoiler assembly. 5. Using a flat-blade screwdriver, gently
pry the center cover of the high mount-
ed stop light trim. 6. Loosen the retaining screws(4EA) and
install a new LED assembly.
7. Reinstall the high mounted stop light assembly to the body of the vehicle.
OCM071060
OCM071061
OCM071062OCM071063

Maintenance
62
7

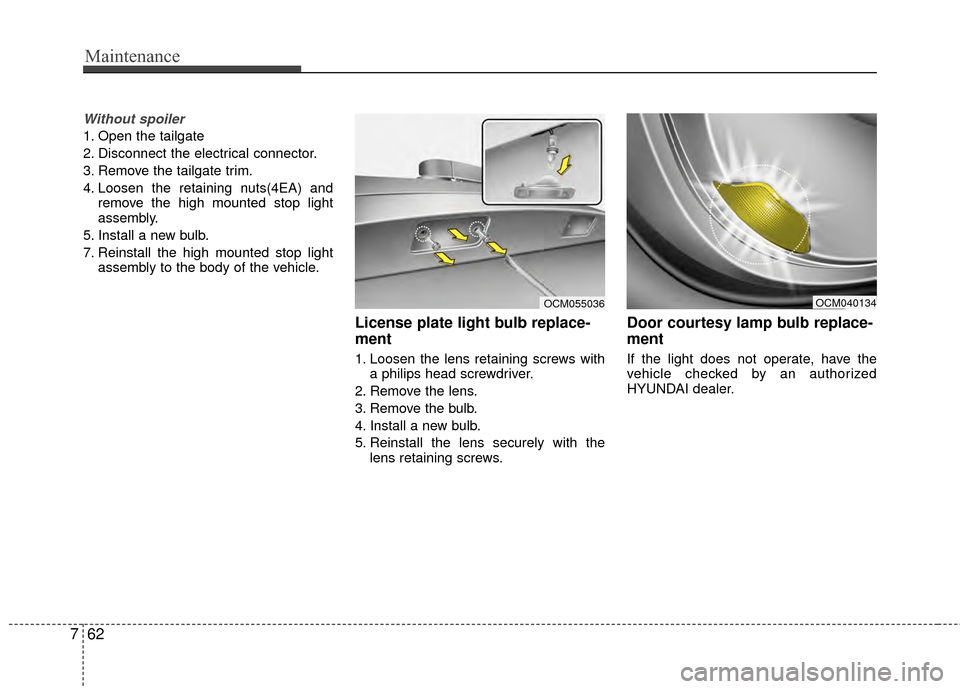

Without spoiler
1. Open the tailgate
2. Disconnect the electrical connector.
3. Remove the tailgate trim.
4. Loosen the retaining nuts(4EA) and
remove the high mounted stop light
assembly.
5. Install a new bulb.
7. Reinstall the high mounted stop light assembly to the body of the vehicle.
License plate light bulb replace-
ment
1. Loosen the lens retaining screws witha philips head screwdriver.
2. Remove the lens.
3. Remove the bulb.
4. Install a new bulb.
5. Reinstall the lens securely with the lens retaining screws.
Door courtesy lamp bulb replace-
ment
If the light does not operate, have the
vehicle checked by an authorized
HYUNDAI dealer.
OCM055036OCM040134

763
Maintenance
G220600AUN

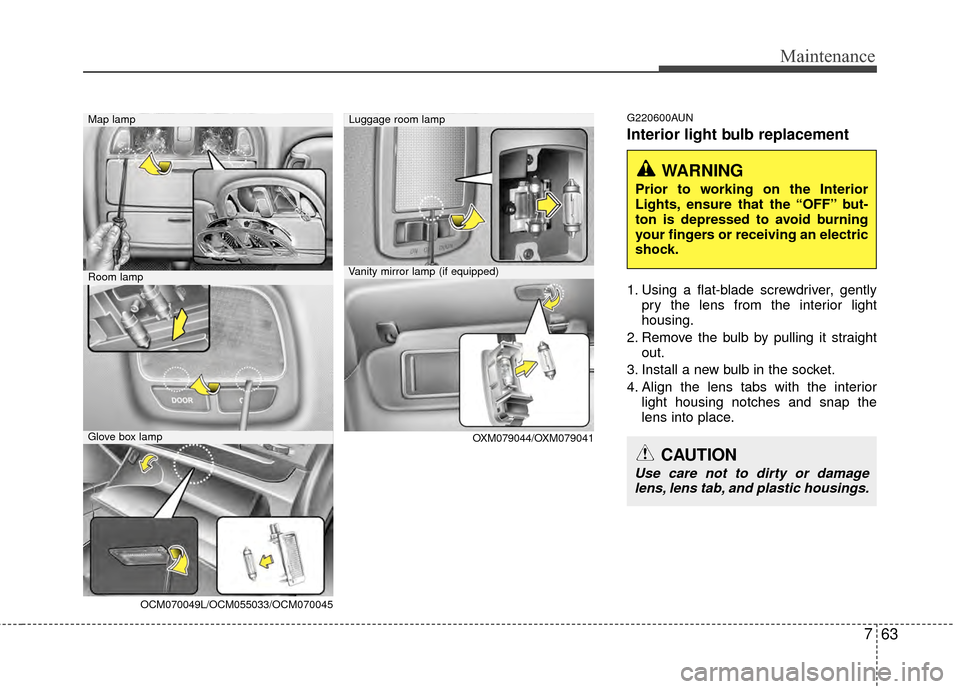

Interior light bulb replacement
1. Using a flat-blade screwdriver, gentlypry the lens from the interior light
housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap the
lens into place.
Map lamp
OXM079044/O XM079041
WARNING
Prior to working on the Interior
Lights, ensure that the “OFF” but-
ton is depressed to avoid burning
your fingers or receiving an electric
shock.
Luggage room lamp
CAUTION
Use care not to dirty or damage
lens, lens tab, and plastic housings.
Vanity mirror lamp (if equipped)Room lamp
OCM070049L/OCM055033 /OCM070045
Glove box lamp
