HYUNDAI SANTA FE HYBRID 2021 Owners Manual

04
4-29

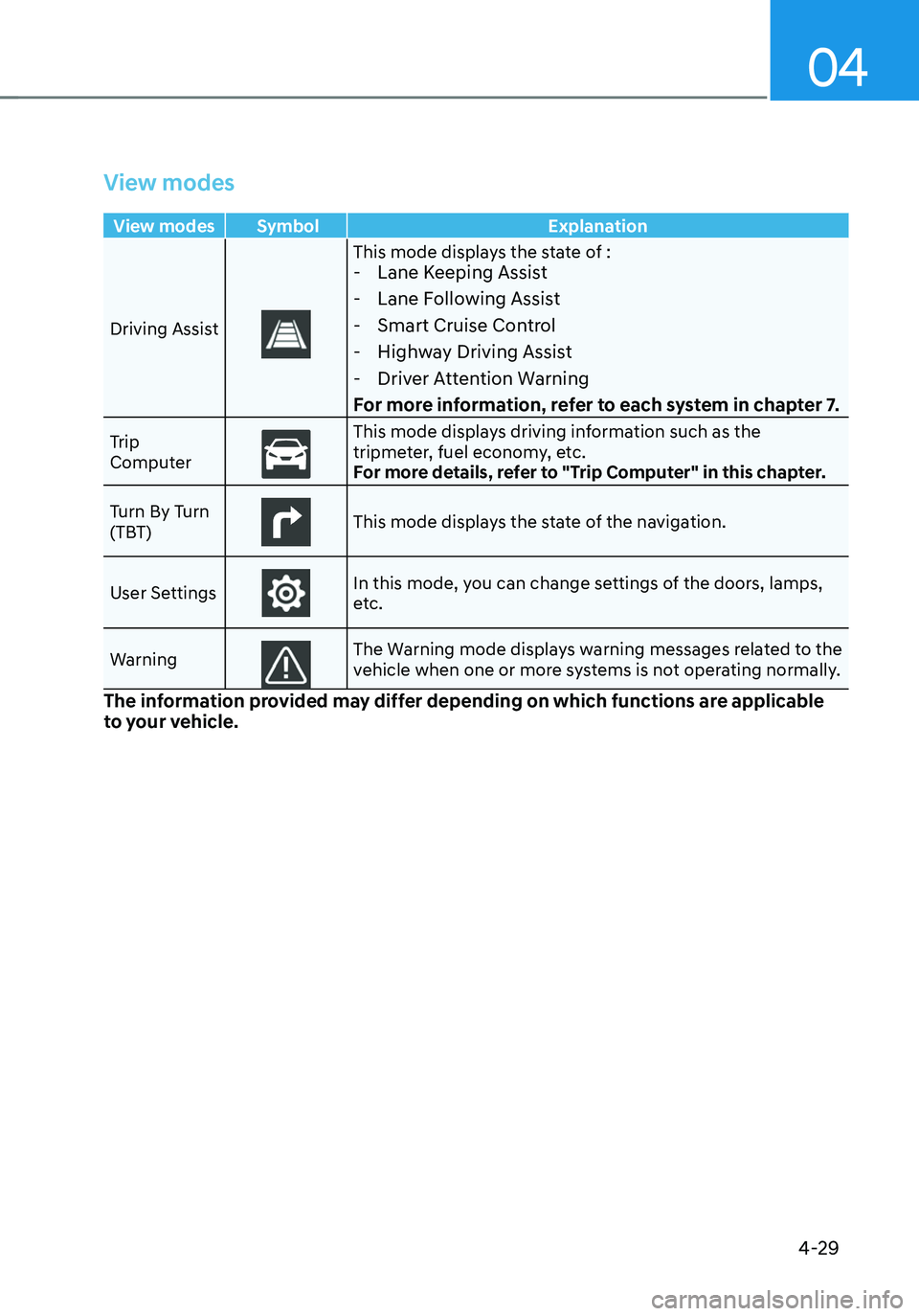

View modes
View modes Symbol Explanation
Driving Assist
This mode displays the state of : - Lane Keeping Assist
-Lane Following Assist
-Smart Cruise Control
-Highway Driving Assist
-Driver Attention Warning
For more information, refer to each system in chapter 7.
Trip
ComputerThis mode displays driving information such as the tripmeter, fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By Turn
(TBT)
This mode displays the state of the navigation.
User SettingsIn this mode, you can change settings of the doors, lamps,
etc.
Warning
The Warning mode displays warning messages related to the
vehicle when one or more systems is not operating normally.
The information provided may differ depending on which functions are applicable
to your vehicle.

4-30
Instrument cluster

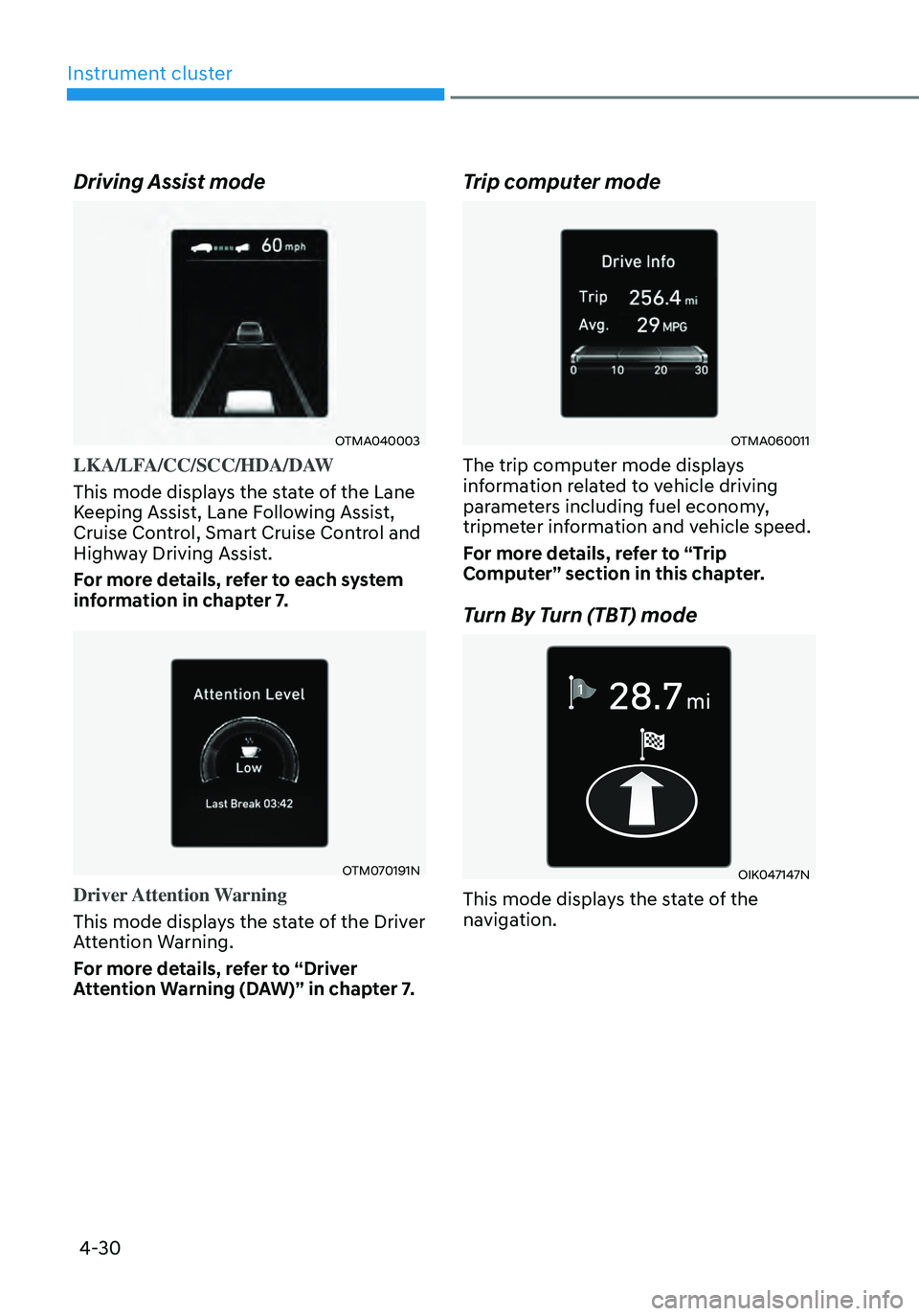

Driving Assist mode
OTMA040003
LKA/LFA/CC/SCC/HDA/DAW
This mode displays the state of the Lane
Keeping Assist, Lane Following Assist,
Cruise Control, Smart Cruise Control and
Highway Driving Assist.
For more details, refer to each system
information in chapter 7.
OTM070191N
Driver Attention Warning
This mode displays the state of the Driver
Attention Warning.
For more details, refer to “Driver
Attention Warning (DAW)” in chapter 7.
Trip computer mode
OTMA060011
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more details, refer to “Trip
Computer” section in this chapter.
Turn By Turn (TBT) mode
OIK047147N
This mode displays the state of the
navigation.

04
4-31

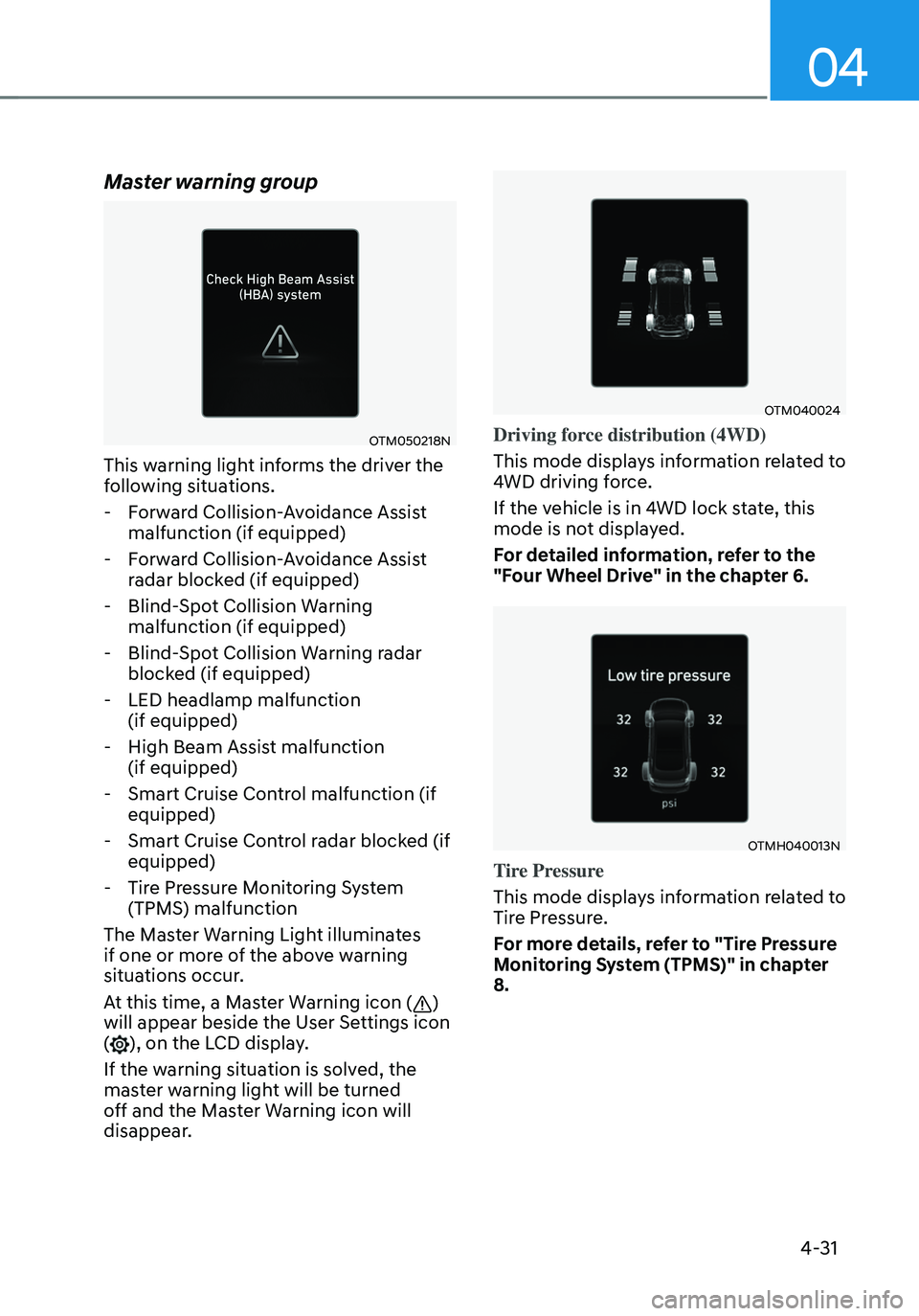

Master warning group
OTM050218N
This warning light informs the driver the
following situations.
-Forward Collision-Avoidance Assist
malfunction (if equipped)
-Forward Collision-Avoidance Assist
radar blocked (if equipped)
-Blind-Spot Collision Warning
malfunction (if equipped)
-Blind-Spot Collision Warning radar
blocked (if equipped)
-LED headlamp malfunction
(if equipped)
-High Beam Assist malfunction
(if equipped)
-Smart Cruise Control malfunction (if
equipped)
-Smart Cruise Control radar blocked (if
equipped)
-Tire Pressure Monitoring System
(TPMS) malfunction
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
will appear beside the User Settings icon
(
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
OTM040024
Driving force distribution (4WD)
This mode displays information related to
4WD driving force.
If the vehicle is in 4WD lock state, this
mode is not displayed.
For detailed information, refer to the
"Four Wheel Drive" in the chapter 6.
OTMH040013N
Tire Pressure
This mode displays information related to
Tire Pressure.
For more details, refer to "Tire Pressure
Monitoring System (TPMS)" in chapter
8.

Instrument cluster
4-32

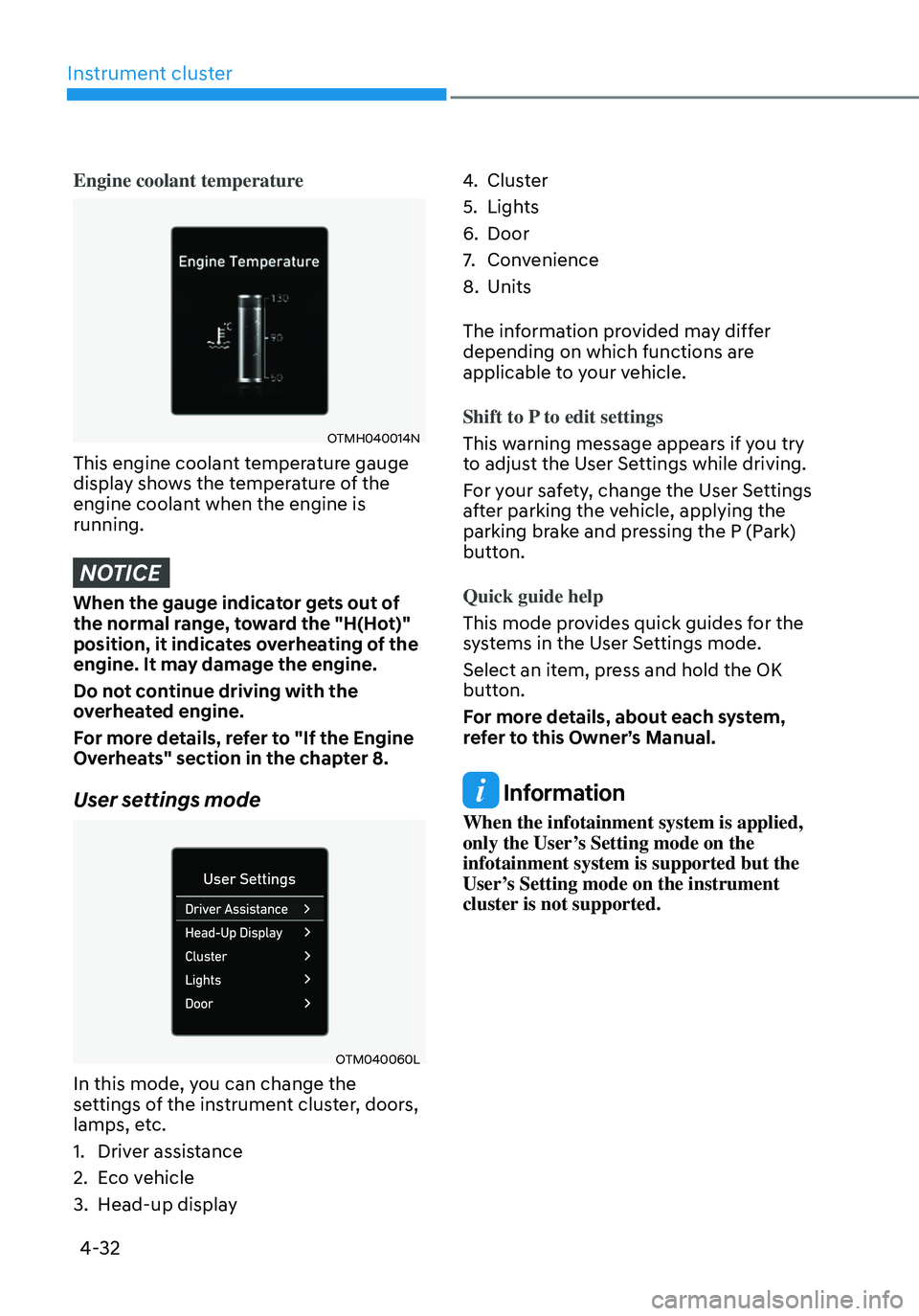

Engine coolant temperature
OTMH040014N
This engine coolant temperature gauge
display shows the temperature of the
engine coolant when the engine is
running.
NOTICE
When the gauge indicator gets out of
the normal range, toward the "H(Hot)"
position, it indicates overheating of the
engine. It may damage the engine.
Do not continue driving with the
overheated engine.
For more details, refer to "If the Engine
Overheats" section in the chapter 8.
User settings mode
OTM040060L
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver assistance
2. Eco vehicle
3. Head-up display
4. Cluster
5. Lights
6. Door
7. Convenience
8. Units
The information provided may differ
depending on which functions are
applicable to your vehicle.
Shift to P to edit settings
This warning message appears if you try
to adjust the User Settings while driving.
For your safety, change the User Settings
after parking the vehicle, applying the
parking brake and pressing the P (Park)
button.
Quick guide help
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details, about each system,
refer to this Owner’s Manual.
Information
When the infotainment system is applied,
only the User’s Setting mode on the
infotainment system is supported but the
User’s Setting mode on the instrument
cluster is not supported.

04
4-33

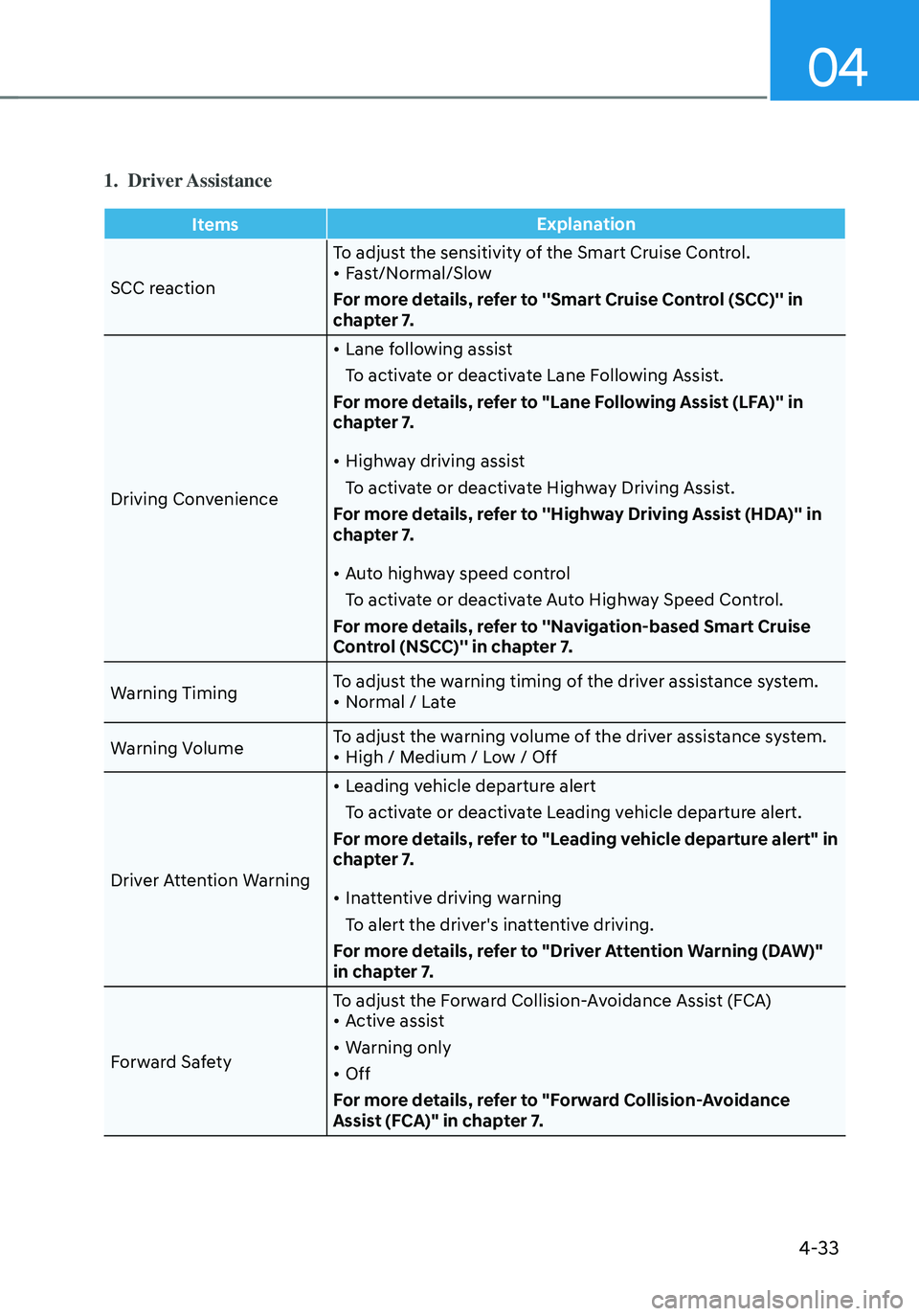

1. Driver Assistance
ItemsExplanation
SCC reaction To adjust the sensitivity of the Smart Cruise Control.
• Fast/Normal/Slow
For more details, refer to ''Smart Cruise Control (SCC)'' in
chapter 7.
Driving Convenience
• Lane following assist
To activate or deactivate Lane Following Assist.
For more details, refer to "Lane Following Assist (LFA)'' in
chapter 7.
• Highway driving assist
To activate or deactivate Highway Driving Assist.
For more details, refer to ''Highway Driving Assist (HDA)'' in
chapter 7.
• Auto highway speed control
To activate or deactivate Auto Highway Speed Control.
For more details, refer to ''Navigation-based Smart Cruise
Control (NSCC)'' in chapter 7.
Warning Timing To adjust the warning timing of the driver assistance system.
• Normal / Late
Warning Volume To adjust the warning volume of the driver assistance system.
• High / Medium / Low / Off
Driver Attention Warning
• Leading vehicle departure alert
To activate or deactivate Leading vehicle departure alert.
For more details, refer to "Leading vehicle departure alert" in
chapter 7.
• Inattentive driving warning
To alert the driver's inattentive driving.
For more details, refer to "Driver Attention Warning (DAW)"
in chapter 7.
Forward Safety To adjust the Forward Collision-Avoidance Assist (FCA)
• Active assist
• Warning only
• Off
For more details, refer to "Forward Collision-Avoidance
Assist (FCA)" in chapter 7.

Instrument cluster
4-34

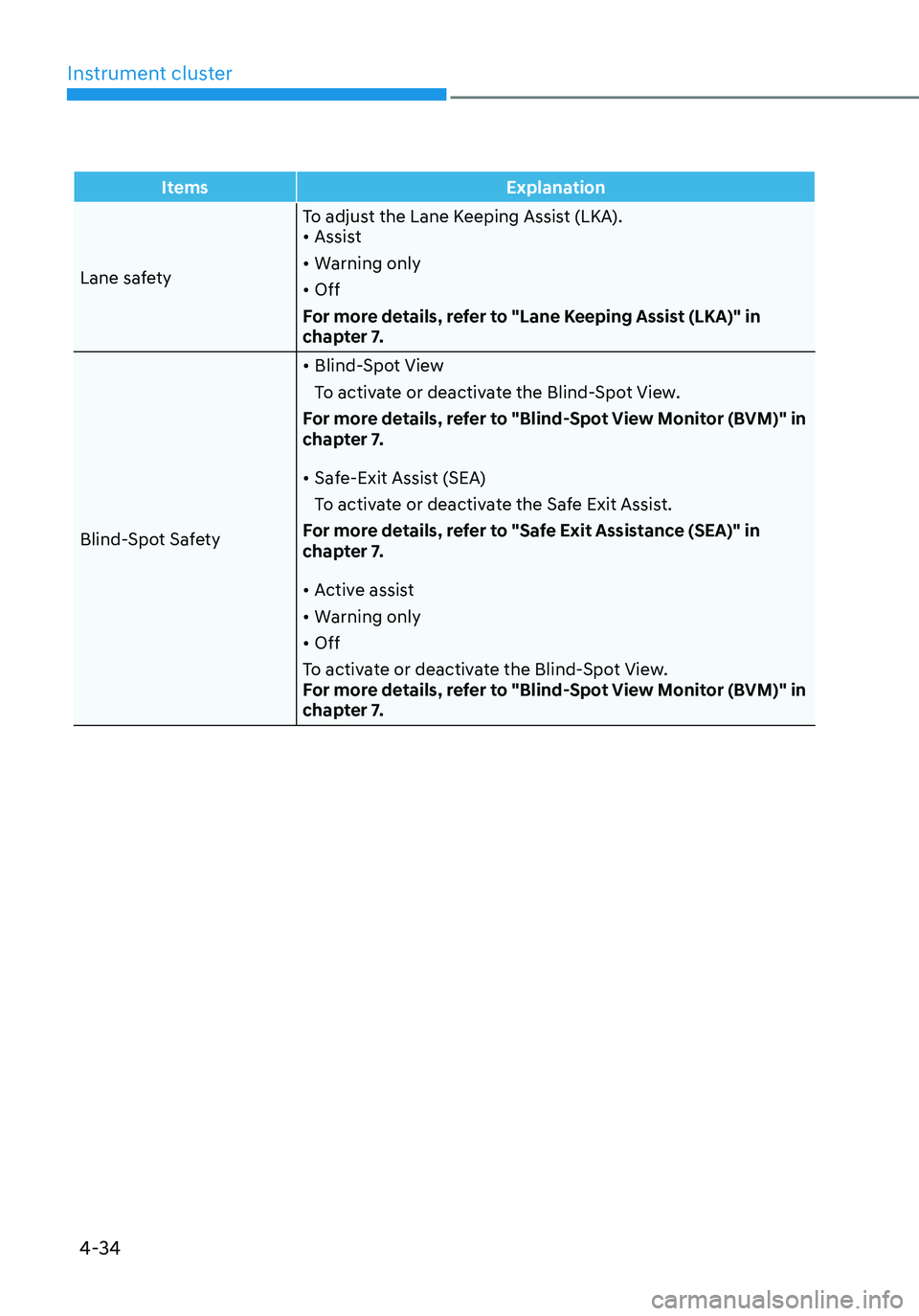

ItemsExplanation
Lane safety To adjust the Lane Keeping Assist (LKA).
• Assist
• Warning only
• Off
For more details, refer to "Lane Keeping Assist (LKA)" in
chapter 7.
Blind-Spot Safety
• Blind-Spot View
To activate or deactivate the Blind-Spot View.
For more details, refer to "Blind-Spot View Monitor (BVM)" in
chapter 7.
• Safe-Exit Assist (SEA)
To activate or deactivate the Safe Exit Assist.
For more details, refer to "Safe Exit Assistance (SEA)" in
chapter 7.
• Active assist
• Warning only
• Off
To activate or deactivate the Blind-Spot View.
For more details, refer to "Blind-Spot View Monitor (BVM)" in
chapter 7.

04
4-35
ItemsExplanation

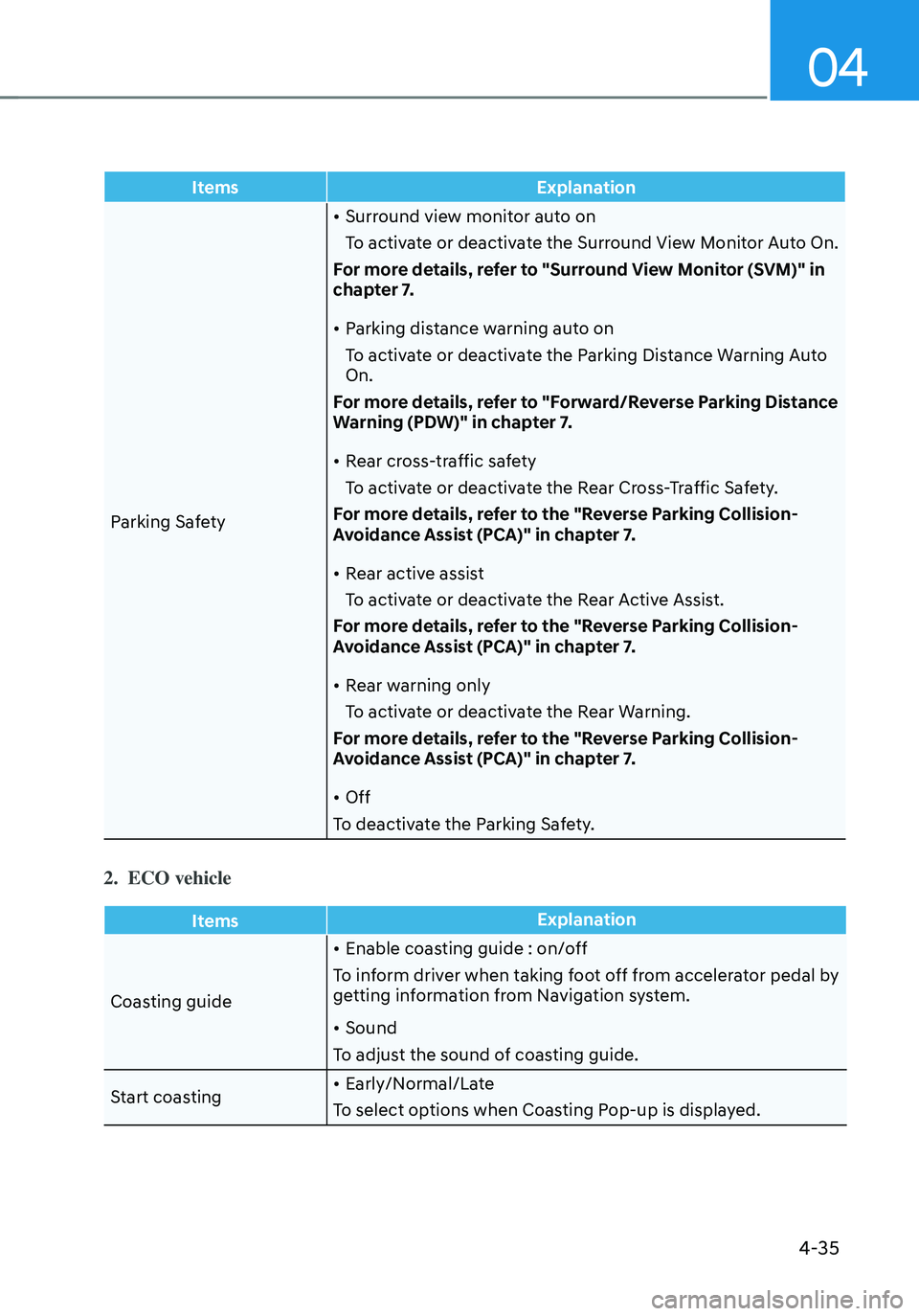

Parking Safety
• Surround view monitor auto on
To activate or deactivate the Surround View Monitor Auto On.
For more details, refer to "Surround View Monitor (SVM)" in
chapter 7.
• Parking distance warning auto on
To activate or deactivate the Parking Distance Warning Auto
On.
For more details, refer to "Forward/Reverse Parking Distance
Warning (PDW)" in chapter 7.
• Rear cross-traffic safety
To activate or deactivate the Rear Cross-Traffic Safety.
For more details, refer to the "Reverse Parking Collision-
Avoidance Assist (PCA)" in chapter 7.
• Rear active assist
To activate or deactivate the Rear Active Assist.
For more details, refer to the "Reverse Parking Collision-
Avoidance Assist (PCA)" in chapter 7.
• Rear warning only
To activate or deactivate the Rear Warning.
For more details, refer to the "Reverse Parking Collision-
Avoidance Assist (PCA)" in chapter 7.
• Off
To deactivate the Parking Safety.
2. ECO vehicle
Items Explanation
Coasting guide
• Enable coasting guide : on/off
To inform driver when taking foot off from accelerator pedal by
getting information from Navigation system.
• Sound
To adjust the sound of coasting guide.
Start coasting
• Early/Normal/Late
To select options when Coasting Pop-up is displayed.

Instrument cluster
4-36

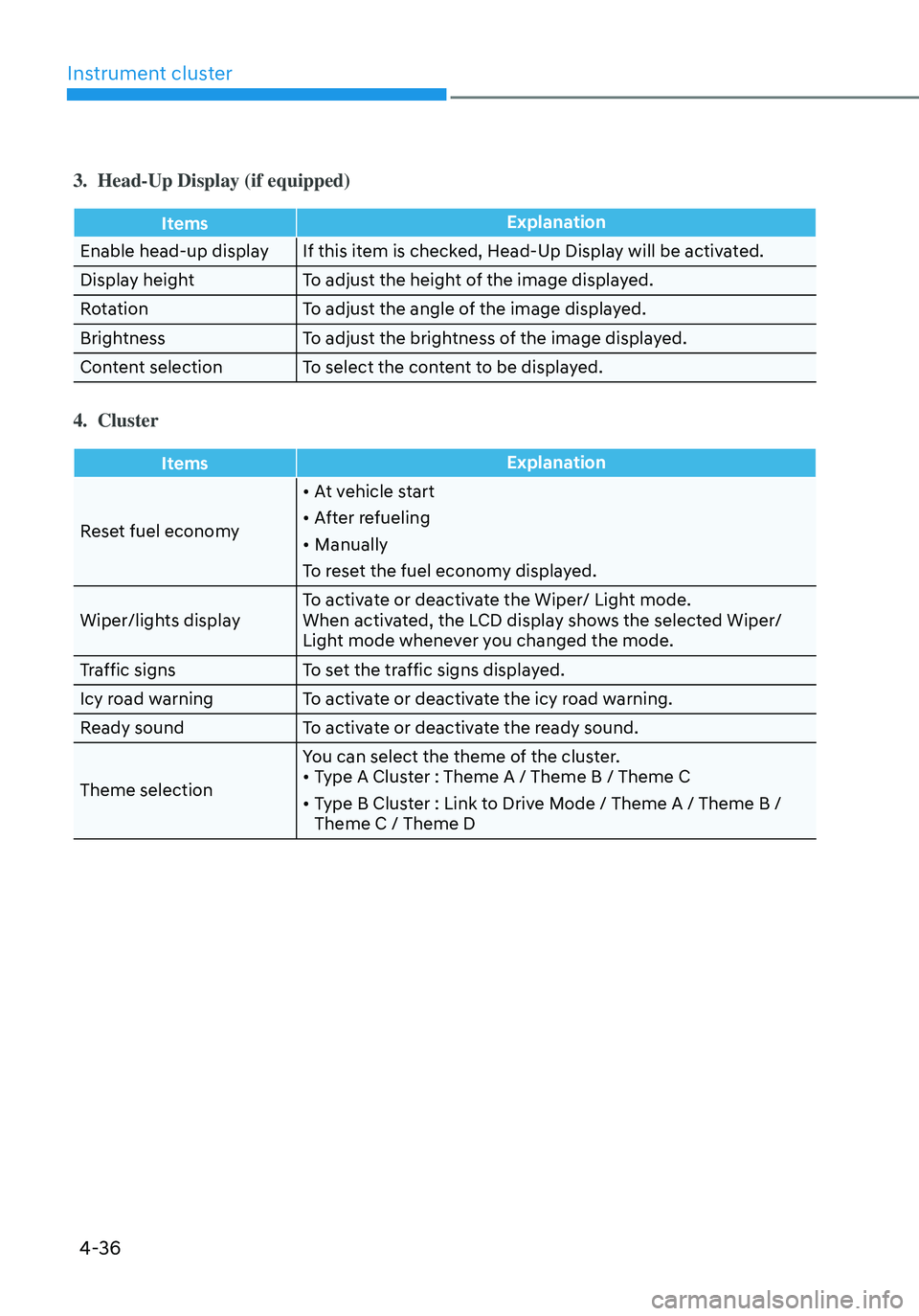

3. Head-Up Display (if equipped)
ItemsExplanation
Enable head-up display If this item is checked, Head-Up Display will be activated.
Display height To adjust the height of the image displayed.
Rotation To adjust the angle of the image displayed.
Brightness To adjust the brightness of the image displayed.
Content selection To select the content to be displayed.
4. Cluster
Items Explanation
Reset fuel economy
• At vehicle start
• After refueling
• Manually
To reset the fuel economy displayed.
Wiper/lights display To activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/
Light mode whenever you changed the mode.
Traffic signs To set the traffic signs displayed.
Icy road warning To activate or deactivate the icy road warning.
Ready sound To activate or deactivate the ready sound.
Theme selection You can select the theme of the cluster.
• Type A Cluster : Theme A / Theme B / Theme C
• Type B Cluster : Link to Drive Mode / Theme A / Theme B /
Theme C / Theme D

04
4-37

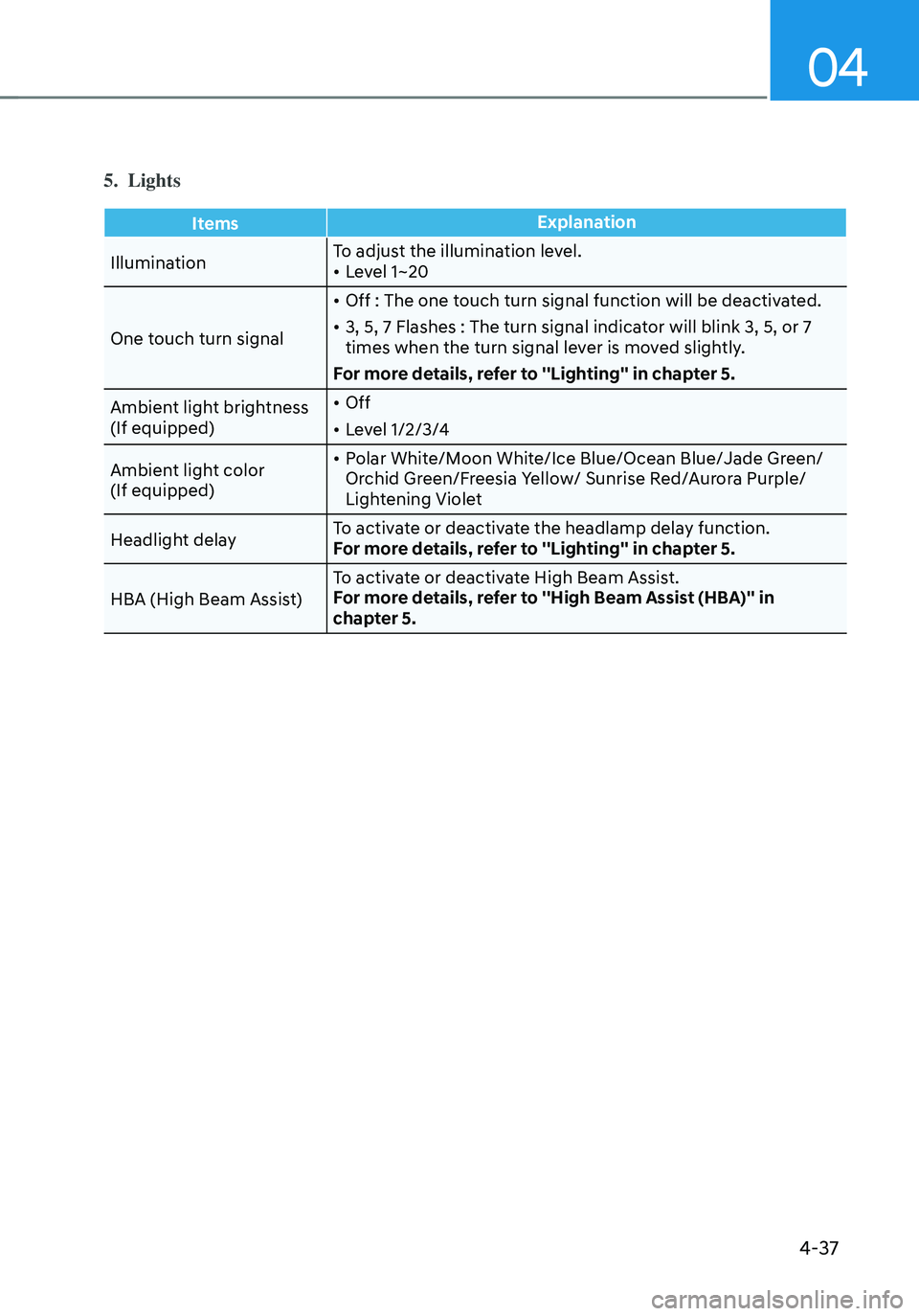

5. Lights
ItemsExplanation
Illumination To adjust the illumination level.
• Level 1~20
One touch turn signal
• Off : The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7
times when the turn signal lever is moved slightly.
For more details, refer to ''Lighting'' in chapter 5.
Ambient light brightness
(If equipped)
• Off
• Level 1/2/3/4
Ambient light color
(If equipped)
• Polar White/Moon White/Ice Blue/Ocean Blue/Jade Green/
Orchid Green/Freesia Yellow/ Sunrise Red/Aurora Purple/
Lightening Violet
Headlight delay To activate or deactivate the headlamp delay function.
For more details, refer to ''Lighting'' in chapter 5.
HBA (High Beam Assist) To activate or deactivate High Beam Assist.
For more details, refer to ''High Beam Assist (HBA)'' in
chapter 5.

Instrument cluster
4-38

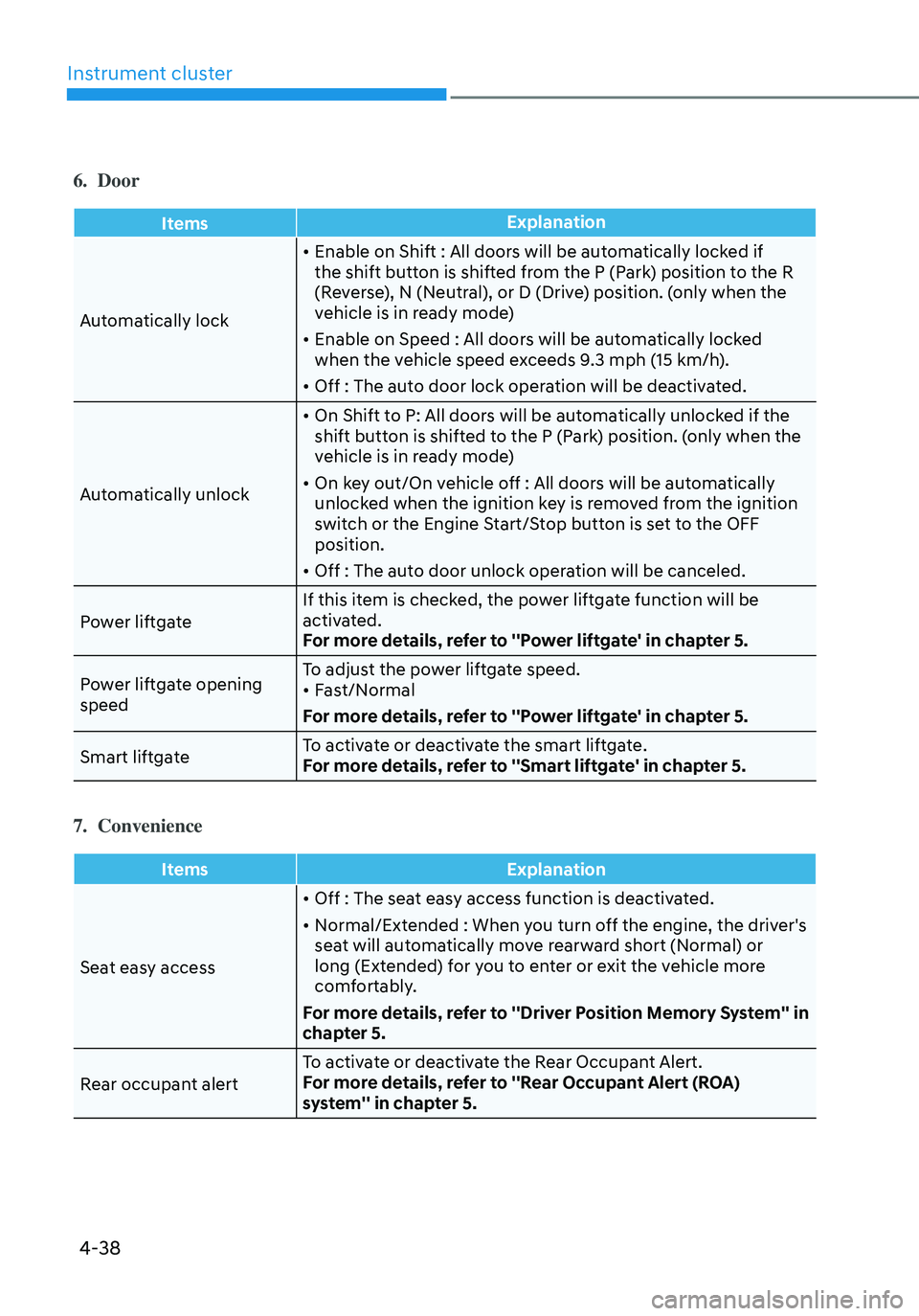

6. Door
ItemsExplanation
Automatically lock
• Enable on Shift : All doors will be automatically locked if
the shift button is shifted from the P (Park) position to the R
(Reverse), N (Neutral), or D (Drive) position. (only when the
vehicle is in ready mode)
• Enable on Speed : All doors will be automatically locked
when the vehicle speed exceeds 9.3 mph (15 km/h).
• Off : The auto door lock operation will be deactivated.
Automatically unlock
• On Shift to P: All doors will be automatically unlocked if the
shift button is shifted to the P (Park) position. (only when the
vehicle is in ready mode)
• On key out/On vehicle off : All doors will be automatically
unlocked when the ignition key is removed from the ignition
switch or the Engine Start/Stop button is set to the OFF
position.
• Off : The auto door unlock operation will be canceled.
Power liftgate If this item is checked, the power liftgate function will be
activated.
For more details, refer to ''Power liftgate' in chapter 5.
Power liftgate opening
speed To adjust the power liftgate speed.
• Fast/Normal
For more details, refer to ''Power liftgate' in chapter 5.
Smart liftgate To activate or deactivate the smart liftgate.
For more details, refer to ''Smart liftgate' in chapter 5.
7. Convenience
Items
Explanation
Seat easy access
• Off : The seat easy access function is deactivated.
• Normal/Extended : When you turn off the engine, the driver's
seat will automatically move rearward short (Normal) or
long (Extended) for you to enter or exit the vehicle more
comfortably.
For more details, refer to ''Driver Position Memory System'' in
chapter 5.
Rear occupant alert To activate or deactivate the Rear Occupant Alert.
For more details, refer to ''Rear Occupant Alert (ROA)
system'' in chapter 5.
