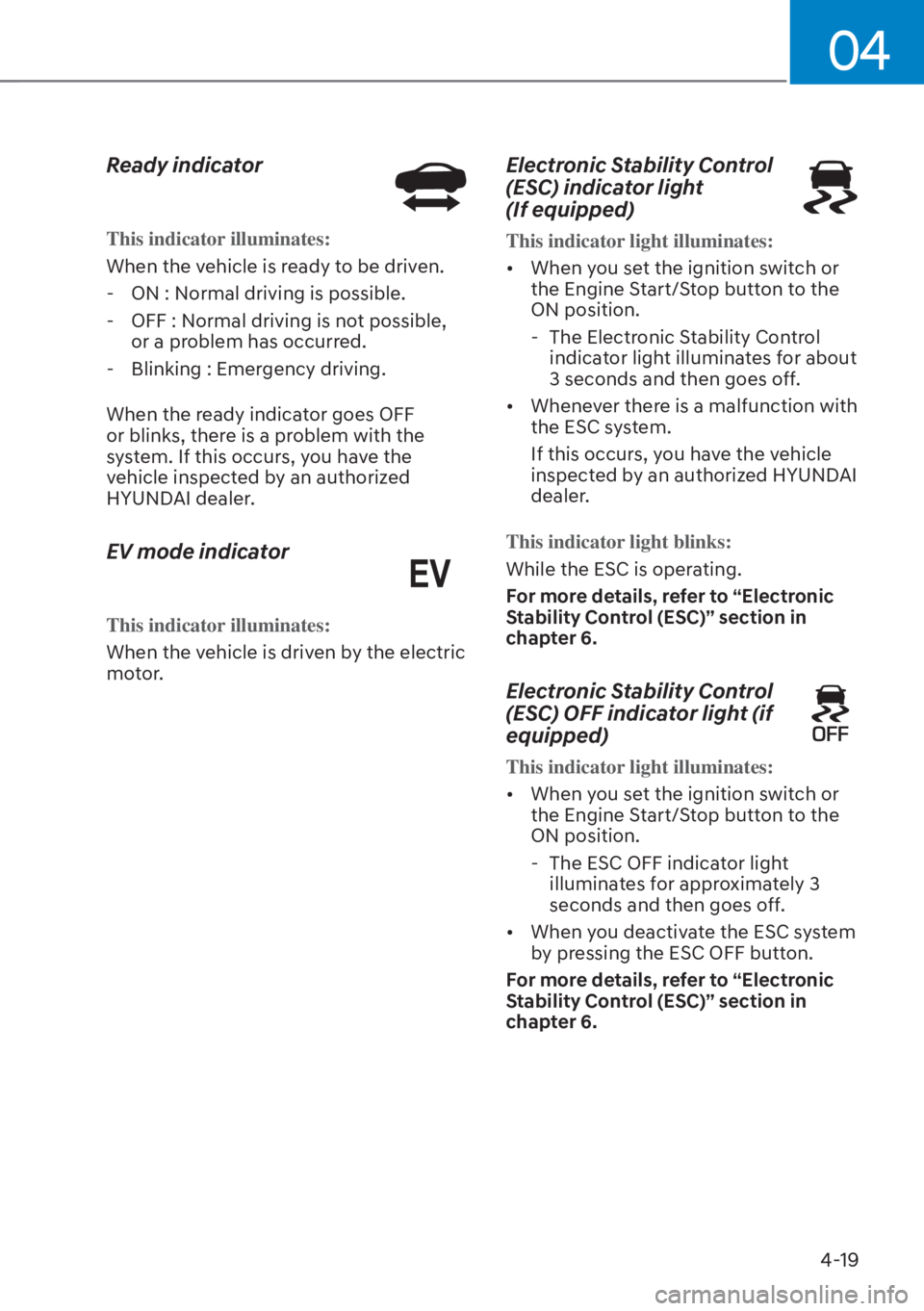

Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven. -
ON : Normal driving is possible.
- OFF : Normal driving is not possible, or a problem has occurred.
- Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. If this occurs, you have the
vehicle inspected by an authorized
HYUNDAI dealer.
EV mode indicator
This indicator illuminates:
When the vehicle is driven by the electric
mo
tor.
Electronic Stability Control
(ESC) indicator light
(If equipped)
This indicator light illuminates:

[When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The Electronic Stability Control indicator light illuminates for about
3 seconds and then goes off.

[ Whenever there is a malfunction with
the ESC system.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
This indicator light blinks:
While the ESC is operating.
F
or more details, refer to “Electronic
Stability Control (ESC)” section in
chapter 6.
Electronic Stability Control
(ESC) OFF indicator light (if
equipped)
This indicator light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The ESC OFF indicator light illuminates for approximately 3
seconds and then goes off.

[ When you deactivate the ESC system
by pressing the ESC OFF button.
For more details, refer to “Electronic
Stability Control (ESC)” section in
chapter 6.

Instrument Cluster4-20

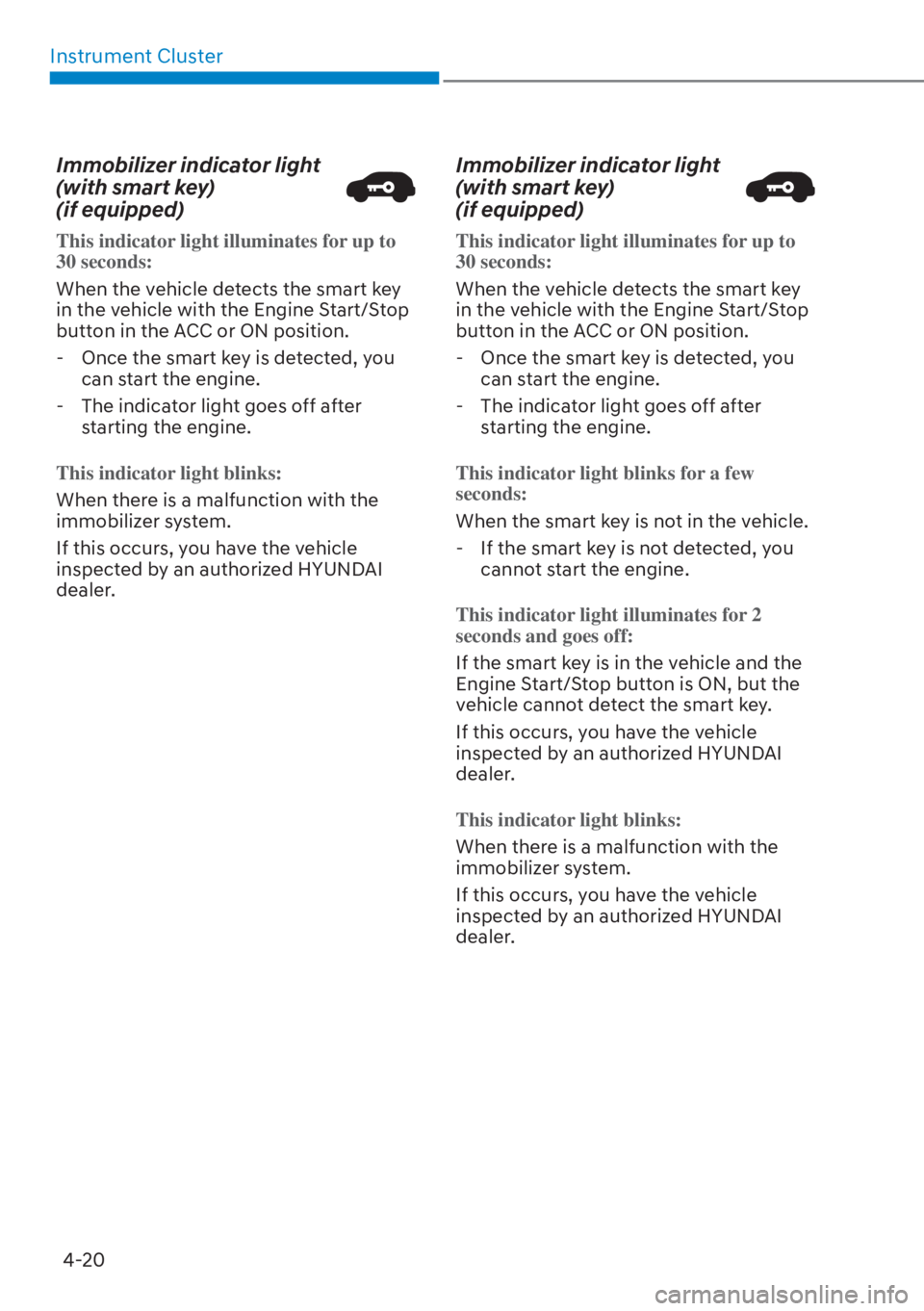

Immobilizer indicator light
(with smart key)
(if equipped)
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the v
ehicle with the Engine Start/Stop
button in the ACC or ON position.
- Once the smart key is detected, you can start the engine.

- The indicator light goes off after
starting the engine.
This indicator light blinks:
When there is a malfunction with the
immobiliz
er system.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Immobilizer indicator light
(with smart key)
(if equipped)
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the v
ehicle with the Engine Start/Stop
button in the ACC or ON position.
- Once the smart key is detected, you can start the engine.

- The indicator light goes off after
starting the engine.
This indicator light blinks for a few
seconds:
When the smart key is not in the vehicle. -
If the smart key is not detected, you
cannot start the engine.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
E
ngine Start/Stop button is ON, but the
vehicle cannot detect the smart key.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
This indicator light blinks:
When there is a malfunction with the
immobiliz
er system.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.

04
4-21

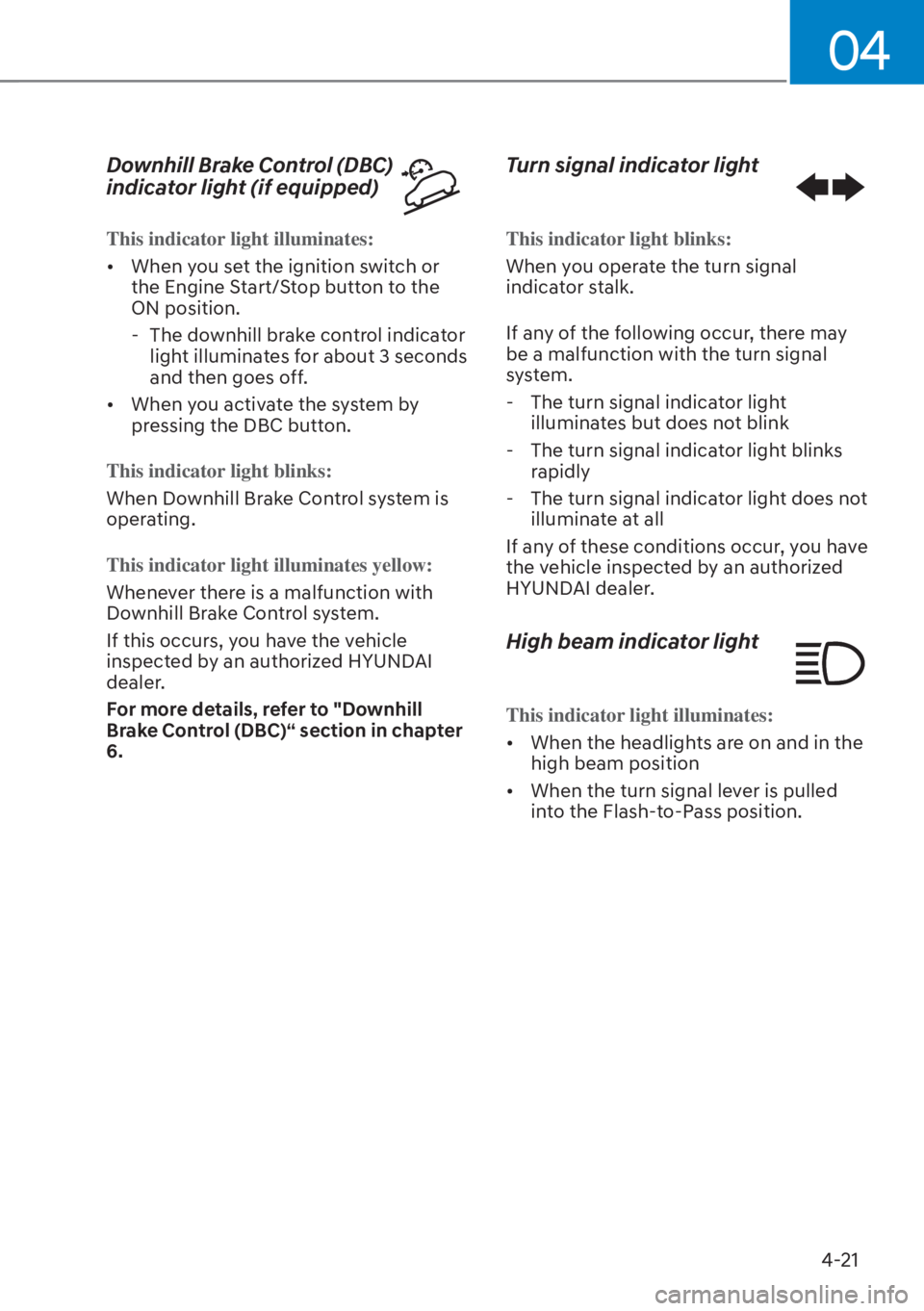

Downhill Brake Control (DBC)
indicator light (if equipped)
This indicator light illuminates:

[When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.

- The downhill brake control indicator
light illuminates for about 3 seconds
and then goes off.

[ When you activate the system by
pressing the DBC button.
This indicator light blinks:
When Downhill Brake Control system is
oper
ating.
This indicator light illuminates yellow:
Whenever there is a malfunction with
Do
wnhill Brake Control system.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
For more details, refer to "Downhill
Brake Control (DBC)“ section in chapter
6.
Turn signal indicator light
This indicator light blinks:
When you operate the turn signal
indica
tor stalk.
If any of the following occur, there may
be a malfunction with the turn signal
system.
- The turn signal indicator light
illuminates but does not blink

- The turn signal indicator light blinks
rapidly

- The turn signal indicator light does not
illuminate at all
If any of these conditions occur, you have
the vehicle inspected by an authorized
HYUNDAI dealer.
High beam indicator light
This indicator light illuminates:

[ When the headligh
ts are on and in the
high beam position

[ When the turn signal lever is pulled
into the Flash-to-Pass position.

Instrument Cluster4-22

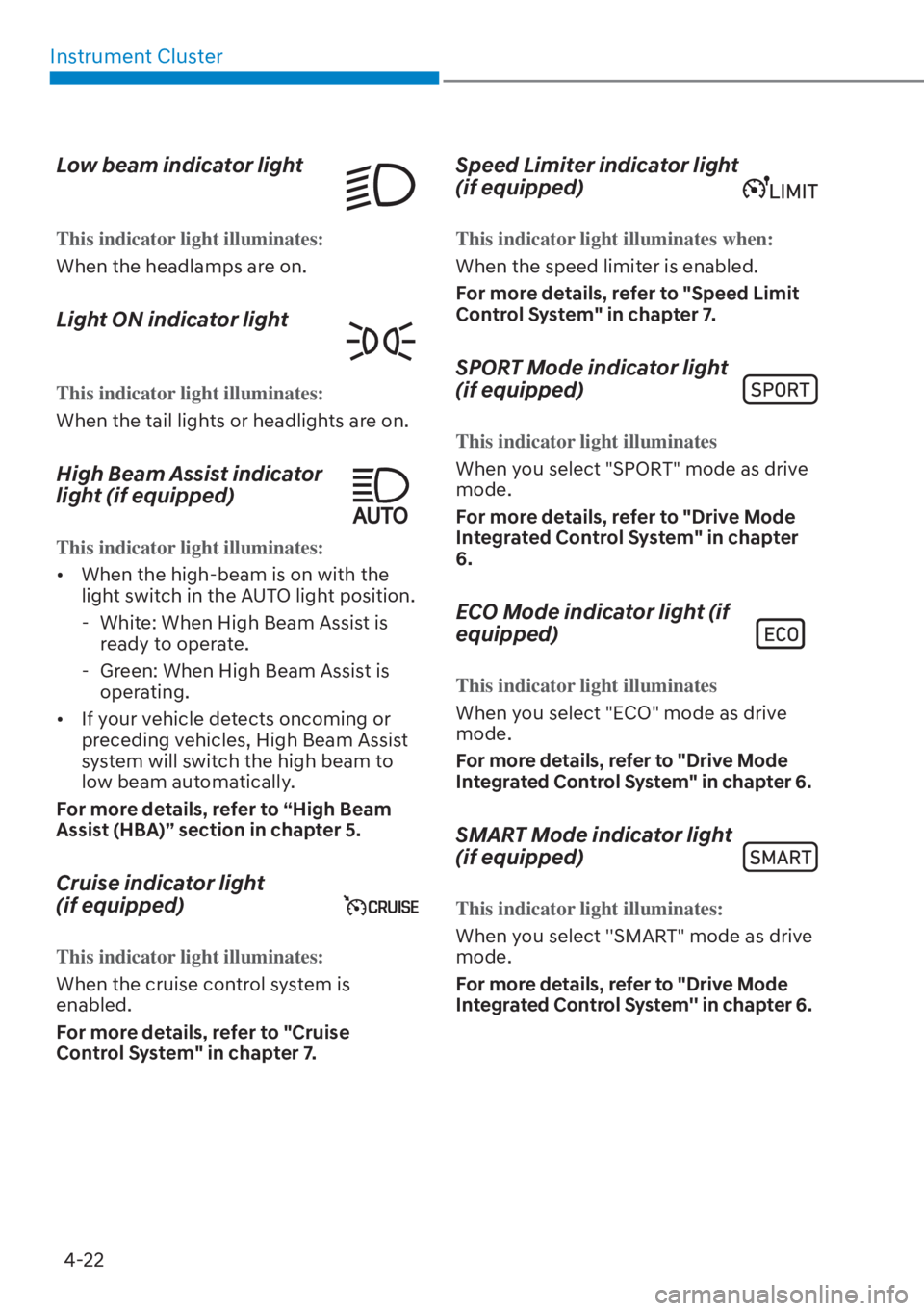

Low beam indicator light
This indicator light illuminates:
When the headlamps are on.
Light ON indicator light
This indicator light illuminates:
When the tail lights or headlights are on.
High Beam Assist indicator
light (if equipped)
This indicator light illuminates:

[ When the high-beam is on with the
light s

witch in the AUTO light position.
- White: When High Beam Assist is ready to operate.
- Green: When High Beam Assist is operating.

[ If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
system will switch the high beam to
low beam automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
Cruise indicator light
(if equipped)
This indicator light illuminates:
When the cruise control system is
enabled.
F

or more details, refer to "Cruise
Control System" in chapter 7.
Speed Limiter indicator light
(if equipped)
This indicator light illuminates when:
When the speed limiter is enabled.
F

or more details, refer to "Speed Limit
Control System" in chapter 7.
SPORT Mode indicator light
(if equipped)
This indicator light illuminates
When you select "SPORT" mode as drive
mode.
F

or more details, refer to "Drive Mode
Integrated Control System" in chapter
6.
ECO Mode indicator light (if
equipped)
This indicator light illuminates
When you select "ECO" mode as drive
mode.
F

or more details, refer to "Drive Mode
Integrated Control System" in chapter 6.
SMART Mode indicator light
(if equipped)
This indicator light illuminates:
When you select ''SMART" mode as drive
mode.
F

or more details, refer to "Drive Mode
Integrated Control System'' in chapter 6.

04
4-23

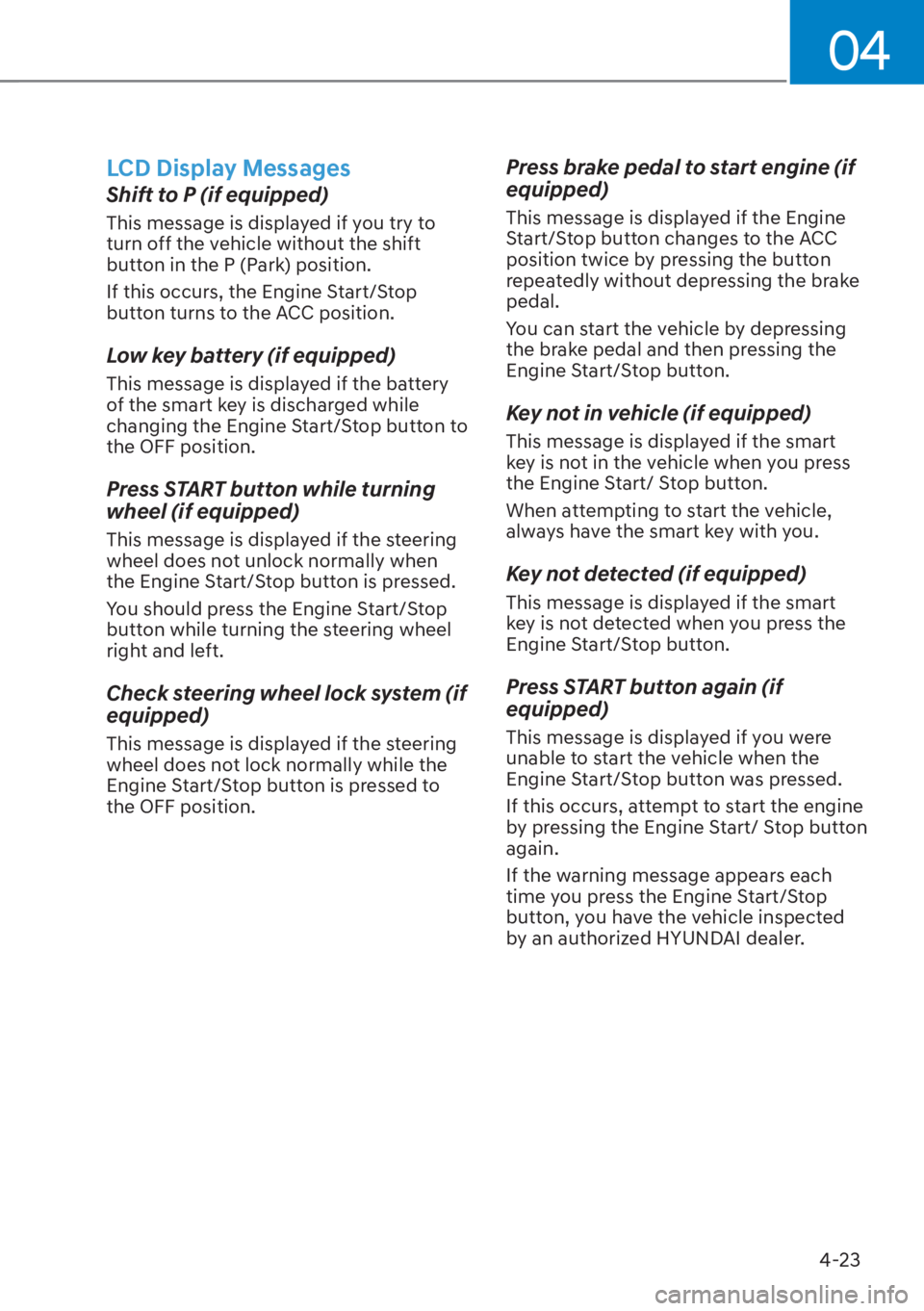

LCD Display Messages
Shift to P (if equipped)
This message is displayed if you try to
turn off the vehicle without the shift
button in the P (Park) position.
If this occurs, the Engine Start/Stop
button turns to the ACC position.
Low key battery (if equipped)
This message is displayed if the battery
of the smart key is discharged while
changing the Engine Start/Stop button to
the OFF position.
Press START button while turning
wheel (if equipped)
This message is displayed if the steering
wheel does not unlock normally when
the Engine Start/Stop button is pressed.
You should press the Engine Start/Stop
button while turning the steering wheel
right and left.
Check steering wheel lock system (if
equipped)
This message is displayed if the steering
wheel does not lock normally while the
Engine Start/Stop button is pressed to
the OFF position.
Press brake pedal to start engine (if
equipped)
This message is displayed if the Engine
Start/Stop button changes to the ACC
position twice by pressing the button
repeatedly without depressing the brake
pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button.
Key not in vehicle (if equipped)
This message is displayed if the smart
key is not in the vehicle when you press
the Engine Start/ Stop button.
When attempting to start the vehicle,
always have the smart key with you.
Key not detected (if equipped)
This message is displayed if the smart
key is not detected when you press the
Engine Start/Stop button.
Press START button again (if
equipped)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/ Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, you have the vehicle inspected
by an authorized HYUNDAI dealer.

Instrument Cluster4-24

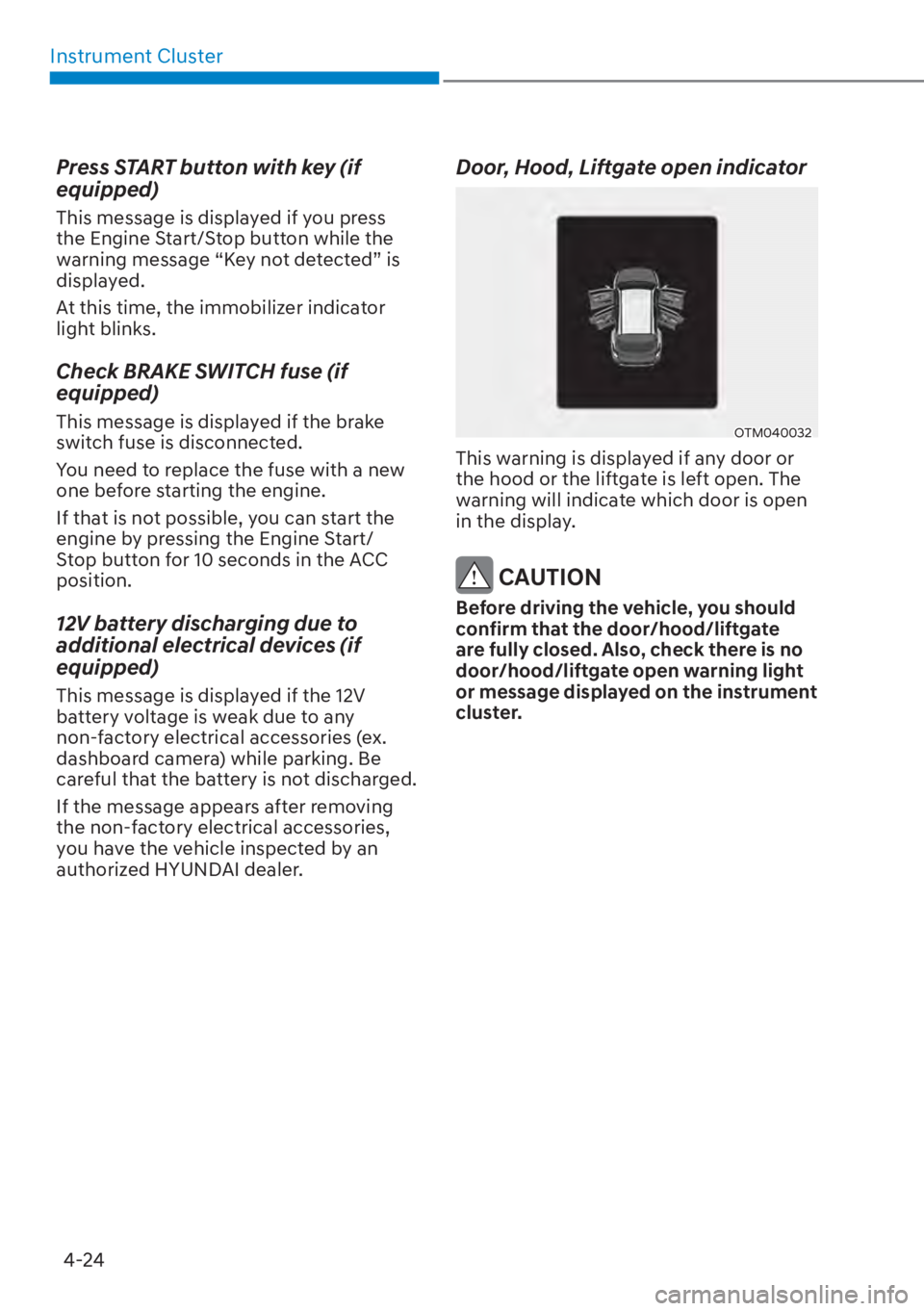

Press START button with key (if
equipped)
This message is displayed if you press
the Engine Start/Stop button while the
warning message “Key not detected” is
displayed.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse (if
equipped)
This message is displayed if the brake
switch fuse is disconnected.
You need to replace the fuse with a new
one before starting the engine.
If that is not possible, you can start the
engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
12V battery discharging due to
additional electrical devices (if
equipped)
This message is displayed if the 12V
battery voltage is weak due to any
non-factory electrical accessories (ex.
dashboard camera) while parking. Be
careful that the battery is not discharged.
If the message appears after removing
the non-factory electrical accessories,
you have the vehicle inspected by an
authorized HYUNDAI dealer.
Door, Hood, Liftgate open indicator
OTM040032
This warning is displayed if any door or
the hood or the liftgate is left open. The
warning will indicate which door is open
in the display.
CAUTION
Before driving the vehicle, you should
confirm that the door/hood/liftgate
are fully closed. Also, check there is no
door/hood/liftgate open warning light
or message displayed on the instrument
cluster.

04
4-25

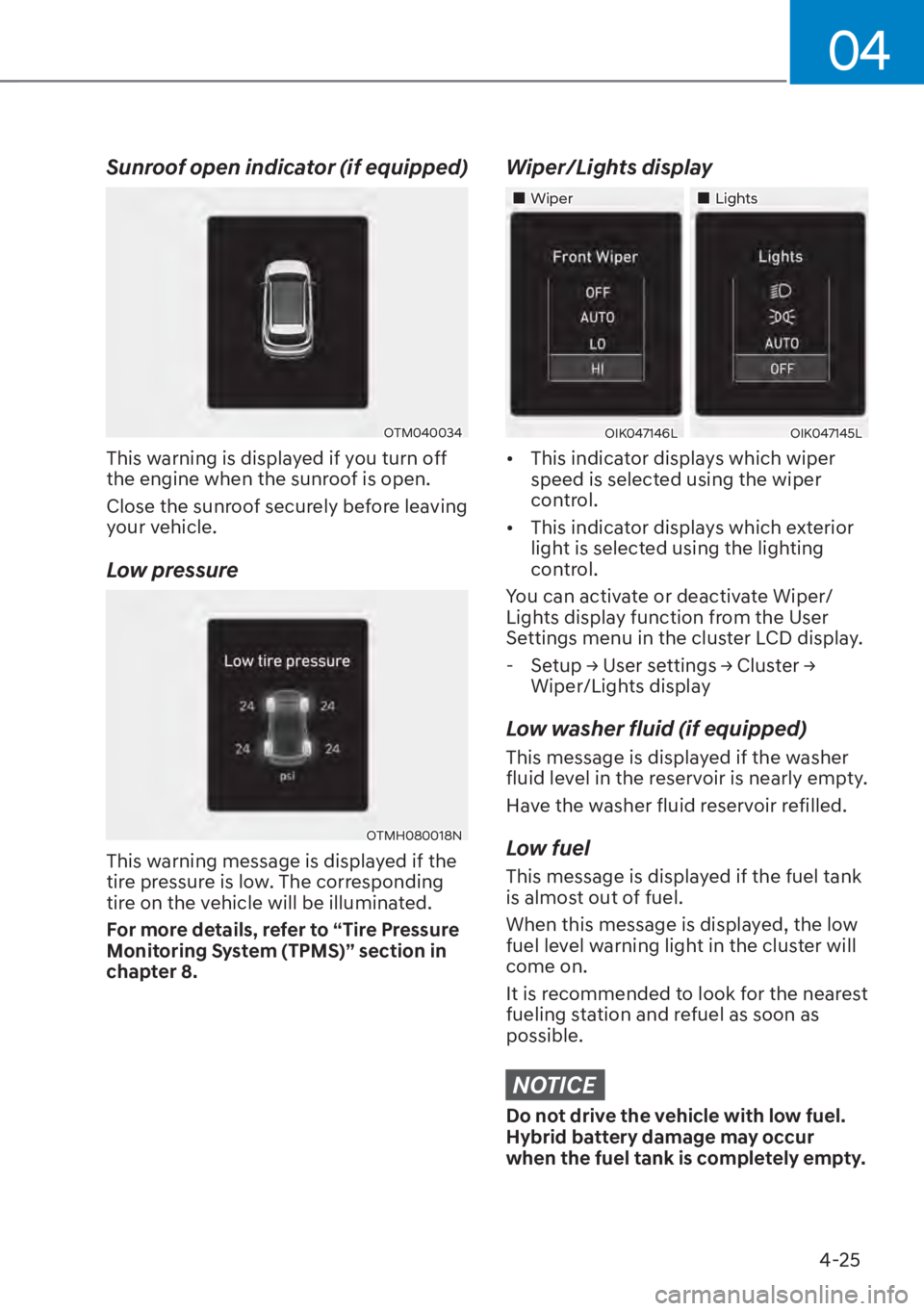

Sunroof open indicator (if equipped)
OTM040034
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.
Low pressure
OTMH080018N
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
Wiper/Lights display
„Wiper„Lights
OIK047146LOIK047145L

[This indicator displays which wiper
speed is selected using the wiper
control.

[ This indicator displays which exterior
light is selected using the lighting
control.
You can activate or deactivate Wiper/
Lights display function from the User
Settings menu in the cluster LCD display. - 6HWXS

Instrument Cluster4-26

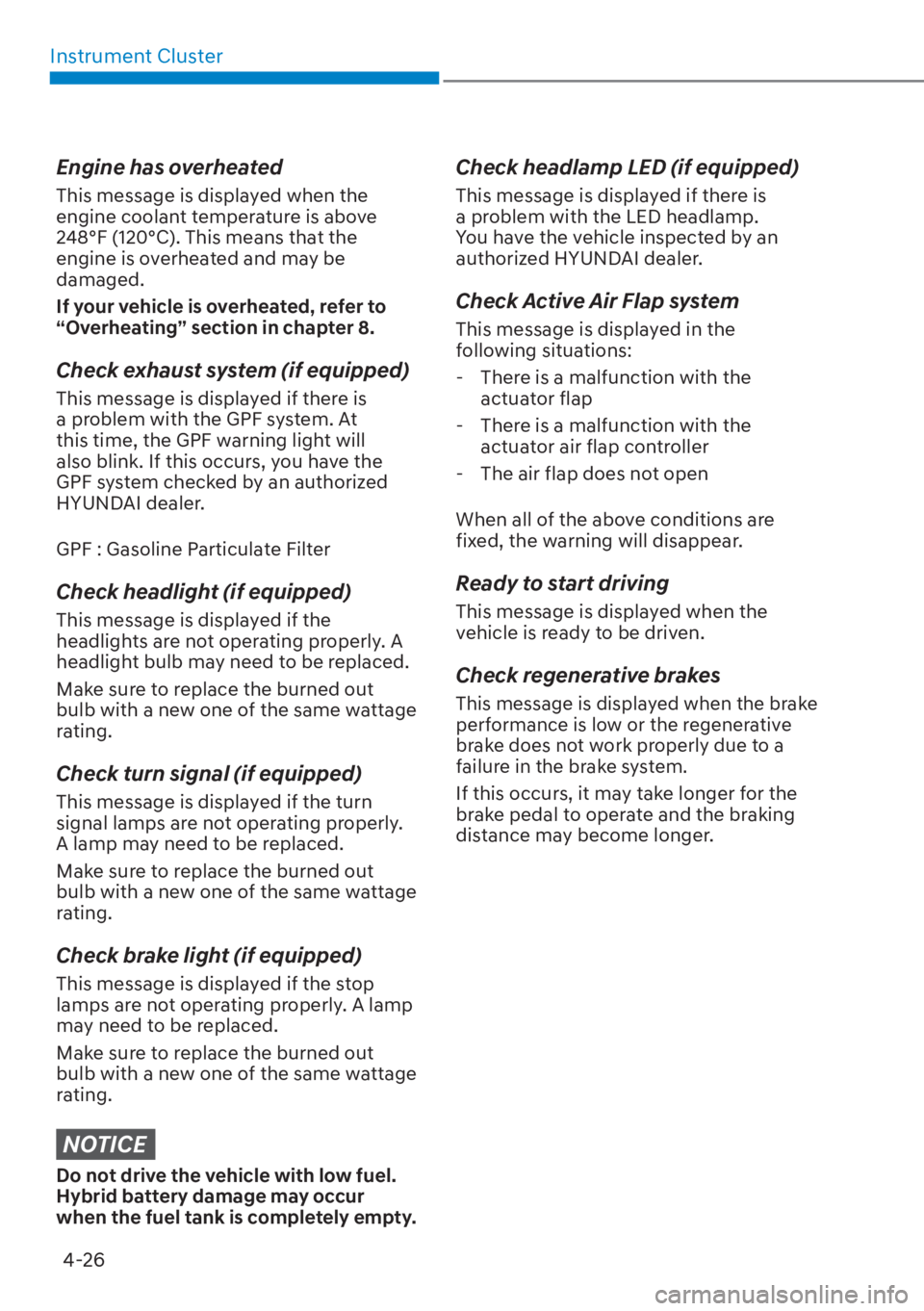

Engine has overheated
This message is displayed when the
engine coolant temperature is above
248°F (120°C). This means that the
engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check exhaust system (if equipped)
This message is displayed if there is
a problem with the GPF system. At
this time, the GPF warning light will
also blink. If this occurs, you have the
GPF system checked by an authorized
HYUNDAI dealer.
GPF : Gasoline Particulate Filter
Check headlight (if equipped)
This message is displayed if the
headlights are not operating properly. A
headlight bulb may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check brake light (if equipped)
This message is displayed if the stop
lamps are not operating properly. A lamp
may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
NOTICE
Do not drive the vehicle with low fuel.
Hybrid battery damage may occur
when the fuel tank is completely empty.
Check headlamp LED (if equipped)
This message is displayed if there is
a problem with the LED headlamp.
You have the vehicle inspected by an
authorized HYUNDAI dealer.
Check Active Air Flap system
This message is displayed in the
following situations: - There is a malfunction with the actuator flap
- There is a malfunction with the actuator air flap controller
- The air flap does not open
When all of the above conditions are
fixed, the warning will disappear.
Ready to start driving
This message is displayed when the
vehicle is ready to be driven.
Check regenerative brakes
This message is displayed when the brake
performance is low or the regenerative
brake does not work properly due to a
failure in the brake system.
If this occurs, it may take longer for the
brake pedal to operate and the braking
distance may become longer.

04
4-27

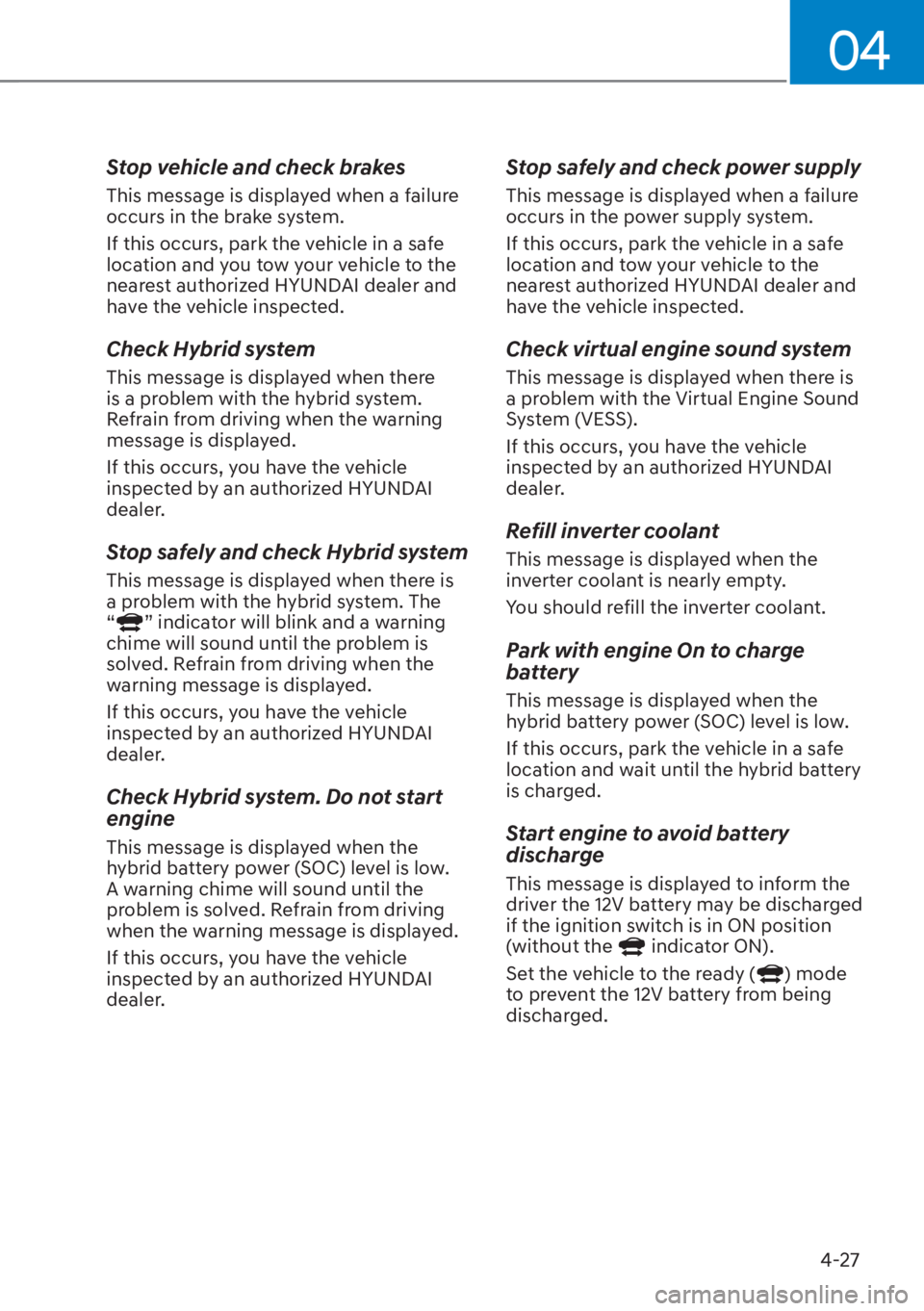

Stop vehicle and check brakes
This message is displayed when a failure
occurs in the brake system.
If this occurs, park the vehicle in a safe
location and you tow your vehicle to the
nearest authorized HYUNDAI dealer and
have the vehicle inspected.
Check Hybrid system
This message is displayed when there
is a problem with the hybrid system.
Refrain from driving when the warning
message is displayed.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Stop safely and check Hybrid system
This message is displayed when there is
a problem with the hybrid system. The
“
” indicator will blink and a warning
chime will sound until the problem is
solved. Refrain from driving when the
warning message is displayed.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Check Hybrid system. Do not start
engine
This message is displayed when the
hybrid battery power (SOC) level is low.
A warning chime will sound until the
problem is solved. Refrain from driving
when the warning message is displayed.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Stop safely and check power supply
This message is displayed when a failure
occurs in the power supply system.
If this occurs, park the vehicle in a safe
location and tow your vehicle to the
nearest authorized HYUNDAI dealer and
have the vehicle inspected.
Check virtual engine sound system
This message is displayed when there is
a problem with the Virtual Engine Sound
System (VESS).
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Refill inverter coolant
This message is displayed when the
inverter coolant is nearly empty.
You should refill the inverter coolant.
Park with engine On to charge
battery
This message is displayed when the
hybrid battery power (SOC) level is low.
If this occurs, park the vehicle in a safe
location and wait until the hybrid battery
is charged.
Start engine to avoid battery
discharge
This message is displayed to inform the
driver the 12V battery may be discharged
if the ignition switch is in ON position
(without the
indicator ON).
Set the vehicle to the ready (
) mode
to prevent the 12V battery from being
discharged.

Instrument Cluster4-28

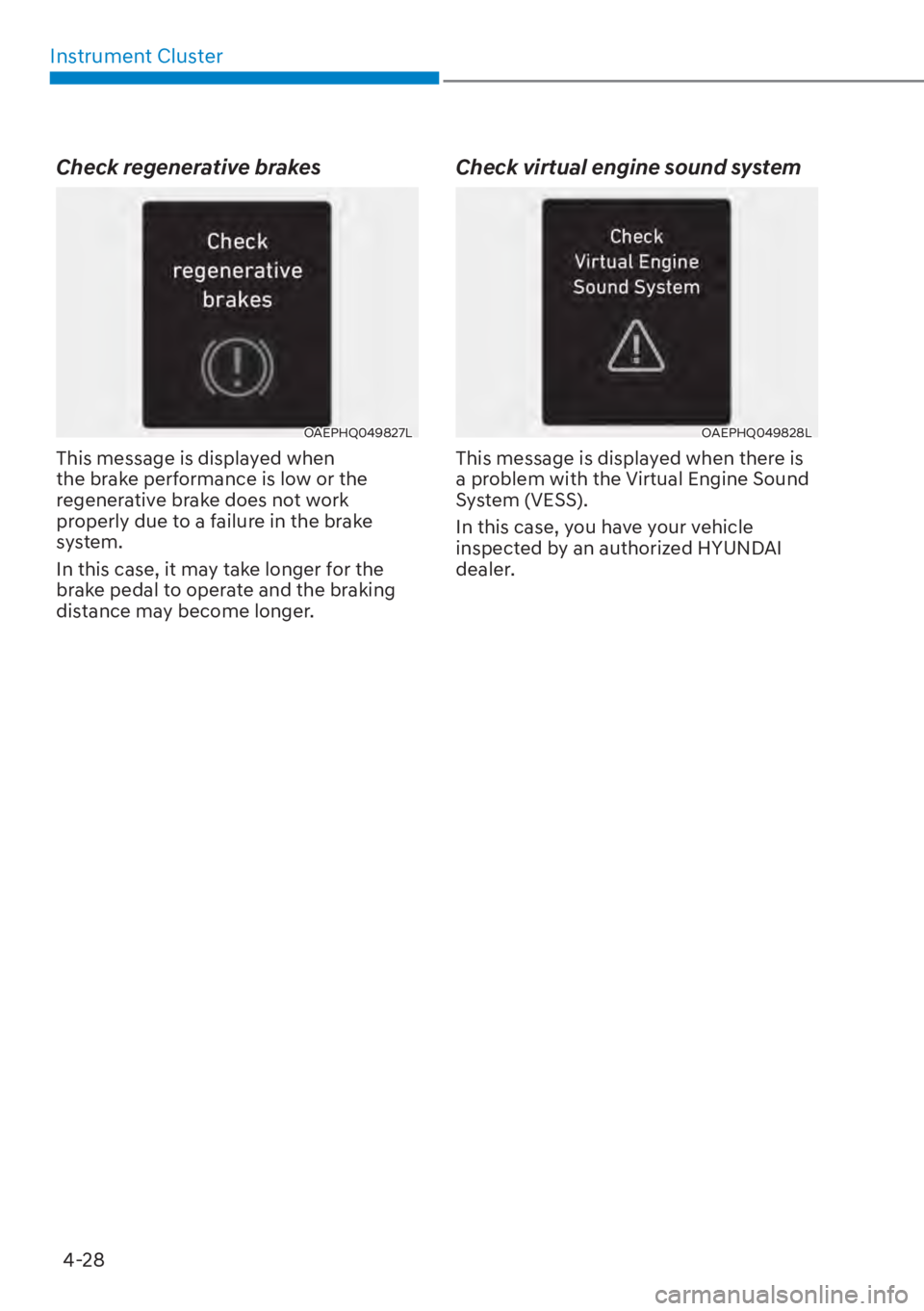

Check regenerative brakes
OAEPHQ049827L
This message is displayed when
the brake performance is low or the
regenerative brake does not work
properly due to a failure in the brake
system.
In this case, it may take longer for the
brake pedal to operate and the braking
distance may become longer.
Check virtual engine sound system
OAEPHQ049828L
This message is displayed when there is
a problem with the Virtual Engine Sound
System (VESS).
In this case, you have your vehicle
inspected by an authorized HYUNDAI
dealer.
