HYUNDAI SANTA FE HYBRID 2023 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2023, Model line: SANTA FE HYBRID, Model: HYUNDAI SANTA FE HYBRID 2023Pages: 623, PDF Size: 8.08 MB

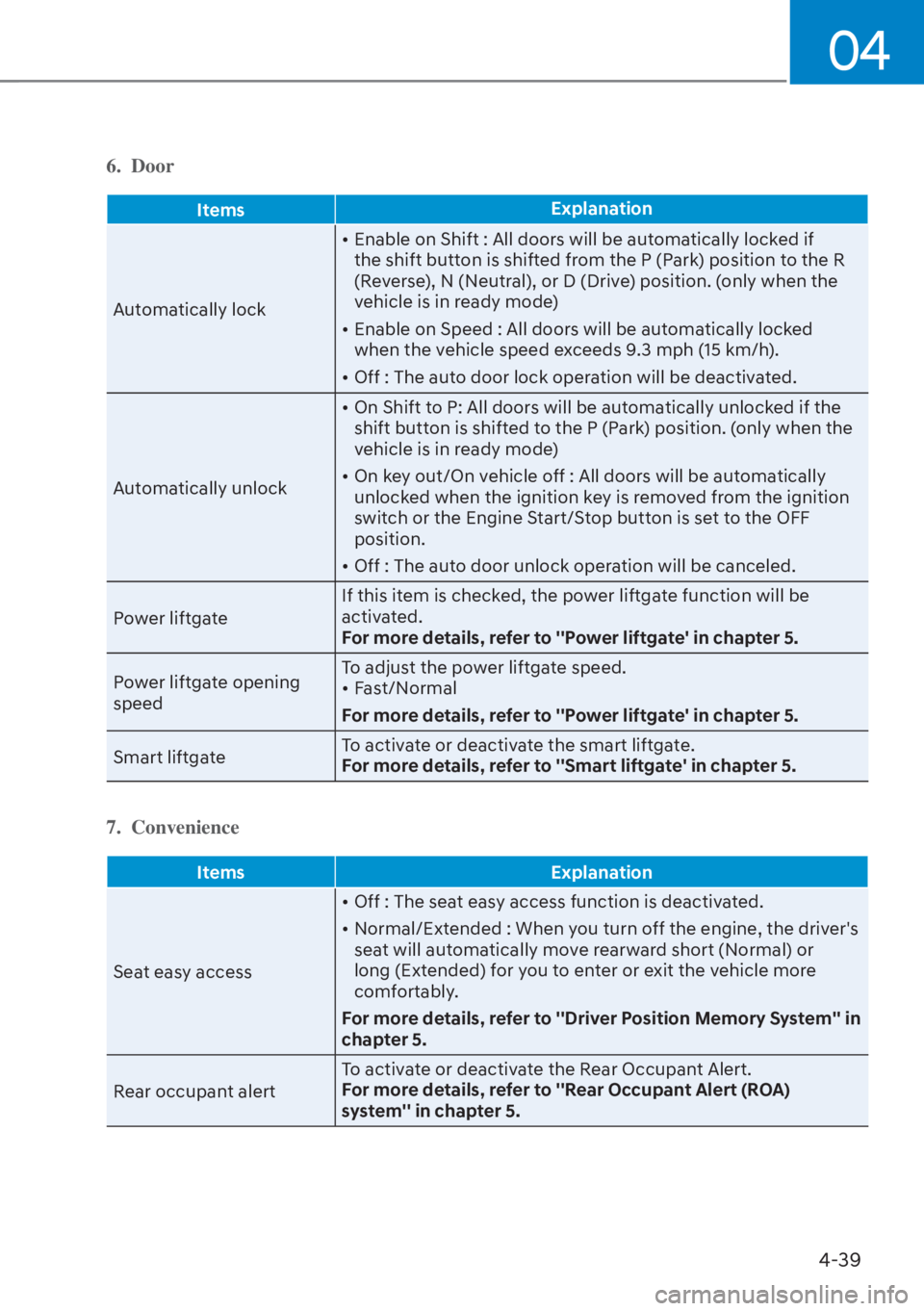

Page 151 of 623
04
4-39
6. Door
ItemsExplanation
Automatically lock [
E
nable on Shift : All doors will be automatically locked if
the shift button is shifted from the P (Park) position to the R
(Reverse), N (Neutral), or D (Drive) position. (only when the
vehicle is in ready mode)
[ Enable on Speed : All doors will be automatically locked
when the vehicle speed exceeds 9.3 mph (15 km/h).
[ Off : The auto door lock operation will be deactivated.
Automatically unlock [
On Shift to P: All doors will be automatically unlocked if the
shift button is shifted to the P (Park) position. (only when the
vehicle is in ready mode)
[ On key out/On vehicle off : All doors will be automatically
unlocked when the ignition key is removed from the ignition
switch or the Engine Start/Stop button is set to the OFF
position.
[ Off : The auto door unlock operation will be canceled.
Power liftgate If this item is checked, the power liftgate function will be
activated.
For more details, refer to ''Power liftgate' in chapter 5.
Power liftgate opening
speed To adjust the power liftgate speed.
[
Fast/Normal
For more details, refer to ''Power liftgate' in chapter 5.
Smart liftgate To activate or deactivate the smart liftgate.
For more details, refer to ''Smart liftgate' in chapter 5.
7. Convenience
Items
Explanation
Seat easy access [
Off : The sea
t easy access function is deactivated.
[ Normal/Extended : When you turn off the engine, the driver's
seat will automatically move rearward short (Normal) or
long (Extended) for you to enter or exit the vehicle more
comfortably.
For more details, refer to ''Driver Position Memory System'' in
chapter 5.
Rear occupant alert To activate or deactivate the Rear Occupant Alert.
For more details, refer to ''Rear Occupant Alert (ROA)
system'' in chapter 5.

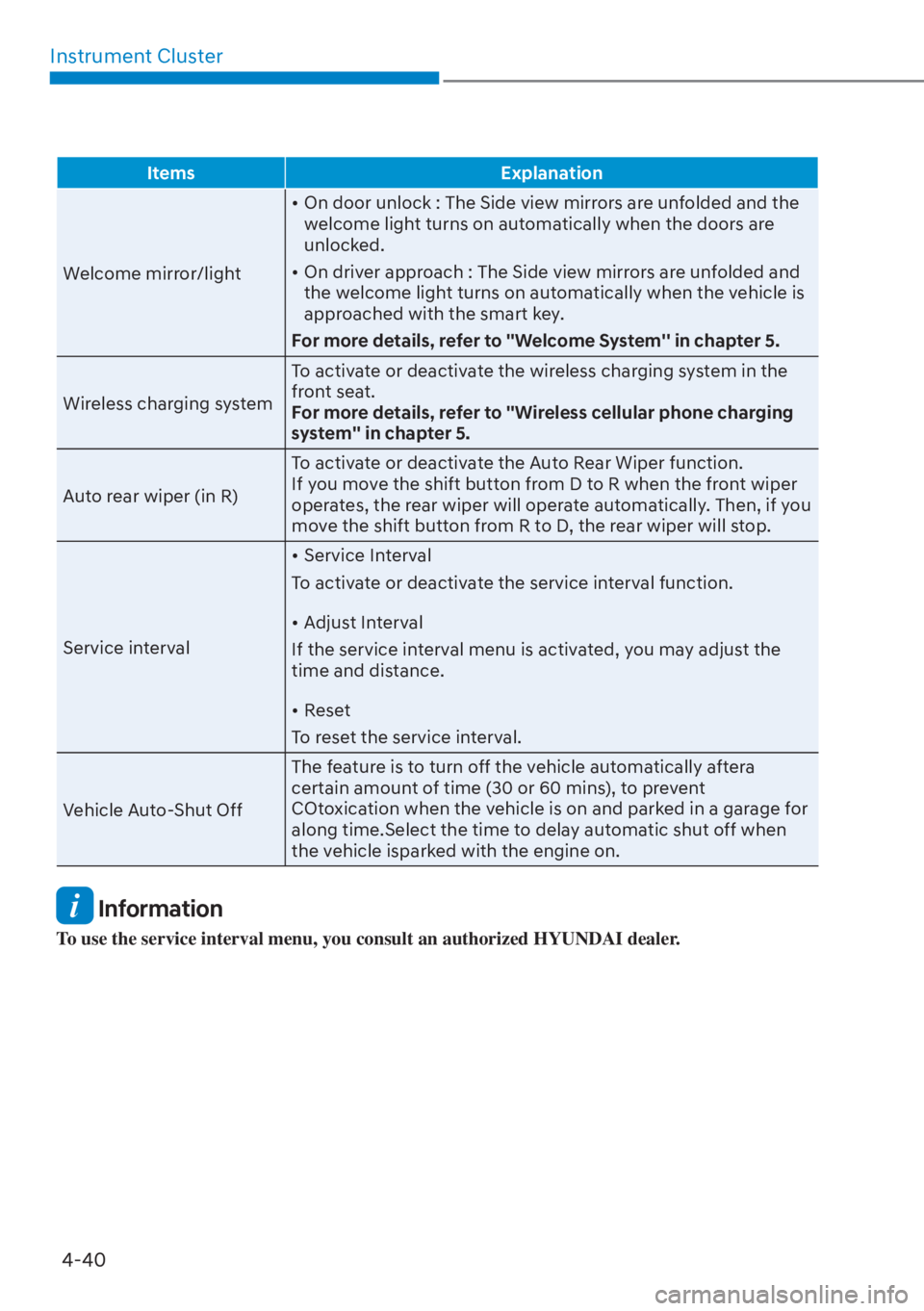

Page 152 of 623
Instrument Cluster4-40
Items Explanation
Welcome mirror/light [
On door unlock : The Side vie
w mirrors are unfolded and the
welcome light turns on automatically when the doors are
unlocked.
[ On driver approach : The Side view mirrors are unfolded and
the welcome light turns on automatically when the vehicle is
approached with the smart key.
For more details, refer to ''Welcome System'' in chapter 5.
Wireless charging system To activate or deactivate the wireless charging system in the
front seat.
For more details, refer to ''Wireless cellular phone charging
system'' in chapter 5.
Auto rear wiper (in R) To activate or deactivate the Auto Rear Wiper function.
If you move the shift button from D to R when the front wiper
operates, the rear wiper will operate automatically. Then, if you
move the shift button from R to D, the rear wiper will stop.
Service interval [
Service Interval
To activate or deactivate the service interval function.
[ Adjust Interval
If the service interval menu is activated, you may adjust the
time and distance.
[ Reset
To reset the service interval.
Vehicle Auto-Shut Off The feature is to turn off the vehicle automatically aftera
certain amount of time (30 or 60 mins), to prevent
COtoxication when the vehicle is on and parked in a garage for
along time.Select the time to delay automatic shut off when
the vehicle isparked with the engine on.
Information
To use the service interval menu, you consult an authorized HYUNDAI deale\
r.
Page 153 of 623
04
4-41

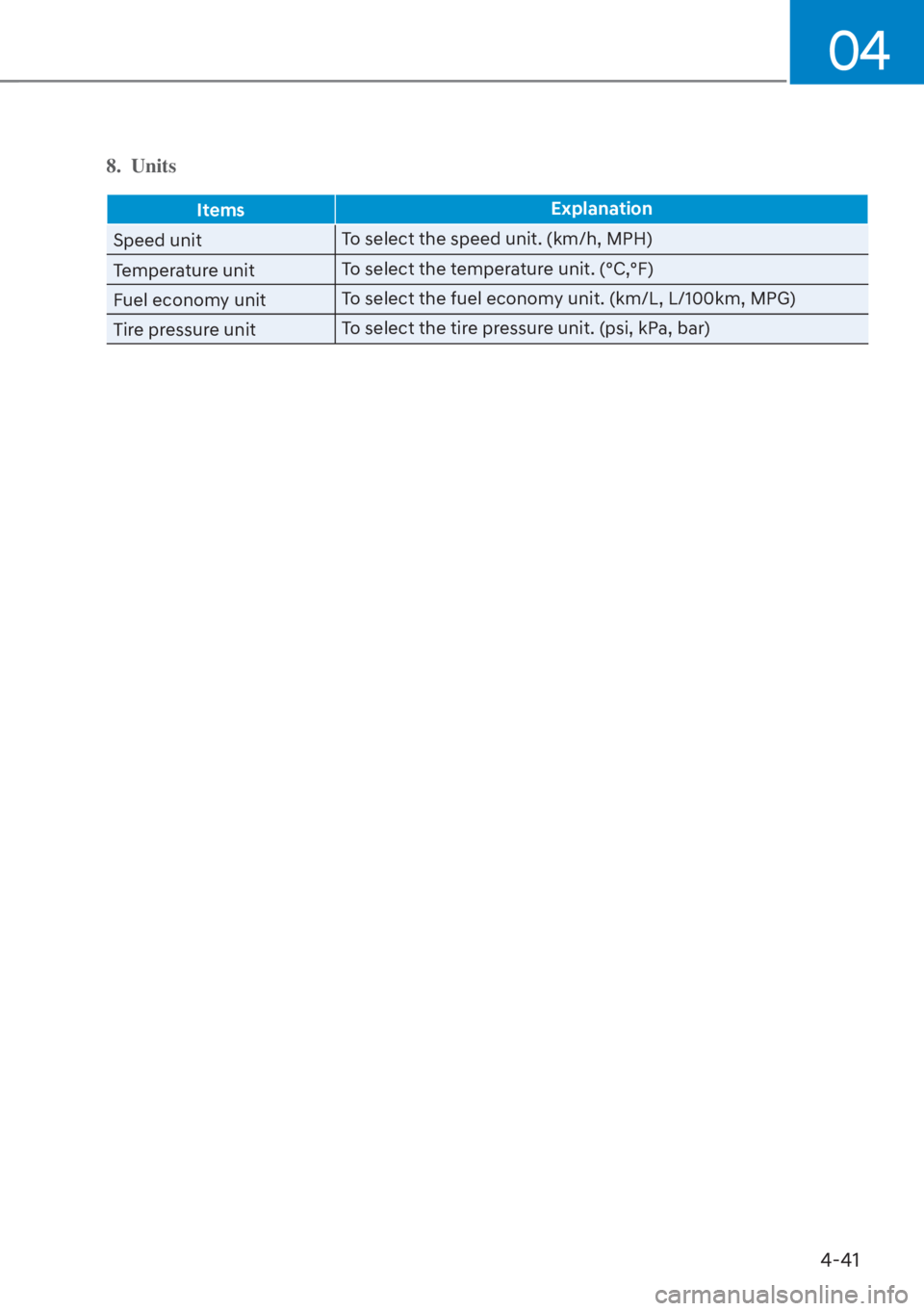

8. Units
ItemsExplanation
Speed unit T
o select the speed unit. (km/h, MPH)
Temperature unit To select the temperature unit. (°C,°F)
Fuel economy unit To select the fuel economy unit. (km/L, L/100km, MPG)
Tire pressure unit To select the tire pressure unit. (psi, kPa, bar)

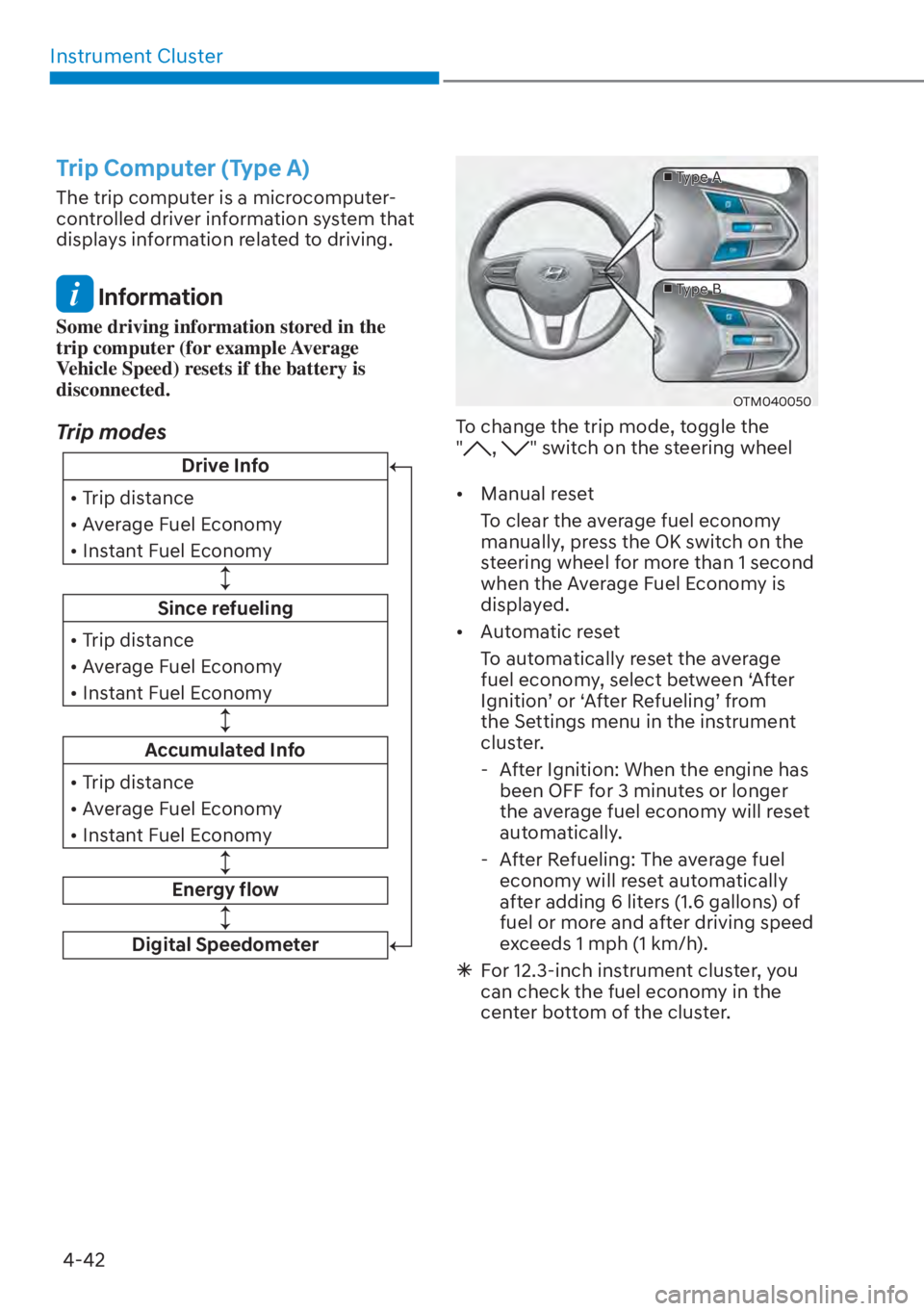

Page 154 of 623
Instrument Cluster4-42
Trip Computer (Type A)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Since refueling
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
Drive Info
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
Accumulated Info
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
Energy flow
Digital Speedometer
v Type A
v Type B
OTM040050
To change the trip mode, toggle the
", " switch on the steering wheel
[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.
[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.
- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).
à For 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.

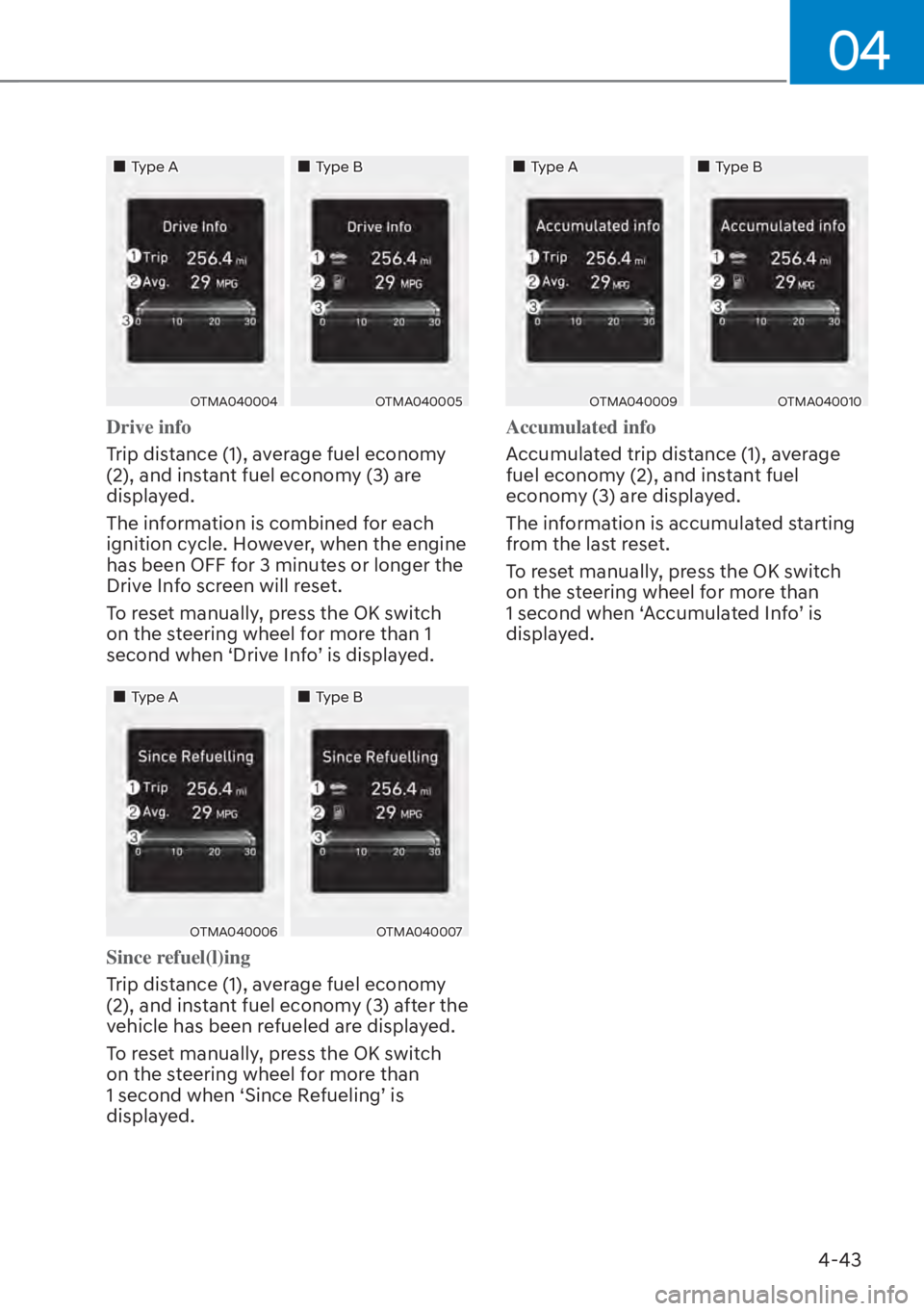

Page 155 of 623
04
4-43
„Type A „Type B
OTMA040004OTMA040005
Drive info
Trip distance (1), average fuel economy
(2), and ins
tant fuel economy (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A „Type B
OTMA040006OTMA040007
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and ins
tant fuel economy (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
„Type A „Type B
OTMA040009OTMA040010
Accumulated info
Accumulated trip distance (1), average
fuel econom
y (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.

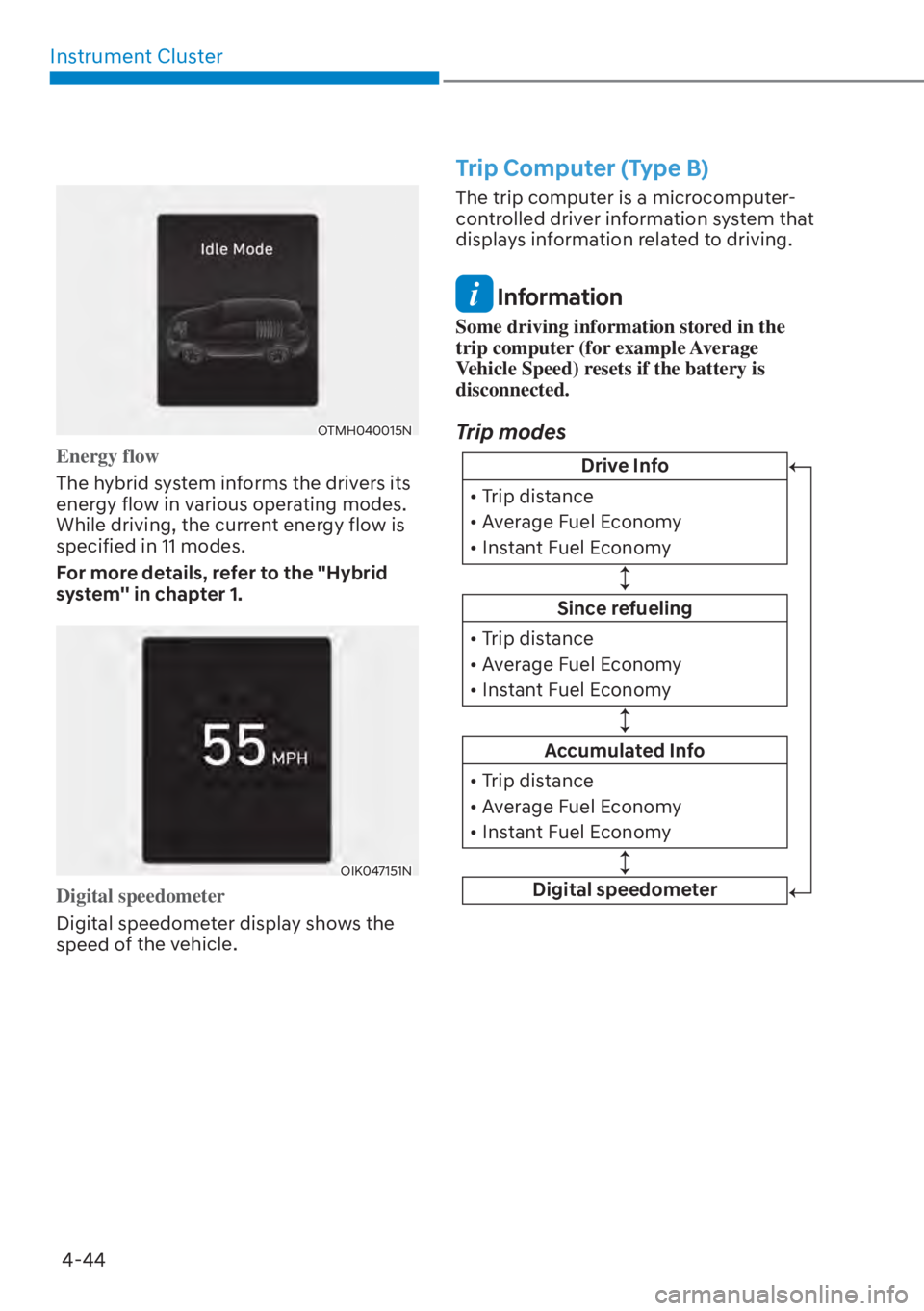

Page 156 of 623
Instrument Cluster4-44
OTMH040015N
Energy flow
The hybrid system informs the drivers its
ener
gy flow in various operating modes.
While driving, the current energy flow is
specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OIK047151N
Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.
Trip Computer (Type B)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Since refueling
Drive Info
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
Accumulated Info
Digital speedometer

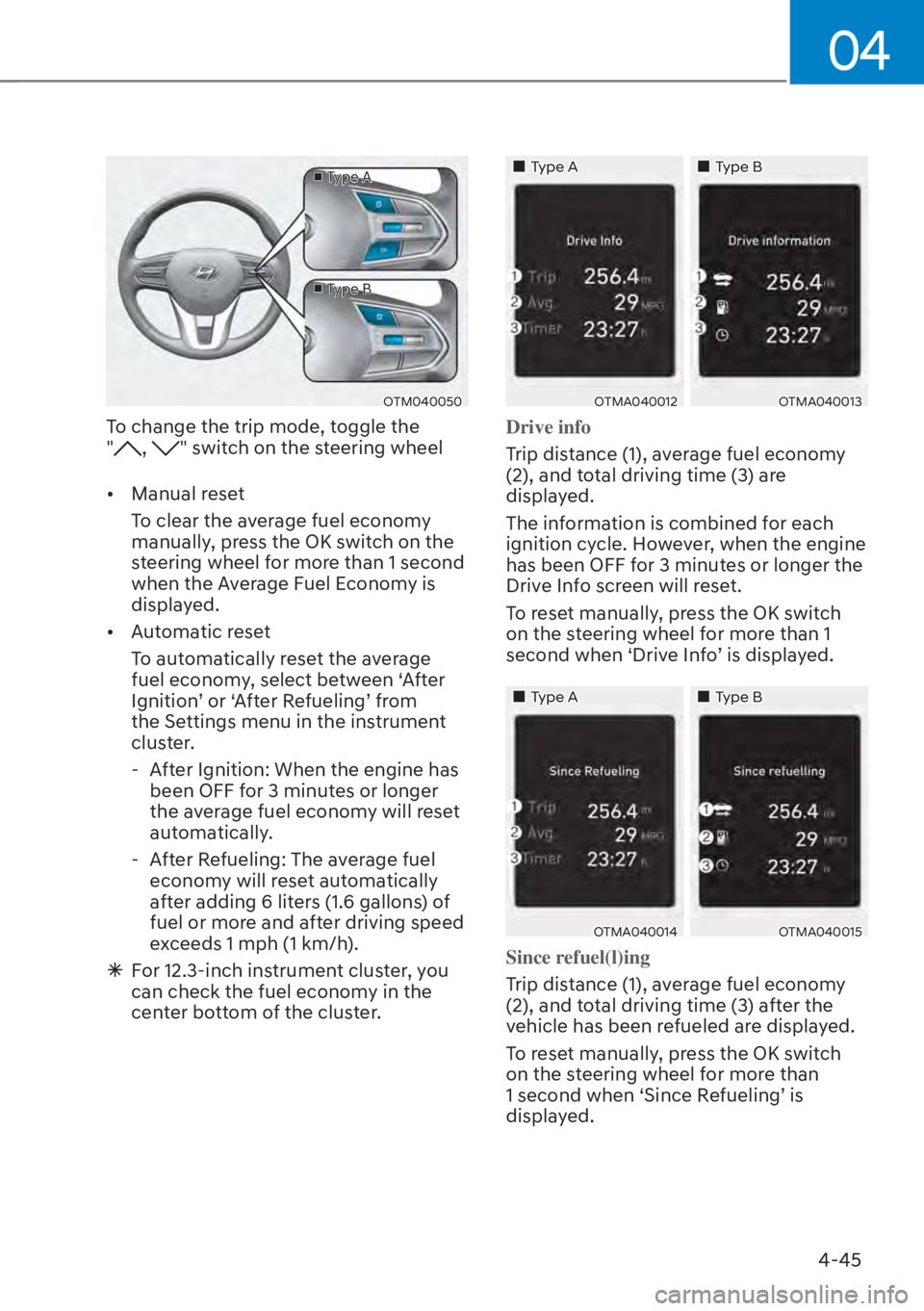

Page 157 of 623
04
4-45
v Type A
v Type B
OTM040050
To change the trip mode, toggle the
", " switch on the steering wheel
[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.
[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.
- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).
à For 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.
„Type A „Type B
OTMA040012OTMA040013
Drive info
Trip distance (1), average fuel economy
(2), and t
otal driving time (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A „Type B
OTMA040014OTMA040015
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and t
otal driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
Page 158 of 623

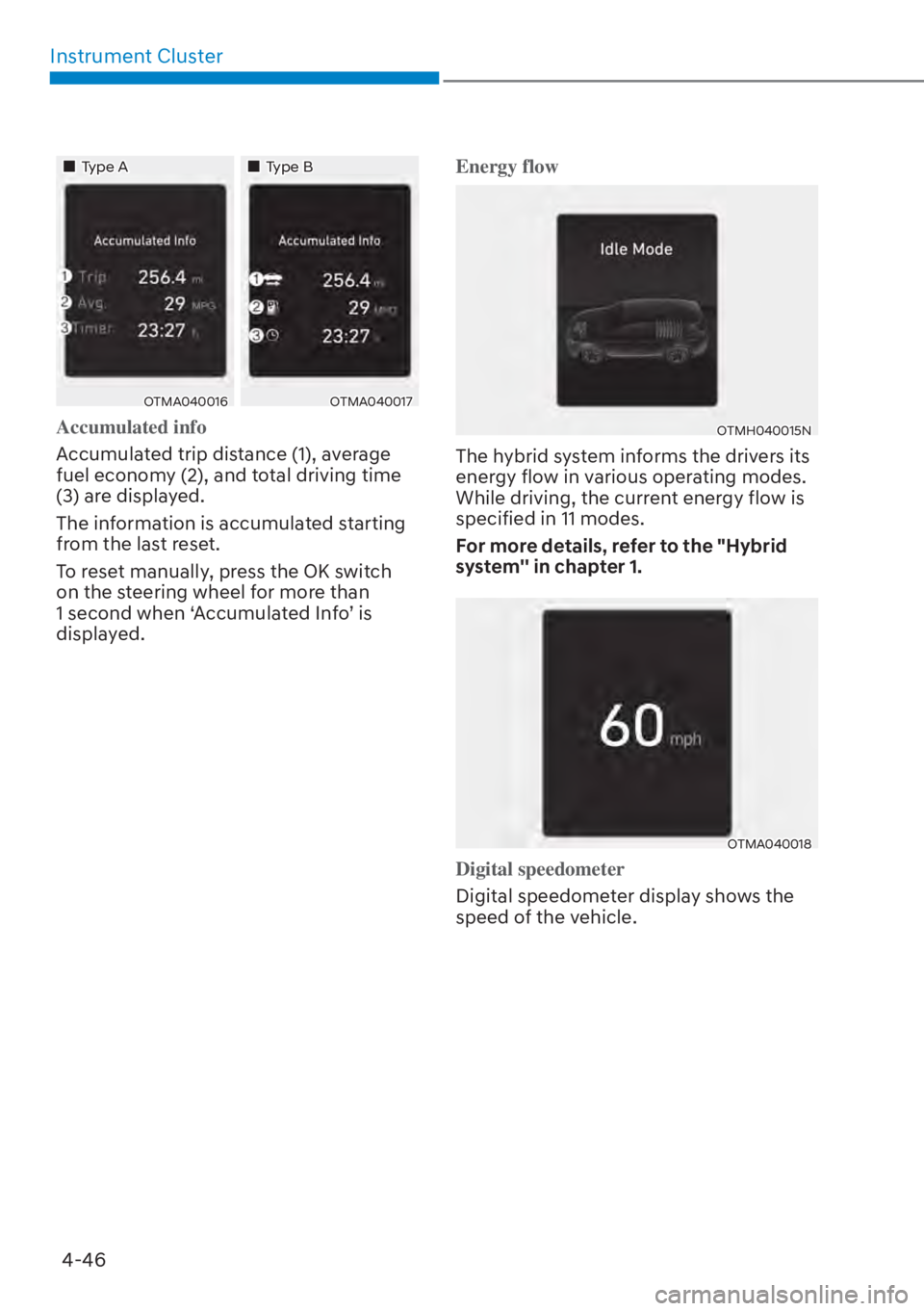

Instrument Cluster4-46
„Type A „Type B
OTMA040016OTMA040017
Accumulated info
Accumulated trip distance (1), average
fuel econom
y (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed. Energy flow
OTMH040015N
The hybrid system informs the drivers its
energy flow in various operating modes.
While driving, the current energy flow is
specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OTMA040018
Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.

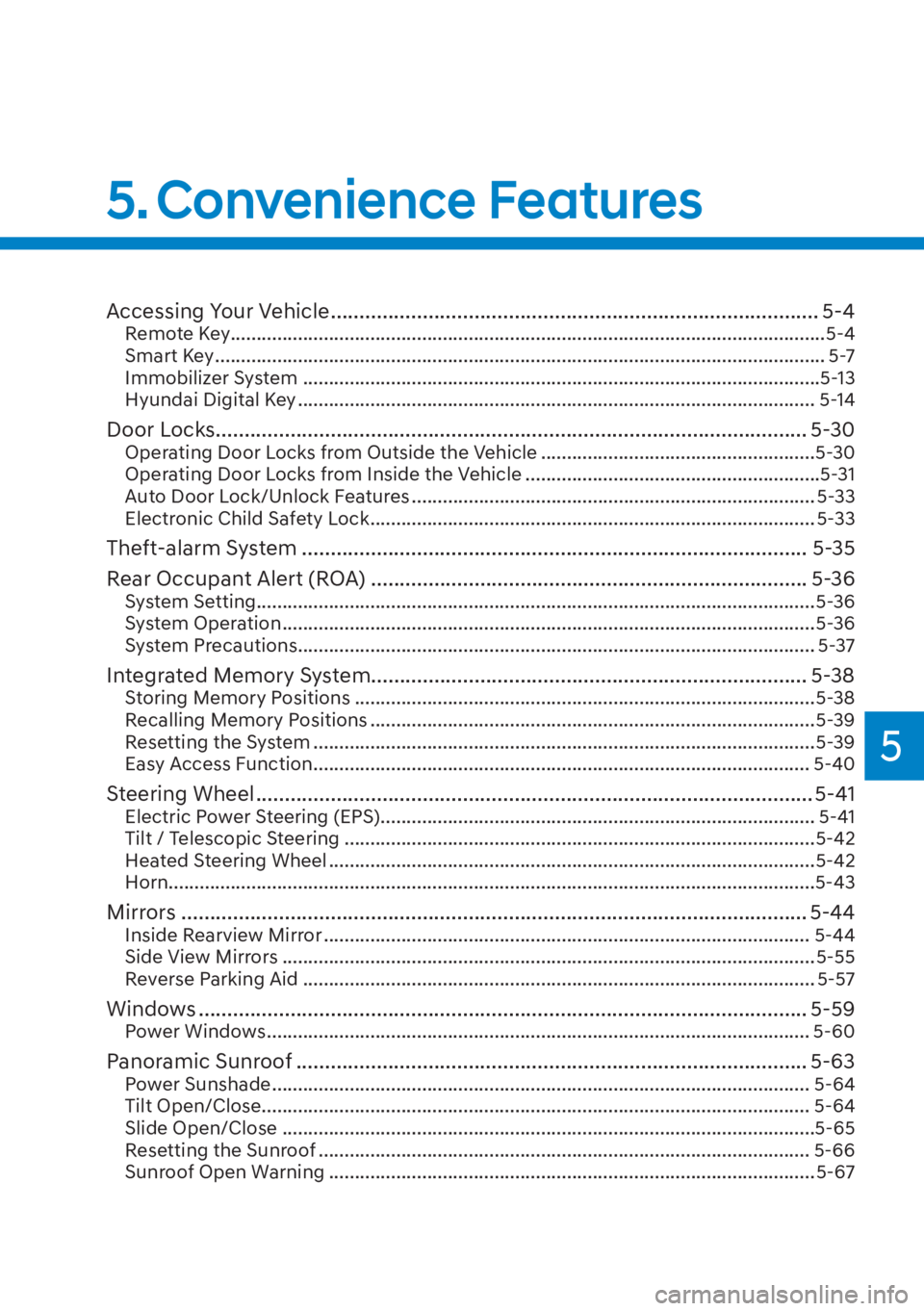

Page 159 of 623
![HYUNDAI SANTA FE HYBRID 2023 Owners Manual 5
Accessing Your Vehicle ........................................................................\
............. 5-4Remote Key ........................................................................\](/img/35/58886/w960_58886-158.png "HYUNDAI SANTA FE HYBRID 2023 Owners Manual 5
Accessing Your Vehicle ........................................................................\
............. 5-4Remote Key ........................................................................\")
5
Accessing Your Vehicle ........................................................................\
............. 5-4Remote Key ........................................................................\
...........................................5-4
Smart Key ........................................................................\
..............................................5-7
Immobilizer System ........................................................................\
............................5-13
Hyundai Digital Key ........................................................................\
............................ 5-14
Door Locks ........................................................................\
............................... 5-30Operating Door Locks from Outside the Vehicle .....................................................5-30
Operating Door Locks from Inside the Vehicle .........................................................5-31
Auto Door Lock/Unlock Features ........................................................................\
...... 5-33
Electronic Child Safety Lock ........................................................................\
.............. 5-33
Theft-alarm System ........................................................................\
................ 5-35
Rear Occupant Alert (ROA) .....................................................................\
....... 5-36
System Setting........................................................................\
....................................5-36
System Operation ........................................................................\
...............................5-36
System Precautions ........................................................................\
............................ 5-37
Integrated Memory System......................................................................\
...... 5-38Storing Memory Positions ........................................................................\
.................5-38
Recalling Memory Positions ........................................................................\
..............5-39
Resetting the System ........................................................................\
.........................5-39
Easy Access Function ........................................................................\
........................ 5-40
Steering Wheel ........................................................................\
......................... 5-41Electric Power Steering (EPS) ........................................................................\
............ 5-41
Tilt / Telescopic Steering ........................................................................\
...................5-42
Heated Steering Wheel ........................................................................\
......................5-42
Horn........................................................................\
.....................................................5-43
Mirrors ......................................................................\
....................................... 5-44Inside Rearview Mirror ........................................................................\
...................... 5-44
Side View Mirrors ........................................................................\
............................... 5-55
Reverse Parking Aid .............................................................\
...................................... 5-57
Windows ......................................................................\
.................................... 5-59Power Windows ........................................................................\
................................. 5-60
Panoramic Sunroof ........................................................................\
................. 5-63Power Sunshade ........................................................................\
................................ 5-64
Tilt Open/Close........................................................................\
.................................. 5-64
Slide Open/Close .......................................................\
................................................5-65
Resetting the Sunroof ........................................................................\
....................... 5-66
Sunroof Open Warning ........................................................................\
...................... 5-67
5. Convenience Features
Page 160 of 623

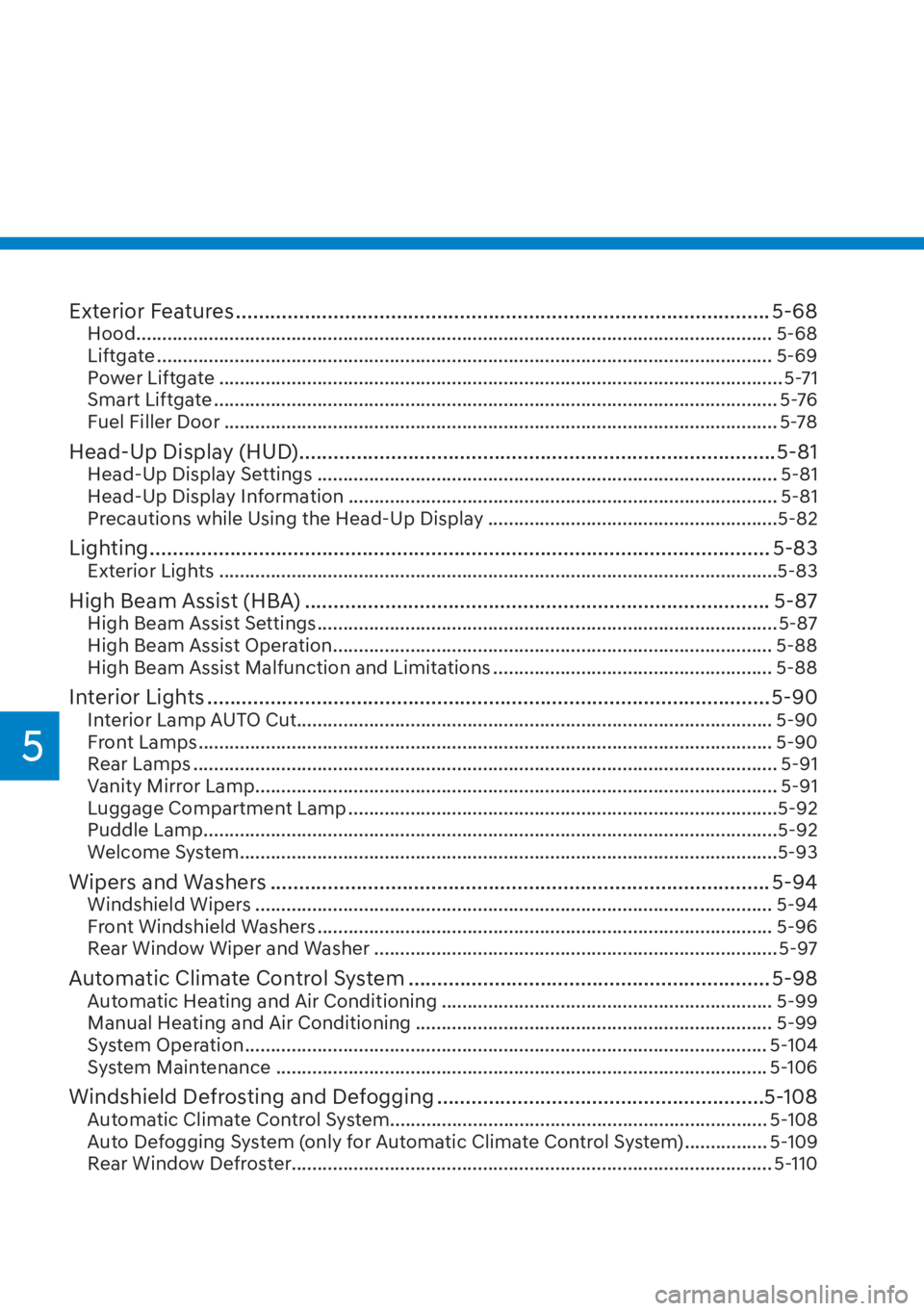

![HYUNDAI SANTA FE HYBRID 2023 Owners Manual 5
Exterior Features ........................................................................\
..................... 5-68Hood ....................................................................\
.....](/img/35/58886/w960_58886-159.png "HYUNDAI SANTA FE HYBRID 2023 Owners Manual 5
Exterior Features ........................................................................\
..................... 5-68Hood ....................................................................\
.....")
5
Exterior Features ........................................................................\
..................... 5-68Hood ....................................................................\
....................................................... 5-68
Liftgate ......................................................................\
................................................. 5-69
Power Liftgate ........................................................................\
..................................... 5-71
Smart Liftgate ........................................................................\
..................................... 5-76
Fuel Filler Door ........................................................................\
................................... 5-78
Head-Up Display (HUD)......................................................................\
.............5-81Head-Up Display Settings ........................................................................\
................. 5-81
Head-Up Display Information ........................................................................\
........... 5-81
Precautions while Using the Head-Up Display ........................................................5-82
Lighting ...............................................................\
............................................. 5-83Exterior Lights ........................................................................\
....................................5-83
High Beam Assist (HBA) ........................................................................\
......... 5-87High Beam Assist Settings ........................................................................\
................. 5-87
High Beam Assist Operation ........................................................................\
............. 5-88
High Beam Assist Malfunction and Limitations ...................................................... 5-88
Interior Lights ........................................................................\
.......................... 5-90Interior Lamp AUTO Cut........................................................................\
.................... 5-90
Front Lamps ........................................................................\
....................................... 5-90
Rear Lamps ........................................................................\
......................................... 5-91
Vanity Mirror Lamp ........................................................................\
............................. 5-91
Luggage Compartment Lamp ........................................................................\
...........5-92
Puddle Lamp ........................................................................\
.......................................5-92
Welcome System ........................................................................\
................................5-93
Wipers and Washers ........................................................................\
............... 5-94Windshield Wipers ........................................................................\
............................ 5-94
Front Windshield Washers ........................................................................\
................ 5-96
Rear Window Wiper and Washer ........................................................................\
...... 5-97
Automatic Climate Control System ............................................................... 5-98Automatic Heating and Air Conditioning ................................................................ 5-99
Manual Heating and Air Conditioning ..................................................................... 5-99
System Operation ........................................................................\
............................. 5-104
System Maintenance ........................................................................\
....................... 5-106
Windshield Defrosting and Defogging .........................................................5-108Automatic Climate Control System......................................................................\
... 5-108
Auto Defogging System (only for Automatic Climate Control System) ................ 5-109
Rear Window Defroster........................................................................\
..................... 5-110
