HYUNDAI SANTA FE HYBRID 2023 Owners Manual

5
Climate Control Additional Features ............................................................. 5-111Auto Defogging System ........................................................................\
..................... 5-111
Auto Dehumidify ........................................................................\
............................... 5-112
Recirculating Air when Washer Fluid is Used .......................................................... 5-113
Sunroof Inside Air Recirculation ........................................................................\
....... 5-113
Auto. Controls That Use Climate Control Settings (for Driver’s Seat).................... 5-113
Storage Compartment ........................................................................\
............5-114Center Console Storage ........................................................................\
.................... 5-114
Glove Box ........................................................................\
........................................... 5-114
Tray ......................................................................\
....................................................... 5-115
Luggage Tray ........................................................................\
..................................... 5-115
Interior Features ........................................................................\
......................5-116Cup Holder ........................................................................\
......................................... 5-116
Ashtray ......................................................................\
.................................................5-117
Sunvisor ..................................................................\
................................................... 5-117
Power Outlet ........................................................................\
...................................... 5-118
USB Charger ........................................................................\
...................................... 5-119
AC Inverter ........................................................................\
......................................... 5-119
Wireless Smart Phone Charging System ................................................................. 5-121
Clock ..................................................................\
....................................................... 5-124
Coat Hook ........................................................................\
......................................... 5-124
Floor Mat Anchor(s) ........................................................................\
...........................5-125
Side Curtain ........................................................................\
.......................................5-125
Luggage Net Holder ........................................................................\
......................... 5-126
Cargo Security Screen ........................................................................\
...................... 5-127
Exterior Features ........................................................................\
.................... 5-128Roof Side Rails ........................................................................\
.................................. 5-128
Infotainment System ........................................................................\
............. 5-129USB Port ........................................................................\
............................................ 5-129
Antenna ...................................................................\
.................................................. 5- 129
Steering Wheel Remote Controls ........................................................................\
.... 5-129
Infotainment System ........................................................................\
........................ 5-130
Voice Recognition ........................................................................\
............................ 5-130
Bluetooth® Wireless Technology ........................................................................\
...... 5-131

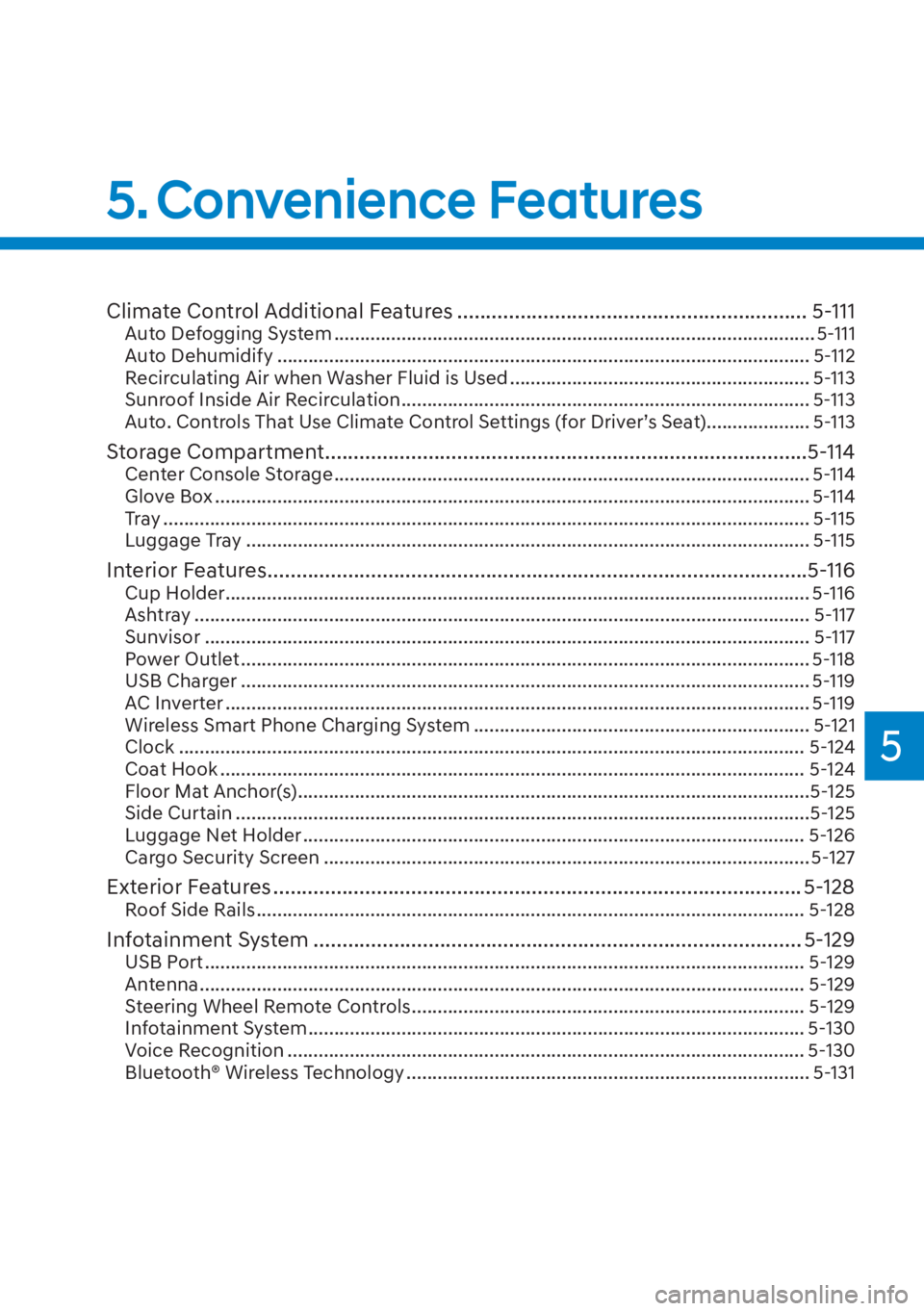

5. Convenience Features

Convenience Features5-4

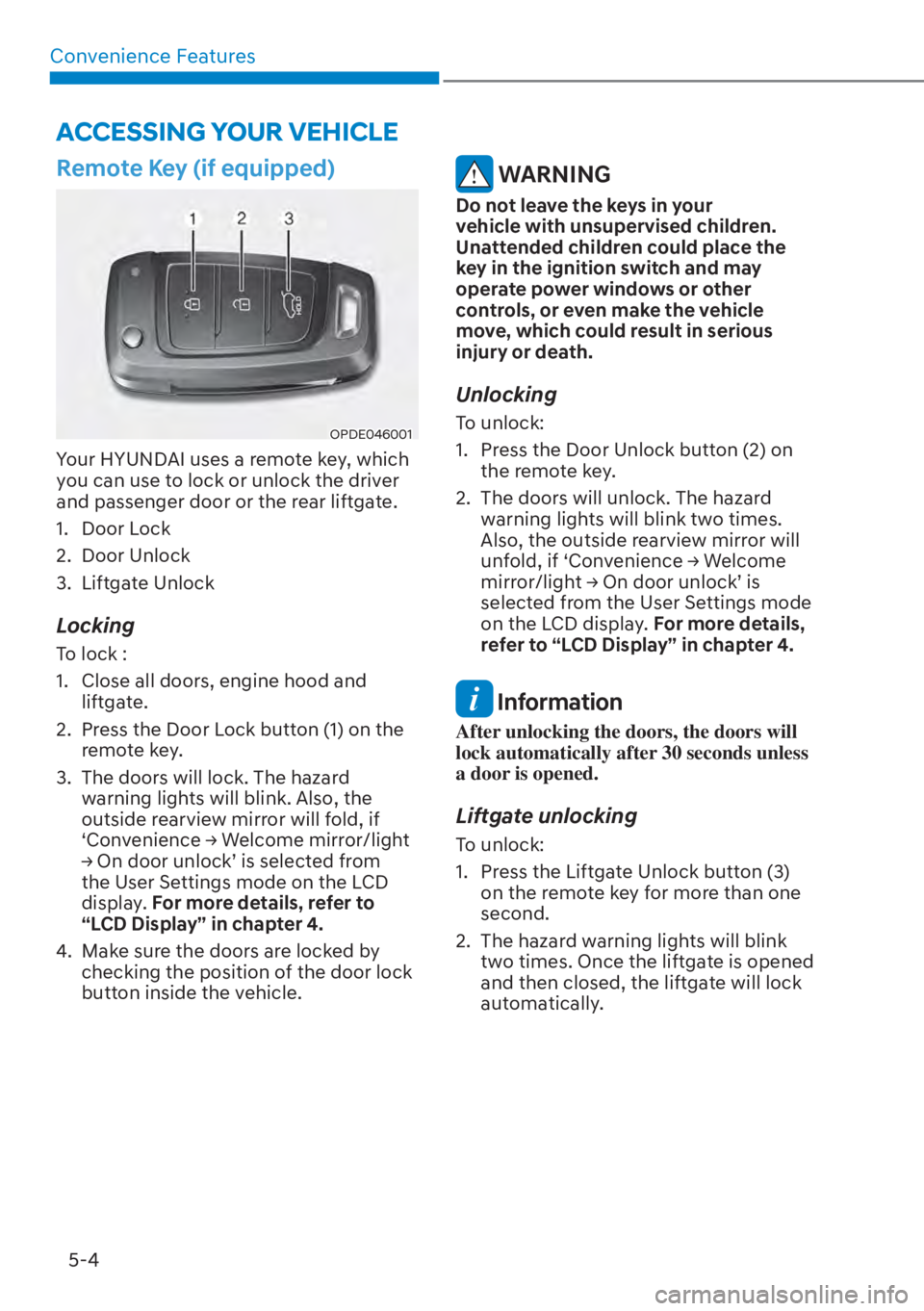

Remote Key (if equipped)
OPDE046001
Your HYUNDAI uses a remote key, which
you can use to lock or unlock the driver
and passenger door or the rear liftgate.
1. Door Lock
2. Door Unlock
3. Liftgate Unlock
Locking
To lock :
1. Close all doors, engine hood and liftgate.
2. Press the Door Lock button (1) on the remote key.
3. The doors will lock. The hazard warning lights will blink. Also, the
outside rearview mirror will fold, if

S&RQYHQLHQFH

05
5-5

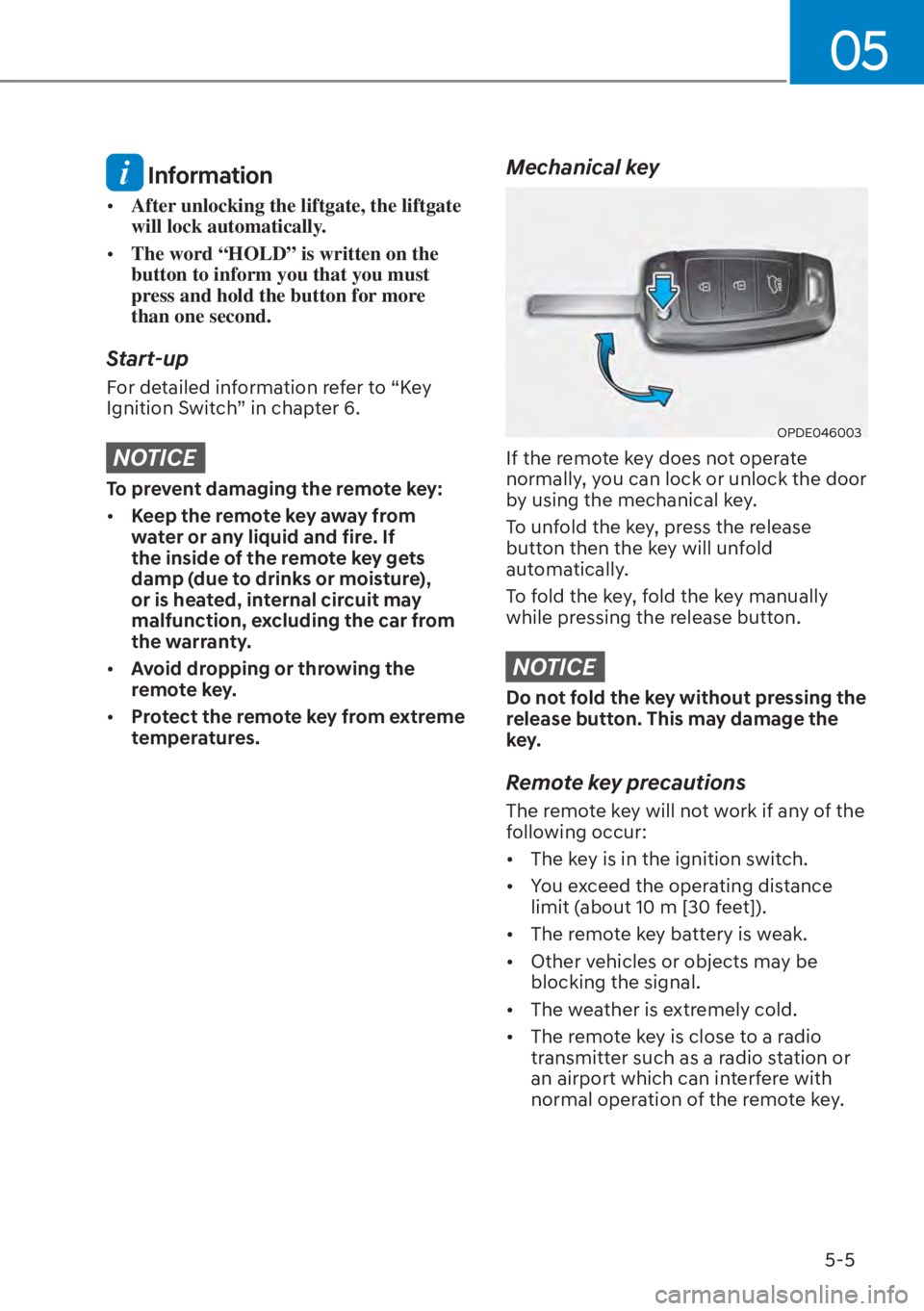

Information

[After unlocking the liftgate, the liftgate
will lock automatically.

[ The word “HOLD” is written on the
button to inform you that you must
press and hold the button for more
than one second.
Start-up
For detailed information refer to “Key
Ignition Switch” in chapter 6.
NOTICE
To prevent damaging the remote key:

[Keep the remote key away from
water or any liquid and fire. If
the inside of the remote key gets
damp (due to drinks or moisture),
or is heated, internal circuit may
malfunction, excluding the car from
the warranty.

[ Avoid dropping or throwing the
remote key.

[ Protect the remote key from extreme
temperatures.
Mechanical key
OPDE046003
If the remote key does not operate
normally, you can lock or unlock the door
by using the mechanical key.
To unfold the key, press the release
button then the key will unfold
automatically.
To fold the key, fold the key manually
while pressing the release button.
NOTICE
Do not fold the key without pressing the
release button. This may damage the
key.
Remote key precautions
The remote key will not work if any of the
following occur:

[The key is in the ignition switch.

[ You exceed the operating distance
limit (about 10 m [30 feet]).

[ The remote key battery is weak.

[ Other vehicles or objects may be
blocking the signal.

[ The weather is extremely cold.

[ The remote key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the remote key.

Convenience Features5-6

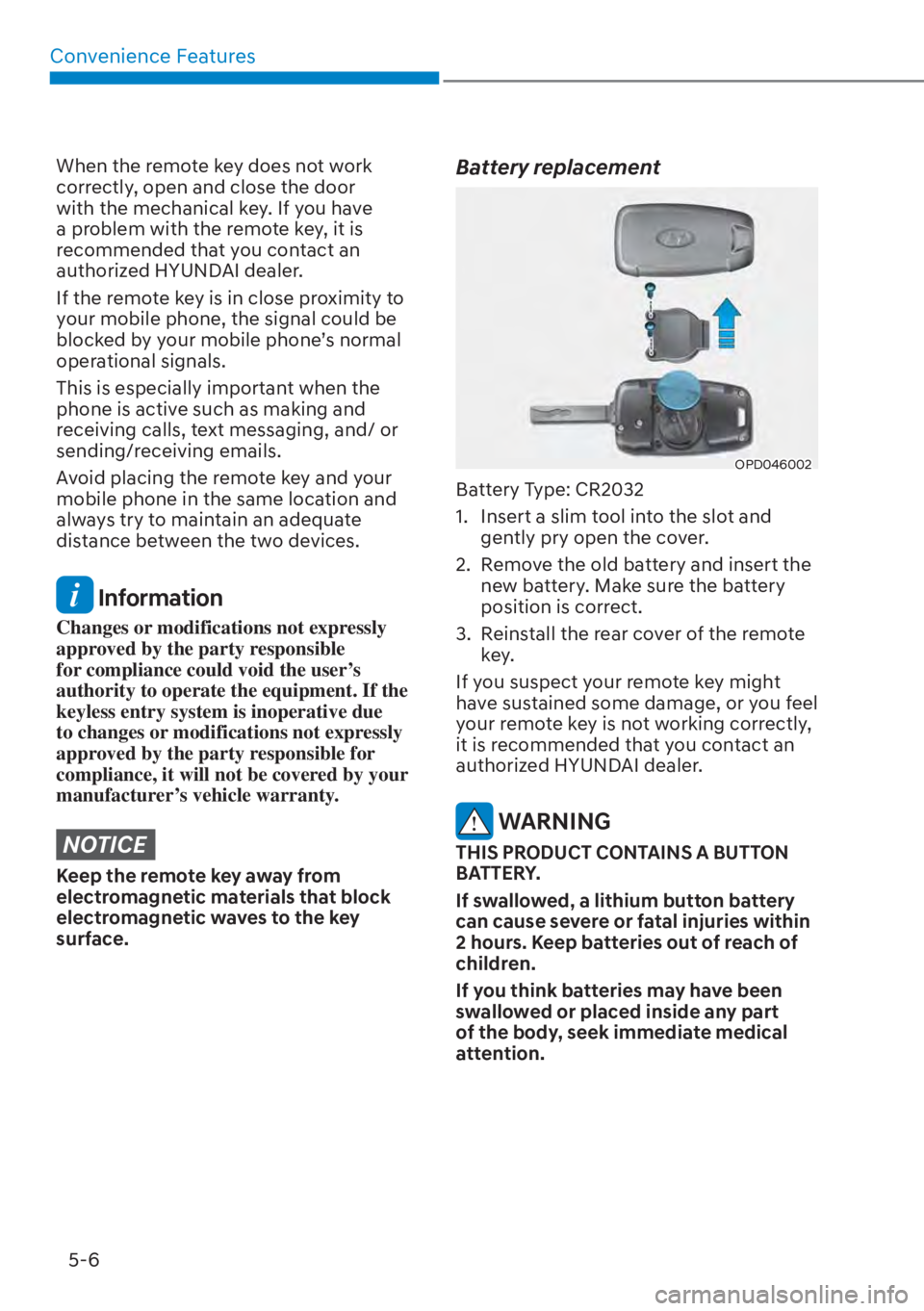

When the remote key does not work
correctly, open and close the door
with the mechanical key. If you have
a problem with the remote key, it is
recommended that you contact an
authorized HYUNDAI dealer.
If the remote key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals.
This is especially important when the
phone is active such as making and
receiving calls, text messaging, and/ or
sending/receiving emails.
Avoid placing the remote key and your
mobile phone in the same location and
always try to maintain an adequate
distance between the two devices.
Information
Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the equipment. If the
keyless entry system is inoperative due
to changes or modifications not expressly
approved by the party responsible for
compliance, it will not be covered by your
manufacturer’s vehicle warranty.
NOTICE
Keep the remote key away from
electromagnetic materials that block
electromagnetic waves to the key
surface.
Battery replacement
OPD046002
Battery Type: CR2032
1. Insert a slim tool into the slot and gently pry open the cover.
2. Remove the old battery and insert the new battery. Make sure the battery
position is correct.
3. Reinstall the rear cover of the remote key.
If you suspect your remote key might
have sustained some damage, or you feel
your remote key is not working correctly,
it is recommended that you contact an
authorized HYUNDAI dealer.
WARNING
THIS PRODUCT CONTAINS A BUTTON
BATTERY.
If swallowed, a lithium button battery
can cause severe or fatal injuries within
2 hours. Keep batteries out of reach of
children.
If you think batteries may have been
swallowed or placed inside any part
of the body, seek immediate medical
attention.

05
5-7
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s)
and regulation.
Smart Key (if equipped)
„Type A
OTM050003
„Type B
OTM050004
Your HYUNDAI uses a smart key, which
you can use to lock or unlock a door (and
liftgate) and even start the engine even
just carrying the key.
1. Door lock
2. Door unlock
3. Liftgate Open / Close (Power liftgate)
4. Panic Open / Close
5. Remote Smart Parking Assist (Forward)
6. Remote Smart Parking Assist (Backward)
7. Remote start
„Type C
OTMA050022
„Type D
OTMA050021
1. Door lock
2. Door unlock
3. Panic
4. Remote Smart Parking Assist (Forward)
5. Remote Smart Parking Assist (Rearward)
6. Remote start

Convenience Features5-8

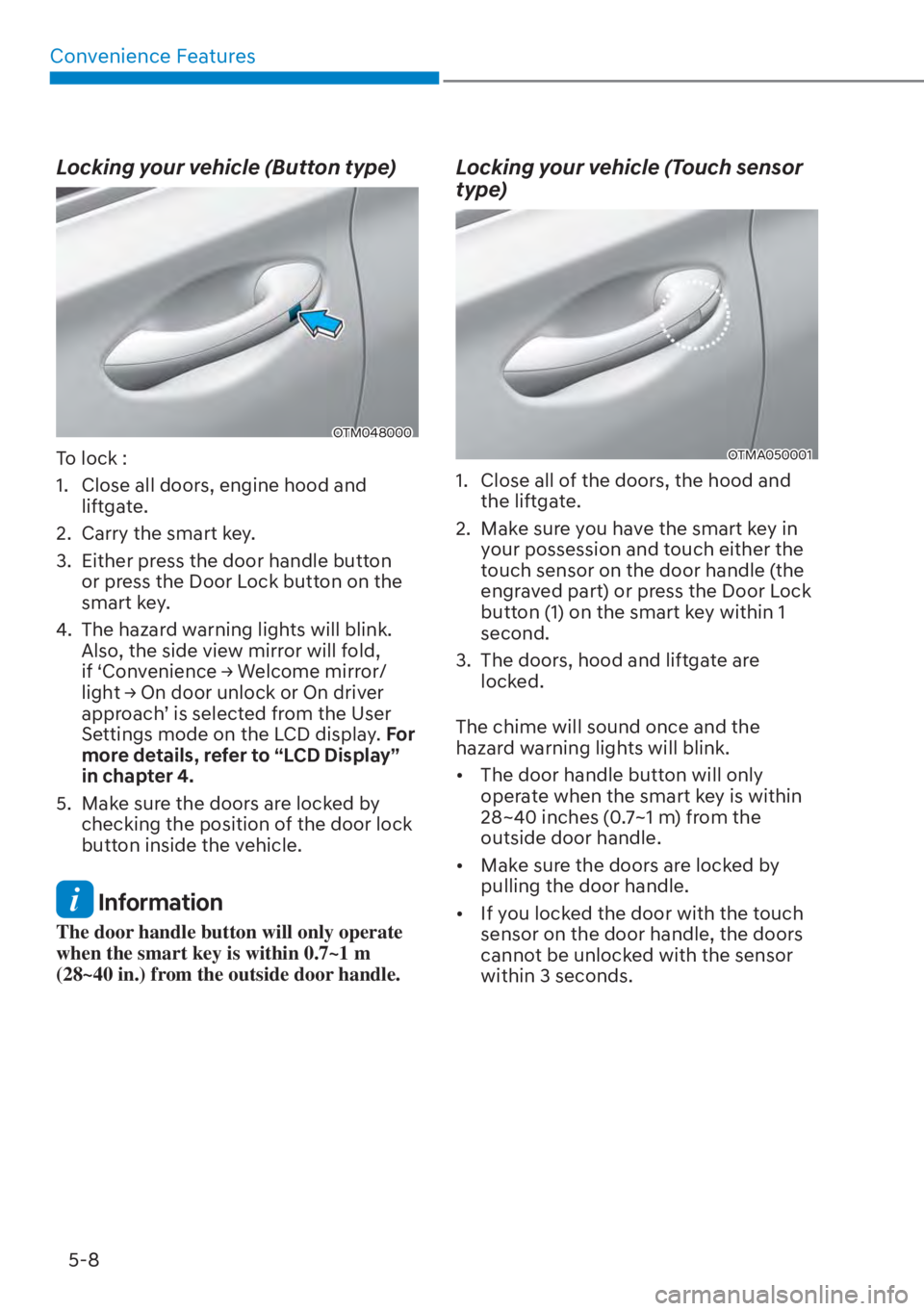

Locking your vehicle (Button type)
OTM048000
To lock :
1. Close all doors, engine hood and liftgate.
2. Carry the smart key.
3. Either press the door handle button or press the Door Lock button on the
smart key.
4. The hazard warning lights will blink. Also, the side view mirror will fold,
LI
S&RQYHQLHQFH

05
5-9

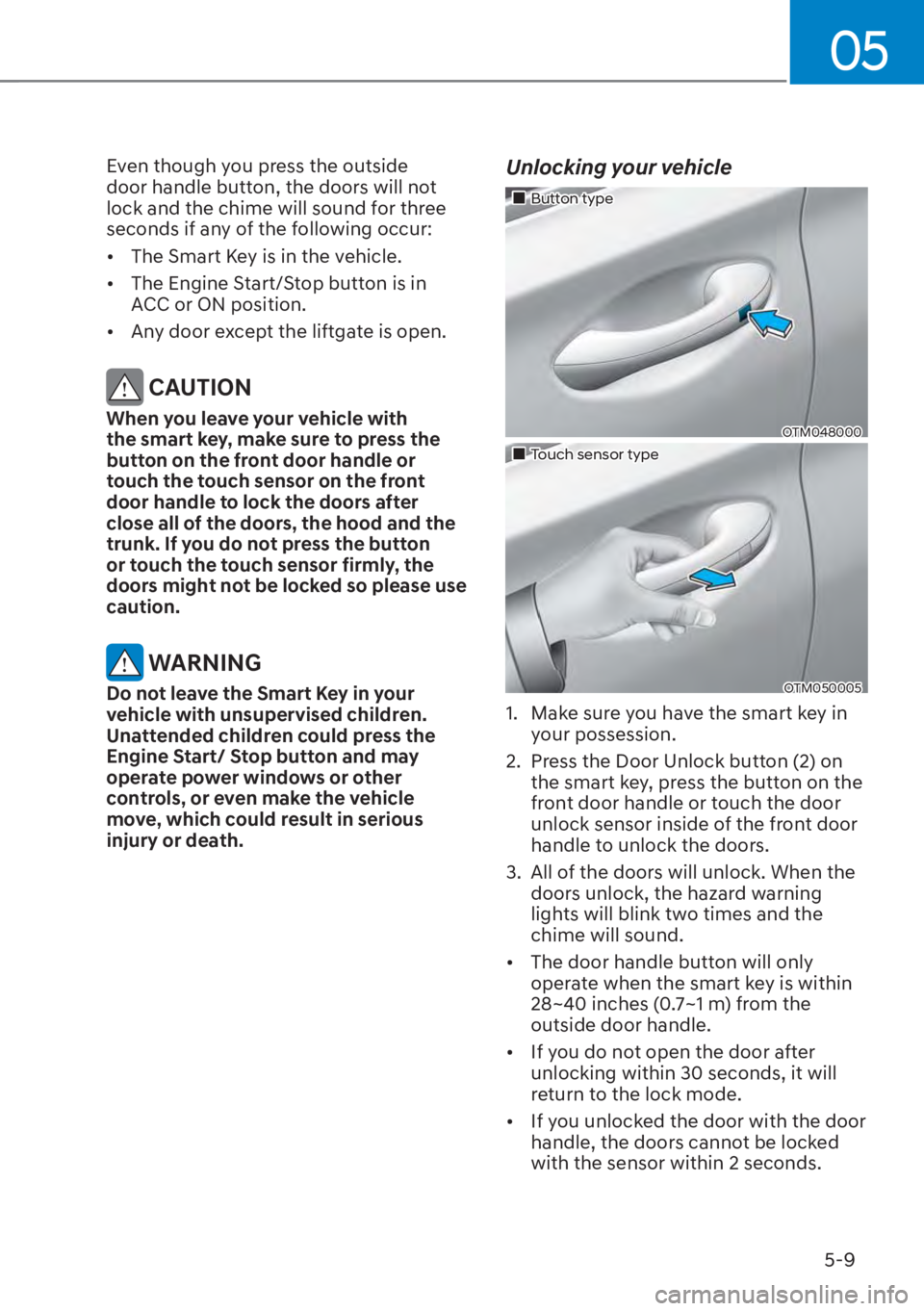

Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for three
seconds if any of the following occur:

[The Smart Key is in the vehicle.

[ The Engine Start/Stop button is in
ACC or ON position.

[ Any door except the liftgate is open.
CAUTION
When you leave your vehicle with
the smart key, make sure to press the
button on the front door handle or
touch the touch sensor on the front
door handle to lock the doors after
close all of the doors, the hood and the
trunk. If you do not press the button
or touch the touch sensor firmly, the
doors might not be locked so please use
caution.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/ Stop button and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle
„Button type
OTM048000
„Touch sensor type
OTM050005
1. Make sure you have the smart key in
your possession.
2. Press the Door Unlock button (2) on the smart key, press the button on the
front door handle or touch the door
unlock sensor inside of the front door
handle to unlock the doors.
3. All of the doors will unlock. When the doors unlock, the hazard warning
lights will blink two times and the
chime will sound.

[ The door handle button will only
operate when the smart key is within
28~40 inches (0.7~1 m) from the
outside door handle.

[ If you do not open the door after
unlocking within 30 seconds, it will
return to the lock mode.

[ If you unlocked the door with the door
handle, the doors cannot be locked
with the sensor within 2 seconds.

Convenience Features5-10

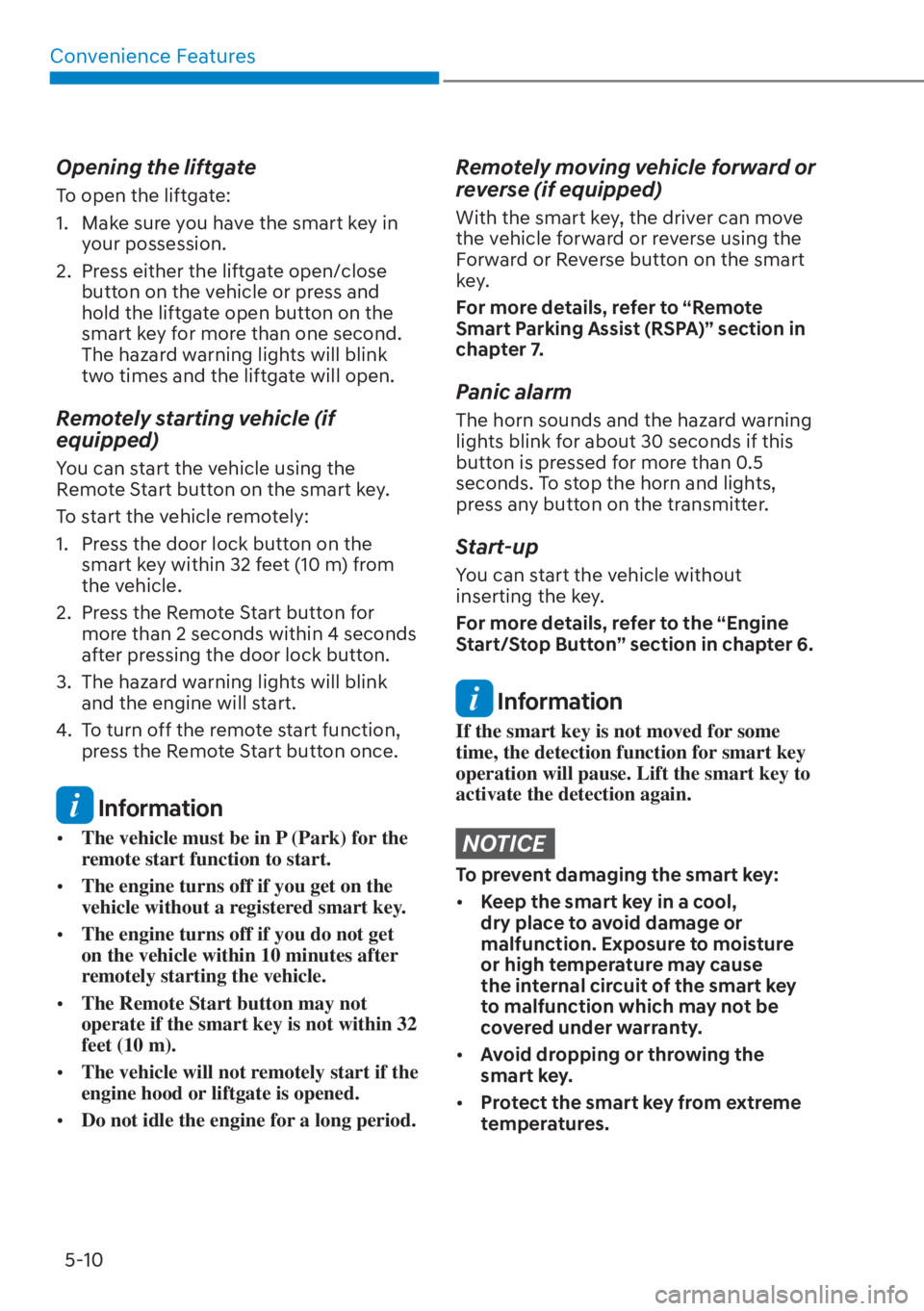

Opening the liftgate
To open the liftgate:
1. Make sure you have the smart key in your possession.
2. Press either the liftgate open/close button on the vehicle or press and
hold the liftgate open button on the
smart key for more than one second.
The hazard warning lights will blink
two times and the liftgate will open.
Remotely starting vehicle (if
equipped)
You can start the vehicle using the
Remote Start button on the smart key.
To start the vehicle remotely:
1. Press the door lock button on the smart key within 32 feet (10 m) from
the vehicle.
2. Press the Remote Start button for more than 2 seconds within 4 seconds
after pressing the door lock button.
3. The hazard warning lights will blink and the engine will start.
4. To turn off the remote start function, press the Remote Start button once.
Information

[The vehicle must be in P (Park) for the
remote start function to start.

[ The engine turns off if you get on the
vehicle without a registered smart key.

[ The engine turns off if you do not get
on the vehicle within 10 minutes after
remotely starting the vehicle.

[ The Remote Start button may not
operate if the smart key is not within 32
feet (10 m).

[ The vehicle will not remotely start if the
engine hood or liftgate is opened.

[ Do not idle the engine for a long period.
Remotely moving vehicle forward or
reverse (if equipped)
With the smart key, the driver can move
the vehicle forward or reverse using the
Forward or Reverse button on the smart
key.
For more details, refer to “Remote
Smart Parking Assist (RSPA)” section in
chapter 7.
Panic alarm
The horn sounds and the hazard warning
lights blink for about 30 seconds if this
button is pressed for more than 0.5
seconds. To stop the horn and lights,
press any button on the transmitter.
Start-up
You can start the vehicle without
inserting the key.
For more details, refer to the “Engine
Start/Stop Button” section in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:

[Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[ Avoid dropping or throwing the
smart key.

[ Protect the smart key from extreme
temperatures.

05
5-11

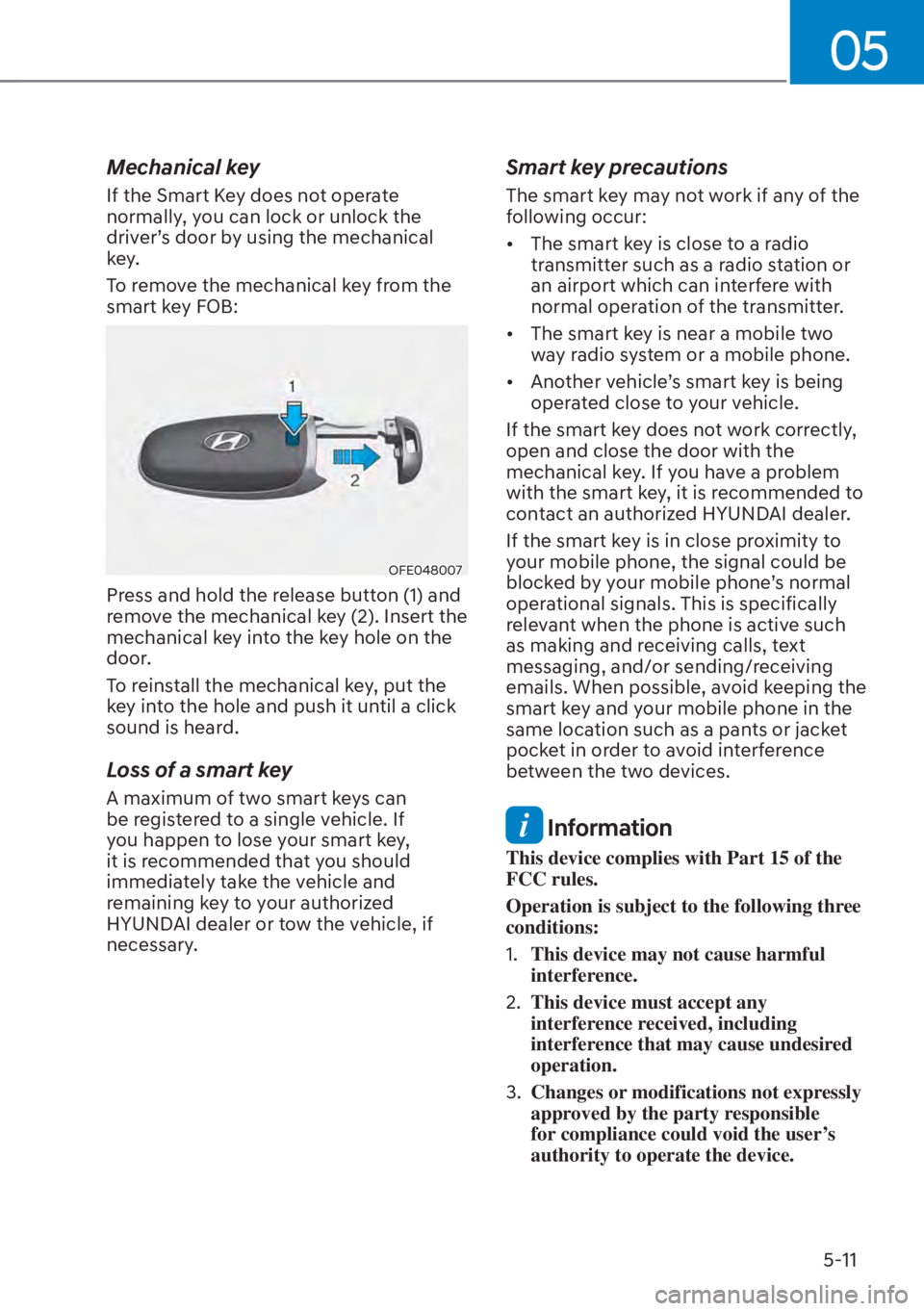

Mechanical key
If the Smart Key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
To remove the mechanical key from the
smart key FOB:
OFE048007
Press and hold the release button (1) and
remove the mechanical key (2). Insert the
mechanical key into the key hole on the
door.
To reinstall the mechanical key, put the
key into the hole and push it until a click
sound is heard.
Loss of a smart key
A maximum of two smart keys can
be registered to a single vehicle. If
you happen to lose your smart key,
it is recommended that you should
immediately take the vehicle and
remaining key to your authorized
HYUNDAI dealer or tow the vehicle, if
necessary.
Smart key precautions
The smart key may not work if any of the
following occur:

[The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.

[ The smart key is near a mobile two
way radio system or a mobile phone.

[ Another vehicle’s smart key is being
operated close to your vehicle.
If the smart key does not work correctly,
open and close the door with the
mechanical key. If you have a problem
with the smart key, it is recommended to
contact an authorized HYUNDAI dealer.
If the smart key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals. This is specifically
relevant when the phone is active such
as making and receiving calls, text
messaging, and/or sending/receiving
emails. When possible, avoid keeping the
smart key and your mobile phone in the
same location such as a pants or jacket
pocket in order to avoid interference
between the two devices.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.

Convenience Features5-12

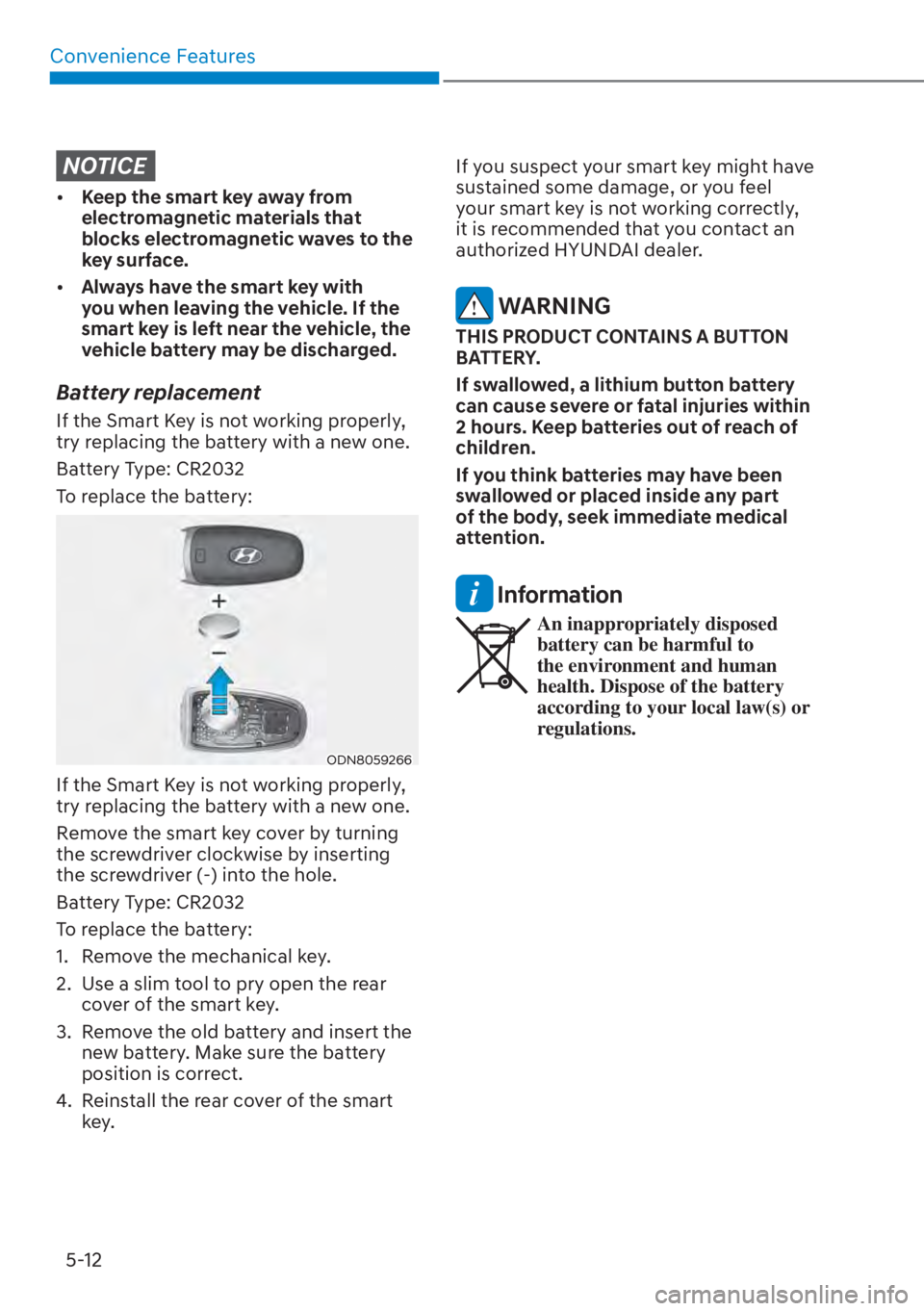

NOTICE

[ Keep the smart key away from
electromagnetic materials that
blocks electromagnetic waves to the
key surface.

[ Always have the smart key with
you when leaving the vehicle. If the
smart key is left near the vehicle, the
vehicle battery may be discharged.
Battery replacement
If the Smart Key is not working properly,
try replacing the battery with a new one.
Battery Type: CR2032
To replace the battery:
ODN8059266
If the Smart Key is not working properly,
try replacing the battery with a new one.
Remove the smart key cover by turning
the screwdriver clockwise by inserting
the screwdriver (-) into the hole.
Battery Type: CR2032
To replace the battery:
1. Remove the mechanical key.
2. Use a slim tool to pry open the rear
cover of the smart key.
3. Remove the old battery and insert the new battery. Make sure the battery
position is correct.
4. Reinstall the rear cover of the smart key. If you suspect your smart key might have
sustained some damage, or you feel
your smart key is not working correctly,
it is recommended that you contact an
authorized HYUNDAI dealer.
WARNING
THIS PRODUCT CONTAINS A BUTTON
BATTERY.
If swallowed, a lithium button battery
can cause severe or fatal injuries within
2 hours. Keep batteries out of reach of
children.
If you think batteries may have been
swallowed or placed inside any part
of the body, seek immediate medical
attention.
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s) or
regulations.
