Page 751 of 785

Hyundai Santa Fe Sport 2015  Owners Manual Maintenance
76 7
Engine compartment fuse panel
ODM072050
ODMNMC2015

Page 752 of 785

Hyundai Santa Fe Sport 2015  Owners Manual 777
Maintenance

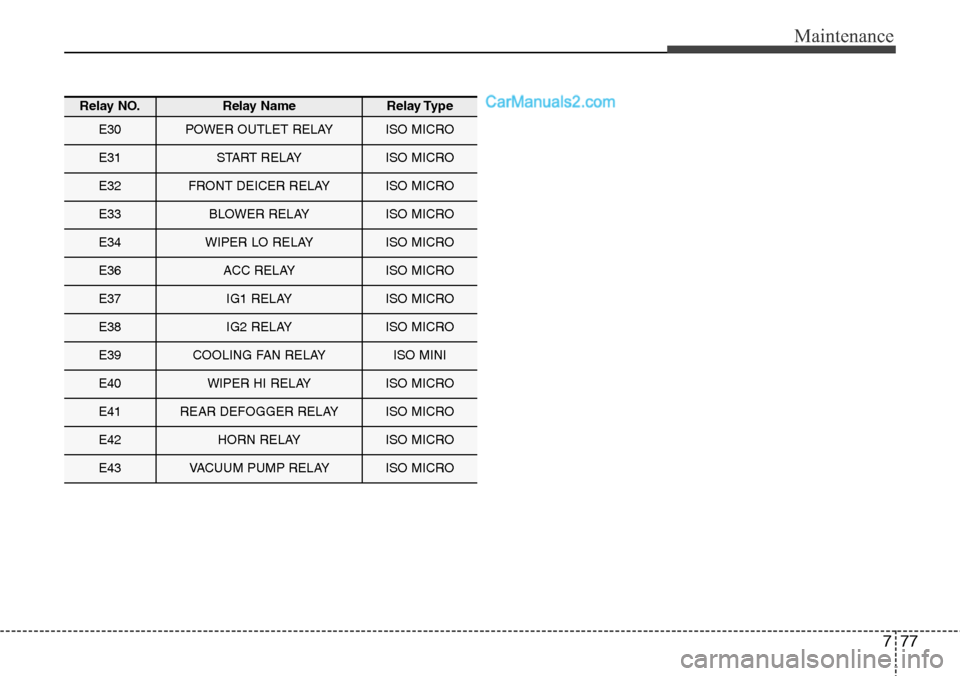

Relay NO.Relay NameRelay Type
E30POWER OUTLET RELAYISO MICRO
E31START RELAYISO MICRO
E32FRONT DEICER RELAYISO MICRO
E33BLOWER RELAYISO MICRO
E34WIPER LO RELAYISO MICRO
E36ACC RELAYISO

Page 753 of 785

Hyundai Santa Fe Sport 2015  Owners Manual Maintenance
78 7

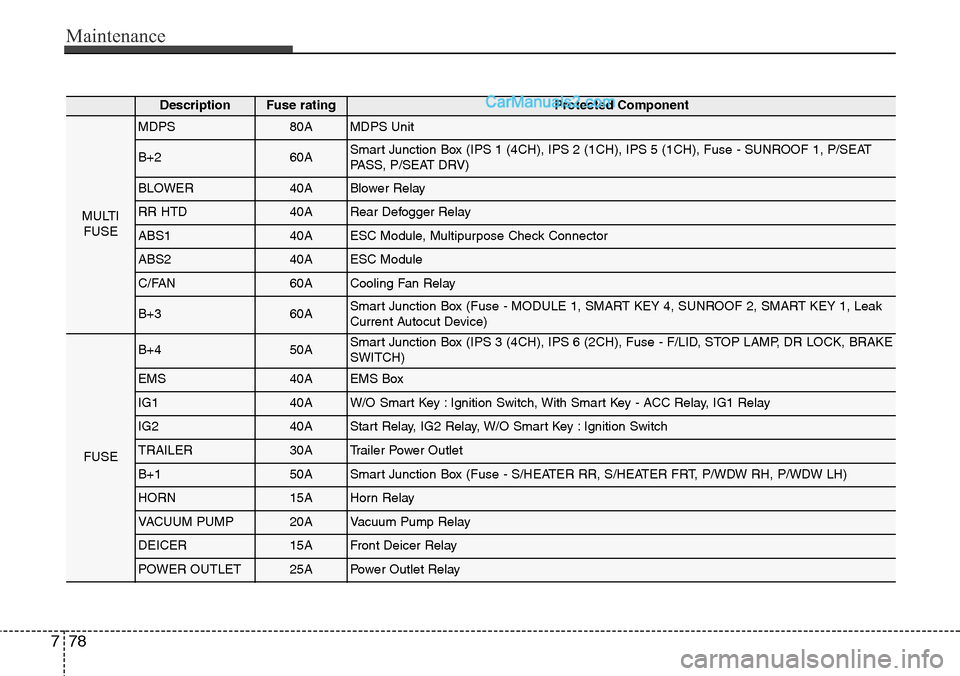

DescriptionFuse ratingProtected Component
MULTI
FUSE
MDPS80AMDPS Unit
B+260ASmart Junction Box (IPS 1 (4CH), IPS 2 (1CH), IPS 5 (1CH), Fuse - SUNROOF 1, P/SEAT
PASS, P/SEAT DRV)
BLOWE

Page 754 of 785

Hyundai Santa Fe Sport 2015  Owners Manual 779
Maintenance

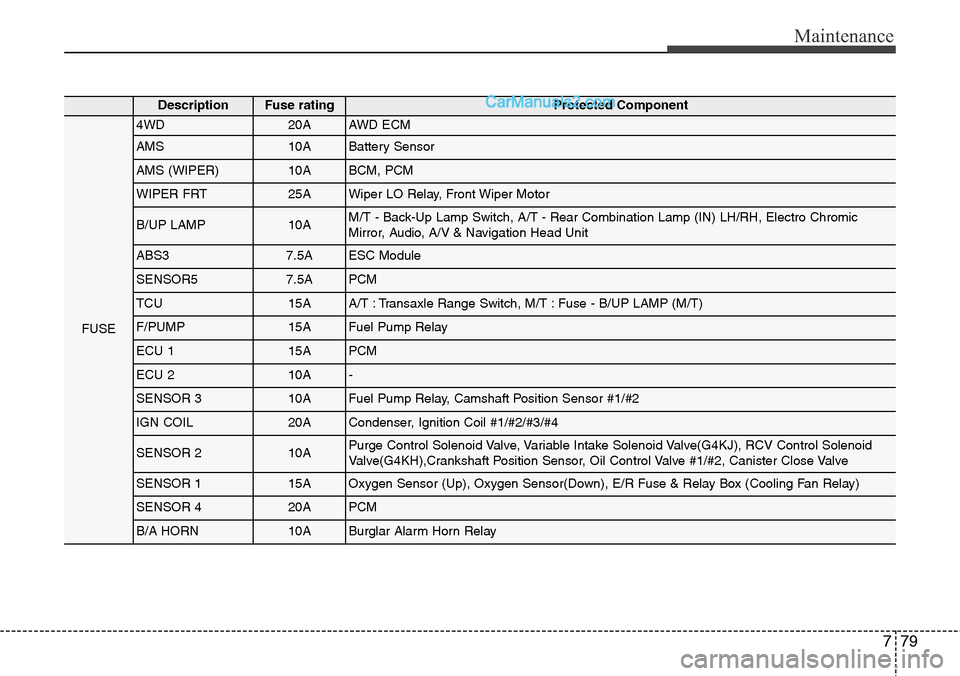

DescriptionFuse ratingProtected Component
FUSE
4WD20AAWD ECM
AMS10ABattery Sensor
AMS (WIPER)10ABCM, PCM
WIPER FRT25AWiper LO Relay, Front Wiper Motor
B/UP LAMP10AM/T - Back-Up Lamp Sw

Page 755 of 785

Hyundai Santa Fe Sport 2015  Owners Manual Maintenance
80 7

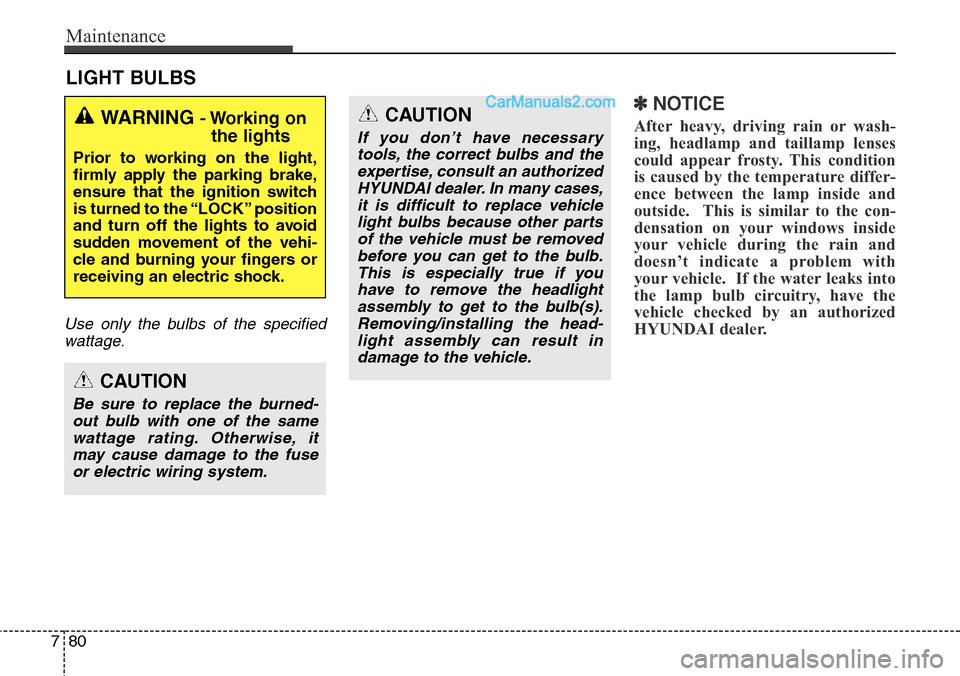

LIGHT BULBS
Use only the bulbs of the specified
wattage.
✽NOTICE
After heavy, driving rain or wash-
ing, headlamp and taillamp lenses
could appear frosty. This condition
is caused b

Page 756 of 785

Hyundai Santa Fe Sport 2015  Owners Manual 781
Maintenance

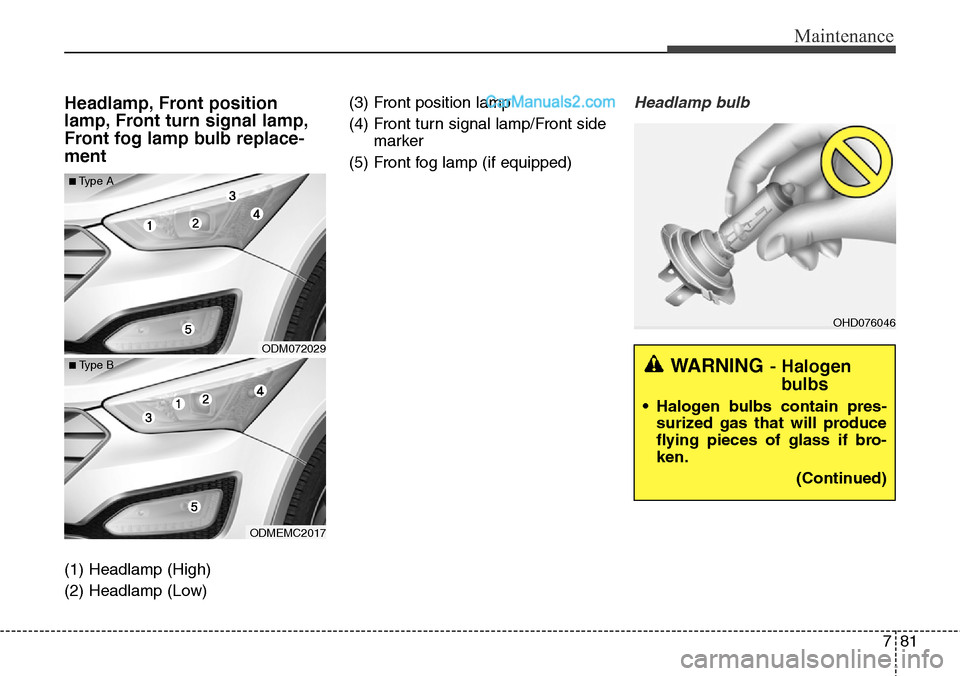

Headlamp, Front position
lamp, Front turn signal lamp,
Front fog lamp bulb replace-
ment
(1) Headlamp (High)
(2) Headlamp (Low)(3) Front position lamp
(4) Front turn signal lamp/Front

Page 757 of 785

Hyundai Santa Fe Sport 2015  Owners Manual Maintenance
82 7

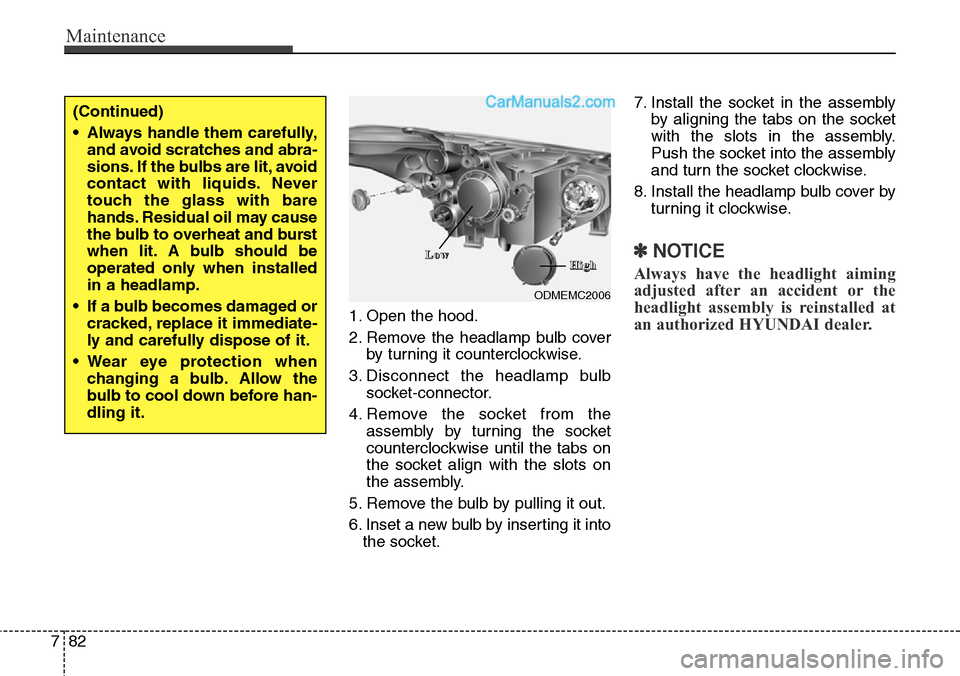

1. Open the hood.
2. Remove the headlamp bulb cover
by turning it counterclockwise.
3. Disconnect the headlamp bulb
socket-connector.
4. Remove the socket from the
assembly by turning

Page 758 of 785

Hyundai Santa Fe Sport 2015  Owners Manual 783
Maintenance

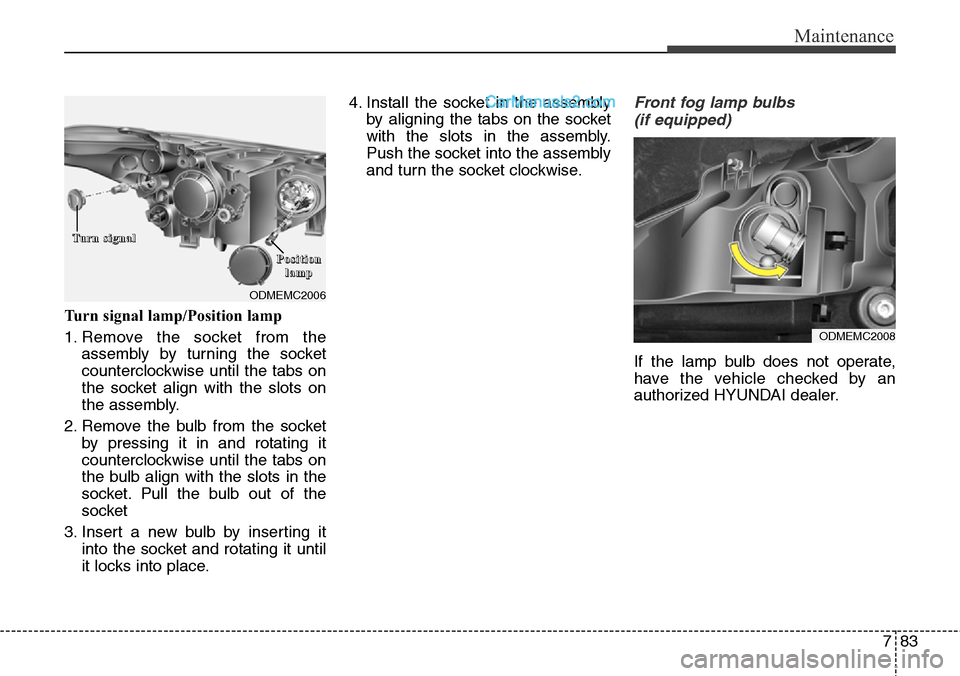

Turn signal lamp/Position lamp
1. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
2. Remov

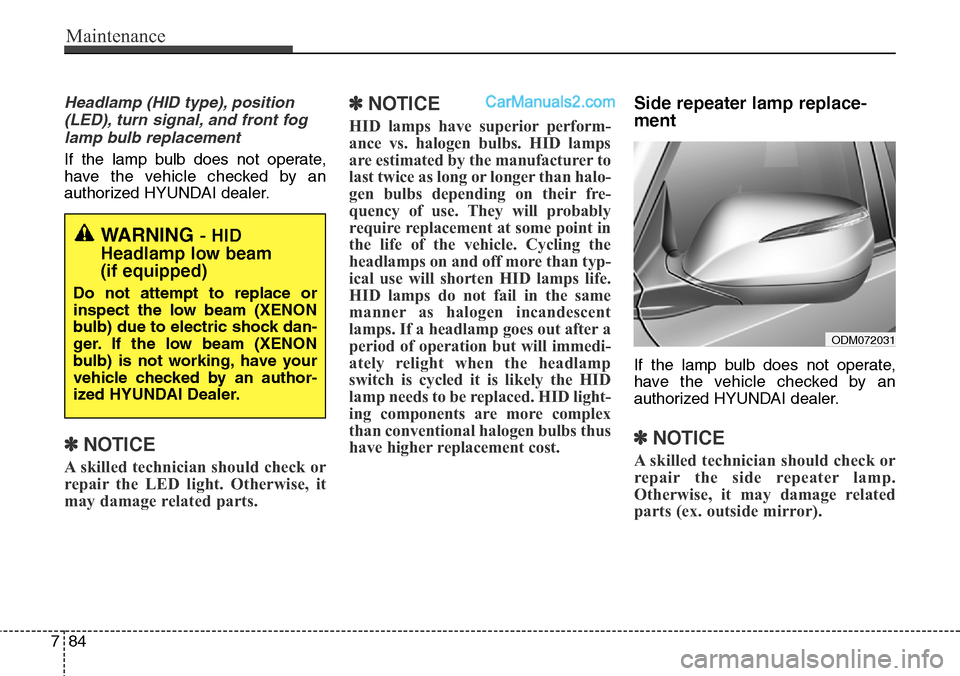

Page 759 of 785

Hyundai Santa Fe Sport 2015  Owners Manual Maintenance
84 7
Headlamp (HID type), position
(LED), turn signal, and front fog
lamp bulb replacement
If the lamp bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽N

Page 760 of 785

Hyundai Santa Fe Sport 2015  Owners Manual 785
Maintenance

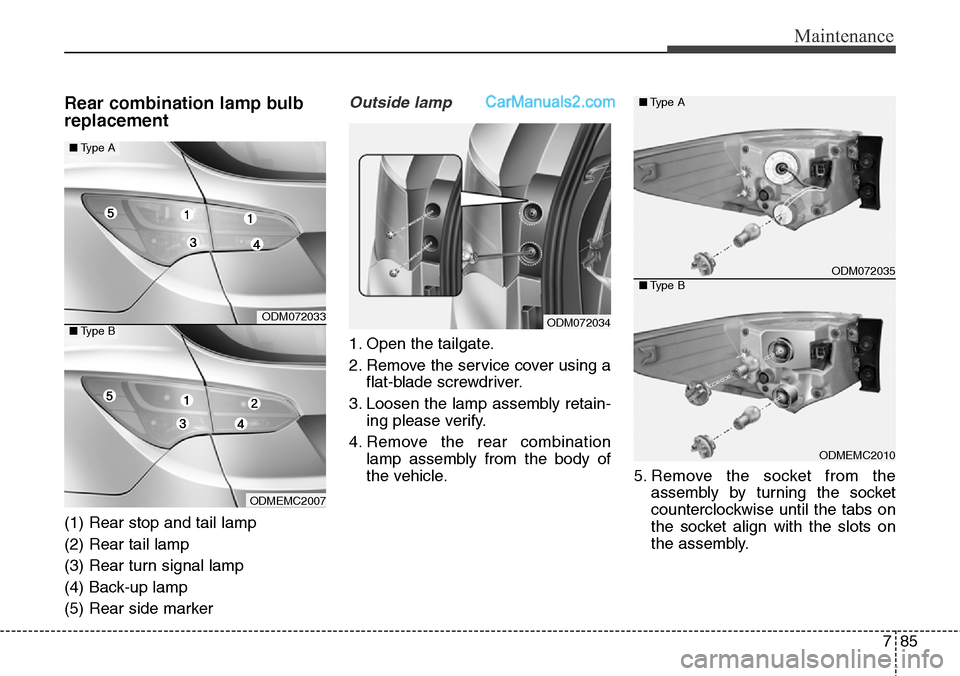

Rear combination lamp bulb
replacement
(1) Rear stop and tail lamp
(2) Rear tail lamp
(3) Rear turn signal lamp
(4) Back-up lamp
(5) Rear side marker
Outside lamp
1. Open the tailgate
