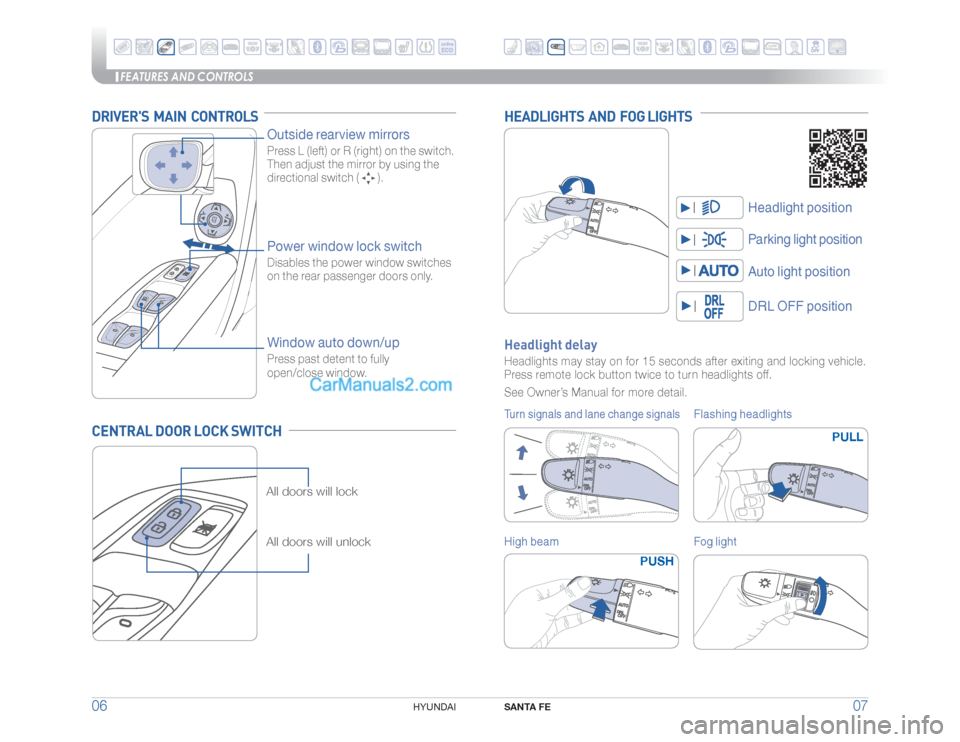

FEATURES AND CONTROLS
SANTA FE
07 06
HYUNDAI
DRIVER'S MAIN CONTROLSCENTRAL DOOR LOCK SWITCH
Outside rearview mirrors Press L (left) or R (right) on the switch.
Then adjust the mirror by using the
directional switch (
).
Power window lock switch Disables the power window switches
on the rear passenger doors only.
Window auto down/upPress past detent to fully
open/close window.
HEADLIGHTS AND FOG LIGHTS
Parking light positionAuto light positionHeadlight position
Headlight delayHeadlights may stay on for 15 seconds after exiting and locking vehicle.
Press remote lock button twice to turn headlights off.
See Owner’s Manual for more detail.
High beam
Fog light
Turn signals and lane change signals
Flashing headlights
All doors will lock
All doors will unlockPULL
PUSH
DRL OFF position

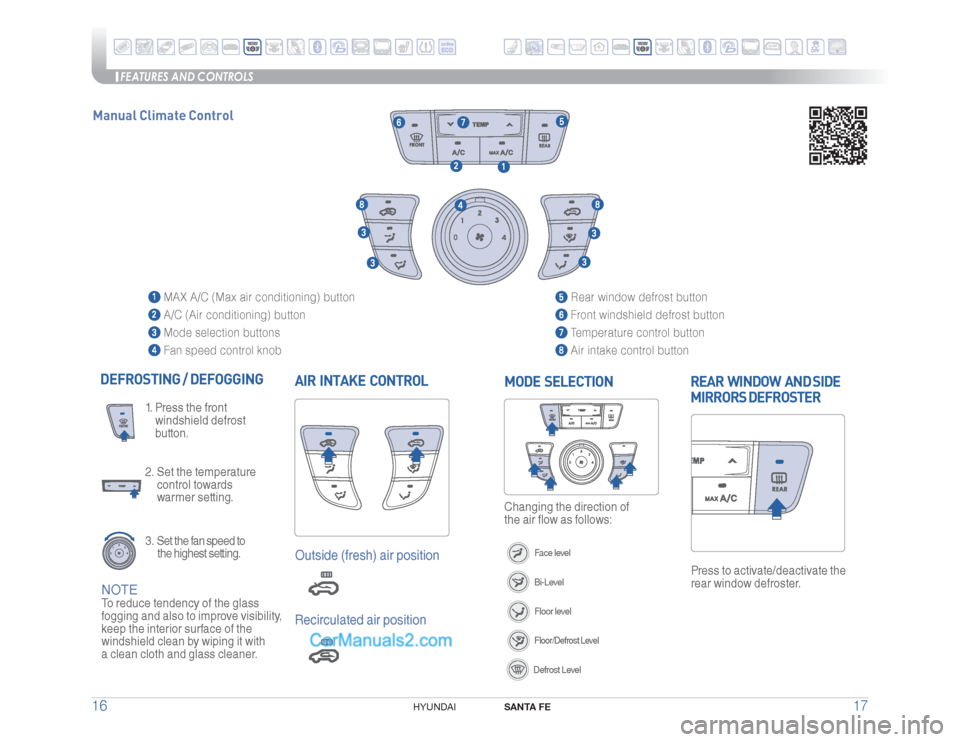

FEATURES AND CONTROLS
SANTA FE
17 16
HYUNDAI
AIR INTAKE CONTROL DEFROSTING / DEFOGGING
2. Set the temperature
control towards
warmer setting.3. Set the fan speed to
the highest setting.1. Press the front
windshield defrost
button.
Press to activate/deactivate the
rear window defroster.REAR WINDOW AND SIDE
MIRRORS DEFROSTER
Changing the direction of
the air flow as follows:MODE SELECTION
Face levelBi-LevelFloor levelFloor/Defrost LevelDefrost Level

MAX A/C (Max air conditioning) button
A/C (Air conditioning) button
Mode selection buttons
Fan speed control knob
Rear window defrost button Front windshield defrost button Temperature control button Air intake control button
NOTETo reduce tendency of the glass
fogging and also to improve visibility,
keep the interior surface of the
windshield clean by wiping it with
a clean cloth and glass cleaner.
Outside (fresh) air positionRecirculated air position
Manual Climate Control
