Hyundai Santa Fe Sport 2017 Owner's Manual

Features of your vehicle
214
4
With the iPod®Mode
Playing/Pausing iPod®Songs
Once an iPod
®is connected, the
mode will automatically start and
begin playing an iPod
®song.
While playing, press the [II] button to
pause and press [ ] button to play.
iPod
®s with unsupported communi-
cation protocols may not properly
operate in the audio system.
Changing Songs
Press the [SEEK TRACK] button to
move to the previous or next song.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton after the song has been playing
for 2 seconds will start the current
song from the beginning.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton before the song has been playing
for 1 second will start the previous
song.
Slight time differences may exist
depending your iPod
®product. Rewinding / Fast-forwarding Songs
While playing, press and hold the
[SEEK TRACK]
button to rewind or
fast-forward the current song.
Searching Categories
Turn the TUNE knob left/right to
search for the desired category.Once
you find the desired category, press
the TUNE knob to select and play.
There are eight categories that can be
searched, including Playlists, Artists,
Albums, Genres, Songs, Composers,
Audiobooks and Podcasts. Category Menu
(1) Displays the play screen.
(2) Moves to the iPod
®root category
screen.
(3) Moves to the previous category.
If the search mode is accessed while
playing a song, the most recently
searched category is displayed.
Search steps upon initial connection
may differ depending on the type of
iPod
®device.

4215
Features of your vehicle
MENU : AUX
AUX Mode Display Controls
Press the [MEDIA]button
Select
[AUX]
An external device can be connected
to play music. Connecting an External Device
External audio players (Camcorders,
car VCR, etc.) can be played through
a dedicated cable.
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will be
restored.
AUX mode can be used only when
an external audio player (camcorder,
car VCR, etc.) has been connected.
The AUX volume can be controlled
separately from other audio modes.
Connecting a connector jack to the
AUX terminal without an external
device will convert the system to
AUX mode, but only output noise.
When an external device is not being
used, also remove the connector
jack.
When the external device power is
connected to the power jack, playing
the external device may output
noise. In such cases, disconnect the
power connection before use.
Fully insert the AUX cable to the AUX
jack upon use.

Features of your vehicle
216
4
MENU : My Music
My Music Mode Display Controls
(1) Mode
Displays current operating mode.
(2) Operation State
From Repeat/Shuffle/Scan, displays
the current operating function.
(3) File Index
Displays the current file/total number
of files.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time. (7) Info
Displays detailed information for the
current file.
The title, artist and album info are
displayed only when such informa-
tion is recorded within the MP3 file
ID3 tag.
(8) Shuffle
Turns the Shuffle feature on/off.
(9) Repeat
Turns the Repeat feature on/off.
(10) Delete
Deletes the current file.
(11) List
Moves to the list screen.
Turn the TUNE
knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.

4217
Features of your vehicle
With the My Music Mode
Playing/Pausing My Music Files
While playing, press the [II] button to
pause and press [] button to play.
If there are no files saved within My
Music, the [My Music] button will be
disabled.
Changing Files
Press the [SEEK TRACK] button to
move to the previous or next file.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton after the file has been playing for
2 seconds will start the current file
from the beginning.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton before the file has been playing
for 1 second will start the previous
file. Selecting from the List
Turn the TUNE
knob left/right to
search for the desired file.
Once you find the desired file, press
the TUNE knob to start playing.
From the List screen, it is possible to
delete files you previously saved into
My Music. List Menu
(1) Moves to the previous screen.
(2) Selects all files.
(3) Deselects all selected files.
(4) Deletes selected files.
After selecting the files you want to
delete, press the [Delete] button to
delete the selected files.
If there is memory available, up to
6,000 files can be saved. Identical
files cannot be copied more than
1,000 times.
To check memory information, go to
[SETUP]
[System]
[Memory
Information].
Rewinding / Fast-forwarding Files
While playing, press and hold the
[SEEK TRACK] button to rewind or
fast-forward the current file.
Scan
Press the [SCAN] button to play the
first 10 seconds of each file.

Features of your vehicle
218
4
MENU :Bluetooth®Wireless
Technology Audio
With Bluetooth®Wireless Technology
Audio Mode
Playing/Pausing Bluetooth®Wireless
Technology Audio
Once a
Bluetooth®Wireless Technology
device is connected, the mode will
automatically start.
While playing, press the [ II] button
to pause and press [ II] button to
play.
The play/pause feature may operate
differently depending on the mobile
phone. Changing Files
Press the [SEEK TRACK]
button to
move to the previous or next file.
Setting Connection
If a
Bluetooth®Wireless Technology
device has not been connected, press
the [SETUP] button?[Phone] button
to display the
Bluetooth®Wireless
Technology connection screen.
It is possible to use the pair phone,
connect/disconnect and delete fea-
tures from your
Bluetooth®Wireless
Technology phone.
If music is not yet playing from your
mobile device after converting to
Bluetooth®Wireless Technology
Audio mode, pressing the play button
once may start playing the mode.
Check to see that music is playing
from the
Bluetooth®Wireless
Technology device after converting
to
Bluetooth®Wireless Technology
Audio Mode.

4219
Features of your vehicle

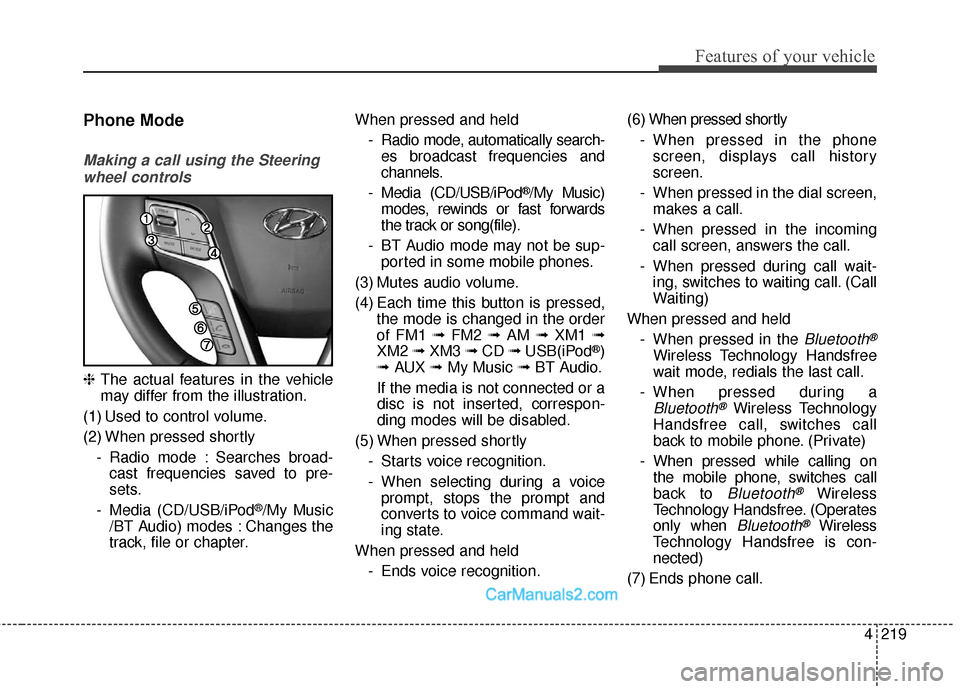

Phone Mode
Making a call using the Steeringwheel controls
❈ The actual features in the vehicle
may differ from the illustration.
(1) Used to control volume.
(2) When pressed shortly - Radio mode : Searches broad-cast frequencies saved to pre-
sets.
- Media (CD/USB/iPod
®/My Music
/BT Audio) modes : Changes the
track, file or chapter. When pressed and held
- Radio mode, automatically search-es broadcast frequencies and
channels.
- Media (CD/USB/iPod
®/My Music)
modes, rewinds or fast forwards
the track or song(file).
- BT Audio mode may not be sup- ported in some mobile phones.
(3) Mutes audio volume.
(4) Each time this button is pressed, the mode is changed in the order
of FM1 ➟ FM2 ➟AM ➟XM1 ➟
XM2 ➟XM3 ➟CD ➟USB(iPod
®)
➟ AUX ➟My Music ➟ BT Audio.
If the media is not connected or a
disc is not inserted, correspon-
ding modes will be disabled.
(5) When pressed shortly - Starts voice recognition.
- When selecting during a voiceprompt, stops the prompt and
converts to voice command wait-
ing state.
When pressed and held - Ends voice recognition. (6) When pressed shortly
- When pressed in the phonescreen, displays call history
screen.
- When pressed in the dial screen, makes a call.
- When pressed in the incoming call screen, answers the call.
- When pressed during call wait- ing, switches to waiting call. (Call
Waiting)
When pressed and held - When pressed in the Bluetooth®
Wireless Technology Handsfree
wait mode, redials the last call.
- When pressed during a
Bluetooth®Wireless Technology
Handsfree call, switches call
back to mobile phone. (Private)
- When pressed while calling on the mobile phone, switches call
back to
Bluetooth®Wireless
Technology Handsfree. (Operates
only when
Bluetooth®Wireless
Technology Handsfree is con-
nected)
(7) Ends phone call.

Features of your vehicle
220
4

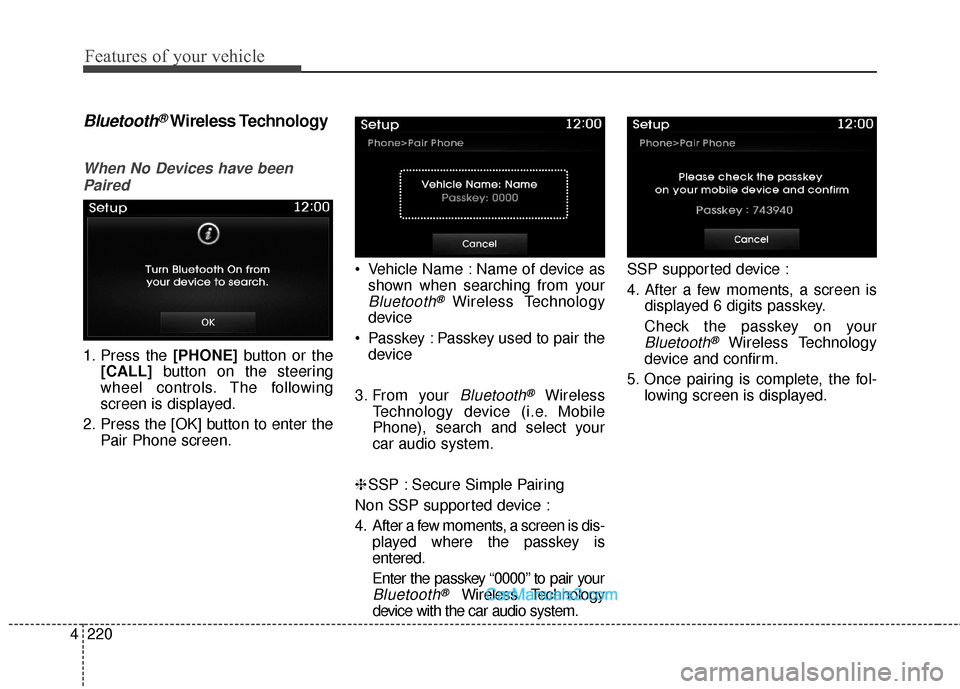

Bluetooth®Wireless Technology
When No Devices have been
Paired
1. Press the [PHONE] button or the
[CALL] button on the steering
wheel controls. The following
screen is displayed.
2. Press the [OK] button to enter the Pair Phone screen. Vehicle Name : Name of device as
shown when searching from your
Bluetooth®Wireless Technology
device
Passkey : Passkey used to pair the device
3. From your
Bluetooth®Wireless
Technology device (i.e. Mobile
Phone), search and select your
car audio system.
❈ SSP : Secure Simple Pairing
Non SSP supported device :
4. After a few moments, a screen is dis- played where the passkey is
entered.
Enter the passkey “0000” to pair your
Bluetooth®Wireless Technology
device with the car audio system. SSP supported device :
4. After a few moments, a screen is
displayed 6 digits passkey.
Check the passkey on your
Bluetooth®Wireless Technology
device and confirm.
5. Once pairing is complete, the fol- lowing screen is displayed.

4221
Features of your vehicle
✽
✽NOTICE
If Bluetooth®Wireless Technology
devices are paired but none are cur-
rently connected, pressing the
[PHONE] button or the [CALL]
button on the steering wheel con-
trols the following screen. Press the
[Pair] button to pair a new device or
press the [Connect] to connect a pre-
viously paired device.
Pairing through [PHONE] Setup
Press the [SETUP] button
Select
[Phone]
Pair Phone
The following steps are the same as
those described in the section “When
No Devices have been Paired” on the
previous page.
Paired Phone List
Press the [SETUP] button
Select
[Phone] Select [Paired Phone List].
Connected Phone : Device that is currently connected.
Paired Phone : Device that is paired but not connected.
Connecting a Device
From the paired phone list, select the
device you want to connect and
press the [Connect](1) button.

Features of your vehicle
222
4
Disconnecting a Device
From the paired phone list, select the
currently connected device and
press the [Disconnect](2) button.
Deleting a Device
From the paired phone list, select the
device you want to delete and press
the [Delete](3) button.
✽ ✽
NOTICE
• When deleting the currently con-
nected device, the device will auto-
matically be disconnected to pro-
ceed with the deleting process.
• If a paired Bluetooth
®Wireless
Technology device is deleted, the
device’s call history and contacts
data will also be deleted.
• To re-use a deleted device, you must pair the device again.
Changing Priority
It is possible to pair up to five
Bluetooth®Wireless Technology
devices with the car audio system.
The “Change Priority” feature is used
to set the connection priority of
paired phones.
From the paired phone list, select the
phone you want to switch to the high-
est priority, then press the [Change
priority](4) button from the Menu. The
selected device will be changed to
the highest priority.

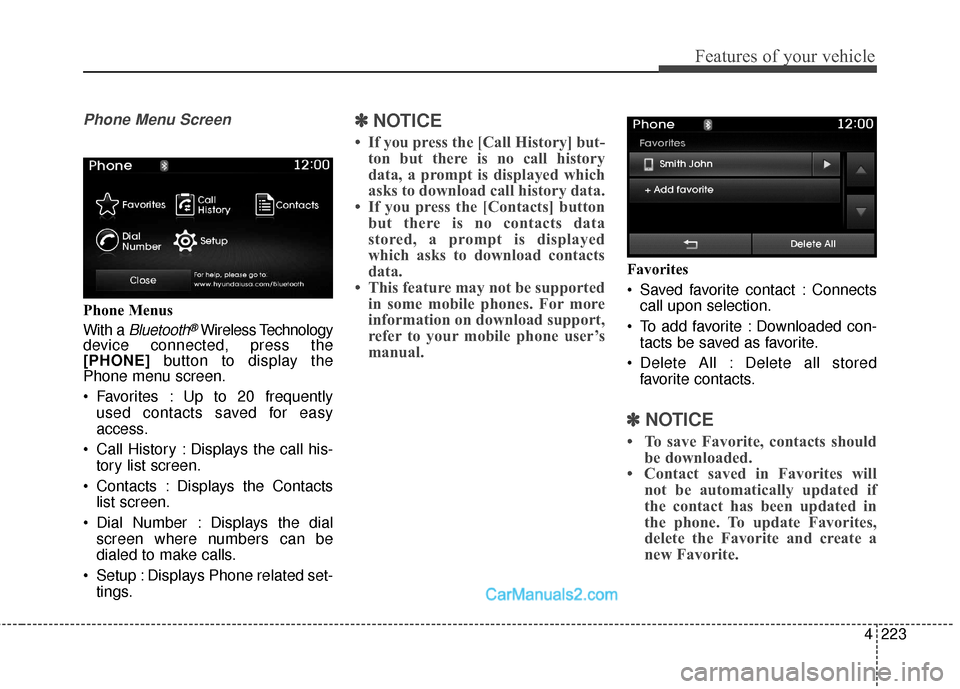

4223
Features of your vehicle
Phone Menu Screen
Phone Menus
With a
Bluetooth®Wireless Technology
device connected, press the
[PHONE] button to display the
Phone menu screen.
Favorites : Up to 20 frequently
used contacts saved for easy
access.
Call History : Displays the call his- tory list screen.
Contacts : Displays the Contacts list screen.
Dial Number : Displays the dial screen where numbers can be
dialed to make calls.
Setup : Displays Phone related set- tings.
✽ ✽ NOTICE
• If you press the [Call History] but-
ton but there is no call history
data, a prompt is displayed which
asks to download call history data.
• If you press the [Contacts] button but there is no contacts data
stored, a prompt is displayed
which asks to download contacts
data.
• This feature may not be supported in some mobile phones. For more
information on download support,
refer to your mobile phone user’s
manual.
Favorites
Saved favorite contact : Connects
call upon selection.
To add favorite : Downloaded con- tacts be saved as favorite.
Delete All : Delete all stored favorite contacts.
✽ ✽ NOTICE
• To save Favorite, contacts should
be downloaded.
• Contact saved in Favorites will not be automatically updated if
the contact has been updated in
the phone. To update Favorites,
delete the Favorite and create a
new Favorite.
