Hyundai Santa Fe Sport 2018 Quick Reference Guide

MULTIMEDIA
SANTA FE SPORT
39 38
HYUNDAI
Apple CarPlay uses Siri to perform many actions like sending
messages, placing calls, and looking up/setting POI/Destinations. A
Siri session can be initiated on any screen by:
1. Touch and holding the HOME icon
1 on the CarPlay screen or
2. Press the steering wheel VOICE RECOGNITION
13 button.
Note: Ensure Siri feature is set to ON in your phone (Go to Settings >
General > Siri).
3. Say any of the following commands;
!Ÿ“Text ‘Call you later’” to send a text message.
!Ÿ“Read text messages” to read available text message.
!Ÿ“Call ” to make a phone call.
!Ÿ“Find ” to locate a POI/Destination.PHONE
Touch the PHONE
5 icon to access the Phone screen. Siri will
automatically asks ‘Who you would like to call’ when the PHONE
5
icon is selected.
NOTE: Phone call sound quality is dependent on the wired
connection. Using the Lightning cable that came with the phone is
recommended.
APPLE MUSIC
Touch the APPLE MUSIC
6 icon to access the Apple Music screen.
APPLE MAPS
Touch the APPLE MAPS
7 icon to access the Apple Map screen.
MESSAGES
Touch the MESSAGES 8 icon to access the Message screen. Siri
will automatically asks ‘To hear unread messages or create a new
one’ when the MESSAGE icon is selected.
3rd PARTY APPS
Supported CarPlay apps that are downloaded on your phone will
appear on the CarPlay screen. Touch the apps icons to access those
supported apps.
NOTE:
A list of the supported CarPlay supported apps can be found
at http://www.apple.com/ios/carplay/
Ensure phone has latest version of the 3rd Party Apps.

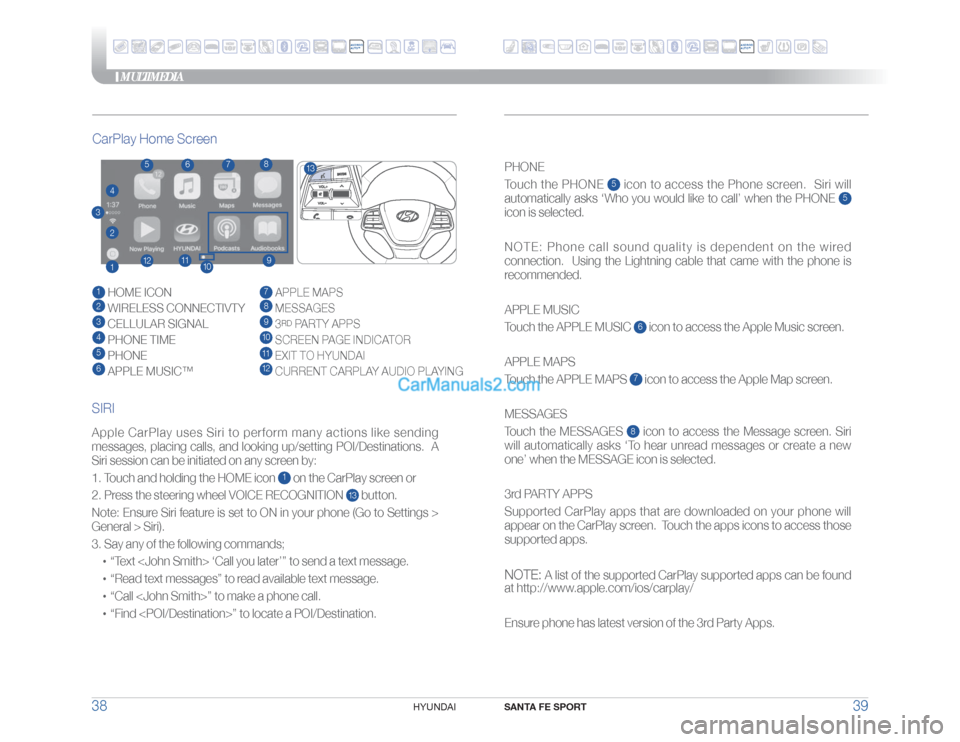

CarPlay Home Screen
SIRI1 HOME ICON2 WIRELESS CONNECTIVTY3 CELLULAR SIGNAL4 PHONE TIME5 PHONE6 APPLE MUSIC™
7 APPLE MAPS8 MESSAGES9
3RD PARTY APPS
10 SCREEN PAGE INDICATOR11 EXIT TO HYUNDAI 12 CURRENT CARPLAY AUDIO PLAYING
2
3
41
5
6
7
89
10
11
12
13
ANDROID
AUTO™
ANDROID
AUTO™

FEATURES AND CONTROLS
SANTA FE SPORT
41 40
HYUNDAI

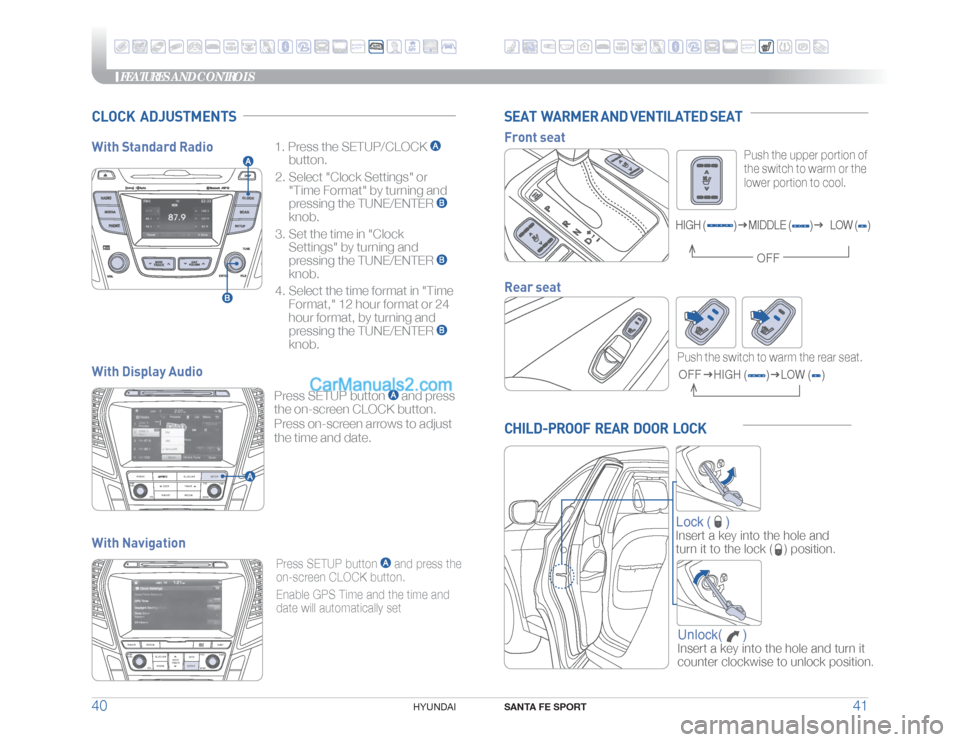

CHILD-PROOF REAR DOOR LOCK
Lock (
)
Insert a key into the hole and
turn it to the lock (
) position.
Unlock( )Insert a key into the hole and turn it
counter clockwise to unlock position.
SEAT WARMER AND VENTILATED SEATFront seat
Rear seat
Push the switch to warm the rear seat. OFF
HIGH (
)
LOW (
)
CLOCK ADJUSTMENTS
1. Press the SETUP/CLOCK

button.
2. Select "Clock Settings" or
"Time Format" by turning and
pressing the TUNE/ENTER
knob.
3. Set the time in "Clock
Settings" by turning and
pressing the TUNE/ENTER
knob.
4. Select the time format in "Time
Format," 12 hour format or 24
hour format, by turning and
pressing the TUNE/ENTER
knob.
With Standard Radio
Press SETUP button
and press the
on-screen CLOCK button.
Enable GPS Time and the time and
date will automatically set
RADIO
VOL
PWRPUSH
MEDIA
PHONE
BLUELINK
SEEK TRACK
TUNE
ENTERSETUPFILE
With Display Audio
With Navigation
Press SETUP button
and press
the on-screen CLOCK button.
Press on-screen arrows to adjust
the time and date.
RADIO
VOLPWRPUSH
MEDIA NAVIPHONE BLUELINK
SEEK
TRACK
TUNE
ENTER
SETUPMAPVOICEINFOFILE
HIGH (
)
MIDDLE (
)
LOW (
)
OFF
Push the upper portion of
the switch to warm or the
lower portion to cool.
ANDROIDAUTO™
ANDROIDAUTO™

FEATURES AND CONTROLS
SANTA FE SPORT
43 42
HYUNDAI

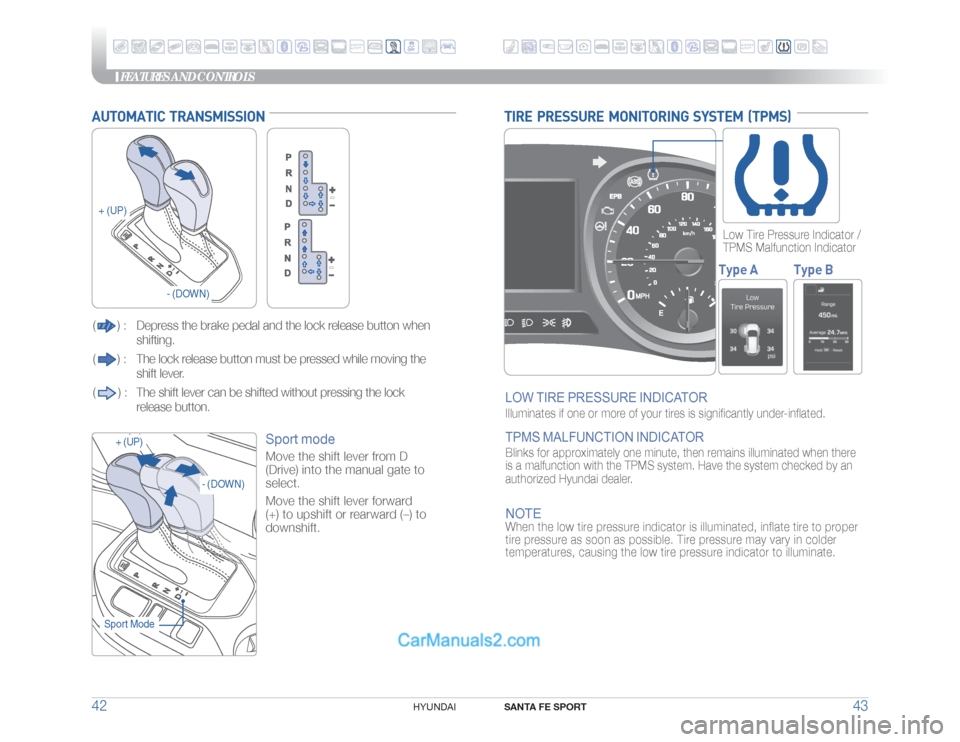

TIRE PRESSURE MONITORING SYSTEM (TPMS)LOW TIRE PRESSURE INDICATOR Illuminates if one or more of your tires is significantly under-inflated. TPMS MALFUNCTION INDICATOR Blinks for approximately one minute, then remains illuminated when there
is a malfunction with the TPMS system. Have the system checked by an
authorized Hyundai dealer.NOTEWhen the low tire pressure indicator is illuminated, inflate tire to proper
tire pressure as soon as possible. Tire pressure may vary in colder
temperatures, causing the low tire pressure indicator to illuminate.
Low Tire Pressure Indicator /
TPMS Malfunction IndicatorType A Type B
AUTOMATIC TRANSMISSION(
) : Depress the brake pedal and the lock release button
when
shifting.
() : The lock release button must be pressed while moving the
shift lever.
() : The shift lever can be shifted without pressing the lock
release button.
Sport mode Move the shift lever from D
(Drive) into the manual gate to
select.
Move the shift lever forward
(+) to upshift or rearward (–) to
downshift.
+ (UP)
+ (UP)
- (DOWN)
- (DOWN)
Sport Mode
ANDROIDAUTO™
ANDROIDAUTO™

FEATURES AND CONTROLS
SANTA FE SPORT
45 44
HYUNDAI
To improve your fuel efficiency:• Drive smoothly and accelerate at a moderate rate.
• Avoid heavy acceleration.
• Maintain steady cruising speed.
• Adjust the vehicle speed to the traffic condition and avoid speed
changes.
• Avoid unnecessary braking.
• Keep the tires inflated to the recommended tire pressure.
• Don’t idle the engine longer than necessary.
ELECTRONIC STABILITY CONTROL (ESC)
The ESC system is an electronic
system designed to help the driver
maintain vehicle control under
adverse conditions.Press
to turn ESC on/off.
NOTEIt is recommended to always have
the ESC system ON.
ELECTRIC PARKING BRAKE (EPB)
or
Stop the vehicle then pull
the EPB switch.
Applying
Move shift lever from P to R, N or D
while depressing the brake pedal.
Releasing
Press the EPB switch while
depressing the brake pedal.
NOTE:
If necessary, emergency braking is possible by pulling and holding the
EPB switch.
AUTO HOLDTo cancel the AUTO HOLD operation, press the AUTO HOLD switch again.The Auto Hold feature assists in steep hill areas.
It holds the brake until the accelerator pedal is
pressed.
1.
Press the AUTO HOLD switch.
WHITE

2.
Stop the vehicle by pressing the
brake pedal. The brakes will remain
engaged even if the brake pedal is
released.
GREEN
3.
The brakes will release when the
accelerator pedal is pressed with
transmission in D, R or manual mode.
WHITE

DRIVE MODE INTEGRATED CONTROL SYSTEM
You can select the drive mode
according to your preference or the
road condition.
The system initializes to the NORMAL
mode (except ECO mode) after the
engine has been
turned off and on.Each time you press the button, the
drive mode is changed as follows :
Sport mode focuses on engaging driving dynamics by adjusting the
steering feel along with the responsiveness of the engine and
transmission. Sport mode Normal mode is not displayed on the
instrument cluster.
Eco mode system helps to improve fuel efficiency. When the Eco mode
system is activated, the vehicle acceleration, gear shift points and air
conditioning performance will be reduced to conserve the fuel
consumption. Normal mode provides regular daily driving performance with some
fuel efficiency. When Normal mode is selected, no indicator will
illuminate on the instrument cluster.
ECO mode Normal modeNormal
ECO Sport
ANDROIDAUTO™
ANDROIDAUTO™

FEATURES AND CONTROLS
SANTA FE SPORT
47 46
HYUNDAI

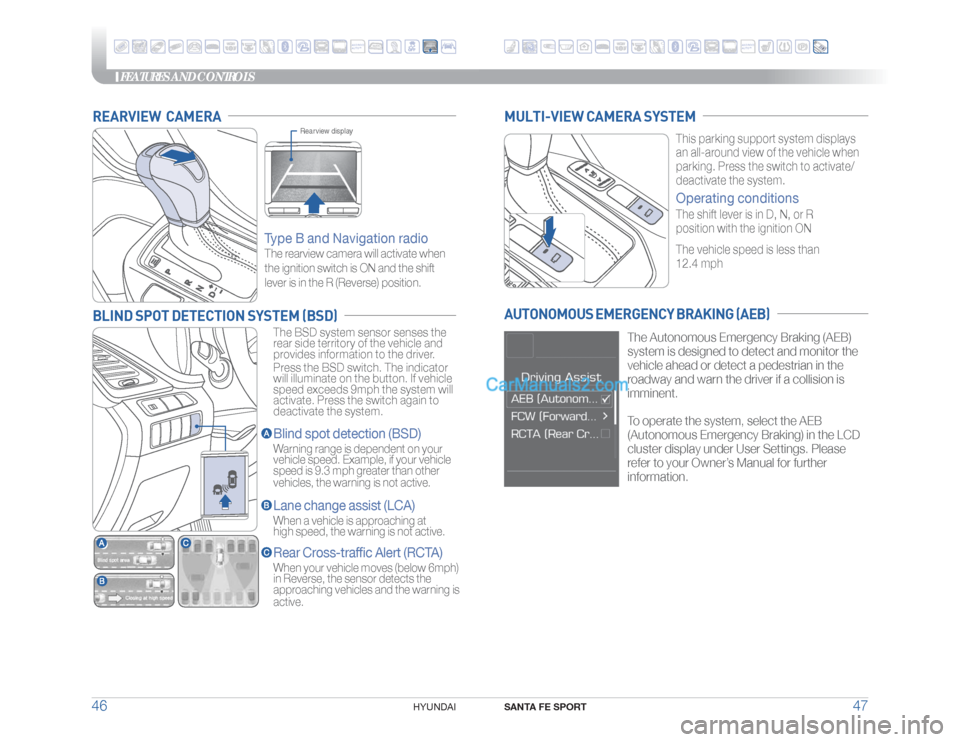

REARVIEW CAMERABLIND SPOT DETECTION SYSTEM (BSD)
Type B and Navigation radioThe rearview camera will activate when
the ignition switch is ON and the shift
lever is in the R (Reverse) position.
The BSD system sensor senses the
rear side territory of the vehicle and
provides information to the driver.
Press the BSD switch. The indicator
will illuminate on the button. If vehicle
speed exceeds 9mph the system will
activate. Press the switch again to
deactivate the system.Blind spot detection (BSD)Warning range is dependent on your
vehicle speed. Example, if your vehicle
speed is 9.3 mph greater than other
vehicles, the warning is not active.Lane change assist (LCA)When a vehicle is approaching at
high speed, the warning is not active.Rear Cross-traffic Alert (RCTA)When your vehicle moves (below 6mph)
in Reverse, the sensor detects the
approaching vehicles and the warning is
active.
Rearview display
MULTI-VIEW CAMERA SYSTEM
This parking support system displays
an all-around view of the vehicle when
parking. Press the switch to activate/
deactivate the system.Operating conditionsThe shift lever is in D, N, or R
position with the ignition ON
The vehicle speed is less than
12.4 mph
The Autonomous Emergency Braking (AEB)
system is designed to detect and monitor the
vehicle ahead or detect a pedestrian in the
roadway and warn the driver if a collision is
imminent.
To operate the system, select the AEB
(Autonomous Emergency Braking) in the LCD
cluster display under User Settings. Please
refer to your Owner’s Manual for further
information.
AUTONOMOUS EMERGENCY BRAKING (AEB)
ANDROIDAUTO™
ANDROIDAUTO™

FEATURES AND CONTROLS
48
HYUNDAI

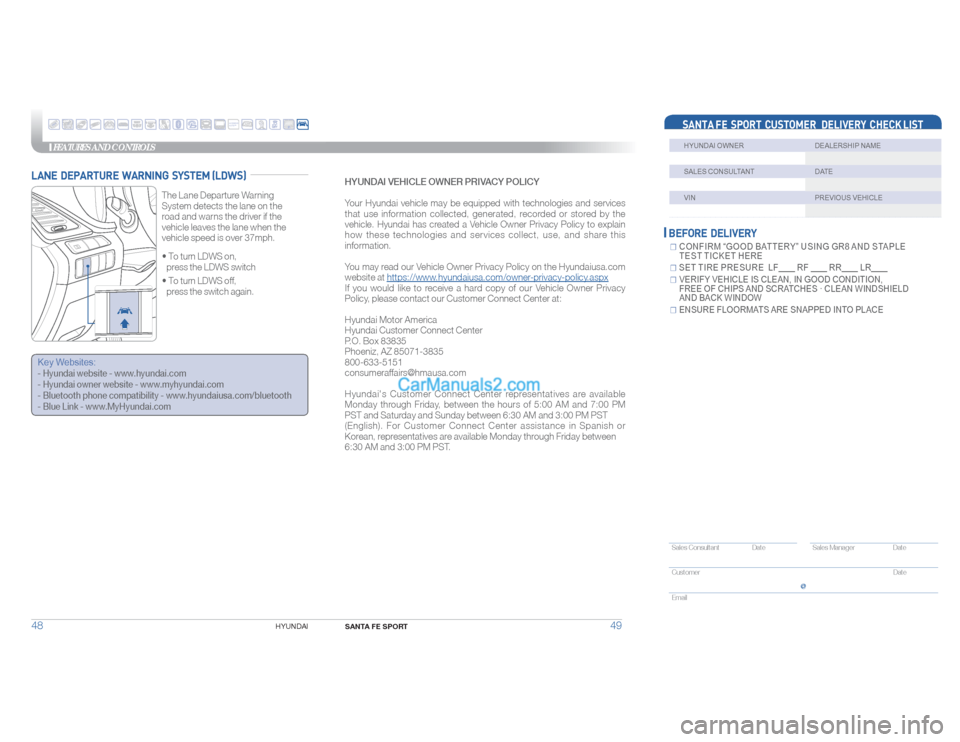

☐ CONFIRM “GOOD BATTERY” USING GR8 AND STAPLE
TEST TICKET HERE☐
S E T T I R E P R E S U R E L F R F R R L R ☐ VERIFY VEHICLE IS CLEAN, IN GOOD CONDITION,
FREE OF CHIPS AND SCRATCHES · CLEAN WINDSHIELD
AND BACK WINDOW☐ ENSURE FLOORMATS ARE SNAPPED INTO PLACE BEFORE DELIVERY
SANTA FE SPORT CUSTOMER DELIVERY CHECK LIST HYUNDAI OWNER DEALERSHIP NAME SALES CONSULTANT DATE VIN PREVIOUS VEHICLE Sales Consultant Date Sales Manager Date
Customer Date
Email
@
SANTA FE SPORT
49
HYUNDAI VEHICLE OWNER PRIVACY POLICY
Your Hyundai vehicle may be equipped with technologies and services
that use information collected, generated, recorded or stored by the
vehicle. Hyundai has created a Vehicle Owner Privacy Policy to explain
how these technologies and services collect, use, and share this
information.
You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com
website at https://www.hyundaiusa.com/owner-privacy-policy.aspx
If you would like to receive a hard copy of our Vehicle Owner Privacy
Policy, please contact our Customer Connect Center at:
Hyundai Motor America
Hyundai Customer Connect Center
P.O. Box 83835
Phoeniz, AZ 85071-3835
800-633-5151
[email protected]
Hyundai's Customer Connect Center representatives are available
Monday through Friday, between the hours of 5:00 AM and 7:00 PM
PST and Saturday and Sunday between 6:30 AM and 3:00 PM PST
(English). For Customer Connect Center assistance in Spanish or
Korean, representatives are available Monday through Friday between
6:30 AM and 3:00 PM PST. • To turn LDWS on,
press the LDWS switch
• To turn LDWS off,
press the switch again. The Lane Departure Warning
System detects the lane on the
road and warns the driver if the
vehicle leaves the lane when the
vehicle speed is over 37mph.
LANE DEPARTURE WARNING SYSTEM (LDWS) K e y We b s i t e s : - Hyundai website - www.hyundai.com
- Hyundai owner website - www.myhyundai.com
- Bluetooth phone compatibility - www.hyundaiusa.com/bluetooth
- Blue Link - www.MyHyundai.com
