Hyundai Santa Fe Sport 2018 Quick Reference Guide

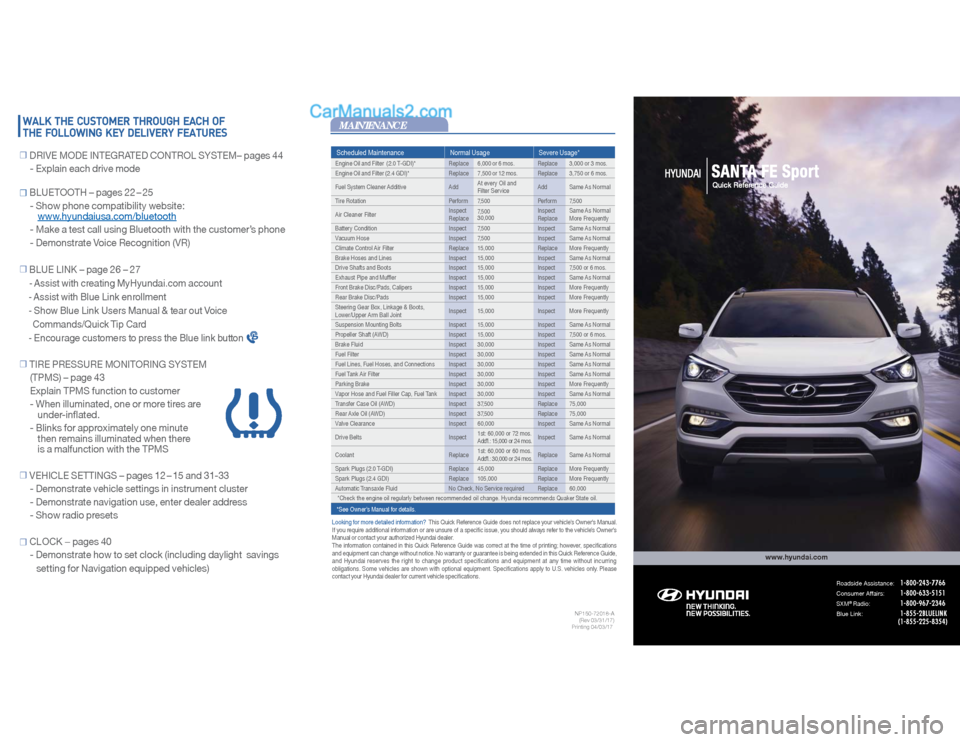

Scheduled Maintenance Normal Usage Severe Usage*Engine Oil and Filter (2.0 T-GDI)* Replace 6,000 or 6 mos. Replace 3,000 or 3 mos.
Engine Oil and Filter (2.4 GDI)* Replace 7,500 or 12 mos. Replace 3,750 or 6 mos.
Fuel System Cleaner Additive AddAt every Oil and
Filter ServiceAdd Same As Normal
Tire Rotation Perform 7,500 Perform 7,500
Air Cleaner FilterInspect
Replace7,500
30,000Inspect
ReplaceSame As Normal
More Frequently
Battery Condition Inspect 7,500 Inspect Same As Normal
Vacuum Hose Inspect 7,500 Inspect Same As Normal
Climate Control Air Filter Replace 15,000 Replace More Frequently
Brake Hoses and Lines Inspect 15,000 Inspect Same As Normal
Drive Shafts and Boots Inspect 15,000 Inspect 7,500 or 6 mos.
Exhaust Pipe and Muffler Inspect 15,000 Inspect Same As Normal
Front Brake Disc/Pads, Calipers Inspect 15,000 Inspect More Frequently
Rear Brake Disc/Pads Inspect 15,000 Inspect More Frequently
Steering Gear Box, Linkage & Boots,
Lower/Upper Arm Ball JointInspect 15,000 Inspect More Frequently
Suspension Mounting Bolts Inspect 15,000 Inspect Same As Normal
Propeller Shaft (AWD) Inspect 15,000 Inspect 7,500 or 6 mos.
Brake Fluid Inspect 30,000 Inspect Same As Normal
Fuel Filter Inspect 30,000 Inspect Same As Normal
Fuel Lines, Fuel Hoses, and Connections Inspect 30,000 Inspect Same As Normal
Fuel Tank Air Filter Inspect 30,000 Inspect Same As Normal
Parking Brake Inspect 30,000 Inspect More Frequently
Vapor Hose and Fuel Filler Cap, Fuel Tank Inspect 30,000 Inspect Same As Normal
Transfer Case Oil (AWD) Inspect 37,500 Replace 75,000
Rear Axle Oil (AWD) Inspect 37,500 Replace 75,000
Valve Clearance Inspect 60,000 Inspect Same As Normal
Drive Belts Inspect1st: 60,000 or 72 mos.
Add'l.: 15,000 or 24 mos.Inspect Same As Normal
Coolant Replace1st: 60,000 or 60 mos.
Add'l.: 30,000 or 24 mos.Replace Same As Normal
Spark Plugs (2.0 T-GDI) Replace 45,000 Replace More Frequently
Spark Plugs (2.4 GDI) Replace 105,000 Replace More Frequently
Automatic Transaxle Fluid No Check, No Service required Replace 60,000
*Check the engine oil regularly between recommended oil change. Hyundai recommends Quaker State oil.
*See Owner’s Manual for details.MAINTENANCE
NP150-72018-A
(Rev 03/31/17)
Printing 04/03/17
Looking for more detailed information? This Quick Reference Guide does not replace your vehicle’s Owner’s Manual.
If you require additional information or are unsure of a specific issue, you should always refer to the vehicle’s Owner’s
Manual or contact your authorized Hyundai dealer.
The information contained in this Quick Reference Guide was correct at the time of printing; however, specifications
and equipment can change without notice. No warranty or guarantee is being extended in this Quick Reference Guide,
and Hyundai reserves the right to change product specifications and equipment at any time without incurring
obligations. Some vehicles are shown with optional equipment. Specifications apply to U.S. vehicles only. Please
contact your Hyundai dealer for current vehicle specifications.
www.hyundai.com
Roadside Assistance:
1-800-243-7766
Consumer Affairs:
1-800-633-5151
SXM
®Radio:
1-800-967-2346
Blue Link:
1-855-2BLUELINK
(1-855-225-8354)
☐
DRIVE MODE INTEGRATED CONTROL SYSTEM– pages 44
- Explain each drive mode

☐ BLUETOOTH – pages 22 – 25
- Show phone compatibility website:
www.hyundaiusa.com/bluetooth
- Make a test call using Bluetooth with the customer’s phone
- Demonstrate Voice Recognition (VR)
☐
BLUE LINK – page 26 – 27
- Assist with creating MyHyundai.com account
- Assist with Blue Link enrollment
- Show Blue Link Users Manual & tear out Voice
Commands/Quick Tip Card
- Encourage customers to press the Blue link button
☐
TIRE PRESSURE MONITORING SYSTEM
(TPMS) – page 43
Explain TPMS function to customer
- When illuminated, one or more tires are
under-inflated.
- Blinks for approximately one minute
then remains illuminated when there
is a malfunction with the TPMS
☐
VEHICLE SETTINGS – pages 12 – 15 and 31-33
- Demonstrate vehicle settings in instrument cluster
- Demonstrate navigation use, enter dealer address
- Show radio presets
☐ CLOCK – pages 40
- Demonstrate how to set clock (including daylight savings
setting for Navigation equipped vehicles)WALK THE CUSTOMER THROUGH EACH OF
THE FOLLOWING KEY DELIVERY FEATURES

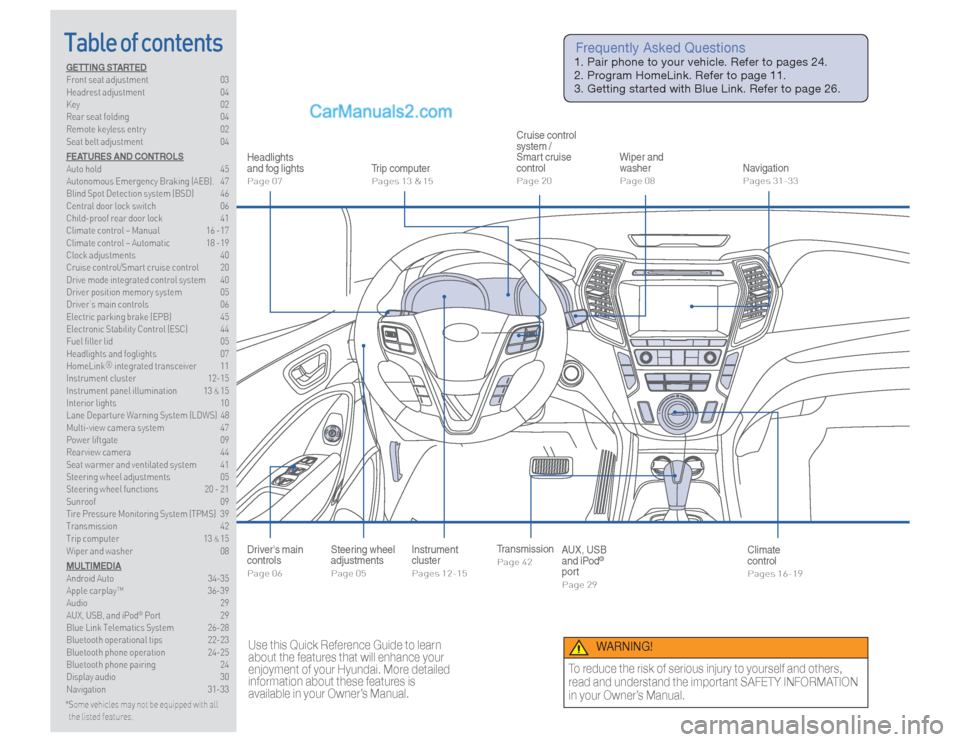

Table of contentsGETTING STARTED
Front seat adjustment 03
Headrest adjustment 04
Key 02
Rear seat folding 04
Remote keyless entry 02
Seat belt adjustment 04
FEATURES AND CONTROLS
Auto hold 45
Autonomous Emergency Braking (AEB). 47
Blind Spot Detection system (BSD) 46
Central door lock switch 06
Child-proof rear door lock 41

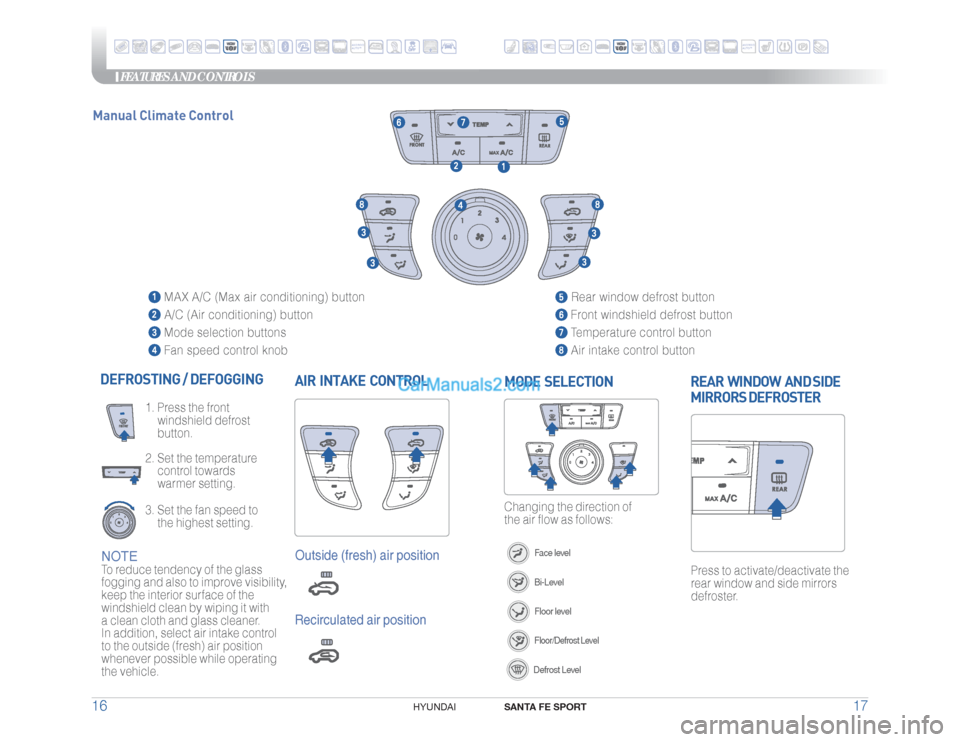

Climate control – Manual 16 -17
Climate control – Automatic 18 -19
Clock adjustments 40
Cruise control/Smart cruise control 20
Drive mode integrated control system 40
Driver position memory system 05
Driver’s main controls 06
Electric parking brake (EPB) 45
Electronic Stability Control (ESC) 44
Fuel filler lid 05
Headlights and foglights 07
HomeLink®
integrated transceiver 11

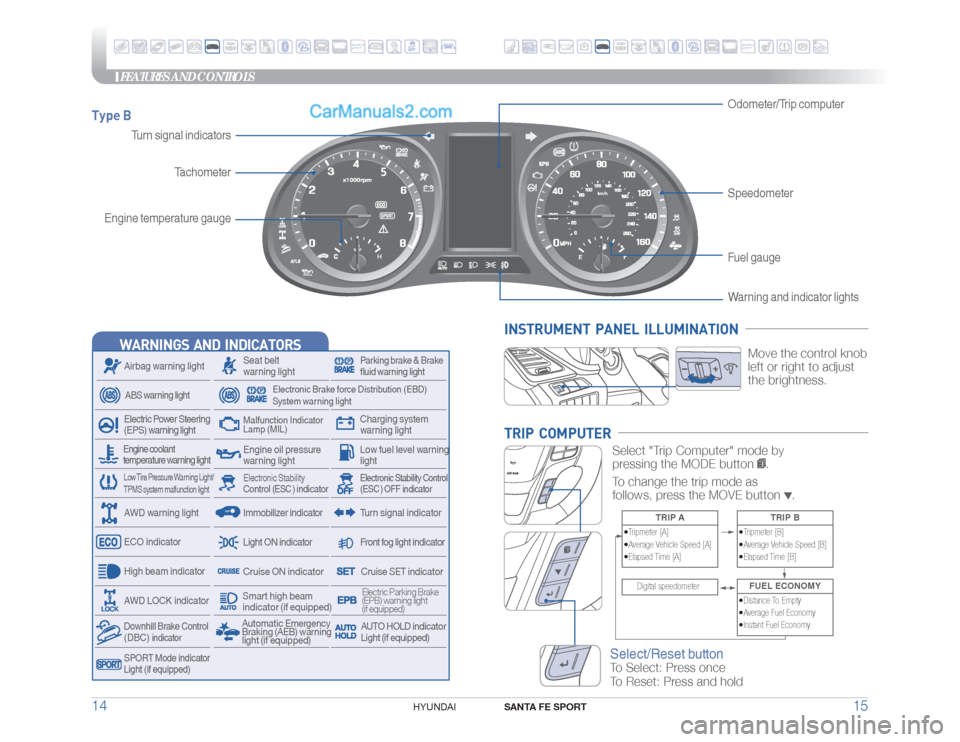

Instrument cluster 12-15
Instrument panel illumination 13
& 15
Interior lights 10
Lane Departure Warning System (LDWS) 48
Multi-view camera system 47
Power liftgate 09
Rearview camera 44
Seat warmer and ventilated system 41
Steering wheel adjustments 05
Steering wheel functions 20 - 21
Sunroof 09
Tire Pressure Monitoring System (TPMS) 39
Transmission 42
Trip computer 13 & 15
Wiper and washer 08
MULTIMEDIA
Android Auto 34-35
Apple carplay™ 36-39
Audio 29
AUX, USB, and iPod
® Port 29
Blue Link Telematics System 26-28
Bluetooth operational tips 22-23
Bluetooth phone operation 24-25
Bluetooth phone pairing 24
Display audio 30
Navigation 31-33
Headlights
and fog lightsPage 07
Instrument
clusterPages 12-15
Wiper and
washerPage 08
NavigationPages 31-33
Trip computerPages 13 & 15
Cruise control
system /
Smart cruise
controlPage 20
* Some vehicles may not be equipped with all
the listed features.
Use this Quick Reference Guide to learn
about the features that will enhance your
enjoyment of your Hyundai. More detailed
information about these features is
available in your Owner’s Manual.
Frequently Asked Questions 1. Pair phone to your vehicle. Refer to pages 24.
2. Program HomeLink. Refer to page 11.
3. Getting started with Blue Link. Refer to page 26.
WARNING!
To reduce the risk of serious injury to yourself and others,
read and understand the important SAFETY INFORMATION
in your Owner’s Manual.
Steering wheel
adjustmentsPage 05
Climate
controlPages 16-19
TransmissionPage 42
AUX, USB
and iPod
®
port
Page 29
Driver's main
controlsPage 06

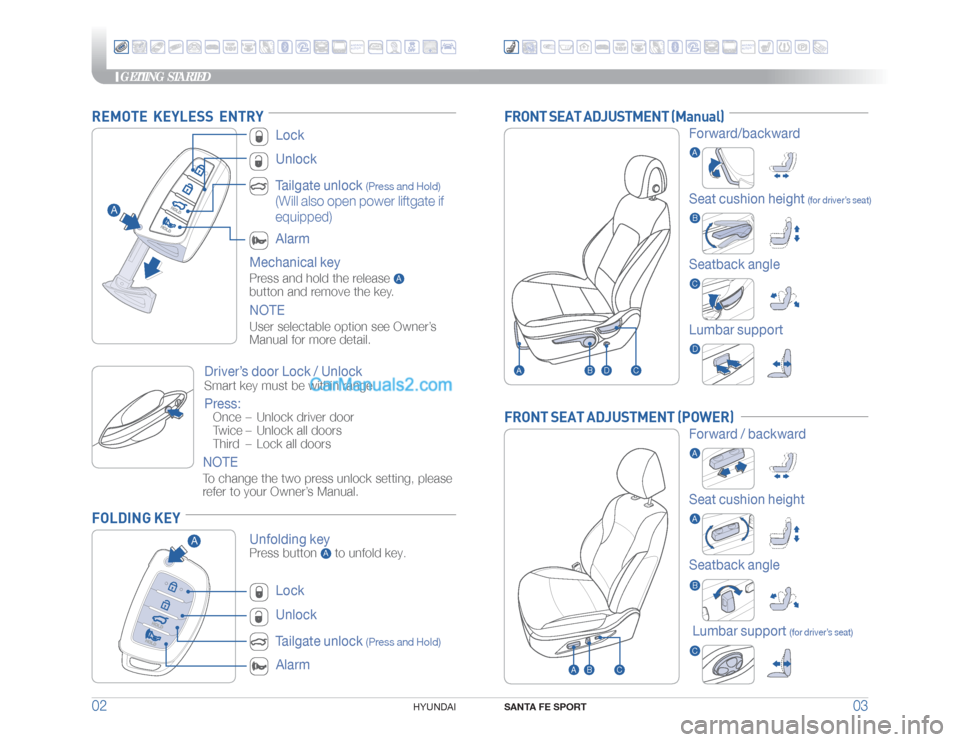

GETTING STARTED
SANTA FE SPORT
03 02
HYUNDAI
FRONT SEAT ADJUSTMENT (Manual)FRONT SEAT ADJUSTMENT (POWER)
Lumbar support
Lumbar support
(for driver’s seat)
Forward/backward
Forward / backwardSeat cushion height
(for driver’s seat)
Seat cushion heightSeatback angle
Seatback angleAAA
A
BB
B
CC
C
D
D
A
B
C
REMOTE KEYLESS ENTRYFOLDING KEY
Driver’s door Lock / UnlockSmart key must be within range.Press: Once – Unlock driver door
Twice – Unlock all doors
Third – Lock all doors
Unfolding keyPress button
A to unfold key
.
LockLockUnlockUnlockTailgate unlock
(Press and Hold)
(Will also open power liftgate if
equipped) Tailgate unlock
(Press and Hold)
Alarm
Alarm Mechanical key
Press and hold the release
A
button and remove the key.
NOTEUser selectable option see Owner’s
Manual for more detail.
NOTETo change the two press unlock setting, please
refer to your Owner’s Manual.
A
A
ANDROIDAUTO™
ANDROIDAUTO™

GETTING STARTED
SANTA FE SPORT
05 04
HYUNDAI
Telescopic

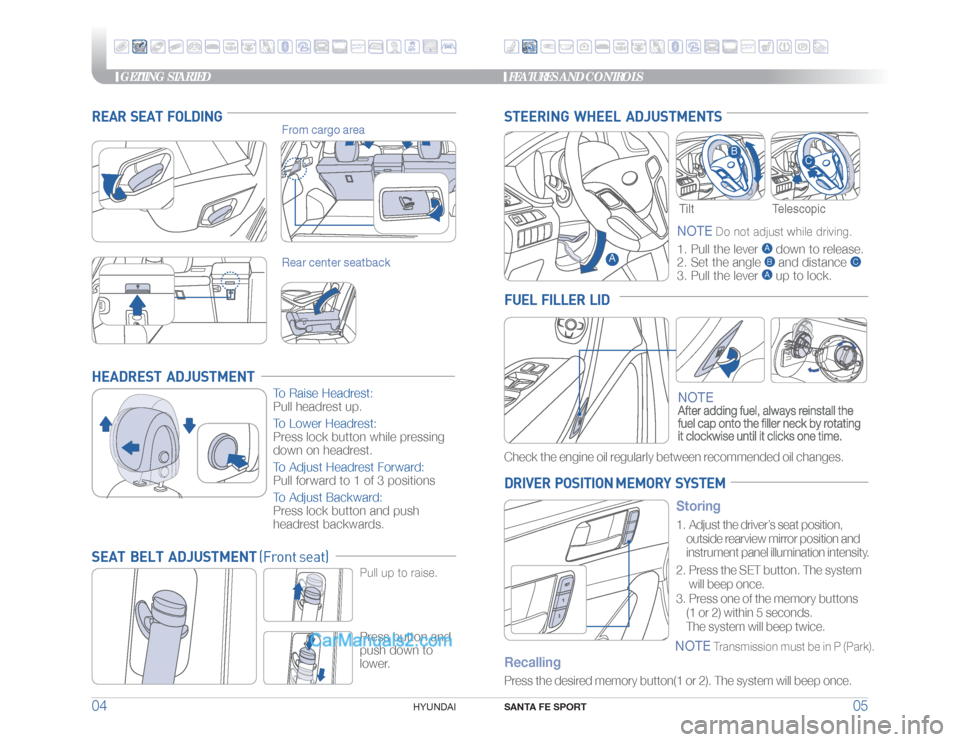

HEADREST ADJUSTMENT
To Raise Headrest:
Pull headrest up.
To Lower Headrest:
Press lock button while pressing
down on headrest.
To Adjust Headrest Forward:
Pull forward to 1 of 3 positions
To Adjust Backward:
Press lock button and push
headrest backwards.
SEAT BELT ADJUSTMENT (Front seat)
Pull up to raise.Press button and
push down to
lower.
FUEL FILLER LIDSTEERING WHEEL ADJUSTMENTS
TiltNOTE
Do not adjust while driving.
1. Pull the lever
A down to release.
2. Set the angle B and distance
C
3. Pull the lever
A up to lock.
A
B
C
REAR SEAT FOLDING
From cargo areaRear center seatback
FEATURES AND CONTROLSCheck the engine oil regularly between recommended oil changes.
Storing
1. Adjust the driver’s seat position,
outside rearview mirror position and
instrument panel illumination intensity.
2.
Press the SET button. The system
will beep once.
3.
Press one of the memory buttons
(1 or 2) within 5 seconds.
The system will beep twice.
DRIVER POSITION MEMORY SYSTEM
NOTE
Transmission must be in P (Park).
Recalling
Press the desired memory button(1 or 2). The system will beep once.
NOTE
ANDROIDAUTO™
ANDROIDAUTO™

FEATURES AND CONTROLS
SANTA FE SPORT
07 06
HYUNDAI

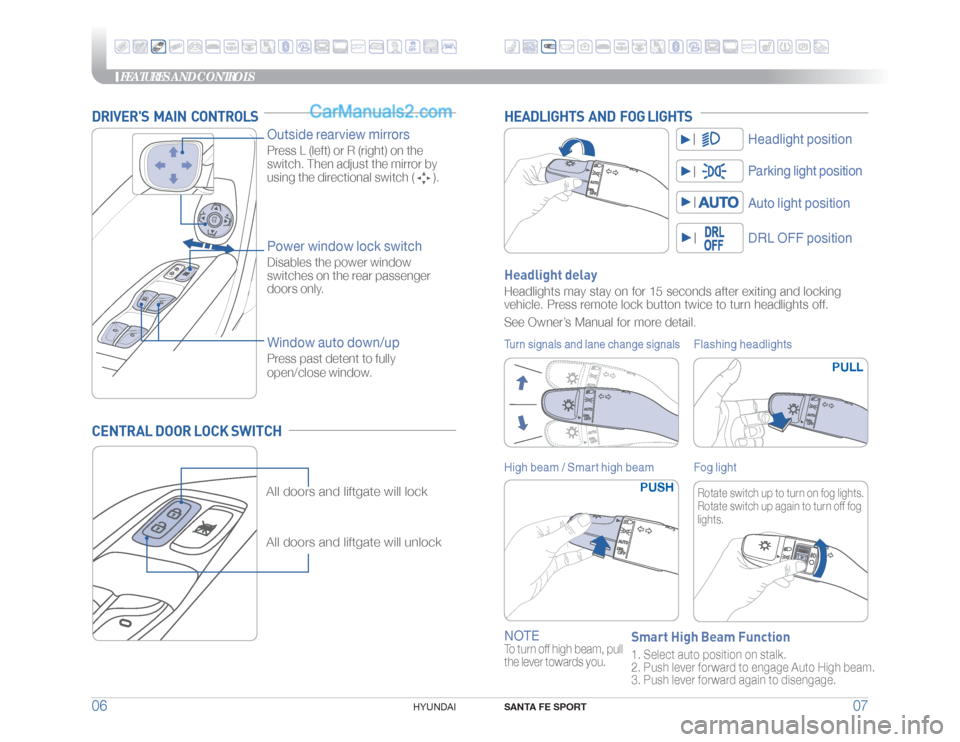

DRIVER'S MAIN CONTROLSCENTRAL DOOR LOCK SWITCH
Outside rearview mirrors Press L (left) or R (right) on the
switch. Then adjust the mirror by
using the directional switch (
).
Power window lock switch Disables the power window
switches on the rear passenger
doors only.
Window auto down/upPress past detent to fully
open/close window.
HEADLIGHTS AND FOG LIGHTS
Parking light positionAuto light positionHeadlight position
Headlight delayHeadlights may stay on for 15 seconds after exiting and locking
vehicle. Press remote lock button twice to turn headlights off.
See Owner’s Manual for more detail
.
High beam / Smart high beamFog light
Turn signals and lane change signals
Flashing headlights
All doors and liftgate will lock
All doors and liftgate will unlock
PULL
PUSH
DRL OFF position
NOTETo turn off high beam, pull
the lever towards you.
Smart High Beam Function1. Select auto position on stalk.
2. Push lever forward to engage Auto High beam.
3. Push lever forward again to disengage.
ANDROIDAUTO™
ANDROIDAUTO™
Rotate switch up to turn on fog lights.
Rotate switch up again to turn off fog
lights.

FEATURES AND CONTROLS
SANTA FE SPORT
09 08
HYUNDAI

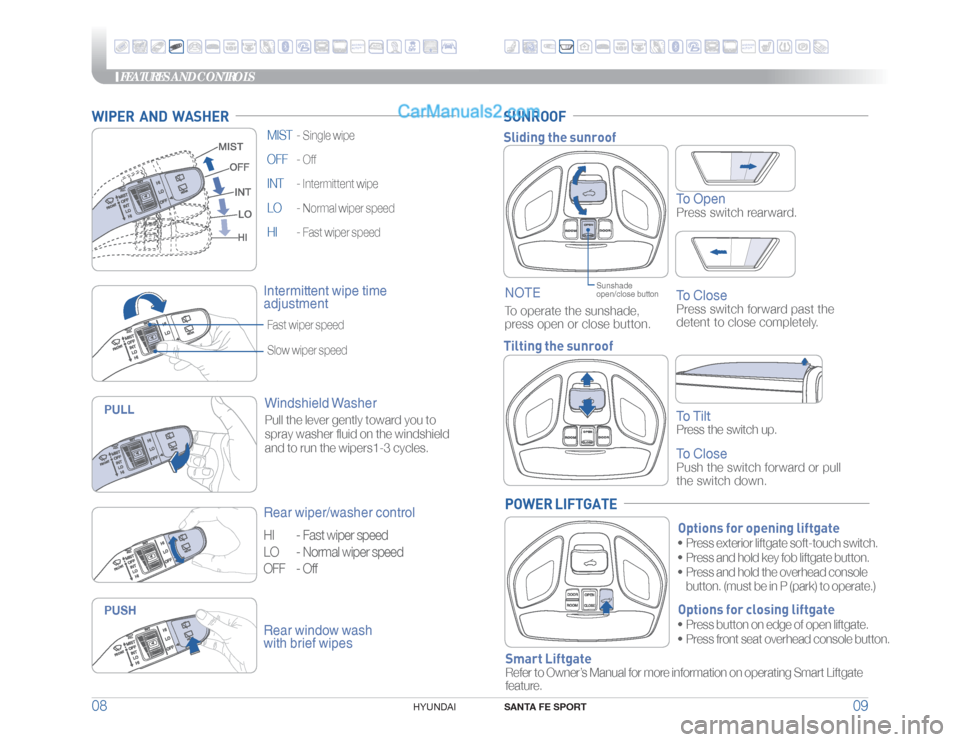

MIST -
Single wipe
OFF -
Off
INT -
Intermittent wipe
LO -
Normal wiper speed
HI -
Fast wiper speed
WIPER AND WASHER
Intermittent wipe time
adjustmentFast wiper speed
Slow wiper speedRear wiper/washer control
HI - Fast wiper speed
LO - Normal wiper speed
OFF - OffRear window wash
with brief wipes
PULL
PUSH
SUNROOFSliding the sunroof
To Open
Press switch rearward.To ClosePress switch forward past the
detent to close completely.To TiltPress the switch up.To ClosePush the switch forward or pull
the switch down.
Smart LiftgateRefer to Owner’s Manual for more information on operating Smart Liftgate
feature.Tilting the sunroofNOTE To operate the sunshade,
press open or close button.
Sunshade
open/close button
POWER LIFTGATE
Options for opening liftgate• Press exterior liftgate soft-touch switch. • Press and hold key fob liftgate button. • Press and hold the overhead console
button. (must be in P (park) to operate.)Options for closing liftgate• Press button on edge of open liftgate.• Press front seat overhead console button.

ANDROIDAUTO™
ANDROIDAUTO™
Windshield WasherPull the lever gently toward you to
spray washer fluid on the windshield
and to run the wipers1-3 cycles.

FEATURES AND CONTROLS
SANTA FE SPORT
11 10
HYUNDAI

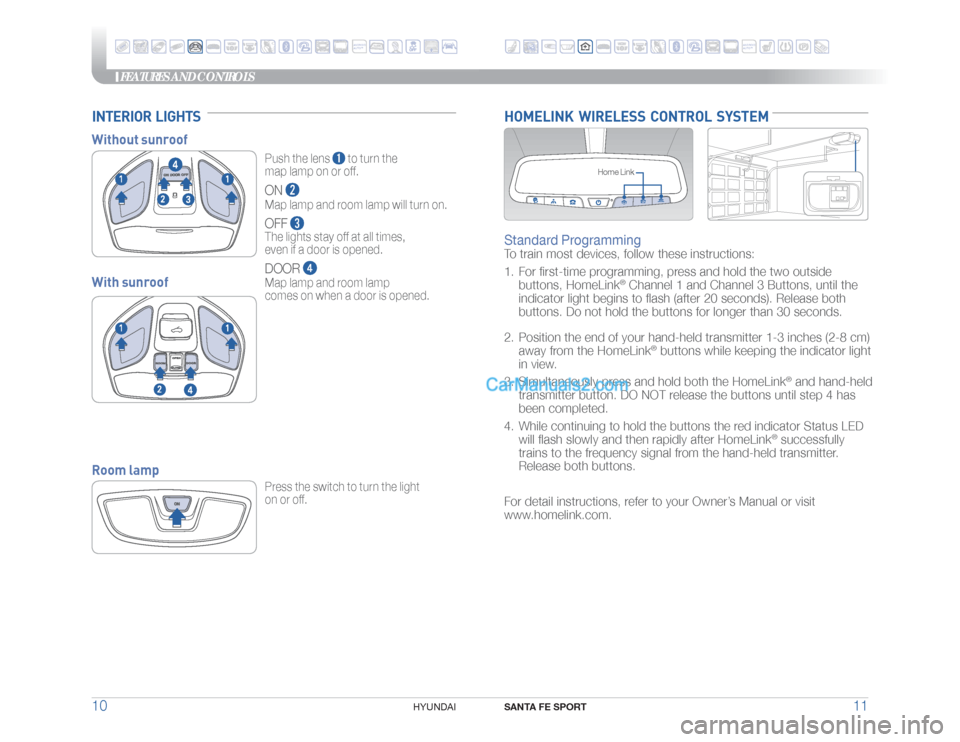

HOMELINK WIRELESS CONTROL SYSTEM
Home Link
Standard Programming To train most devices, follow these instructions:
1. For first-time programming, press and hold the two outside
buttons, HomeLink
® Channel 1 and Channel 3 Buttons, until the
indicator light begins to flash (after 20 seconds). Release both
buttons. Do not hold the buttons for longer than 30 seconds.
2. Position the end of your hand-held transmitter 1-3 inches (2-8 cm)
away from the HomeLink
® buttons while keeping the indicator light
in view.
3. Simultaneously press and hold both the HomeLink
® and hand-held
transmitter button. DO NOT release the buttons until step 4 has
been completed.
4. While continuing to hold the buttons the red indicator Status LED
will flash slowly and then rapidly after HomeLink
® successfully
trains to the frequency signal from the hand-held transmitter.
Release both buttons.
For detail instructions, refer to your Owner’s Manual or visit
www.homelink.com.
INTERIOR LIGHTS
Push the lens
to turn the
map lamp on or off.
ON Map lamp and room lamp will turn on.OFF The lights stay off at all times,
even if a door is opened.DOOR Map lamp and room lamp
comes on when a door is opened.
Press the switch to turn the light
on or off.
Without sunroof
With sunroofRoom lamp
ANDROIDAUTO™
ANDROIDAUTO™

FEATURES AND CONTROLS
SANTA FE SPORT
13 12
HYUNDAI

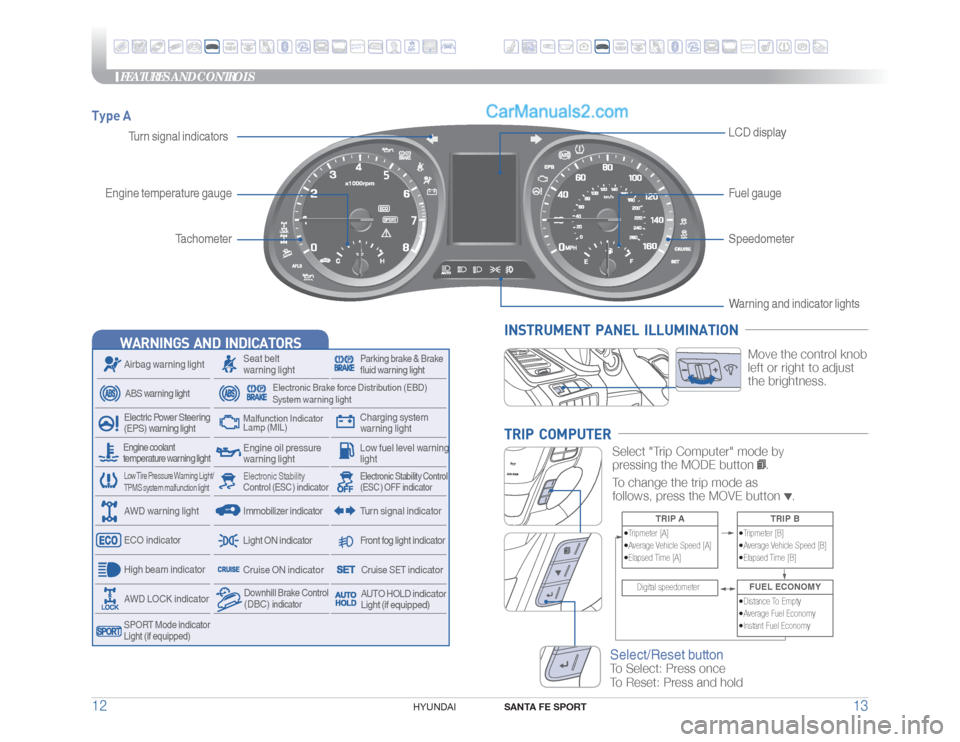

Type A
Tachometer
Speedometer
Turn signal indicatorsLCD display
Engine temperature gaugeFuel gauge
WARNINGS AND INDICATORS
Seat belt
warning light
Charging system
warning light
Airbag warning light
Electronic Brake force Distribution (EBD)
System warning light
ABS warning light
Front fog light indicator
Light ON indicator
Electric Power Steering
(EPS) warning lightHigh beam indicator
Parking brake & Brake
fluid warning light
Engine oil pressure
warning lightMalfunction Indicator
Lamp (MIL)
Low fuel level warning
light
Electronic Stability Control
(ESC )
indicator
Electronic Stability Control
(ESC ) OFF indicatorTurn signal indicator
ECO indicator
Immobilizer indicatorDownhill Brake Control (DBC)
indicator
SPORT Mode indicator
Light (if equipped)AWD LOCK indicatorAWD warning lightEngine coolant
temperature warning light
Cruise ON indicator
Cruise SET indicator
Low Tire Pressure Warning Light/
TPMS system malfunction light
AUTO HOLD indicator
Light (if equipped)ANDROIDAUTO™
ANDROIDAUTO™
Warning and indicator lights
INSTRUMENT PANEL ILLUMINATION
Move the control knob
left or right to adjust
the brightness.
TRIP COMPUTER
Select "Trip Computer" mode by
pressing the MODE button
.
To change the trip mode as
follows, press the MOVE button
.
TRIP A
•Tripmeter [A]
•Average Vehicle Speed [A]
•Elapsed Time [A]
TRIP B
•Tripmeter [B]
•Average Vehicle Speed [B]
•Elapsed Time [B]
Digital speedometer
FUEL ECONOMY•Distance To Empty
•Average Fuel Economy
•Instant Fuel Economy
Select/Reset buttonTo Select: Press once
To Reset: Press and hold

FEATURES AND CONTROLS
SANTA FE SPORT
15 14
HYUNDAI
Type B
Warning and indicator lights
Engine temperature gaugeTachometer
SpeedometerFuel gauge Odometer/Trip computer
WARNINGS AND INDICATORS
Seat belt
warning light
Charging system
warning light
Airbag warning light
Electronic Brake force Distribution (EBD)
System warning light
ABS warning light
Front fog light indicator
Light ON indicator
Electric Power Steering
(EPS) warning lightHigh beam indicator
Parking brake & Brake
fluid warning light
Engine oil pressure
warning lightMalfunction Indicator
Lamp (MIL)
Low fuel level warning
light
Electronic Stability Control
(ESC )
indicator
Electronic Stability Control
(ESC ) OFF indicatorTurn signal indicator
ECO indicator
Immobilizer indicator
Downhill Brake Control (DBC)
indicator
SPORT Mode indicator
Light (if equipped)AWD LOCK indicatorAWD warning lightEngine coolant
temperature warning light
Cruise ON indicator
Cruise SET indicator
Low Tire Pressure Warning Light/
TPMS system malfunction light
Automatic Emergency
Braking (AEB) warning
light (if equipped)
Electric Parking Brake
(EPB) warning light
(if equipped)AUTO HOLD indicator
Light (if equipped)
Smart high beam
indicator (if equipped)
Turn signal indicators
ANDROIDAUTO™
ANDROIDAUTO™
INSTRUMENT PANEL ILLUMINATION
Move the control knob
left or right to adjust
the brightness.
TRIP COMPUTER
Select "Trip Computer" mode by
pressing the MODE button
.
To change the trip mode as
follows, press the MOVE button
.
TRIP A
•Tripmeter [A]
•Average Vehicle Speed [A]
•Elapsed Time [A]
TRIP B
•Tripmeter [B]
•Average Vehicle Speed [B]
•Elapsed Time [B]
Digital speedometer
FUEL ECONOMY•Distance To Empty
•Average Fuel Economy
•Instant Fuel Economy
Select/Reset buttonTo Select: Press once
To Reset: Press and hold

FEATURES AND CONTROLS
SANTA FE SPORT
17 16
HYUNDAI
AIR INTAKE CONTROL DEFROSTING / DEFOGGING
2. Set the temperature
control towards
warmer setting.3. Set the fan speed to
the highest setting. 1. Press the front
windshield defrost
button.
Press to activate/deactivate the
rear window and side mirrors
defroster.REAR WINDOW AND SIDE
MIRRORS DEFROSTER
Changing the direction of
the air flow as follows:MODE SELECTION
Face levelBi-LevelFloor levelFloor/Defrost LevelDefrost Level

MAX A/C (Max air conditioning) button
A/C (Air conditioning) button
Mode selection buttons
Fan speed control knob
Rear window defrost button Front windshield defrost button Temperature control button Air intake control button
NOTETo reduce tendency of the glass
fogging and also to improve visibility,
keep the interior surface of the
windshield clean by wiping it with
a clean cloth and glass cleaner.
In addition, select air intake control
to the outside (fresh) air position
whenever possible while operating
the vehicle.
Outside (fresh) air positionRecirculated air position
Manual Climate Control
ANDROIDAUTO™
ANDROIDAUTO™
