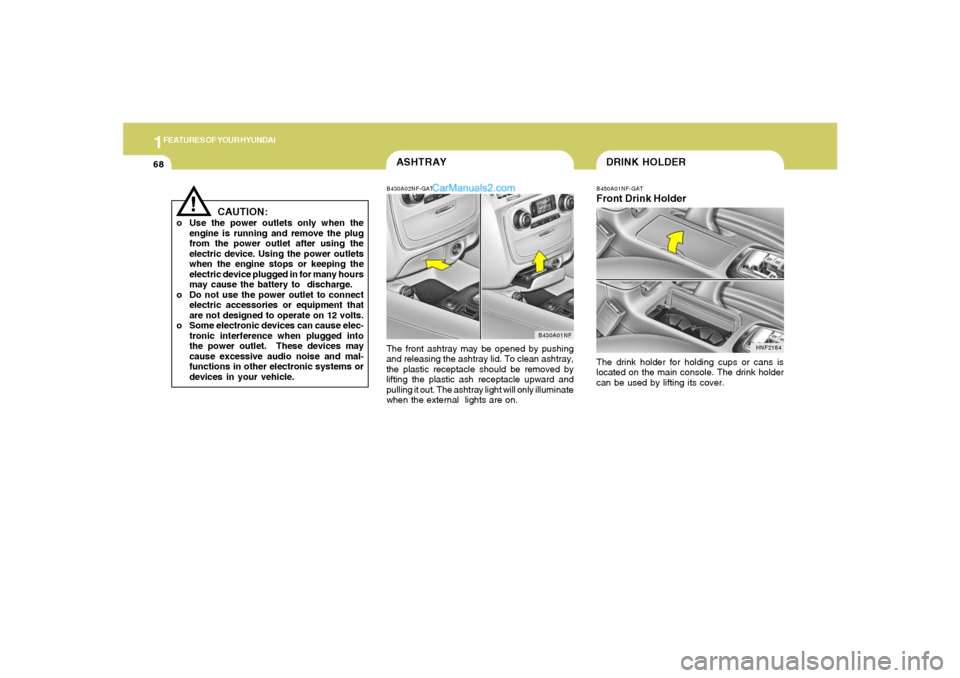

1FEATURES OF YOUR HYUNDAI68
ASHTRAYB430A02NF-GATThe front ashtray may be opened by pushing
and releasing the ashtray lid. To clean ashtray,
the plastic receptacle should be removed by
lifting the plastic ash receptacle upward and
pulling it out. The ashtray light will only illuminate
when the external lights are on.
B430A01NF
B450A01NF-GATFront Drink HolderThe drink holder for holding cups or cans is
located on the main console. The drink holder
can be used by lifting its cover.
HNF2184
DRINK HOLDER
!
CAUTION:
o Use the power outlets only when the
engine is running and remove the plug
from the power outlet after using the
electric device. Using the power outlets
when the engine stops or keeping the
electric device plugged in for many hours
may cause the battery to discharge.
o Do not use the power outlet to connect
electric accessories or equipment that
are not designed to operate on 12 volts.
o Some electronic devices can cause elec-
tronic interference when plugged into
the power outlet. These devices may
cause excessive audio noise and mal-
functions in other electronic systems or
devices in your vehicle.

1
FEATURES OF YOUR HYUNDAI
69
!
CAUTION:
Place the drink holder in its closed position
while not in use.
HNF2185

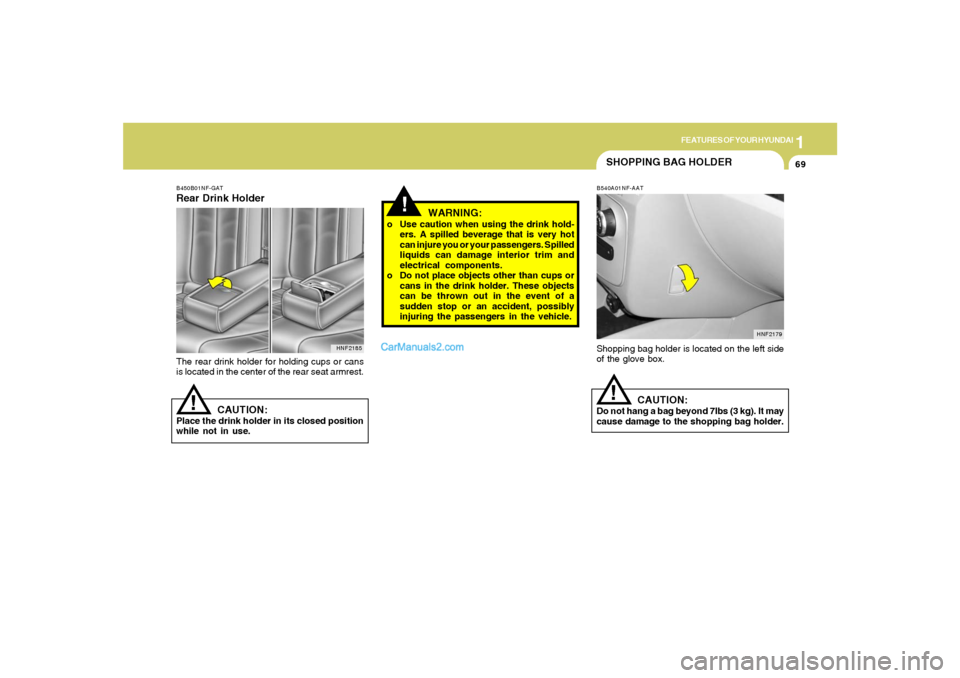

B450B01NF-GATRear Drink HolderThe rear drink holder for holding cups or cans
is located in the center of the rear seat armrest.
!
WARNING:
o Use caution when using the drink hold-
ers. A spilled beverage that is very hot
can injure you or your passengers. Spilled
liquids can damage interior trim and
electrical components.
o Do not place objects other than cups or
cans in the drink holder. These objects
can be thrown out in the event of a
sudden stop or an accident, possibly
injuring the passengers in the vehicle.
SHOPPING BAG HOLDERB540A01NF-AAT
HNF2179
!
Shopping bag holder is located on the left side
of the glove box.
CAUTION:
Do not hang a bag beyond 7lbs (3 kg). It may
cause damage to the shopping bag holder.

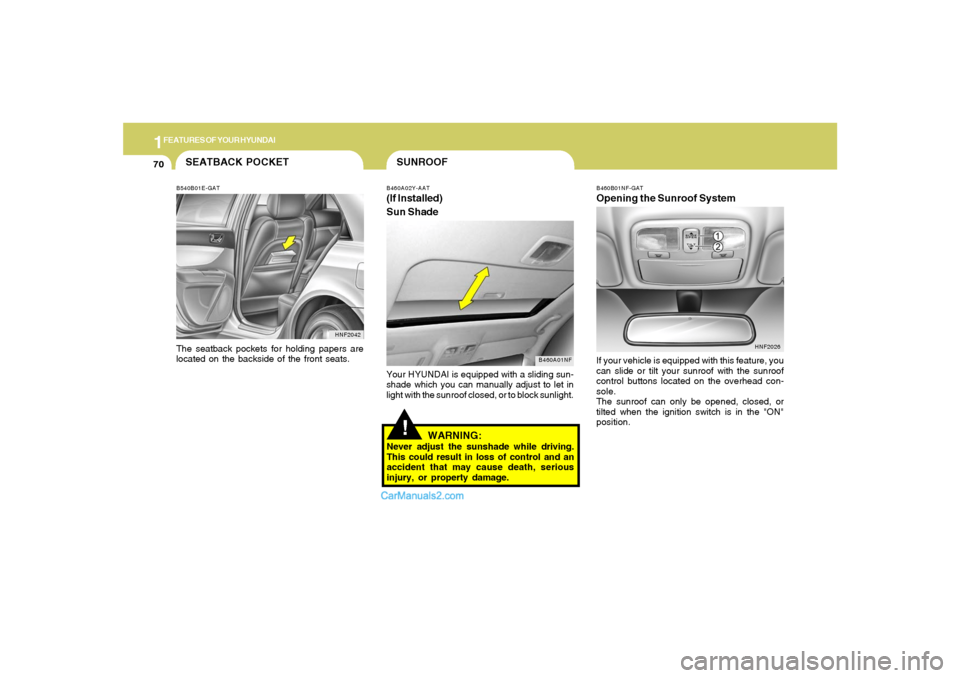

1FEATURES OF YOUR HYUNDAI70
!SUNROOFB460A02Y-AAT(If Installed)
Sun Shade
B460A01NF
Your HYUNDAI is equipped with a sliding sun-
shade which you can manually adjust to let in
light with the sunroof closed, or to block sunlight.
WARNING:
Never adjust the sunshade while driving.
This could result in loss of control and an
accident that may cause death, serious
injury, or property damage.
B460B01NF-GATOpening the Sunroof SystemIf your vehicle is equipped with this feature, you
can slide or tilt your sunroof with the sunroof
control buttons located on the overhead con-
sole.
The sunroof can only be opened, closed, or
tilted when the ignition switch is in the "ON"
position.
HNF2026
SEATBACK POCKETB540B01E-GAT
HNF2042The seatback pockets for holding papers are
located on the backside of the front seats.

1
FEATURES OF YOUR HYUNDAI
71

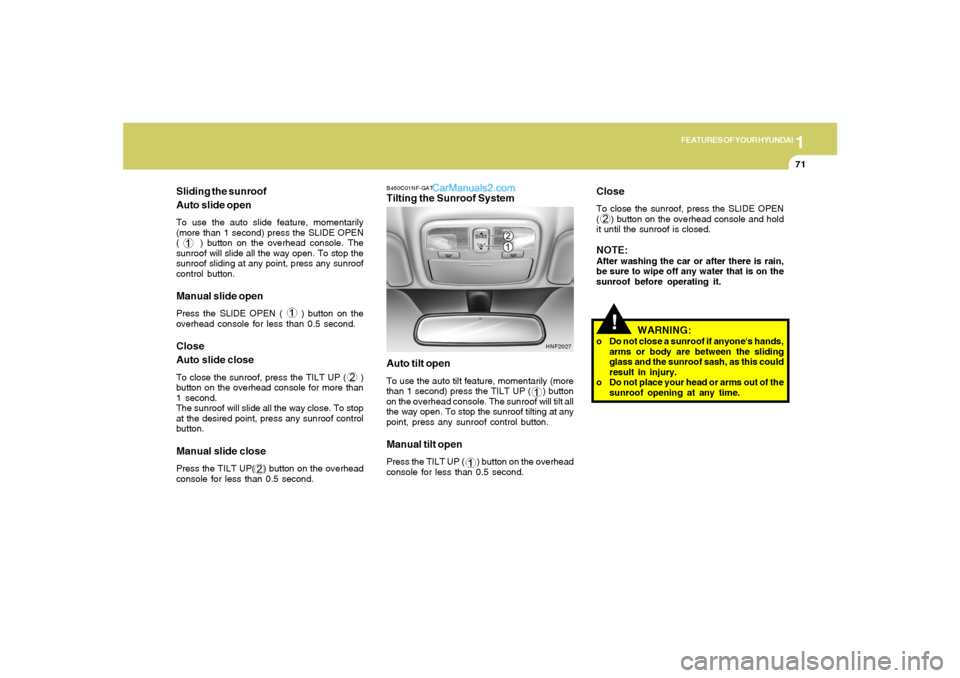

Sliding the sunroof
Auto slide openTo use the auto slide feature, momentarily
(more than 1 second) press the SLIDE OPEN
( ) button on the overhead console. The
sunroof will slide all the way open. To stop the
sunroof sliding at any point, press any sunroof
control button.Manual slide openPress the SLIDE OPEN ( ) button on the
overhead console for less than 0.5 second.Close
Auto slide closeTo close the sunroof, press the TILT UP ( )
button on the overhead console for more than
1 second.
The sunroof will slide all the way close. To stop
at the desired point, press any sunroof control
button.Manual slide closePress the TILT UP( ) button on the overhead
console for less than 0.5 second.
B460C01NF-GATTilting the Sunroof System
Auto tilt openTo use the auto tilt feature, momentarily (more
than 1 second) press the TILT UP ( ) button
on the overhead console. The sunroof will tilt all
the way open. To stop the sunroof tilting at any
point, press any sunroof control button.Manual tilt openPress the TILT UP ( ) button on the overhead
console for less than 0.5 second.
!
CloseTo close the sunroof, press the SLIDE OPEN
( ) button on the overhead console and hold
it until the sunroof is closed.NOTE:After washing the car or after there is rain,
be sure to wipe off any water that is on the
sunroof before operating it.
HNF2027
WARNING:
o Do not close a sunroof if anyone's hands,
arms or body are between the sliding
glass and the sunroof sash, as this could
result in injury.
o Do not place your head or arms out of the
sunroof opening at any time.

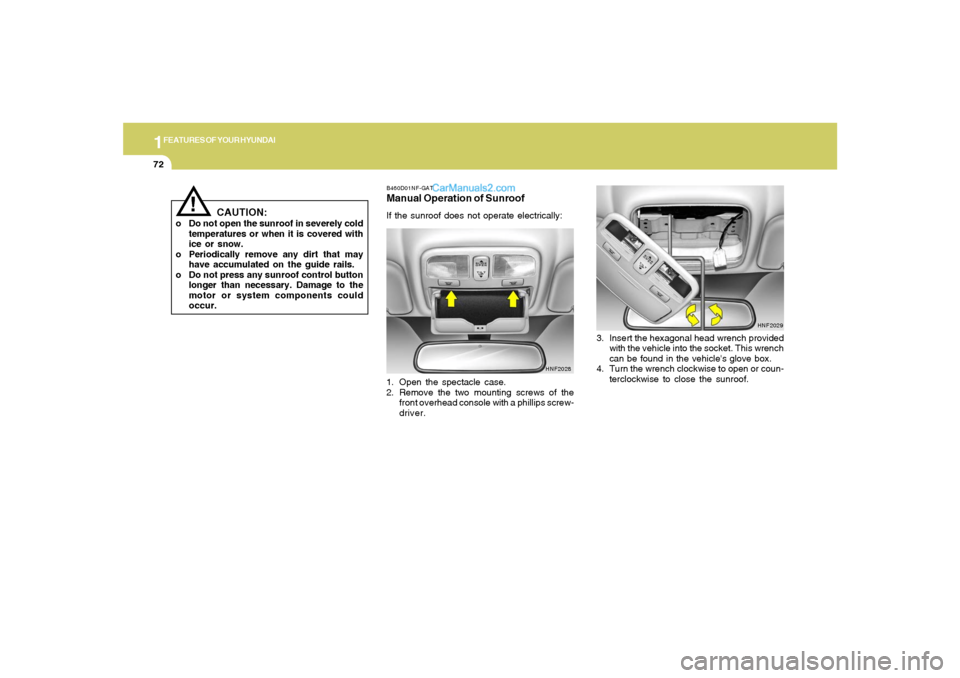

1FEATURES OF YOUR HYUNDAI72
B460D01NF-GATManual Operation of SunroofIf the sunroof does not operate electrically:
1. Open the spectacle case.
2. Remove the two mounting screws of the
front overhead console with a phillips screw-
driver.
HNF2028
3. Insert the hexagonal head wrench provided
with the vehicle into the socket. This wrench
can be found in the vehicle's glove box.
4. Turn the wrench clockwise to open or coun-
terclockwise to close the sunroof.
HNF2029
!
CAUTION:
o Do not open the sunroof in severely cold
temperatures or when it is covered with
ice or snow.
o Periodically remove any dirt that may
have accumulated on the guide rails.
o Do not press any sunroof control button
longer than necessary. Damage to the
motor or system components could
occur.

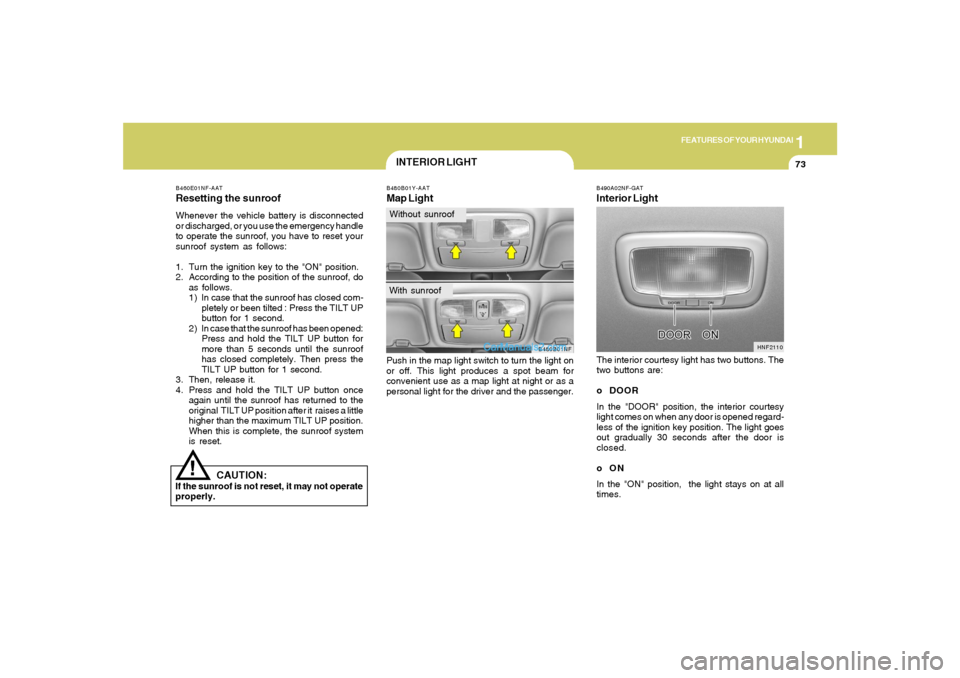

1
FEATURES OF YOUR HYUNDAI
73
!
CAUTION:
If the sunroof is not reset, it may not operate
properly.B460E01NF-AATResetting the sunroofWhenever the vehicle battery is disconnected
or discharged, or you use the emergency handle
to operate the sunroof, you have to reset your
sunroof system as follows:
1. Turn the ignition key to the "ON" position.
2. According to the position of the sunroof, do
as follows.
1) In case that the sunroof has closed com-
pletely or been tilted : Press the TILT UP
button for 1 second.
2) In case that the sunroof has been opened:
Press and hold the TILT UP button for
more than 5 seconds until the sunroof
has closed completely. Then press the
TILT UP button for 1 second.
3. Then, release it.
4. Press and hold the TILT UP button once
again until the sunroof has returned to the
original TILT UP position after it raises a little
higher than the maximum TILT UP position.
When this is complete, the sunroof system
is reset.
B480B01Y-AATMap LightPush in the map light switch to turn the light on
or off. This light produces a spot beam for
convenient use as a map light at night or as a
personal light for the driver and the passenger.
B480B01NF
INTERIOR LIGHTWithout sunroofWith sunroof
B490A02NF-GATInterior LightThe interior courtesy light has two buttons. The
two buttons are:
o DOOR
In the "DOOR" position, the interior courtesy
light comes on when any door is opened regard-
less of the ignition key position. The light goes
out gradually 30 seconds after the door is
closed.
oON
In the "ON" position, the light stays on at all
times.
HNF2110

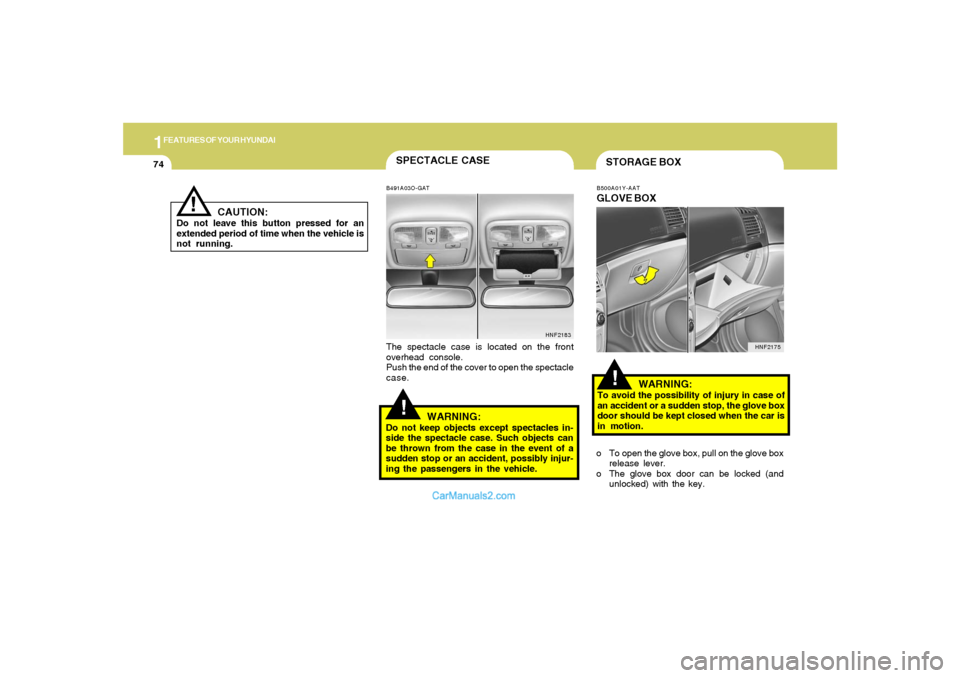

1FEATURES OF YOUR HYUNDAI74
CAUTION:
Do not leave this button pressed for an
extended period of time when the vehicle is
not running.
!
SPECTACLE CASE!
B491A03O-GATThe spectacle case is located on the front
overhead console.
Push the end of the cover to open the spectacle
case.
WARNING:
Do not keep objects except spectacles in-
side the spectacle case. Such objects can
be thrown from the case in the event of a
sudden stop or an accident, possibly injur-
ing the passengers in the vehicle.
HNF2183
!STORAGE BOXB500A01Y-AATGLOVE BOX
WARNING:To avoid the possibility of injury in case of
an accident or a sudden stop, the glove box
door should be kept closed when the car is
in motion.
o To open the glove box, pull on the glove box
release lever.
o The glove box door can be locked (and
unlocked) with the key.
HNF2175

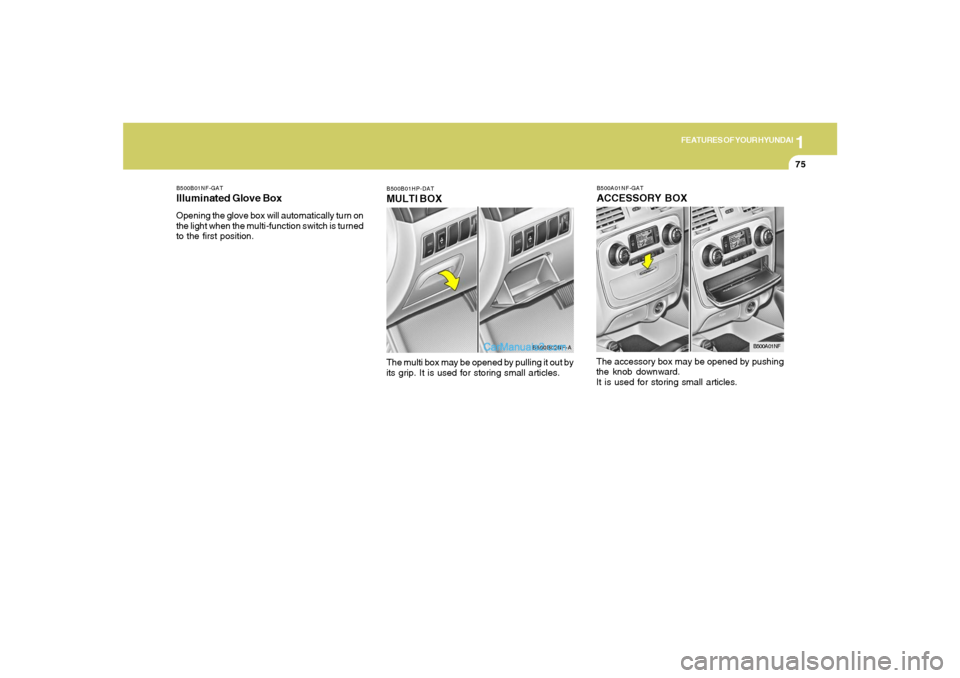

1
FEATURES OF YOUR HYUNDAI
75
B500A01NF-GATACCESSORY BOXThe accessory box may be opened by pushing
the knob downward.
It is used for storing small articles.
B500A01NF
B500B01HP-DATMULTI BOXThe multi box may be opened by pulling it out by
its grip. It is used for storing small articles.
B500B02NF-A
B500B01NF-GATIlluminated Glove BoxOpening the glove box will automatically turn on
the light when the multi-function switch is turned
to the first position.

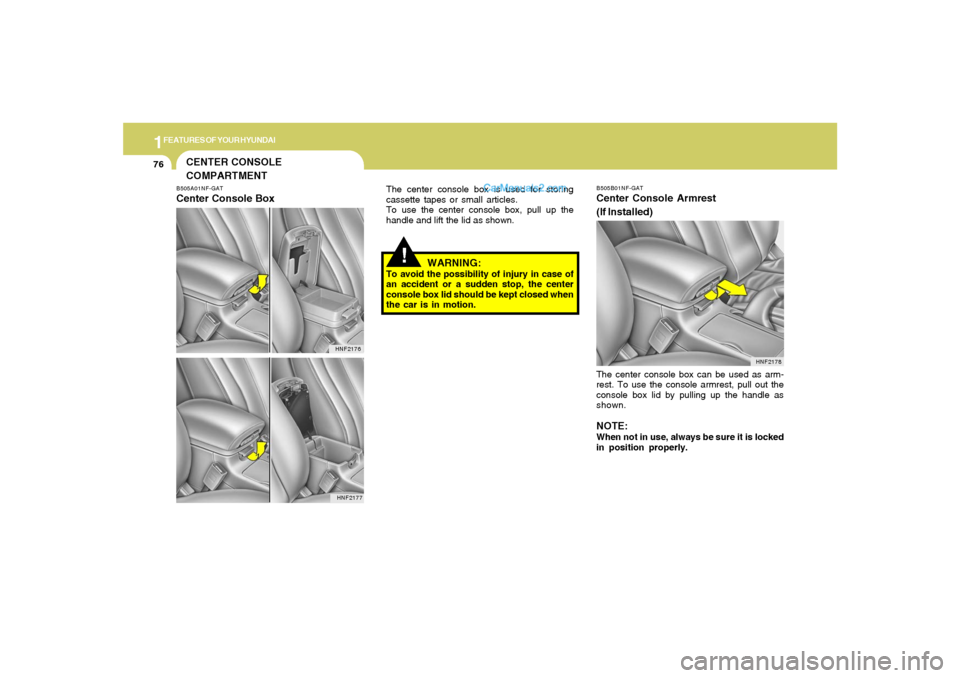

1FEATURES OF YOUR HYUNDAI76
!
WARNING:
To avoid the possibility of injury in case of
an accident or a sudden stop, the center
console box lid should be kept closed when
the car is in motion.
HNF2178
The center console box can be used as arm-
rest. To use the console armrest, pull out the
console box lid by pulling up the handle as
shown.NOTE:When not in use, always be sure it is locked
in position properly.B505B01NF-GATCenter Console Armrest
(If Installed)
The center console box is used for storing
cassette tapes or small articles.
To use the center console box, pull up the
handle and lift the lid as shown.
CENTER CONSOLE
COMPARTMENTB505A01NF-GATCenter Console Box
HNF2176
HNF2177

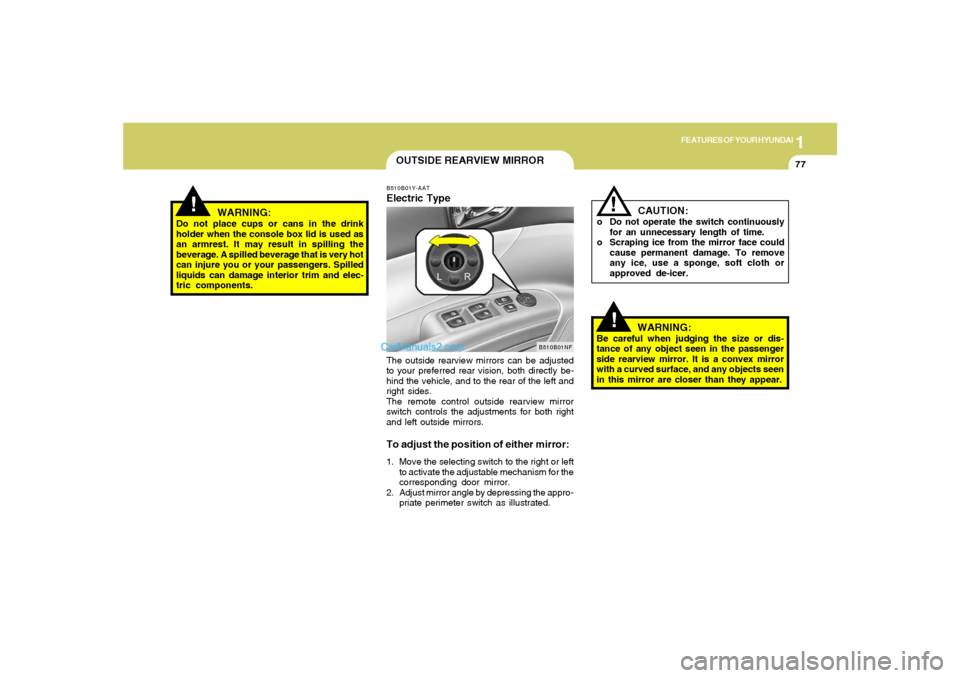

1
FEATURES OF YOUR HYUNDAI
77
!
OUTSIDE REARVIEW MIRROR
!
WARNING:
Do not place cups or cans in the drink
holder when the console box lid is used as
an armrest. It may result in spilling the
beverage. A spilled beverage that is very hot
can injure you or your passengers. Spilled
liquids can damage interior trim and elec-
tric components.
B510B01Y-AATElectric TypeThe outside rearview mirrors can be adjusted
to your preferred rear vision, both directly be-
hind the vehicle, and to the rear of the left and
right sides.
The remote control outside rearview mirror
switch controls the adjustments for both right
and left outside mirrors.To adjust the position of either mirror:1. Move the selecting switch to the right or left
to activate the adjustable mechanism for the
corresponding door mirror.
2. Adjust mirror angle by depressing the appro-
priate perimeter switch as illustrated.
B510B01NF
CAUTION:
o Do not operate the switch continuously
for an unnecessary length of time.
o Scraping ice from the mirror face could
cause permanent damage. To remove
any ice, use a sponge, soft cloth or
approved de-icer.
!
WARNING:
Be careful when judging the size or dis-
tance of any object seen in the passenger
side rearview mirror. It is a convex mirror
with a curved surface, and any objects seen
in this mirror are closer than they appear.
