Setup I 9-3
09
Navigation Settings
For more details, refer to part 5. Navigation
Settings.

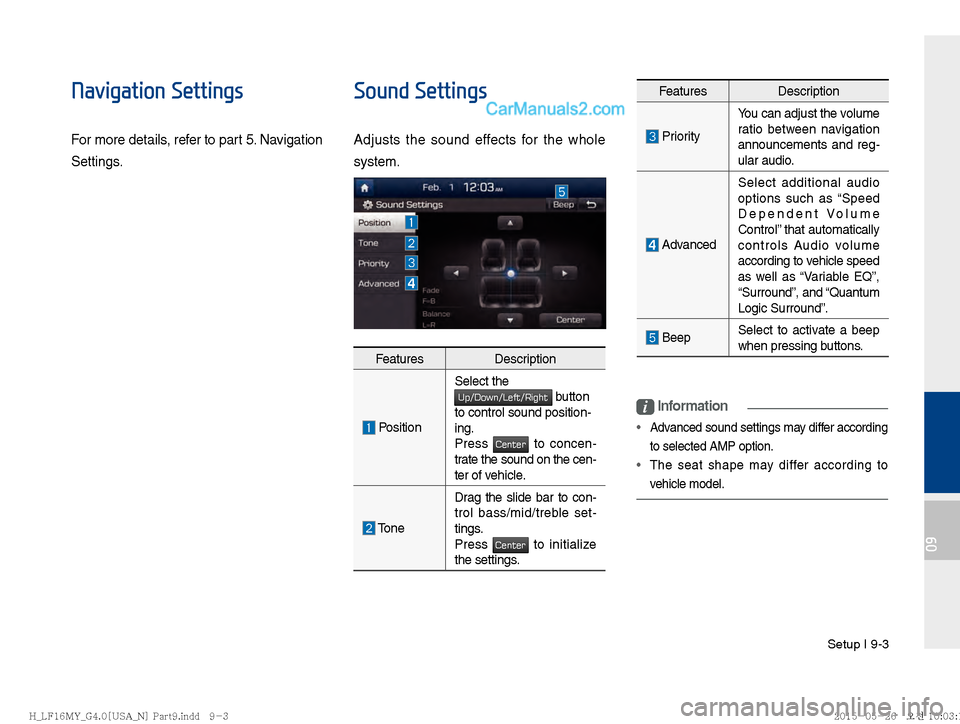

Sound Settings
Adjusts the sound effects for the whole
system.
i Information
• Advanced sound settings may differ according
to selected AMP option.
The seat shape may differ according to
vehicle model.
Features Description
PositionSelect the
Up/Down/Left/Right button
to control sound position-
ing.
Press
Center to concen-
trate the sound on the cen-
ter of v ehicle.
Tone Drag the slide bar to con-
trol bass/mid/treble set-
tings.
Press
Center to initialize
the settings.
Features Description
PriorityYou can adjust the volume
ratio between navigation
announcements and reg-
ular audio.
AdvancedSelect additional audio
options such as “Speed
Dependent Volume
Control” that automatically
controls Audio volume
according to vehicle speed
as well as “Variable EQ”,
“Surround”, and “Quantum
Logic Surround”.
Beep
Select to activate a beep
when pressing buttons.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 182 of 308
9-4 I Setup

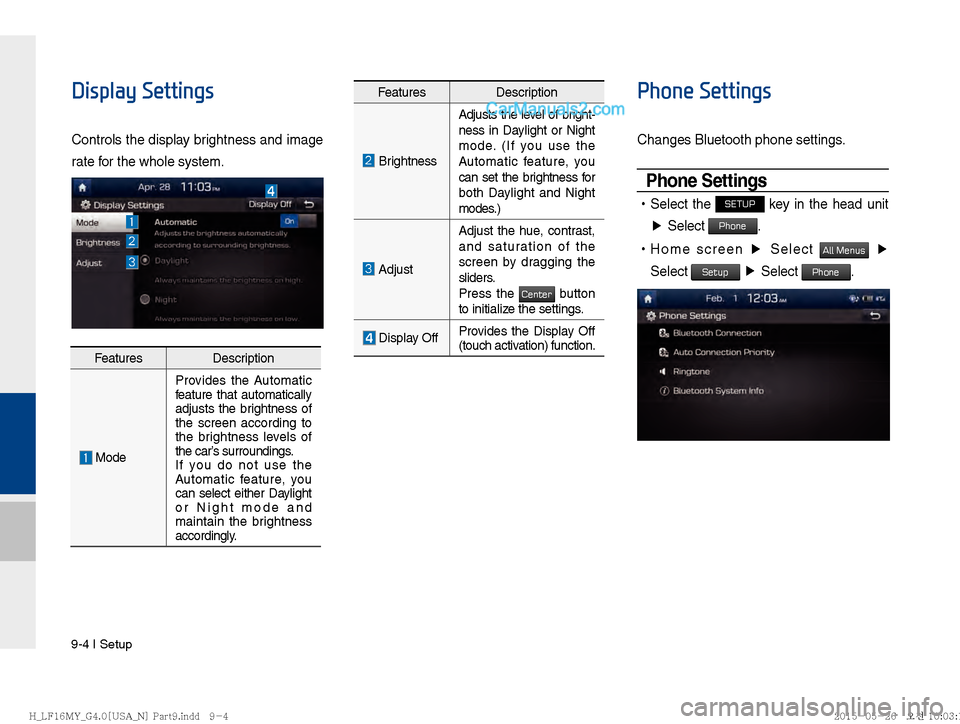

Display Settings
Controls the display brightness and image
rate for the whole system.
Phone Settings
Changes Bluetooth phone settings.
Phone Settings
!Ÿ
Select the SETUP key in the head unit
▶ Select
Phone.
!Ÿ
Home screen ▶
Select
All Menus ▶
Select
Setup ▶
Select Phone.
Features Description
BrightnessAdjusts the level of bright-
ness in Daylight or Night
mode. (If you use the
Automatic feature, you
can set the brightness for
both Daylight and Night
modes.)
Adjust
Adjust the hue, contrast,
and saturation of the
screen by dragging the
sliders.
Press the
Center button
to initialize the settings.
Display Off Provides the Display Off
(touch activation) function.
Features
Description
ModeProvides the Automatic
feature that automatically
adjusts the brightness of
the screen according to
the brightness levels of
the car’s surroundings.
If you do not use the
Automatic feature, you
can select either Daylight
or Night mode and
maintain the brightness
accordingly.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 183 of 308
Setup I 9-5
09

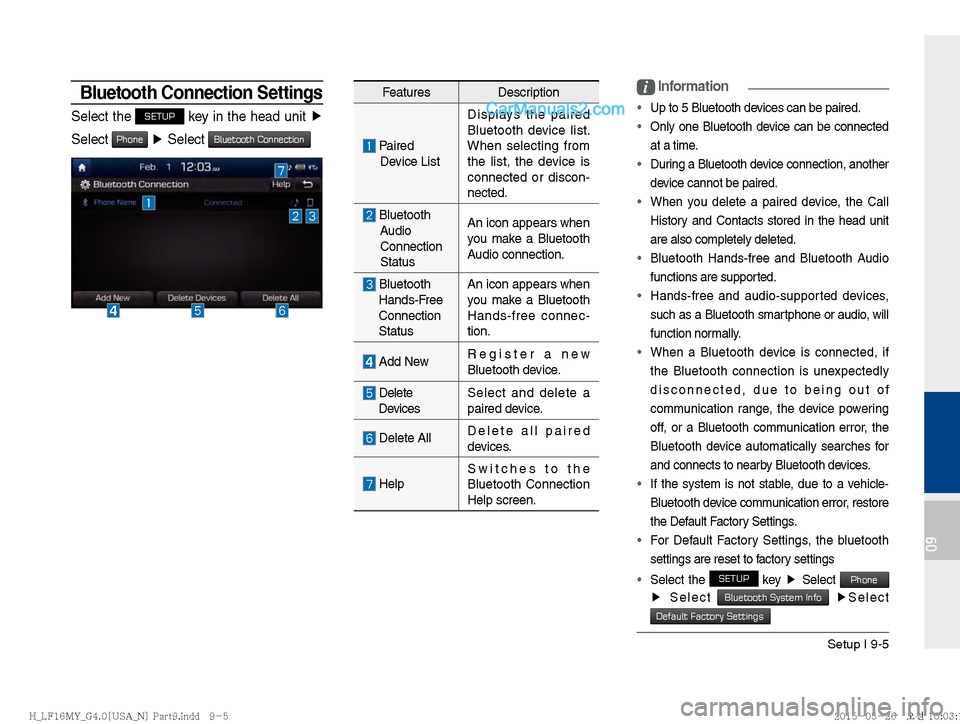

Bluetooth Connection Settings
Select the SETUP key in the head unit ▶
Select
Phone ▶
Select Bluetooth Connection
Features Description
Paired
Device List Displays the paired
Bluetooth device list.
When selecting from
the list, the device is
connected or discon-
nected.
Bluetooth
Audio
Connection
Status An icon appears when
you make a Bluetooth
Audio connection.
Bluetooth
Hands-Free
Connection
Status An icon appears when
you make a Bluetooth
Hands-free connec-
tion.
Add New
Register a new
Bluetooth device.
Delete
Devices Select and delete a
paired device.
Delete All
Delete all paired
devices.
HelpSwitches to the
Bluetooth Connection
Help screen.
i Information
Up to 5 Bluetooth devices can be paired.
Only one Bluetooth device can be connected
at a time.
Dur ing a Bluetooth de
vice connection, another
device cannot be paired.
When y ou delete a paired de
vice, the Call
History and Contacts stored in the head unit
are also completely deleted.
Bluetooth Hands-free and Bluetooth A udio
functions are suppor ted.
Hands-free and audio-suppor ted de
vices,
such as a Bluetooth smartphone or audio , will
function nor
mally.
When a Bluetooth device is connected, if
the Bluetooth connection is une xpectedly
disconnected, due to being out of
communication range, the device powering
off, or a Bluetooth communication error, the
Bluetooth device automatically searches for
and connects to nearby Bluetooth devices.
If the system is not stable, due to a vehicle-
Bluetooth de vice comm
unication error
, restore
the Default Factory Settings.
For Default Factory Settings, the bluetooth
settings are reset to f actor
y settings
Select the
SETUP key Ü
Select Phone
Ü Select
Bluetooth System Info Ü
Select
Default Factory Settings
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 184 of 308
9-6 I Setup

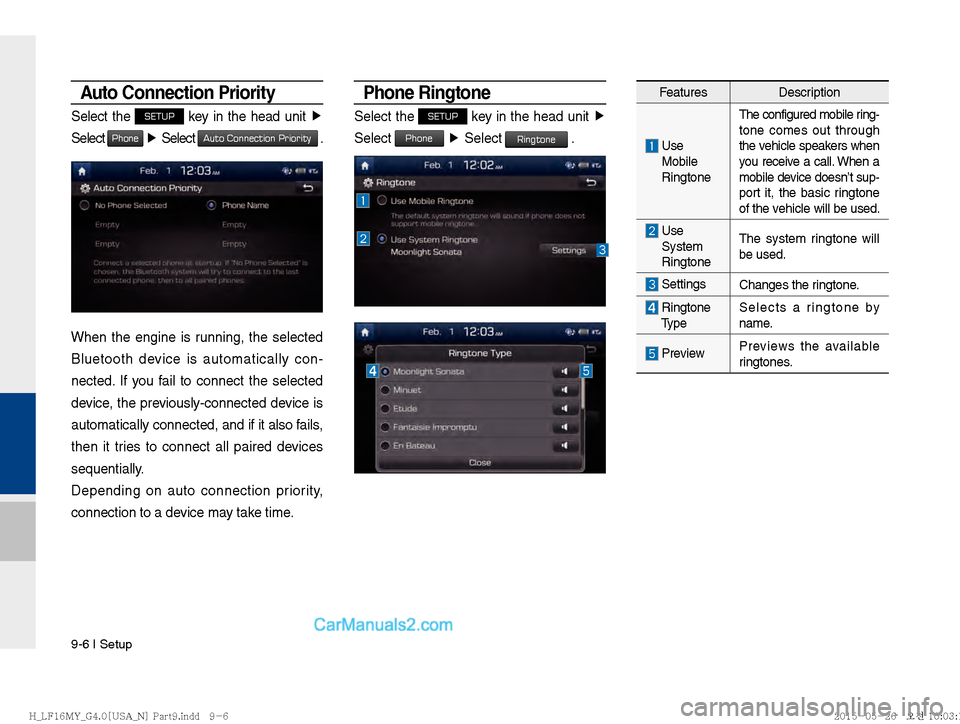

Auto Connection Priority
Select the SETUP key in the head unit Ü
Select
Phone Ü
Select Auto Connection Priority .
When the engine is running, the selected
Bluetooth device is automatically con-
nected. If you fail to connect the selected
device, the previously-connected device is
automatically connected, and if it also fails,
then it tries to connect all paired devices
sequentially.
Depending on auto connection priority,
connection to a device may take time.
Phone Ringtone
Select the SETUP key in the head unit Ü
Select
Phone Ü
Select Ringtone .
Features Description
Use
Mobile
Ringtone The configured mobile ring-
tone comes out through
the vehicle speakers when
you receive a call. When a
mobile device doesn’t sup-
port it, the basic ringtone
of the vehicle will be used.
Use
System
Ringtone The system ringtone will
be used.
Settings
Changes the ringtone.
Ringtone
Type Selects a ringtone by
name.
Preview
Previews the available
ringtones.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 185 of 308
Setup I 9-7
09

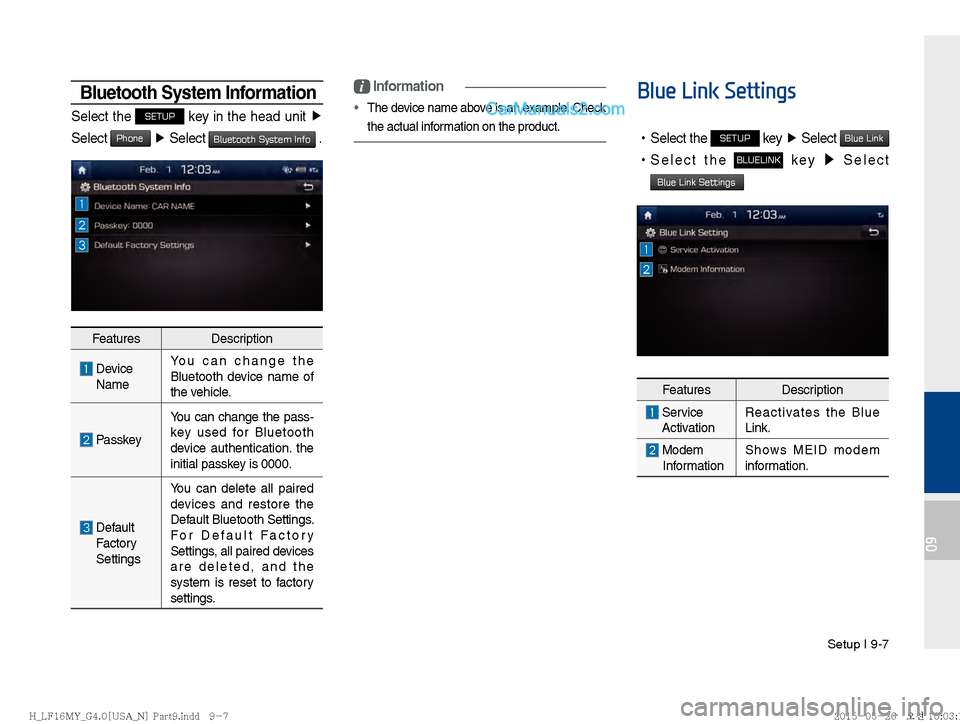

Bluetooth System Information
Select the SETUP key in the head unit Ü
Select
Phone Ü
Select Bluetooth System Info .
Features Description
Device
Name You can change the
Bluetooth device name of
the vehicle.
Passkey
You can change the pass-
key used for Bluetooth
device authentication. the
initial passkey is 0000.
Default
Factory
Settings You can delete all paired
devices and restore the
Default Bluetooth Settings.
For Default Factory
Settings, all paired devices
are deleted, and the
system is reset to factory
settings.
i Information
The device name above is an example. Check
the actual information on the product.Blue Link Settings
!Ÿ
Select the SETUP key Ü
Select Blue Link
!Ÿ
Select the BLUELINK key ▶
Select
Blue Link Settings
Features Description
Service
Activation Reactivates the Blue
Link.
Modem
Information Shows MEID modem
information.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 186 of 308

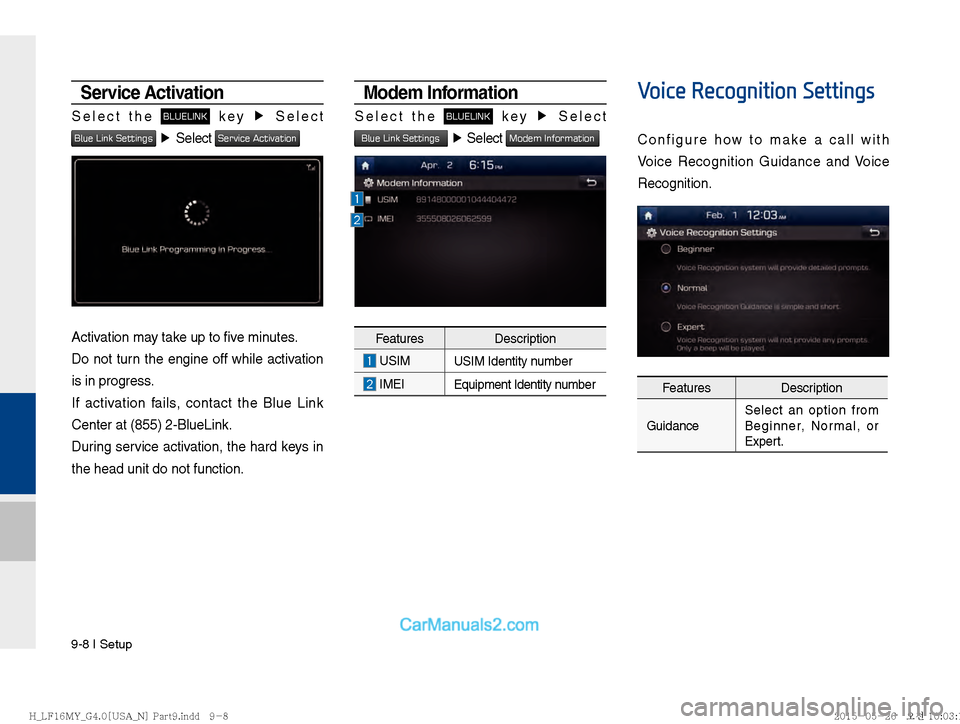

9-8 I Setup
Service Activation
Select the BLUELINK key Ü
Select
Blue Link Settings Ü
Select Service Activation
Activation may take up to five minutes.
Do not turn the engine off while activation
is in progress.
If activation fails, contact the Blue Link
Center at (855) 2-BlueLink.
During service activation, the hard keys in
the head unit do not function.
Modem Information
Select the BLUELINK key Ü
Select
Blue Link Settings Ü
Select Modem Information
Features Description
USIM
USIM Identity number
IMEIEquipment Identity number
Voice Recognition Settings
Configure how to make a call with
Voice Recognition Guidance and Voice
Recognition.
Features Description
Guidance Select an option from
Beginner, Normal, or
Expert.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 187 of 308
Setup I 9-9
09

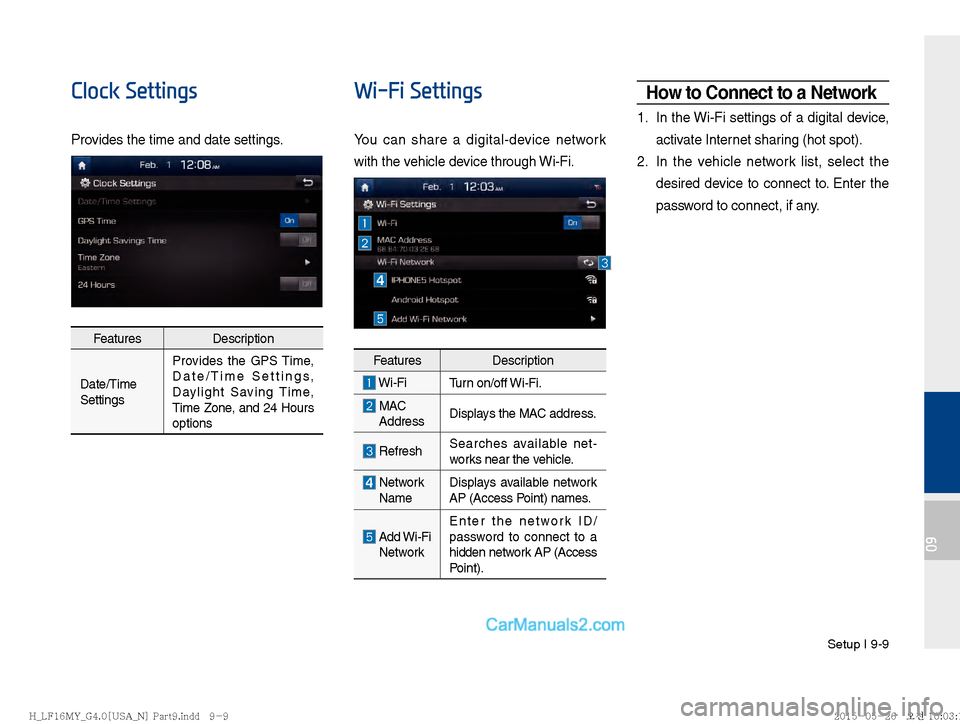

Clock Settings
Provides the time and date settings.
FeaturesDescription
Date/Time
Settings Provides the GPS Time,
Date/Time Settings,
Daylight Saving Time,
Time Zone, and 24 Hours
options
Wi-Fi Settings
You can share a digital-device network
with the vehicle device through Wi-Fi.
Features
Description
Wi-Fi
Turn on/off Wi-Fi.
MAC
Address Displays the MAC address.
Refresh
Searches available net-
works near the vehicle.
Network
Name Displays available network
AP (Access Point) names.
Add Wi-Fi
Network Enter the network ID/
password to connect to a
hidden network AP (Access
Point).
How to Connect to a Network
1.
In the Wi-Fi settings of a digital device,
activate Internet sharing (hot spot).
2. In the vehicle network list, select the
desired device to connect to. Enter the
password to connect, if any.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 188 of 308
9-10 I Setup

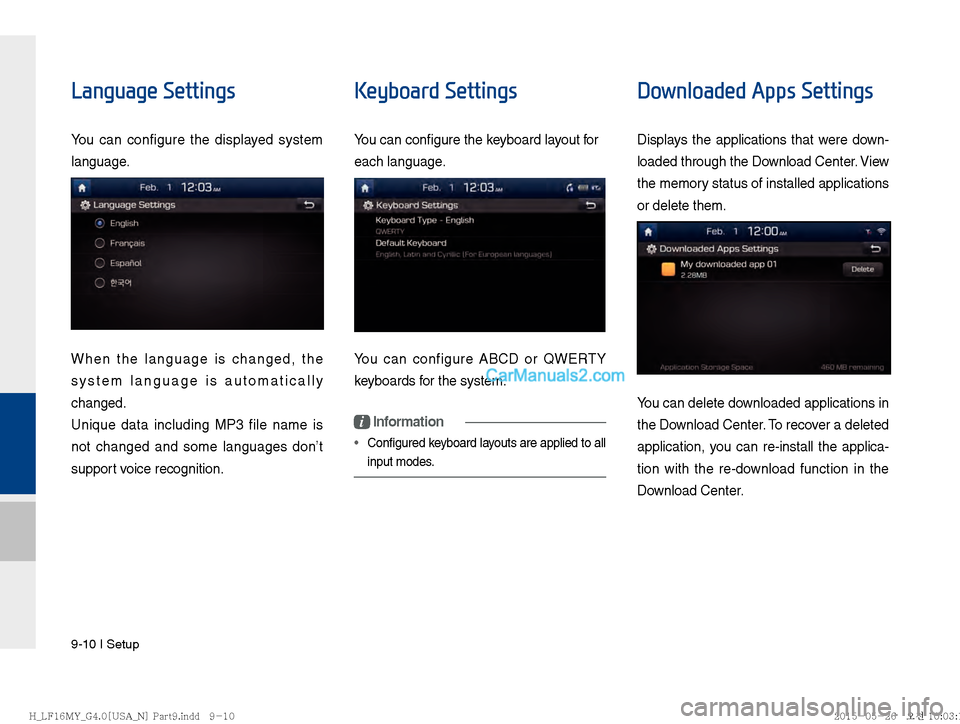

Language Settings
You can configure the displayed system
language.
When the language is changed, the
system language is automatically
changed.
Unique data including MP3 file name is
not changed and some languages don’t
support voice recognition.
Keyboard Settings
You can configure the keyboard layout for
each language.
You can configure ABCD or QWERTY
keyboards for the system.
i Information
Con gured keyboard layouts are applied to all
input modes.
Downloaded Apps Settings
Displays the applications that were down-
loaded through the Download Center. View
the memory status of installed applications
or delete them.
You can delete downloaded applications in
the Download Center. To recover a deleted
application, you can re-install the applica-
tion with the re-download function in the
Download Center.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 189 of 308
Setup I 9-11
09

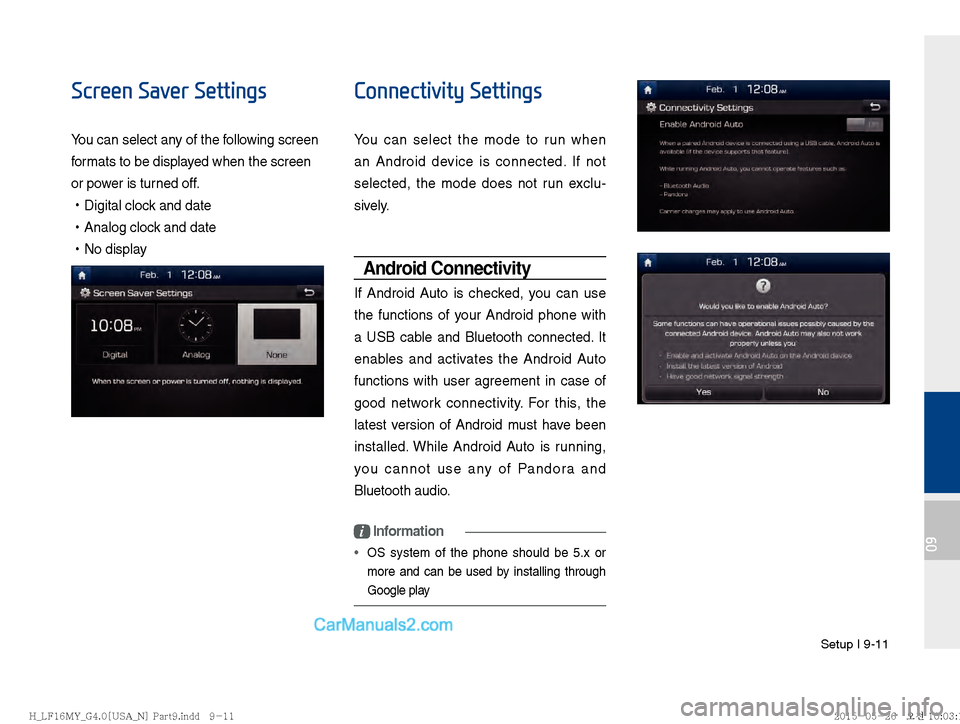

Screen Saver Settings
You can select any of the following screen
formats to be displayed when the screen
or power is turned off.
!Ÿ
Digital clock and date
!Ÿ
Analog clock and date
!Ÿ
No display
Connectivity Settings
You can select the mode to run when
an Android device is connected. If not
selected, the mode does not run exclu-
sively.
Android Connectivity
If Android Auto is checked, you can use
the functions of your Android phone with
a USB cable and Bluetooth connected. It
enables and activates the Android Auto
functions with user agreement in case of
good network connectivity. For this, the
latest version of Android must have been
installed. While Android Auto is running,
you cannot use any of Pandora and
Bluetooth audio.
i Information
OS system of the phone should be 5.x or
more and can be used by installing through
Google pla
y
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 190 of 308
9-12 I Setup
i Information
The settings are allowed only after
disconnecting any type of USB device
including an Android device and a USB
memory as well.
Pandora may not be used outside of the
United States .
Regardless of using Android Auto
, when
any Android de vice is connected with a USB
cab
le, it basically starts charging.
Carrier charges may apply to use Android
Auto
.
System Info
At the System Info screen, software ver-
sion information, updates, and storage
status details are available.
Features Description
SW InfoSystem version informa-
tion and update details are
available.
Select the Update button
to update the system. After
update is complete, the
system will reboot auto-
matically.
Storage Space Displays the memory space
available for media files
and applications.
System Update
At the System Info screen, insert the
updated memory (USB or SD card) with
the latest file downloaded, and then select
the
Update button to begin updating. The
system will then reboot automatically.
i Information
This product needs supplemented software
updates, additional new functions
, and
renewed maps, which collectively may take
some time to complete, depending on the
amount of data.
CAUTION
If the power is disconnected or the USB or
SD card is removed dur
ing an update, the
data might be damaged. Please wait until the
update is complete while the engine is on.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
