Hyundai Sonata 2016 Car Multimedia System Manual

HYUNDAI CAR MULTIMEDIA SYSTEM
QUICK REFERENCE GUIDE
C2EF07
(미국/영어-English)
)@-'.:@(<64"@/>
23(
DPWFSJOEE


 )@-'.:@(<64"@/>
23(
DPWFSJOEE

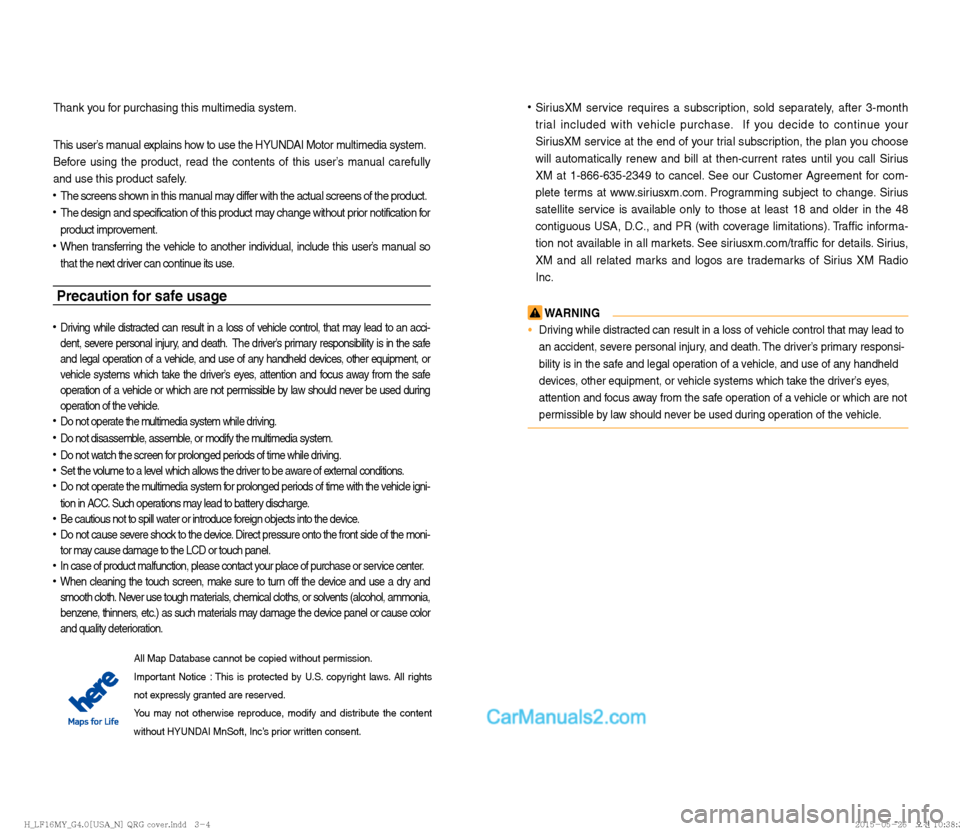

Thank you for purchasing this multimedia system.
This user’s manual explains how to use the HYUNDAI Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
The screens shown in this manual may differ with the actual screens of the product.
The design and specification of this product may change without prior notification for
product improvement.
When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
Driving while distracted can result in a loss of vehicle control, that may lead to an acci-
dent, severe personal injury, and death. The driver’s primary responsibility is in the safe
and legal operation of a vehicle, and use of any handheld devices, other equipment, or
vehicle systems which take the driver’s eyes, attention and focus away from the safe
operation of a vehicle or which are not permissible by law should never be used during
operation of the vehicle.
Do not operate the multimedia system while driving.
Do not disassemble, assemble, or modify the multimedia system.
Do not watch the screen for prolonged periods of time while driving.

Set the volume to a level which allows the driver to be aware of external conditions.

Do not operate the multimedia system for prolonged periods of time with the vehicle igni-
tion in ACC. Such operations may lead to battery discharge.
Be cautious not to spill water or introduce foreign objects into the device.
Do not cause severe shock to the device. Direct pressure onto the front side of the moni-
tor may cause damage to the LCD or touch panel.
In case of product malfunction, please contact your place of purchase or service center.
When cleaning the touch screen, make sure to turn off the device and use a dry and
smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia,
benzene, thinners, etc.) as such materials may damage the device panel or cause color
and quality deterioration.
SiriusXM service requires a subscription, sold separately, after 3-month
trial included with vehicle purchase. If you decide to continue your
SiriusXM service at the end of your trial subscription, the plan you choose
will automatically renew and bill at then-current rates until you call Sirius
XM at 1-866-635-2349 to cancel. See our Customer Agreement for com-
plete terms at www.siriusxm.com. Programming subject to change. Sirius
satellite service is available only to those at least 18 and older in the 48
contiguous USA, D.C., and PR (with coverage limitations). Traffic informa-
tion not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio
Inc.
WARNING
Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
All Map Database cannot be copied without permission.
Important Notice : This is protected by U.S. copyright laws. All rights
not expressly granted are reserved.
You may not otherwise reproduce, modify and distribute the content
without HYUNDAI MnSoft, Inc’s prior written consent.
)@-'.:@(<64"@/>
23(
DPWFSJOEE


 )@-'.:@(<64"@/>
23(
DPWFSJOEE




1

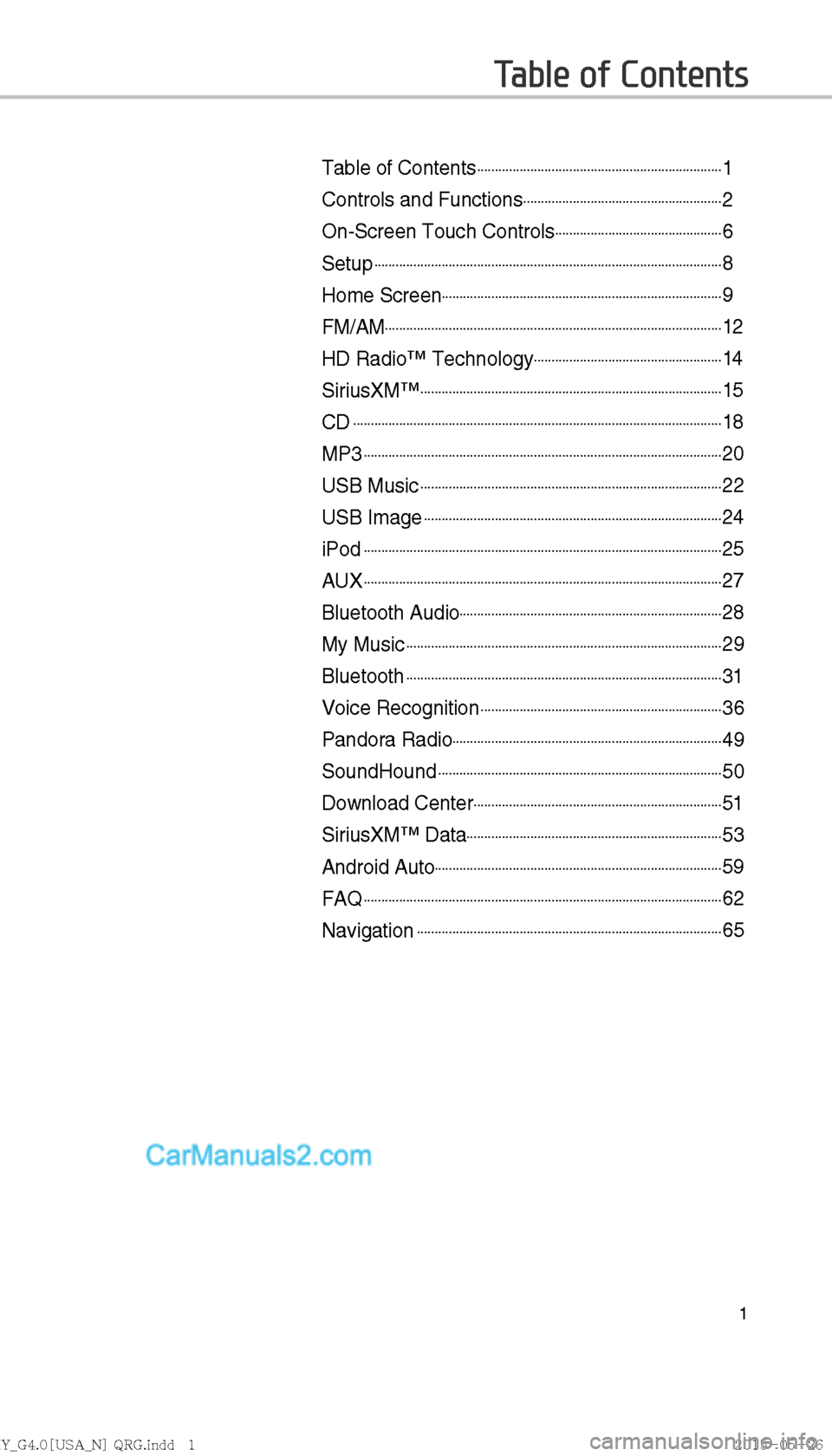

Table of Contents
Table of Contents
1
Controls and Functions
2
On-Screen Touch Controls
6
Setup
8
Home Screen
9
FM/AM
12
HD Radio™ Technology
14
SiriusXM™
15
CD
18
MP3
20
USB Music
22
USB Image
24
iPod
25
AUX
27
Bluetooth Audio
28
My Music
29
Bluetooth
31
Voice Recognition
36
Pandora Radio
49
SoundHound
50
Download Center
51
SiriusXM™ Data
53
Android Auto
59
FAQ
62
Navigation
65
)@-'.:@(<64"@/>
23(JOEE


.:@(<64"@/>
23(JOEE





ß
y



2

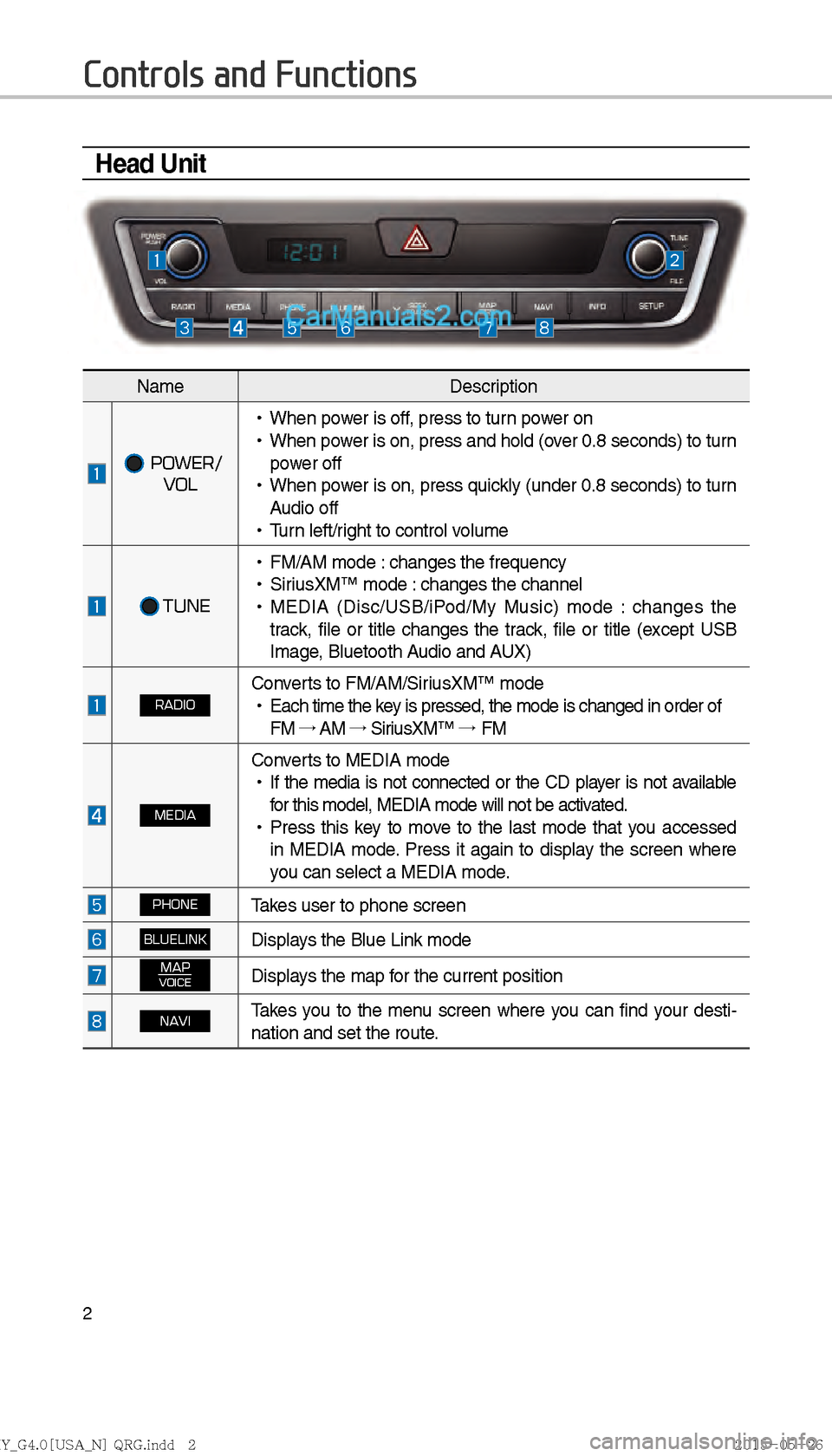

Controls and Functions
Head Unit
NameDescription
POWER/
VOL

!Ÿ
When power is off, press to turn power on

!Ÿ
When power is on, press and hold (over 0.8 seconds) to turn
power off

!Ÿ
When power is on, press quickly (under 0.8 seconds) to turn
Audio off

!Ÿ
Turn left/right to control volume
TUNE

!Ÿ
FM/AM mode : changes the frequency

!Ÿ
SiriusXM™ mode : changes the channel

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode : changes the
track, file or title changes the track, file or title (except USB
Image, Bluetooth Audio and AUX)
RADIOConverts to FM/AM/SiriusXM™ mode

!Ÿ
Each time the key is pressed, the mode is changed in order of
FM ª
AM ª
SiriusXM™ ª

FM
MEDIA
Converts to MEDIA mode

!Ÿ
If the media is not connected or the CD player is not available
for this model, MEDIA mode will not be activated.

!Ÿ
Press this key to move to the last mode that you accessed
in MEDIA mode. Press it again to display the screen where
you can select a MEDIA mode.
PHONETakes user to phone screen
BLUELINKDisplays the Blue Link mode
MAPVOICEDisplays the map for the current position
NAVITakes you to the menu screen where you can find your desti-
nation and set the route.
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y

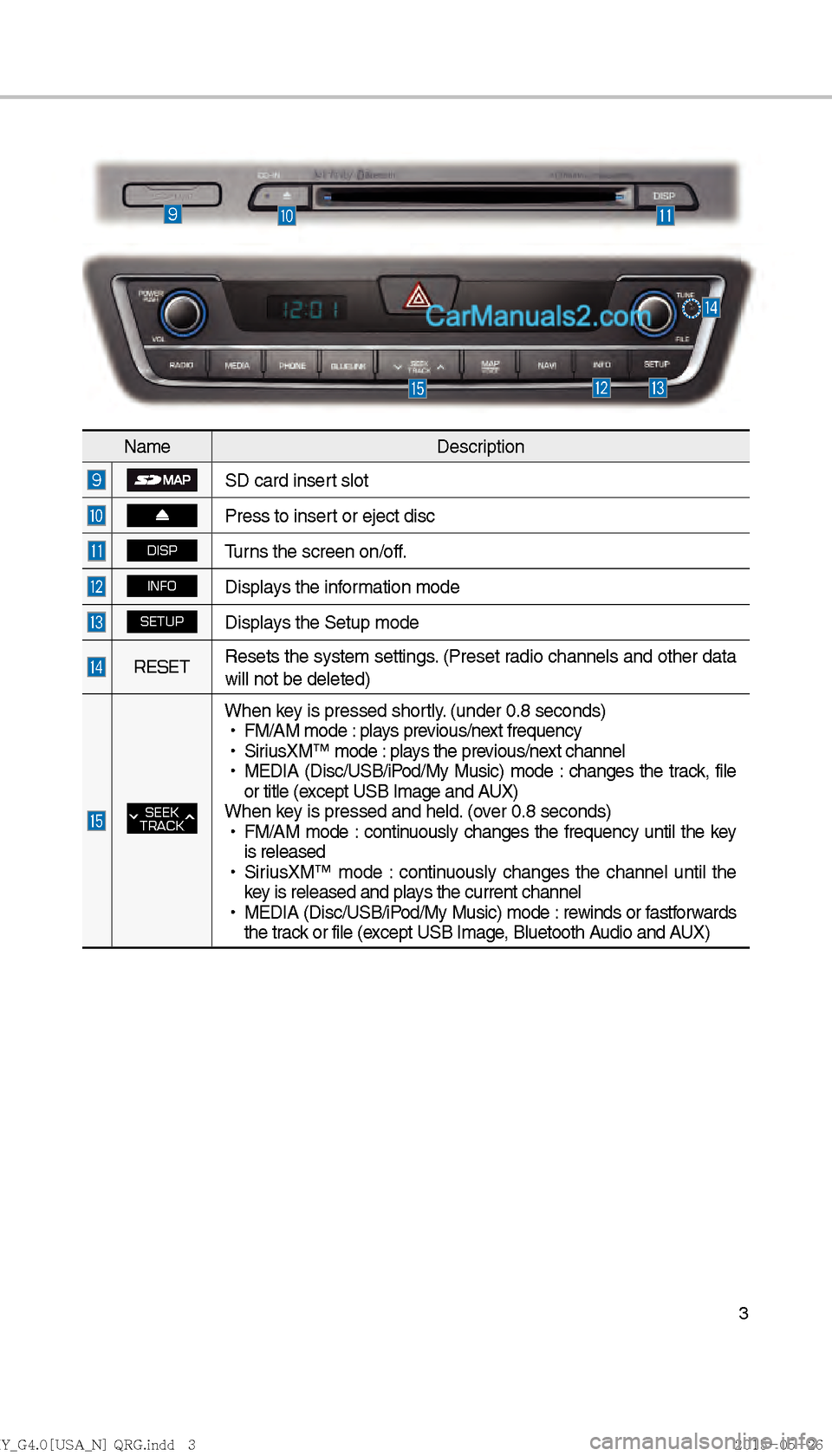

3
NameDescription
SD card insert slot
Press to insert or eject disc
DISPTurns the screen on/off.
INFODisplays the information mode
SETUPDisplays the Setup mode
RESETResets the system settings. (Preset radio channels and other data
will not be deleted)
SEEK
TRACK
When key is pressed shortly. (under 0.8 seconds)

!Ÿ
FM/AM mode : plays previous/next frequency

!Ÿ
SiriusXM™ mode : plays the previous/next channel

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode : changes the track, file
or title (except USB Image and AUX)
When key is pressed and held. (over 0.8 seconds)
!Ÿ
FM/AM mode : continuously changes the frequency until the key
is released

!Ÿ
SiriusXM™ mode : continuously changes the channel until the
key is released and plays the current channel

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode : rewinds or fastforwards
the track or file (except USB Image, Bluetooth Audio and AUX)
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


4

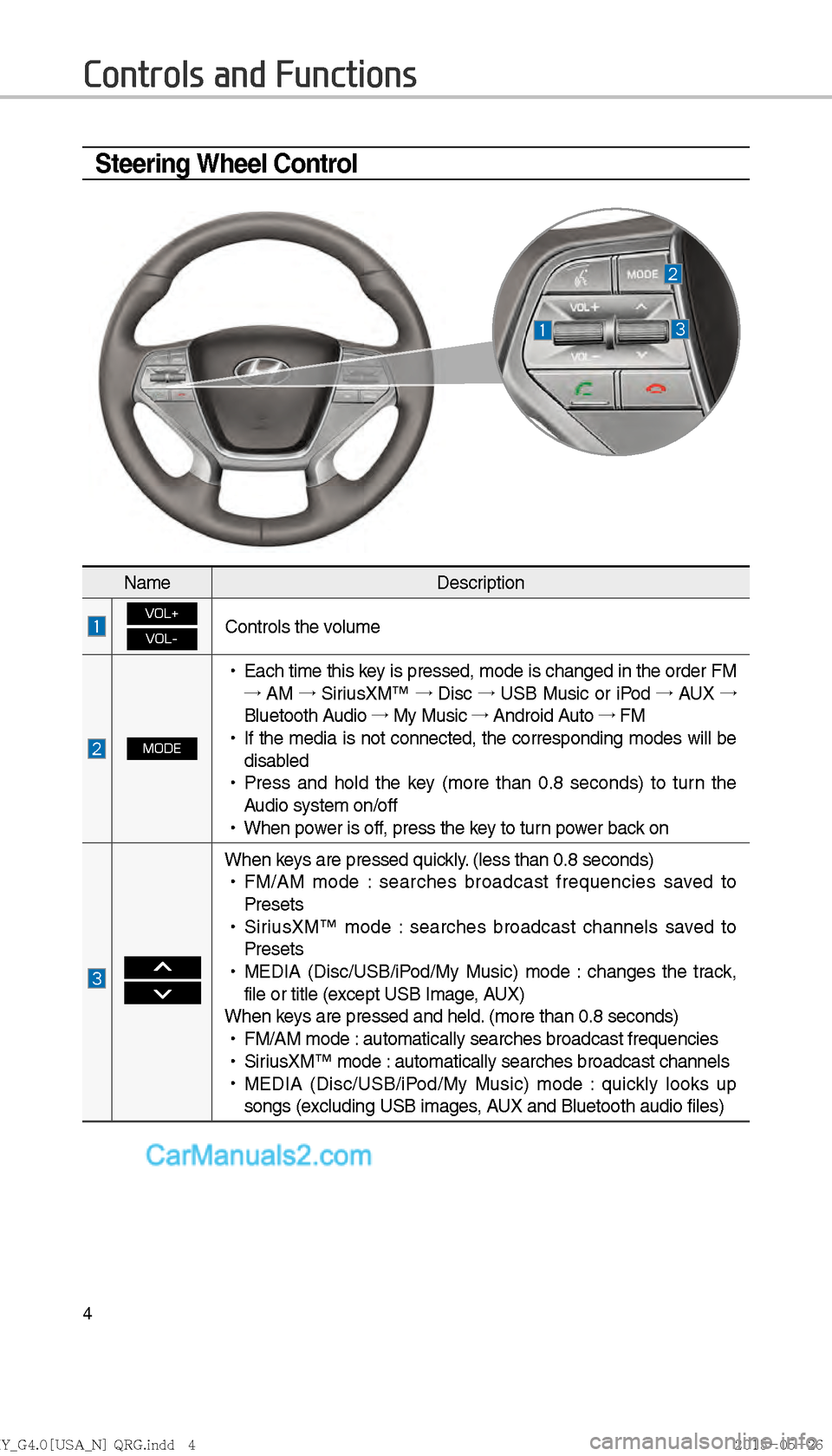

Steering Wheel Control
Controls and Functions
NameDescription
VOL+
VOL-Controls the volume
MODE

!Ÿ
Each time this key is pressed, mode is changed in the order FM
ª AM ª
SiriusXM™ ª
Disc ª
USB Music or iPod ª
AUX ª

Bluetooth Audio ª
My Music ª
Android Auto ª
FM

!Ÿ
If the media is not connected, the corresponding modes will be
disabled

!Ÿ
Press and hold the key (more than 0.8 seconds) to turn the
Audio system on/off

!Ÿ
When power is off, press the key to turn power back on


When keys are pressed quickly. (less than 0.8 seconds)

!Ÿ
FM/AM mode : searches broadcast frequencies saved to
Presets

!Ÿ
SiriusXM™ mode : searches broadcast channels saved to
Presets

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode : changes the track,
file or title (except USB Image, AUX)
When keys are pressed and held. (more than 0.8 seconds)
!Ÿ
FM/AM mode : automatically searches broadcast frequencies

!Ÿ
SiriusXM™ mode : automatically searches broadcast channels

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode : quickly looks up
songs (excluding USB images, AUX and Bluetooth audio files)
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


5

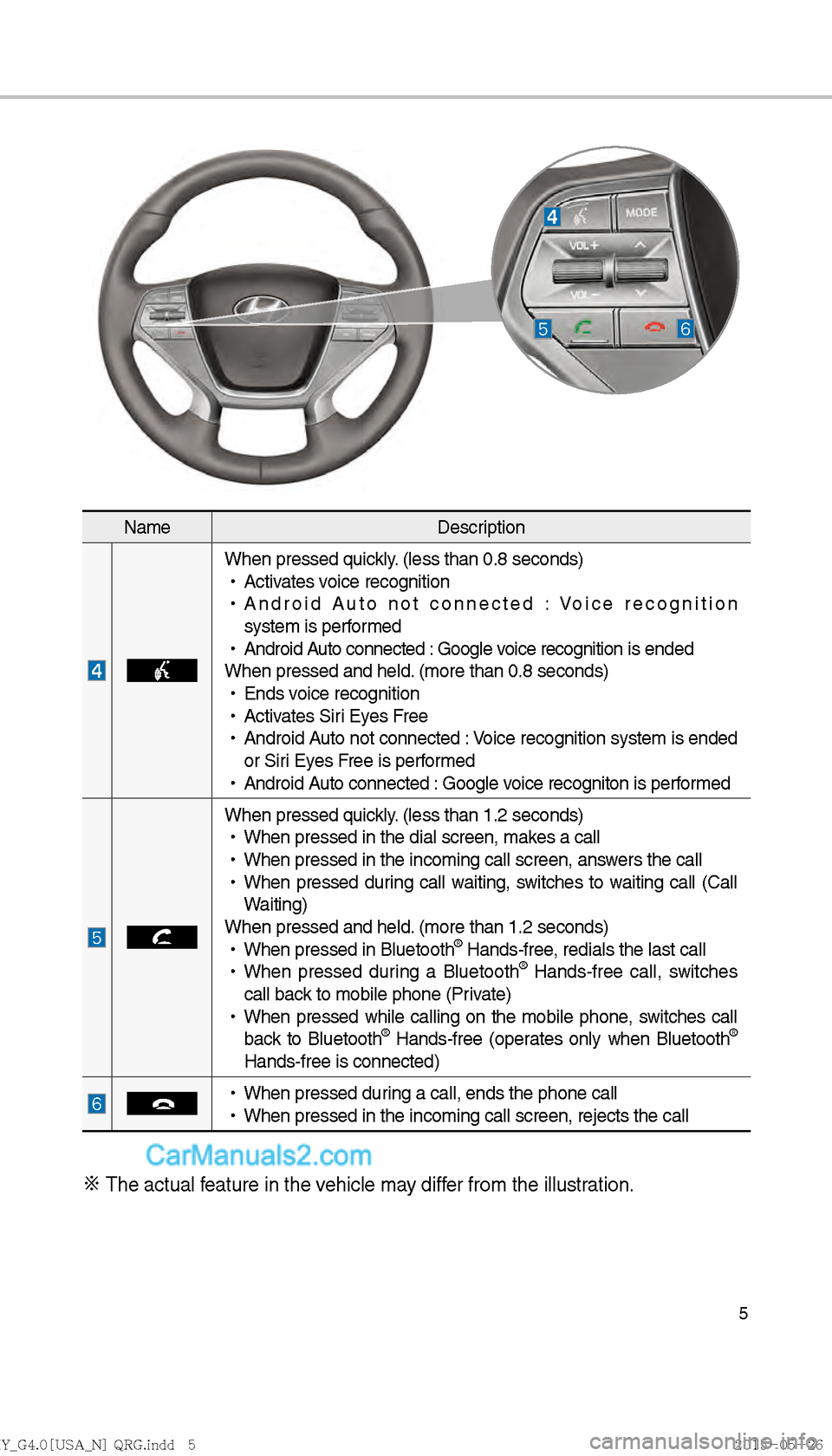

NameDescription
When pressed quickly. (less than 0.8 seconds)

!Ÿ
Activates voice recognition

!Ÿ
Android Auto not connected : Voice recognition
system is performed

!Ÿ
Android Auto connected : Google voice recognition is ended
When pressed and held. (more than 0.8 seconds)
!Ÿ
Ends voice recognition

!Ÿ
Activates Siri Eyes Free

!Ÿ
Android Auto not connected : Voice recognition system is ended
or Siri Eyes Free is performed

!Ÿ
Android Auto connected : Google voice recogniton is performed
When pressed quickly. (less than 1.2 seconds)

!Ÿ
When pressed in the dial screen, makes a call

!Ÿ
When pressed in the incoming call screen, answers the call

!Ÿ
When pressed during call waiting, switches to waiting call (Call
Waiting)
When pressed and held. (more than 1.2 seconds)
!Ÿ
When pressed in Bluetooth
® Hands-free, redials the last call

!Ÿ
When pressed during a Bluetooth® Hands-free call, switches
call back to mobile phone (Private)

!Ÿ
When pressed while calling on the mobile phone, switches call
back to Bluetooth
® Hands-free (operates only when Bluetooth®
Hands-free is connected)

!Ÿ
When pressed during a call, ends the phone call

!Ÿ
When pressed in the incoming call screen, rejects the call
※ The actual feature in the vehicle may differ from the illustration.
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


6

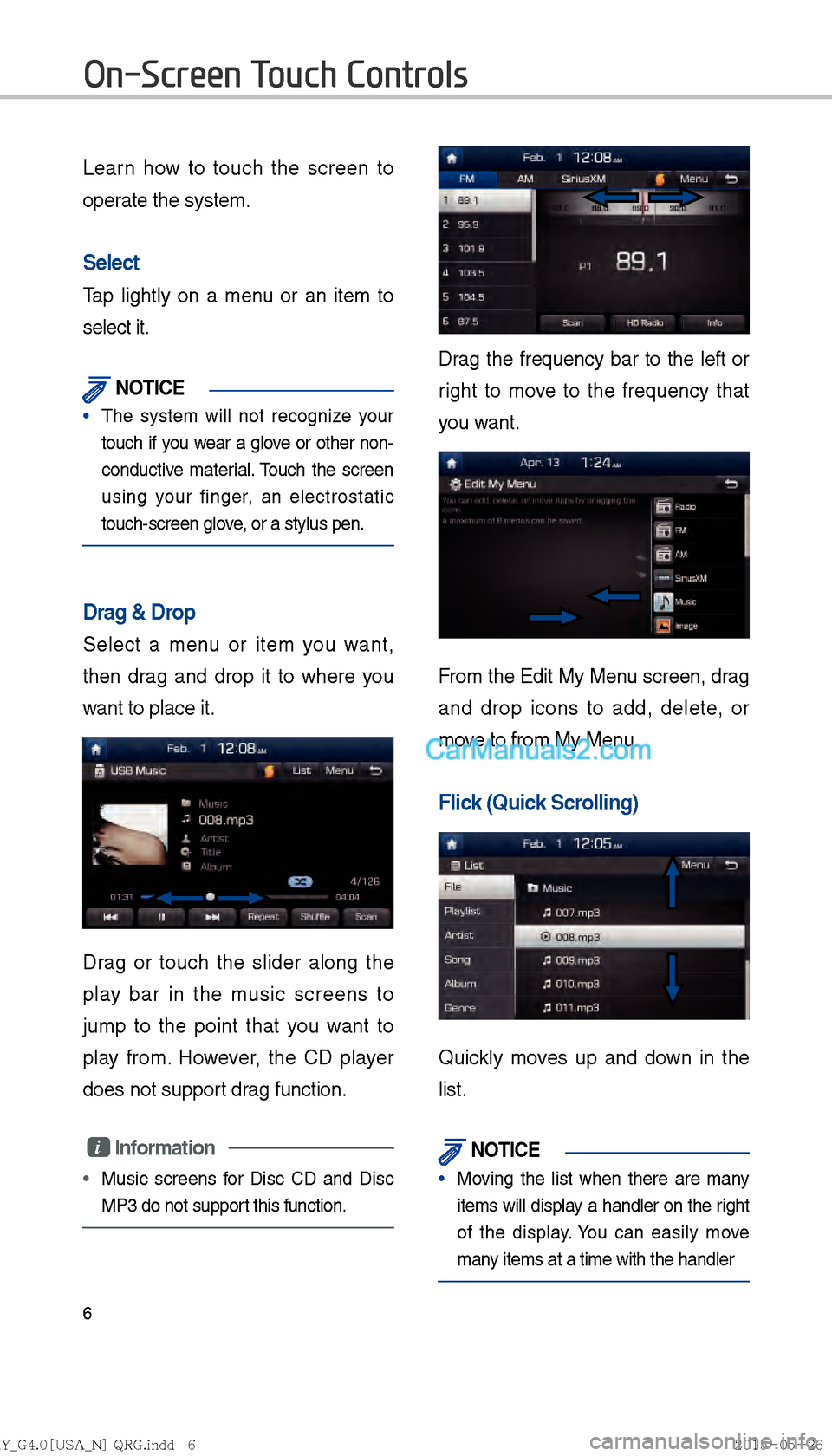

Learn how to touch the screen to
operate the system.
Select
Tap lightly on a menu or an item to
select it.
NOTICE
The system will not recognize your
touch if you wear a glo
ve or other non-
conductive material. Touch the screen
using your finger, an electrostatic
touch-screen glove, or a stylus pen.
Drag & Drop
Select a menu or item you want,
then drag and drop it to where you
want to place it.
Drag or touch the slider along the
play bar in the music screens to
jump to the point that you want to
play from. However, the CD player
does not support drag function.
i Information
Music screens for Disc CD and Disc
MP3 do not support this function.
Drag the frequency bar to the left or
right to move to the frequency that
you want.
From the Edit My Menu screen, drag
and drop icons to add, delete, or
move to from My Menu.
Flick (Quick Scrolling)
Quickly moves up and down in the
list.
NOTICE
Moving the list when there are many
items will display a handler on the right
of the displa
y. You can easily move
many items at a time with the handler
On-Screen Touch Controls
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


7

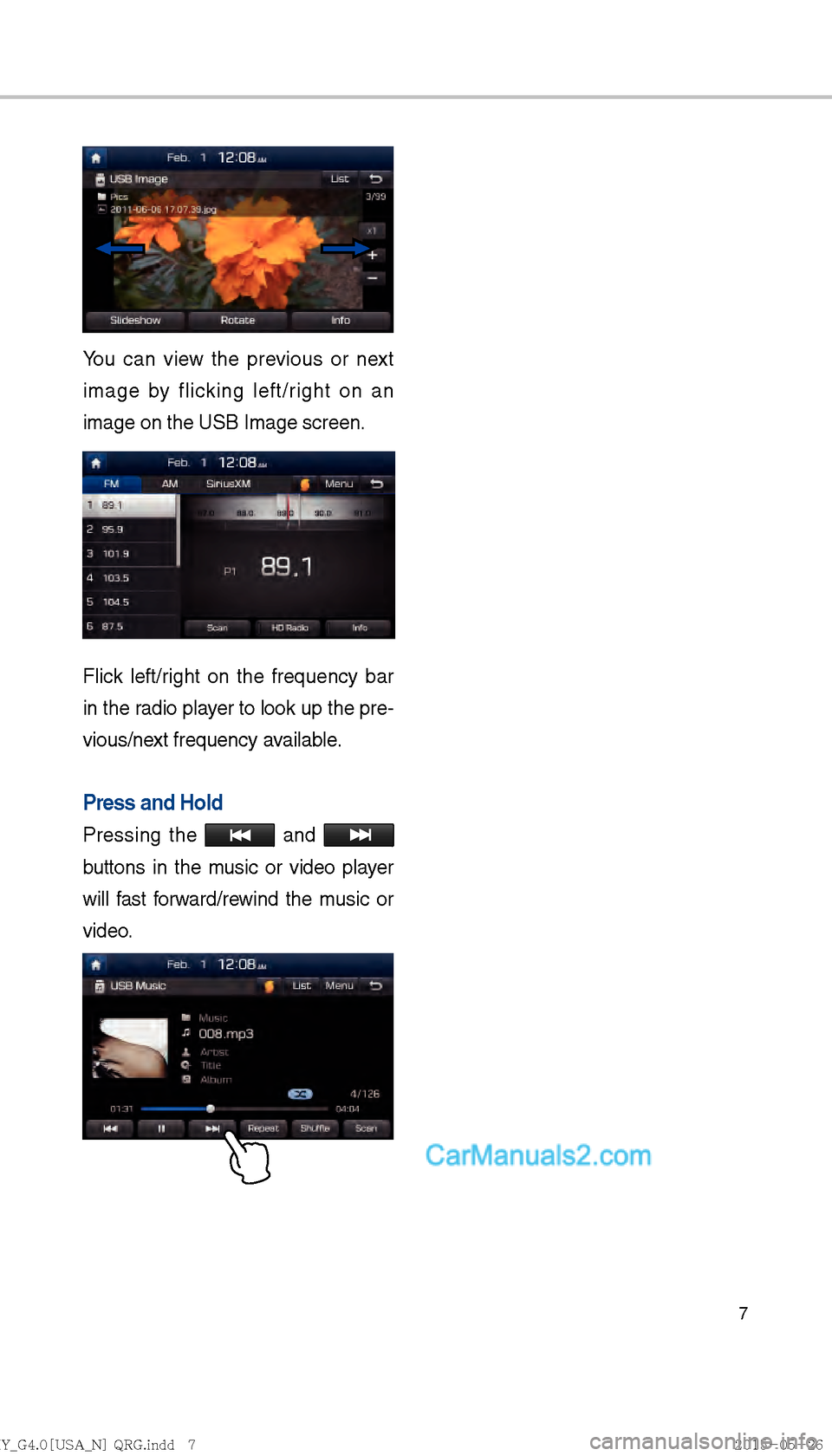

You can view the previous or next
image by flicking left/right on an
image on the USB Image screen.
Flick left/right on the frequency bar
in the radio player to look up the pre-
vious/next frequency available.
Press and Hold
Pressing the and
buttons in the music or video player
will fast forward/rewind the music or
video.
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


8
Setup
Setup is the screen to control sys-
tem settings of the AVN.
To enter the screen, select the
SETUP key of the device or the
Setup button in All Menus.
Features Description
NavigationProvides Normal/Screen/
Guidance/Route/Safety
Setting.
SoundProvides the sound
control options for
Position, Bass, Mid,
Treble, Volume, Ratio
and Advanced settings.
Display
Provides the Mode/
Brightness/Adjust set-
tings.
PhoneProvides the Bluetooth
Connection/Auto
Connection Priority/
Ringtone/System
Bluetooth Infor
mation
settings.
Blue Link Provides the Activation/
Modem Information
settings.
Voice
RecognitionProvides the Guidance
and Priority settings.
Clock Provides the time and
date settings.
Wi-FiProvides the Wi-Fi On
and Network Connection
settings.
Features Description
Language
Provides the Change
Language settings.
KeyboardProvides settings to
switch keyboard lay-
outs.
Downloaded
AppsProvides the removal
settings for down-
loaded and installed
apps.
Screen Saver Provides the Clock/
None settings.
ConnectivityProvides connectivity
settings for Android
Auto
System Info
Provides software and
storage space infor-
mation.
Display OffProvides the Display
Off (touch activation)
function.
)@-'.:@(<64"@/>
23(JOEE



.:@(<64"@/>
23(JOEE





ß
y
