Page 171 of 308
SiriusXM™ Data I 7-15
07

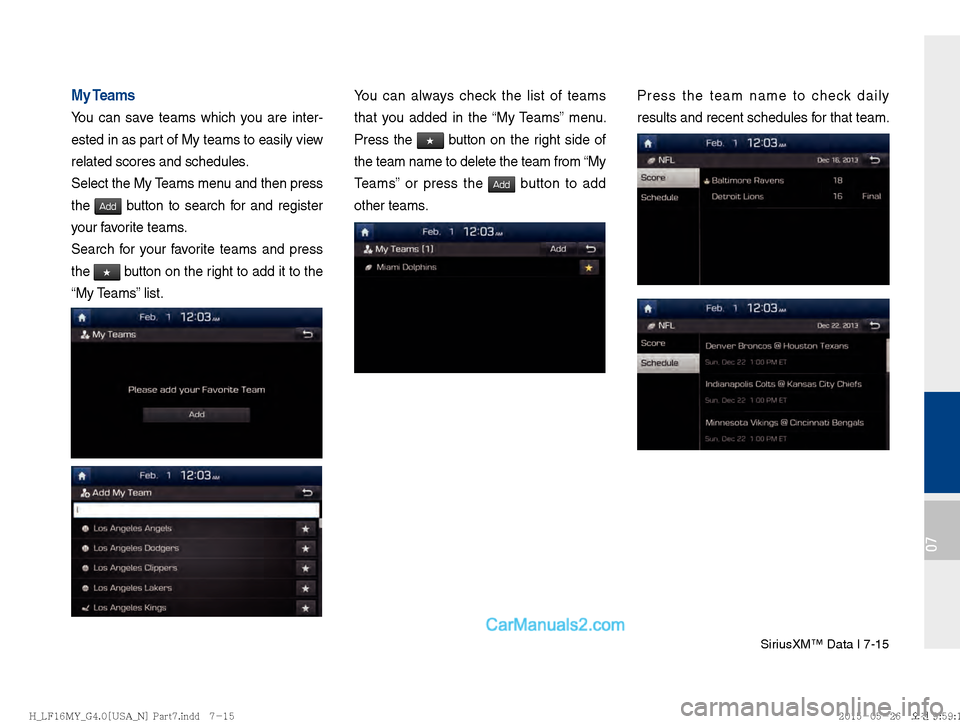

My Teams
You can save teams which you are inter-
ested in as part of My teams to easily view
related scores and schedules.
Select the My Teams menu and then press
the
Add button to search for and register
your favorite teams.
Search for your favorite teams and press
the
★ button on the right to add it to the
Page 172 of 308
7-16 I Info

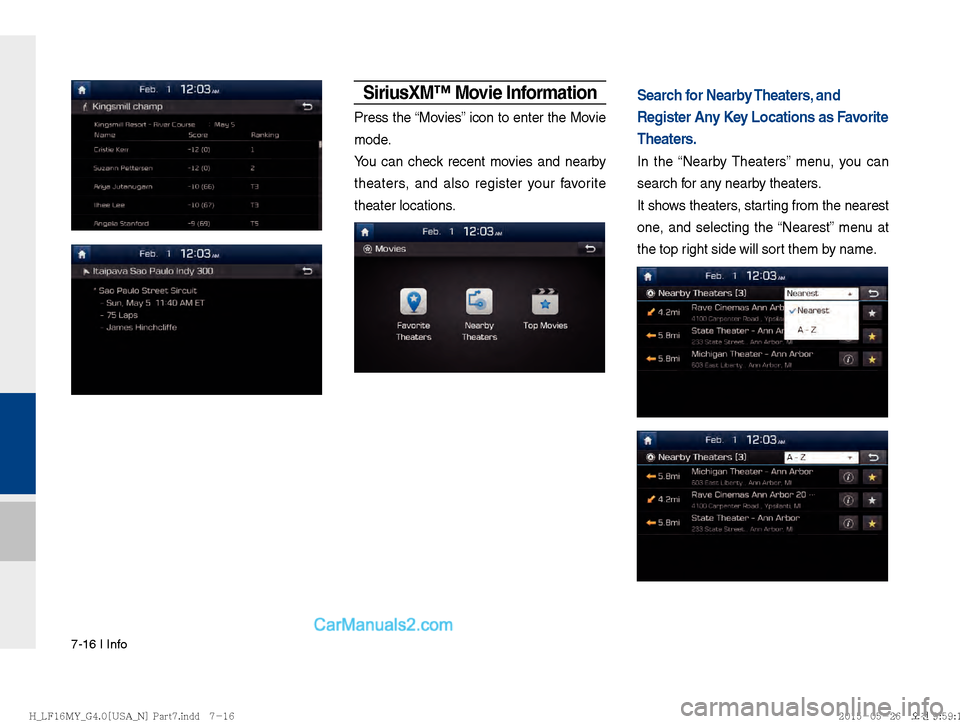

SiriusXM™ Movie Information
Press the “Movies” icon to enter the Movie
mode.
You can check recent movies and nearby
theaters, and also register your favorite
theater locations.
Search for Nearby Theaters, and
Register Any Key Locations as Favorite
Theaters.
In the “Nearby Theaters” menu, you can
search for any nearby theaters.
It shows theaters, starting from the nearest
one, and selecting the “Nearest” menu at
the top right side will sort them by name.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 173 of 308
SiriusXM™ Data I 7-17
07

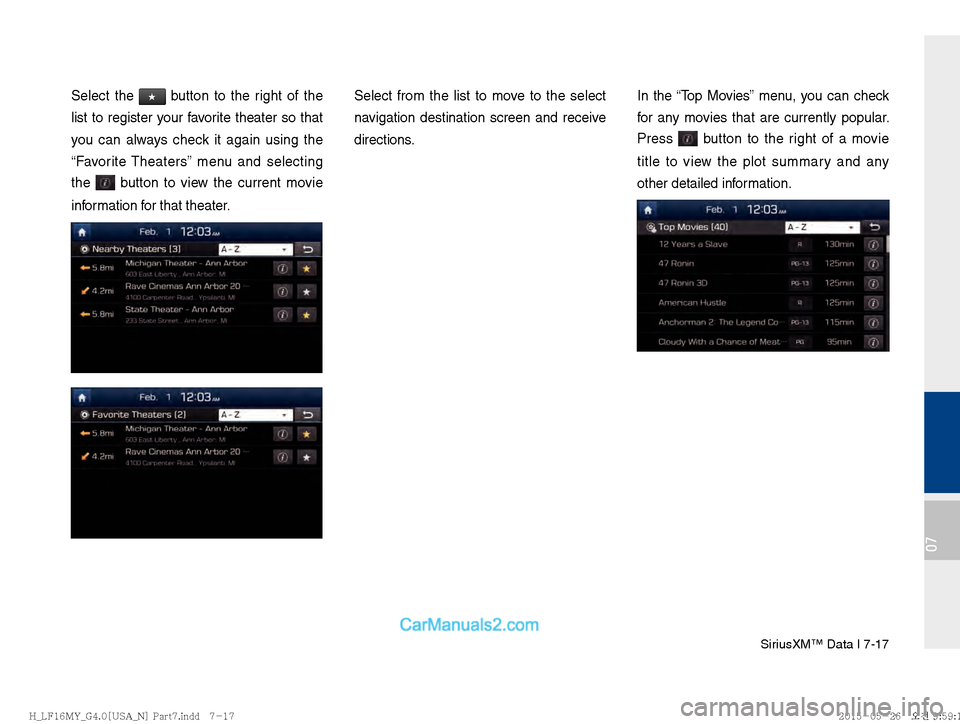

Select the ★ button to the right of the
list to register your favorite theater so that
you can always check it again using the
Page 174 of 308
7-18 I Info

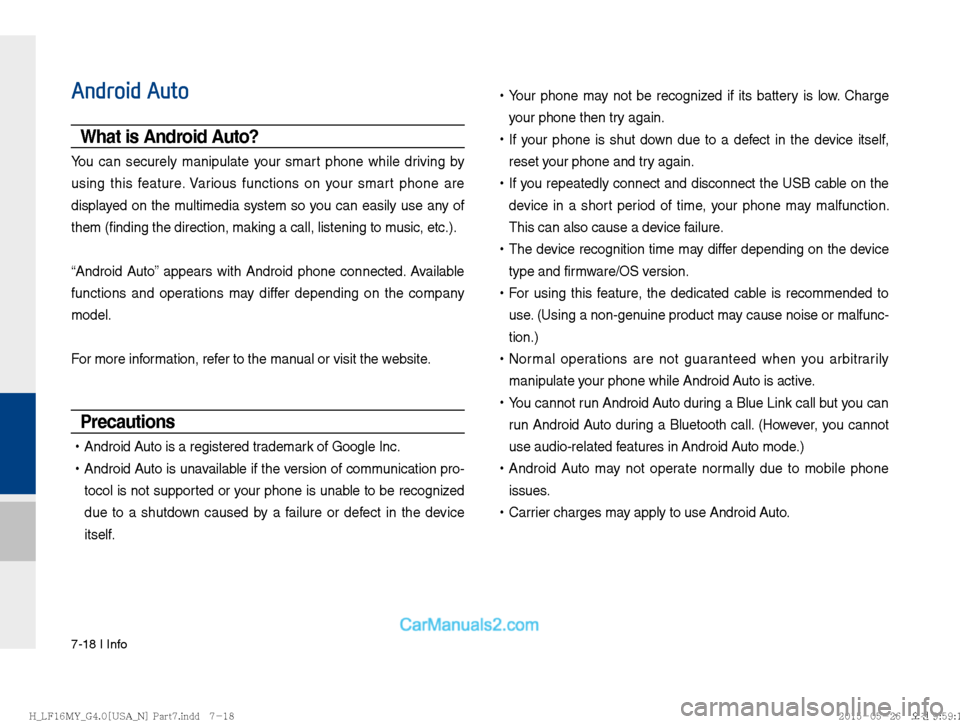

Android Auto
What is Android Auto?
You can securely manipulate your smart phone while driving by
using this feature. Various functions on your smart phone are
displayed on the multimedia system so you can easily use any of
them (finding the direction, making a call, listening to music, etc.).
“Android Auto” appears with Android phone connected. Available
functions and operations may differ depending on the company
model.
For more information, refer to the manual or visit the website.
Precautions
!Ÿ
Android Auto is a registered trademark of Google Inc.
!Ÿ
Android Auto is unavailable if the version of communication pro-
tocol is not supported or your phone is unable to be recognized
due to a shutdown caused by a failure or defect in the device
itself.
!Ÿ
Your phone may not be recognized if its battery is low. Charge
your phone then try again.
!Ÿ
If your phone is shut down due to a defect in the device itself,
reset your phone and try again.
!Ÿ
If you repeatedly connect and disconnect the USB cable on the
device in a short period of time, your phone may malfunction.
This can also cause a device failure.
!Ÿ
The device recognition time may differ depending on the device
type and firmware/OS version.
!Ÿ
For using this feature, the dedicated cable is recommended to
use. (Using a non-genuine product may cause noise or malfunc-
tion.)
!Ÿ
Normal operations are not guaranteed when you arbitrarily
manipulate your phone while Android Auto is active.
!Ÿ
You cannot run Android Auto during a Blue Link call but you can
run Android Auto during a Bluetooth call. (However, you cannot
use audio-related features in Android Auto mode.)
!Ÿ
Android Auto may not operate normally due to mobile phone
issues.
!Ÿ
Carrier charges may apply to use Android Auto.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 175 of 308
Pandora Radio I 7-19
07

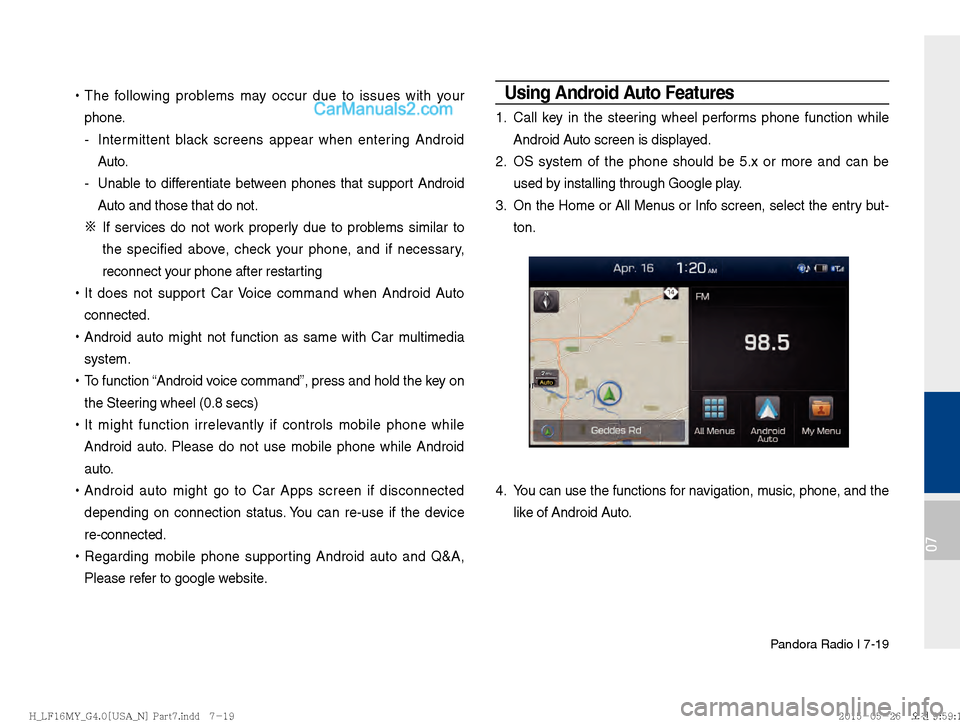

!Ÿ
The following problems may occur due to issues with your
phone.
- Intermittent black screens appear when entering Android
Auto.
- Unable to differentiate between phones that support Android Auto and those that do not.
※ If services do not work properly due to problems similar to
the specified above, check your phone, and if necessary,
reconnect your phone after restarting
!Ÿ
It does not support Car Voice command when Android Auto
connected.
!Ÿ
Android auto might not function as same with Car multimedia
system.
!Ÿ
To function “Android voice command”, press and hold the key on
the Steering wheel (0.8 secs)
!Ÿ
It might function irrelevantly if controls mobile phone while
Android auto. Please do not use mobile phone while Android
auto.
!Ÿ
Android auto might go to Car Apps screen if disconnected
depending on connection status. You can re-use if the device
re-connected.
!Ÿ
Regarding mobile phone supporting Android auto and Q&A,
Please refer to google website.Using Android Auto Features
1. Call key in the steering wheel performs phone function while
Android Auto screen is displayed.
2. OS system of the phone should be 5.x or more and can be
used by installing through Google play.
3. On the Home or All Menus or Info screen, select the entry but-
ton.
4. You can use the functions for navigation, music, phone, and the
like of Android Auto.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 176 of 308
7-20 I Info

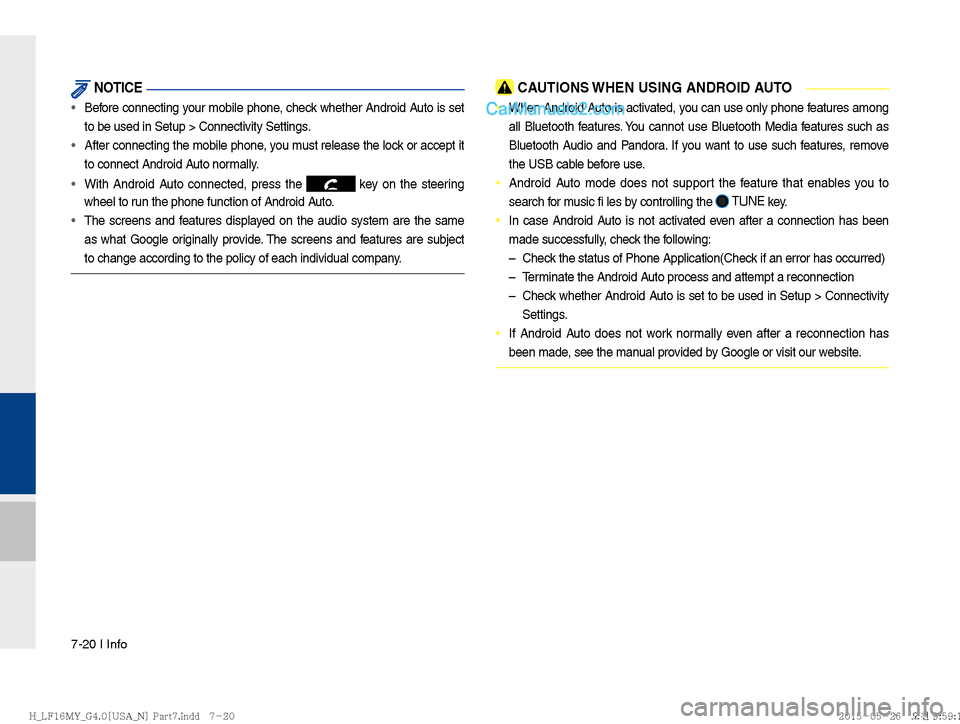

NOTICE
Before connecting your mobile phone, check whether Android Auto is set
to be used in Setup > Connectivity Settings.
After connecting the mobile phone, y
ou must release the lock or accept it
to connect Android Auto nor mally
.
With Android Auto connected, press the
key on the steering
wheel to run the phone function of Android Auto.
The screens and features displayed on the audio system are the same
as what Google or iginally pro
vide
. The screens and features are subject
to change according to the policy of each individual company.
CAUTIONS WHEN USING ANDROID AUTO
When Android Auto is activated, you can use only phone features among
all Bluetooth features.
You cannot use Bluetooth Media features such as
Bluetooth Audio and Pandora. If you want to use such features, remove
the USB cable before use.
Android Auto mode does not support the feature that enables you to
search f or music
les by controlling the
TUNE key.
In case Android Auto is not activated even after a connection has been
made successfully, chec k the f
ollowing:
– Check the status of Phone Application(Check if an error has occurred)
– Terminate the Android Auto process and attempt a reconnection
– Check whether Android Auto is set to be used in Setup > Connectivity Settings.
If Android Auto does not work normally even after a reconnection has
been made , see the man
ual pro
vided by Google or visit our website.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 177 of 308

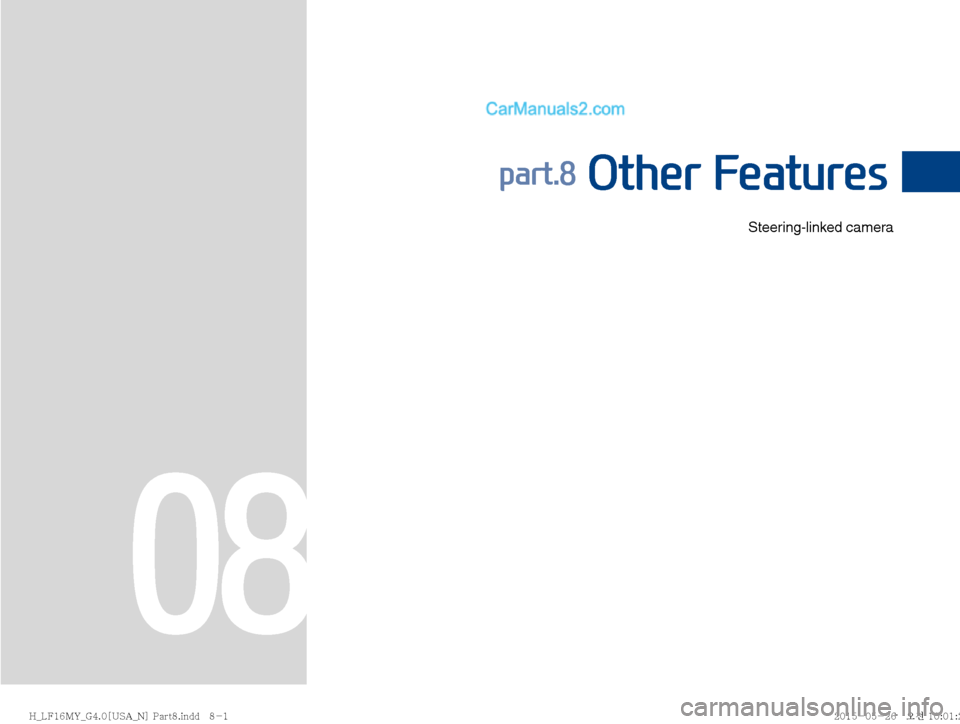

Steering-linked camera
part.8 Other Features
08
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 178 of 308
8-2 I Other Features

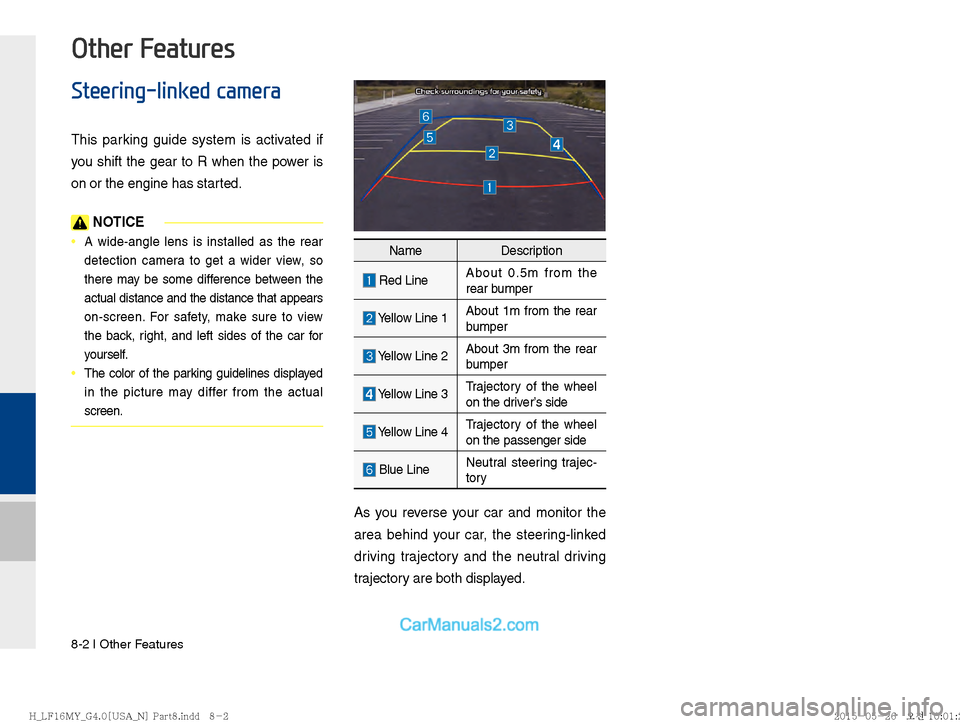

Steering-linked camera
This parking guide system is activated if
you shift the gear to R when the power is
on or the engine has started.
NOTICE
• A wide-angle lens is installed as the rear
detection camera to get a wider vie
w, so
there may be some difference between the
actual distance and the distance that appears
on-screen. For safety, make sure to view
the back, right, and left sides of the car for
yourself.
The color of the parking guidelines displayed
in the picture ma y diff
er from the actual
screen.
Name Description
Red LineAbout 0.5m from the
rear bumper
Yellow Line 1About 1m from the rear
bumper
Yellow Line 2About 3m from the rear
bumper
Yellow Line 3Trajectory of the wheel
on the driver’s side
Yellow Line 4Trajectory of the wheel
on the passenger side
Blue Line Neutral steering trajec-
tory
As you reverse your car and monitor the
area behind your car, the steering-linked
driving trajectory and the neutral driving
trajectory are both displayed.
Other Features
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 179 of 308

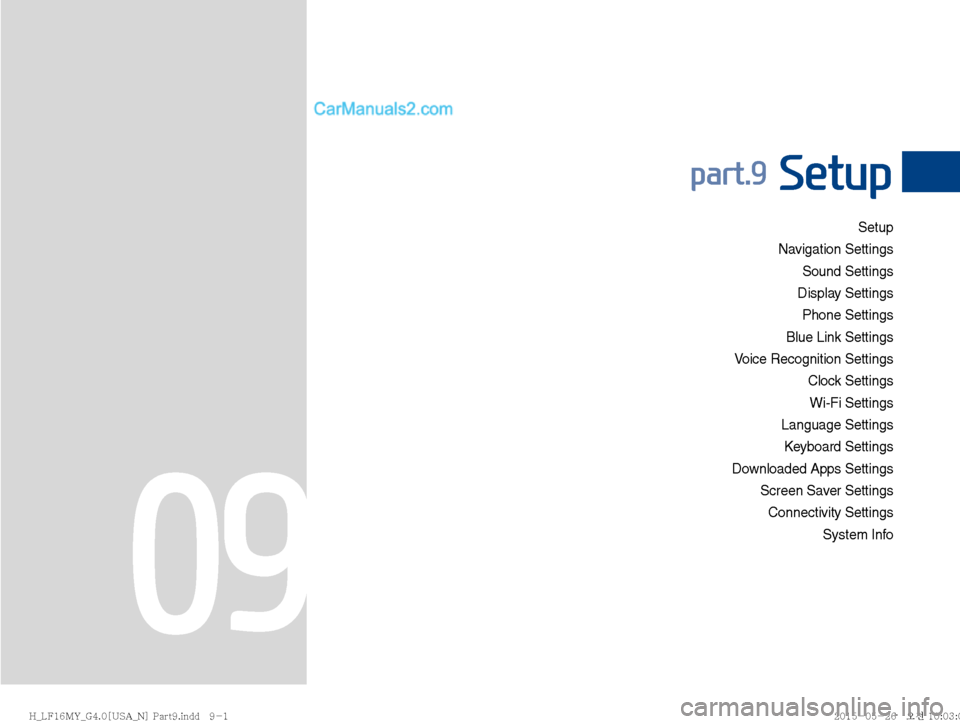

Setup
Navigation Settings Sound Settings
Display Settings Phone Settings
Blue Link Settings
Voice Recognition Settings Clock Settings Wi-Fi Settings
Language Settings Keyboard Settings
Downloaded Apps Settings Screen Saver SettingsConnectivity Settings System Info
part.9 Setup
09
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 180 of 308
9-2 I Setup

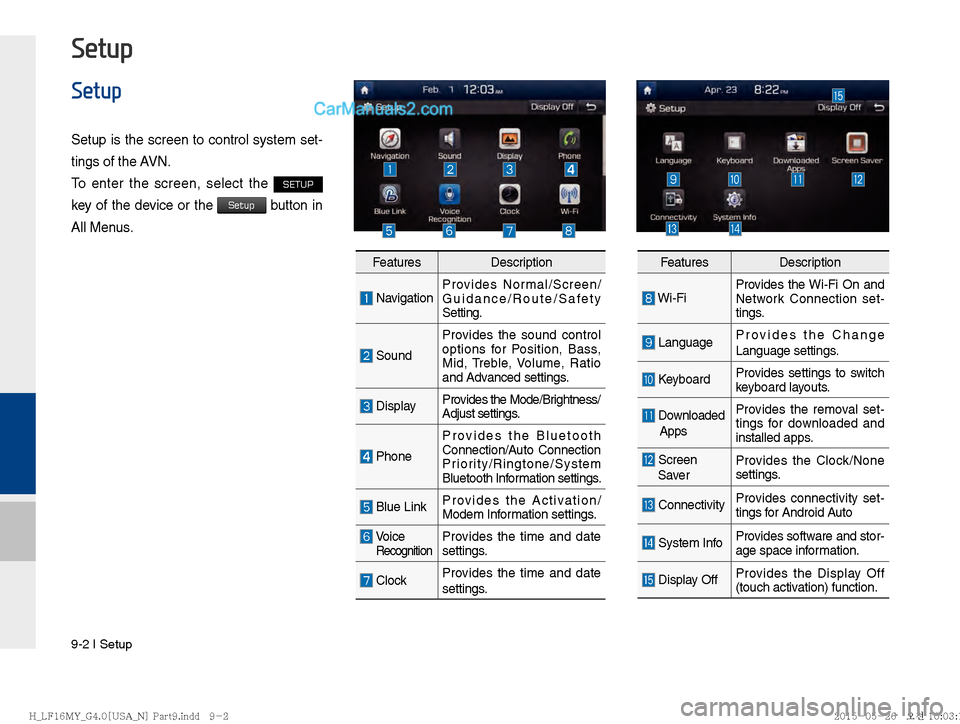

Setup
Setup
Setup is the screen to control system set-
tings of the AVN.
To enter the screen, select the
SETUP
key of the device or the
Setup button in
All Menus.
Features Description
NavigationProvides Normal/Screen/
Guidance/Route/Safety
Setting.
SoundProvides the sound control
options for Position, Bass,
Mid, Treble, Volume, Ratio
and Advanced settings.
Display
Provides the Mode/Brightness/
Adjust settings.
PhoneProvides the Bluetooth
Connection/Auto Connection
Priority/Ringtone/System
Bluetooth Information settings.
Blue Link
Provides the Activation/
Modem Information settings.
Voice RecognitionProvides the time and date
settings.
ClockProvides the time and date
settings.
Features
Description
Wi-FiProvides the Wi-Fi On and
Network Connection set-
tings.
Language
Provides the Change
Language settings.
Keyboard
Provides settings to switch
keyboard layouts.
Downloaded
Apps Provides the removal set-
tings for downloaded and
installed apps.
Screen
Saver Provides the Clock/None
settings.
Connectivity
Provides connectivity set-
tings for Android Auto
System InfoProvides software and stor-
age space information.
Display OffProvides the Display Off
(touch activation) function.
