Hyundai Sonata 2016 Car Multimedia System Manual
Manufacturer: HYUNDAI, Model Year: 2016, Model line: Sonata, Model: Hyundai Sonata 2016Pages: 308, PDF Size: 8.92 MB
Page 251 of 308
39
Voice Recognition Screen Overview
Start Screen
NameDescription
Most frequently
used commands Displays the six most frequently used commands.
Not available
command Displays commands that are not available due to a failure in
meeting the conditions for using them and thus need addi-
tional settings. The conditions required for using them will
be described briefly under each command.
Voice
recognition
status icons Standby Voice guidance Voice command process
User's speaking
volume being
recognized Displays the voice command volume in real time.
Recognized
results Displays the voice recognition result.
Help
Displays all available help commands in a tree format.
Exit
Ends the voice recognition.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 252 of 308
40

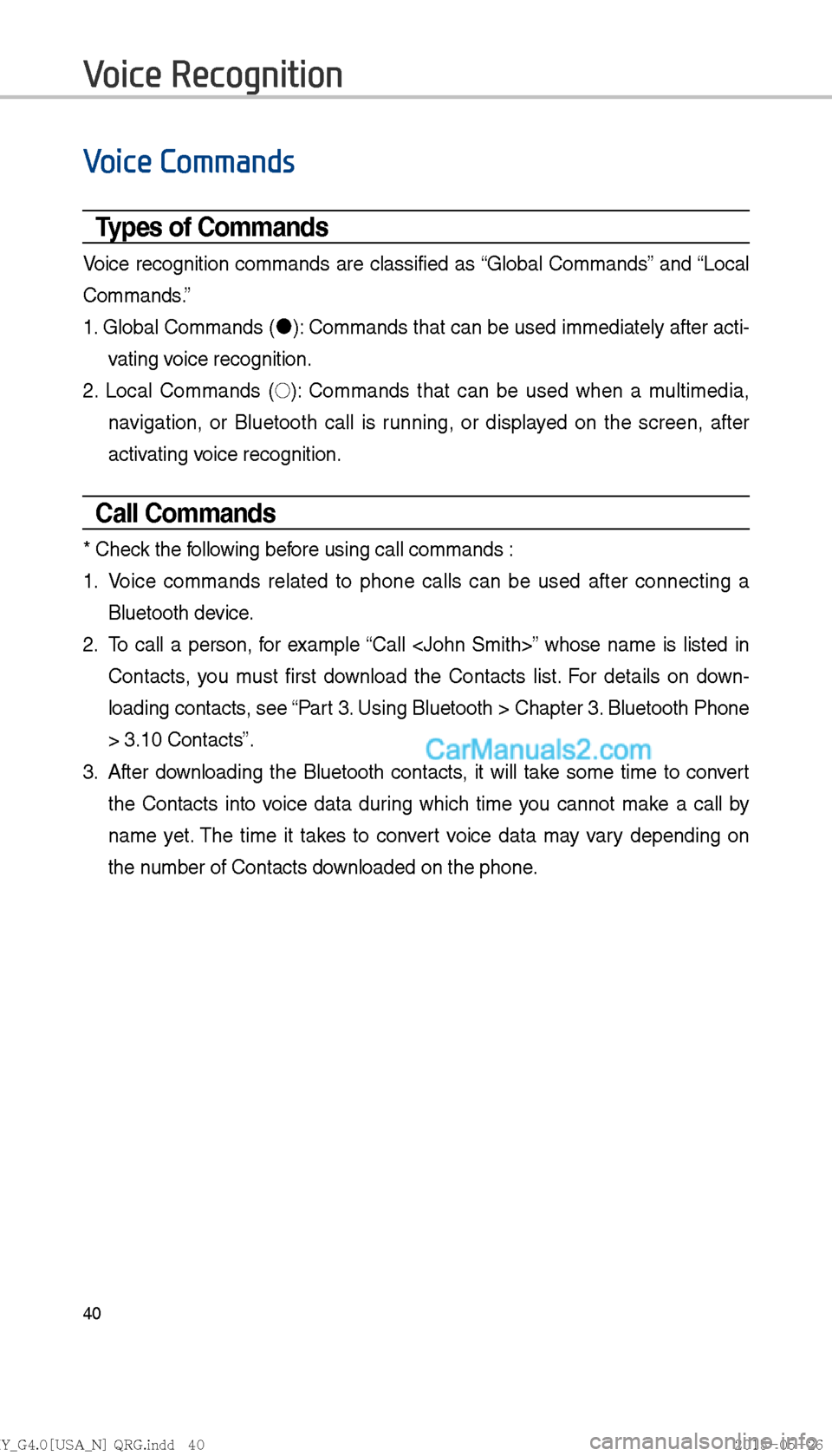

Voice Commands
Types of Commands
Voice recognition commands are classified as “Global Commands” and “Local
Commands.”
1. Global Commands ("J
): Commands that can be used immediately after acti-
vating voice recognition.
2. Local Commands (
!¹): Commands that can be used when a multimedia,
navigation, or Bluetooth call is running, or displayed on the screen, after
activating voice recognition.
Call Commands
* Check the following before using call commands :
1. Voice commands related to phone calls can be used after connecting a
Bluetooth device.
2. T
o call a person, for example “Call
Contacts, you must first download the Contacts list. For details on down-
loading contacts, see “Part 3. Using Bluetooth > Chapter 3. Bluetooth Phone
> 3.10 Contacts”.
3. After downloading the Bluetooth contacts, it will take some time to convert the Contacts into voice data during which time you cannot make a call by
name yet. The time it takes to convert voice data may vary depending on
the number of Contacts do
wnloaded on the phone.
Voice Recognition
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 253 of 308
41

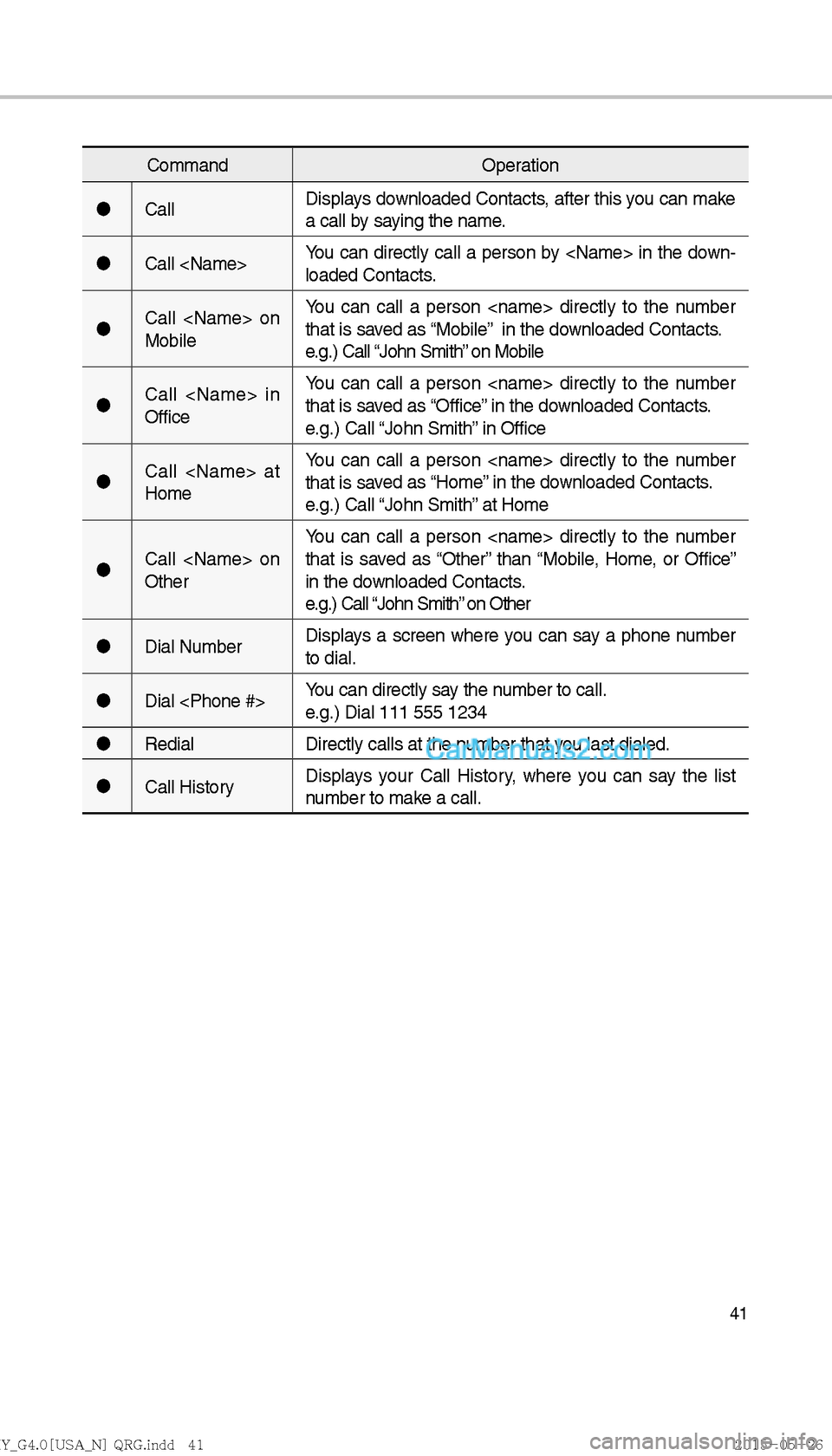

CommandOperation
"J Call Displays downloaded Contacts, after this you can make
a call by saying the name.
"J Call
loaded Contacts.
"J Call
Mobile You can call a person
to the number
that is sa v
ed as
“Mobile” in the downloaded Contacts.
e.g.) Call “John Smith” on Mobile
"J Call
Office You can call a person
to the number
that is sa v
ed as
“Office” in the downloaded Contacts.
e.g.) Call “John Smith” in Office
"J Call
Home You can call a person
to the number
that is sa ved as
“Home” in the downloaded Contacts.
e.g.) Call “John Smith” at Home
"J Call
Other You can call a person
to the number
that is sa v
ed as
“Other” than “Mobile, Home, or Office”
in the downloaded Contacts.
e.g.) Call “John Smith” on Other
"J Dial Number Displays a screen where you can say a phone number
to dial.
"J Dial
e.g.) Dial 111 555 1234
"J Redial Directly calls at the number that you last dialed.
"J Call History Displays your Call History, where you can say the list
number to make a call.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E
. : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 254 of 308
42

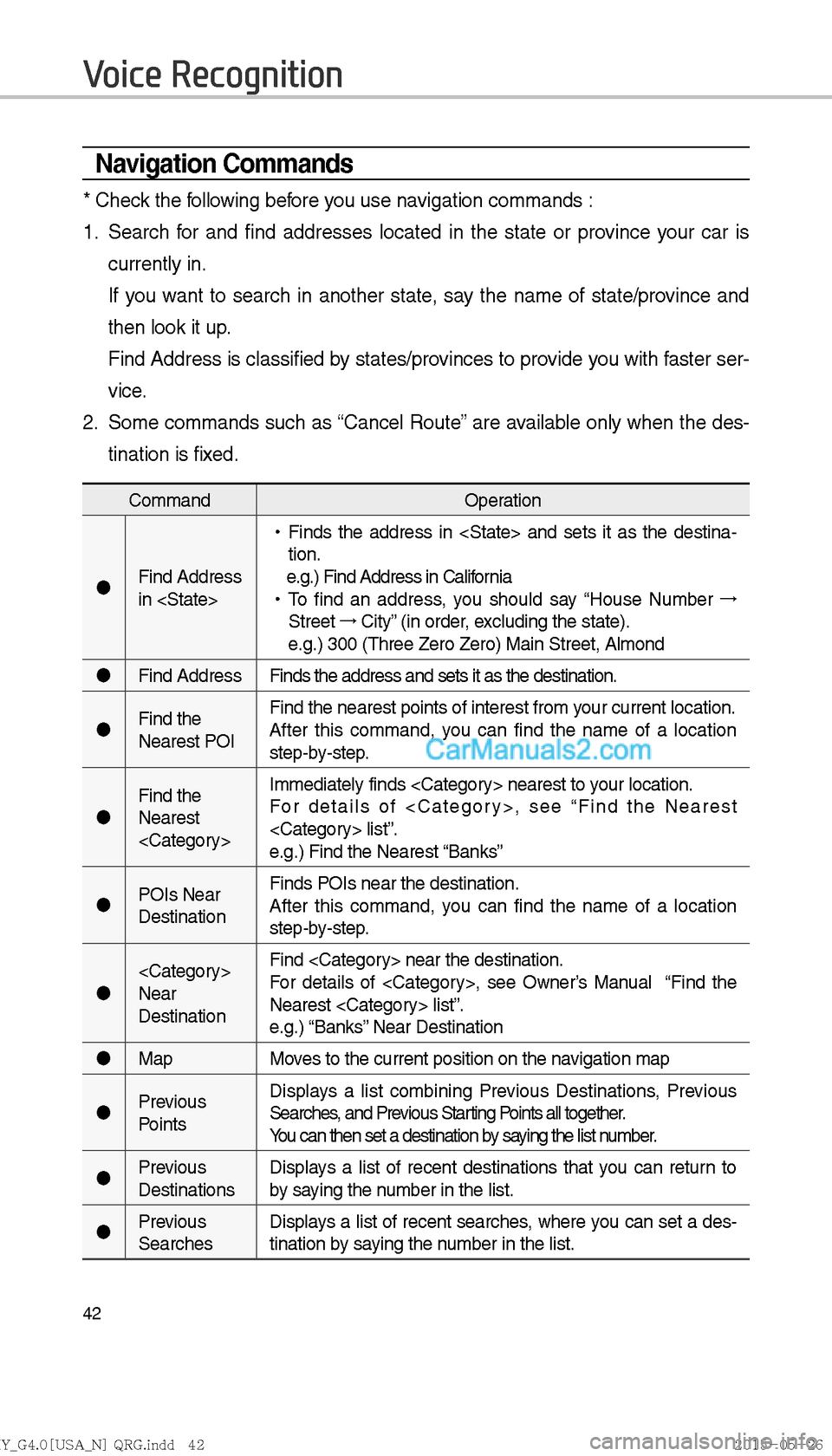

Navigation Commands
* Check the following before you use navigation commands :
1. Search for and find addresses located in the state or province your car is currently in.
If you want to search in another state, say the name of state/province and then look it up.
Find Address is classified by states/provinces to provide you with faster ser- vice.
2. Some commands such as “Cancel Route” are available only when the des- tination is fixed.
Voice Recognition
Command Operation
"J Find Address
in
!Ÿ
Finds the address in
tion.
e.g.) Find Address in California
!Ÿ
To find an address, you should say “House Number ª
Street ª
City” (in order, excluding the state).
e.g.) 300 (Three Zero Zero) Main Street, Almond
"J Find Address Finds the address and sets it as the destination.
"J Find the
Nearest POI Find the nearest points of interest from your current location.
After this command, you can find the name of a location
step-by-step.
"J Find the
Nearest
For details of
e.g.) Find the Nearest “Banks”
"J POIs Near
Destination Finds POIs near the destination.
After this command, you can find the name of a location
step-by-step.
"J
Near
Destination Find
For details of
Nearest
e.g.) “Banks” Near Destination
"J Map Moves to the current position on the navigation map
"J Previous
Points Displays a list combining Previous Destinations, Previous
Searches, and Previous Starting Points all together.
You can then set a destination by saying the list number.
"J Previous
Destinations Displays a list of recent destinations that you can return to
by saying the number in the list.
"J Previous
Searches Displays a list of recent searches, where you can set a des-
tination by saying the number in the list.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E
. : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 255 of 308
43

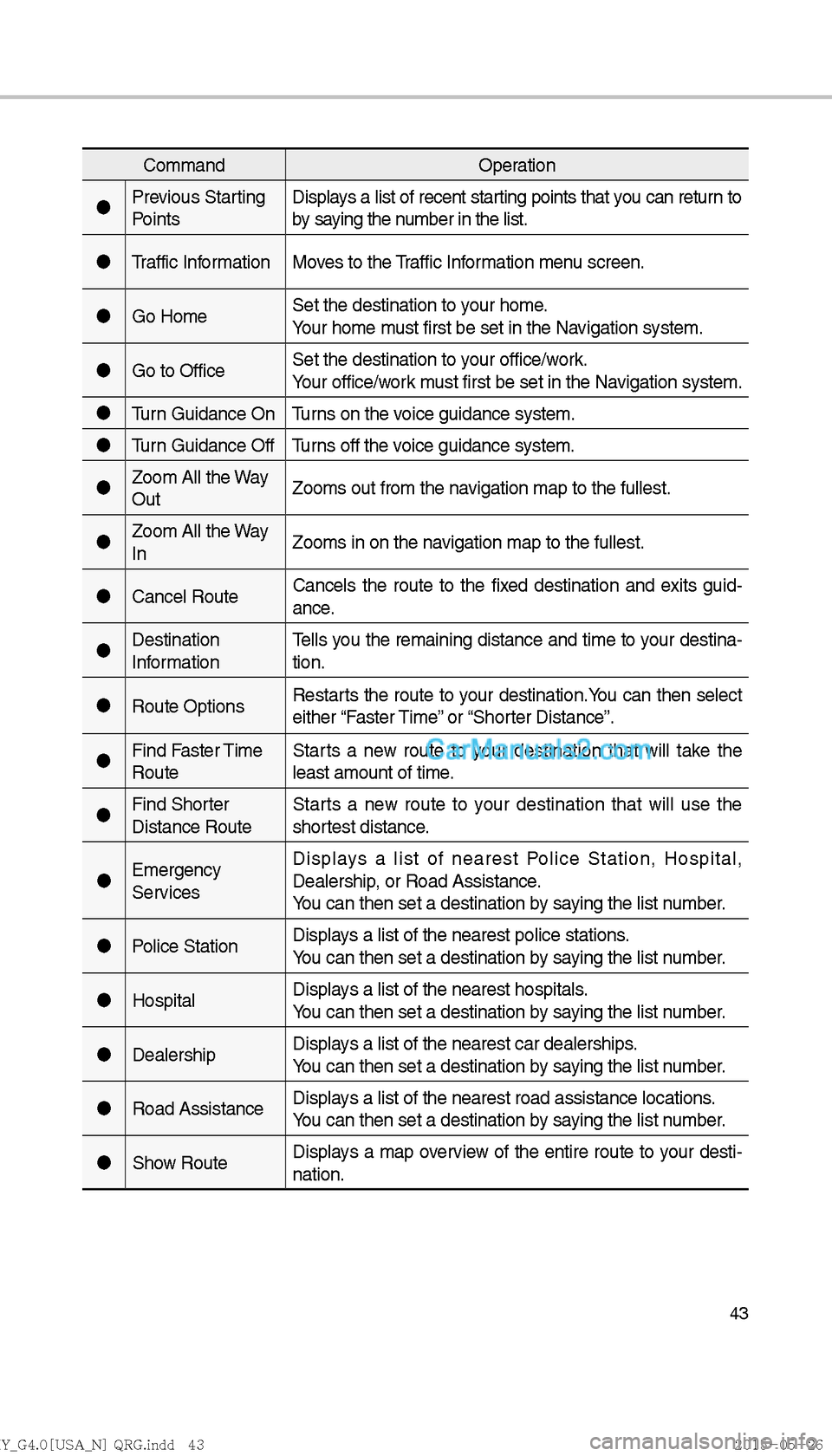

CommandOperation
"J Previous Starting
Points Displays a list of recent starting points that you can return to
by saying the number in the list.
"J Traffic Information Moves to the Traffic Information menu screen.
"J Go Home Set the destination to your home.
Your home must first be set in the Navigation system.
"J Go to Office Set the destination to your office/work.
Your office/work must first be set in the Navigation system.
"J Turn Guidance On Turns on the voice guidance system.
"J Turn Guidance Off Turns off the voice guidance system.
"J Zoom All the Way
Out Zooms out from the navigation map to the fullest.
"J Zoom All the Way
In Zooms in on the navigation map to the fullest.
"J Cancel Route Cancels the route to the fixed destination and exits guid-
ance.
"J Destination
Information Tells you the remaining distance and time to your destina-
tion.
"J Route Options Restarts the route to your destination.You can then select
either “Faster Time” or “Shorter Distance”.
"J Find Faster Time
Route Starts a new route to your destination that will take the
least amount of time.
"J Find Shorter
Distance Route Starts a new route to your destination that will use the
shortest distance.
"J Emergency
Services Displays a list of nearest Police Station, Hospital,
Dealership, or Road Assistance.
You can then set a destination by saying the list number.
"J Police Station Displays a list of the nearest police stations.
You can then set a destination by saying the list number.
"J Hospital Displays a list of the nearest hospitals.
You can then set a destination by saying the list number.
"J Dealership Displays a list of the nearest car dealerships.
You can then set a destination by saying the list number.
"J Road Assistance Displays a list of the nearest road assistance locations.
You can then set a destination by saying the list number.
"J Show Route Displays a map overview of the entire route to your desti-
nation.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E
. : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 256 of 308
44

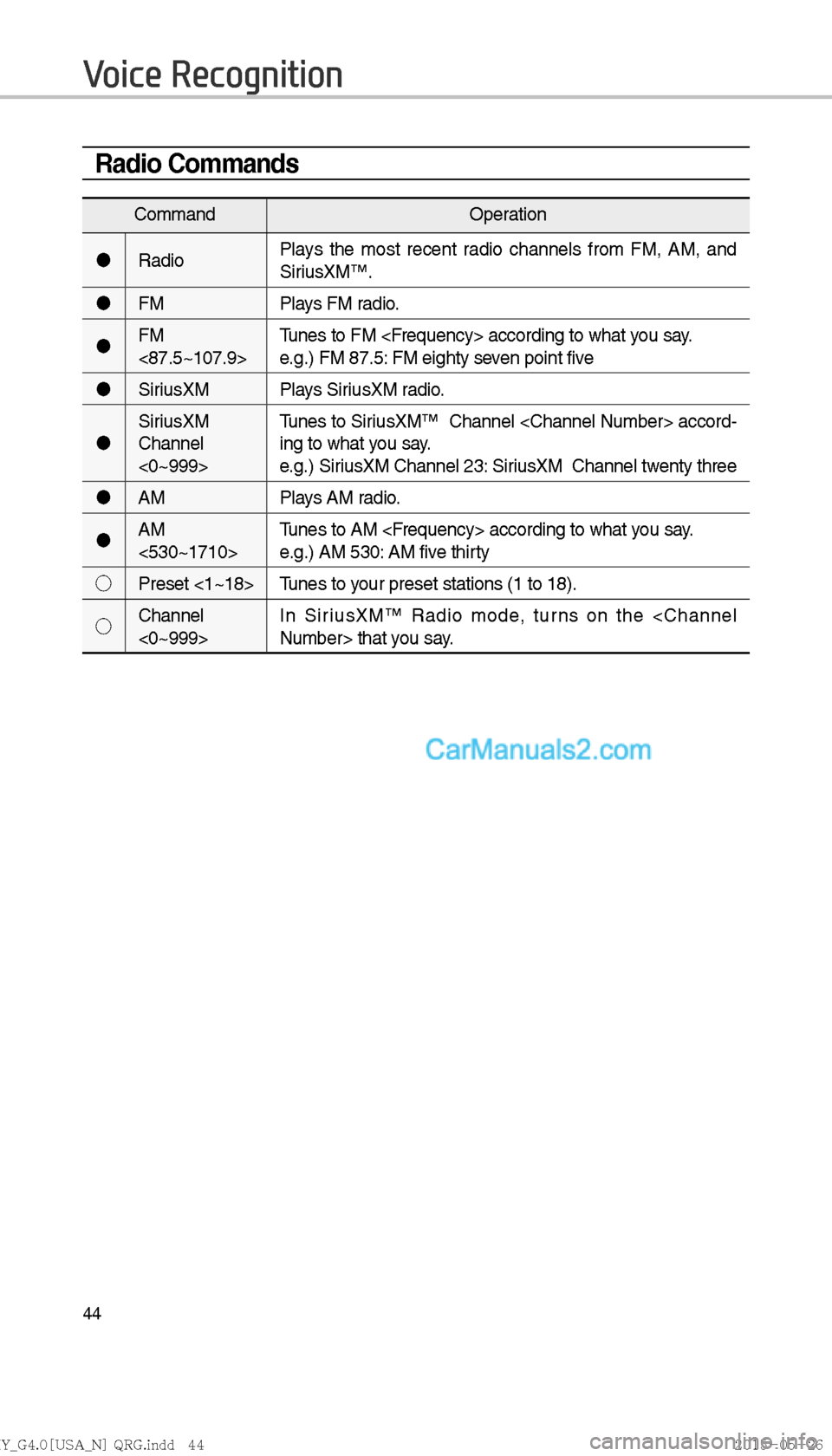

Radio Commands
CommandOperation
"J Radio Plays the most recent radio channels from FM, AM, and
SiriusXM™.
"J FM Plays FM radio.
"J FM
<87.5~107.9> Tunes to FM
e.g.) FM 87.5: FM eighty seven point five
"J SiriusXM Plays SiriusXM radio.
"J SiriusXM
Channel
<0~999> Tunes to SiriusXM™ Channel
ing to what you say.
e.g.) SiriusXM Channel 23: SiriusXM Channel twenty three
"J AM Plays AM radio.
"J AM
<530~1710> Tunes to AM
e.g.) AM 530: AM five thirty
!¹ Preset <1~18> Tunes to your preset stations (1 to 18).
!¹ Channel
<0~999> In SiriusXM™ Radio mode, turns on the
Voice Recognition
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E
. : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 257 of 308
45

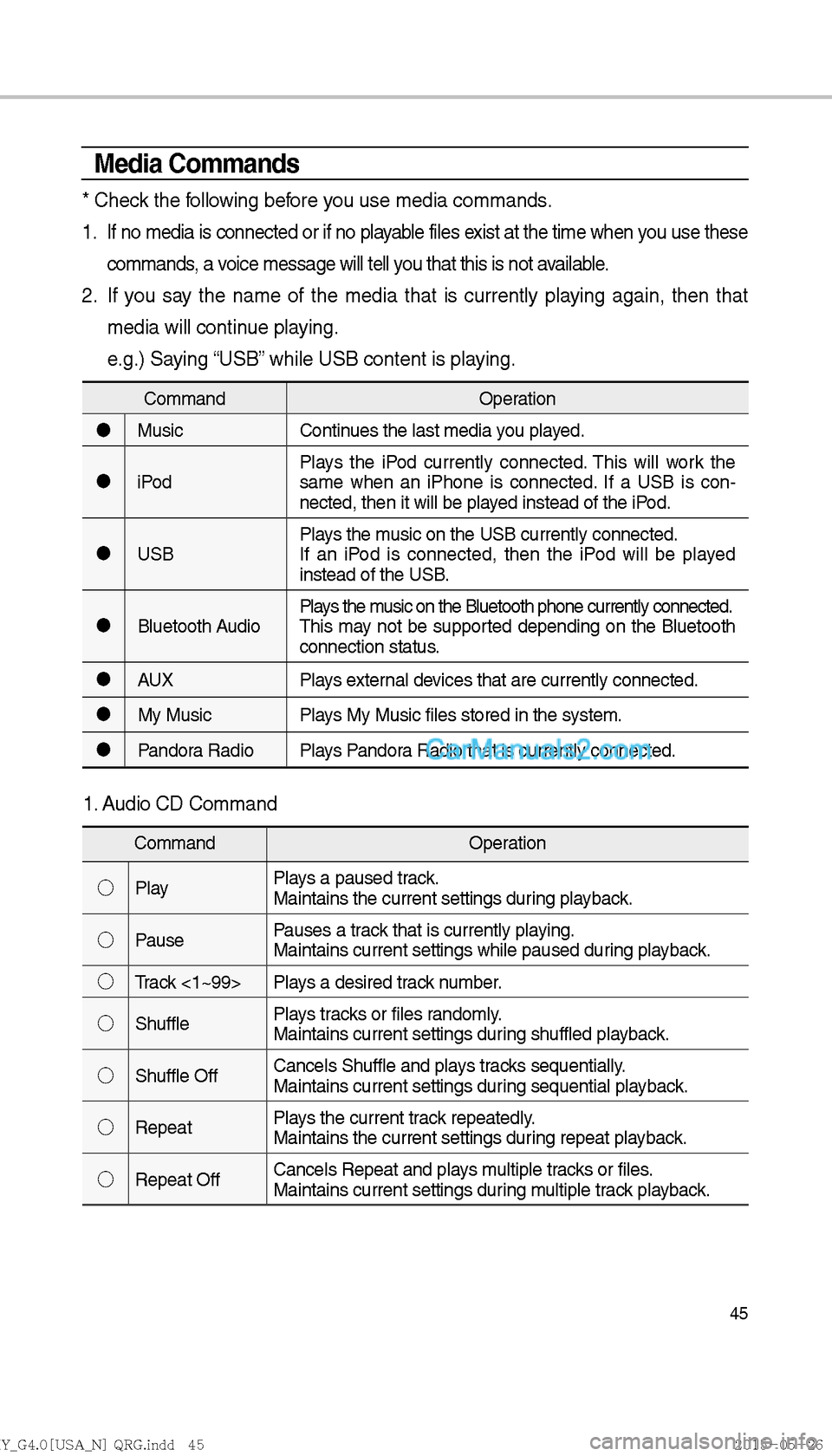

Media Commands
* Check the following before you use media commands.
1.
If no media is connected or if no playable files exist at the time when you use these
commands, a voice message will tell you that this is not available.
2. If you say the name of the media that is currently playing again, then that media will continue playing.
e.g.) Saying “USB” while USB content is playing.
Command Operation
"J Music Continues the last media you played.
"J iPod Plays the iPod currently connected. This will work the
same when an iPhone is connected. If a USB is con-
nected, then it will be played instead of the iPod.
"J USB Plays the music on the USB currently connected.
If an iPod is connected, then the iPod will be played
instead of the USB.
"J Bluetooth Audio Plays the music on the Bluetooth phone currently connected.
This may not be supported depending on the Bluetooth
connection status.
"J AUX Plays external devices that are currently connected.
"J My Music Plays My Music files stored in the system.
"J Pandora Radio Plays Pandora Radio that is currently connected.
1. Audio CD Command
Command Operation
!¹ Play Plays a paused track.
Maintains the current settings during playback.
!¹ Pause Pauses a track that is currently playing.
Maintains current settings while paused during playback.
!¹ Track <1~99> Plays a desired track number.
!¹ Shuffle Plays tracks or files randomly.
Maintains current settings during shuffled playback.
!¹ Shuffle Off Cancels Shuffle and plays tracks sequentially.
Maintains current settings during sequential playback.
!¹ Repeat Plays the current track repeatedly.
Maintains the current settings during repeat playback.
!¹ Repeat Off Cancels Repeat and plays multiple tracks or files.
Maintains current settings during multiple track playback.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E
. : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 258 of 308
46
Voice Recognition

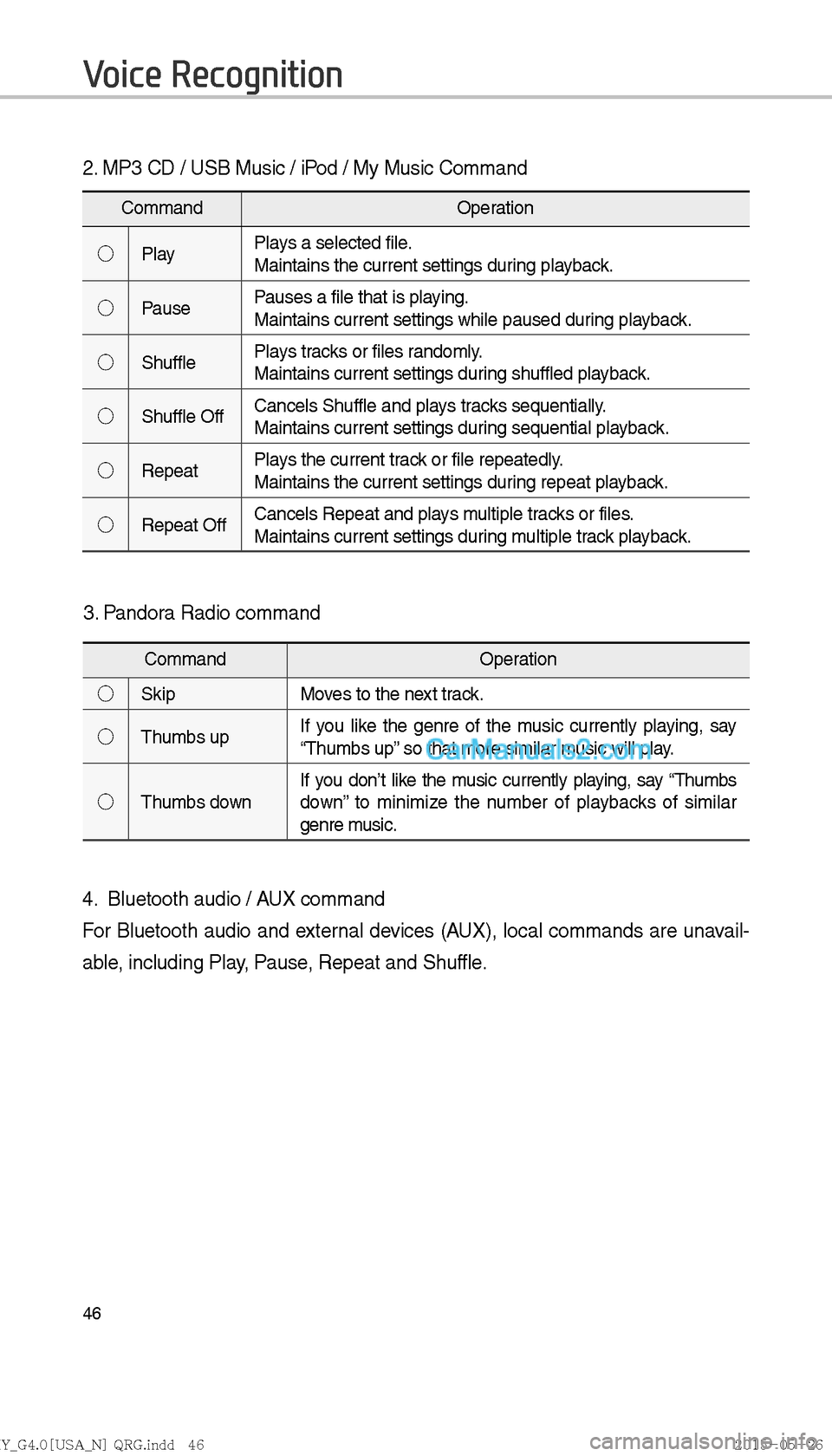

2. MP3 CD / USB Music / iPod / My Music Command
CommandOperation
!¹ Play Plays a selected file.
Maintains the current settings during playback.
!¹ Pause Pauses a file that is playing.
Maintains current settings while paused during playback.
!¹ Shuffle Plays tracks or files randomly.
Maintains current settings during shuffled playback.
!¹ Shuffle Off Cancels Shuffle and plays tracks sequentially.
Maintains current settings during sequential playback.
!¹ Repeat Plays the current track or file repeatedly.
Maintains the current settings during repeat playback.
!¹ Repeat Off Cancels Repeat and plays multiple tracks or files.
Maintains current settings during multiple track playback.
3. Pandora Radio command
4. Bluetooth audio / AUX command
For Bluetooth audio and external devices (AUX), local commands are unavail-
able, including Play, Pause, Repeat and Shuffle.
Command Operation
!¹ Skip Moves to the next track.
!¹ Thumbs up If you like the genre of the music currently playing, say
“Thumbs up” so that more similar music will play.
!¹ Thumbs down If you don’t like the music currently playing, say “Thumbs
down” to minimize the number of playbacks of similar
genre music.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E
. : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 259 of 308
47

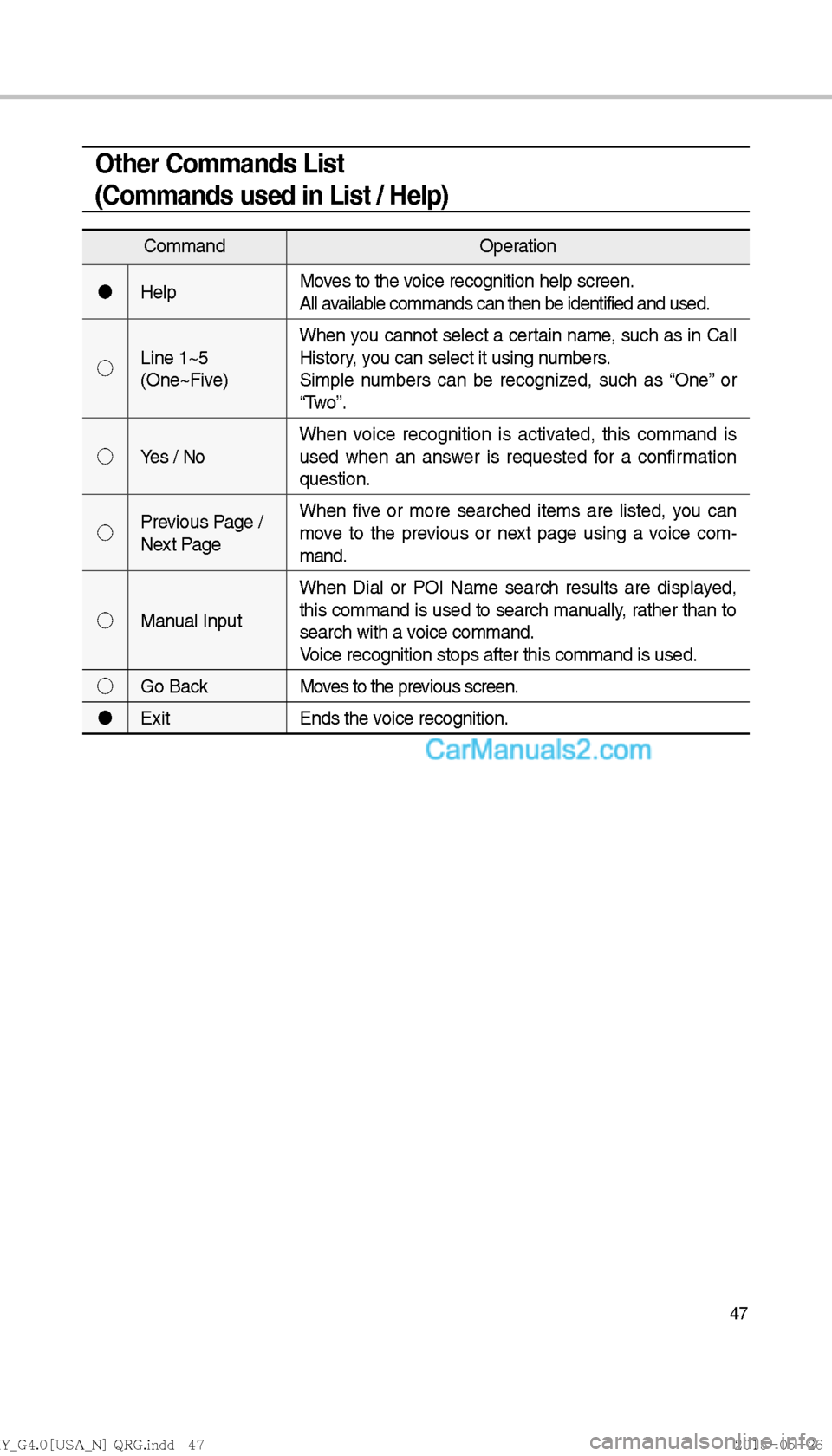

Other Commands List
(Commands used in List / Help)
CommandOperation
"J Help Moves to the voice recognition help screen.
All available commands can then be identified and used.
!¹ Line 1~5
(One~Five) When you cannot select a certain name, such as in Call
History, you can select it using numbers.
Simple numbers can be recognized, such as “One” or
“Two”.
!¹ Yes / No When voice recognition is activated, this command is
used when an answer is requested for a confirmation
question.
!¹ Previous Page /
Next Page When five or more searched items are listed, you can
move to the previous or next page using a voice com-
mand.
!¹ Manual Input When Dial or POI Name search results are displayed,
this command is used to search manually, rather than to
search with a voice command.
Voice recognition stops after this command is used.
!¹ Go Back Moves to the previous screen.
"J Exit Ends the voice recognition.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 260 of 308
48

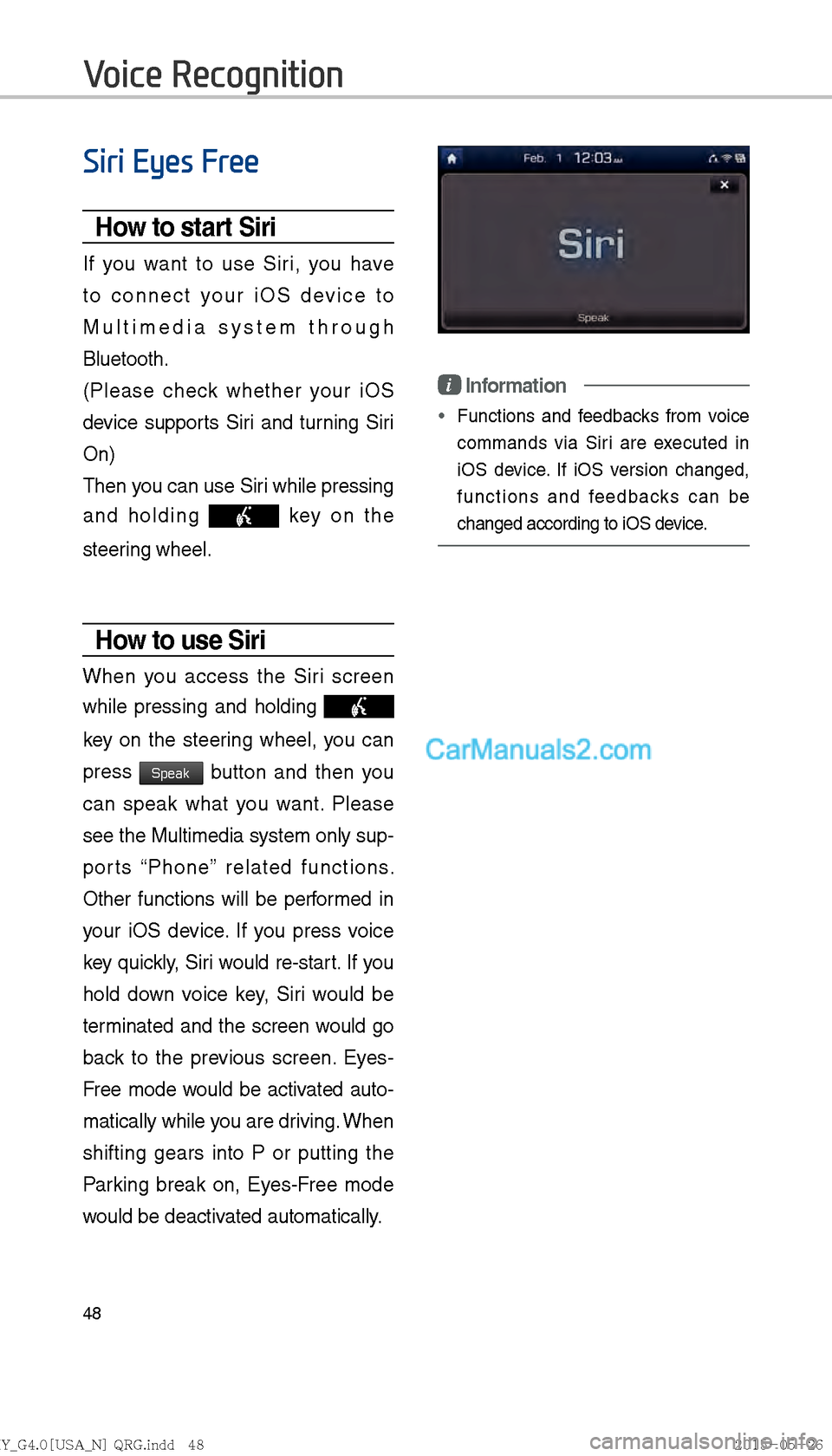

Siri Eyes Free
How to start Siri
If you want to use Siri, you have
to connect your iOS device to
Multimedia system through
Bluetooth.
(Please check whether your iOS
device supports Siri and turning Siri
On)
Then you can use Siri while pressing
and holding
key on the
steering wheel.
How to use Siri
When you access the Siri screen
while pressing and holding
key on the steering wheel, you can
press
Speak button and then you
can speak what you want. Please
see the Multimedia system only sup-
ports “Phone” related functions.
Other functions will be performed in
your iOS device. If you press voice
key quickly, Siri would re-start. If you
hold down voice key, Siri would be
terminated and the screen would go
back to the previous screen. Eyes-
Free mode would be activated auto-
matically while you are driving. When
shifting gears into P or putting the
Parking break on, Eyes-Free mode
would be deactivated automatically.
i Information
Functions and feedbacks from voice
commands via Siri are ex
ecuted in
iOS device. If iOS version changed,
functions and feedbacks can be
changed according to iOS device.
Voice Recognition
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
