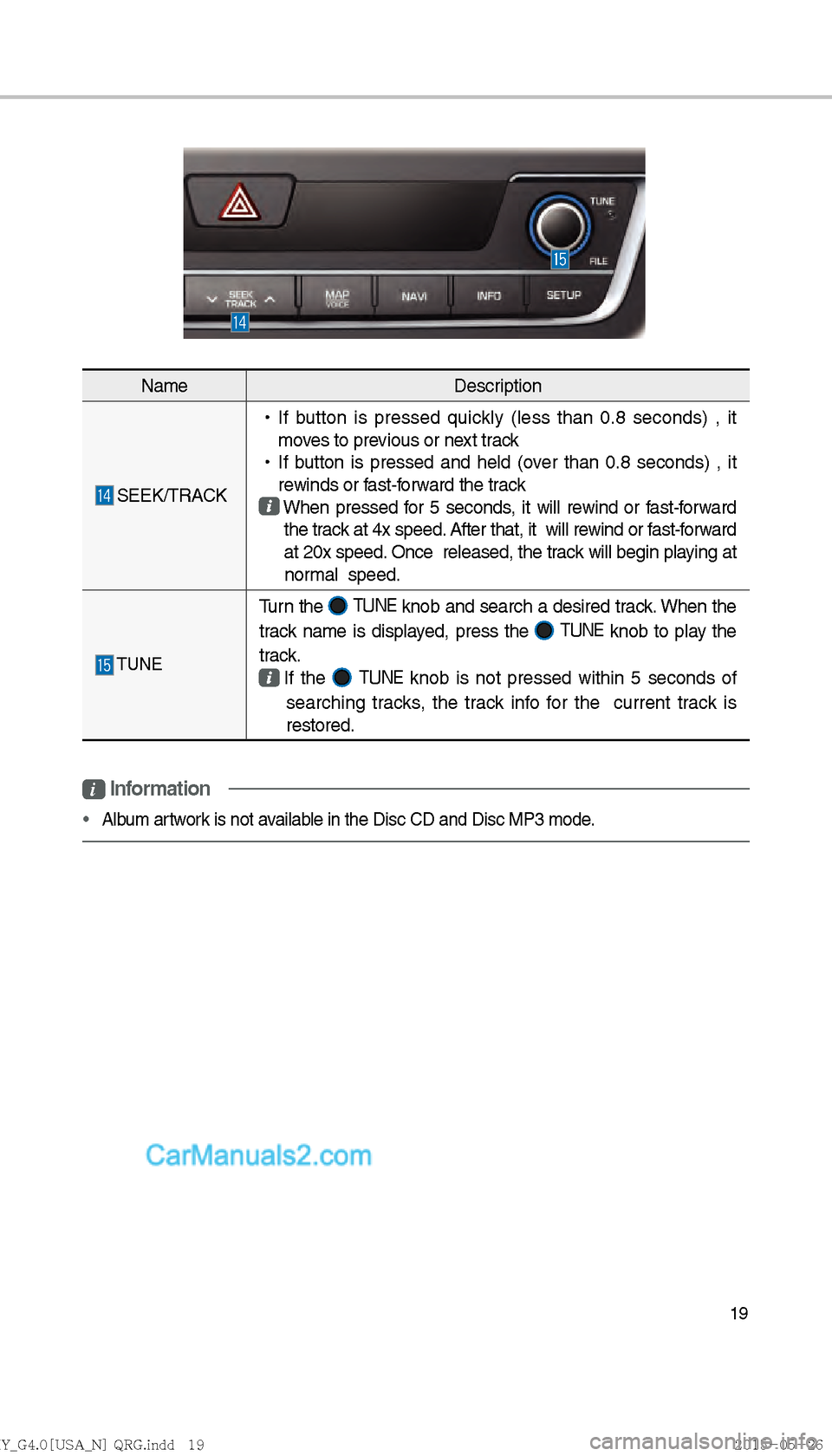

Page 231 of 308
19
NameDescription
SEEK/TRACK
!Ÿ
If button is pressed quickly (less than 0.8 seconds) , it
mo v
es to previous or next track
!Ÿ
If b utton is pressed and held (over than 0.8 seconds) , it
rewinds or f ast-f
orward the track
When pressed for 5 seconds, it will rewind or fast-forward
the track at 4x speed. After that, it will rewind or fast-forward
at 20x speed. Once released, the track will begin playing at
normal speed.
TUNE
Turn the TUNE knob and search a desired track. When the
track name is displayed, press the
TUNE knob to play the
track.
If the
TUNE knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
i Information
Album artwork is not available in the Disc CD and Disc MP3 mode.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 232 of 308
20

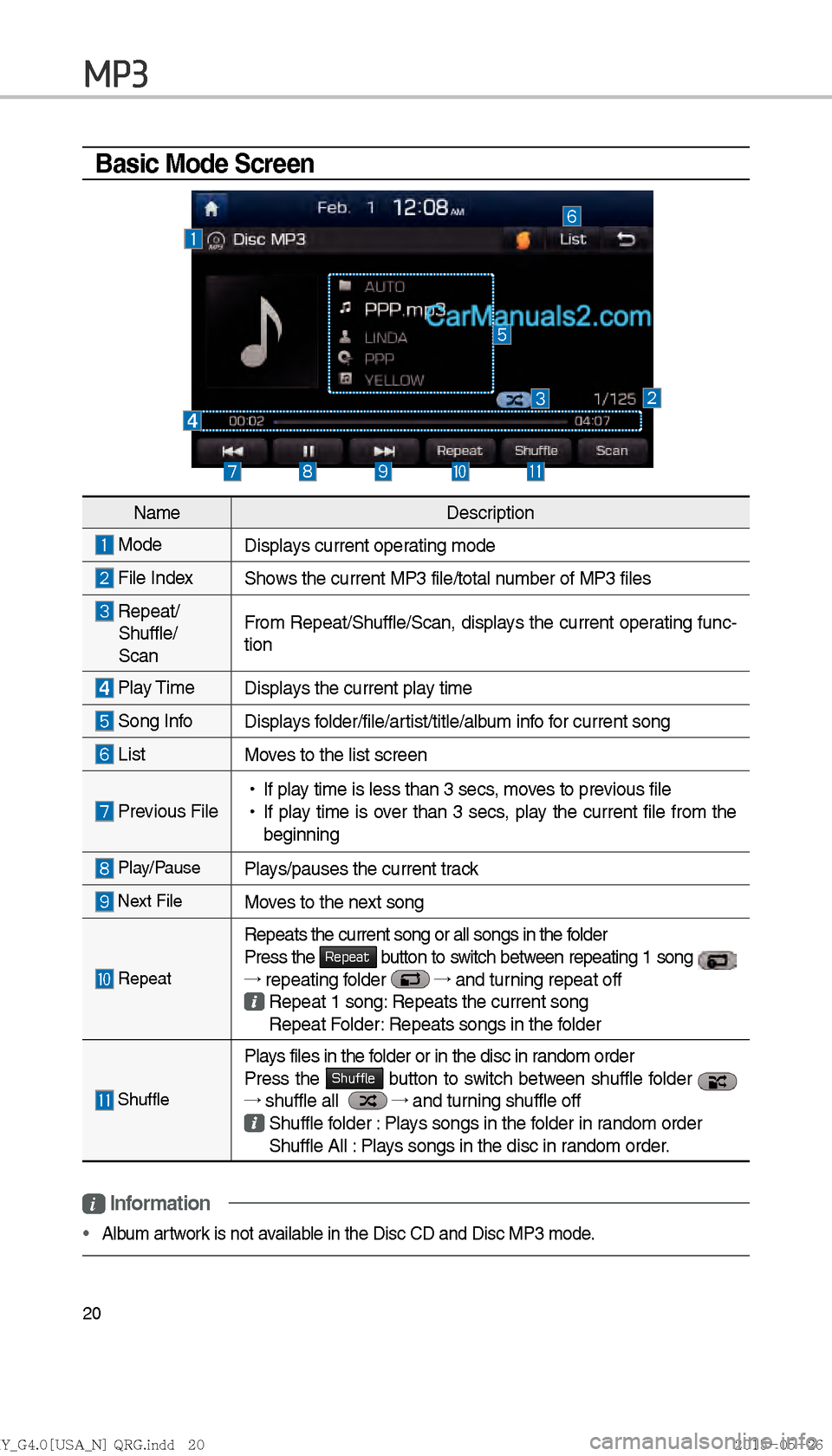

Basic Mode Screen
MP3
NameDescription
Mode
Displays current operating mode
File IndexShows the current MP3 file/total number of MP3 files
Repeat/
Shuffle/
Scan From Repeat/Shuffle/Scan, displays the current
operating func-
tion
Play Time Displays the current play time
Song InfoDisplays folder/file/artist/title/album info for current song
ListMoves to the list screen
Previous File
!Ÿ
If play time is less than 3 secs, moves to previous file
!Ÿ
If play time is over than 3 secs, play the current file from the
beginning
Play/PausePlays/pauses the current track
Next FileMoves to the next song
Repeat
Repeats the current song or all songs in the folder
Press the Repeat button to switch between repeating 1 song
ª repeating folder ª
and turning repeat off Repeat 1 song: Repeats the current song
Repeat Folder: Repeats songs in the folder
Shuffle
Plays files in the folder or in the disc in random order
Press the Shuffle button to switch between shuffle folder
ª shuffle all ª
and turning shuffle off Shuffle folder : Plays songs in the folder in random order
Shuffle All : Plays songs in the disc in r
andom order.
i Information
Album artwork is not available in the Disc CD and Disc MP3 mode.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y

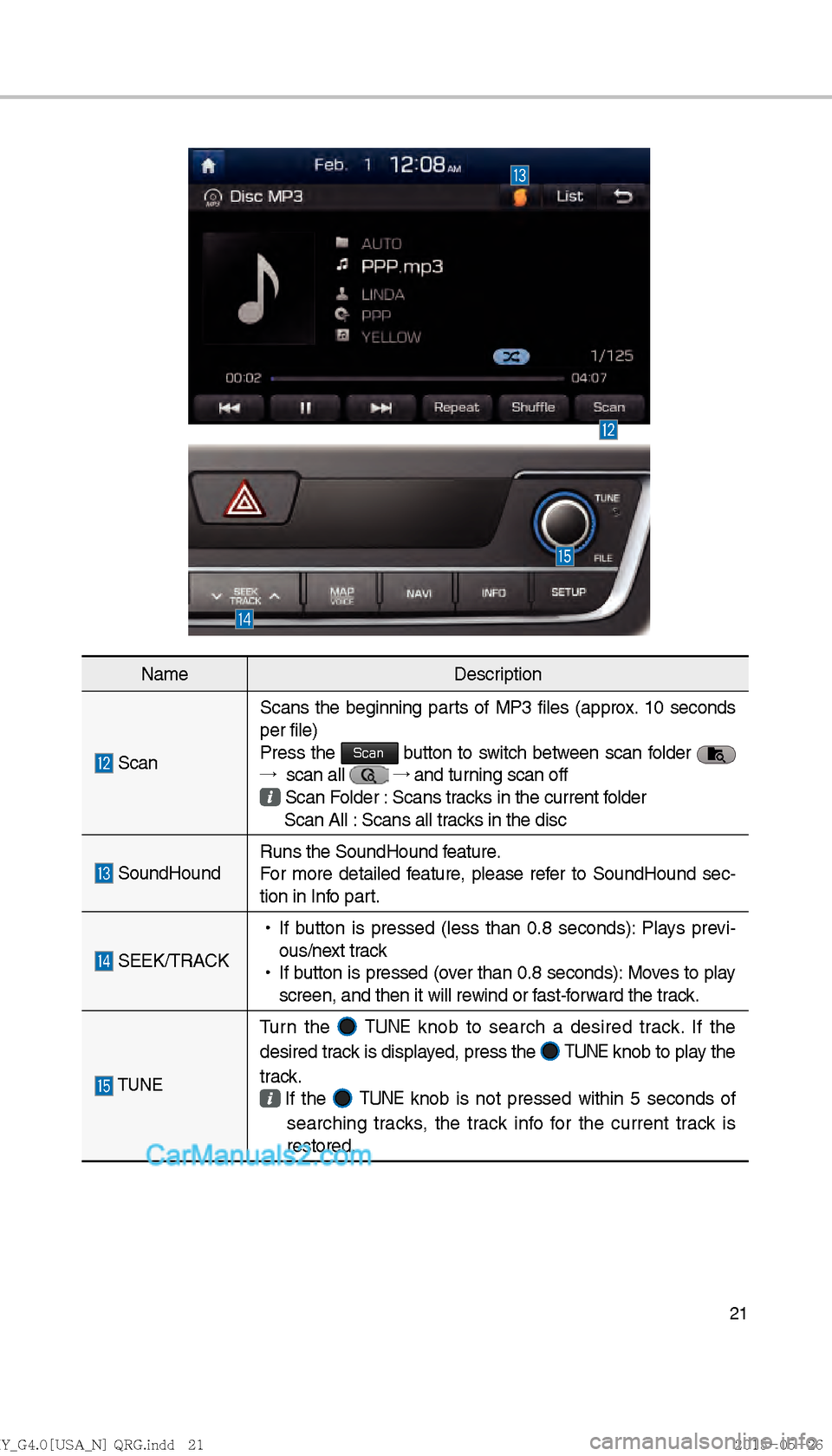

Page 233 of 308
21
NameDescription
Scan Scans the beginning parts of MP3 files (approx. 10 seconds
per file)
Press the Scan button to switch between scan folder
ª scan all ª
and turning scan off Scan Folder : Scans tracks in the current folder
Scan All : Scans all tracks in the disc
SoundHound Runs the SoundHound feature.
For more detailed feature, please refer to SoundHound sec-
tion in Info part.
SEEK/TRACK
!Ÿ
If button is pressed (less than 0.8 seconds): Plays previ-
ous/next track
!Ÿ
If button is pressed (over than 0.8 seconds): Moves to play
screen, and then it will rewind or fast-forward the track.
TUNE
Turn the TUNE knob to search a desired track. If the
desired track is displayed, press the
TUNE knob to play the
track.
If the
TUNE knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 234 of 308
22

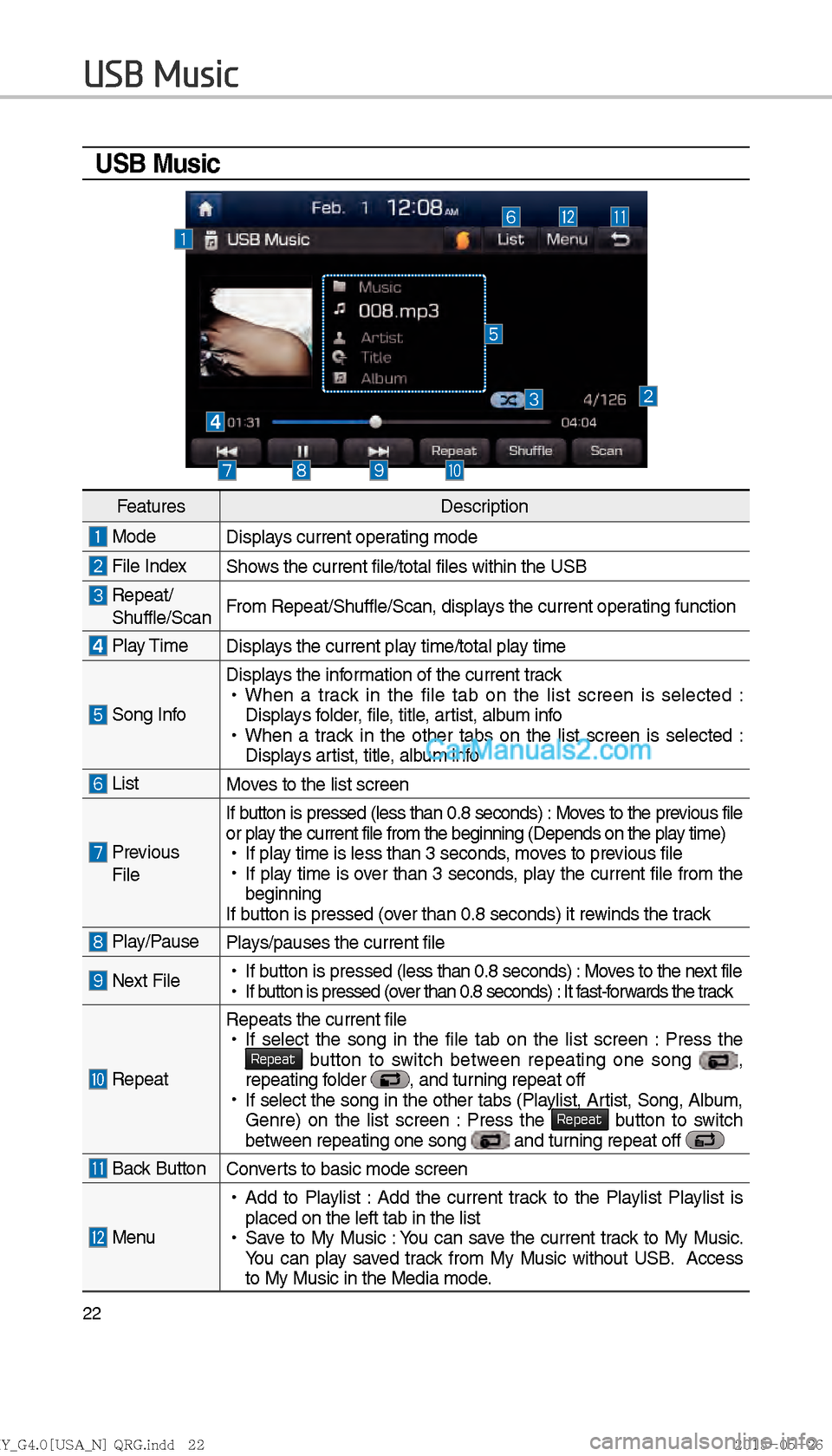

USB Music
USB Music
FeaturesDescription
Mode
Displays current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the current operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track
!Ÿ
When a track in the file tab on the list screen is selected :
Displays folder, file, title, artist, album info
!Ÿ
When a track in the other tabs on the list screen is selected :
Displays artist, title, album info
List Moves to the list screen
Previous
File If button is pressed (less than 0.8 seconds) : Moves to the previous file
or pla
y the current file from the beginning (Depends on the pla
y time)
!Ÿ
If pla
y time is less than 3 seconds, moves to previous file
!Ÿ
If play time is over than 3 seconds, play the current file from the
beginning
If button is pressed (over than 0.8 seconds) it rewinds the track
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If button is pressed (less than 0.8 seconds) : Moves to the next file
!Ÿ
If button is pressed (over than 0.8 seconds) : It fast-forwards the track
Repeat Repeats the current file
!Ÿ
If select the song in the file tab on the list screen : Press the Repeat button to switch between repeating one song ,
repeating folder , and turning repeat off
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen : Press the
Repeat button to switch
between repeating one song and turning repeat off
Back Button Converts to basic mode screen
Menu
!Ÿ
Add to Playlist : Add the current track to the Playlist Playlist is
placed on the left tab in the list
!Ÿ
Save to My Music : You can save the current track to My Music.
You can play saved track from My Music without USB. Access
to My Music in the Media mode.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y

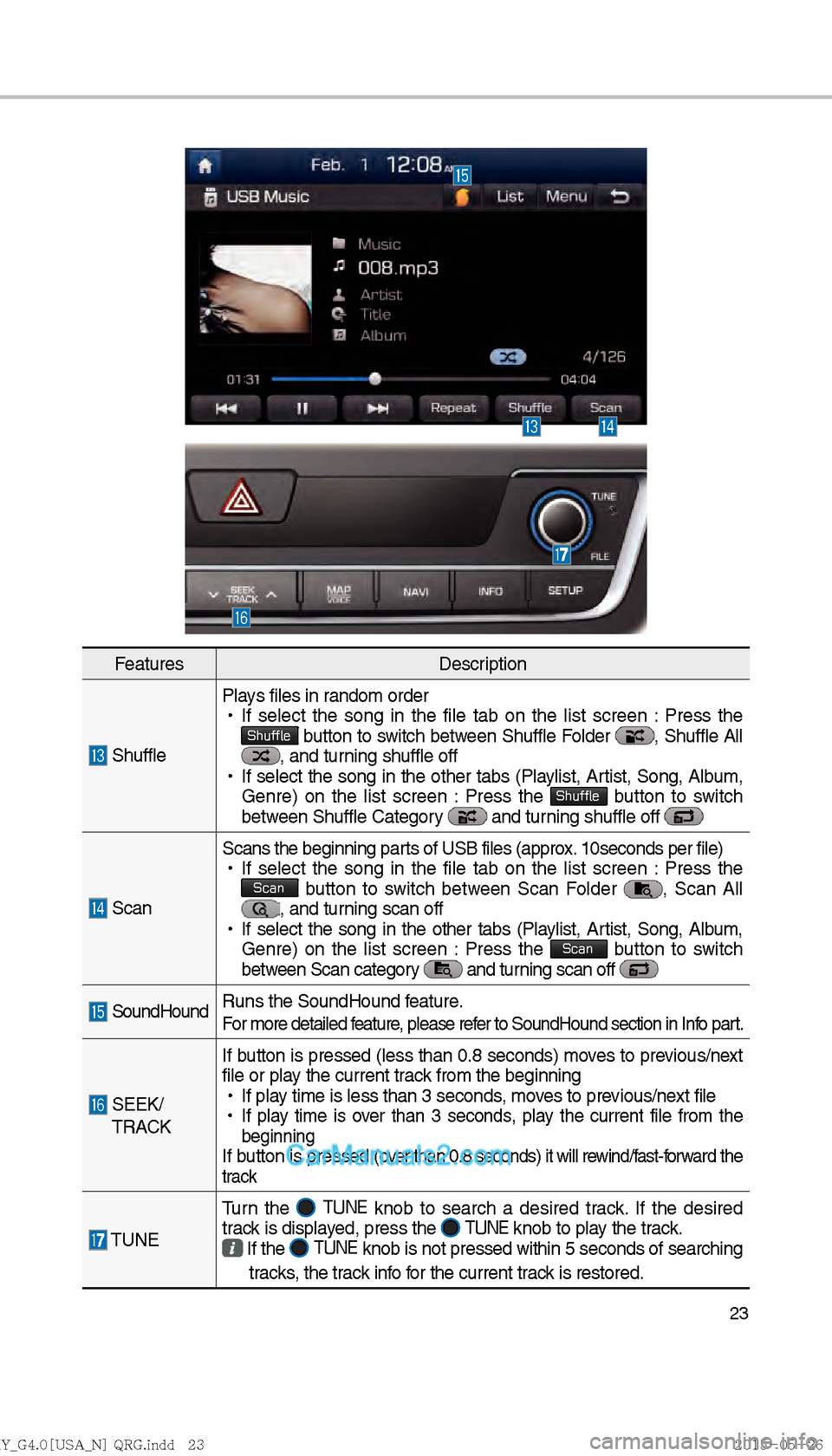

Page 235 of 308
23
FeaturesDescription
ShufflePlays files in random order
!Ÿ
If select the song in the file tab on the list screen : Press the Shuffle button to switch between Shuffle Folder , Shuffle All , and turning shuffle off
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen : Press the
Shuffle button to switch
between Shuffle Category and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10seconds per file)
!Ÿ
If select the song in the file tab on the list screen : Press the Scan button to switch between Scan Folder , Scan All , and turning scan off
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen : Press the
Scan button to switch
between Scan category and turning scan off
SoundHound Runs the SoundHound feature.For more detailed feature, please refer to SoundHound section in Info part.
SEEK/
TRACK If button is pressed (less than 0.8 seconds) moves to previous/next
file or play the current tr
ac
k from the beginning
!Ÿ
If play time is less than 3 seconds, moves to previous/next file
!Ÿ
If play time is over than 3 seconds, play the current file from the
beginning
If button is pressed (over than 0.8 seconds) it will rewind/fast-forward the
track
TUNE Turn the
TUNE knob to search a desired track. If the desired
track is displayed, press the TUNE knob to play the track. If the
TUNE knob is not pressed within 5 seconds of searching
tracks, the track info for the current track is restored.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 236 of 308
24

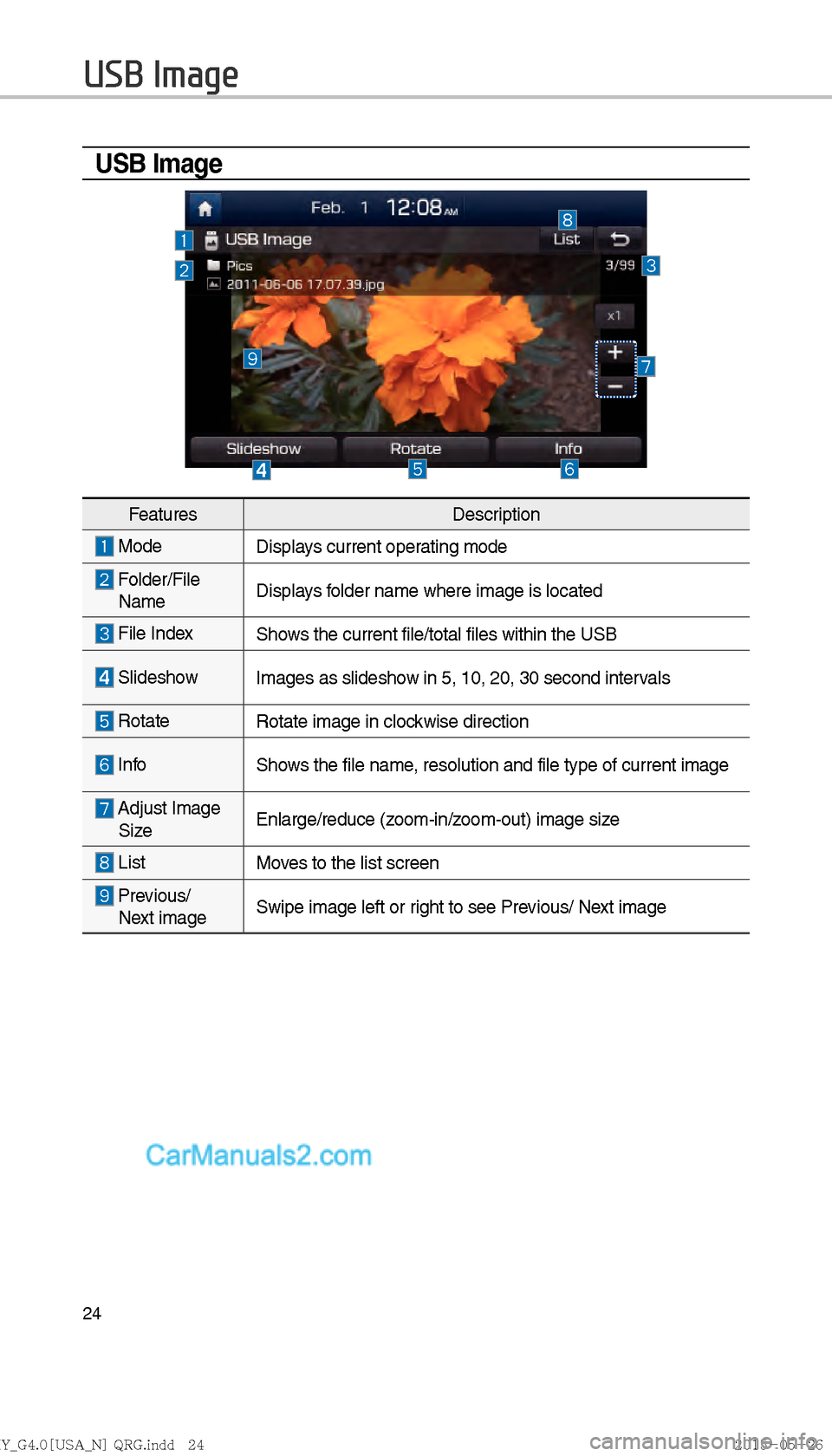

USB Image
USB Image
FeaturesDescription
Mode
Displays current operating mode
Folder/File
Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow Images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
InfoShows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next image Swipe image left or right to see Previous/ Next image
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E
. : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 237 of 308
25

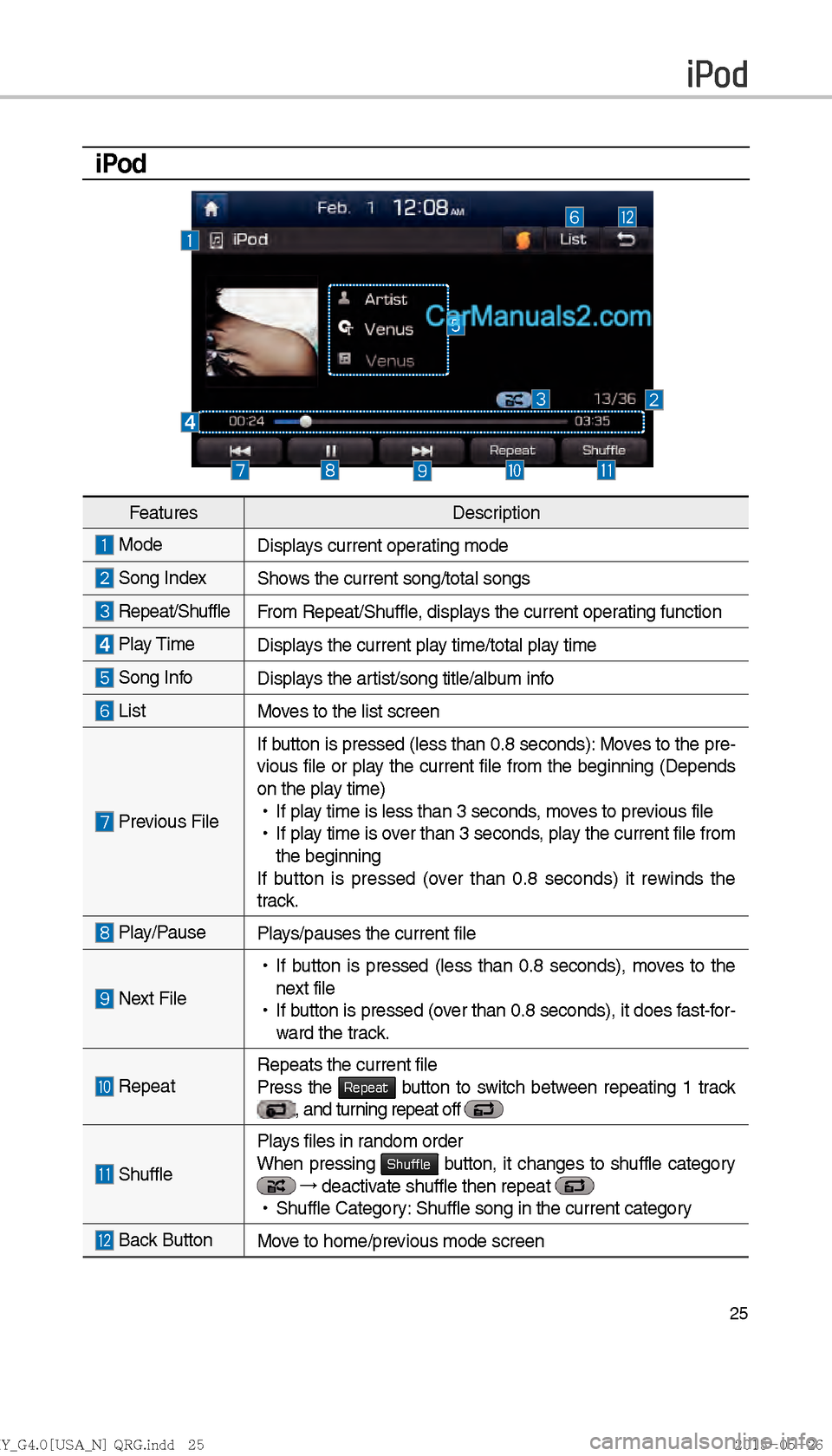

iPod
iPod
FeaturesDescription
Mode
Displays current operating mode
Song IndexShows the current song/total songs
Repeat/ShuffleFrom Repeat/Shuffle, displays the current operating function
Play Time Displays the current play time/total play time
Song InfoDisplays the artist/song title/album info
ListMoves to the list screen
Previous FileIf button is pressed (less than 0.8 seconds): Moves to the pre-
vious file or play the current file from the beginning (Depends
on the pla y time)
!Ÿ
If pla
y time is less than 3 seconds, moves to previous file
!Ÿ
If play time is over than 3 seconds, play the current file from
the beginning
If button is pressed (over than 0.8 seconds) it rewinds the
tr ac
k.
Play/Pause
Plays/pauses the current file
Next File
!Ÿ
If button is pressed (less than 0.8 seconds), moves to the
next file
!Ÿ
If button is pressed (over than 0.8 seconds), it does fast-for-
ward the trac
k.
Repeat Repeats the current file
Press the Repeat button to switch between repeating 1 track , and turning repeat off
ShufflePlays files in random order
When pressing Shuffle button, it changes to shuffle category
→
deactivate shuffle then repeat
!Ÿ
Shuffle Category: Shuffle song in the current category
Back Button Move to home/previous mode screen
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y

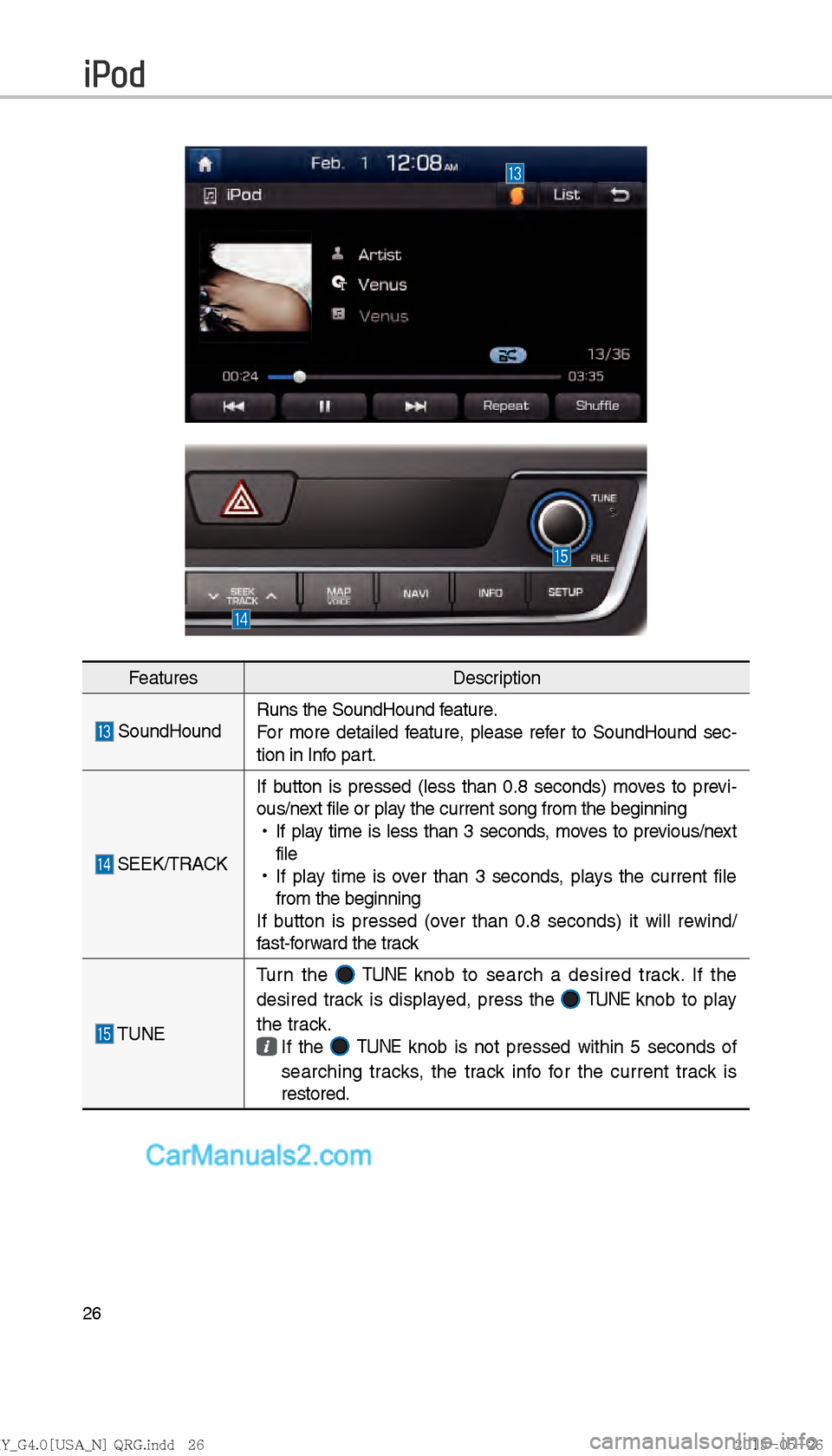

Page 238 of 308
26
FeaturesDescription
SoundHoundRuns the SoundHound feature.
For more detailed feature, please refer to SoundHound sec-
tion in Info part.
SEEK/TRACKIf button is pressed (less than 0.8 seconds) moves to previ-
ous/next file or pla
y the current song from the beginning
!Ÿ
If pla
y time is less than 3 seconds, moves to previous/next
file
!Ÿ
If play time is over than 3 seconds, plays the current file
from the beginning
If button is pressed (over than 0.8 seconds) it will rewind/
f ast-f
orw
ard the track
TUNE Turn the
TUNE knob to search a desired track. If the
desired track is displayed, press the
TUNE knob to play
the track.
If the
TUNE knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
iPod
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 239 of 308

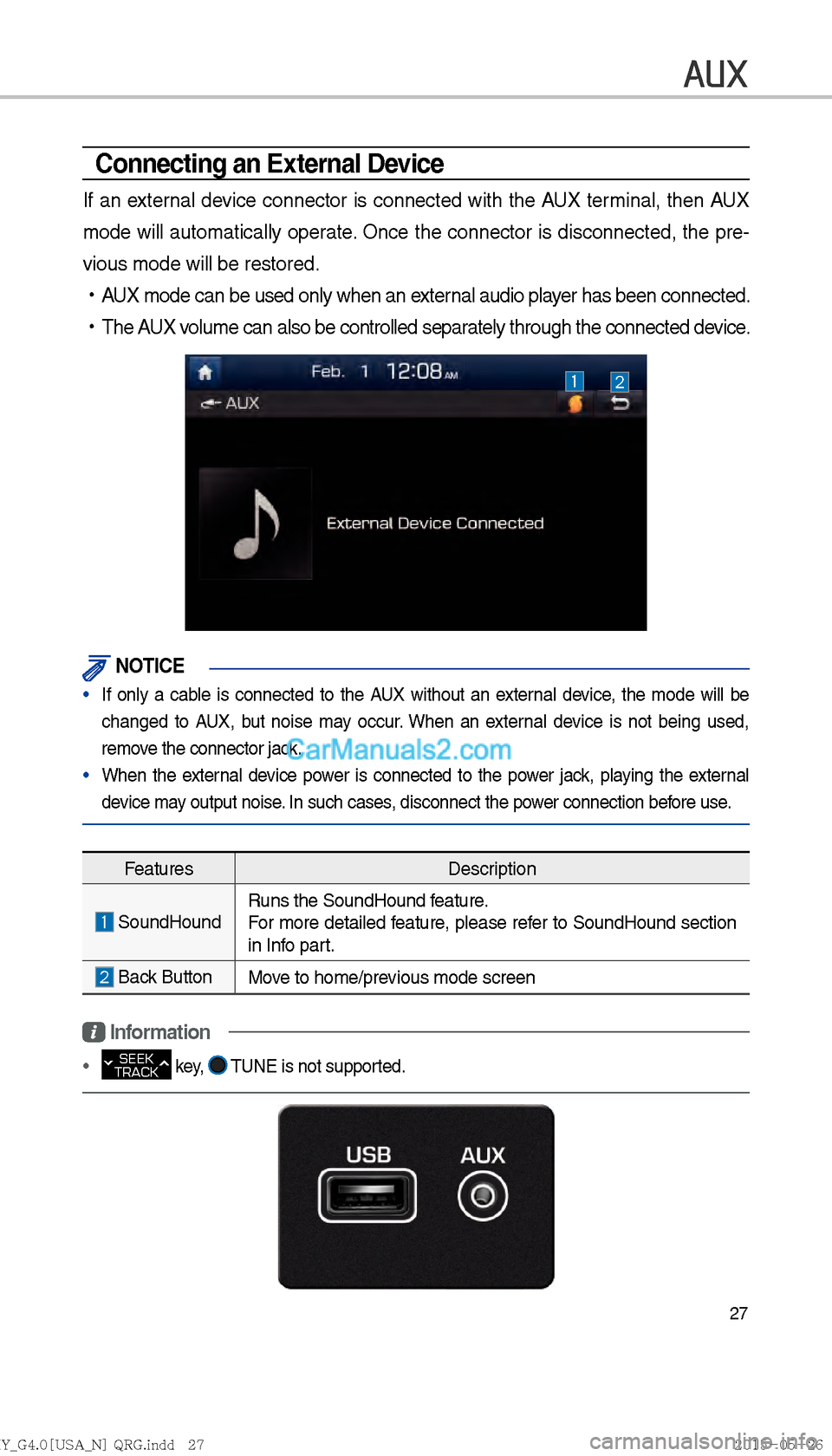

27
AUX
Connecting an External Device
If an external device connector is connected with the AUX terminal, then AUX
mode will automatically operate. Once the connector is disconnected, the pre-
vious mode will be restored.
!Ÿ
AUX mode can be used only when an external audio player has been connected.
!Ÿ
The AUX volume can also be controlled separately through the connected device.
NOTICE
If only a cable is connected to the AUX without an external device, the mode will be
changed to AUX, but noise ma
y occur. When an external device is not being used,
remove the connector jack.
When the external device power is connected to the power jack, playing the external
device ma
y output noise
. In such cases, disconnect the power connection before use.
Features Description
SoundHoundRuns the SoundHound feature.
For more detailed feature, please refer to SoundHound section
in Info part.
Back Button
Move to home/previous mode screen
Information
SEEK
TRACK key, TUNE is not supported.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
Page 240 of 308
28

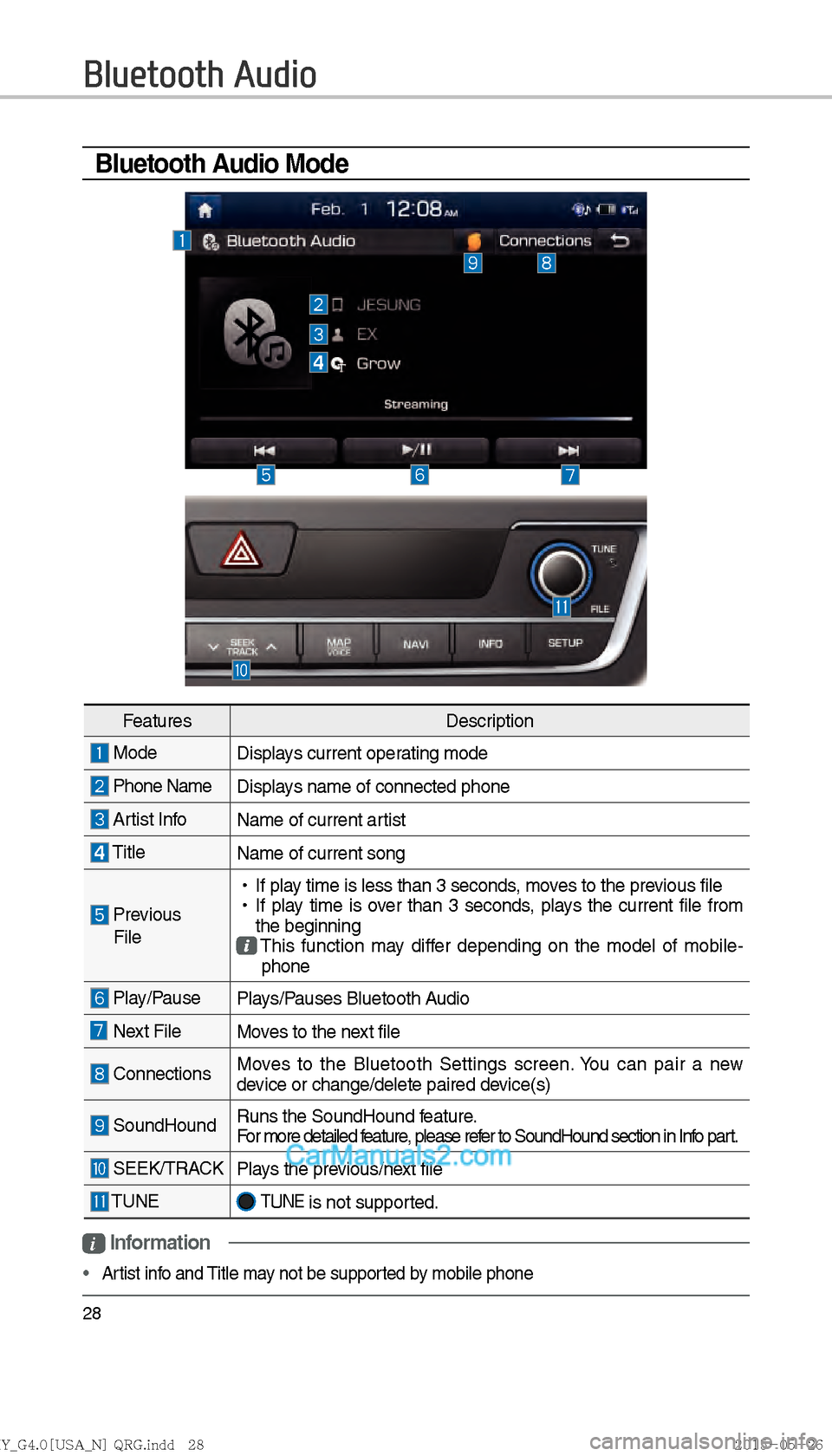

Bluetooth Audio Mode
i Information
Artist info and Title may not be supported by mobile phone
Bluetooth Audio
Features Description
Mode
Displays current operating mode
Phone Name Displays name of connected phone
Artist InfoName of current artist
TitleName of current song
Previous
File
!Ÿ
If play time is less than 3 seconds, moves to the previous file
!Ÿ
If play time is over than 3 seconds, plays the current file from
the beginning
This function may differ depending on the model of mobile-
phone
Play/Pause Plays/Pauses Bluetooth Audio
Next FileMoves to the next file
ConnectionsMoves to the Bluetooth Settings screen. You can pair a new
device or change/delete paired device(s)
SoundHound
Runs the SoundHound feature.
For more detailed feature, please refer to SoundHound section in Info part.
SEEK/TRACK
Plays the previous/next file
TUNE TUNE is not supported.
) @ - ' . : @ ( < 6 4 " @ / > 2 3 ( J O E E . : @ ( < 6 4 " @ / > 2 3 ( J O E E ß
y
