window Hyundai Sonata Plug-in Hybrid 2017 Quick Reference Guide

FEATURES AND CONTROLS
1. Pull the lever
1 down.
2. Set the angle 2 and the distance
3.
3. Pull the lever
1 up to lock position.
NOTE:
Do not adjust while driving.
2
3
1
STEERING WHEEL ADJUSTMENTS
Press the heated steering wheel
button to warm up the steering
wheel. The indicator on the button
will be illuminated. Press the button
again to turn it off.
HEATED STEERING WHEEL
NOTE:Tighten the fuel filler cap until one
click is heard.Pull the handle of the release located on
the left side of the luggage compartment.Emergency fuel filler door release1. Push the fuel filler door opener
button
1.
2. Wait until the fuel tank is
depressurized.
It may take up to 20 seconds to
open the fuel filler door (for Plug-in
hybrid) 2.
3. Remove the fuel tank cap
3.
FUEL FILLER LID

Move the lever towards L (left) or R
(right) on the switch. Adjust the mirror
by using the mirror adjustment control
switch.Outside Rearview Mirror
Power Window Lock ButtonDisables the power window switches
on the rear passenger doors.Door LockLocks / unlocks all doors. Press past detent to fully open / close
the window.Window Auto Down / Up (if equipped)
DRIVER'S MAIN CONTROLS
Quick Reference Guide I 07
06 I Quick Reference Guide
HYUNDAI
1
2
3
SONATA HYBRID/PLUG-IN HYBRID

HYUNDAI
DEFOGGING
/ DEFROSTING
2. Select the warmest
temperature.
3. Set the fan speed to
the highest speed.1. Press the defrost
button.
AIR INTAKE CONTROL
SYSTEM OFF
Pressing the OFF button will place the system to the OFF mode.
• Climate control fan will turn off.
• Outside (fresh) air position will be selected.
• Vented air will be at last set temperature.
Controls the modes, fan speeds, air intake and
air-conditioning automatically.
AUTOMATIC HEATING / AIR CONDITIONING
1 Driver’s Temperature Control Knob 2 Passenger’s Temperature Control Knob3 AUTO (Automatic Control) Button4 OFF Button5 Fan Speed Control Button6 Air Conditioning Button7 SYNC Button
8 Front Windshield Defrost Button
9 Rear Window Defrost Button
10 DRIVER ONLY Button
11 Mode Selection Button
12 ECON (Economy Air Conditioning)
Button
13 Air Intake Control Button
14 Climate Control Information
Screen
Changes the direction of the air flow as following:
MODE SELECTION
Recirculated air position
Outside (fresh) air position
NOTE:To reduce the tendency of the glass fogging and also improve the
visibility, keep the interior surface of the windshield clean by wiping it
with a clean cloth and glass cleaner. In addition, select air intake control
to the outside (fresh) air position whenever possible while operating the
vehicle.
FEATURES AND CONTROLS

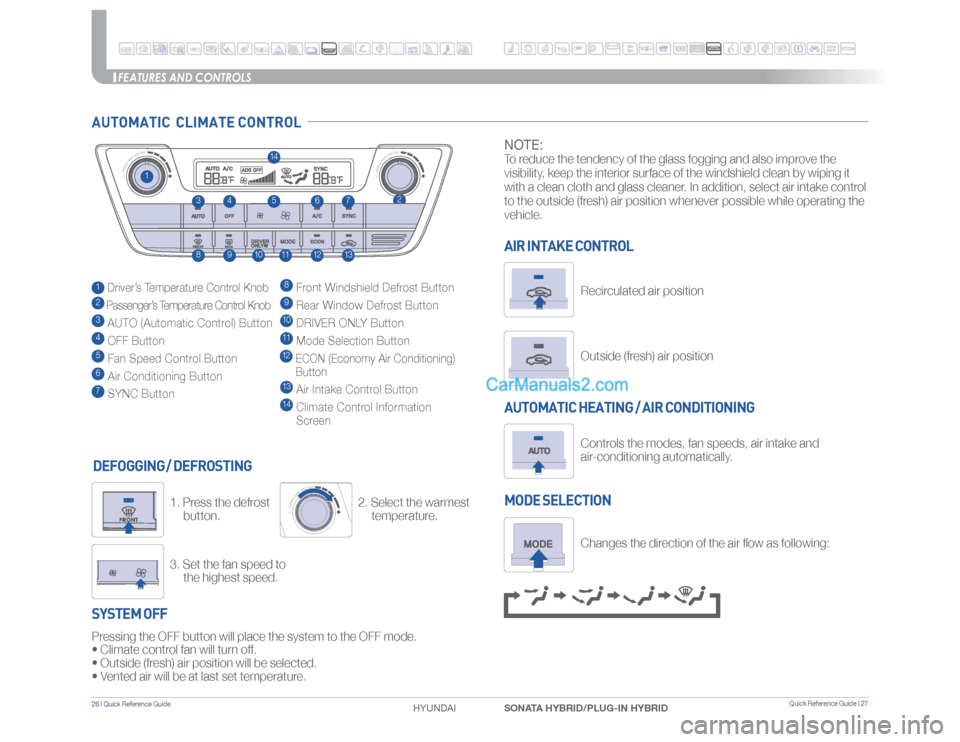

AUTOMATIC CLIMATE CONTROL
2
38
49
1
514
10
11
612
713
Quick Reference Guide I 27
26 I Quick Reference Guide
SONATA HYBRID/PLUG-IN HYBRID

1 VOLUME

Raises or lowers the speaker
volume.
2 SEEK / PRESET Change station.3 MODE Change the audio source.4 MUTE
Mute the sound.
Making a call using voice recognition: The menu tree identifies available voice recognition Bluetooth
® functions.
Calling by Name:
1. Press
button.
2. Say the following command:
• “Call ”: Connects the call to John.
• “ Call on :
Connects the call to John’s Mobile, Home, or Office phone
number.
Dialing by Number:
1. Press the
button.
2. Say “Dial Number.”
3. Say the desired phone number.
For the complete list of commands, please refer to your Owner’s Manual.
MULTIMEDIA
2233
114STEERING WHEEL AUDIO CONTROL To Answer a Call:
• Press the
button on the steering wheel.
To Reject a Call:
• Press the button on the steering wheel.
To Adjust Ring Volume:
• Use the VOLUME buttons on the steering wheel.
To Transfer a Call to the Phone
(Private call on handset – do not use while driving):
• Press and hold the
button on the steering wheel until the
audio system transfers a call to the phone.
To Finish a Call:
• Press the
button on the steering wheel. In the following situations you or the other party may have difficulty hearing
each other:
1. Keep the Bluetooth
® volume low. High level volume may result in distortion
and echo.
2. When driving on a rough road, high speeds and / or with the window open.
3. When the air conditioning vents are facing the microphone and / or when
the air conditioning fan is at the max speed.
Steering wheel bluetooth
® control
1 TALK
Activates voice recognition.
2 CALL Places and transfers calls.3 END Ends calls or cancels functions.
2
3
1
BLUETOOTH
® OPERATIONAL TIPS
Quick Reference Guide I 29
28 I Quick Reference Guide
HYUNDAI SONATA HYBRID/PLUG-IN HYBRID

Setting Vehicle Distance (Advanced
Smart Cruise Control only)The vehicle to vehicle distance
5 will
automatically activate when you set
the cruise speed
6. This system assist you in setting the
distance from the vehicle ahead and
will maintain the selected distance
without you depressing the
accelerator or the brake pedal.
Each time the vehicle distance set
button is pressed, the vehicle to
vehicle distance changes as follows: The Cruise Control system allows
you to program the vehicle to
maintain a constant speed without
holding the accelerator pedal.
1 To turn On / Off the Cruise Control.2 To Resume or Increase
the Cruise Control speed.3 To Set or Decrease
the Cruise Control speed.4 To Cancel the Cruise Control.
If your vehicle is equipped with Advanced Smart Cruise Control and
you wish to eliminate the vehicle distance function, you can change
cruise control setting to a standard setting.
Press the Cruise Control button on the steering wheel to turn on the
Cruise Control. Then press and hold the vehicle distance button for
more than 2 seconds to toggle between the Smart Cruise Control
(SCC) and Cruise Control (CC) mode.
Please refer to your Owner's Manual for more information.
Distance 2 Distance 3 Distance 4
Distance 1
The following tips may help benefit you to maximizing fuel economy
and experience Hybrid driving.
Set headlight switch to AUTO or OFF
when not in use. This will help preserve
Hybrid battery charge.
Set climate control to ECON mode.
Try to drive in the ECO zone and maintain
EV Mode indicator to illuminate as much
as possible. Common practice:
•Check tire pressure
•Roll windows up when driving
•Properly maintain your vehicle
•Turn the Climate Control system off during cold start.
Driving suggestions to improve fuel economy:•Drive smoothly.
•Accelerate at moderate speed.
•Try to maintain your speed with traffic to prevent unnecessary
speed adjustments.
•Always maintain a safe driving distance from the vehicle in
front of you so you can avoid unnecessary braking.
+
DRIVING
CRUISE CONTROL / SMART CRUISE CONTROL
HYBRID DRIVING TIPS
6
234
5
1
Quick Reference Guide I 49
48 I Quick Reference Guide
HYUNDAI SONATA HYBRID/PLUG-IN HYBRID

SONATA CUSTOMER DELIVERY CHECK LIST HYUNDAI OWNER DEALERSHIP NAME SALES CONSULTANT DATE VIN PREVIOUS VEHICLE Sales Consultant Date Sales Manager Date
Customer Date
Email☐

SET TIRE PRESSURE LF

RF
RR
LR
☐
VERIFY VEHICLE IS CLEAN, IN GOOD CONDITION,
FREE OF CHIPS AND SCRATCHES · CLEAN WINDSHIELD
AND BACK WINDOW
☐ ENSURE FLOORMATS ARE SNAPPED INTO PLACEBEFORE DELIVERY
Quick Reference Guide I 53
52 I Quick Reference Guide
HYUNDAI SONATA HYBRID/PLUG-IN HYBRID
