child lock Hyundai Terracan 2003 Owner's Manual

FEATURES OF YOUR HYUNDAI
1- 6 B040B01A-AAT Locking and Unlocking Front Doors With a Key
B040B01HP
LOCK
UNLOCK
B040A01A-AAT DOOR LOCKS WARNING:
o Unlocked doors can be dangerous. Be-
fore you drive away (especially if there are children in the car), be sure that all the doors are securely closed and locked so that the doors cannot be inadvertently opened from the inside. This helps ensure that the doors will not be opened acciden- tally. Also, when combined with the proper use of seat belts, locking the doors helps keep occupants from being ejected from the car in case of an accident.
o Before opening the door, always look for and avoid oncoming traffic.
B030C01Y-AAT ILLUMINATED IGNITION SWITCH Whenever a door is opened, the ignition switch will be illuminated for your convenience, provid- ed the ignition switch is not in the "ON" position. The light will go off approximately 10 seconds after closing the door or when the ignition switch is turned on.
B030C01E
cator will blink along with the operation of the ignition key. For example, turn the ignition key once for digit number "1", and twice for "2", and so on. However, for the digit number "0", you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of digits by following the same procedures 1 and 2.
4. If all of four digits have been tried success-
fully, turn the ignition key "ON" and check thatthe immobilizer indicator illuminates. From this time, you have to start your engine within 30 seconds. If you start your engine after 30 seconds, your engine will not start.
NOTE: If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds without limp home proce- dure again.
5. If the immobilizer indicator blinks for five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure, you have to consult with your authorized Hyundai dealer as soon as possible. CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, youhave to wait for about one hour to do the limp home procedure again. o If you cannot start your engine in spite of
limp home procedure, have your vehicle towed by an authorized Hyundai dealer.

FEATURES OF YOUR HYUNDAI 1- 7
o The door can be locked or unlocked with akey.
o Lock the door by turning the key toward the
front of the vehicle and unlock it by turning the key toward the rear.
B040C02Y-DAT Locking from the Outside
B040C01HP
The doors can be locked without a key. To lock the doors, first push the inside lock switch to the "LOCK" position so that the red mark on the switch is not visible, then close the door. The door will not lock if the key is left in the ignition switch when the front doors are closed. This is normal. NOTE:
o When locking the door this way, be careful not to lock the door with the ignition keyleft in the vehicle.
B040D01S-AAT Locking from the Inside To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position. When this is done, neither the outside nor the inside door handles can be used. NOTE: When the door is locked, the red mark on the switch is not visible.
B040D01O
LOCK
UNLOCK
o To discourage theft, always remove the
ignition key, close all windows, and lock all doors when leaving your vehicle unat- tended. B040E03A-AAT CHILD-PROTECTOR REAR DOOR LOCK Your Hyundai is equipped with a "child-protec- tor" rear door lock assembly. When the lock mechanism is engaged, the rear door cannot be opened from the inside. Its use is recommended whenever there are small children in the rear seat. To engage the child-protector feature so the door cannot be opened from the inside, move the child-protector lever to the " " position and close the door. Move the lever to the opposite direction of the " " position when normal door operation is desired. If you wish to be able to open the door from the outside, the outside door handle will function normally.
B040E01HP

FEATURES OF YOUR HYUNDAI 1- 11
B060A02HP
NOTE: The power windows can be operated for 30 seconds after the ignition key is turned to the "ACC" or "LOCK" positions, or removed from the ignition switch. If the front doors are opened during this 30 second period, the power windows can no longer be operated without the ignition key turned to the "ON" position. WARNING:
(1) Be careful that someone's head, hands and body are not trapped by a closingwindow.
(2) Never try to operate the main switch on
the driver's door and the individual door window switch in opposing directions at the same time. If this is done, the window will stop and cannot be opened or closed.
(3) Do not leave children alone in the car. Always remove the ignition key for their safety. To move the seat toward the front or rear, pull the lock release lever upward. This will release the seat on its track so you can move it forward or rearward to the desired position. When you find the position you want, release the lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot be moved further.
B080A01A-AAT ADJUSTABLE FRONT SEATS WARNING: Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an accident which may cause death, serious injury, or property damage. B080B02A-AAT Adjusting Seat Forward and Rearward
B080B01HP
B080C01A-AAT Adjusting Seatback Angle
To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback into position, release the recliner control lever. WARNING: To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver and passenger seatbacks should always be in an upright position while the vehicle is in motion. The protection provided by the seat
B080C01HP
WARNING: To ensure the seat is locked securely, at- tempt to move the seat forward or rearward without using the lock release lever.

FEATURES OF YOUR HYUNDAI
1- 24
B230F01A-GAT Installation on Center Rear Seat Use the center seat belt for the rear to secure the child restraint system as illustrated. After instal- lation of the child restraint system, rock the child seat back and forth, and side to side to ensure that it is properly secured by the seat belt. If the child seat moves, readjust the length of the seat belt. Then, if equipped, insert the child restraint tether strap hook into the child restraint hook holder and tighten to secure the seat. Always refer to the child restraint system manufacturer's recommendation before install- ing the child restraint system in your vehicle.
B230G01A-GAT Installation on the Outboard Rear Seats To install a child restraint system on the outboard rear seats, extend the shoulder/lap belt from its retractor. Buckle the seat belt and allow the seat belt to take up any slack. Make sure that the lap portion of the belt is tight around the child re- straint system and the shoulder portion of the belt is positioned so that it cannot interfere with the child's head or neck. After installation of the child restraint system, try to move it in all directions to be sure the child restraint system is securely installed. If you need to tighten the belt, pull more webbing toward the retractor. When you unbuckle the seat belt and allow it to retract, the retractor will automatically revert back to its normal seated passenger emergency locking usage condition.
B235G02YYR10400B
NOTE:
o Before installing the child restraint sys-
tem, read the instructions supplied by thechild restraint system manufacturer.
o If the seat belt does not operate as de-
scribed, have the system checked imme- diately by your authorized Hyundai dealer.
WARNING: Do not install any child restraint system in the front passenger seat. Should an accident occur and cause the passenger's side airbag to deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Therefore, only use a child restraint system in the rear seat of your vehicle.

FEATURES OF YOUR HYUNDAI 1- 27
WARNING:
o Do not install a child restraint seat at the
center of the rear seat using the vehicle'sISOFIX anchors. The ISOFIX anchors are only provided for the left and right out- board rear seating positions. Do not mis- use the ISOFIX anchors by attempting to attach a child restraint seat in the middle of the rear seat to the ISOFIX anchors. In a crash, the child restraint seat ISOFIX attachments may not be strong enough to secure the child restraint seat properly in the center of the rear seat and may break, causing serious injury or death.
o Do not mount more than one child re-
straint to a child restraint lower anchor- age point. The improper increased load may cause the anchorage points or tether anchor to break, causing serious injury or death.
o Attach the ISOFIX or ISOFIX-compatible
child restraint seat only to the appropriate locations shown in the illustration.
o Always follow the installation and use instructions provided by the manufacturer of the child restraint.
Age Group Seating PositionFront
Passenger Rear
Outboard Rear
Center
0 : Up to 10 kg (0 ~ 9 months) 0+ : Up to 13 kg (0 ~ 2 years) I : 9kg to 18kg (9 months ~ 4 years) II & III : 15kg to 36kg (4 ~ 12 years)XUU
XUU
X U, L1 U XU FUF
B230H02HP-GAT Child Seat Restraint Suitability For Seat Posi- tion Use child safety seats that have been officially approved and are appropriate for your children. When using the child safety seats, refer to the following table .
U : Suitable for "universal" category restraints
approved for use in this mass group
UF : Suitable for forward-facing "universal" cat- egory restraints approved for use in this mass group
L1: Suitable for "Römer ISOFIX GR1" approved
for use in this mass group (Approval No: E1 R44-03301133)
X : Seat position not suitable for children in this mass group Your Hyundai vehicle is equipped with driver'sand front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against the occu- pant's body in certain frontal collisions. The pre-tensioner seat belts can be activated alone or, where the frontal collision is severe enough, together with the airbags. When the vehicle stops suddenly, or if the occu- pant tries to lean forward too quickly, the seat belt retractor will lock into position. In certain frontal collisions, the pre-tensioner will activate and pull the seat belt into tighter contact against the occupant's body.
B180B02HP-AAT Pre-tensioner Seat Belt (If installed)
B180B01S

INDEX 10-1
A Air bag
................................................................................... 1-29 ~ 1-32
Air Cleaner Filter ............................................................................... 6-10
Air Conditioning Care .............................................................................................. 6-14
Operation .............................................................................. 1-72, 6-15
Switch ............................................................................................ 1-71
Air Filter (For Evaporator and Blower Uni t) ............................. 1-78, 6-15
Antenna ............................................................................................. 1-98
Ashtray .............................................................................................. 1-52
Audio Fault Code .............................................................................. 1-95
Automatic Heating and Cooling Control System ................... 1-73 ~ 1-77
BBattery ...................................................................................... 2-14, 6-18
Bi-Level Heating ................................................................................ 1-69
Brake
Anti-lock system .............................................................................. 2-8
Checking the brakes ..................................................................... 6-13
Fluid ............................................................................................... 6-13
Pedal clearance ............................................................................ 6-17
Pedal free-play .............................................................................. 6-17
Practices ....................................................................................... 2-12
Breaking-In your New Hyundai ........................................................... 1-2 CCare of Cass
ette Tapes ................................................................... 1-96
Care of Disc ...................................................................................... 1-96
Cassette Tape Player Operation (H240) ............................... 1-84 ~ 1-85
Cassette Tape Player Operation (H280) ............................... 1-89 ~ 1-90
Catalytic Con verte .............................................................................. 7-1
CD Auto changer (H280) ............................................. 1-59, 1-93 ~ 1-94
Child Restraint System .......................................................... 1-23 ~ 1-27
Child-Protector Rear Door Lock ......................................................... 1-7
Cigarette Lighter ................................................................................ 1-51
Clock ................................................................................................. 1-50
Clutch Checking fluid ................................................................................ 6-14
Pedal free-play .............................................................................. 6-17
Combination Light Headlight flasher ........................................................................... 1-48
Headlight switch ............................................................................ 1-48
High-beam switch .......................................................................... 1-48
Lane change signal ....................................................................... 1-47
Parking light auto cut .................................................................... 1-48
Turn signal operation .................................................................... 1-47
Compact Disc Player Operation (H280) ................................ 1-91 ~ 1-92
Cooling Fans ..................................................................................... 6-20
Corrosion protection
Cleaning the interior ........................................................................ 4-3
Protecting your Hyundai from corrosion ......................................... 4-1Washing and waxing ....................................................................... 4-2
Cruise Control ........................................................................ 1-64 ~ 1-66
10. INDEX
10

CONTROLS AND EQUIPMENT1- 5
B030C01Y-EAT ILLUMINATED IGNITION SWITCH (Not all models)
B030C01E
Whenever a door is opened, the ignition switch
will be illuminated for your convenience, provid- ed the ignition switch is not in the "ON" position.The light will go off approximately 10 secondsafter closing the door or when the ignition switchis turned on.
o The door can be locked or unlocked with a key.
o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key toward the rear.
B040A01A-EAT DOOR LOCKS WARNING:
o Before you drive away, be sure that all
the doors are securely closed. It is also recommended that the child-protectorrear door locks are in the 'lock' positionso that children cannot open the reardoors from inside the vehicle acciden-tally.
o Before opening the door, always look for and avoid oncoming traffic. B040B01A-AAT Locking, Unlocking Front Doors With
a Key
B040B01HP.DAG
UNLOCK
LOCK

CONTROLS AND EQUIPMENT
1- 6
SB040F1-E CHILD-PROOF REAR DOOR LOCK The rear doors are fitted with child proof locks to prevent accidental opening of the doors us-ing the inside door handle, whilst allowing ac-cess by means of the outside handle (such asis required in the event of an acccident forexample) provided that the door lock button isat the unlocked position. Use of the child prooflock mechanism is recommended when chil-dren are carried in the vehicle. The child proof lock mechanism may be acti- vated by opening the door and moving the leverlocated by the door latch to the "
" position.
Move the lever to the opposite direction of ""
position when normal door operation is desired.
B040E01HP.DAG
B040C02Y-DAT Locking From the OutsideB040C01HP.DAG
The doors can be locked without a key. To lock
the doors, first push the inside lock switch to the "LOCK" position so that the red mark on theswitch is not visible, then close the door.
The door will not lock if the key is left in the
ignition switch when the front doors are closed.This is normal.
NOTE:
o When locking the door this way, be care- ful not to lock the door with the ignitionkey left in the vehicle.
o To help prevent theft, always remove the ignition key, close all windows, and lockall doors when leaving your vehicle unat-tended.
B040D01S-AAT Locking from the Inside To lock the doors from the inside, simply close
the door and push the lock switch to the "LOCK" position. When this is done, neither the outsidenor the inside door handles can be used.
NOTE:
When the door is locked, the red mark on theswitch is not visible.
HSM365-D
LOCK
UNLOCK

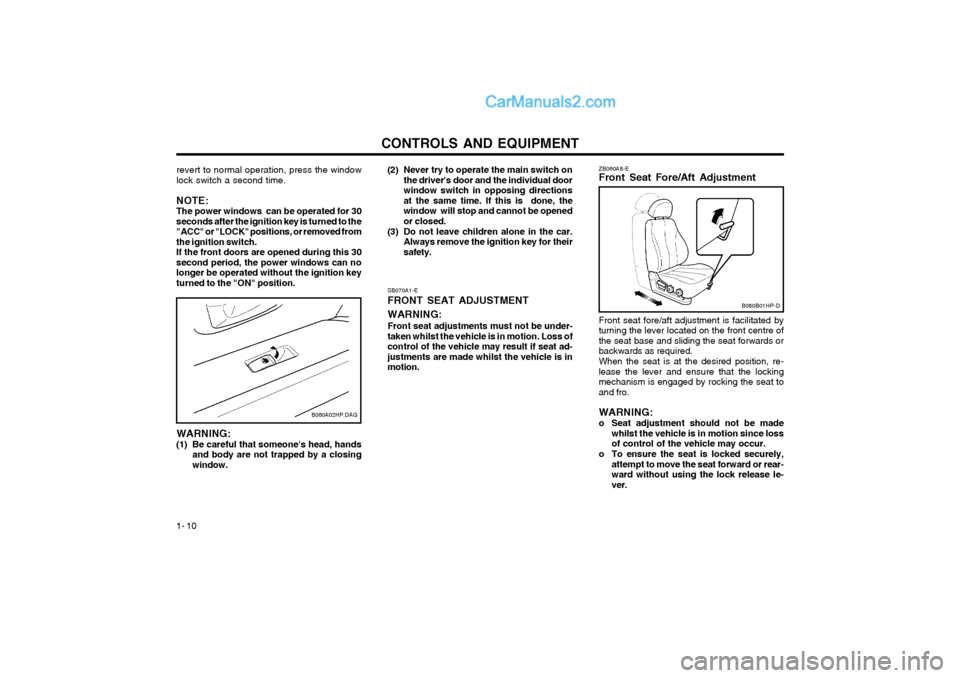

CONTROLS AND EQUIPMENT
1- 10
ZB060A8-E Front Seat Fore/Aft Adjustment
B080B01HP-D
Front seat fore/aft adjustment is facilitated by turning the lever located on the front centre ofthe seat base and sliding the seat forwards orbackwards as required. When the seat is at the desired position, re- lease the lever and ensure that the lockingmechanism is engaged by rocking the seat toand fro. WARNING:
o Seat adjustment should not be made whilst the vehicle is in motion since loss of control of the vehicle may occur.
o To ensure the seat is locked securely, attempt to move the seat forward or rear-ward without using the lock release le-ver.
SB070A1-E FRONT SEAT ADJUSTMENT WARNING:
Front seat adjustments must not be under- taken whilst the vehicle is in motion. Loss ofcontrol of the vehicle may result if seat ad-justments are made whilst the vehicle is inmotion.
B060A02HP.DAG
revert to normal operation, press the window lock switch a second time.
NOTE:The power windows can be operated for 30seconds after the ignition key is turned to the"ACC" or "LOCK" positions, or removed fromthe ignition switch.If the front doors are opened during this 30second period, the power windows can nolonger be operated without the ignition keyturned to the "ON" position. (2) Never try to operate the main switch on
the driver's door and the individual doorwindow switch in opposing directionsat the same time. If this is done, thewindow will stop and cannot be openedor closed.
(3) Do not leave children alone in the car. Always remove the ignition key for theirsafety.
WARNING:
(1) Be careful that someone's head, hands and body are not trapped by a closingwindow.

CONTROLS AND EQUIPMENT1- 19
B220C01A-EAT To Release the Seat Belt When you want to release the seat belt, press
the button in the locking buckle.
WARNING: The centre lap belt latching mechanism is
different from those for the rear seat shoul-der belts. When fastening the rear seat shoul-der belts or the centre lap belt, make surethey are inserted into the correct buckles toobtain maximum protection from the seatbelt system and assure proper operation.
HHP231-1
B220B01A-AAT Adjusting Your Seat BeltHTB226
With a 2-point static type seat belt, the length must be adjusted manually so it fits snugly aroundyour body. Fasten the belt and pull on the looseend to tighten. The belt should be placed as lowas possible on your hips, not on your waist. If thebelt is too high, it could increase the possibility ofyour being injured in an accident. Correct
Shorten Too high
B230A03P-EAT CHILD RESTRAINT SYSTEMChildren riding in the car should sit in the rear
seat and must always be restrained to minimize the risk of injury in an accident, sudden stop orsudden manoeuvre. According to accident sta-tistics, children are safer when properly re-strained in the rear seats than in the front seat.Larger children should use one of the seat beltsprovided.
You are required by law to use safety restraints
for children. If small children ride in your vehicleyou must put them in a child restraint system(safety seat).
Children could be injured or killed in a crash if
their restraints are not properly secured. Forsmall children and babies, a child seat or infantseat must be used. Before buying a particularchild restraint system, make sure it fits your carseat and seat belts, and fits your child. Followall the instructions provided by the manufac-turer when installing the child restraint system.
