Hyundai Terracan 2005 Owner's Manual

8CONSUMER INFORMATION
6
!WARNING:
o Driving on worn-out tires is dan- gerous! Worn-out tires can cause loss of braking effective-ness, steering control and trac- tion. When replacing tires, never mix radial and bias-ply tires onthe same car. If you replace ra- dial tires with bias-ply tires, they must be installed in sets of four.
o Your vehicle is equipped with tires designed to provide for saferide and handling capability.Do not use a size and type oftire and wheel that is different from the one that was originally installed on your vehicle. It canaffect the safety and perfor- mance of your vehicle, which could lead to handling failure orrollover and serious injury.When replacing the tires, be sureto equip all four tires with thetire and wheel of the same size, type, tread, brand and load-car- rying capacity. If you neverthe-less decide to equip your ve-

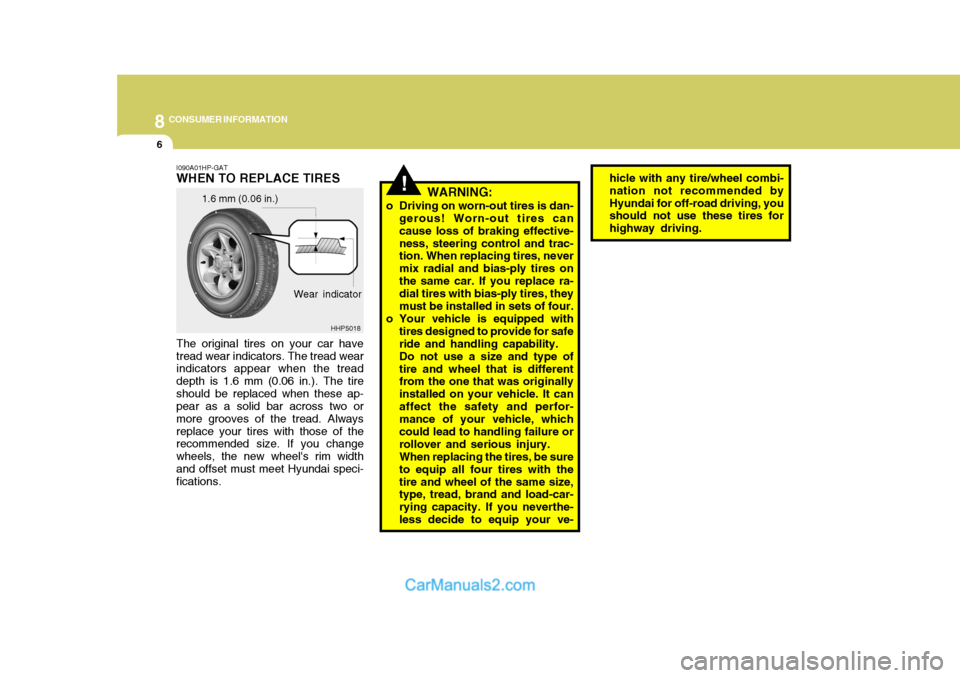

I090A01HP-GAT WHEN TO REPLACE TIRES
1.6 mm (0.06 in.)
The original tires on your car have tread wear indicators. The tread wear indicators appear when the tread depth is 1.6 mm (0.06 in.). The tireshould be replaced when these ap- pear as a solid bar across two or more grooves of the tread. Alwaysreplace your tires with those of the recommended size. If you change wheels, the new wheel's rim widthand offset must meet Hyundai speci- fications. Wear indicator
HHP5018 hicle with any tire/wheel combi- nation not recommended byHyundai for off-road driving, you should not use these tires for highway driving.

8
CONSUMER INFORMATION

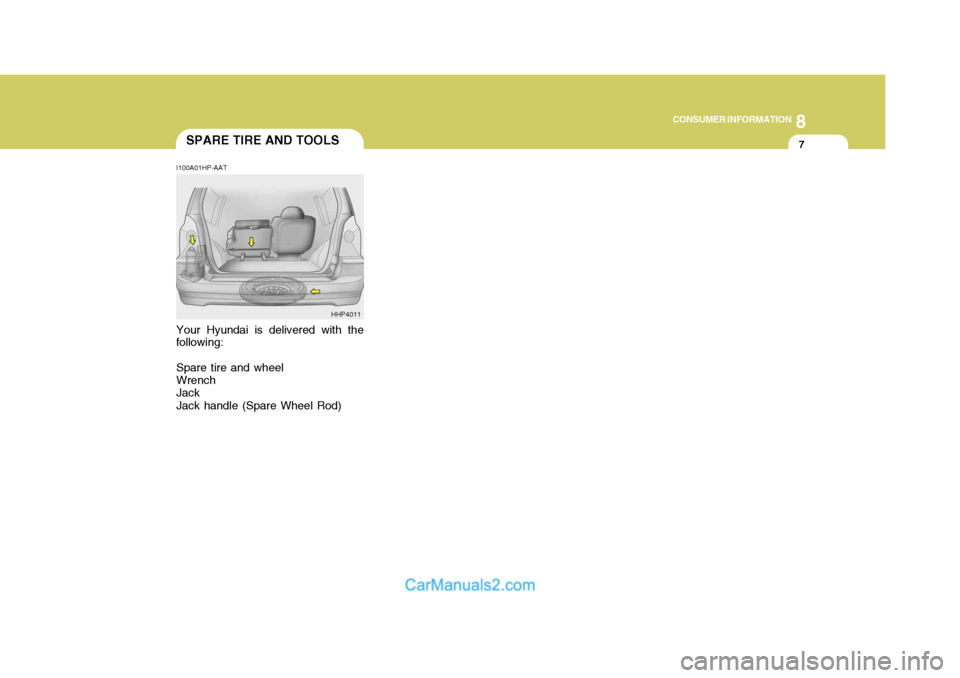

7SPARE TIRE AND TOOLS
I100A01HP-AAT Your Hyundai is delivered with the
following:
Spare tire and wheel Wrench Jack Jack handle (Spare Wheel Rod) HHP4011

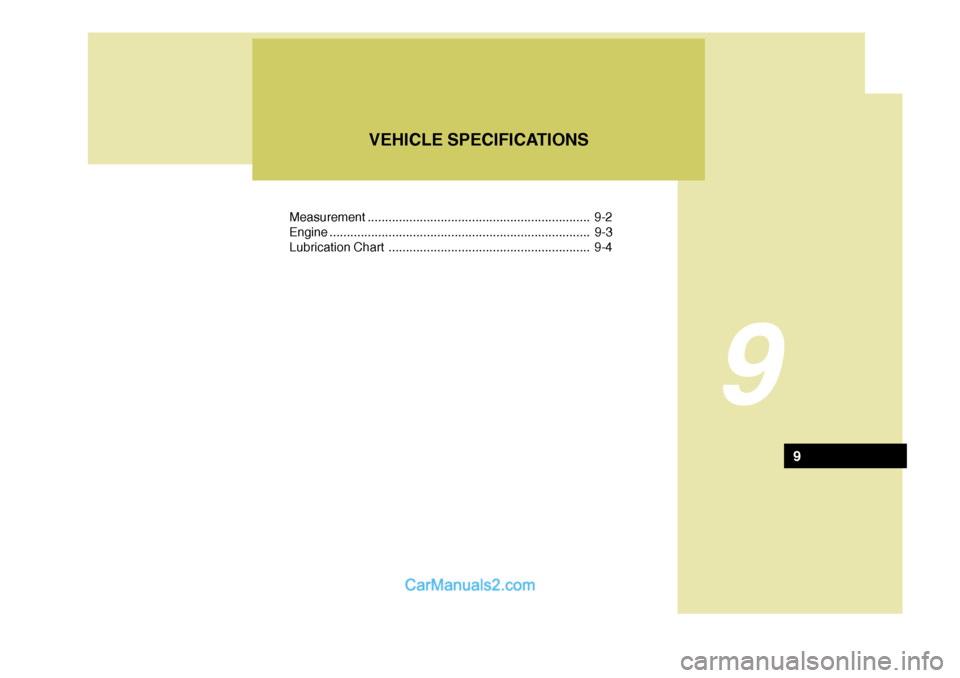

Measurement................................................................ 9-2
Engine ........................................................................... 9-3
Lubrication Chart .......................................................... 9-4
9
VEHICLE SPECIFICATIONS
9

9 VEHICLE SPECIFICATIONS
2

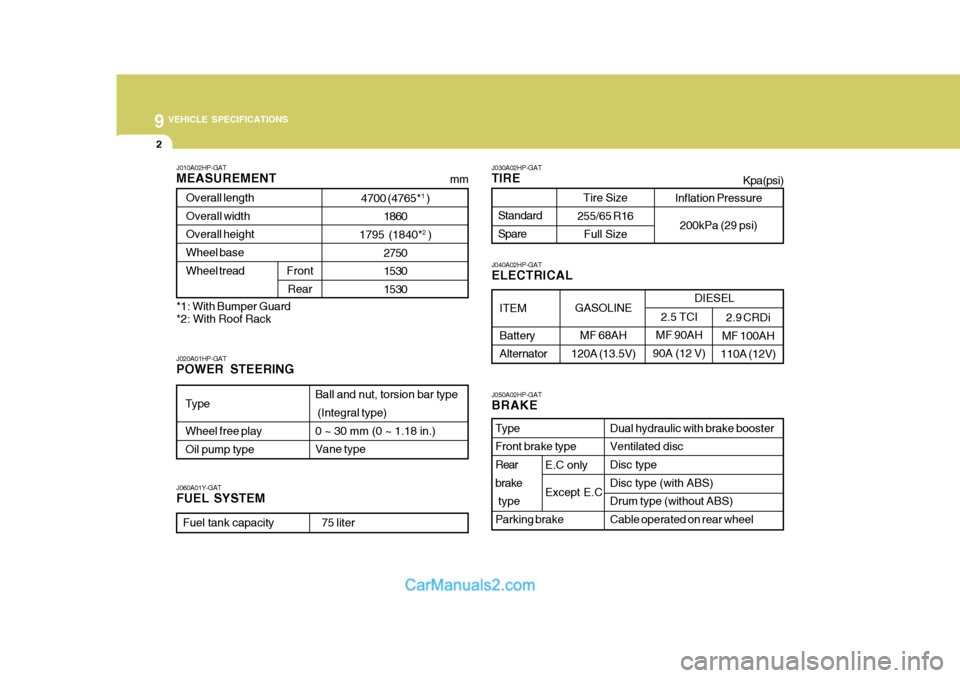

J010A02HP-GAT MEASUREMENT
4700 (4765* 1
)
1860
1795 (1840* 2
)
2750 15301530
Overall length Overall width Overall heightWheel base Wheel tread
Front
Rear
Type Wheel free play Oil pump type Ball and nut, torsion bar type (Integral type) 0 ~ 30 mm (0 ~ 1.18 in.)Vane type
J060A01Y-GAT FUEL SYSTEM
J020A01HP-GAT POWER STEERING J030A02HP-GAT TIRE
Standard Spare
J050A02HP-GAT BRAKE Dual hydraulic with brake booster Ventilated disc Disc type Disc type (with ABS)Drum type (without ABS) Cable operated on rear wheel
Type Front brake type Rear brake type Parking brake
ITEM Battery Alternator
J040A02HP-GAT ELECTRICAL
mm
Fuel tank capacity 75 liter
2.5 TCI
MF 90AH
90A (12 V)
Tire Size
255/65 R16 Full Size Kpa(psi)
2.9 CRDi
MF 100AH
110A (12V)GASOLINE
MF 68AH
120A (13.5V)DIESEL
E.C only Except E.C*1: With Bumper Guard *2: With Roof Rack Inflation Pressure
200kPa (29 psi)

9
VEHICLE SPECIFICATIONS
3
2.9 CRDi
4-Cyl., In-line DOHC
97.1 x 98 mm (3.82 x 3.86 in.) 2902cc
16.5
Auto lash Auto lash
- - - -
800 ± 100
Automatically Adjusted
Engine Type Bore x Stroke Displacement Compression RatioFiring Order Valve clearance (Intake/Exhaust)Spark Plug Spark Plug Gap Idle Speed (rpm) Injection (or lgnition) Timing Gasoline Engine
3.5 V6
6-Cyl., V-type DOHC
93.0 x 85.8 mm (3.67 x 3.38 in.)
3497cc
10
1 - 2 - 3 - 4 - 5 - 6 Auto lash Auto lash
NGK: PFR5N-11
CHAMPION: RC10PYPB4
NGK: BKR5ES
CHAMPION: RC10YC
1.0 ~ 1.1 mm (0.039 ~ 0.043 in.)0.7 ~ 0.8 mm (0.028 ~ 0.032 in.)
800
BTDC 5° ± 2°ENGINE
J070A03HP-GAT
Cold Hot Unleaded* Leaded Unleaded* Leaded
ITEMS2.5 TCI
4-Cyl., In-line SOHC
91.1 x 95 mm (3.59 x 3.74 in.)
2476cc22
1 - 3 - 4 - 2
0.15 mm 0.25 mm
- - - -
750 ± 100
ATDC 7° ± 1° Diesel Engine
*: Platinum coated

9 VEHICLE SPECIFICATIONS
4

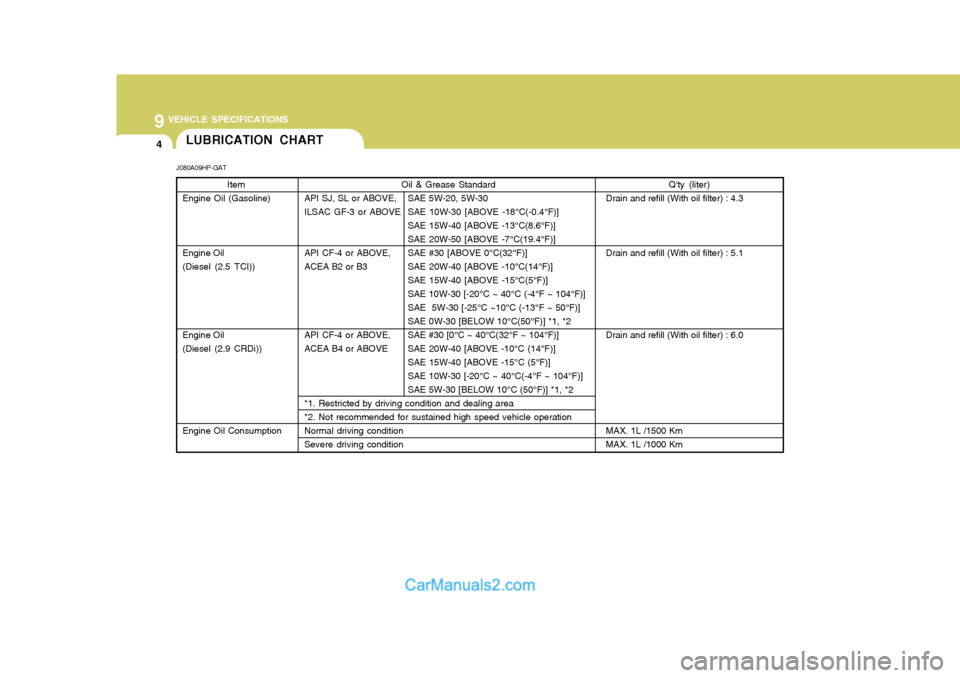

Oil & Grease Standard
API SJ, SL or ABOVE, SAE 5W-20, 5W-30
ILSAC GF-3 or ABOVE SAE 10W-30 [ABOVE -18°C(-0.4°F)] SAE 15W-40 [ABOVE -13°C(8.6°F)]SAE 20W-50 [ABOVE -7°C(19.4°F)]
API CF-4 or ABOVE, SAE #30 [ABOVE 0°C(32°F)]
ACEA B2 or B3 SAE 20W-40 [ABOVE -10°C(14°F)] SAE 15W-40 [ABOVE -15°C(5°F)]SAE 10W-30 [-20°C ~ 40°C (-4°F ~ 104°F)]SAE 5W-30 [-25°C ~10°C (-13°F ~ 50°F)]SAE 0W-30 [BELOW 10°C(50°F)] *1, *2
API CF-4 or ABOVE, SAE #30 [0°C ~ 40°C(32°F ~ 104°F)]
ACEA B4 or ABOVE SAE 20W-40 [ABOVE -10°C (14°F)] SAE 15W-40 [ABOVE -15°C (5°F)] SAE 10W-30 [-20°C ~ 40°C(-4°F ~ 104°F)]SAE 5W-30 [BELOW 10°C (50°F)] *1, *2
*1. Restricted by driving condition and dealing area*2. Not recommended for sustained high speed vehicle operationNormal driving conditionSevere driving conditionLUBRICATION CHART
J080A09HP-GAT Item
Engine Oil (Gasoline) Engine Oil (Diesel (2.5 TCI)) Engine Oil (Diesel (2.9 CRDi)) Engine Oil Consumption
Q'ty (liter)
Drain and refill (With oil filter) : 4.3 Drain and refill (With oil filter) : 5.1 Drain and refill (With oil filter) : 6.0 MAX. 1L /1500 Km MAX. 1L /1000 Km

9
VEHICLE SPECIFICATIONS
5

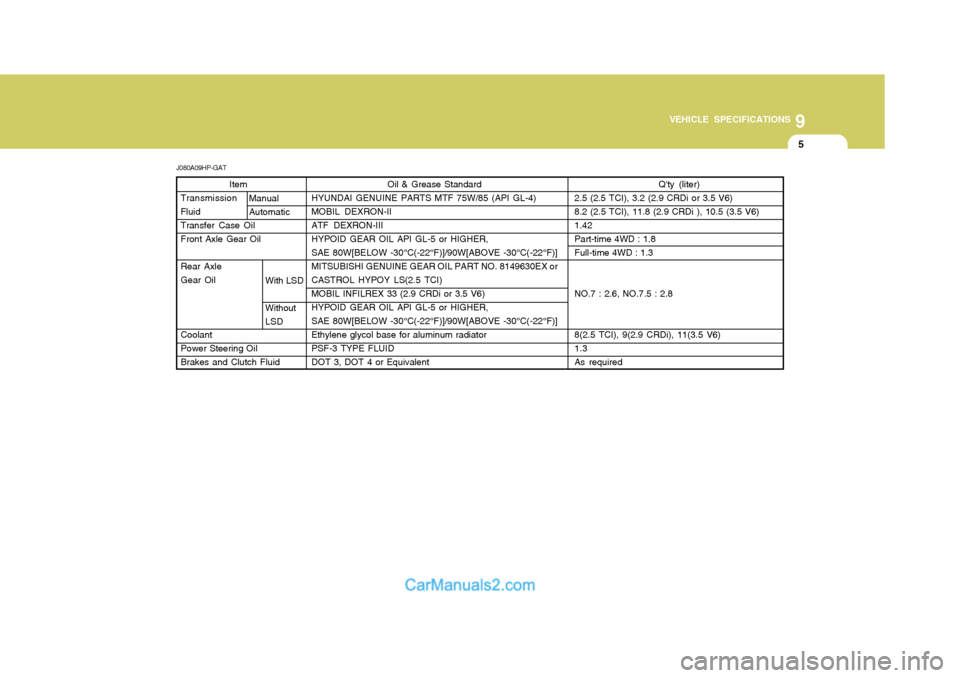

J080A09HP-GAT Item
Transmission FluidTransfer Case OilFront Axle Gear Oil Rear Axle Gear Oil Coolant Power Steering OilBrakes and Clutch Fluid Oil & Grease Standard
HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4)MOBIL DEXRON-IIATF DEXRON-IIIHYPOID GEAR OIL API GL-5 or HIGHER,SAE 80W[BELOW -30°C(-22°F)]/90W[ABOVE -30°C(-22°F)]MITSUBISHI GENUINE GEAR OIL PART NO. 8149630EX orCASTROL HYPOY LS(2.5 TCI)MOBIL INFILREX 33 (2.9 CRDi or 3.5 V6)HYPOID GEAR OIL API GL-5 or HIGHER,SAE 80W[BELOW -30°C(-22°F)]/90W[ABOVE -30°C(-22°F)]Ethylene glycol base for aluminum radiatorPSF-3 TYPE FLUIDDOT 3, DOT 4 or Equivalent
Q'ty (liter)
2.5 (2.5 TCI), 3.2 (2.9 CRDi or 3.5 V6) 8.2 (2.5 TCI), 11.8 (2.9 CRDi ), 10.5 (3.5 V6)1.42Part-time 4WD : 1.8Full-time 4WD : 1.3 NO.7 : 2.6, NO.7.5 : 2.88(2.5 TCI), 9(2.9 CRDi), 11(3.5 V6) 1.3As required
Manual Automatic
With LSD Without LSD

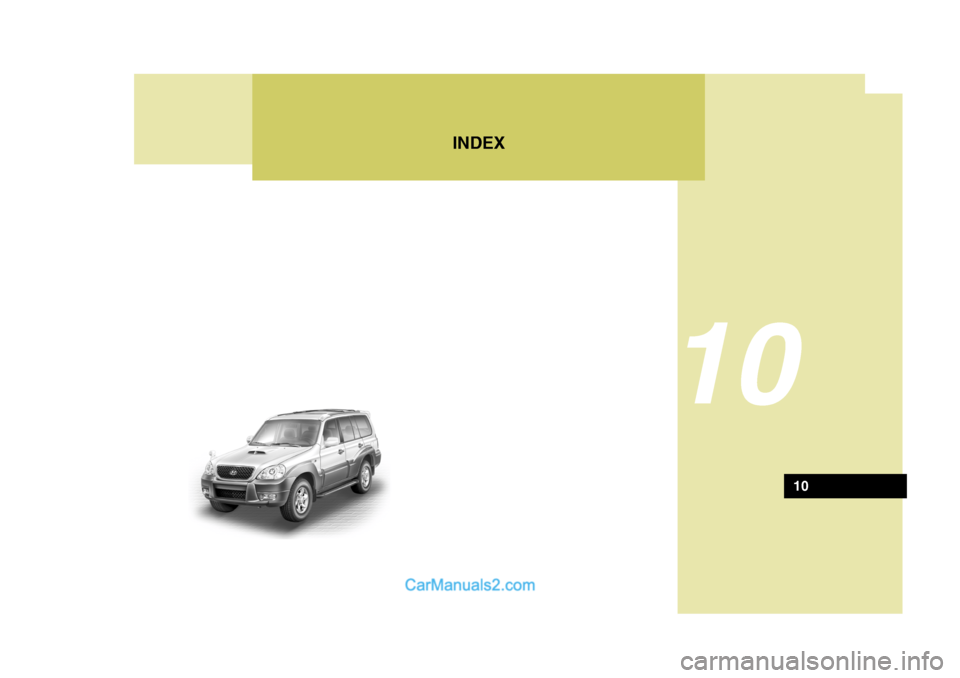

INDEX
10
10

10INDEX
2

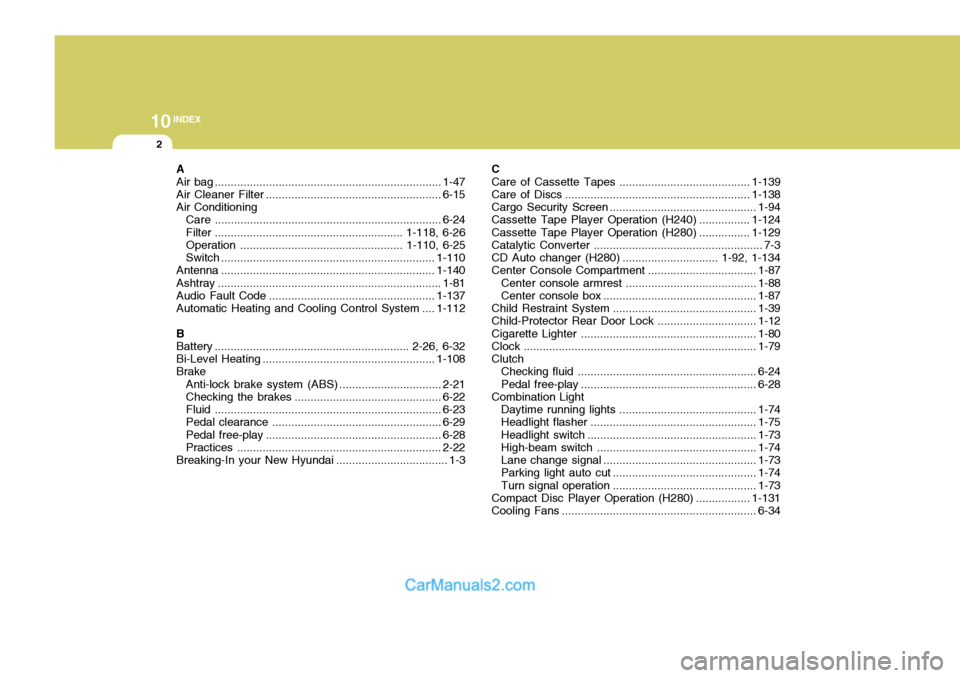

A Air bag ....................................................................... 1-47
Air Cleaner Filter ....................................................... 6-15
Air Conditioning Care ....................................................................... 6-24
Filter ........................................................... 1-118, 6-26 Operation ................................................... 1-110, 6-25
Switch ................................................................... 1-110
Antenna ................................................................... 1-140
Ashtray ...................................................................... 1-81
Audio Fault Code .................................................... 1-137
Automatic Heating and Cooling Control System .... 1-112
B
Battery ............................................................. 2-26, 6-32 Bi-Level Heating ...................................................... 1-108
Brake
Anti-lock brake system (ABS) ................................ 2-21
Checking the brakes .............................................. 6-22
Fluid ....................................................................... 6-23
Pedal clearance ..................................................... 6-29
Pedal free-play ....................................................... 6-28
Practices ................................................................ 2-22
Breaking-In your New Hyundai ................................... 1-3C
Care of Cassette Tapes ....................
..................... 1-139
Care of Discs .......................................................... 1-138
Cargo Security Screen.............................................. 1-94
Cassette Tape Player Operation (H240) ................1-124
Cassette Tape Player Operation (H280) ................1-129
Catalytic Converter ..................................................... 7-3
CD Auto changer (H 280) .............................. 1-92, 1-134
Center Console Compartment ..................................1-87
Center console armrest .................... ..................... 1-88
Center console box ................................................ 1-87
Child Restraint System............................................. 1-39
Child-Protector Rear Door Lock ...............................1-12
Cigarette Lighter ....................................................... 1-80
Clock ......................................................................... 1-79
Clutch Checking fluid ........................................................ 6-24
Pedal free-play ....................................................... 6-28
Combination Light
Daytime running lights .... .......................................1-74
Headlight flasher .................................................... 1-75
Headlight swi tch ..................................................... 1-73
High-beam swi tch .................................................. 1-74
Lane change si gnal ................................................ 1-73
Parking light auto cut ............................................. 1-74
Turn signal oper ation............................................. 1-73
Compact Disc Player Operation (H 280) .................1-131
Cooling Fans ............................................................. 6-34

10
INDEX
3

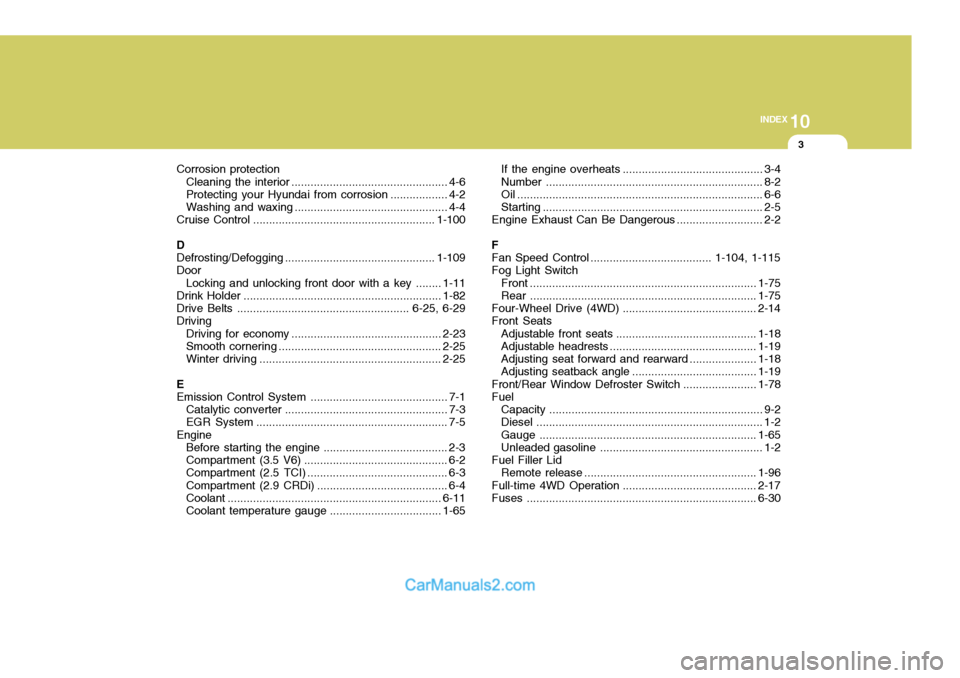

Corrosion protection Cleaning the interior ................................................. 4-6
Protecting your Hyundai from corrosion .................. 4-2
Washing and waxing ................................................ 4-4
Cruise Control ......................................................... 1-100
D Defrosting/Defogging ............................................... 1-109
Door
Locking and unlocking front door with a key ........1-11
Drink Holder .............................................................. 1-82
Drive Belts ...................................................... 6-25, 6-29
Driving
Driving for econom y ............................................... 2-23
Smooth cornering ................................................... 2-25
Winter driving ......................................................... 2-25
E Emission Control Syst em ........................................... 7-1
Catalytic converter ................................................... 7-3
EGR System ............................................................ 7-5
Engine Before starting the engine ....................................... 2-3 Compartment (3.5 V6) ............................................. 6-2
Compartment (2.5 TCI) ............................................ 6-3
Compartment (2.9 CRDi) ......................................... 6-4 Coolant ................................................................... 6-11
Coolant temper ature gauge ................................... 1-65If the engine
overheats ............................................ 3-4
Number .................................................................... 8-2
Oil ............................................................................. 6-6
Starting ..................................................................... 2-5
Engine Exhaust Can Be Dangerous ........................... 2-2
FFan Speed Control ...................................... 1-104, 1-115
Fog Light Switch
Front ....................................................................... 1-75
Rear ....................................................................... 1-75
Four-Wheel Drive (4WD) ........... ............................... 2-14
Front Seats
Adjustable front seats ............................................ 1-18
Adjustable headrest s .............................................. 1-19
Adjusting seat forward and rear ward..................... 1-18
Adjusting seatback angle .......................................1-19
Front/Rear Window Defroster Sw itch....................... 1-78
Fuel
Capacity ................................................................... 9-2
Diesel ....................................................................... 1-2
Gauge .................................................................... 1-65
Unleaded gasolin e ................................................... 1-2
Fuel Filler Lid Remote release ...................................................... 1-96
Full-time 4WD Operation ............... ........................... 2-17
Fuses ........................................................................ 6-30
