4KEYS
o Don't let the engine idle longer than 3 minutes for a catalytic converter equipped engine.
o Don't tow a trailer during the first
2,000 km (1,200 miles) of opera-tion. B030A01A-AAT For greater convenience, the same key operates all the locks in your Hyundai. However, because the doors can be locked without a key, carrying a spare key is recommended in caseyou accidentally lock one key inside the car.B030A01HR
B020B01FC-GAT During the First 1,000 Km (600 Miles) (Diesel Engine) No formal "break-in" procedure is re- quired with your new Hyundai. How-ever, you can contribute to the eco- nomical operation and durability of your Hyundai by observing the followingrecommendations during the first 1,000 km (600 miles).
o While driving, keep your engine
speed (rpm, or revolutions per minute) within 3,000 rpm.
o While driving, keep under three quar- ters of maximum speed.
o Use moderate acceleration. Don't start, depress the accelerator pedal fully.
o For the first 300 km (200 miles), try to avoid hard stops. o Don't lug the engine (in other words,
don't drive so slowly in too high a gear that the engine "bucks": shift to a lower gear).
o Whether going fast or slow, vary
your speed from time to time.
o Don't let the engine idle longer than
3 minutes at one time.
o Don't tow a trailer during the first 1,000 km (600 miles) of operation.

1FEATURES OF YOUR HYUNDAI
6
(3) If you need additional keys or if you
should lose your keys, your autho- rized Hyundai dealer can make new keys if you can supply the key number and ID key.
NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine. B880C01A-GAT Key Numbers
B880C01HP
B880C02HP
!
(1) ID key
This key must be used first to reg- ister a unique ID code in the ICM. This ID code is then recorded onto the master keys. Both sides of thekey have a Hyundai logo.
(2) Master key This key is for general use. It will open all locks on your vehicle. One side of the key has the Hyundailogo and the other side has the "M" symbol. If your vehicle is equipped withTheft-alarm system, the master keys with the function of transmit- ter will be provided. (Type B)
CAUTION:
Don't lose your ID key or forget thepassword. Always keep your ID key in a place where you remember and record your password. If you don'thave both the password and ID key, consult your authorized Hyundai dealer. The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered toyou.
!
CAUTION:
When starting the engine, do not use the key with other immobilizer keys around. Otherwise the engine may not start or may stop soon after it starts.Keep each keys separately not to have any malfunction after you re- ceive your new vehicle.

1FEATURES OF YOUR HYUNDAI
8
B885B02HP-GAT Keys
All of the locks fitted to the vehicle are operated by the same key. However, since it is possible to lock the doors without the use of the key, care shouldbe exercised to ensure that the key does not become locked inside the vehicle by mistake. If your vehicle isequipped with Theft-alarm system, the master keys with the function of trans- mitter will be provided (Type B). NOTE: If you make your own duplicate key, you will not be able to cancel thesystem or start the engine.Master keys
CAUTION:
o The password should be re- corded and kept in a safe place in case the need to order further keys arises.
o If you forget the password, con- sult your authorized Hyundaidealer.
o When starting the engine, do not use the key with other immobi-lizer keys around. Otherwise the engine may not start or may stopsoon after it starts. Keep each keys separately not to have any malfunction after you receive your new vehicle.
!
B885B01HP B885B02HP
Type A Type B
Master keys
B885A01HP-GAT
- For Diesel Engine (2.9 CRDi)
(If Installed)
The immobilizer system is an anti-theft device, designed to deter automobiletheft.

1
FEATURES OF YOUR HYUNDAI
11DOOR LOCKS
!
B040A02Y-AAT
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children in the car), be sure that all the doors are securely closed and lockedso that the doors cannot be inad- vertently opened from the inside. This helps ensure that the doorswill not be opened accidentally. Also, when combined with the proper use of seat belts, lockingthe doors helps keep occupants from being ejected from the car in case of an accident.
o Before opening the door, always look for and avoid oncoming traf-fic.
o In case of accident, the door is unlocked automatically (If In-stalled). B040B01A-AAT Locking and Unlocking Front Doors with a Key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key towardthe rear. B040C02Y-DAT Locking from the Outside The doors can be locked without a key. To lock the doors, first push the inside lock switch to the "LOCK" position sothat the red mark on the switch is not visible, then close the door. The door will not lock if the key is left inthe ignition switch when the front doors are closed. This is normal. NOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in thevehicle.
o To reduce the chance of theft, always remove the ignition key,close all windows and lock all doors when leaving your vehicle unattended.
HHP2003
B040C01HP
LOCK
UNLOCK

1FEATURES OF YOUR HYUNDAI
12
B040D01S-AAT Locking from the Inside To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position.When this is done, neither the outside nor the inside door handles can be used. NOTE: When the door is locked, the red mark on the switch is not visible. LOCK
B040E04A-AAT Child-Protector Rear Door Lock Your Hyundai is equipped with a "child- protector" rear door lock assembly. When the lock mechanism is engaged,the rear door cannot be opened from the inside. Its use is recommended whenever there are small children inthe rear seat. To engage the child-protector feature so that the door cannot be opened from the inside, move the child-protec- tor lever to the " " position and closethe door. Move the lever to the " " position when normal door operation is desired. If you wish to be able to open the doorfrom the outside, the outside doorhandle will function normally. B040G02HP-AAT Central Door Locks The central door locking switch is lo- cated on the driver's armrest. It isoperated by depressing the door lock switch.
UNLOCK
HHP2004 HHP2008
B040G01HP
UNLOCK
LOCK

1
FEATURES OF YOUR HYUNDAI
13THEFT-ALARM SYSTEM
NOTE:
o When pushing the front portion of the driver's door lock switch, all vehicle doors will lock. If anydoor is open when the switch is depressed, the door will remain locked when closed.
o When pushing the rear portion of the switch, all vehicle doors willunlock.
o The central door locking is oper- ated by turning the key towardthe front or rear of the vehicle.
o If the door is locked/unlocked mul- tiple times in rapid successionwith either the vehicle key or doorlock switch, the system may stop operating temporarily in order to protect the circuit and preventdamage to system components. B070A01A-AAT (If Installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm with blinking of the turnsignal lights.
B070B01O-AAT Armed Stage Park the car and stop the engine. Arm the system as described below.
LOCK HHP2002
B070B02HP
Type A
Type B
UNLOCK LOCK
UNLOCK

1FEATURES OF YOUR HYUNDAI
14
!
!
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine hood and tail gate are closed and latched.
3) Lock the doors using the transmitter
of the keyless entry system.
After completion of the steps above, the turn signal lights will blink once to indicate that the system is armed. NOTE:
1) If any door, tail gate or engine hood remains open, the system will not be armed.
2) If this happens, rearm the system as previously described.
CAUTION:
Do not arm the system until all passengers have left the car. If thesystem is armed while a passenger(s) remains in the car, the alarm may be activated whenthe remaining passenger(s) leaves the car. B070C01HP-GAT Alarm Stage The alarm will be activated if any of the following occurs while the car is parked and the system is armed.
1) A front or rear door is opened with-
out using the transmitter.
2) The tail gate is opened without us- ing the transmitter.
3) The engine hood is opened.The siren will sound and the turn signal lights will blink continuouly for 27 sec-
onds (Type B/ Type A : This will repeat 3 times). To turn off the system, unlock the door or tail gate with the transmit-ter. CAUTION: Avoid trying to start the engine while the system is armed. B070D01HP-AAT Disarmed Stage The system will be disarmed when the driver's or passenger's door is un- locked by depressing the "UNLOCK" button on the transmitter.
B070C01HP
B070D01HP
Type A
Type B

1
FEATURES OF YOUR HYUNDAI
15
!
After completion of the step above, the turn signal lights will blink twice toindicate that the system is disarmed. NOTE: If any door, tail gate or engine hood is not opened within 30 seconds,the system will be rearmed.
CAUTION:
Only the transmitter can disarm thearmed stage. If the transmitter does not disarm the system, it is neces- sary to take the following steps;
1. Unlock the door with the key, which will cause the alarm to be activated.
2. Insert the key in the ignition key
cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed. B070F02A-GAT Keyless Entry System (If Installed) Locking doors
1. Close all doors.
2. Push the "LOCK" button on the trans-
mitter.
3. At the same time all doors lock, the
turn signal lights will blink once toindicate that the system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmitter.
2. At the same time all doors unlock,
the turn signal lights will blink twice to indicate that the system is dis- armed.
NOTE: The transmitter will not work if any of following occur:
- The ignition key is in ignition switch.
- You exceed the operating distance
limit (10 m).
- The battery in the transmitter is weak. - Other vehicles or objects may be
blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio transmitter such as a radio station or an airport which can interfere with normal operation of the trans- mitter.
When the transmitter does not work correctly, open and close the door with the ignition key. If you have aproblem with the transmitter, con- tact an authorized Hyundai Dealer. NOTE: Keep the transmitter away from wa- ter or any liquid. If the keyless entry system is inoperative due to expo- sure to water or liquids, it will not becovered by your manufacturer ve- hicle warranty.

1FEATURES OF YOUR HYUNDAI
16
2. Remove the old battery from the
case and note the polarity. Make sure the polarity of the new battery is the same(+side facing down), then insert it in the transmitter.
3. Installation is the reverse order of disassembly. Type B:
1. Carefully separate the case with a
phillips screwdriver.
MSO-0048-2
HMXOM033-2
Case
Battery
CaseTransmitter

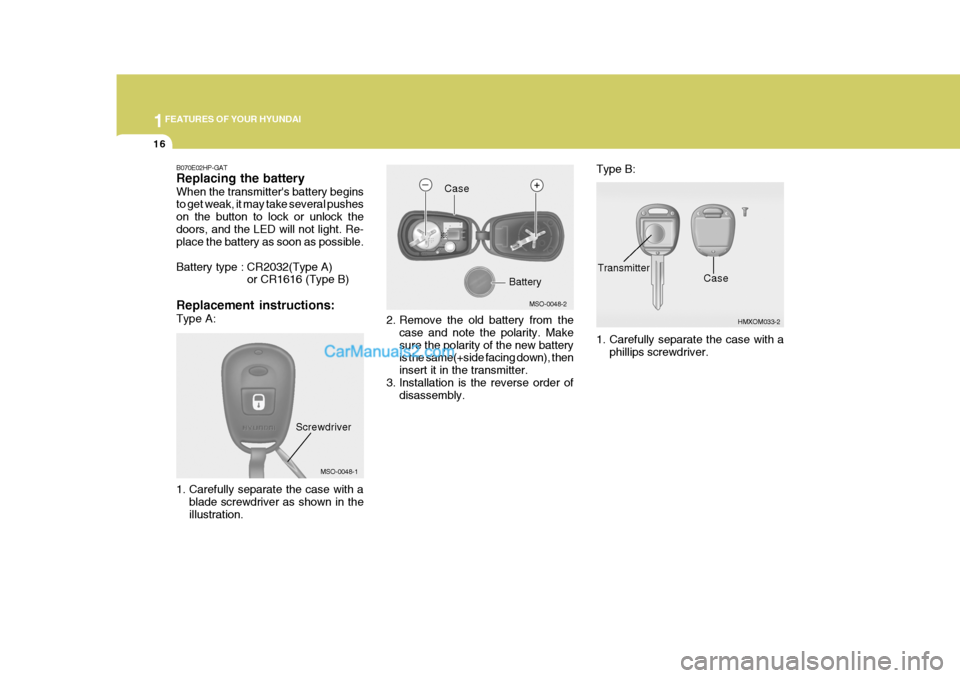

B070E02HP-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock thedoors, and the LED will not light. Re- place the battery as soon as possible.
Battery type : CR2032(Type A) or CR1616 (Type B)
Replacement instructions: Type A:
MSO-0048-1
1. Carefully separate the case with a blade screwdriver as shown in the illustration.
Screwdriver
