Hyundai Tucson 2020 Owner's Manual - RHD (UK, Australia)

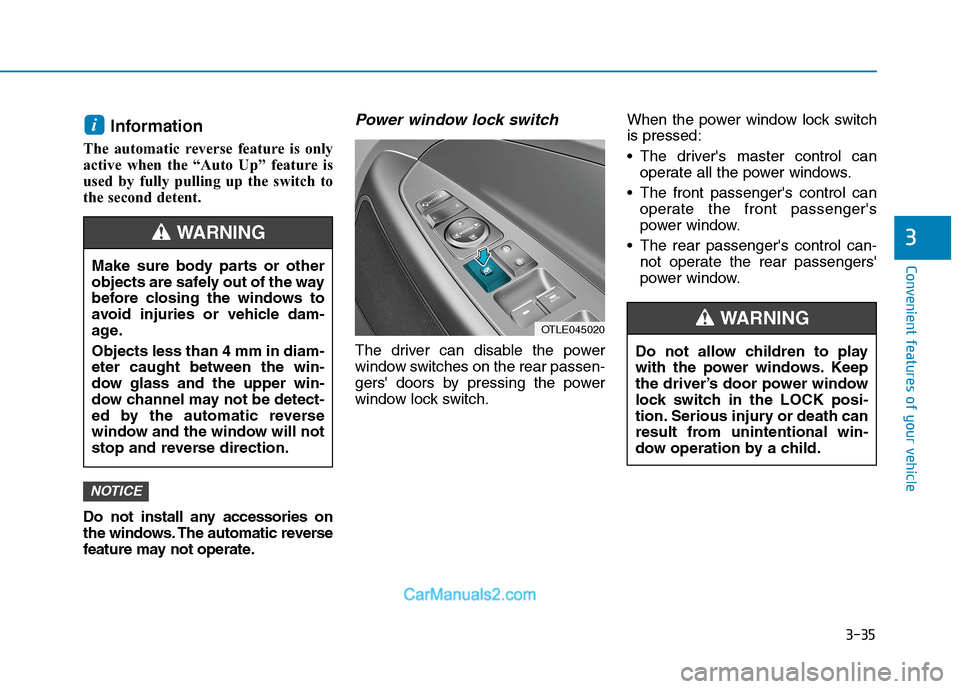

3-35
Convenient features of your vehicle
3
Information
The automatic reverse feature is only
active when the “Auto Up” feature is
used by fully pulling up the switch to
the second detent.
Do not install any accessories on
the windows. The automatic reverse
feature may not operate.
Power window lock switch
The driver can disable the power
window switches on the rear passen-
gers' doors by pressing the power
window lock switch.When the power window lock switch
is pressed:
The driver's master control can
operate all the power windows.
The front passenger's control can
operate the front passenger's
power window.
The rear passenger's control can-
not operate the rear passengers'
power window.
NOTICE
i
Make sure body parts or other
objects are safely out of the way
before closing the windows to
avoid injuries or vehicle dam-
age.
Objects less than 4 mm in diam-
eter caught between the win-
dow glass and the upper win-
dow channel may not be detect-
ed by the automatic reverse
window and the window will not
stop and reverse direction.
WARNING
Do not allow children to play
with the power windows. Keep
the driver’s door power window
lock switch in the LOCK posi-
tion. Serious injury or death can
result from unintentional win-
dow operation by a child.
WARNING OTLE045020

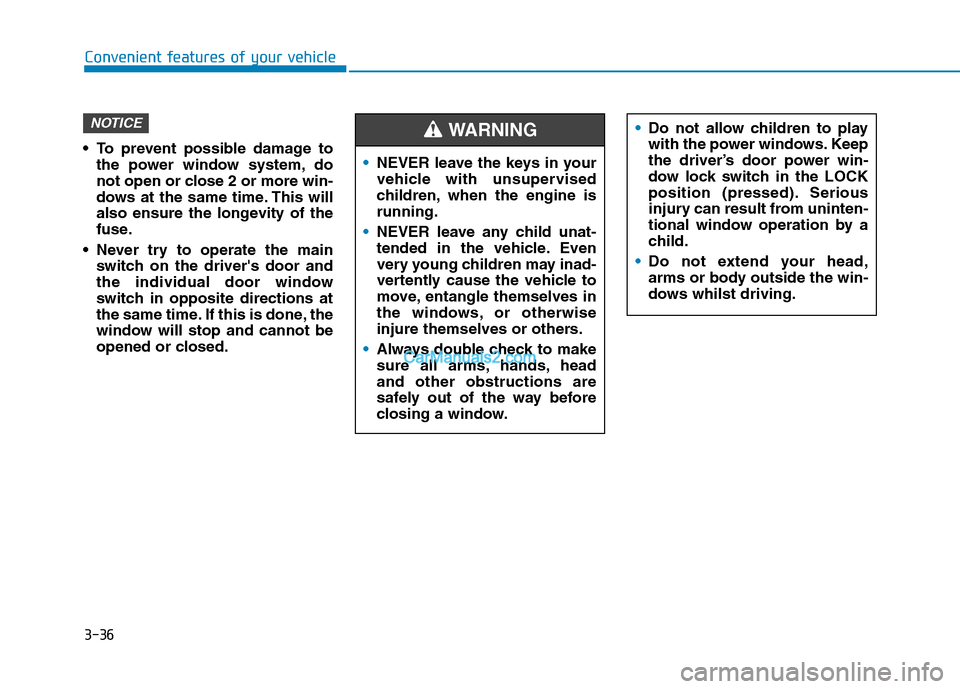

3-36
Convenient features of your vehicle
To prevent possible damage to
the power window system, do
not open or close 2 or more win-
dows at the same time. This will
also ensure the longevity of the
fuse.
Never try to operate the main
switch on the driver's door and
the individual door window
switch in opposite directions at
the same time. If this is done, the
window will stop and cannot be
opened or closed.
NOTICE
NEVER leave the keys in your
vehicle with unsupervised
children, when the engine is
running.
NEVER leave any child unat-
tended in the vehicle. Even
very young children may inad-
vertently cause the vehicle to
move, entangle themselves in
the windows, or otherwise
injure themselves or others.
Always double check to make
sure all arms, hands, head
and other obstructions are
safely out of the way before
closing a window.
Do not allow children to play
with the power windows. Keep
the driver’s door power win-
dow lock switch in the LOCK
position (pressed). Serious
injury can result from uninten-
tional window operation by a
child.
Do not extend your head,
arms or body outside the win-
dows whilst driving.WARNING

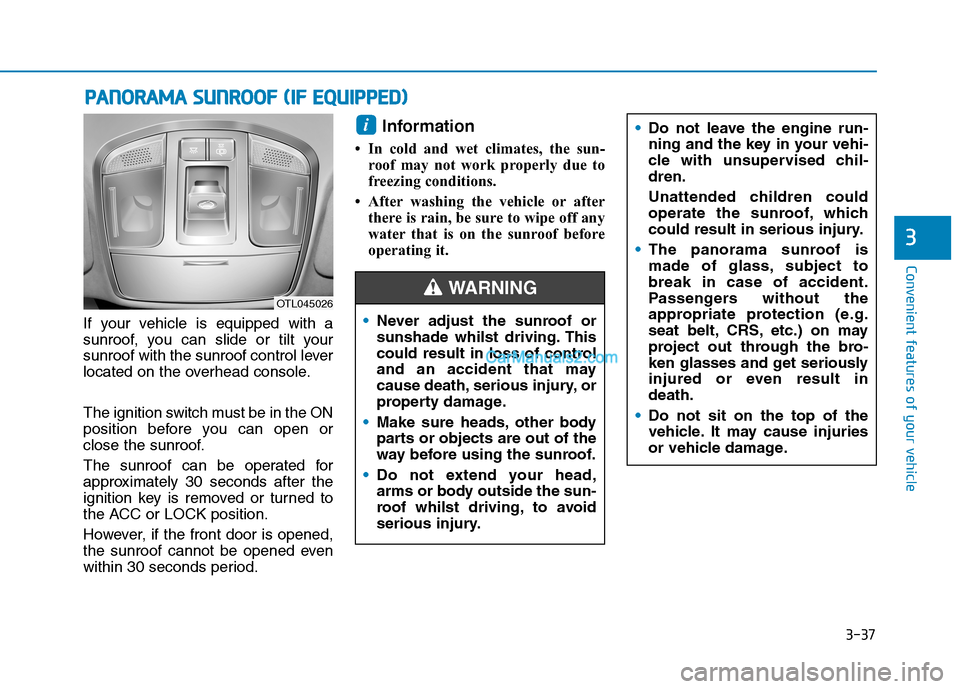

3-37
Convenient features of your vehicle
3
P PA
AN
NO
OR
RA
AM
MA
A
S
SU
UN
NR
RO
OO
OF
F
(
(I
IF
F
E
EQ
QU
UI
IP
PP
PE
ED
D)
)
If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof control lever
located on the overhead console.
The ignition switch must be in the ON
position before you can open or
close the sunroof.
The sunroof can be operated for
approximately 30 seconds after the
ignition key is removed or turned to
the ACC or LOCK position.
However, if the front door is opened,
the sunroof cannot be opened even
within 30 seconds period.
Information
• In cold and wet climates, the sun-
roof may not work properly due to
freezing conditions.
• After washing the vehicle or after
there is rain, be sure to wipe off any
water that is on the sunroof before
operating it.
i
OTL045026
Never adjust the sunroof or
sunshade whilst driving. This
could result in loss of control
and an accident that may
cause death, serious injury, or
property damage.
Make sure heads, other body
parts or objects are out of the
way before using the sunroof.
Do not extend your head,
arms or body outside the sun-
roof whilst driving, to avoid
serious injury.
Do not leave the engine run-
ning and the key in your vehi-
cle with unsupervised chil-
dren.
Unattended children could
operate the sunroof, which
could result in serious injury.
The panorama sunroof is
made of glass, subject to
break in case of accident.
Passengers without the
appropriate protection (e.g.
seat belt, CRS, etc.) on may
project out through the bro-
ken glasses and get seriously
injured or even result in
death.
Do not sit on the top of the
vehicle. It may cause injuries
or vehicle damage.
WARNING

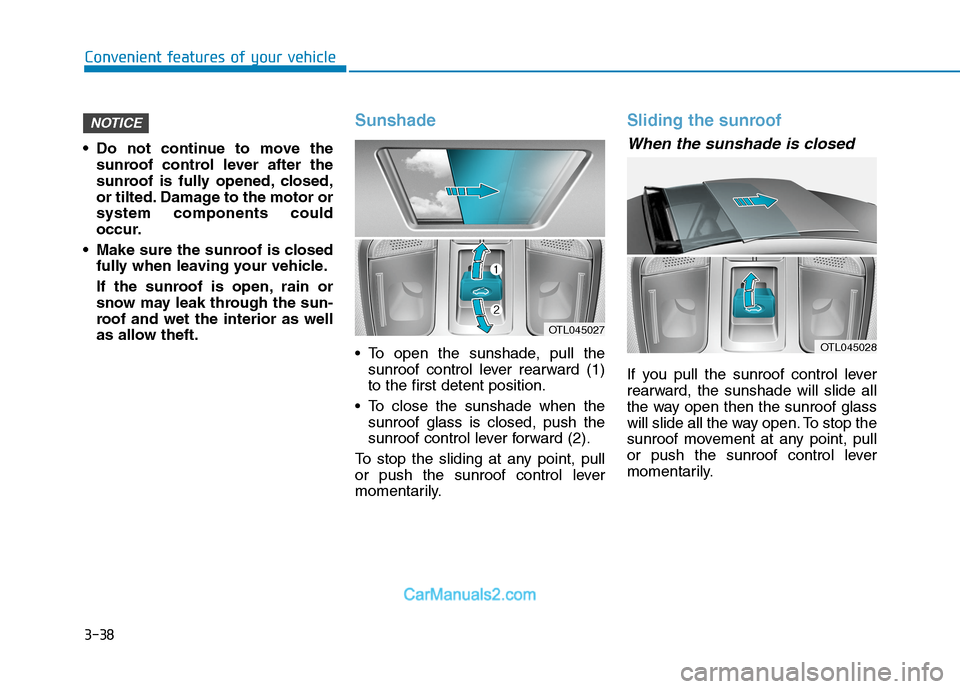

3-38
Convenient features of your vehicle
Do not continue to move the
sunroof control lever after the
sunroof is fully opened, closed,
or tilted. Damage to the motor or
system components could
occur.
Make sure the sunroof is closed
fully when leaving your vehicle.
If the sunroof is open, rain or
snow may leak through the sun-
roof and wet the interior as well
as allow theft.
Sunshade
To open the sunshade, pull the
sunroof control lever rearward (1)
to the first detent position.
To close the sunshade when the
sunroof glass is closed, push the
sunroof control lever forward (2).
To stop the sliding at any point, pull
or push the sunroof control lever
momentarily.
Sliding the sunroof
When the sunshade is closed
If you pull the sunroof control lever
rearward, the sunshade will slide all
the way open then the sunroof glass
will slide all the way open. To stop the
sunroof movement at any point, pull
or push the sunroof control lever
momentarily.
NOTICE
OTL045027
OTL045028

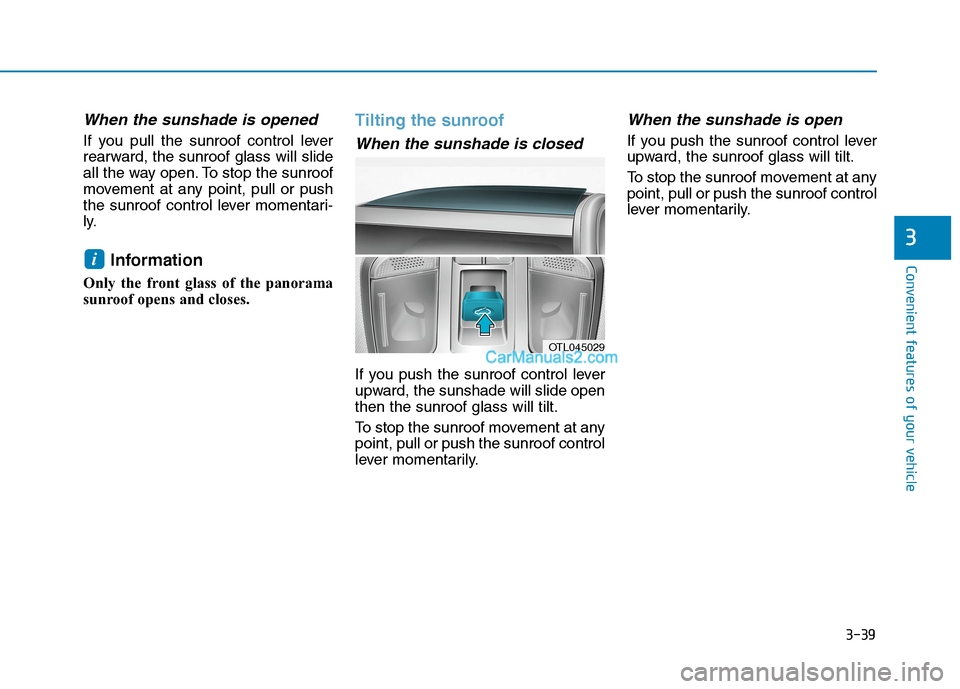

3-39
Convenient features of your vehicle
3
When the sunshade is opened
If you pull the sunroof control lever
rearward, the sunroof glass will slide
all the way open. To stop the sunroof
movement at any point, pull or push
the sunroof control lever momentari-
ly.
Information
Only the front glass of the panorama
sunroof opens and closes.
Tilting the sunroof
When the sunshade is closed
If you push the sunroof control lever
upward, the sunshade will slide open
then the sunroof glass will tilt.
To stop the sunroof movement at any
point, pull or push the sunroof control
lever momentarily.
When the sunshade is open
If you push the sunroof control lever
upward, the sunroof glass will tilt.
To stop the sunroof movement at any
point, pull or push the sunroof control
lever momentarily.
i
OTL045029

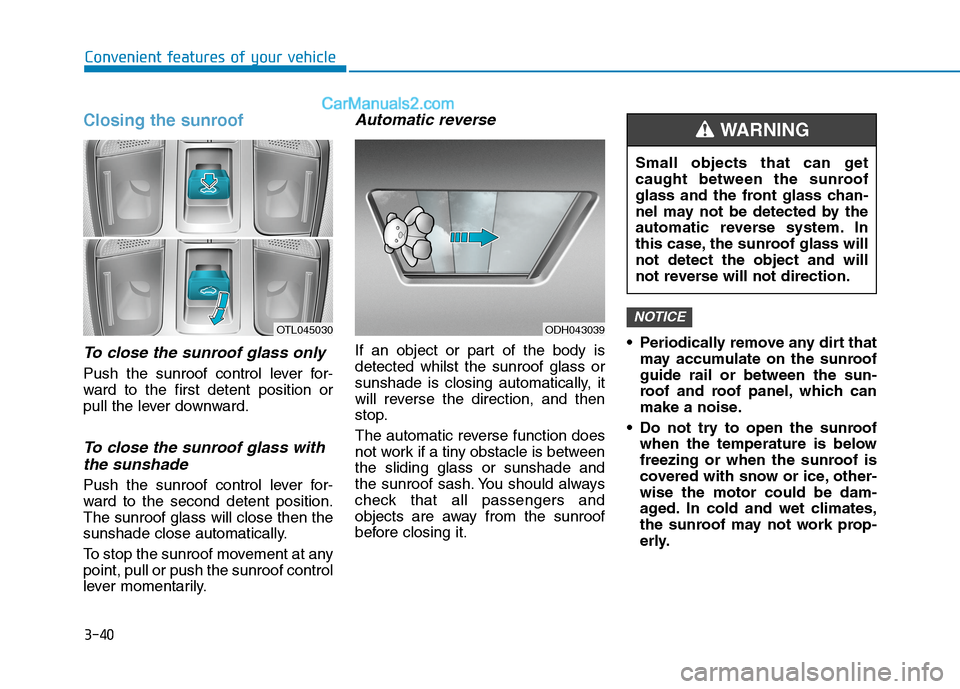

3-40
Convenient features of your vehicle
Closing the sunroof
To close the sunroof glass only
Push the sunroof control lever for-
ward to the first detent position or
pull the lever downward.
To close the sunroof glass with
the sunshade
Push the sunroof control lever for-
ward to the second detent position.
The sunroof glass will close then the
sunshade close automatically.
To stop the sunroof movement at any
point, pull or push the sunroof control
lever momentarily.
Automatic reverse
If an object or part of the body is
detected whilst the sunroof glass or
sunshade is closing automatically, it
will reverse the direction, and then
stop.
The automatic reverse function does
not work if a tiny obstacle is between
the sliding glass or sunshade and
the sunroof sash. You should always
check that all passengers and
objects are away from the sunroof
before closing it. Periodically remove any dirt that
may accumulate on the sunroof
guide rail or between the sun-
roof and roof panel, which can
make a noise.
Do not try to open the sunroof
when the temperature is below
freezing or when the sunroof is
covered with snow or ice, other-
wise the motor could be dam-
aged. In cold and wet climates,
the sunroof may not work prop-
erly.
NOTICEODH043039OTL045030
Small objects that can get
caught between the sunroof
glass and the front glass chan-
nel may not be detected by the
automatic reverse system. In
this case, the sunroof glass will
not detect the object and will
not reverse will not direction.
WARNING

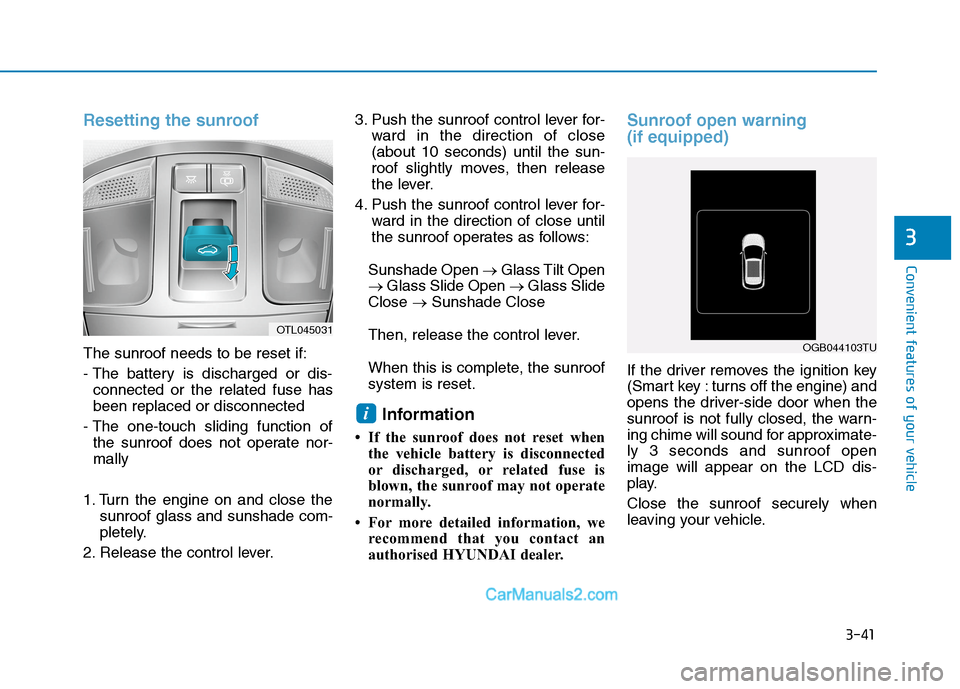

3-41
Convenient features of your vehicle
3
Resetting the sunroof
The sunroof needs to be reset if:
- The battery is discharged or dis-
connected or the related fuse has
been replaced or disconnected
- The one-touch sliding function of
the sunroof does not operate nor-
mally
1. Turn the engine on and close the
sunroof glass and sunshade com-
pletely.
2. Release the control lever.3. Push the sunroof control lever for-
ward in the direction of close
(about 10 seconds) until the sun-
roof slightly moves, then release
the lever.
4. Push the sunroof control lever for-
ward in the direction of close until
the sunroof operates as follows:
Sunshade Open →Glass Tilt Open
→Glass Slide Open →Glass Slide
Close →Sunshade Close
Then, release the control lever.
When this is complete, the sunroof
system is reset.
Information
• If the sunroof does not reset when
the vehicle battery is disconnected
or discharged, or related fuse is
blown, the sunroof may not operate
normally.
• For more detailed information, we
recommend that you contact an
authorised HYUNDAI dealer.
Sunroof open warning
(if equipped)
If the driver removes the ignition key
(Smart key : turns off the engine) and
opens the driver-side door when the
sunroof is not fully closed, the warn-
ing chime will sound for approximate-
ly 3 seconds and sunroof open
image will appear on the LCD dis-
play.
Close the sunroof securely when
leaving your vehicle.
i
OTL045031
OGB044103TU

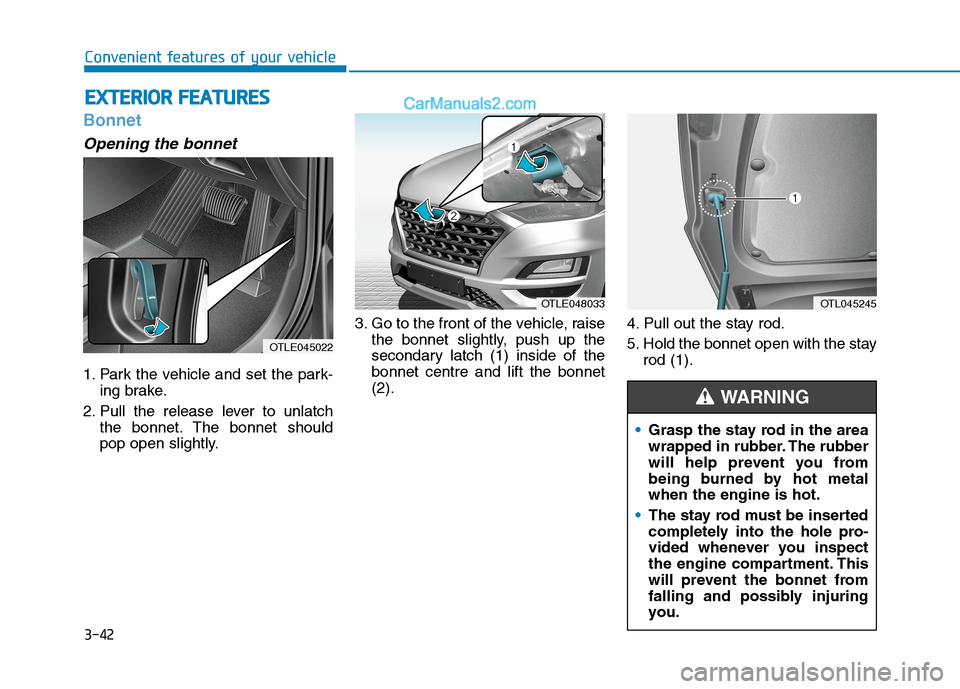

3-42
Convenient features of your vehicle
Bonnet
Opening the bonnet
1. Park the vehicle and set the park-
ing brake.
2. Pull the release lever to unlatch
the bonnet. The bonnet should
pop open slightly.3. Go to the front of the vehicle, raise
the bonnet slightly, push up the
secondary latch (1) inside of the
bonnet centre and lift the bonnet
(2).4. Pull out the stay rod.
5. Hold the bonnet open with the stay
rod (1).
E EX
XT
TE
ER
RI
IO
OR
R
F
FE
EA
AT
TU
UR
RE
ES
S
OTLE048033OTL045245
OTLE045022
Grasp the stay rod in the area
wrapped in rubber. The rubber
will help prevent you from
being burned by hot metal
when the engine is hot.
The stay rod must be inserted
completely into the hole pro-
vided whenever you inspect
the engine compartment. This
will prevent the bonnet from
falling and possibly injuring
you.
WARNING

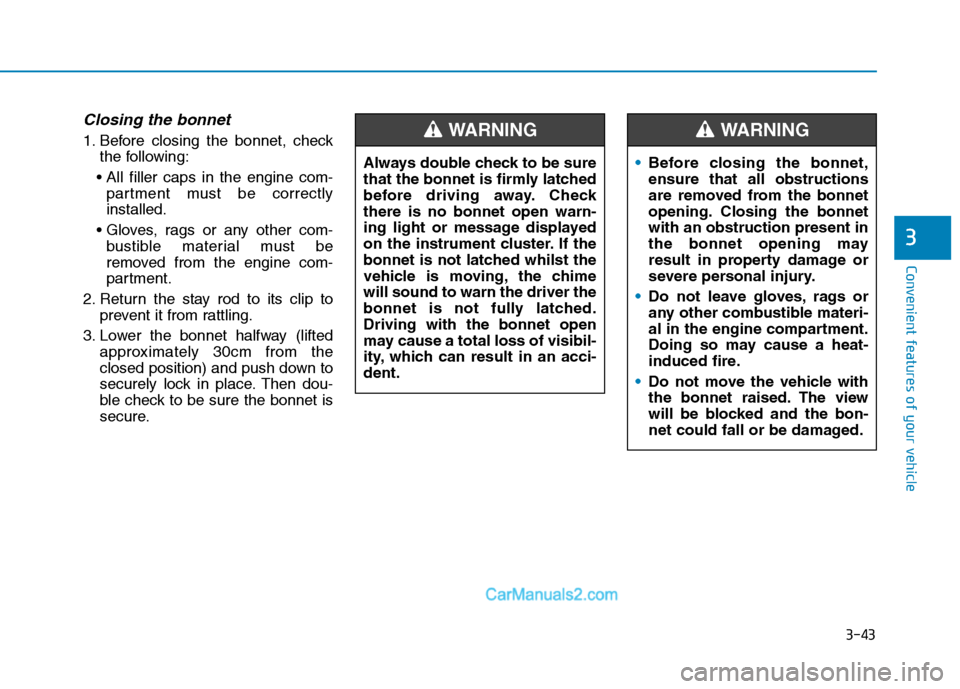

3-43
Convenient features of your vehicle
3
Closing the bonnet
1. Before closing the bonnet, check
the following:

partment must be correctly
installed.

bustible material must be
removed from the engine com-
partment.
2. Return the stay rod to its clip to
prevent it from rattling.
3. Lower the bonnet halfway (lifted
approximately 30cm from the
closed position) and push down to
securely lock in place. Then dou-
ble check to be sure the bonnet is
secure.Before closing the bonnet,
ensure that all obstructions
are removed from the bonnet
opening. Closing the bonnet
with an obstruction present in
the bonnet opening may
result in property damage or
severe personal injury.
Do not leave gloves, rags or
any other combustible materi-
al in the engine compartment.
Doing so may cause a heat-
induced fire.
Do not move the vehicle with
the bonnet raised. The view
will be blocked and the bon-
net could fall or be damaged.WARNING
Always double check to be sure
that the bonnet is firmly latched
before driving away. Check
there is no bonnet open warn-
ing light or message displayed
on the instrument cluster. If the
bonnet is not latched whilst the
vehicle is moving, the chime
will sound to warn the driver the
bonnet is not fully latched.
Driving with the bonnet open
may cause a total loss of visibil-
ity, which can result in an acci-
dent.
WARNING

3-44
Convenient features of your vehicle

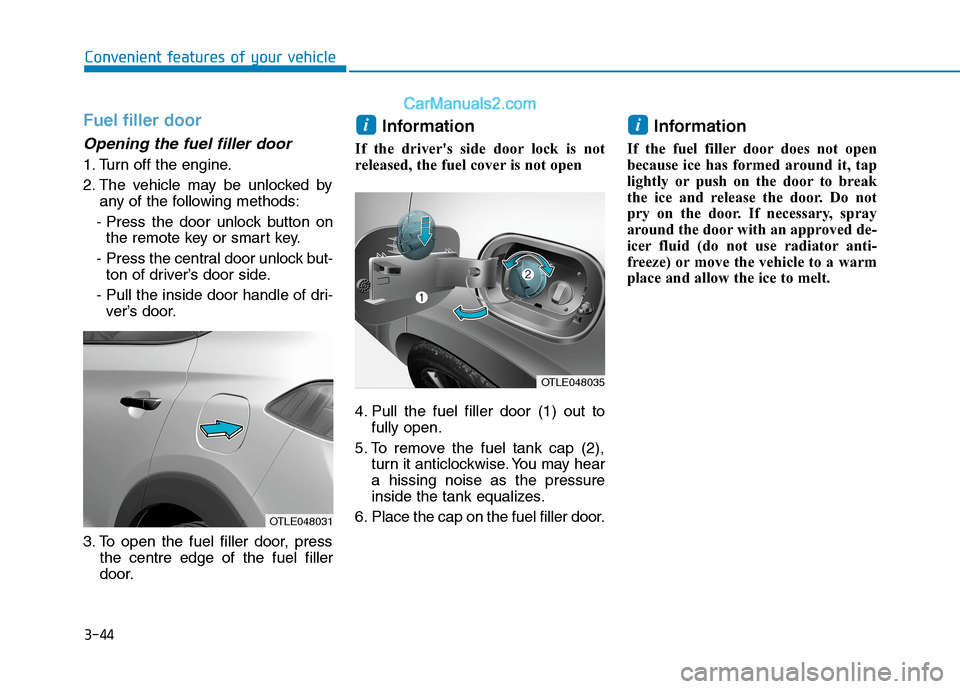

Fuel filler door
Opening the fuel filler door
1. Turn off the engine.
2. The vehicle may be unlocked by
any of the following methods:
- Press the door unlock button on
the remote key or smart key.
- Press the central door unlock but-
ton of driver’s door side.
- Pull the inside door handle of dri-
ver’s door.
3. To open the fuel filler door, press
the centre edge of the fuel filler
door.
Information
If the driver's side door lock is not
released, the fuel cover is not open
4. Pull the fuel filler door (1) out to
fully open.
5. To remove the fuel tank cap (2),
turn it anticlockwise. You may hear
a hissing noise as the pressure
inside the tank equalizes.
6. Place the cap on the fuel filler door.
Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break
the ice and release the door. Do not
pry on the door. If necessary, spray
around the door with an approved de-
icer fluid (do not use radiator anti-
freeze) or move the vehicle to a warm
place and allow the ice to melt.
ii
OTLE048031
OTLE048035
