Hyundai Tucson 2020 Owner's Manual - RHD (UK, Australia)

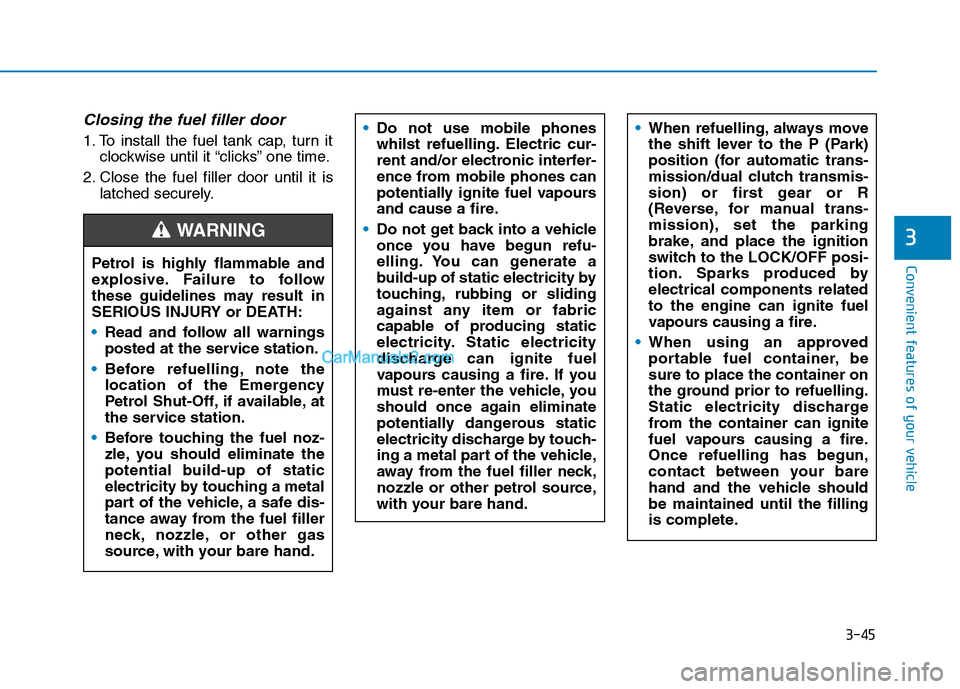

3-45
Convenient features of your vehicle
3
Closing the fuel filler door
1. To install the fuel tank cap, turn it
clockwise until it “clicks” one time.
2. Close the fuel filler door until it is
latched securely.
Petrol is highly flammable and
explosive. Failure to follow
these guidelines may result in
SERIOUS INJURY or DEATH:
Read and follow all warnings
posted at the service station.
Before refuelling, note the
location of the Emergency
Petrol Shut-Off, if available, at
the service station.
Before touching the fuel noz-
zle, you should eliminate the
potential build-up of static
electricity by touching a metal
part of the vehicle, a safe dis-
tance away from the fuel filler
neck, nozzle, or other gas
source, with your bare hand.
WARNING
Do not use mobile phones
whilst refuelling. Electric cur-
rent and/or electronic interfer-
ence from mobile phones can
potentially ignite fuel vapours
and cause a fire.
Do not get back into a vehicle
once you have begun refu-
elling. You can generate a
build-up of static electricity by
touching, rubbing or sliding
against any item or fabric
capable of producing static
electricity. Static electricity
discharge can ignite fuel
vapours causing a fire. If you
must re-enter the vehicle, you
should once again eliminate
potentially dangerous static
electricity discharge by touch-
ing a metal part of the vehicle,
away from the fuel filler neck,
nozzle or other petrol source,
with your bare hand.When refuelling, always move
the shift lever to the P (Park)
position (for automatic trans-
mission/dual clutch transmis-
sion) or first gear or R
(Reverse, for manual trans-
mission), set the parking
brake, and place the ignition
switch to the LOCK/OFF posi-
tion. Sparks produced by
electrical components related
to the engine can ignite fuel
vapours causing a fire.
When using an approved
portable fuel container, be
sure to place the container on
the ground prior to refuelling.
Static electricity discharge
from the container can ignite
fuel vapours causing a fire.
Once refuelling has begun,
contact between your bare
hand and the vehicle should
be maintained until the filling
is complete.

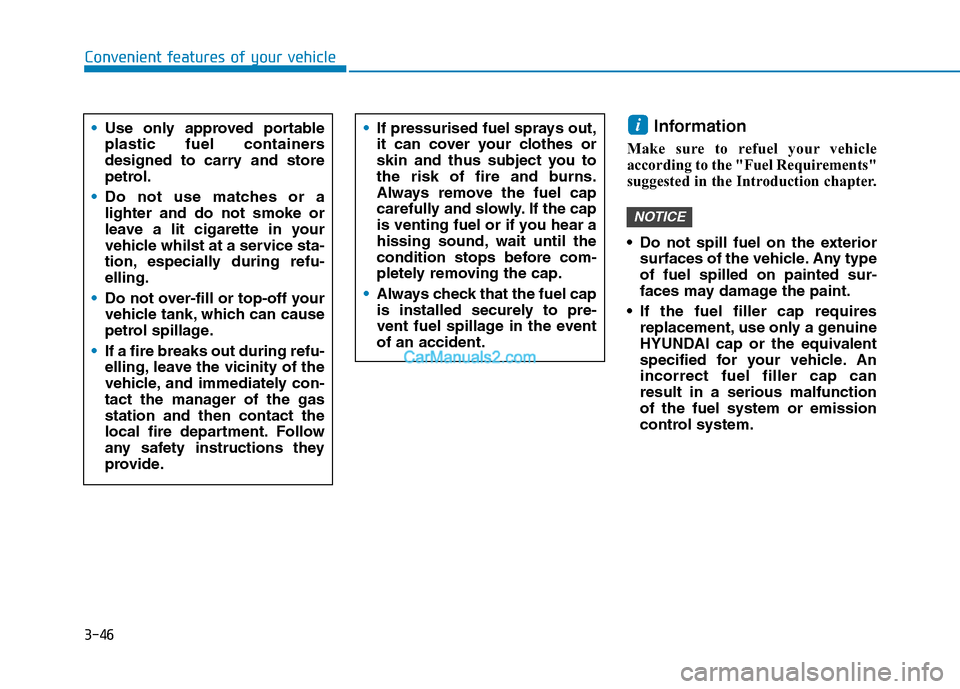

3-46
Convenient features of your vehicle
Information
Make sure to refuel your vehicle
according to the "Fuel Requirements"
suggested in the Introduction chapter.
Do not spill fuel on the exterior
surfaces of the vehicle. Any type
of fuel spilled on painted sur-
faces may damage the paint.
If the fuel filler cap requires
replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can
result in a serious malfunction
of the fuel system or emission
control system.
NOTICE
iUse only approved portable
plastic fuel containers
designed to carry and store
petrol.
Do not use matches or a
lighter and do not smoke or
leave a lit cigarette in your
vehicle whilst at a service sta-
tion, especially during refu-
elling.
Do not over-fill or top-off your
vehicle tank, which can cause
petrol spillage.
If a fire breaks out during refu-
elling, leave the vicinity of the
vehicle, and immediately con-
tact the manager of the gas
station and then contact the
local fire department. Follow
any safety instructions they
provide.If pressurised fuel sprays out,
it can cover your clothes or
skin and thus subject you to
the risk of fire and burns.
Always remove the fuel cap
carefully and slowly. If the cap
is venting fuel or if you hear a
hissing sound, wait until the
condition stops before com-
pletely removing the cap.
Always check that the fuel cap
is installed securely to pre-
vent fuel spillage in the event
of an accident.

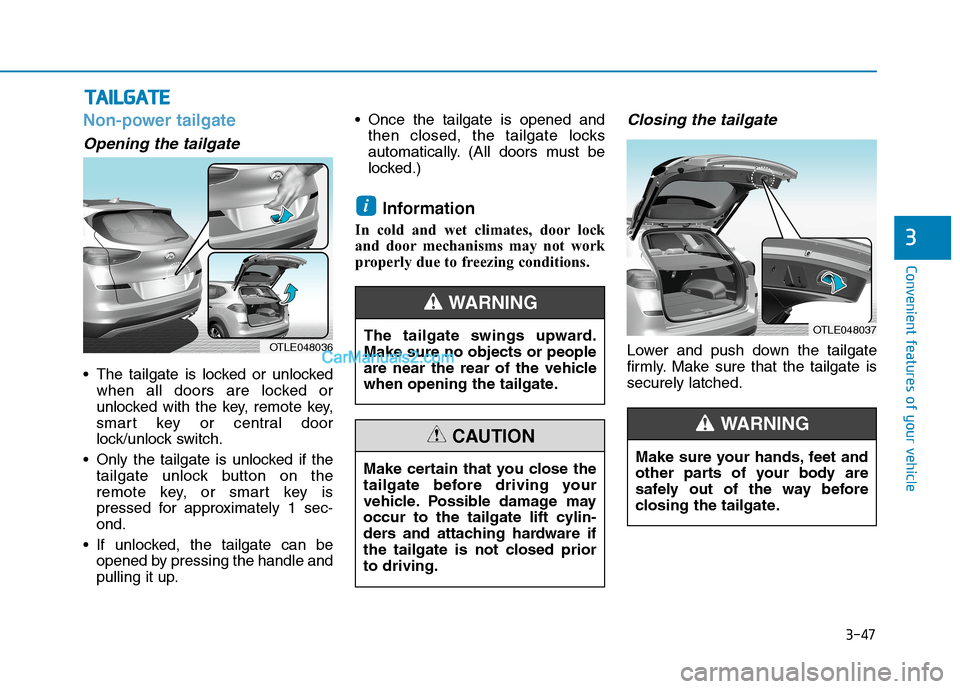

3-47
Convenient features of your vehicle
3
Non-power tailgate
Opening the tailgate
The tailgate is locked or unlocked
when all doors are locked or
unlocked with the key, remote key,
smart key or central door
lock/unlock switch.
Only the tailgate is unlocked if the
tailgate unlock button on the
remote key, or smart key is
pressed for approximately 1 sec-
ond.
If unlocked, the tailgate can be
opened by pressing the handle and
pulling it up. Once the tailgate is opened and
then closed, the tailgate locks
automatically. (All doors must be
locked.)
Information
In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
Closing the tailgate
Lower and push down the tailgate
firmly. Make sure that the tailgate is
securely latched.
i
T TA
AI
IL
LG
GA
AT
TE
E
OTLE048036The tailgate swings upward.
Make sure no objects or people
are near the rear of the vehicle
when opening the tailgate.
WARNING
Make certain that you close the
tailgate before driving your
vehicle. Possible damage may
occur to the tailgate lift cylin-
ders and attaching hardware if
the tailgate is not closed prior
to driving.
CAUTION
OTLE048037
Make sure your hands, feet and
other parts of your body are
safely out of the way before
closing the tailgate.
WARNING

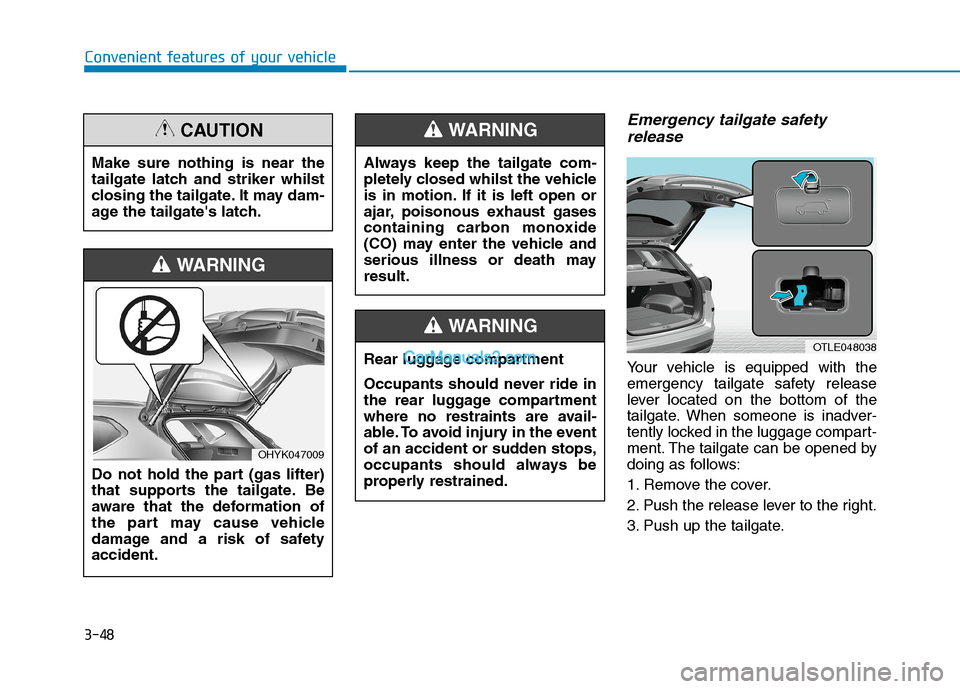

3-48
Convenient features of your vehicle
Emergency tailgate safety
release
Your vehicle is equipped with the
emergency tailgate safety release
lever located on the bottom of the
tailgate. When someone is inadver-
tently locked in the luggage compart-
ment. The tailgate can be opened by
doing as follows:
1. Remove the cover.
2. Push the release lever to the right.
3. Push up the tailgate. Make sure nothing is near the
tailgate latch and striker whilst
closing the tailgate. It may dam-
age the tailgate's latch.
CAUTION
Always keep the tailgate com-
pletely closed whilst the vehicle
is in motion. If it is left open or
ajar, poisonous exhaust gases
containing carbon monoxide
(CO) may enter the vehicle and
serious illness or death may
result.
WARNING
Rear luggage compartment
Occupants should never ride in
the rear luggage compartment
where no restraints are avail-
able. To avoid injury in the event
of an accident or sudden stops,
occupants should always be
properly restrained.
WARNING
OTLE048038
Do not hold the part (gas lifter)
that supports the tailgate. Be
aware that the deformation of
the part may cause vehicle
damage and a risk of safety
accident.
WARNING
OHYK047009

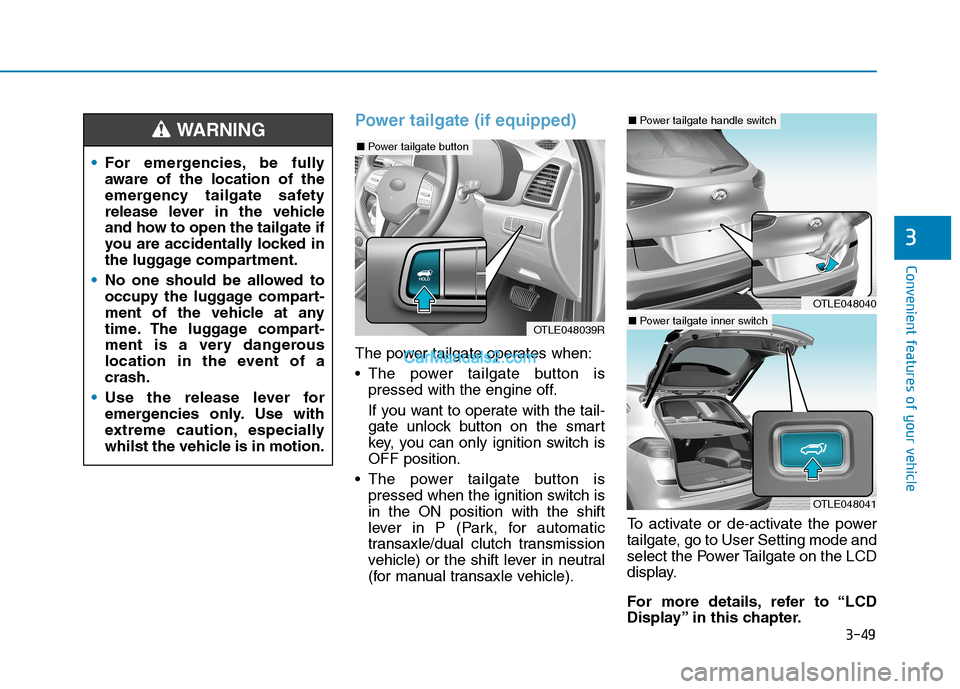

3-49
Convenient features of your vehicle
3
Power tailgate (if equipped)
The power tailgate operates when:
The power tailgate button is
pressed with the engine off.
If you want to operate with the tail-
gate unlock button on the smart
key, you can only ignition switch is
OFF position.
The power tailgate button is
pressed when the ignition switch is
in the ON position with the shift
lever in P (Park, for automatic
transaxle/dual clutch transmission
vehicle) or the shift lever in neutral
(for manual transaxle vehicle).To activate or de-activate the power
tailgate, go to User Setting mode and
select the Power Tailgate on the LCD
display.
For more details, refer to “LCD
Display” in this chapter. For emergencies, be fully
aware of the location of the
emergency tailgate safety
release lever in the vehicle
and how to open the tailgate if
you are accidentally locked in
the luggage compartment.
No one should be allowed to
occupy the luggage compart-
ment of the vehicle at any
time. The luggage compart-
ment is a very dangerous
location in the event of a
crash.
Use the release lever for
emergencies only. Use with
extreme caution, especially
whilst the vehicle is in motion.
WARNING
OTLE048039R
OTLE048040
■Power tailgate handle switch
OTLE048041
■Power tailgate inner switch
■Power tailgate button

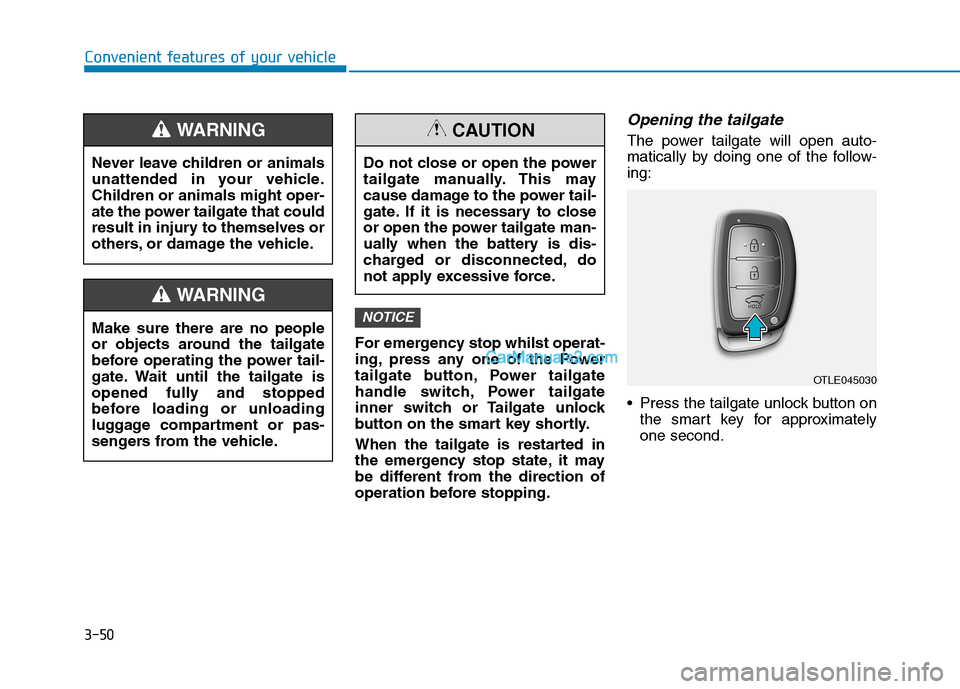

3-50
Convenient features of your vehicle
For emergency stop whilst operat-
ing, press any one of the Power
tailgate button, Power tailgate
handle switch, Power tailgate
inner switch or Tailgate unlock
button on the smart key shortly.
When the tailgate is restarted in
the emergency stop state, it may
be different from the direction of
operation before stopping.
Opening the tailgate
The power tailgate will open auto-
matically by doing one of the follow-
ing:
Press the tailgate unlock button on
the smart key for approximately
one second.
NOTICE
Never leave children or animals
unattended in your vehicle.
Children or animals might oper-
ate the power tailgate that could
result in injury to themselves or
others, or damage the vehicle.
WARNING
Make sure there are no people
or objects around the tailgate
before operating the power tail-
gate. Wait until the tailgate is
opened fully and stopped
before loading or unloading
luggage compartment or pas-
sengers from the vehicle.
WARNING
Do not close or open the power
tailgate manually. This may
cause damage to the power tail-
gate. If it is necessary to close
or open the power tailgate man-
ually when the battery is dis-
charged or disconnected, do
not apply excessive force.
CAUTION
OTLE045030

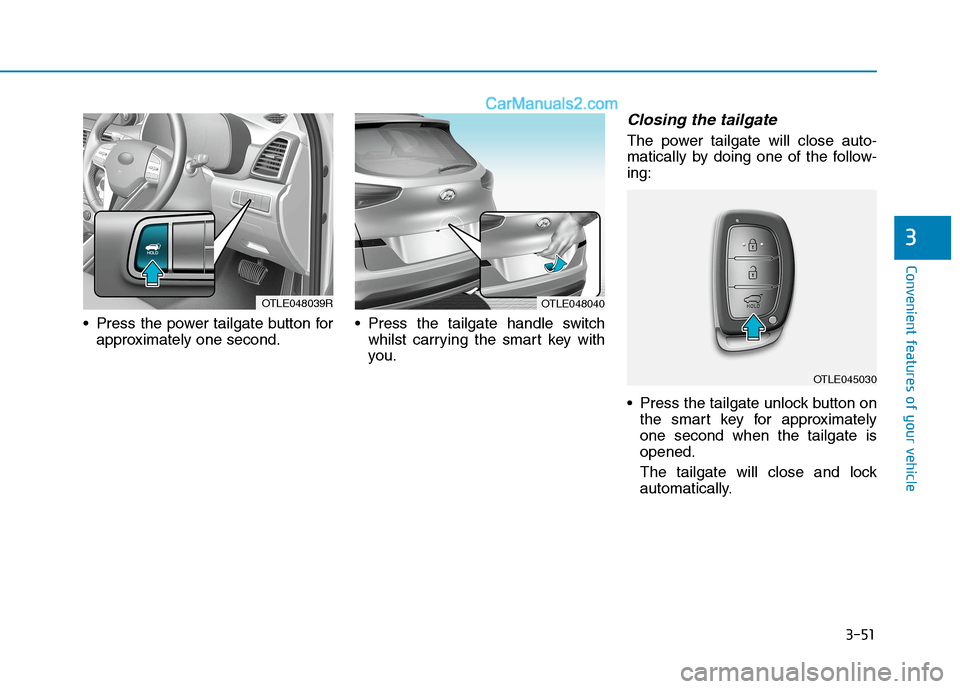

3-51
Convenient features of your vehicle
3
Press the power tailgate button for
approximately one second. Press the tailgate handle switch
whilst carrying the smart key with
you.
Closing the tailgate
The power tailgate will close auto-
matically by doing one of the follow-
ing:
Press the tailgate unlock button on
the smart key for approximately
one second when the tailgate is
opened.
The tailgate will close and lock
automatically.
OTLE048040OTLE048039R
OTLE045030

3-52
Convenient features of your vehicle
Press the power tailgate button for
approximately one second when
the tailgate is opened.
The tailgate will close and lock
automatically. Press the power tailgate inner
switch for approximately one sec-
ond when the tailgate is opened.
The tailgate will close and lock
automatically.
Power tailgate non-opening
conditions
The tailgate does not open when the
vehicle is in motion.
OTLE048041
The chime will sound if you
drive with the tailgate open.
Stop your vehicle immediately
at a safe place and check if your
tailgate is opened.
WARNING
Operating the power tailgate
more than 5 times continuously
could cause damage to the
operating motor. In this case,
the system enters into a thermal
protection mode. In thermal
protection mode, the power tail-
gate can not operate and the
chime will sound 3 times when
pressing any switch. Leave the
power tailgate system to rest
for about 1 minute before oper-
ating again.
CAUTION
OTLE048039R

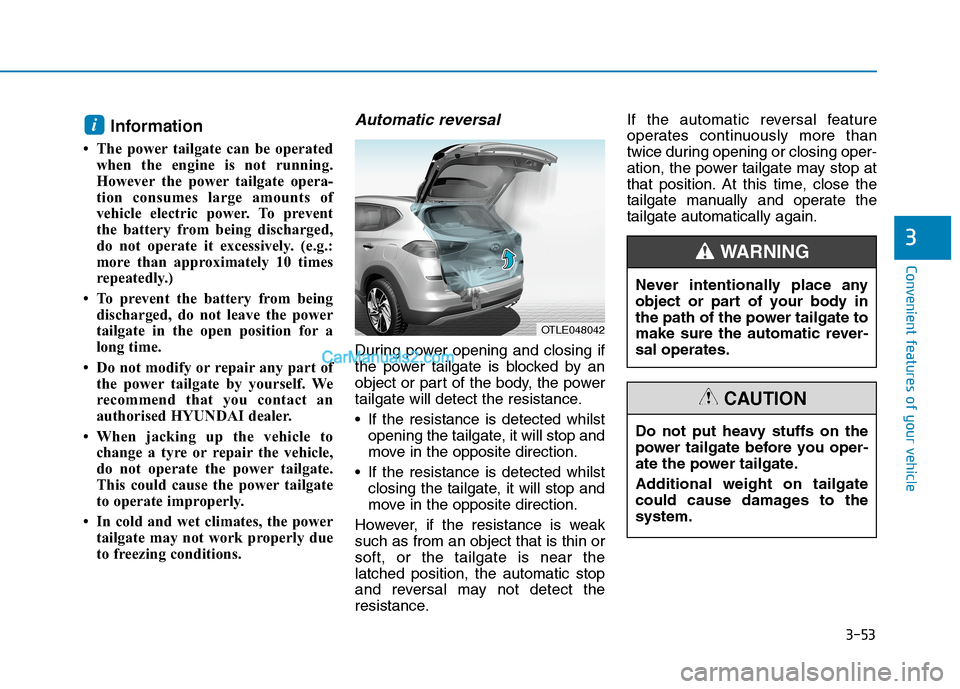

3-53
Convenient features of your vehicle
3
Information
• The power tailgate can be operated
when the engine is not running.
However the power tailgate opera-
tion consumes large amounts of
vehicle electric power. To prevent
the battery from being discharged,
do not operate it excessively. (e.g.:
more than approximately 10 times
repeatedly.)
• To prevent the battery from being
discharged, do not leave the power
tailgate in the open position for a
long time.
• Do not modify or repair any part of
the power tailgate by yourself. We
recommend that you contact an
authorised HYUNDAI dealer.
• When jacking up the vehicle to
change a tyre or repair the vehicle,
do not operate the power tailgate.
This could cause the power tailgate
to operate improperly.
• In cold and wet climates, the power
tailgate may not work properly due
to freezing conditions.
Automatic reversal
During power opening and closing if
the power tailgate is blocked by an
object or part of the body, the power
tailgate will detect the resistance.
If the resistance is detected whilst
opening the tailgate, it will stop and
move in the opposite direction.
If the resistance is detected whilst
closing the tailgate, it will stop and
move in the opposite direction.
However, if the resistance is weak
such as from an object that is thin or
soft, or the tailgate is near the
latched position, the automatic stop
and reversal may not detect the
resistance.If the automatic reversal feature
operates continuously more than
twice during opening or closing oper-
ation, the power tailgate may stop at
that position. At this time, close the
tailgate manually and operate the
tailgate automatically again.
i
OTLE048042
Never intentionally place any
object or part of your body in
the path of the power tailgate to
make sure the automatic rever-
sal operates.
WARNING
Do not put heavy stuffs on the
power tailgate before you oper-
ate the power tailgate.
Additional weight on tailgate
could cause damages to the
system.
CAUTION

3-54
Convenient features of your vehicle
How to reset the power tailgate
If the battery has been discharged or
disconnected, or if the related fuse
has been replaced or disconnected,
for the power tailgate to operate nor-
mally, reset the power tailgate as fol-
lows:
1. Automatic transmission / Dual
Clutch Transmission :
Put the shift lever is in P (Park).
Manual transmission :
Put the shift lever is in N (Neutral).
2. Whilst Pressing the power tailgate
inner switch, press the tailgate
handle switch for more than 3 sec-
onds. The chime will sound.
3. Close the tailgate manually.
If the power tailgate does not work
properly after the above procedure,
we recommend that the system be
checked by an authorised HYUNDAI
dealer.
Information
If the power tailgate does not operate
normally, check again if the gear posi-
tion is in right position.
Power tailgate opening height
user setting
The driver may set the height of a
fully opened tailgate by following the
below instruction.
1. Position the tailgate manually to
the height you prefer.
2. Press the power tailgate inner
switch for more than 3 seconds.
3. Close the tailgate manually after
hearing the buzzer sound.
The tailgate will open to the height
the driver has set up.
i
OTLE048041
Always keep the tailgate com-
pletely closed whilst the vehicle
is in motion. If it is left open or
ajar, poisonous exhaust gases
containing carbon monoxide
(CO) may enter the vehicle and
serious illness or death may
result.
WARNING
Rear luggage compartment
Occupants should never ride in
the rear luggage compartment
where no restraints are avail-
able. To avoid injury in the event
of an accident or sudden stops,
occupants should always be
properly restrained.
WARNING
