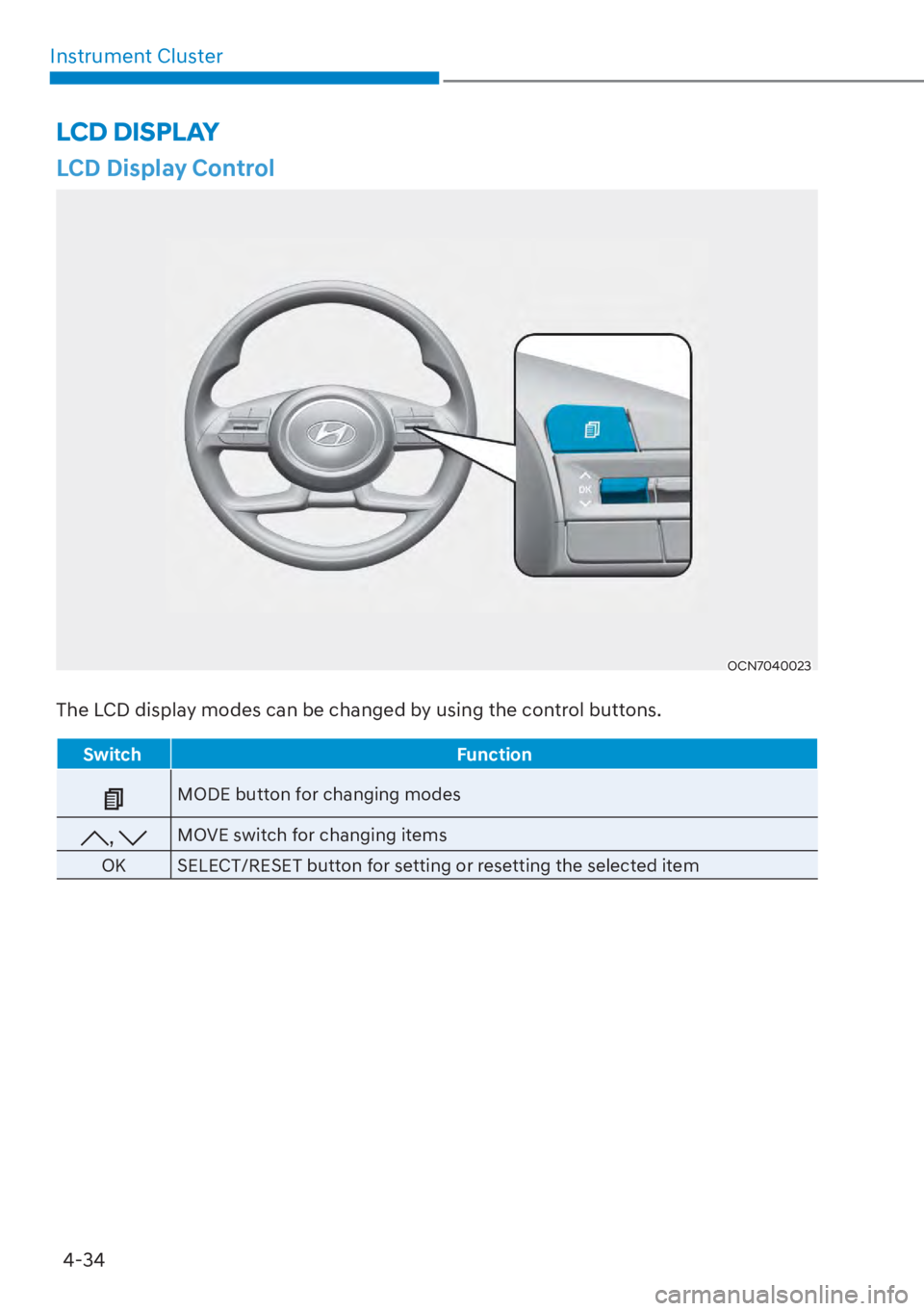

Instrument Cluster4-34
LCD Display Control
OCN7040023
The LCD display modes can be changed by using the control buttons.
Switch Function
MODE button for changing modes
, MOVE switch for changing items
OK SELECT/RESET button for setting or resetting the selected item
LCD DISPLAY

04
4-35
View Modes
Modes Symbol Explanation
Trip
Comput
erThis mode displays driving information such as the
tripmeter, fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By Turn
(TBT)This mode displays the state of the navigation.
Driving Assist
This mode displays the state of : - Lane Keeping AssistSmart Cruise Control
Highway Driving Assist

- Driver Attention Warning
- Driving force distribution (AWD)
For more information, refer to "Lane Keeping Assist (LKA)",
"Driver Attention Warning (DAW)", "Smart Cruise Control
(SCC)", "Highway Driving Assist (HDA)" in chapter 7 and
"All Wheel Drive (AWD)" in chapter 6.
User Settings
In this mode, you can change settings of the doors, lamps,
etc.
Warning
This mode displays warning messages related to the lamp
malfunction, etc.
This mode displays information related to the tire pressure
(TPMS), the state of driving force distribution.
The information provided may differ depending on which functions are applicable
to your vehicle.

4-36
Instrument Cluster
Trip computer mode
OTMA060011
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more details, refer to “Trip
Computer” section in this chapter.
Turn By Turn (TBT) mode
OIK047147N
This mode displays the state of the
navigation.
Driving Assist mode
OTMA040003
LKA/SCC/LFA/HDA
This mode displays the state of Lane
K

eeping Assist, Smart Cruise Control,
Lane Following Assist and Highway
Driving Assist
For more details, refer to each function
information in chapter 7.
ONX4E071174L
Driver Attention Warning
This mode displays the state of Driver
A
ttention Warning.
For more details, refer to “Driver
Attention Warning (DAW)” in chapter 7.

04
4-37
ONX4040014
Driving force distribution (AWD)
This mode displays information related to
A
WD driving force.
If the vehicle is in AWD lock state, this
mode is not displayed.
For detailed information, refer to the
"Four Wheel Drive" in the chapter 6.
Master warning group
OIG059097L
This warning light informs the driver the
following situations. - Forward Collision-Avoidance Assist malfunction (if equipped)
- Forward Collision-Avoidance Assist radar blocked (if equipped)
- Blind-Spot Collision-Avoidance Assist malfunction (if equipped)
- Blind-Spot Collision-Avoidance Assist radar blocked (if equipped)
- LED headlight malfunction (if equipped)
- High Beam Assist malfunction (if equipped)
- Smart Cruise Control malfunction (if equipped)
- Smart Cruise Control radar blocked (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
will appear beside the User Settings icon
(
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.

Instrument Cluster4-38
ONX4E040023
Tire Pressure
This mode displays information related to
Tir
e Pressure.
For more details, refer to "Tire Pressure
Monitoring System (TPMS)" in chapter
8.
Engine coolant temperature
OTMH041044AU
This engine coolant temperature gauge
display shows the temperature of the
engine coolant when the engine is
running.
NOTICE
When the gauge indicator gets out of
the normal range, toward the "H(Hot)"
position, it indicates overheating of the
engine. It may damage the engine.
Do not continue driving with the
overheated engine.
For more details, refer to "If the Engine
Overheats" section in the chapter 8.

04
4-39

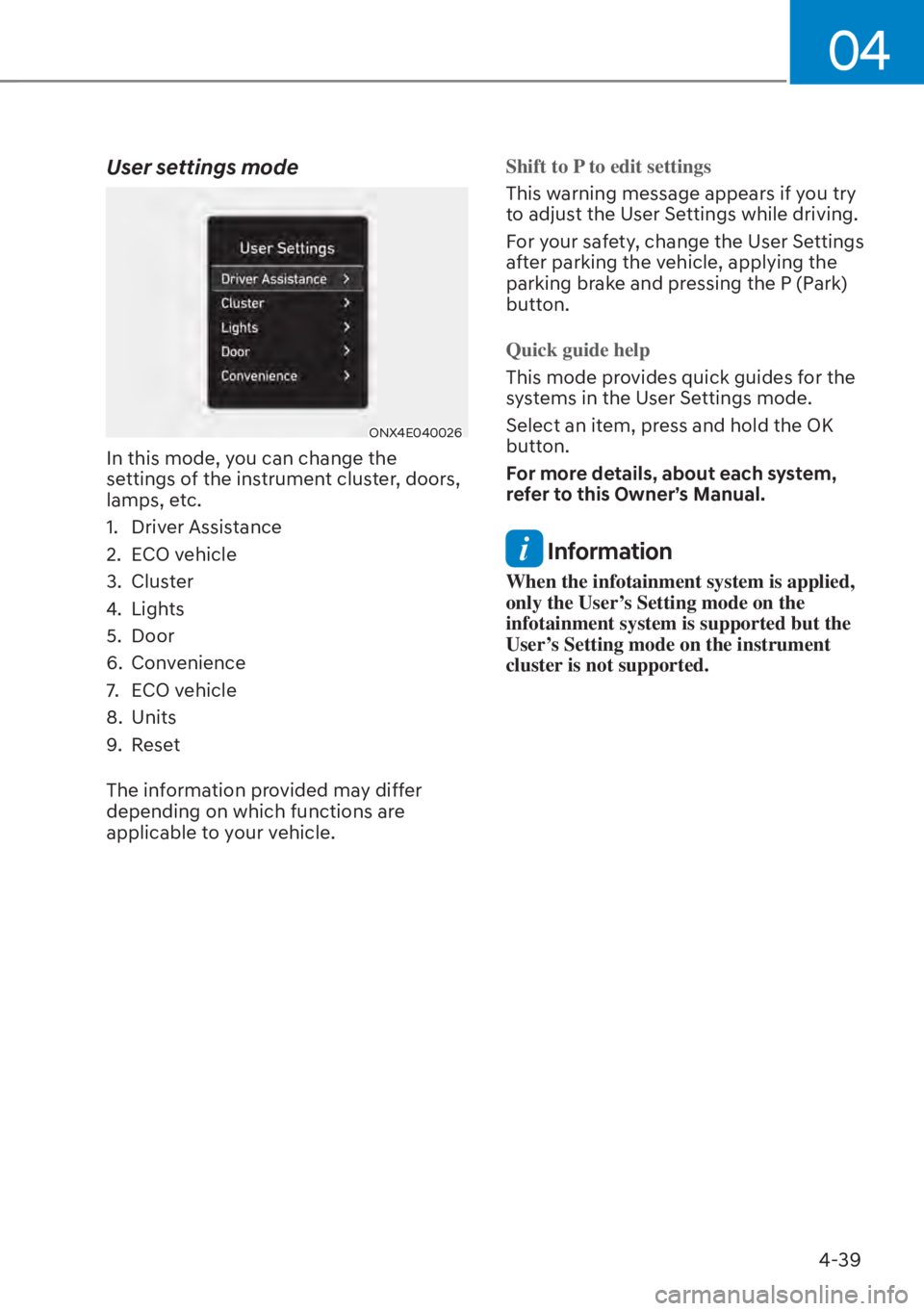

User settings mode
ONX4E040026
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver Assistance
2. ECO vehicle
3. Cluster
4. Lights
5. Door
6. Convenience
7. ECO vehicle
8. Units
9. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.Shift to P to edit settings
This warning message appears if you try
t

o adjust the User Settings while driving.
For your safety, change the User Settings
after parking the vehicle, applying the
parking brake and pressing the P (Park)
button.
Quick guide help
This mode provides quick guides for the
s
ystems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details, about each system,
refer to this Owner’s Manual.
Information
When the infotainment system is applied,
only the User’s Setting mode on the
infotainment system is supported but the
User’s Setting mode on the instrument
cluster is not supported.

Instrument Cluster4-40

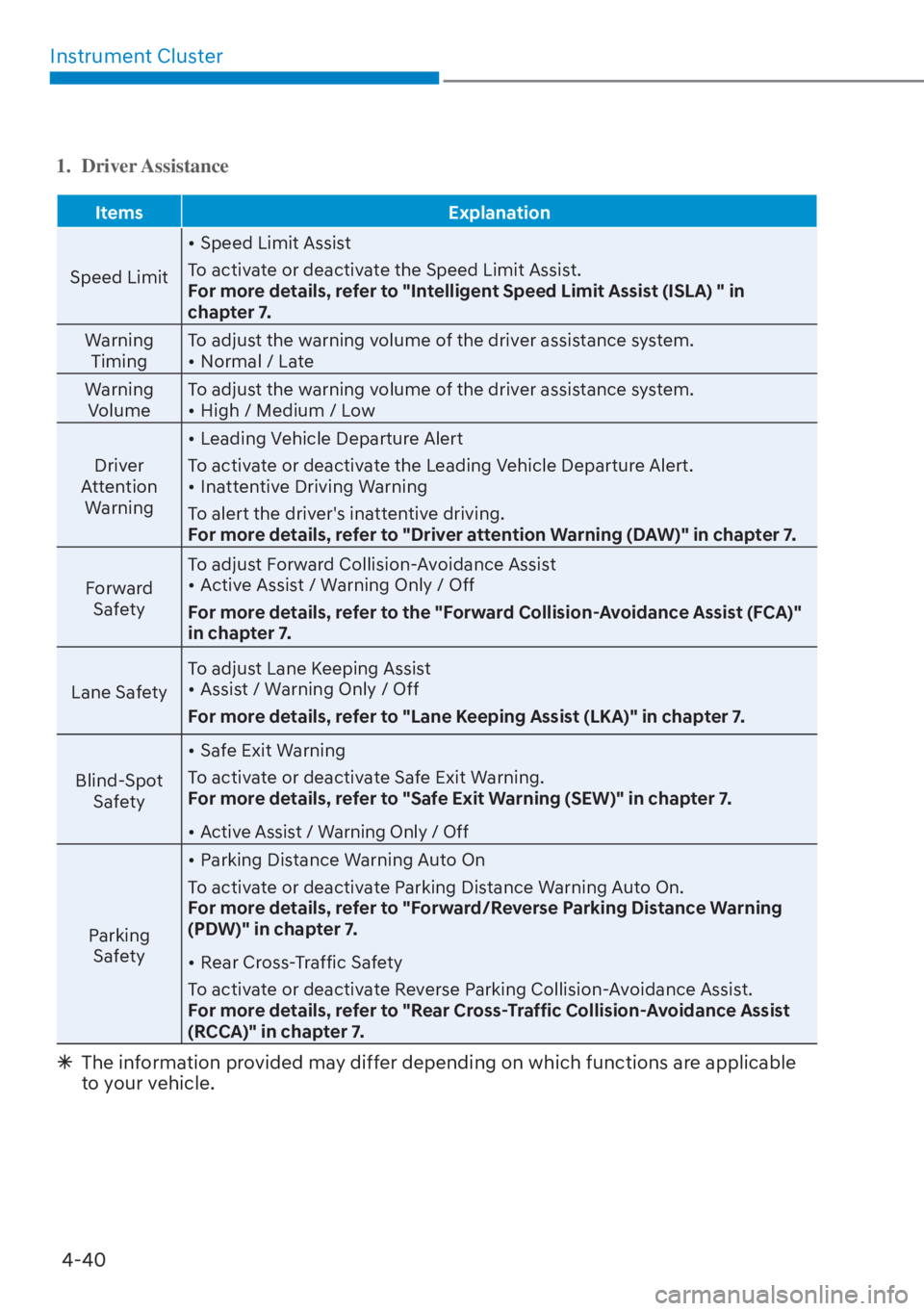

1. Driver Assistance
Items Explanation
Speed Limit
[
Speed Limit Assis
t
To activate or deactivate the Speed Limit Assist.
For more details, refer to "Intelligent Speed Limit Assist (ISLA) " in
chapter 7.
Warning Timing To adjust the warning volume of the driver assistance system.

[
Normal / Late
Warning Volume To adjust the warning volume of the driver assistance system.

[
High / Medium / Low
Driver
Attention Warning
[
Leading Vehicle Departure Alert
To activate or deactivate the Leading Vehicle Departure Alert.

[ Inattentive Driving Warning
To alert the driver's inattentive driving.
For more details, refer to "Driver attention Warning (DAW)" in chapter 7.
Forward Safety To adjust Forward Collision-Avoidance Assist

[
Active Assist / Warning Only / Off
For more details, refer to the "Forward Collision-Avoidance Assist (FCA)"
in chapter 7.
Lane Safety To adjust Lane Keeping Assist

[
Assist / Warning Only / Off
For more details, refer to "Lane Keeping Assist (LKA)" in chapter 7.
Blind-Spot Safety
[
Safe Exit Warning
To activate or deactivate Safe Exit Warning.
For more details, refer to "Safe Exit Warning (SEW)" in chapter 7.

[ Active Assist / Warning Only / Off
Parking Safety
[
Parking Distance Warning Auto On
To activate or deactivate Parking Distance Warning Auto On.
For more details, refer to "Forward/Reverse Parking Distance Warning
(PDW)" in chapter 7.

[ Rear Cross-Traffic Safety
To activate or deactivate Reverse Parking Collision-Avoidance Assist.
For more details, refer to "Rear Cross-Traffic Collision-Avoidance Assist
(RCCA)" in chapter 7.

à The information provided may differ depending on which functions are applicable
to your vehicle.

04
4-41
2. ECO vehicle
ItemsExplanation
Utility Mode T
o activate or deactivate the Utility Mode.
* Utility Mode: This is a mode for using electricity from high voltage battery. (not possible to drive) It's useful while
camping, etc.
Green Zone EV Drive To activate or deactivate the Green Zone EV Drive.
* Green Zone EV Drive : When user select "Green Zone Drive",
vehicle drives with EV mode as much as possible for protect
atmospheric environment. (based on map info - School
zone, park, indoor parking lots, etc.)
Coasting Guide
[
Enable Coasting Guide : On/Off
To inform driver when taking foot off from accelerator pedal
by getting information from Navigation system.

[ Sound
To adjust the sound of coasting guide.
Start Coasting
[
Early/Normal/Late
To select options when Coasting Pop-up is displayed.
Eco Coasting To activate or deactivate the Eco Coasting.
Lock Charging Cable To set the charging cable locking mode.

[:KLOHFKDUJLQJ$OZD\V'RQRWORFN
AUX. BATTERY SAVER+ To activate or deactivate the Aux. Battery Saver+ function.
When activated, the high voltage battery is used to keep the
12V battery charged.

Instrument Cluster4-42
3. Cluster
Items Explanation
Reset fuel
economy

[ At vehicle start

[ After refueling

[ Manually
To reset the fuel economy displayed.
Wiper/Lights DisplayTo activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/Light mode
whenever you changed the mode.
Traffic Signs To set the traffic signs displayed.
Cluster Voice Guidance Volume To adjust the cluster voice guidance volume.
Icy Road Warning To activate or deactivate the icy road warning.
Theme
Selection You can select the theme of the cluster.

[
Type A Cluster : Theme A / Theme B / Theme C

[ Type B Cluster : Link to Drive Mode /CLASSIC A/CLASSIC B/CLASSIC C/
CUBE
4. Lights
Items Explanation
Illumination T
o adjust the illumination level.

[ Level 1~20
One Touch
Turn Signal
[
Off : The one touch turn signal function will be deactivated.

[ 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7 times when
the turn signal lever is moved slightly.
For more details, refer to “Lighting” in chapter 5.
Ambient Light
Brightness
(if equipped)
[
Off

[ Level 1/2/3/4
Ambient
Light Color
(if equipped)
[
Polar White/Moon White/Ice Blue/Ocean Blue/Jade Green/Orchid Green/
Freesia Yellow/ Sunrise Red/Aurora Purple/Lightening Violet
Headlight Delay To activate or deactivate the headlight delay function.
For more details, refer to "Lighting" in chapter 5.
High Beam Assist To activate or deactivate High Beam Assist function.
For more details, refer to "High Beam Assist (HBA)" in chapter 5.

à The information provided may differ depending on which functions are applicable
to your vehicle.

04
4-43
5. Door
ItemsExplanation
Automatically
Lock

[Enable on Shift : All doors will be automatically locked if the gear is
shifted from the P (Park) position to the R (Reverse), N (Neutral), or D
(Drive) position. (Only when the engine is running.)

[ Enable on Speed : All doors will be automatically locked when the vehicle
speed exceeds 15km/h (9.3mph).

[ Off : The auto door lock operation will be deactivated.
Automatically
Unlock

[On Shift to P: All doors will be automatically unlocked if the gear is shifted
to the P (Park) position. (Only when the engine is running.)

[ On key out/On vehicle off : All doors will be automatically unlocked when
the ignition key is removed from the ignition switch or the Engine Start/
Stop button is set to the OFF position.

[ Off : The auto door unlock operation will be canceled.
Two Press
UnlockTo Activate or deactivate Two Press Unlock function.
Power
LiftgateIf this item is checked, the power liftgate function will be activated.
For more details, refer to "Power Liftgate" in chapter 5.
Power
Liftgate
Opening SpeedTo adjust the power liftgate speed.

[ Fast/Normal
For more details, refer to "Power Liftgate" in chapter 5.
Power
Liftgate
Opening HeightTo adjust the power liftgate Opening Height.

[ Full Open/Level 3/Level 2/Level 1/User Height Setting
Liftgate Auto
Close-
Smart
LiftgateTo activate or deactivate the smart liftgate.
For more details, refer to "Smart Liftgate" in chapter 5.

à The information provided may differ depending on which functions are applicable
to your vehicle.
