HYUNDAI TUCSON HYBRID 2023 Owners Manual

Instrument Cluster4-54
OTMA040009
Accumulated info
Accumulated trip distance (1), average
fuel econom
y (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
ONX4EHQ010006
Energy flow
The hybrid system informs the drivers its
ener
gy flow in various operating modes.
While driving, the current energy flow is
specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OIK047151N
Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.

04
4-55
Trip Computer (10.25-inch) -
Plug-in Hybrid Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Accumulated Info

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Since refuelling
Energy flow
Digital speedometer

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Drive Info
Electric/Gasoline
Range
OCN7050079
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 km/h (1 mph).

à For 10.25-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.

Instrument Cluster4-56
OAEPH049534R
Range
The range is the estimated distance the
v
ehicle can be driven with the remaining
fuel in the fuel tank (Gasoline/Petrol) and
high-voltage (hybrid) battery (Electric).
If the estimated distance is below 1km
(1 mile), the trip computer will display “--
-” as the range.
Information

[ If the vehicle is not on level ground or
the battery power has been interrupted,
the range function may not operate
correctly.

[ The range may differ from the actual
driving distance as it is an estimate of
the available driving distance.

[ The trip computer may not register
additional fuel if less than 6 liters (2
gallon) of fuel are added to the vehicle.

[ The range may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.
OTMA040012
Drive info
Trip distance (1), average fuel economy
(2), and t

otal driving time (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
OTMA040014
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and t
otal driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.

04
4-57
OTMA040016
Accumulated info
Accumulated trip distance (1), average
fuel econom
y (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
ONX4EHQ010006
Energy flow
The hybrid system informs the drivers its
ener
gy flow in various operating modes.
While driving, the current energy flow is
specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OIK047151N
Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.

Instrument Cluster4-58
ONX4E040028
Vehicle Settings in the infotainment
system provides user options for a
variety of settings including door lock/
unlock features, convenience features,
driver assistance settings, etc.
Vehicle Settings menu - Driver Assistance

-ECO
- Cluster
- Climate
- Seat

- Lights
- Door
- Convenience
The information provided may differ
depending on which functions are
applicable to your vehicle.
WARNING
Do not operate the Vehicle Settings
while driving. This may cause
distraction resulting in an accident.
Setting Your Vehicle
ONX4050067
1. Press the SETUP button on the main keyboard.
ONX4E040027
2. Select ‘Vehicle’ to change the Vehicle Settings.
Information
The infotainment system may change after
software updates. For more information,
refer to the user's manual provided in
the infotainment system and the quick
reference guide.
9(+,&/(6(77,1*6

5
Accessing Your Vehicle ........................................................................\
............. 5-4Smart Key ........................................................................\
..............................................5-4
Immobilizer System ........................................................................\
............................ 5-11
Hyundai Digital Key ........................................................................\
.............................5-12
Door Locks ........................................................................\
............................... 5-29Operating Door Locks from Outside the Vehicle ..................................................... 5-29
Operating Door Unlocks from Inside the Vehicle .....................................................5-31
Auto Door Lock/Unlock Features ........................................................................\
...... 5-33
Child-protector Rear Door Locks ........................................................................\
...... 5-33
Theft-Alarm System ........................................................................\
................ 5-34
Rear Occupant Alert (ROA) ........................................................................\
.... 5-35
System Setting........................................................................\
.................................... 5-35
System Operation ........................................................................\
............................... 5-35
System Precautions ........................................................................\
............................ 5-35
Integrated Memory System......................................................................\
.......5-37Storing Memory Positions ........................................................................\
................. 5-37
Recalling Memory Positions ........................................................................\
..............5-38
Resetting the System ........................................................................\
.........................5-38
Seat Easy Access Operation ........................................................................\
..............5-39
Steering Wheel ........................................................................\
........................ 5-40Motor Driven Power Steering (MDPS) ..................................................................... 5-40
Tilt / Telescopic Steering ........................................................................\
................... 5-41
Heated Steering Wheel ........................................................................\
...................... 5-41
Horn........................................................................\
.....................................................5-42
Mirrors ......................................................................\
....................................... 5-43Inside Rearview Mirror ........................................................................\
.......................5-43
Side View Mirrors ........................................................................\
...............................5-54
Windows ......................................................................\
.................................... 5-56Power Windows ........................................................................\
.................................. 5-57
Panoramic Sunroof ........................................................................\
..................5-61Power Sunshade ........................................................................\
................................. 5-61
Tilt Open/Close........................................................................\
...................................5-62
Slide Open/Close .......................................................\
................................................5-62
Automatic Reversal ........................................................................\
............................5-63
Resetting the Sunroof ........................................................................\
....................... 5-64
Sunroof Open Warning ........................................................................\
......................5-65

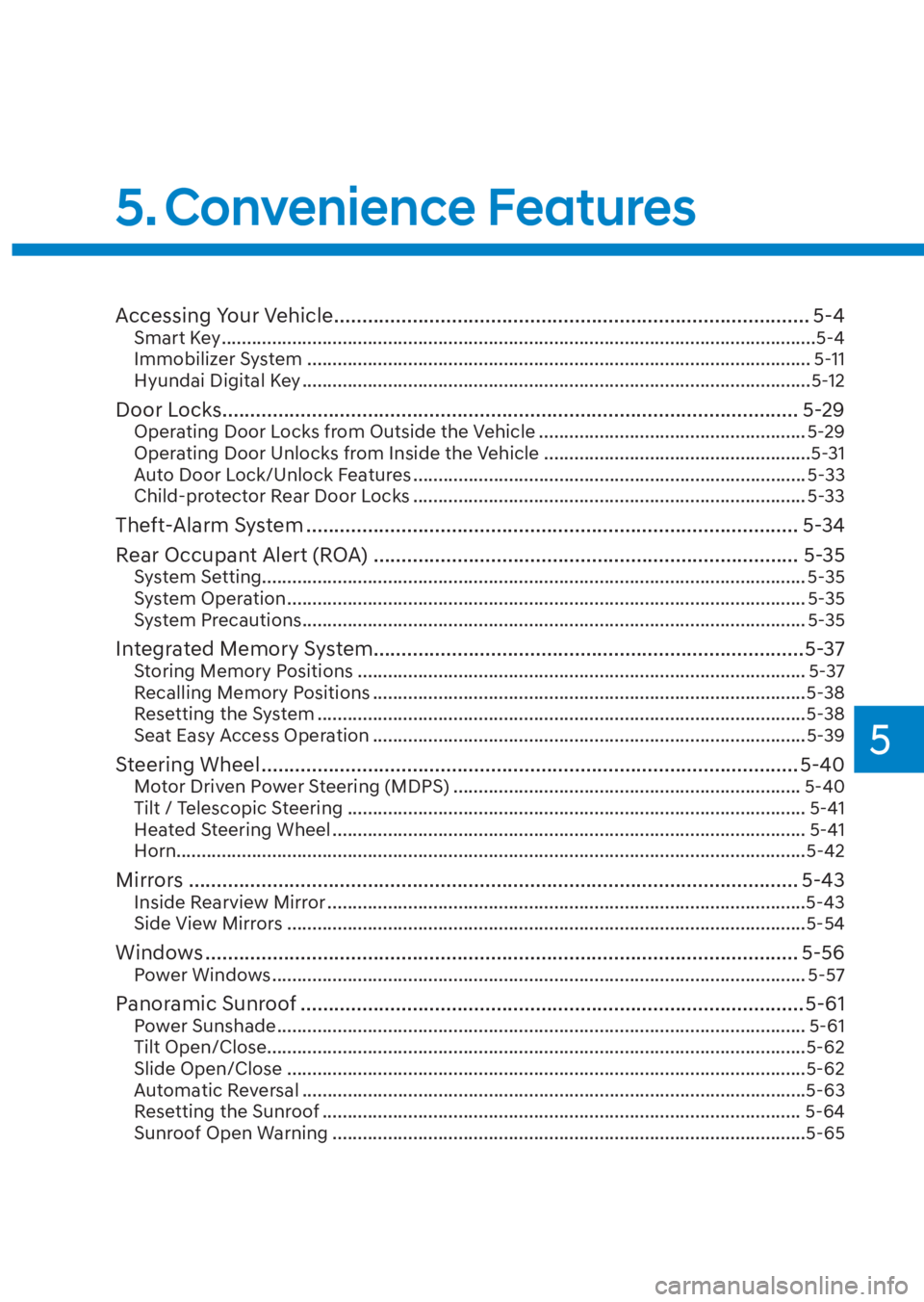

5. Convenience Features

5
Exterior Features ........................................................................\
..................... 5-66Hood ....................................................................\
....................................................... 5-66
Liftgate ......................................................................\
................................................ .. 5-67
Power Liftgate ........................................................................\
................................... 5-69
Smart Liftgate ........................................................................\
..................................... 5-75
Fuel Filler Door (Hybrid vehicle) ........................................................................\
........ 5-77
Fuel Filler Door (Plug-in hybrid vehicle) ................................................................... 5-79
Lighting ...............................................................\
............................................. 5-84Exterior Lights ........................................................................\
................................... 5-84
High Beam Assist (HBA) ........................................................................\
......... 5-88High Beam Assist Settings ........................................................................\
................ 5-88
High Beam Assist Operation ........................................................................\
............. 5-89
High Beam Assist Malfunction and Limitations ...................................................... 5-90
Interior Lights ........................................................................\
........................... 5-91Interior Lamp AUTO OFF ........................................................................\
.................... 5-91
Front lamps ........................................................................\
......................................... 5-91
Rear Lamps ........................................................................\
.........................................5-92
Vanity Mirror Lamp ........................................................................\
.............................5-92
Glove Box Lamp ........................................................................\
.................................5-93
Luggage Compartment Lamp ........................................................................\
...........5-93
Welcome System ........................................................................\
............................... 5-94
Wipers and Washers ........................................................................\
............... 5-95Windshield Wipers ........................................................................\
.............................5-95
Front Windshield Washers ........................................................................\
................. 5-97
Rear Window Wiper and Washer ........................................................................\
..... 5-98
Automatic Climate Control System ............................................................... 5-99Automatic Heating and Air Conditioning ............................................................... 5-100
Manual Heating and Air Conditioning ..................................................................... 5-101
Multi Air Mode ........................................................................\
.................................. 5-108
System Operation ........................................................................\
............................. 5-109
System Maintenance ........................................................................\
......................... 5-111
Windshield Defrosting and Defogging ..........................................................5-113Automatic Climate Control System......................................................................\
.... 5-113
Auto Defogging System on Models with Automatic Temperature Control ........... 5-114
Rear Window Defroster........................................................................\
..................... 5-115

5
Climate Control Additional Features .............................................................5-116A/C Automatic Drying ........................................................................\
....................... 5-116
Auto Defogging System on Models with Automatic Temperature Control ........... 5-116
Auto Dehumidify ........................................................................\
............................... 5-117
Recirculating Air when Washer Fluid is Used .......................................................... 5-118
Sunroof Inside Air Recirculation ........................................................................\
....... 5-118
Automatic Controls for the Driver Based on Climate Control System Settings .... 5-118
Storage Compartment ........................................................................\
............5-119Center Console Storage ........................................................................\
.................... 5-119
Glove Box ........................................................................\
........................................... 5-119
Luggage Tray ........................................................................\
..................................... 5-119
Interior Features ........................................................................\
..................... 5-120Cup Holder ........................................................................\
........................................ 5-120
Sunvisor ..................................................................\
................................................... 5-121
Power Outlet ........................................................................\
...................................... 5-121
USB Charger ........................................................................\
......................................5-122
Wireless Smart Phone Charging System .................................................................5-123
Clock ..................................................................\
....................................................... 5-126
Coat Hook ........................................................................\
......................................... 5-126
Floor Mat Anchor(s) ........................................................................\
........................... 5-127
Luggage Net Holder ........................................................................\
.......................... 5-127
Cargo Security Screen ........................................................................\
..................... 5-128
Exterior Features ........................................................................\
....................5-130Roof Side Rails ........................................................................\
.................................. 5-130
Infotainment System ........................................................................\
..............5-131USB Port ........................................................................\
............................................. 5-131
Antenna ...................................................................\
...................................................5 -132
Steering Wheel Remote Controls ........................................................................\
.....5-132
Infotainment System ........................................................................\
........................ 5-133
Voice Recognition ........................................................................\
............................ 5-133
Bluetooth® Wireless Technology ........................................................................\
..... 5-134
5. Convenience Features

Convenience Features5-4
Smart Key
„„Type AType A
OTM050003OTM050003
„„Type BType B
OTM050004OTM050004
Your HYUNDAI maybe equipped with a
smart key, which you can use to lock or
unlock the doors and liftgate, and start
the engine while just having the key in
your possession.
1. Door lock
2. Door unlock
3. Liftgate Unlock (Manual Liftgate) Liftgate Open / Close (Power liftgate)
4. Panic
5. Remote Smart Parking Assist (Forward)
6. Remote Smart Parking Assist (Backward)
7. Remote start
Locking your vehicle (Button type)
ODN8059001ODN8059001
To lock :
1. Make sure that all doors are closed.
2. Carry the smart key.
3. Either press the door handle button or press the Door Lock button on the
smart key.
4. The hazard warning lights will blink.
5. Make sure the doors are locked by pulling on the door handle.
ACCESSING YOUR VEHICLE

05
5-5
Locking your vehicle (Touch sensor
type) (if equipped)
ODN8059236ODN8059236
1. Make sure that all doors are closed.
2. While having the Smart Key in your possession, touch the outer part of
the door handle on or near the handle
detent for about 1 second or until you
hear the door locks actuate.
3. The doors will be locked. If the liftgate was open, then when the liftgate is
closed it will be locked also.
The chime will sound once and the
hazard warning lights will blink.
• The door handle touch sensor will only operate when the smart key is within
28~40 inches (0.7~1 m) from the
outside door handle.
• Make sure the doors are locked by pulling the door handle. If you locked
the door with the touch sensor on
the door handle, the doors cannot
be unlocked with the sensor within 3
seconds. Note that if you press the outside door
handle to lock the doors using the touch
sensor, the doors will not lock under the
following circumstances:
• The Smart Key is in the vehicle
• The Engine Start/Stop button is in the
ACC or ON position
• Any of the doors are open (except for the liftgate)
If this occurs, then a chime will sound
for about 3 seconds. Check the vehicle
before attempting to lock the car again. CAUTION
Before you leave your vehicle with the
Smart Key, verify that your vehicle is
locked. When using the touch sensor
on the front door handle, listen to hear
that the lock has actuated, and then
pull the handle within 3 seconds to
confirm the doors are locked.
(if it has been longer than 3 seconds,
verify the doors are locked by pressing
the lock button on the Smart Key. You
will hear a single beep.)
WARNING
Do not leave the Smart Key in
your vehicle with children that are
unattended or unsupervised.
Children could inadvertently press
the Engine Start/Stop button or could
operate the power windows or other
vehicle controls or even cause the
vehicle to move. This could result in
serious injury or death.
