HYUNDAI TUCSON HYBRID 2023 Owners Manual

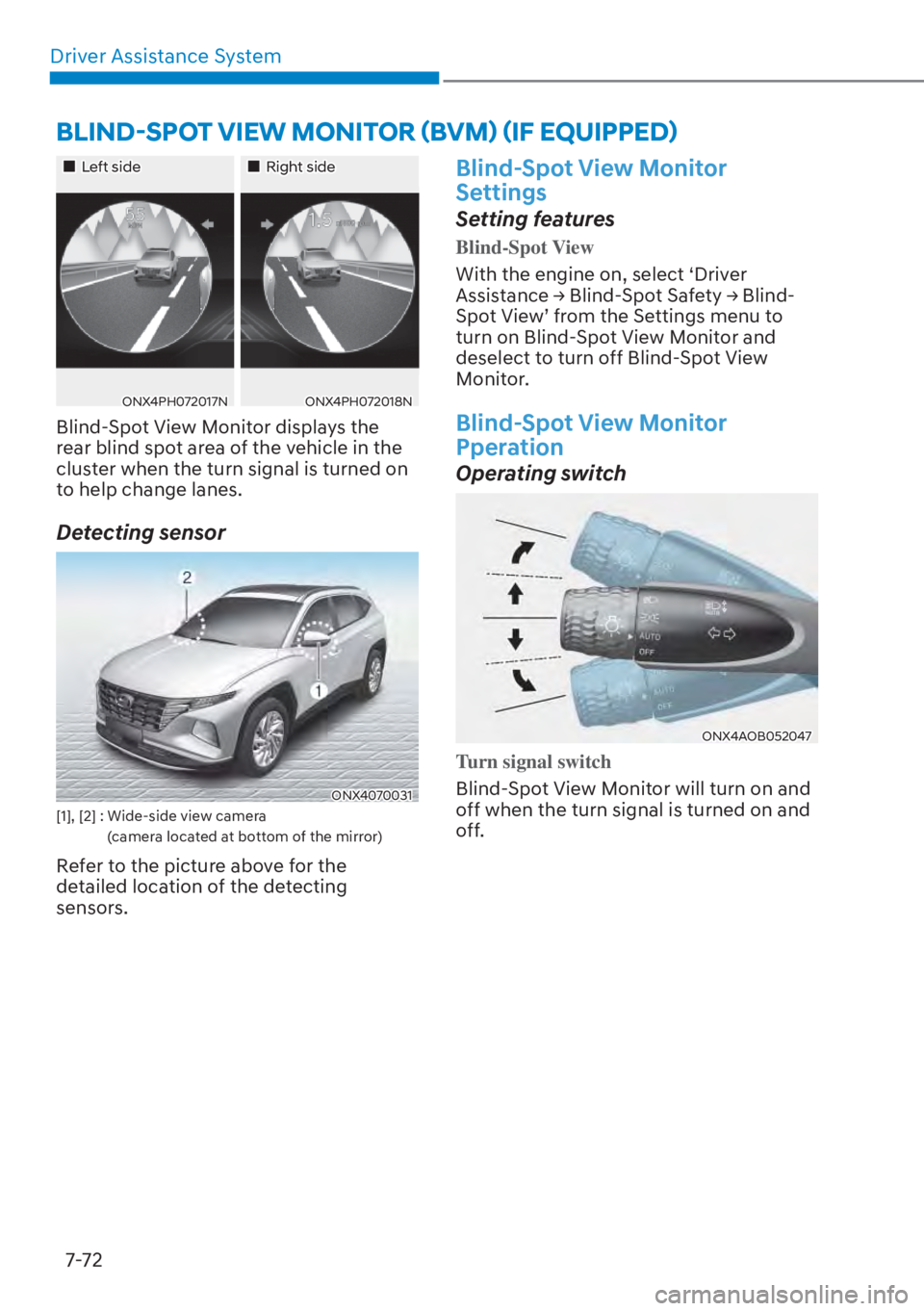

Driver Assistance System7-72
„„Left sideLeft side„„Right sideRight side
ONX4PH072017NONX4PH072017NONX4PH072018NONX4PH072018N
Blind-Spot View Monitor displays the
rear blind spot area of the vehicle in the
cluster when the turn signal is turned on
to help change lanes.
Detecting sensor
ONX4070031ONX4070031[1], [2] : Wide-side view camera (camera located at bottom of the mirror)
Refer to the picture above for the
detailed location of the detecting
sensors.
Blind-Spot View Monitor
Settings
Setting features
Blind-Spot View
With the engine on, select ‘Driver
Assis
tance
Ÿ Blind-Spot Safety
Ÿ Blind-
Spot View’ from the Settings menu to
turn on Blind-Spot View Monitor and
deselect to turn off Blind-Spot View
Monitor.
Blind-Spot View Monitor
Pperation
Operating switch
ONX4AOB052047ONX4AOB052047
Turn signal switch
Blind-Spot View Monitor will turn on and
o
ff when the turn signal is turned on and
off.
BLIND-SPOT VIEW MONITOR (BVM) (IF EQUIPPED)

07
7-73

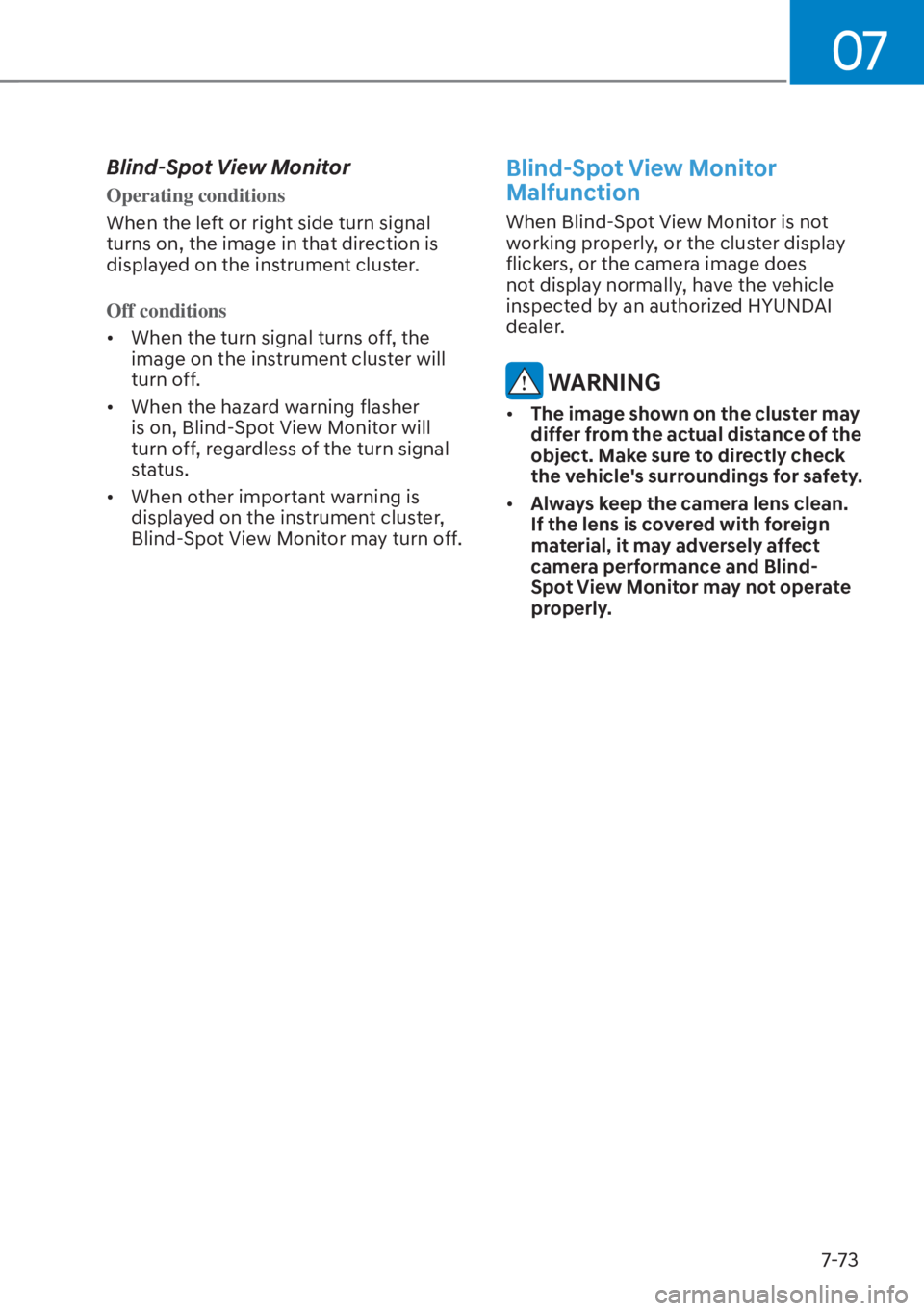

Blind-Spot View Monitor
Operating conditions
When the left or right side turn signal
turns on, the image in tha
t direction is
displayed on the instrument cluster.
Off conditions
• When the turn signal turns off, the image on the ins
trument cluster will
turn off.
• When the hazard warning flasher is on, Blind-Spot View Monitor will
turn off, regardless of the turn signal
status.
• When other important warning is displayed on the instrument cluster,
Blind-Spot View Monitor may turn off.
Blind-Spot View Monitor
Malfunction
When Blind-Spot View Monitor is not
working properly, or the cluster display
flickers, or the camera image does
not display normally, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING
• The image shown on the cluster may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.
• Always keep the camera lens clean.
If the lens is covered with foreign
material, it may adversely affect
camera performance and Blind-
Spot View Monitor may not operate
properly.

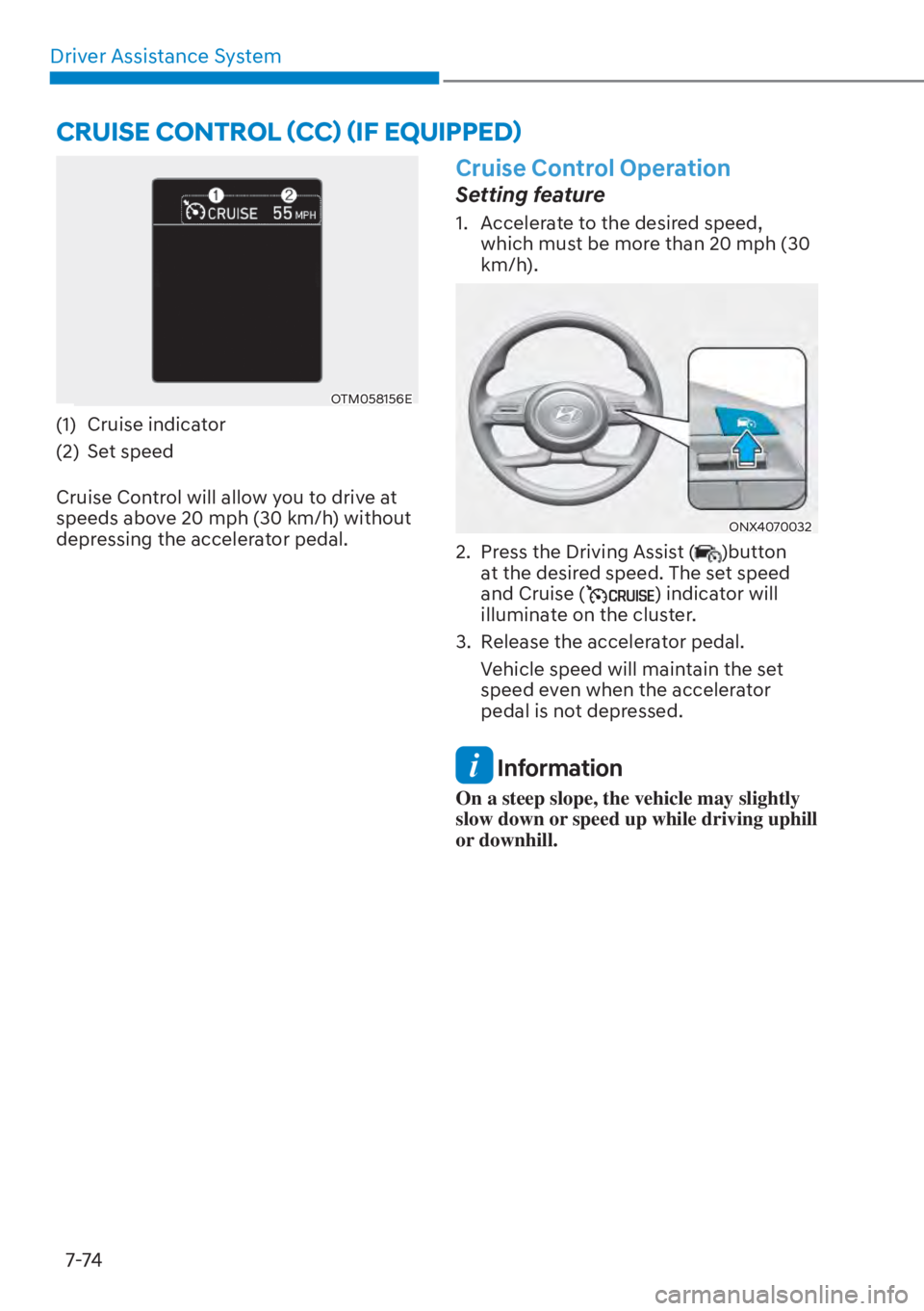

Driver Assistance System7-74
OTM058156EOTM058156E
(1) Cruise indicator
(2) Set speed
Cruise Control will allow you to drive at
speeds above 20 mph (30 km/h) without
depressing the accelerator pedal.
Cruise Control Operation
Setting feature
1. Accelerate to the desired speed, which must be more than 20 mph (30
km/h).
ONX4070032ONX4070032
2. Press the Driving Assist ()button
at the desired speed. The set speed
and Cruise (
) indicator will
illuminate on the cluster.
3. Release the accelerator pedal. Vehicle speed will maintain the set
speed even when the accelerator
pedal is not depressed.
Information
On a steep slope, the vehicle may slightly
slow down or speed up while driving uphill
or downhill.
CRUISE CONTROL (CC) (IF EQUIPPED)

07
7-75

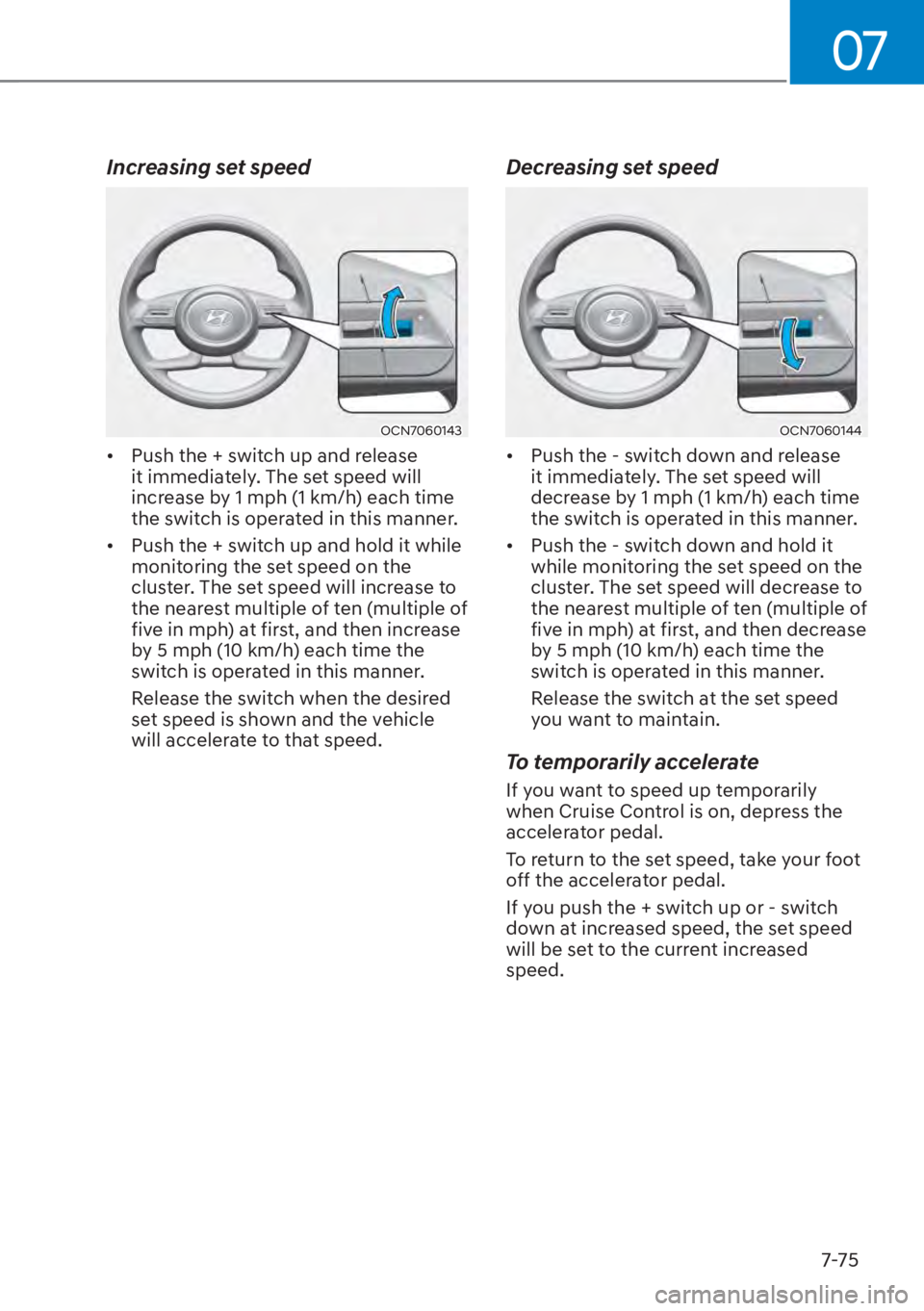

Increasing set speed
OCN7060143OCN7060143
• Push the + switch up and release it immediately. The set speed will
increase by 1 mph (1 km/h) each time
the switch is operated in this manner.
• Push the + switch up and hold it while monitoring the set speed on the
cluster. The set speed will increase to
the nearest multiple of ten (multiple of
five in mph) at first, and then increase
by 5 mph (10 km/h) each time the
switch is operated in this manner.
Release the switch when the desired
set speed is shown and the vehicle
will accelerate to that speed.
Decreasing set speed
OCN7060144OCN7060144
• Push the - switch down and release it immediately. The set speed will
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.
• Push the - switch down and hold it while monitoring the set speed on the
cluster. The set speed will decrease to
the nearest multiple of ten (multiple of
five in mph) at first, and then decrease
by 5 mph (10 km/h) each time the
switch is operated in this manner.
Release the switch at the set speed
you want to maintain.
To temporarily accelerate
If you want to speed up temporarily
when Cruise Control is on, depress the
accelerator pedal.
To return to the set speed, take your foot
off the accelerator pedal.
If you push the + switch up or - switch
down at increased speed, the set speed
will be set to the current increased
speed.

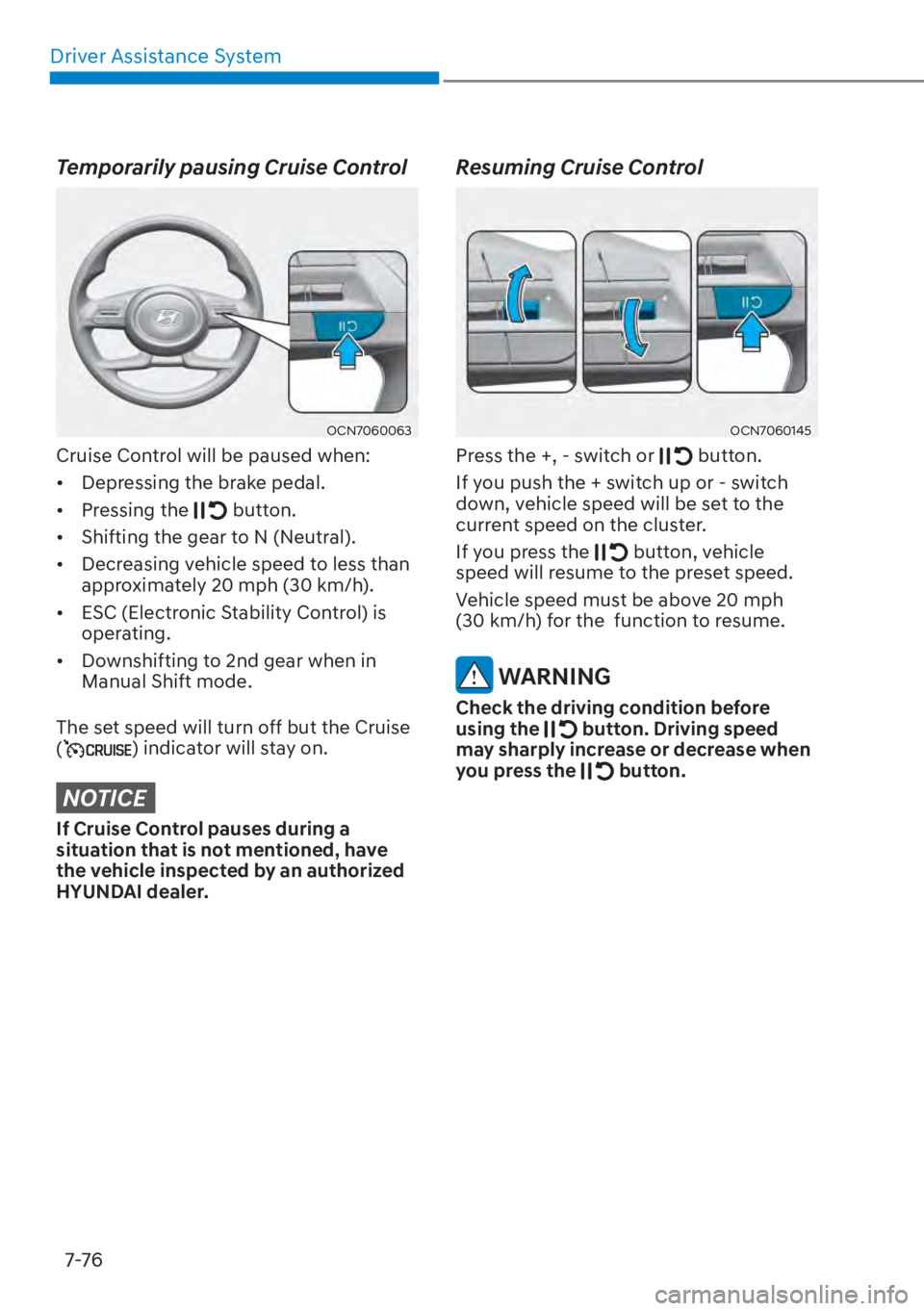

Driver Assistance System7-76
Temporarily pausing Cruise Control
OCN7060063OCN7060063
Cruise Control will be paused when:
• Depressing the brake pedal.
• Pressing the
button.
• Shifting the gear to N (Neutral).
• Decreasing vehicle speed to less than approximately 20 mph (30 km/h).
• ESC (Electronic Stability Control) is operating.
• Downshifting to 2nd gear when in Manual Shift mode.
The set speed will turn off but the Cruise
(
) indicator will stay on.
NOTICE
If Cruise Control pauses during a
situation that is not mentioned, have
the vehicle inspected by an authorized
HYUNDAI dealer.
Resuming Cruise Control
OCN7060145OCN7060145
Press the +, - switch or button.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you press the
button, vehicle
speed will resume to the preset speed.
Vehicle speed must be above 20 mph
(30 km/h) for the function to resume.
WARNING
Check the driving condition before
using the button. Driving speed
may sharply increase or decrease when
you press the
button.

07
7-77

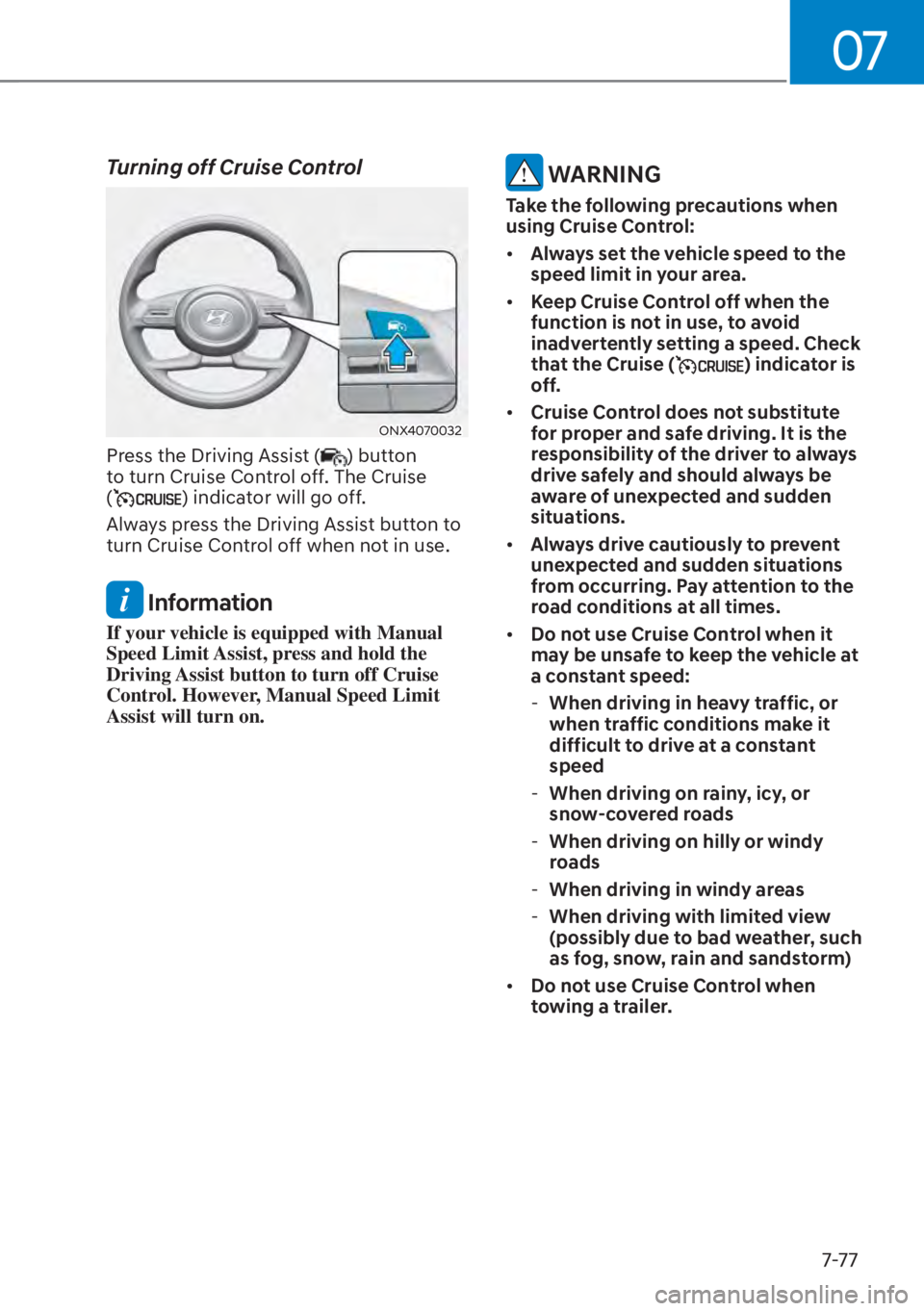

Turning off Cruise Control
ONX4070032ONX4070032
Press the Driving Assist () button
to turn Cruise Control off. The Cruise
(
) indicator will go off.
Always press the Driving Assist button to
turn Cruise Control off when not in use.
Information
If your vehicle is equipped with Manual
Speed Limit Assist, press and hold the
Driving Assist button to turn off Cruise
Control. However, Manual Speed Limit
Assist will turn on.
WARNING
Take the following precautions when
using Cruise Control:
• Always set the vehicle speed to the
speed limit in your area.
• Keep Cruise Control off when the
function is not in use, to avoid
inadvertently setting a speed. Check
that the Cruise (
) indicator is
off.
• Cruise Control does not substitute
for proper and safe driving. It is the
responsibility of the driver to always
drive safely and should always be
aware of unexpected and sudden
situations.
• Always drive cautiously to prevent
unexpected and sudden situations
from occurring. Pay attention to the
road conditions at all times.
• Do not use Cruise Control when it
may be unsafe to keep the vehicle at
a constant speed:
- When driving in heavy traffic, or
when traffic conditions make it
difficult to drive at a constant
speed
- When driving on rainy, icy, or
snow-covered roads
- When driving on hilly or windy
roads
- When driving in windy areas
- When driving with limited view
(possibly due to bad weather, such
as fog, snow, rain and sandstorm)
• Do not use Cruise Control when
towing a trailer.

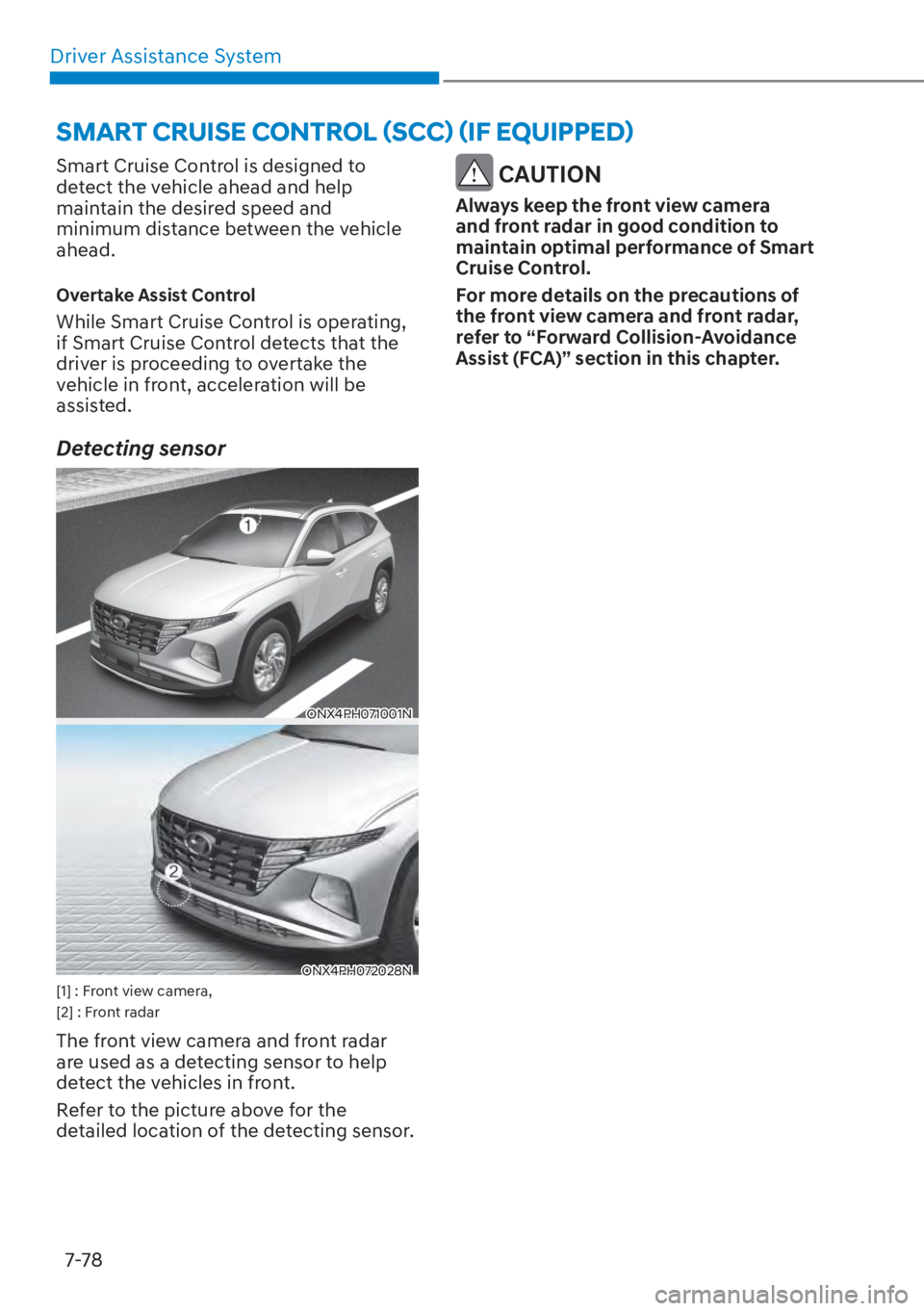

Driver Assistance System7-78
SMART CRUISE CONTROL (SCC) (IF EQUIPPED)
Smart Cruise Control is designed to
detect the vehicle ahead and help
maintain the desired speed and
minimum distance between the vehicle
ahead.
Overtake Assist Control
While Smart Cruise Control is operating,
if Smart Cruise Control detects that the
driver is proceeding to overtake the
vehicle in front, acceleration will be
assisted.
Detecting sensor
ONX4PH071001NONX4PH071001N
ONX4PH072028NONX4PH072028N[1] : Front view camera,
[2] : Front radar
The front view camera and front radar
are used as a detecting sensor to help
detect the vehicles in front.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera
and front radar in good condition to
maintain optimal performance of Smart
Cruise Control.
For more details on the precautions of
the front view camera and front radar,
refer to “Forward Collision-Avoidance
Assist (FCA)” section in this chapter.

07
7-79

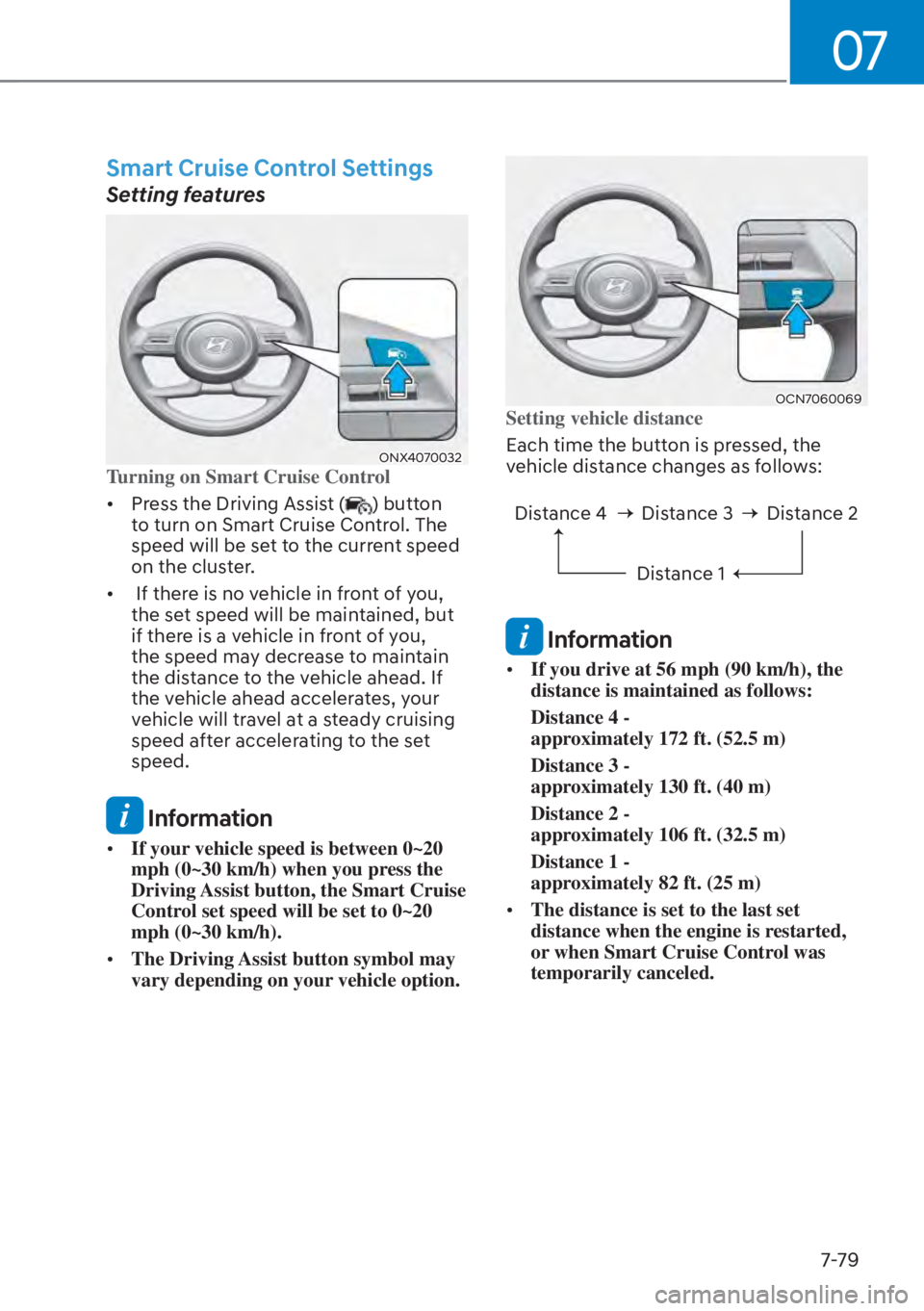

Smart Cruise Control Settings
Setting features
ONX4070032ONX4070032Turning on Smart Cruise Control
• Press the Driving Assist (
) button
to turn on Smart Cruise Control. The
speed will be set to the current speed
on the cluster.
• If there is no vehicle in front of you, the set speed will be maintained, but
if there is a vehicle in front of you,
the speed may decrease to maintain
the distance to the vehicle ahead. If
the vehicle ahead accelerates, your
vehicle will travel at a steady cruising
speed after accelerating to the set
speed.
Information
• If your vehicle speed is between 0~20
mph (0~30 km/h) when you press the
Driving Assist button, the Smart Cruise
Control set speed will be set to 0~20
mph (0~30 km/h).
• The Driving Assist button symbol may
vary depending on your vehicle option.
OCN7060069OCN7060069Setting vehicle distance
Each time the button is pressed, the
v

ehicle distance changes as follows:
Distance 4 Distance 3
Dis
tance 1Distance 2
Information
• If you drive at 56 mph (90 km/h), the
distance is maintained as follows:
Distance 4 -
approximately 172 ft. (52.5 m)
Distance 3 -
approximately 130 ft. (40 m)
Distance 2 -
approximately 106 ft. (32.5 m)
Distance 1 -
approximately 82 ft. (25 m)
• The distance is set to the last set
distance when the engine is restarted,
or when Smart Cruise Control was
temporarily canceled.

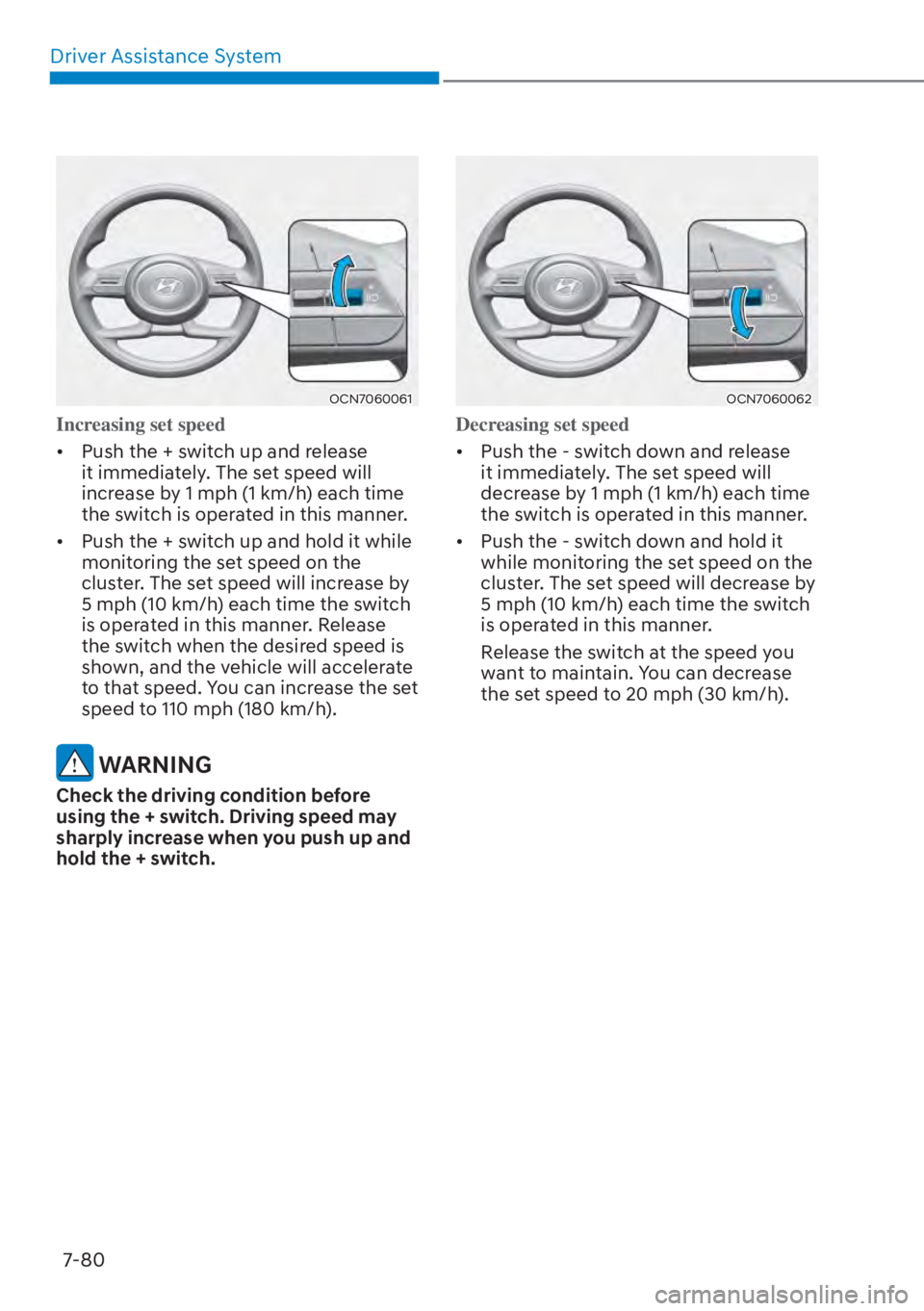

Driver Assistance System7-80
OCN7060061OCN7060061
Increasing set speed
• Push the + switch up and release it immedia
tely. The set speed will
increase by 1 mph (1 km/h) each time
the switch is operated in this manner.
• Push the + switch up and hold it while monitoring the set speed on the
cluster. The set speed will increase by
5 mph (10 km/h) each time the switch
is operated in this manner. Release
the switch when the desired speed is
shown, and the vehicle will accelerate
to that speed. You can increase the set
speed to 110 mph (180 km/h).
WARNING
Check the driving condition before
using the + switch. Driving speed may
sharply increase when you push up and
hold the + switch.
OCN7060062OCN7060062
Decreasing set speed
• Push the - switch down and release
it immedia
tely. The set speed will
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.
• Push the - switch down and hold it while monitoring the set speed on the
cluster. The set speed will decrease by
5 mph (10 km/h) each time the switch
is operated in this manner.
Release the switch at the speed you
want to maintain. You can decrease
the set speed to 20 mph (30 km/h).

07
7-81

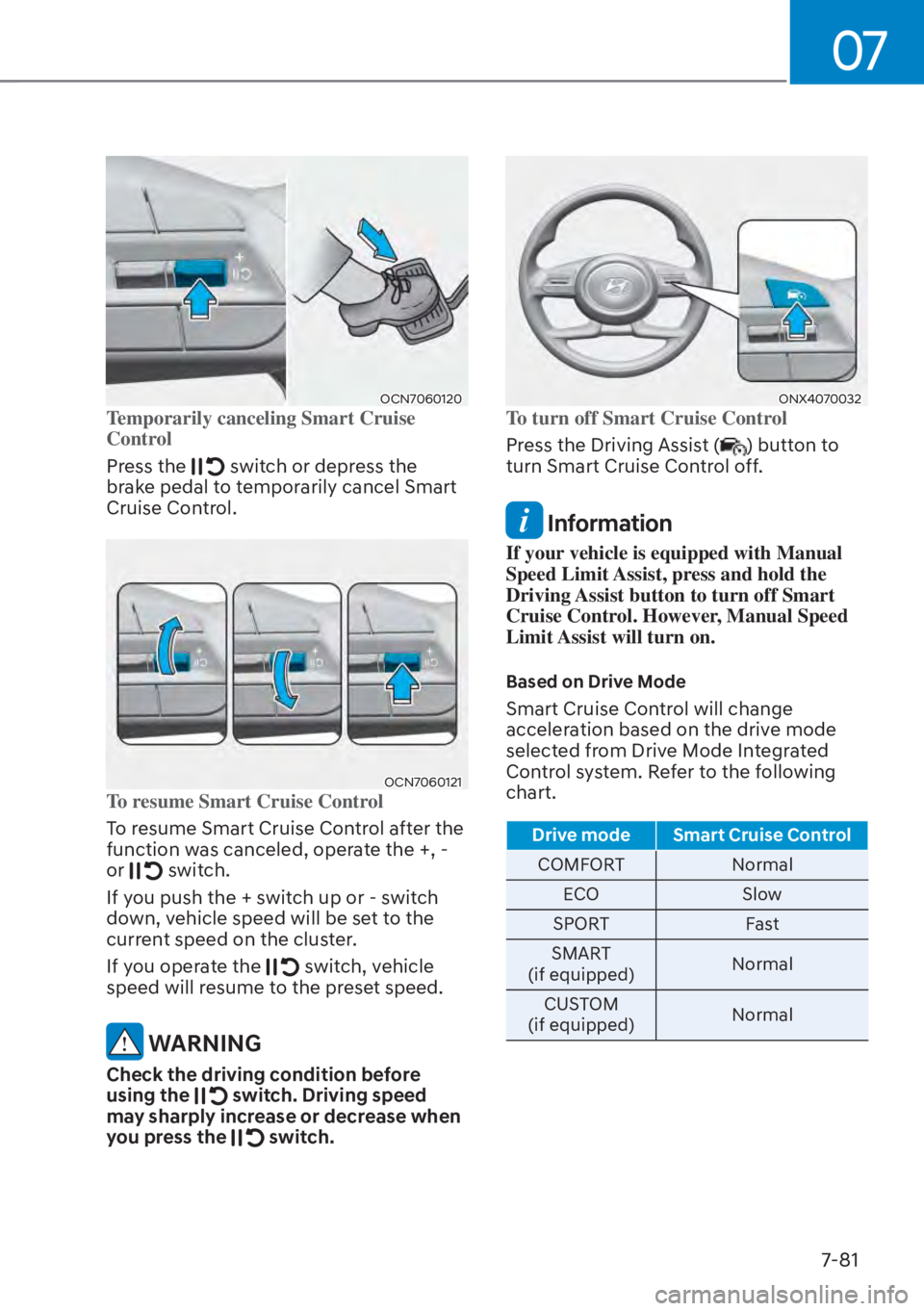

OCN7060120OCN7060120Temporarily canceling Smart Cruise
Control
Press the
switch or depress the
brake pedal to temporarily cancel Smart
Cruise Control.
OCN7060121OCN7060121To resume Smart Cruise Control
To resume Smart Cruise Control after the
function w
as canceled, operate the +, -
or
switch.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you operate the
switch, vehicle
speed will resume to the preset speed.
WARNING
Check the driving condition before
using the switch. Driving speed
may sharply increase or decrease when
you press the
switch.
ONX4070032ONX4070032To turn off Smart Cruise Control
Press the Driving Assist (
) button to
turn Smart Cruise Control off.
Information
If your vehicle is equipped with Manual
Speed Limit Assist, press and hold the
Driving Assist button to turn off Smart
Cruise Control. However, Manual Speed
Limit Assist will turn on.
Based on Drive Mode
Smart Cruise Control will change
acceleration based on the drive mode
selected from Drive Mode Integrated
Control system. Refer to the following
chart.
Drive mode Smart Cruise Control
COMFORT Normal
E
CO Slow
SPORT Fast
SMART
(if equipped) Normal
CUSTOM
(if equipped) Normal
